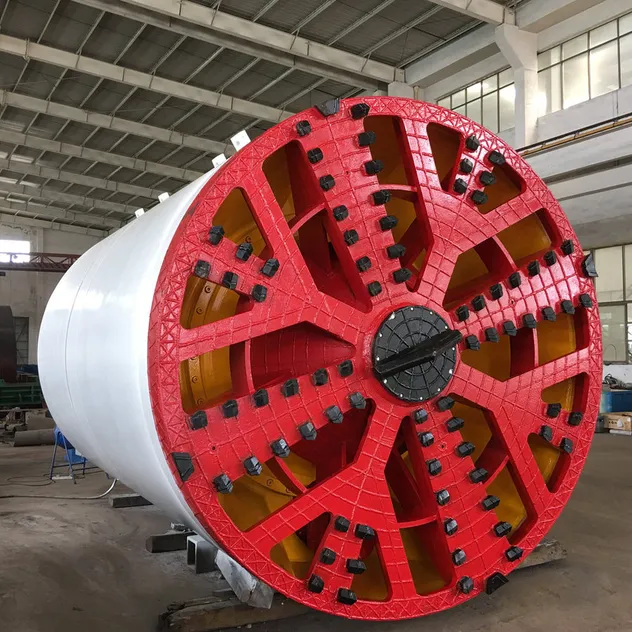

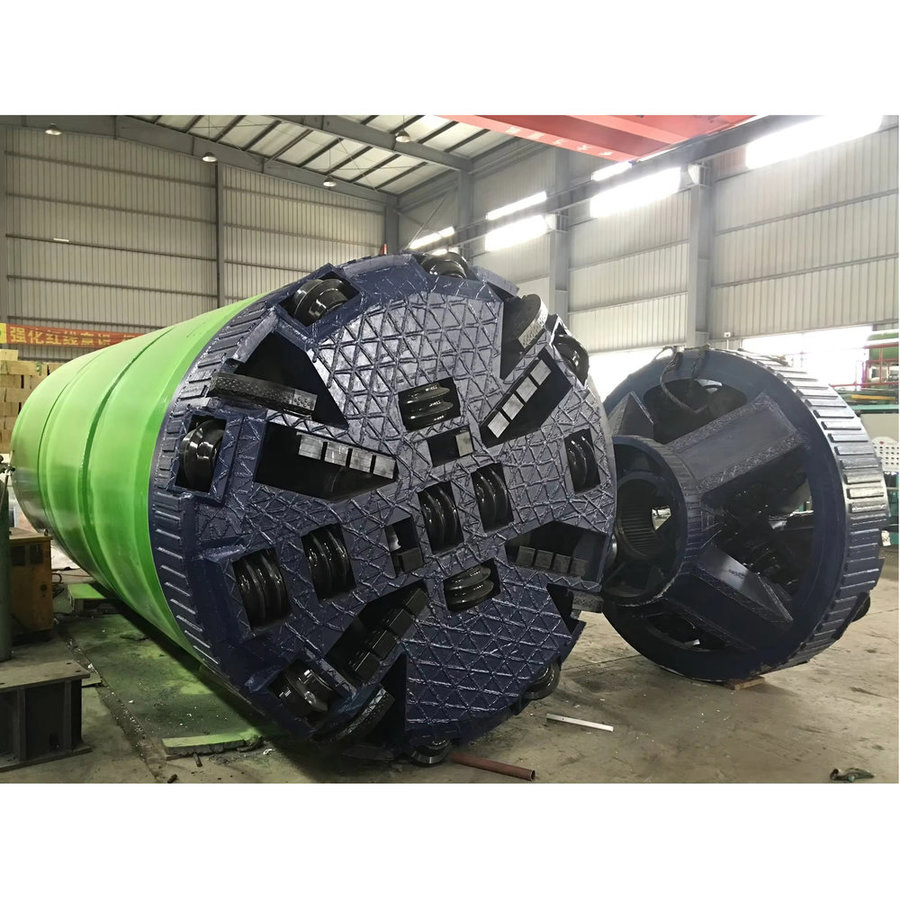

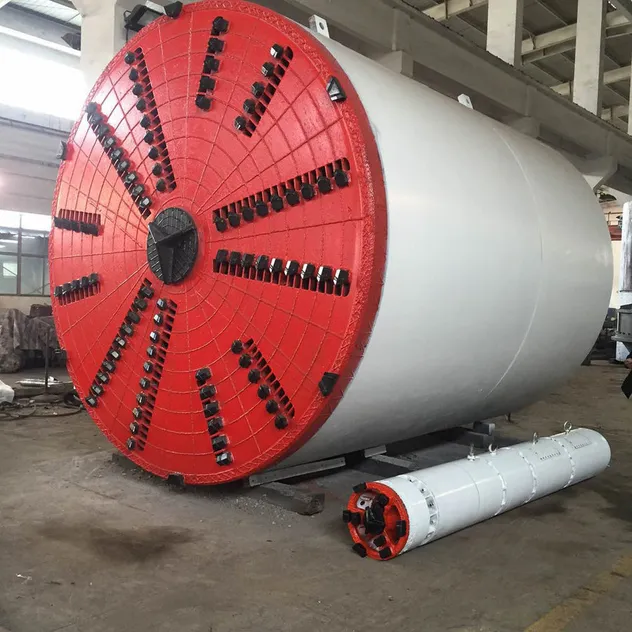

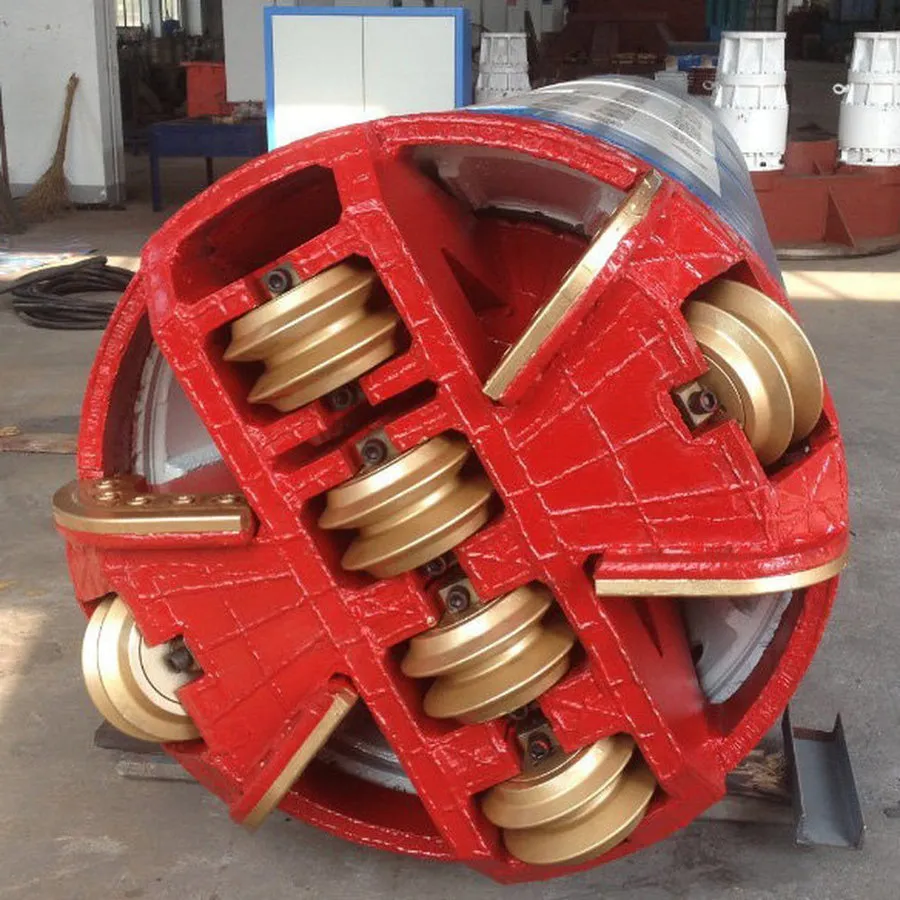

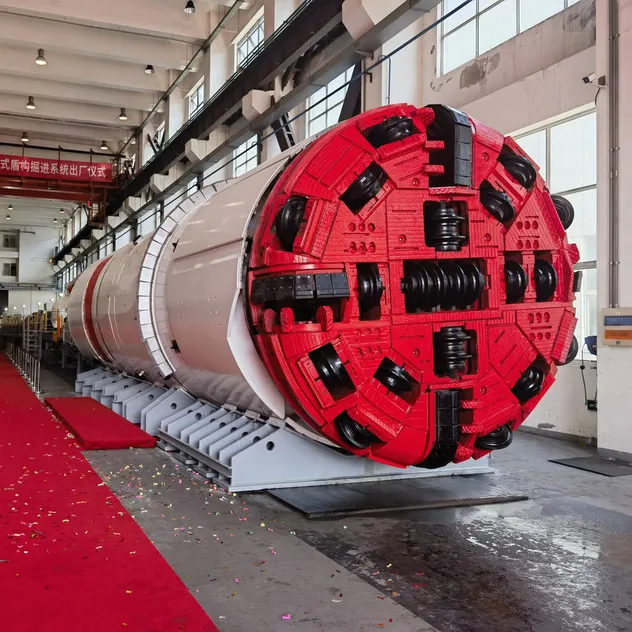

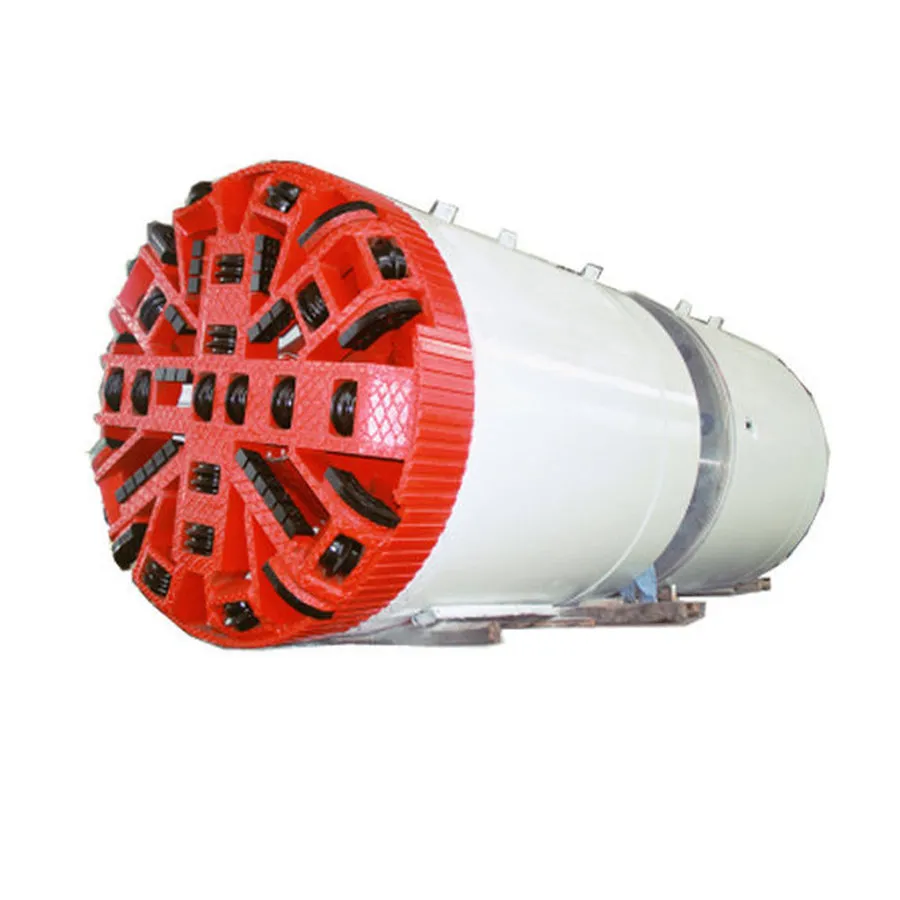

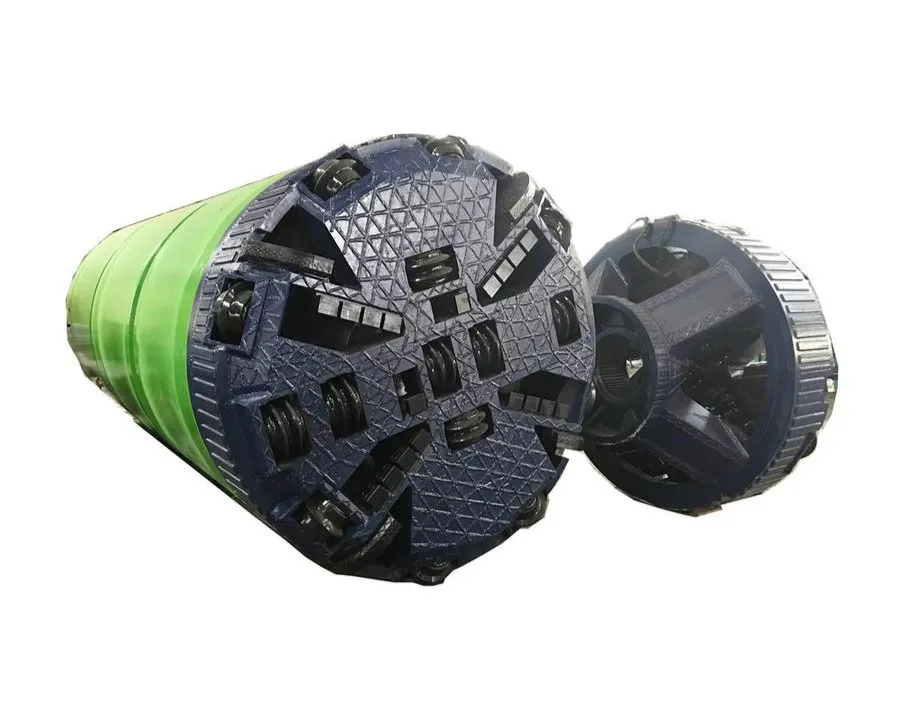

PIPE JACKING MACHINE
Small and medium-sized slurry balance pipe jacking machine is used in the construction of municipal small and medium-sized pipelines (sewage, water supply, power cable pipe, communication cable pipe, natural gas pipe, etc.).
The pipes are usually concrete pipe, steel pipe, glass fiber reinforced plastic sand pipe, which can be adapted to the construction under different geological conditions, such as soil, sand soil, pebble, and gravel with small particle size, and are suitable for straight or curved jacking distances of 100m-1000m.
KEY FEATURES
| TECHNICAL PARAMETERS | |
|---|---|
| Product Name | Trenchless Construction Equipment |
| Specification | DG2200-QNP |
| Torque | 471 kN·m |
| Usage | Sewage, Tunnel, Coal Mine Etc |
| Pipe Type | Concrete, Segmental, Steel, HDPE |
| Soil Type | Clay, Soil, Silt, Coal Mine |
| Curve Jacking | Yes, Experienced |
| Main Jacking System | Values | |
|---|---|---|
| System Performance | Jacking Speed | 0-80 mm/min |
| Work Pressure | 31.5 MPa | |
| Rated Jacking Force | 2000×8 kNm | |
| Total Power | 15KW+22KW | |
LOWER TOTAL PROJECT COSTS
Eliminate expensive road restoration and utility relocation. Requires only small entry and exit shafts, reducing material waste and labor requirements.
REMOTE-CONTROLLED OPERATION
Fully unmanned underground operation from surface stations. Eliminates risk of tunnel collapse injuries or toxic gas exposure.

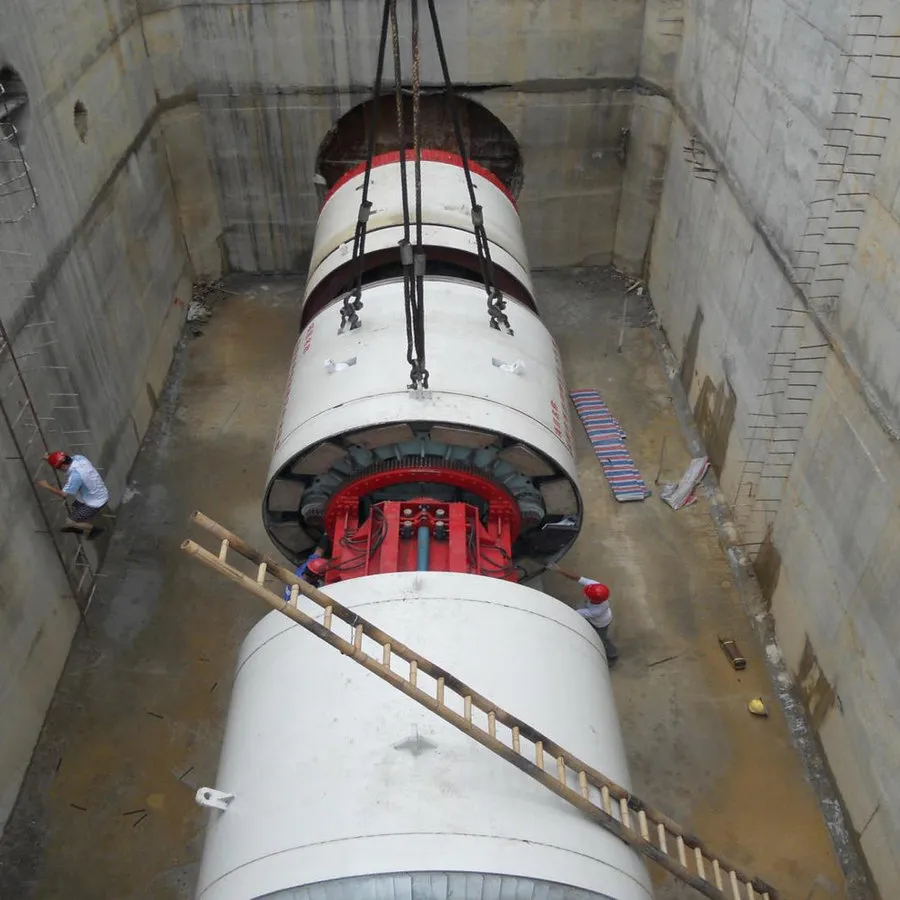

CONTINUOUS NON-STOP OPERATION
Automated slurry treatment and soil discharge enables round-the-clock operation without manual intervention.
