All-Around Monitoring System Construction Equipment

Customization:	Available
After-sales Service:	Yes
Warranty:	1year

Send Inquiry

Product Description

Basic Information

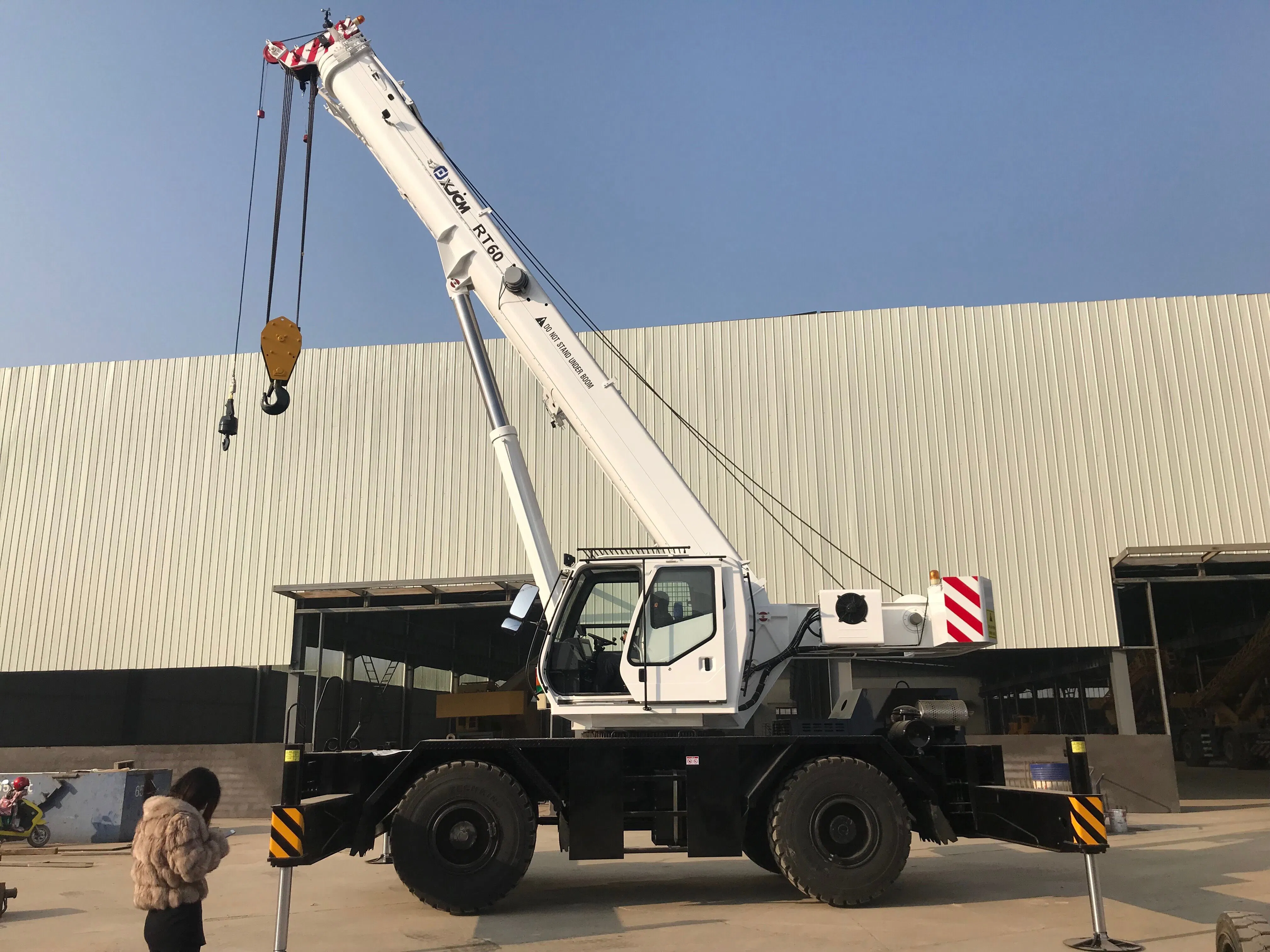

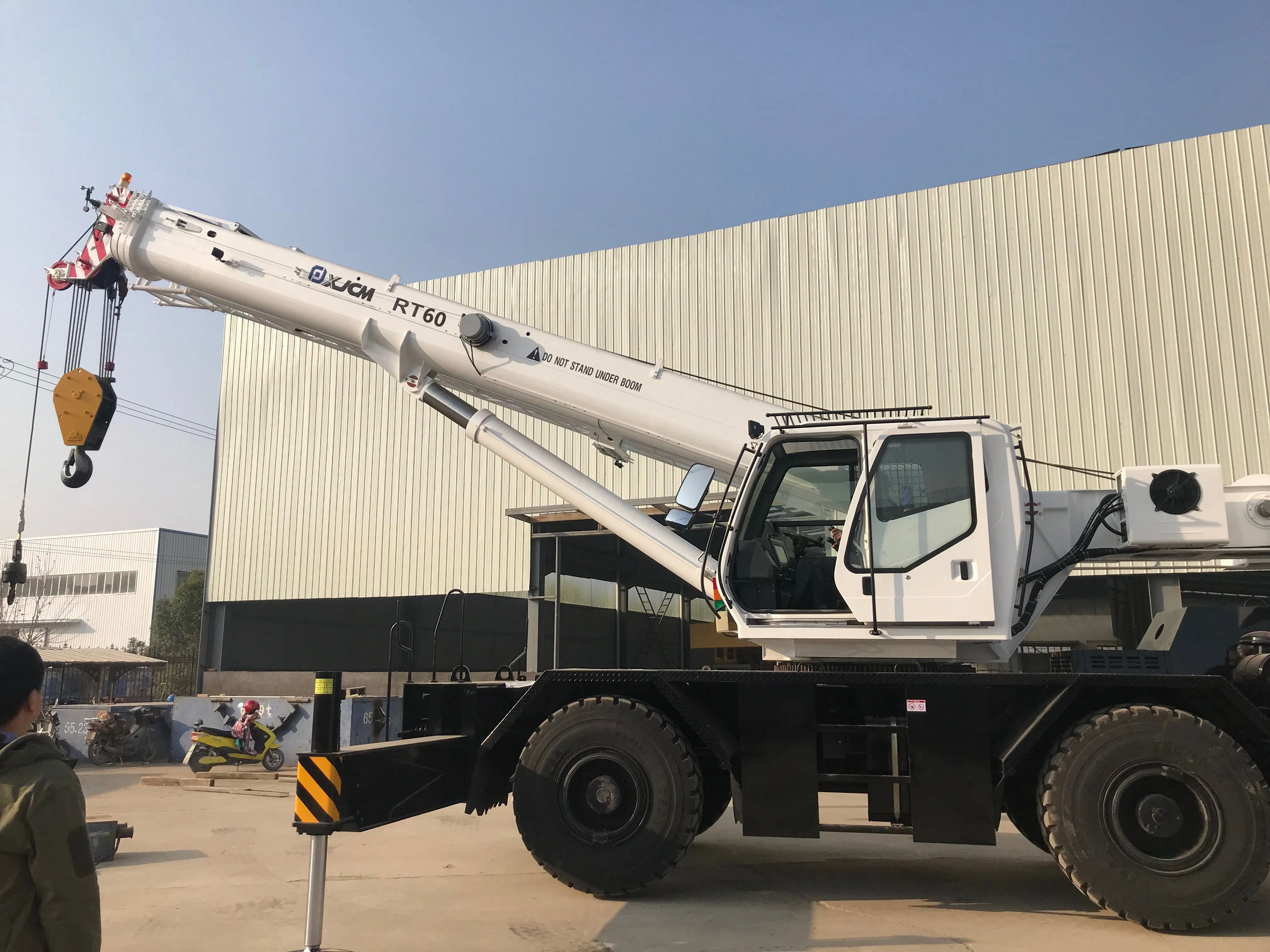

Model NO.

RT60

Certification

CE, ISO9001

Condition

New

Max Lifting Height

>40m

Max Lifting Weight

>16t

Shaft Number

Crane Jib

Five-Arm

Type

Telescopic Boom

Engine Brand

Dongfeng Cummins/China

Axle Brand

Kessler Germany

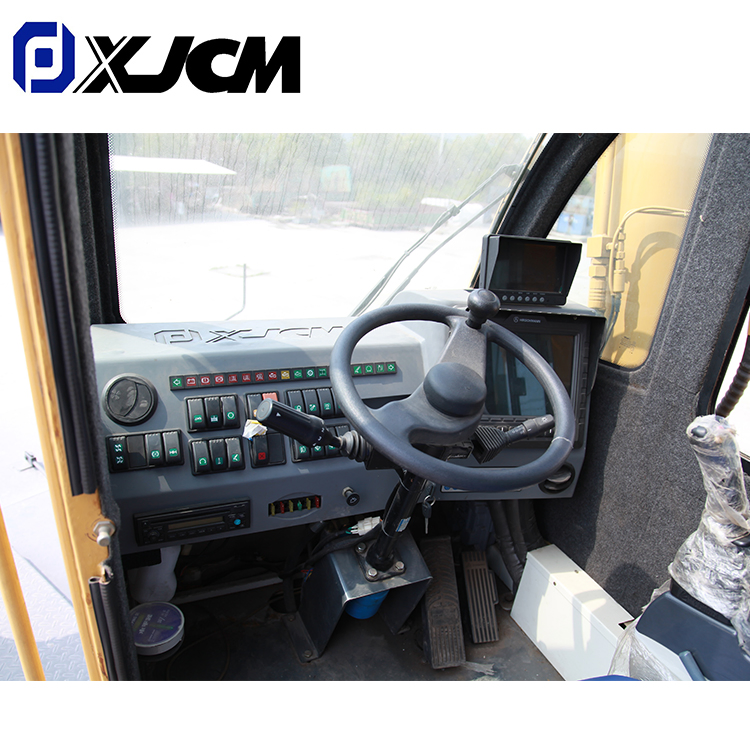

Monitor System

All-Around Monitoring System

Break Mode

Full Hydraulic Disc Brake

Wheel

Four Wheel

Manipulating

Electro-Hydraulic Proportional Control

Origin

China

HS Code

8426411000

Product Description

RT Series Rough Terrain Mobile Crane Highlights:

Travel with Load
Boasts lifting performance comparable to truck and crawler cranes, operating with outriggers or traveling with load.

Strong Gradeability
Equipped for demanding terrains with a maximum gradeability of 30°.

Dynamic Performance
Four-wheel drive, hydraulic torque converter, and large transmission ratio for superior off-road capability.

Electric 4-Wheel Steering
Various steering types and two-way driving for mobility in narrow sites and small turning radius.

Category	Item		unit	RT10	RT25	RT30	RT35	RT50	RT55
Outline Dimensions	Overall length		mm	10121	12000	11680	12600	12880	12110
	Overall width		mm	2400	2750	3080	3060	3080	3397
	Overall height		mm	3100	3650	3690	3780	3625	3730
Weight	Machine weight (driving)		Kg	12500	26400	27700	28980	36140	43000
Engine	Rated output		Kw/rpm	92/2200	140/2200	169/2500	169/2500	198/2500	198/2500
Performance	Boom length	Base boom	m	7.9	9.9	9.18	10	10.25	9.6
		Extended boom	m	24.6	31.2	27.78	31.2	32	35
		Extended + Jib	m	-	31.2+7.3	27.78+7.32	31.2+7.3	32+15	35+15

Rough Terrain Crane Construction Equipment

Available Models: RT10, RT20, RT25, RT30, RT35, RT50, RT55, RT60, RT70, RT75, RT80, RT100, RT130, RT160, and RT220.

Frequently Asked Questions

Is the company a manufacturer or a trading firm?

We are a specialized manufacturer of rough terrain mobile cranes.

What is the standard warranty period for these cranes?

We provide a comprehensive 12-month after-sales service warranty period.

What is the Minimum Order Quantity (MOQ)?

The Minimum Order Quantity is 1 piece.

How long does delivery typically take?

Delivery time depends on current stock status. Please send an inquiry to confirm specific timelines.

Can these cranes operate on difficult terrains?

Yes, the RT series features four-wheel drive technology and 30° gradeability specifically designed for exceptional off-road performance.

What steering modes are available for narrow sites?

The equipment utilizes electric control four-wheel steering technology, providing multiple steering types and a small turning radius for efficient operation in confined spaces.
