Method
Biological Treatment
Usage
Industrial, Home, Agriculture, Hospital, Urban
Material
Carbon Steel, Stain Steel, FRP, PE, PP

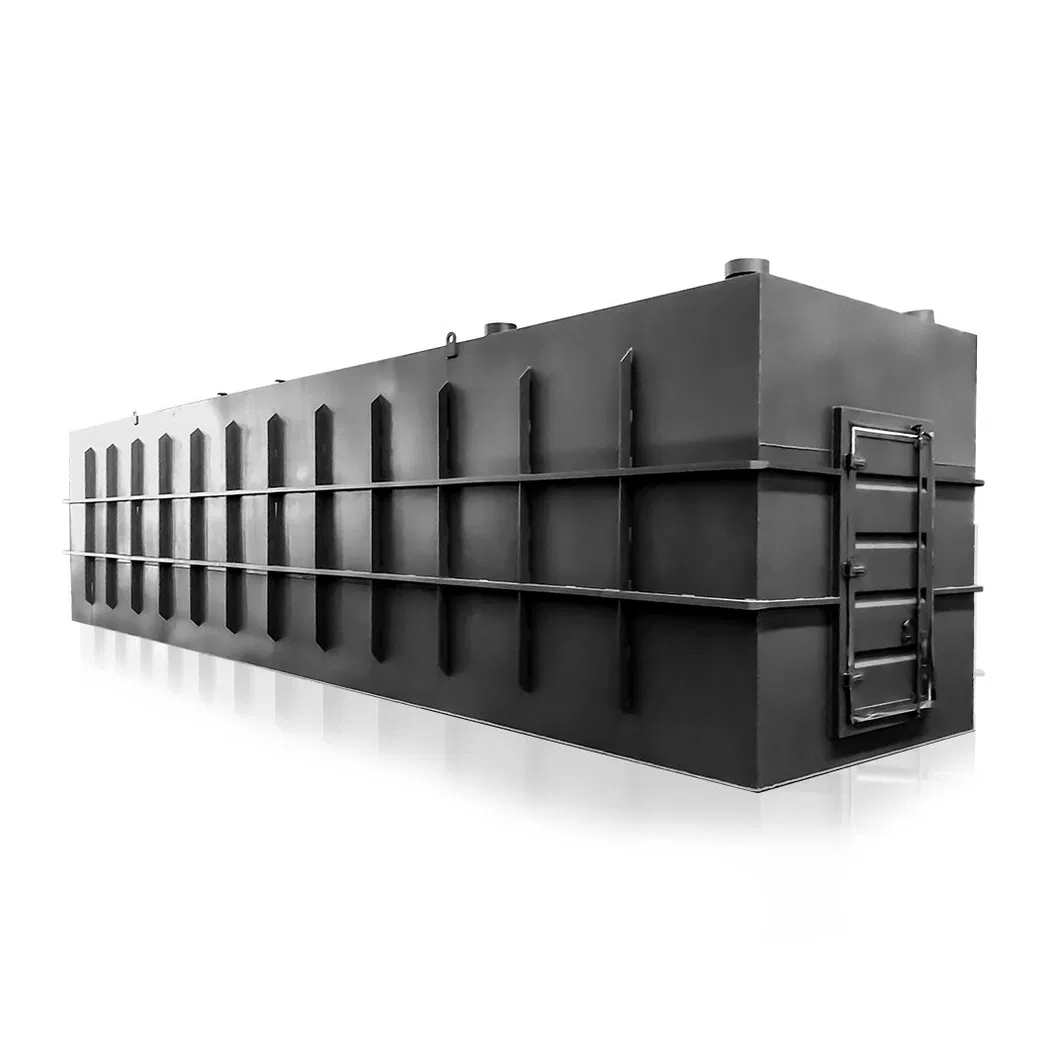

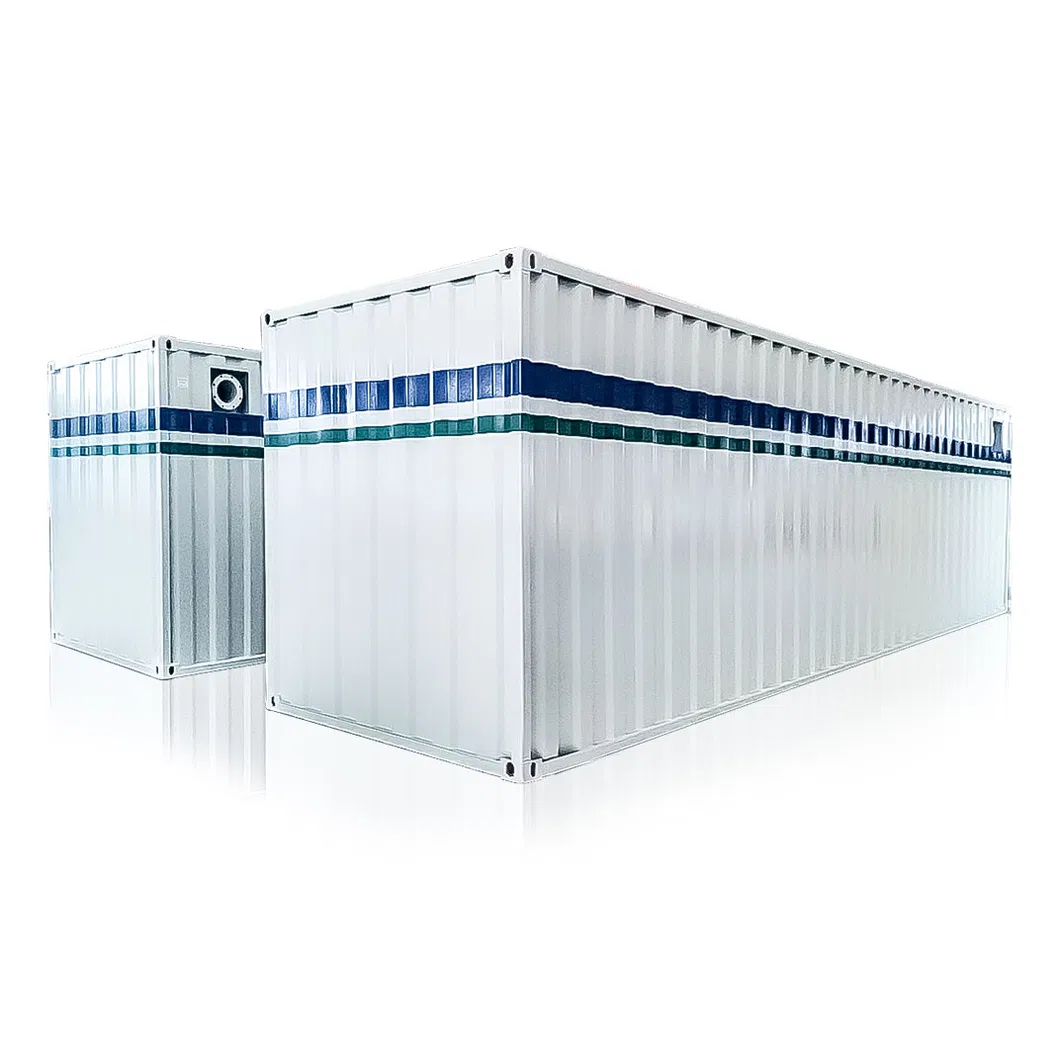

The package sewage treatment plant is used to fill the gap between individual septic type systems and large municipal plants. They are used to provide sewage treatment for subdivisions, mobile home parks, schools, recreational parks, nursing homes, factories and other commercial businesses in outlying areas without municipal sewer facilities.
✓

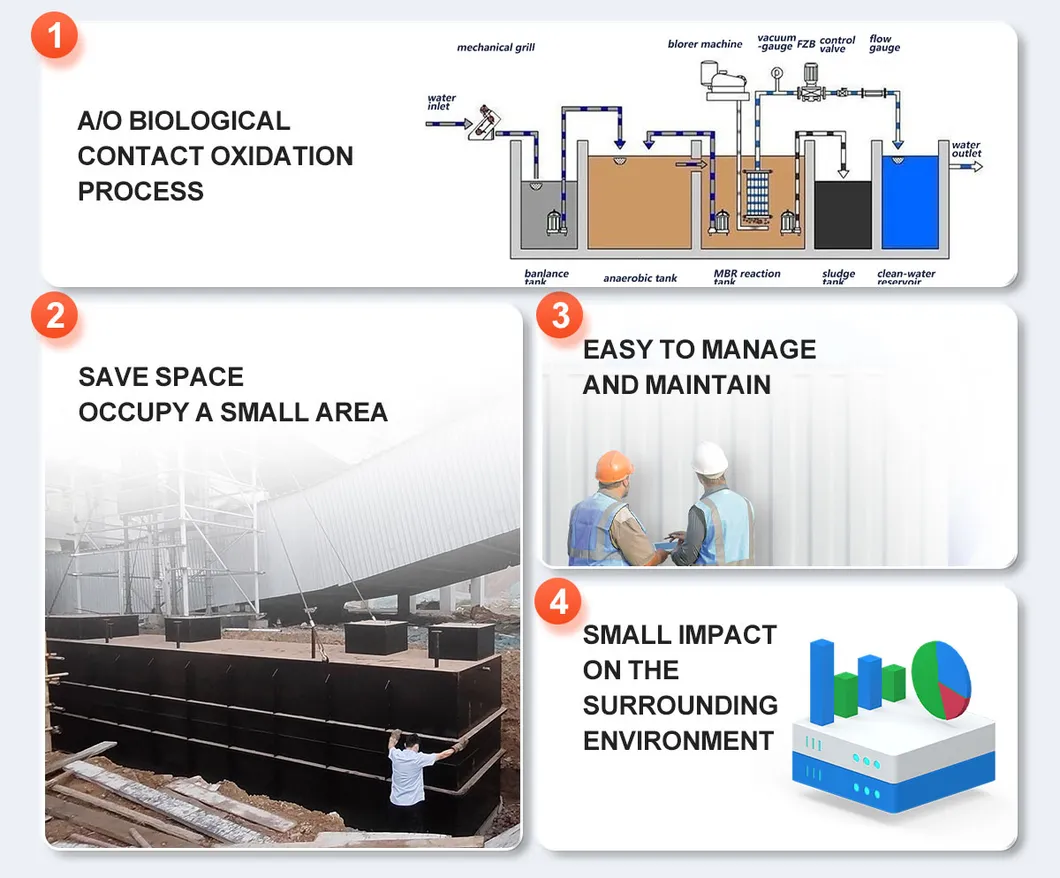

Advanced Process: A/O biological contact oxidation process with elastic three-dimensional fillers for high microbial activity and quick organic removal.
✓
Space Saving: The filler specific surface area is 16-20 times that of ordinary solid fillers, significantly reducing the footprint.
✓

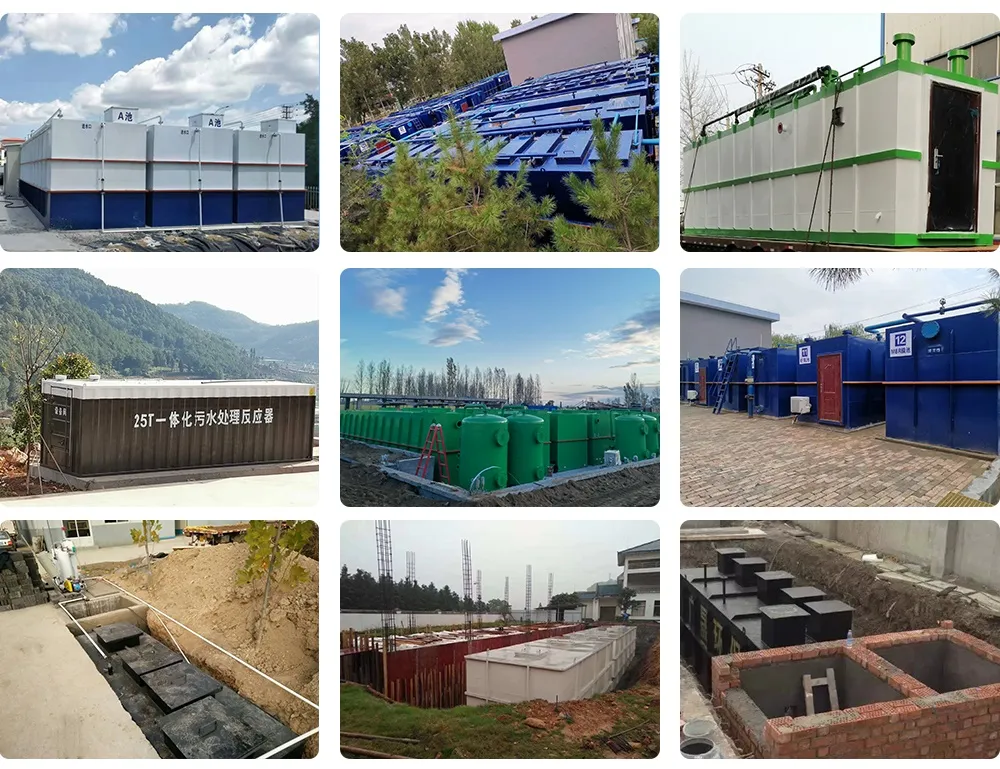

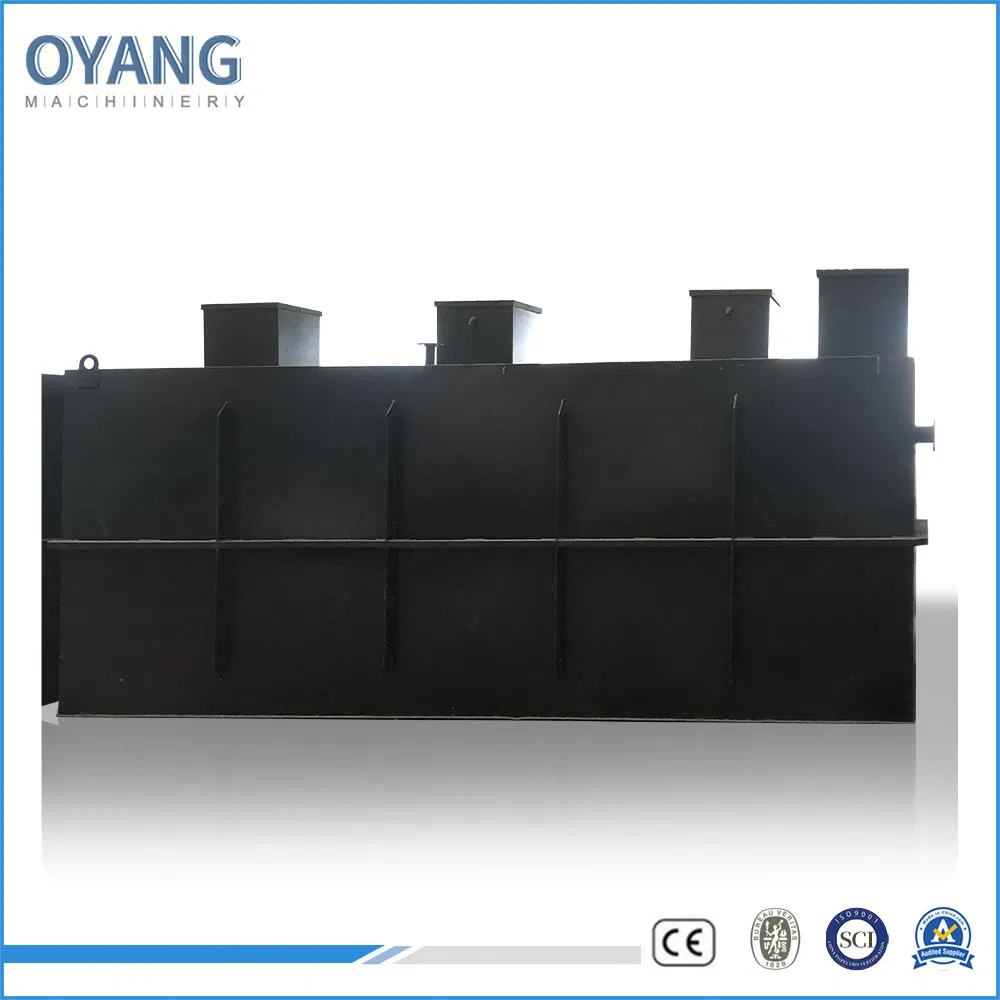

Flexible Installation: Equipment can be buried underground, requiring no housing or heat preservation; surface can be greened.
✓
Low Maintenance: Designed for easy management with minimal impact on the surrounding environment.

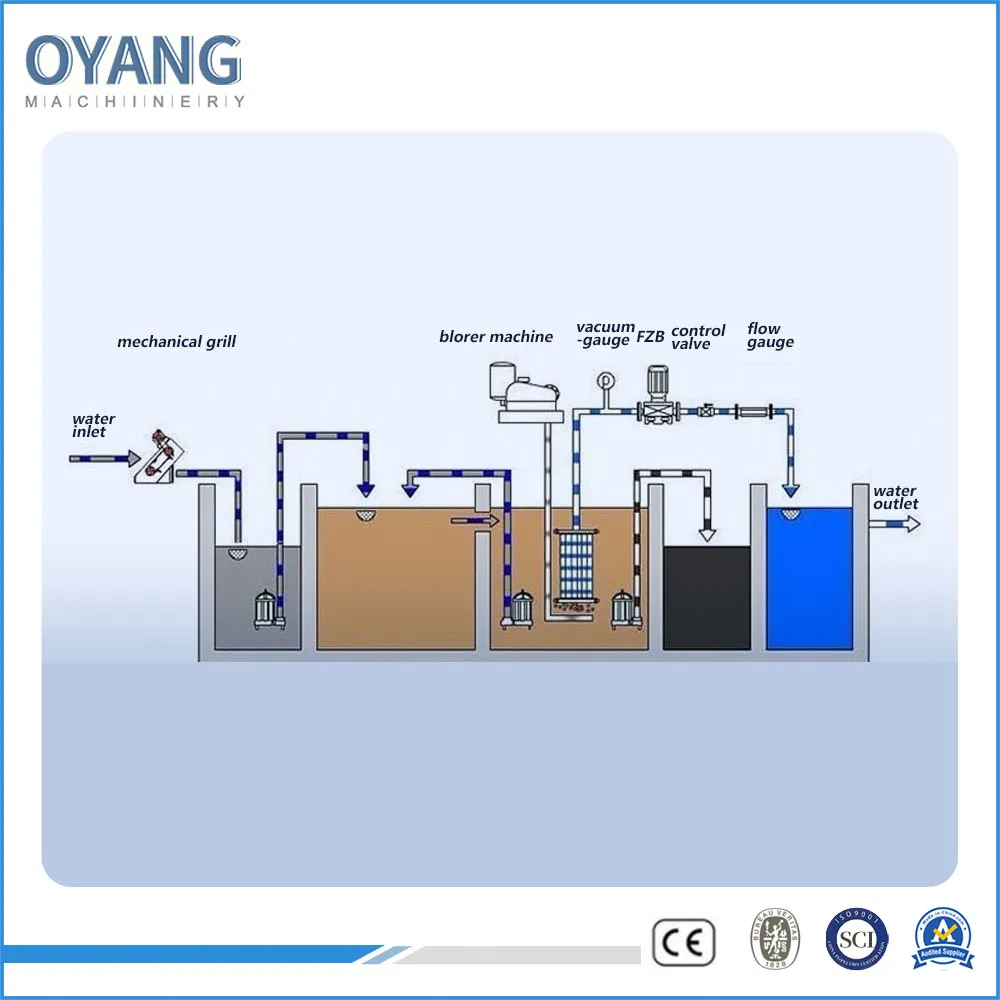

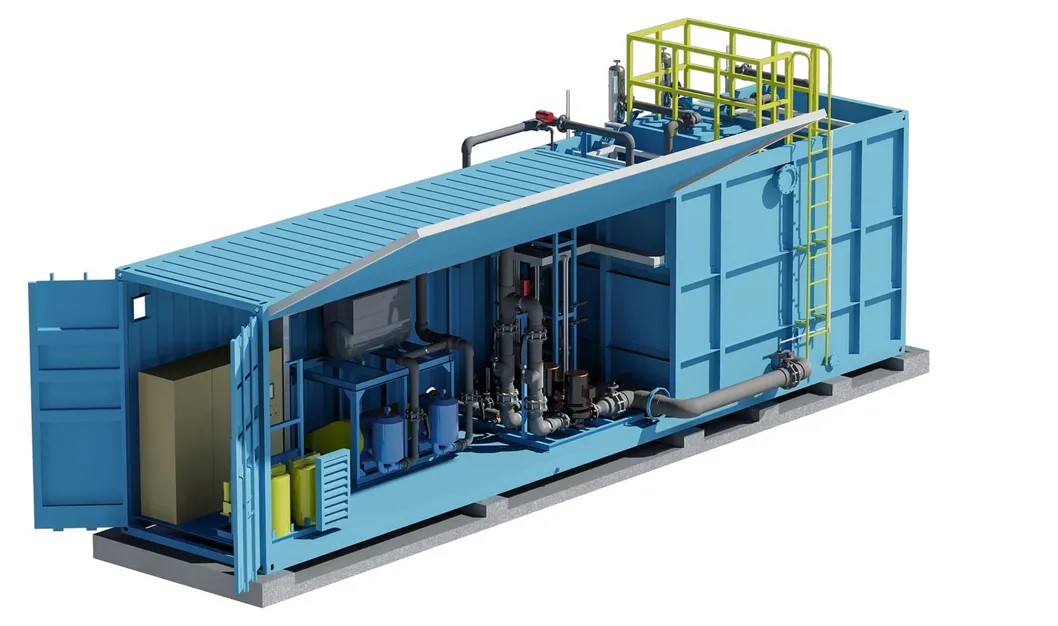

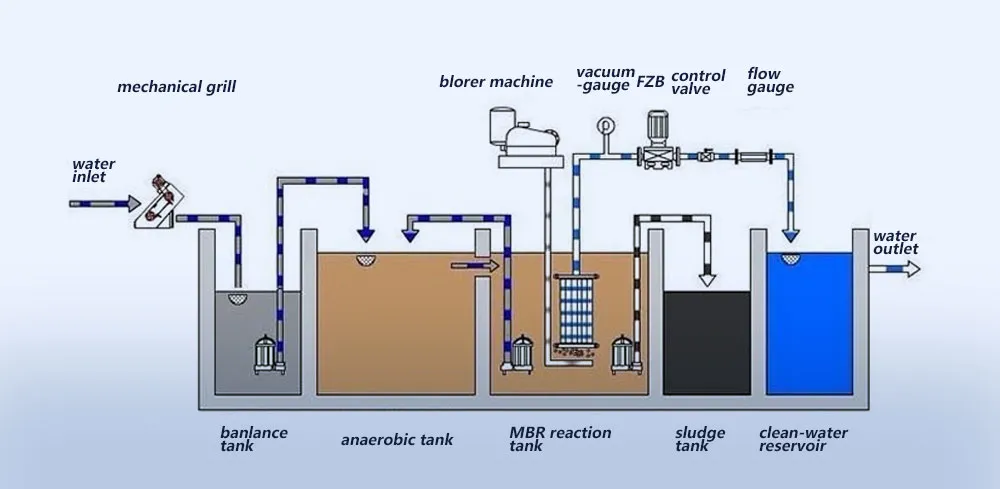

By replacing the secondary sedimentation tank with membrane modules, the system maintains a high concentration of activated sludge (8000~10,000mg/L). This increases organic load capacity, reduces the physical footprint, and extends sludge age (SRT) to more than 30 days, resulting in lower residual sludge production.
| Model |
Capacity (m³/h) |
Fan Air Vol |
Wind Pressure |
Power (kW) |
Pump Lift |
Area (㎡) |
| WSZ1 | 1 | 0.31 | 5000 | 0.55 | 8 | 6 |
| WSZ3 | 3 | 0.67 | 5000 | 1.5 | 8 | 14 |
| WSZ5 | 5 | 1.02 | 5000 | 1.5 | 8 | 19 |
| WSZ10 | 10 | 2.5 | 5000 | 3.7 | 8 | 39 |
| WSZ20 | 20 | 4.11 | 5000 | 5.5 | 8 | 75 |
| WSZ50 | 50 | 4.11x3 | 5000 | 5.5x3 | 8 | 168 |
Certifications
Manufacturing Capability

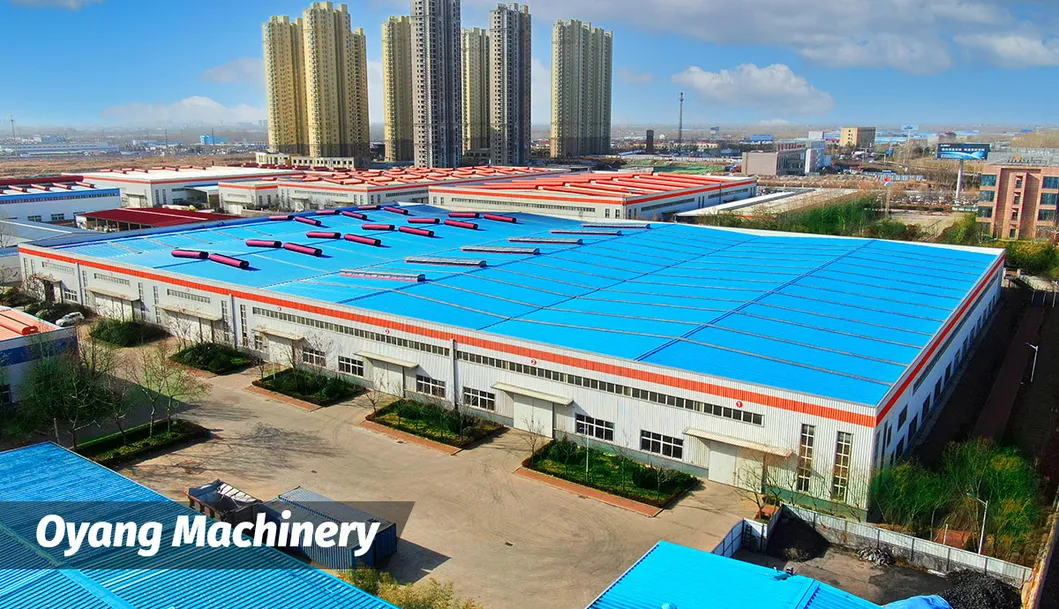

Our workshop area spans 20,000 square meters with rich expertise in sewage treatment solutions. We specialize in integrated sewage treatment equipment, air flotation machines, industrial sewage systems, and sludge dewatering machinery. Our products are widely utilized in industrial enterprises, living quarters, food processing, petrochemicals, papermaking, and medical sectors.
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a specialized manufacturer of wastewater treatment plants with over 10 years of experience.
2. How do I handle the import process for the first time?
We assist with the entire process. We work with professional shipping agents who provide customs clearance and transportation services from the destination port to your warehouse.
3. Can you accept customized requirements?
Yes, we have professional engineers to design and provide customized services tailored to your specific needs.
4. Do you provide OEM services?
Yes, we provide both OEM and ODM services.
5. Do you offer after-sales service?
Yes, we provide after-sales support and have engineers available for assistance.
