Earthmoving Machinery Brand Cater Technology Diesel Wheel Loader World-Class Hydraulic System 655f

Customization: Available
After-sales Service: Provide
Warranty: 1 Year

Product Description

📊 Basic Information
Model NO.
655F
Certification
TUV, ISO, RoHS, CE
Condition
New
Rated Load
3-6t
Transmission
Hydraulic
Operating Weight
16,800kg
Bucket Capacity
2.7-4.5m³
Breakout Force
177kN
Engine Model
Wd10g220e23
Rated Power
162kw
Rated Speed
2,000r/Min
HS Code
8429510000
🏗️ Product Description

Earthmoving machinery Brand cater technology diesel wheel loader world-class hydraulic system 655F

Main Specifications
ModelSEM655D Weichai
Rated Payload5,000kg
Operating Weight16,800kg
Bucket Capacity2.7-4.5m³
Breakout Force168kN
Transmission GearsF4/R4
Max Speed39km/hr
⚙️ Key Features

Efficient Hydraulic System

  • Single pump flow shared system.
  • More efficiency and a larger breakout force
  • Perfect match between machine speed and hydraulic system to achieve high efficiency
  • Joystick hydraulic control for easy and precise control

Reliable Engine Performance

  • The air cleaner provides machine reliability even in the most severe application

Advanced Operator Station

  • Premium operator station with big space and superior visibility
  • Patented MAC mount provides less noise and more comfort
  • Adjustable suspension seat
  • Sliding side window and AC with fresh air circulation
  • Single lever shifting is flexible and convenient

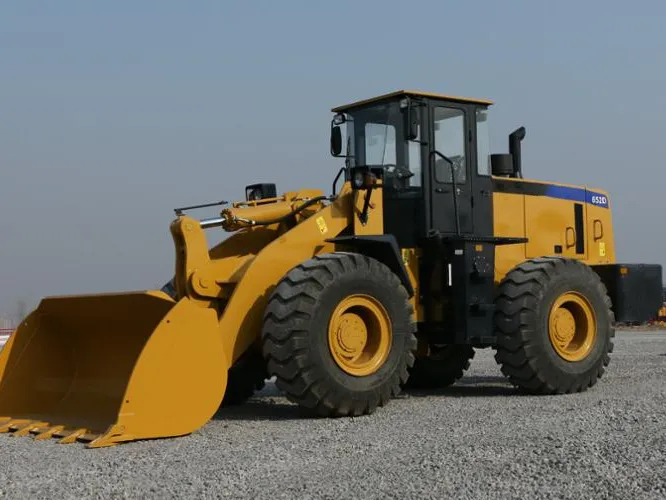

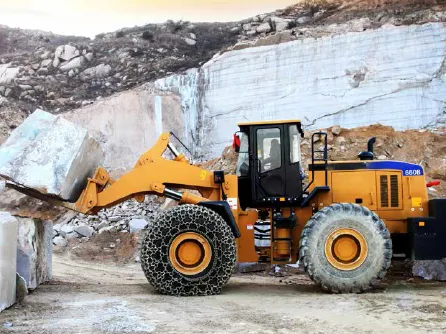

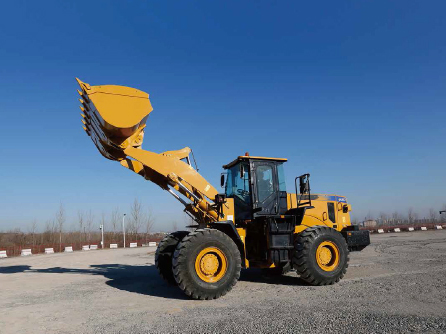

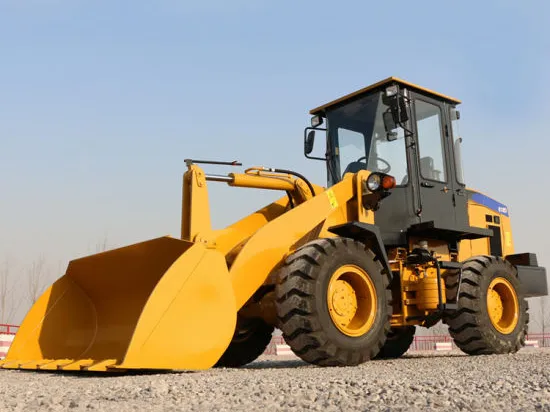

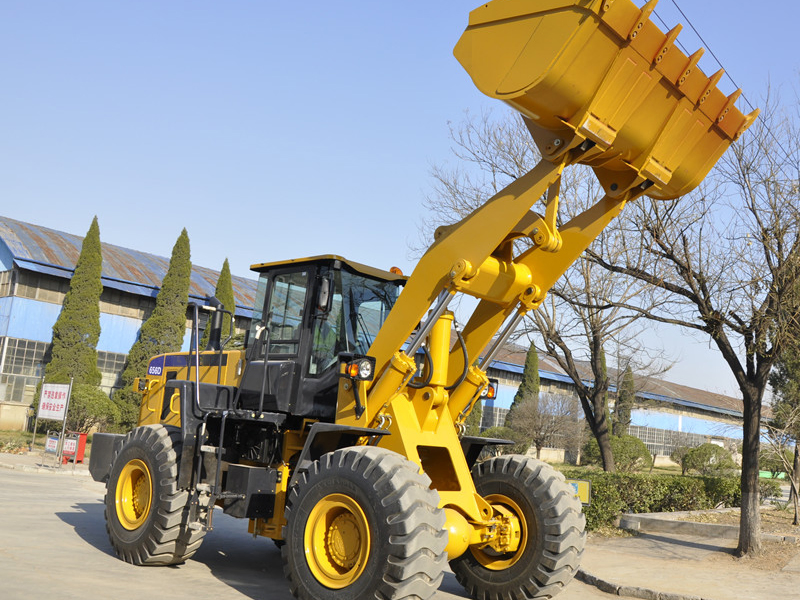

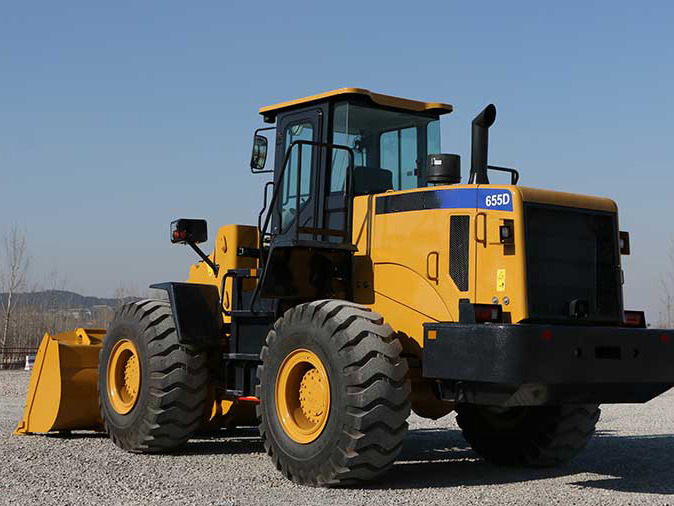

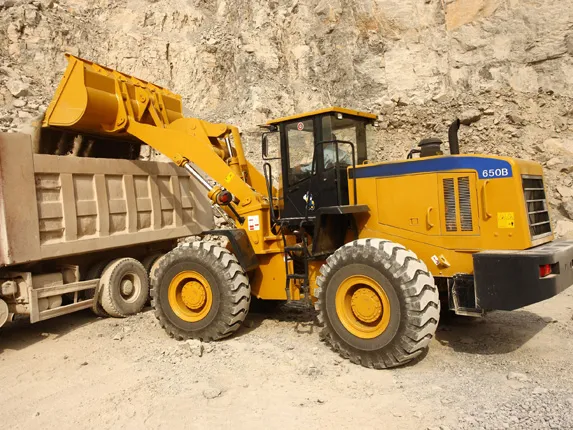

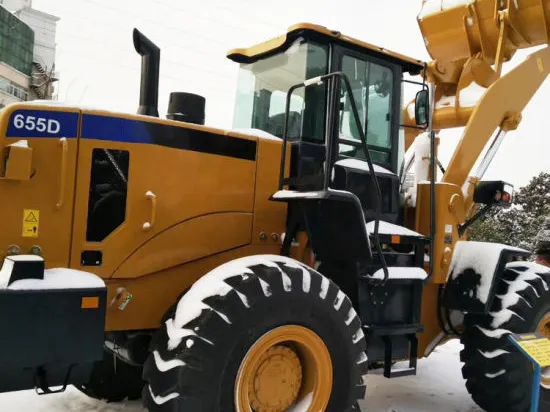

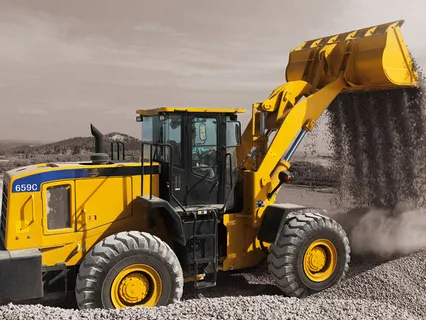

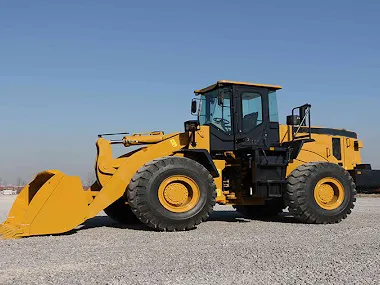

📸 Detailed Photos
📋 Product Parameters
Engine Details
Engine ModelWD10G220E23
Rated Power162kW
Rated Speed2,000r/min
Displacement9.7L
Hydraulic System
Implement System TypeOpen center
Hydraulic Cycle Time9.3s
System Pressure Setting17Mpa
Capacity & Dimensions
Fuel Tank260L
Hydraulic System170L
Tire Size23.5-25
🏢 Company Profile
Production Facility

We are a top package equipment solution provider, especially for construction machinery, heavy industrial equipment, and vehicles. We represent high-quality machinery brands and also export famous international brands. We are always committed to offering our customers high-quality products with reliable performance, competitive prices, and comprehensive services, to ensure every engineering project runs smoothly on schedule.

With extensive experience in the field of engineering industry and adhering strictly to ISO 9001:2008 standards, we have established consistent business relationships with general contractors, civil engineering firms, and construction companies throughout the world. Our projects include airport developments, power plants, dredging projects, and highway constructions across Africa, the Middle East, South America, Oceania, and Southeast Asia.

Frequently Asked Questions
1. What is the rated payload of the 655F wheel loader?
The rated payload of the 655F model is 5,000kg, making it suitable for heavy-duty earthmoving tasks.
2. Which engine is equipped in this loader?
The 655F wheel loader is equipped with a high-performance Weichai WD10G engine, providing 162kW of power at 2,000 r/min.
3. What type of hydraulic system does the 655F use?
It features a world-class single pump flow shared hydraulic system (Twin Pump Flow Merging) for improved efficiency and larger breakout force.
4. Is the operator cabin designed for long-term comfort?
Yes, it includes a premium operator station with superior visibility, an adjustable suspension seat, AC with fresh air circulation, and patented MAC mounts to reduce noise.
5. What are the transmission capabilities?
The machine uses a hydraulic transmission system with F4/R4 gears, allowing for a maximum speed of up to 39km/hr.
6. What certifications does this equipment hold?
The equipment is manufactured under strict quality standards and holds TUV, ISO, RoHS, and CE certifications.
