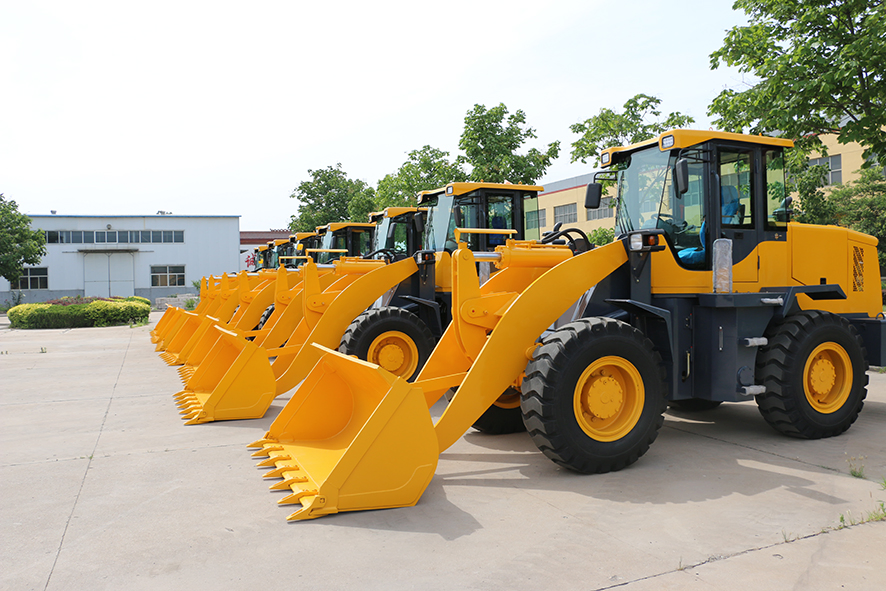

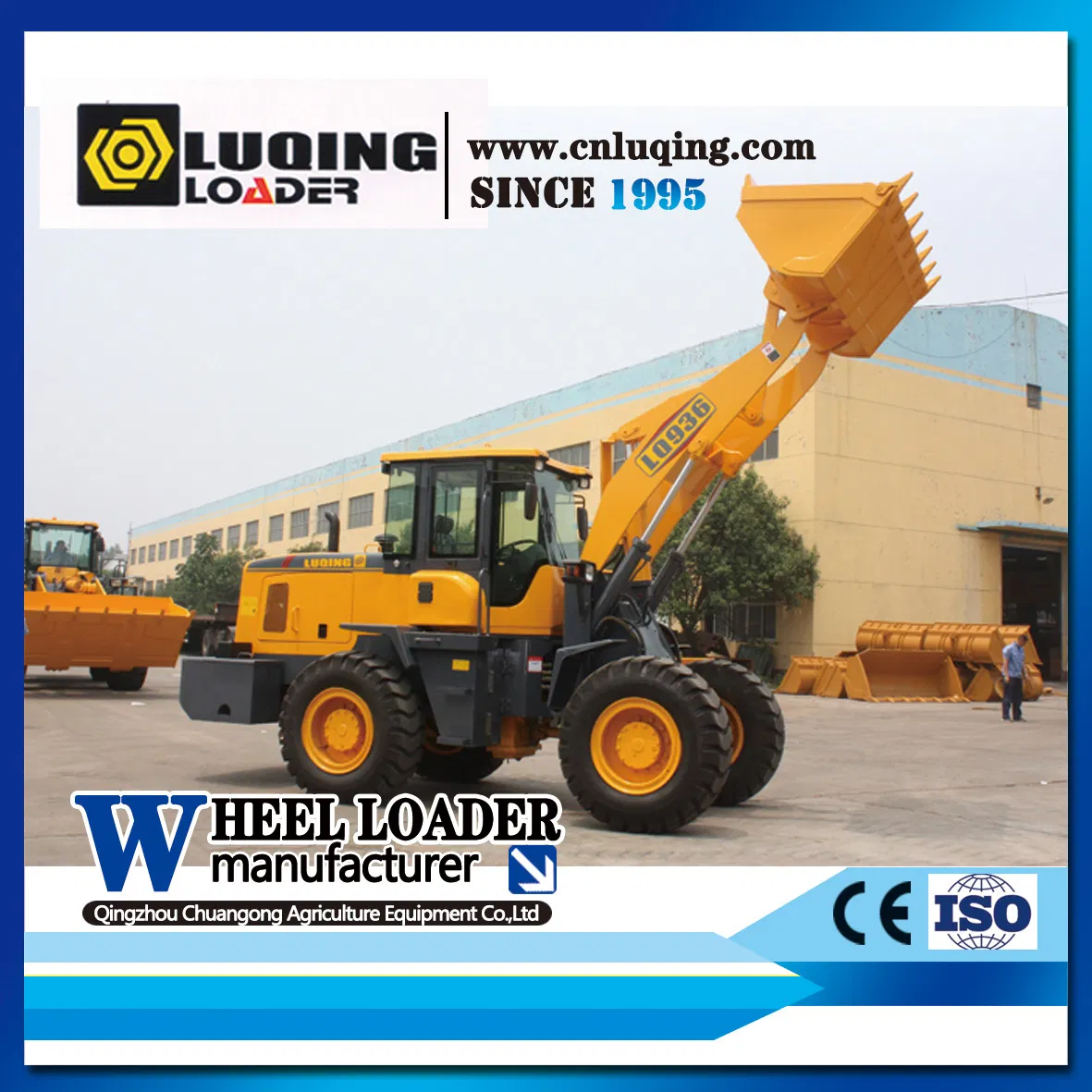

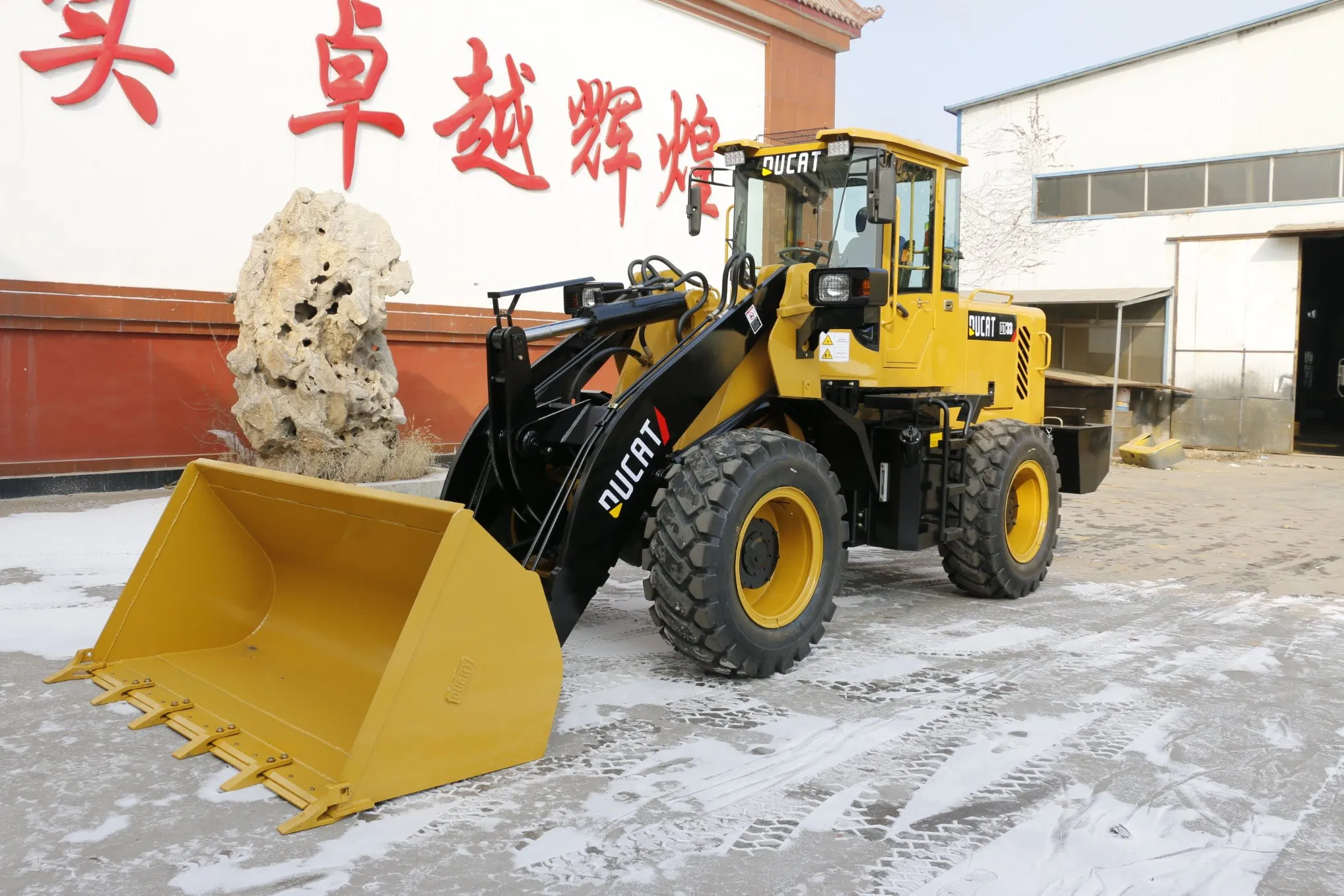

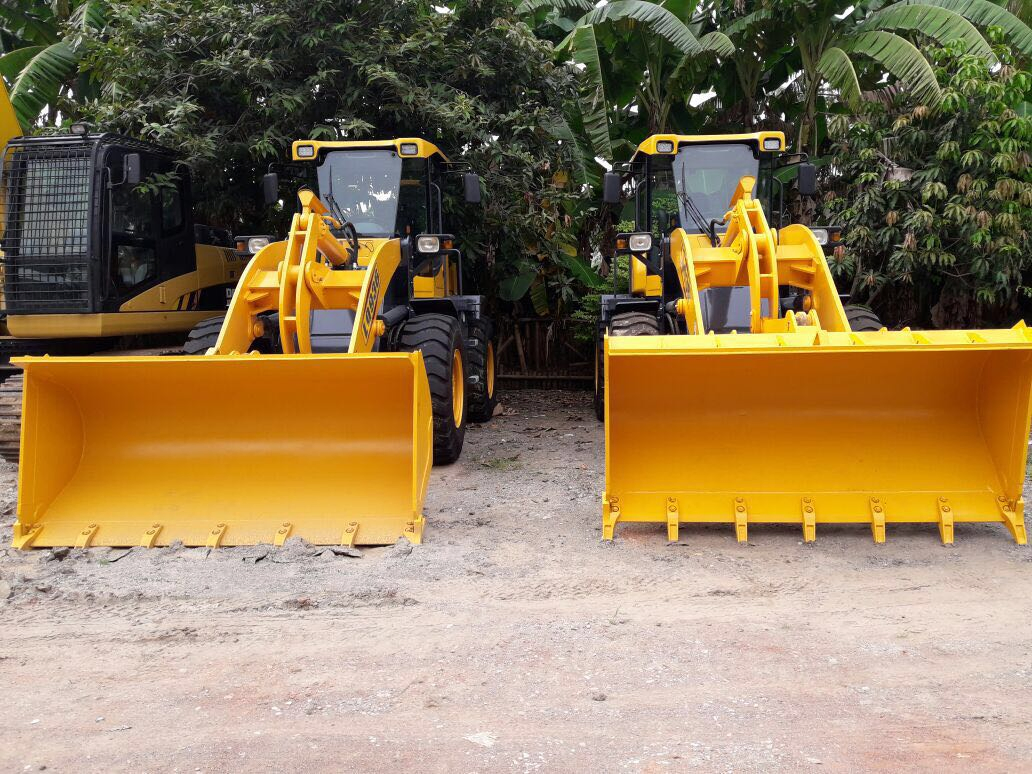

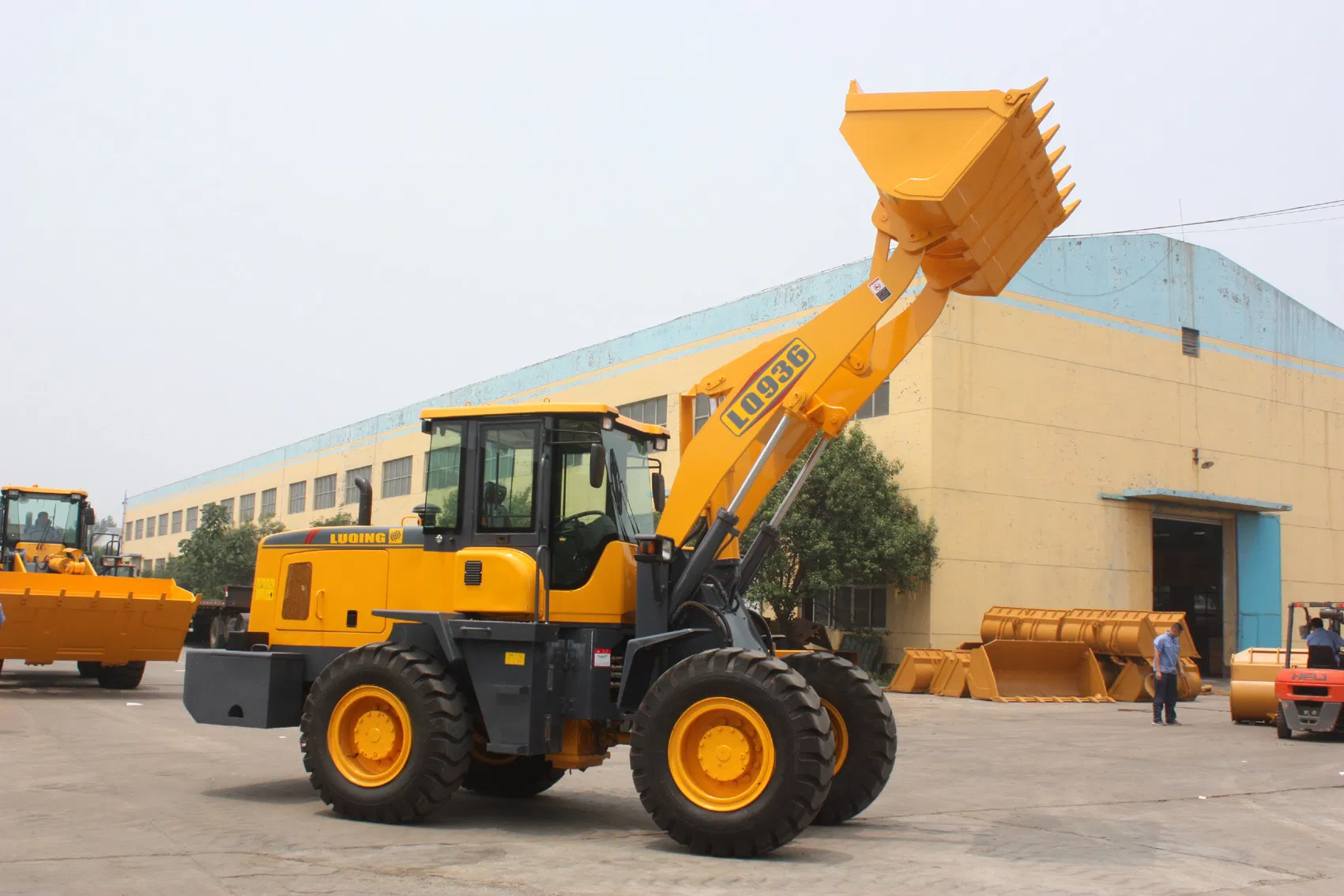

China 3ton Lq936 Construction Machinery Wheel Loader with Cummins Engine
China 3ton Lq936 Construction Machinery Wheel Loader with Cummins Engine
China 3ton Lq936 Construction Machinery Wheel Loader with Cummins Engine
China 3ton Lq936 Construction Machinery Wheel Loader with Cummins Engine
China 3ton Lq936 Construction Machinery Wheel Loader with Cummins Engine
1 / 5
China 3ton Lq936 Construction Machinery Wheel Loader with Cummins Engine
China 3ton Lq936 Construction Machinery Wheel Loader with Cummins Engine
China 3ton Lq936 Construction Machinery Wheel Loader with Cummins Engine
China 3ton Lq936 Construction Machinery Wheel Loader with Cummins Engine
China 3ton Lq936 Construction Machinery Wheel Loader with Cummins Engine

China 3ton Lq936 Construction Machinery Wheel Loader with Cummins Engine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Type
Universal Type
Transmission
Hydraulic - Mechanical
Walking Mode
Wheeled
Load/Unload
Front Discharge
Engine Power
92kw / 85KW
Certification
CE, ISO9001: 2000
Bucket Capacity
1.7cbm or Customized
Operating Weight
9500kg
Dumping Height
3200mm / 4500mm
Dimensions
7100*2430*3120mm
Tire Size
17.5-25 (20 Ply)
HS Code
84295100

Product Features

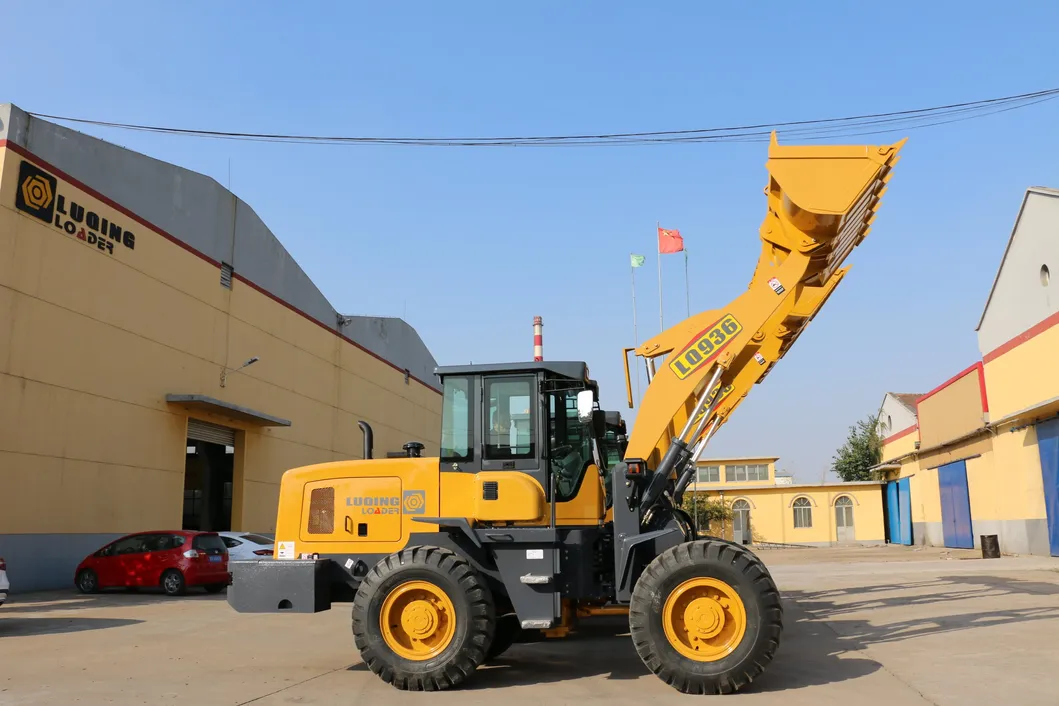

Wheel Loader LQ936
Wheel Loader --- LQ936
  • Latest generation design ensuring high reliability and productivity.
  • Optional engines: WEICHAI DEUTZ, YUCHAI, or Cummins - powerful and reliable.
  • Torque converter and counter-shaft transmission gearbox using Komatsu technology.
  • Heavy-duty driving Axle utilizing Meritor technology.
  • Fully hydraulic steering system with hydro-electrical transmission joy stick pilot control.
  • Automatic bucket leveling and optimized working device for higher productivity.
  • Comfortable new design cabin with optional air-conditioning.
  • Versatile attachments available: log clamp, pipe clamp, grass fork, snow plow, ore bucket, and more.

Technical Specifications

Rated weight3000Kg
Rated capacity1.70m³
Operating weight9500Kg
Model of engineWEICHAI DEUTZ WP6G125E22
Rated power85KW / 2200r/min
Dump height3200mm
Dump distance1200mm
Wheel base2650mm
Max. breakout force138KN
Min. turning radius5700mm
Total Cycle Time11s (Lifting/Lowering/Unloading)

Detailed Components

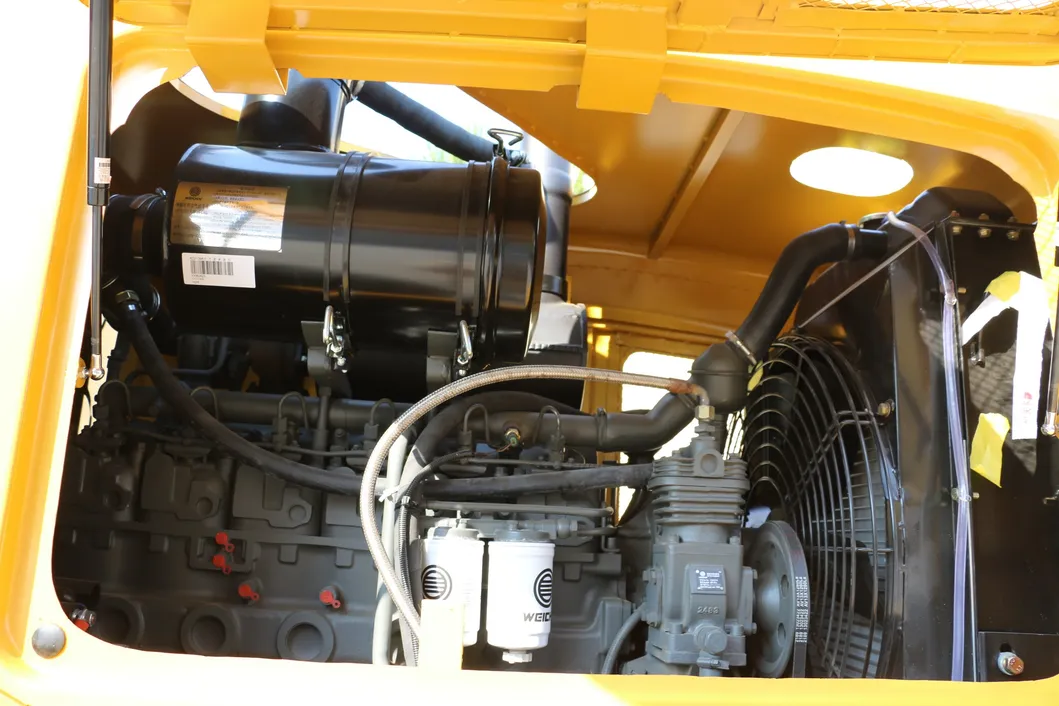

Engine
Top brand engine with strong power

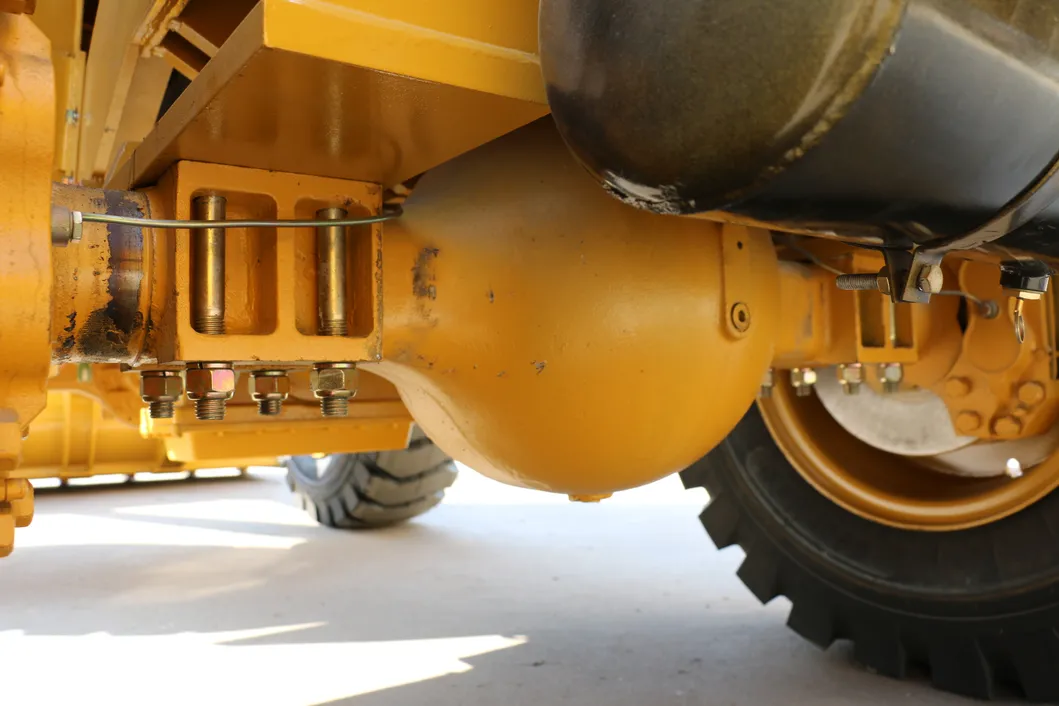

Axle
High-quality performance axle
Articulated parts
Strong articulated components

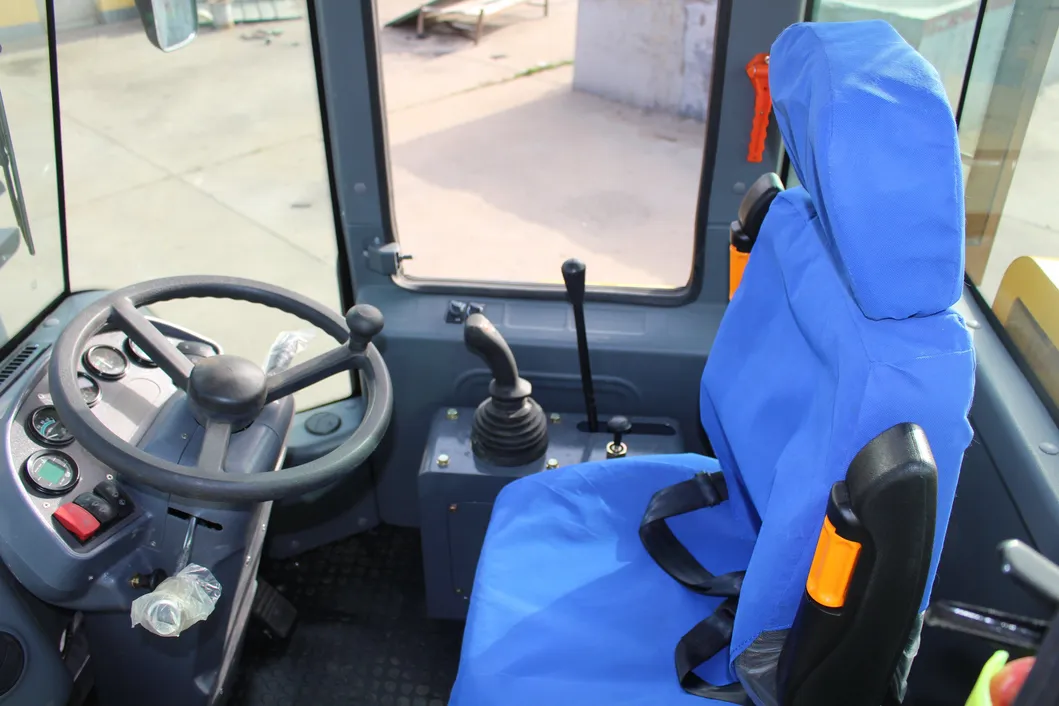

Cabin
Comfortable wide view cabin

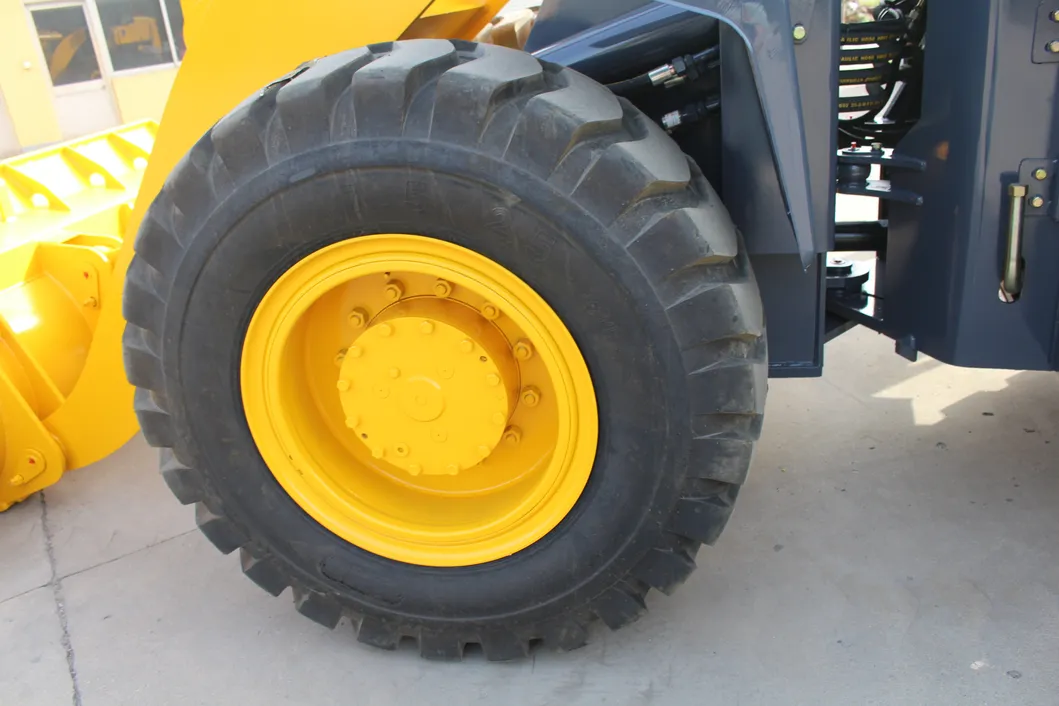

Tires
Reliable heavy-duty tires

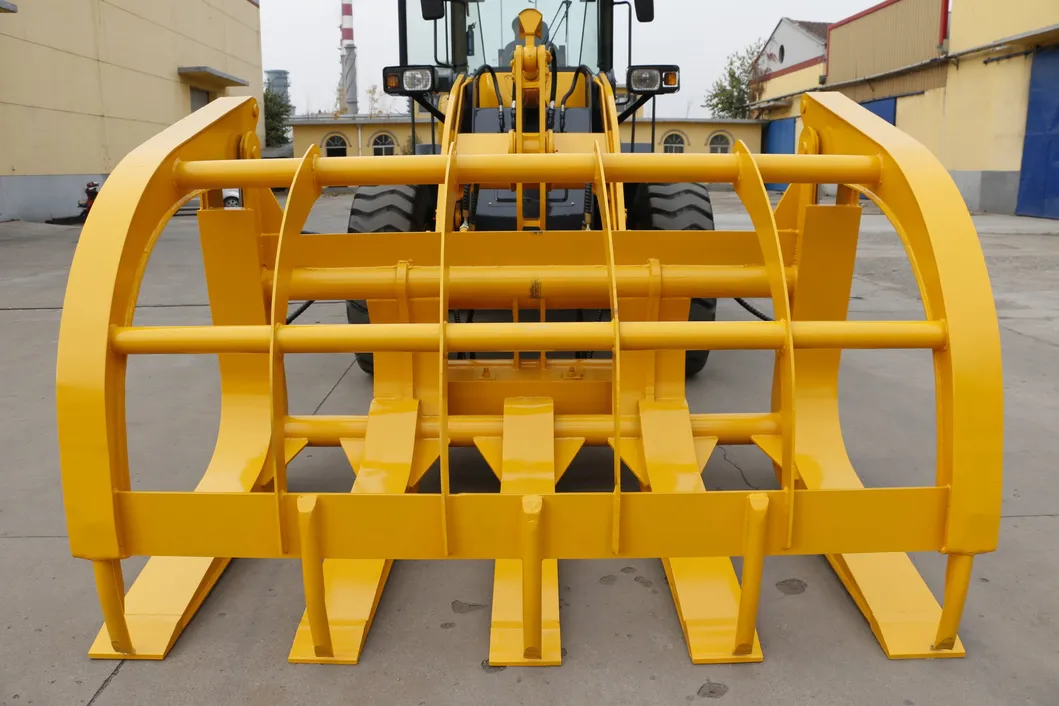

Attachments
Various functional attachments

After-Sales Support

Comprehensive support is provided to ensure your equipment remains in peak condition:

  • Strategic stock suggestions for easy-wear parts based on specific working conditions.
  • Regular on-site maintenance training for operators and technical staff.
  • Global agent support network for troubleshooting and machine optimization.
Service Training
Maintenance Check
Dealer Visit

Frequently Asked Questions (FAQ)

What engine options are available for the LQ936 wheel loader?
The machine can be equipped with WEICHAI DEUTZ, YUCHAI, or Cummins engines to meet different power and reliability requirements.
What is the maximum rated load capacity?
The LQ936 has a rated weight capacity of 3000kg (3 tons) and an operating weight of 9500kg.
Does the bucket feature automatic leveling?
Yes, the bucket can be leveled automatically, which simplifies operation and improves working efficiency.
Can I use different attachments for specific tasks?
Absolutely. Various attachments are available, including log clamps, grass forks, snow plows, and ore buckets, which can be designed according to customer requirements.
What kind of technology is used in the transmission system?
The gearbox utilizes Komatsu technology, and the driving axle uses Meritor technology, ensuring high reliability and easier maintenance.
What are the dump height specifications?
The standard dump height is 3200mm, but options up to 4500mm are available depending on the configuration.
