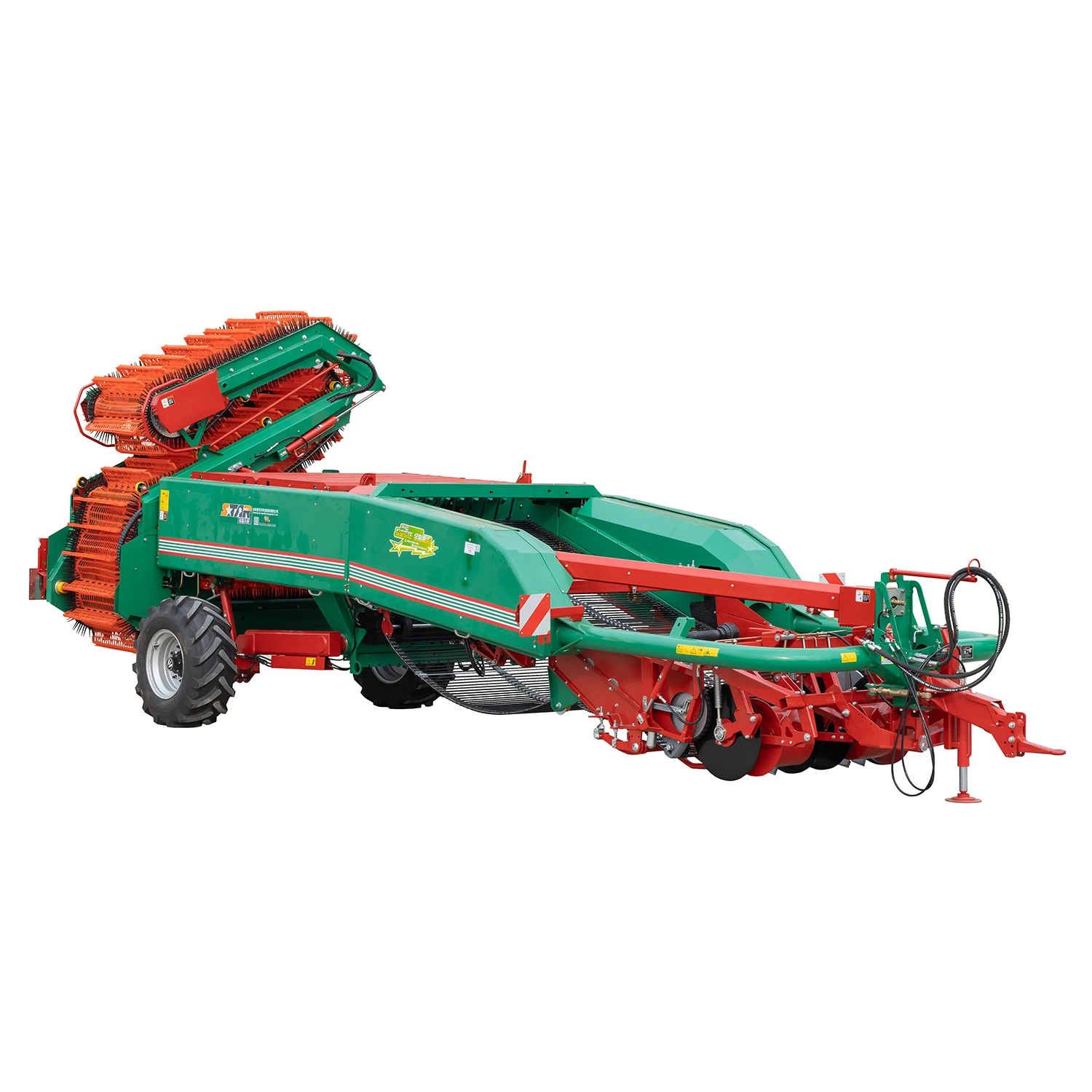

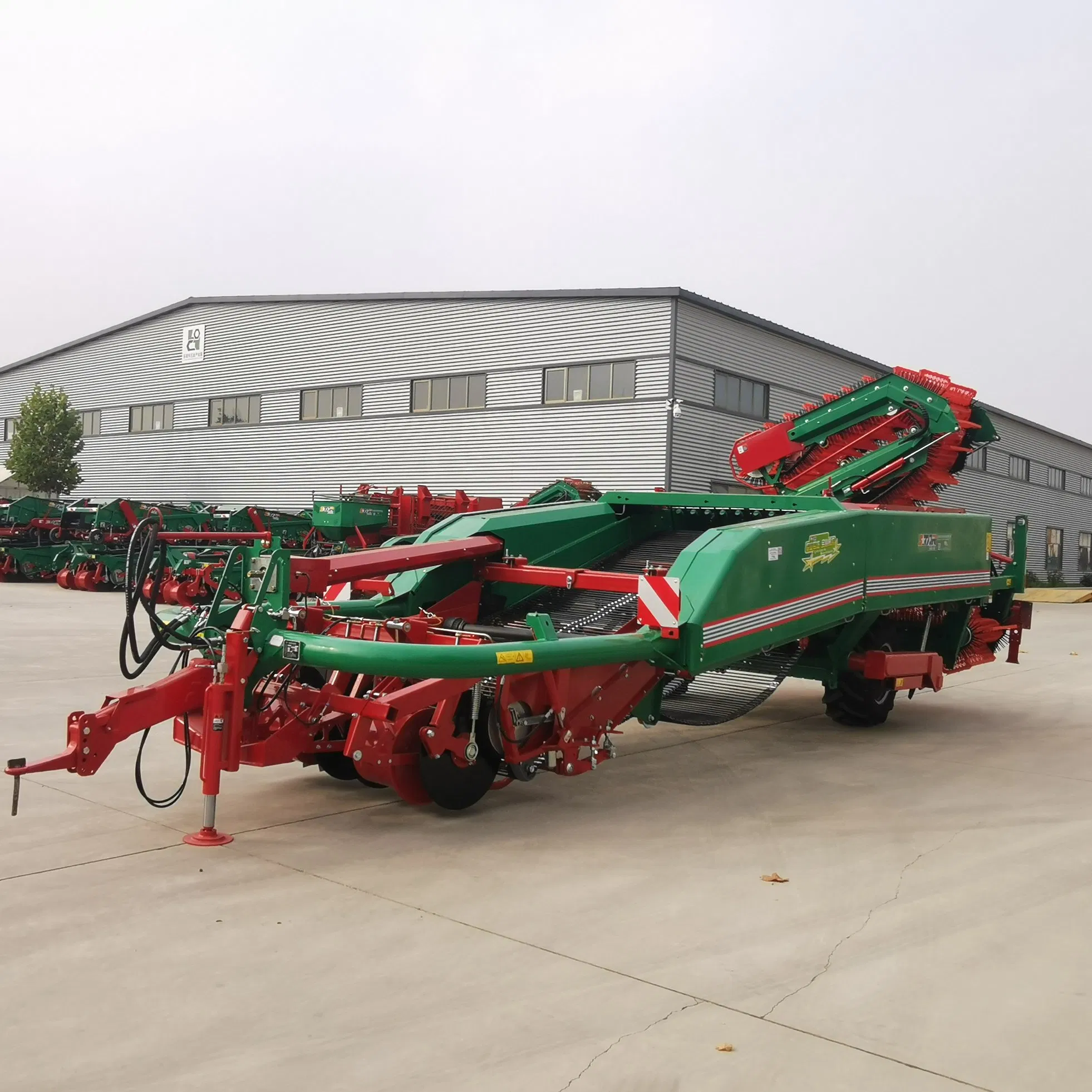

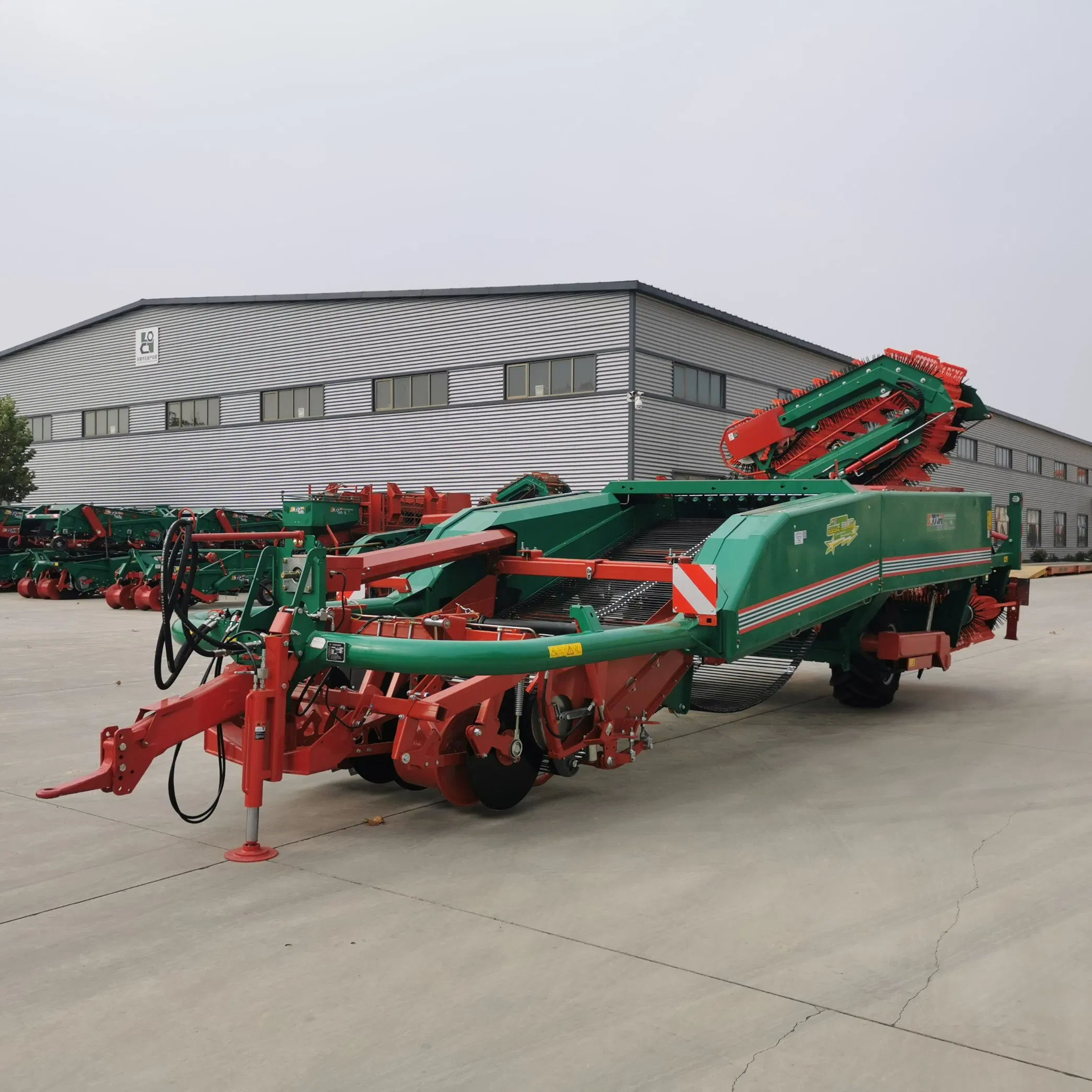

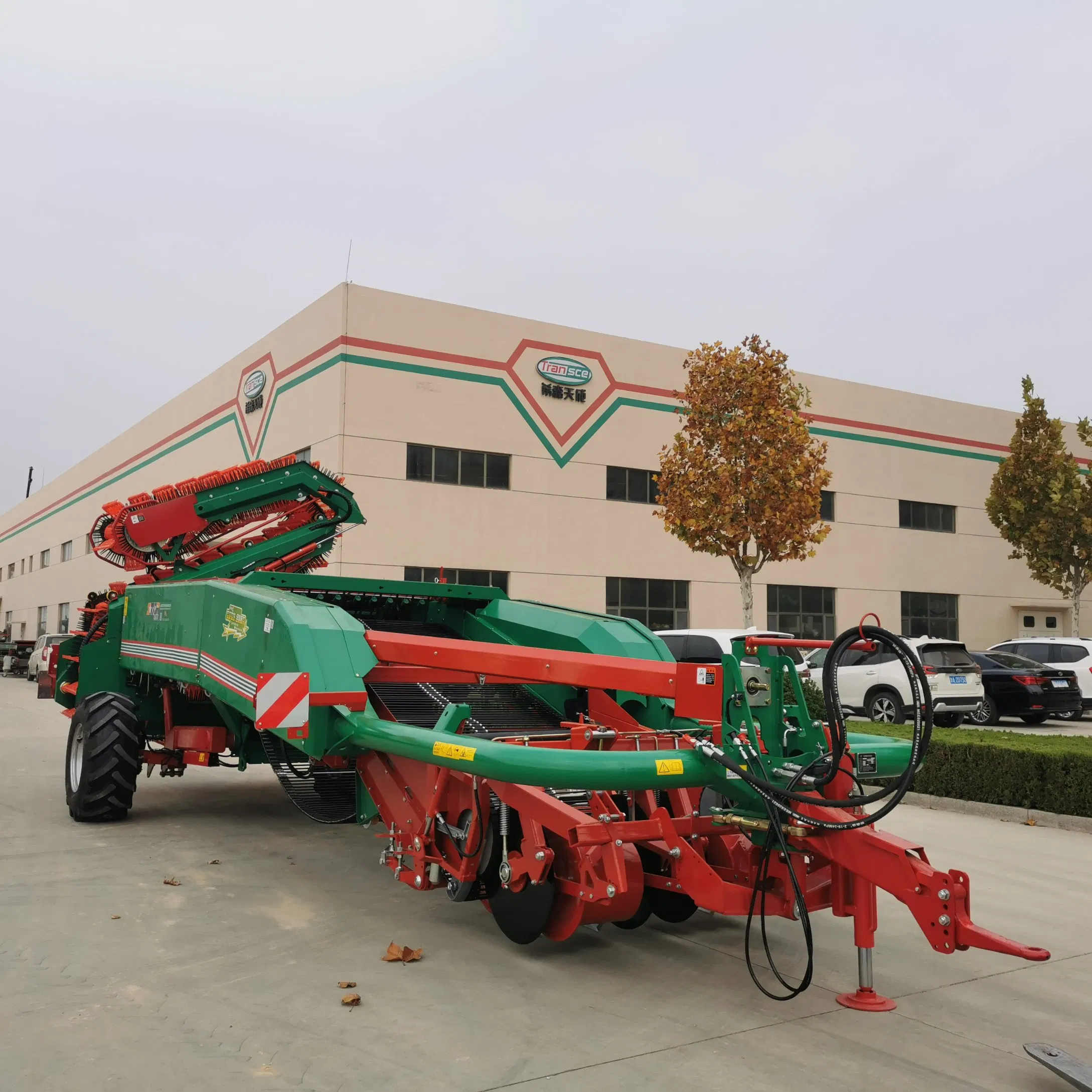

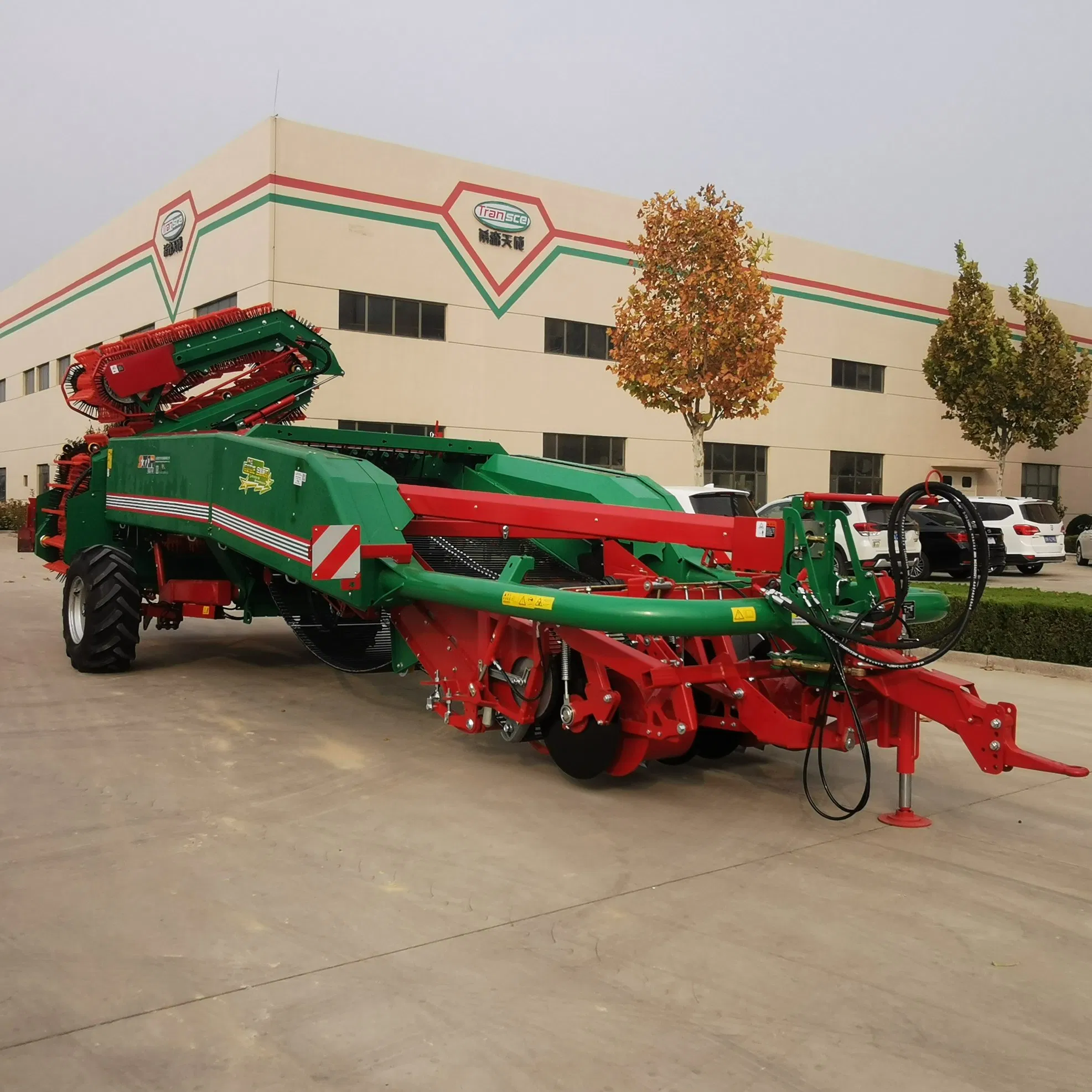

Manufacturer Wholesale Competitive Price Agricultural Machinery High Efficient Large Tractor Pulled Potato Combine Digger

1 / 5

Manufacturer Wholesale Competitive Price Agricultural Machinery High Efficient Large Tractor Pulled Potato Combine Digger

Customization:	Available
After-sales Service:	1year
Type:	Vertical Cut Harvester

Send Inquiry

Product Description

Basic Information

Model NO.

4UL-170Z

Power Source

Tractor

Harvest method

Cutting

Drive Type

Gear Drive

Transmission

Hard Shaft

Portable Harvester Type

Side Hanging Type

Certification

ISO9001:2008

Color

Green

Condition

New

Application Field

Agriculture

Overall Dimension

9700*7100*3760mm

Machine Weight

5960kg

Tractor Engine Power

92-118kw

Working Width

1700mm

Working Ridges

Digging Depth

150-300mm

Product Description

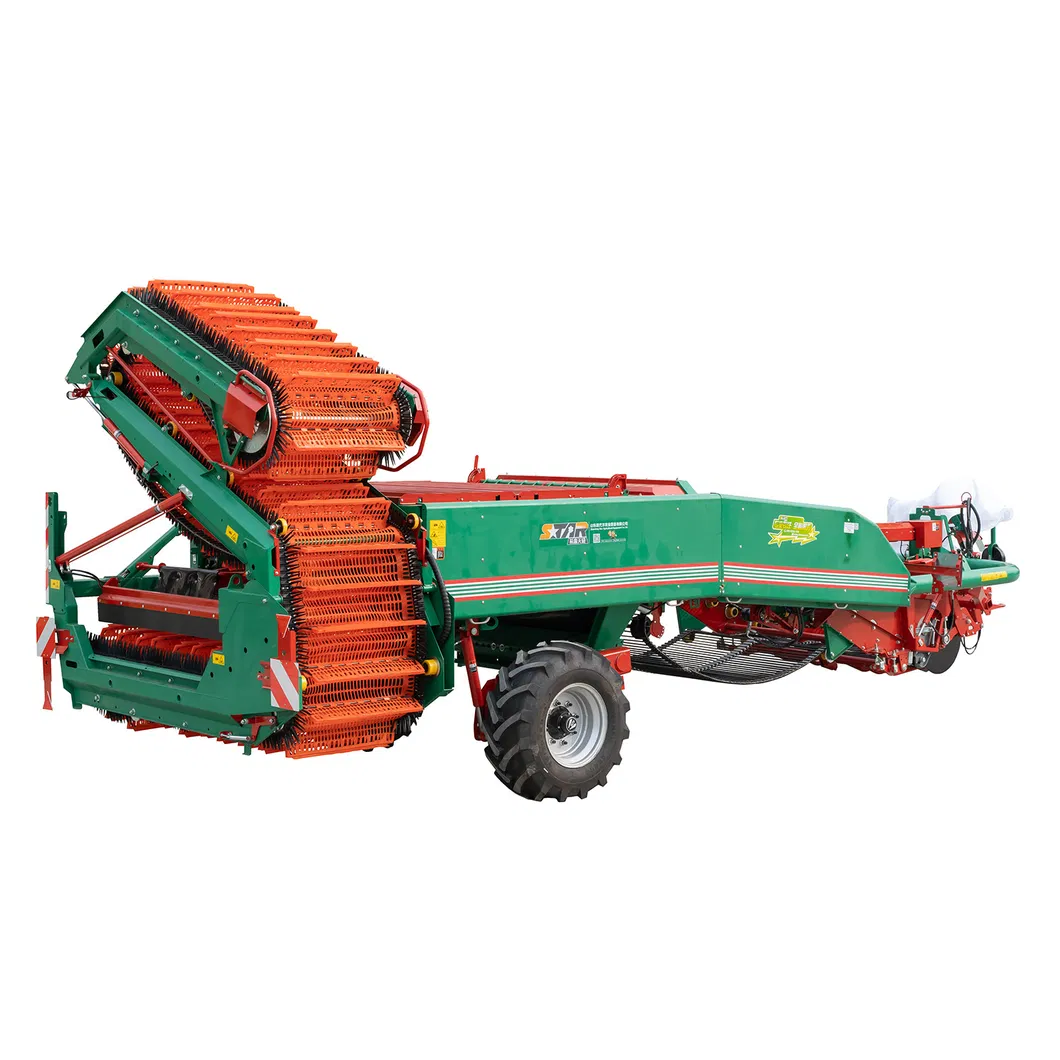

4ULZ-170 potato combine harvester can directly load potatoes into the truck, simplifying the work flow and reducing the labor intensity. The structure type is traction type. During work, the tractor pulls the combine harvester and excavates the digging shovel. At the same time, the potato-soil loosening and excavation depth limit are carried out by the contour-shaped deep-wheel, and the excavated potato soil is transported through the conveying net sieve for potato-soil separation and potato block transportation.

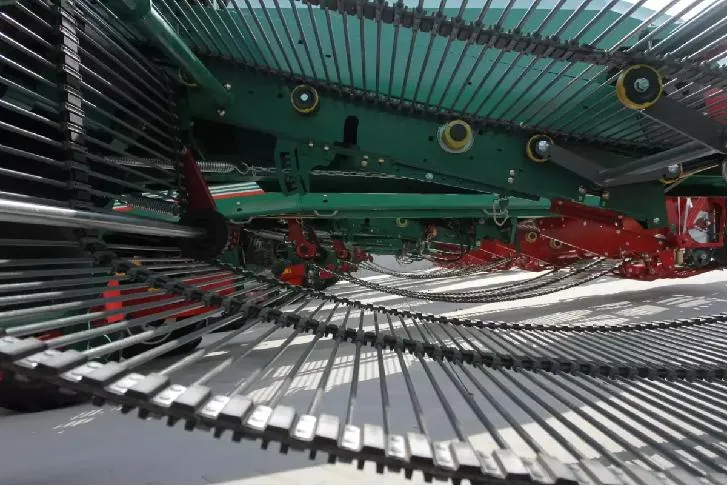

1. Superior Separation: Front floating disc knives cut ground weeds, while the profiling suppression depth limiting device loosens hard soil. The two-stage wavy grid transport separator made of high-performance alloy steel ensures optimal separation even in sticky or sandy layers.

2. Low Skin Breaking Rate: Vibration amplitude is scientifically adjusted. The grid type transportation device uses rubber driving wheels for light wear and reliable use, keeping the skin breaking rate below 2%.

3. Effective Soil Clearing: Special shape rubber rollers rotate to remove clay from potato skin, and a seedling removing shaft pulls away vines for a cleaner harvest.

4. High Conveying Efficiency: Foldable conveying arm with U-shaped potato bags prevented rolling during lifting. High-strength elastic mesh further screens clay during transport.

5. Durable & Stable: Laser-cut precision frame, high-precision sealed bearings, and abrasion-resistant rubber wheels ensure a long service life without grass blocking or vibration.

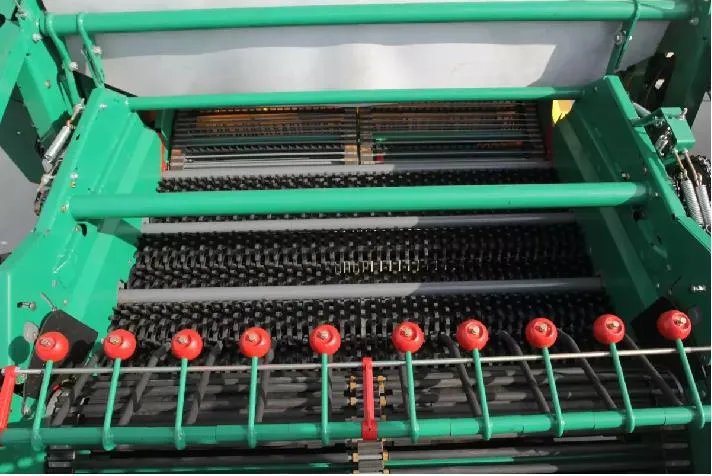

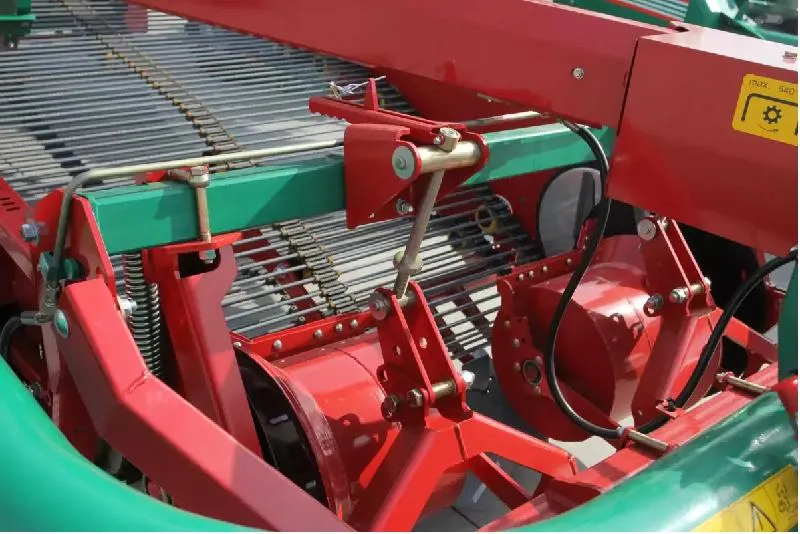

Detailed Photos

Product Parameters

Structural Style	Trailed
Overall Dimension (L×W×H)	970071003760mm
Machine Weight	5960kg
Tractor Engine Power	92-118kW
Working Ridges	2
Working Width	1700mm
Adapt to Ridge Width	900mm
Digging Depth	150~300mm
Productivity of Pure Working Time	≥0.33hm2/h
Efficiency of Lifting Arm	120t/h
Maximum Loading Height	4000mm

Certifications

Our Advantages

The potato combine harvester realizes one-time excavation, potato-soil separation, salt separation, centralized collection, and transportation. Key advantages include:

Efficiency above 0.33 hm2/h with low impurities.

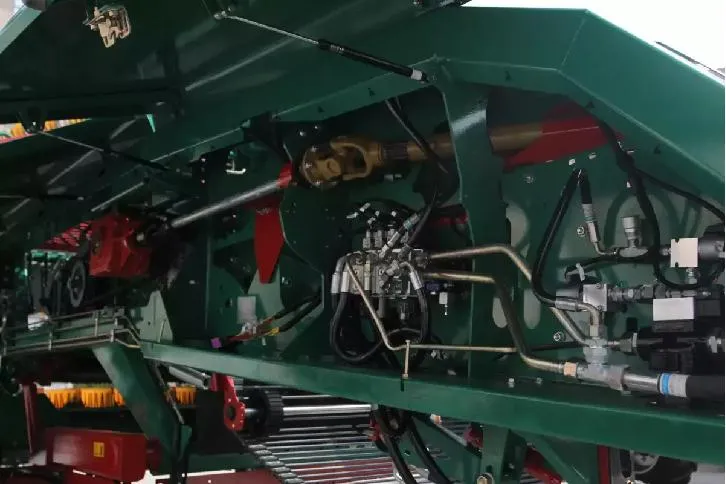

Hydraulic system for precision control.
Non-equidistant potato collecting device for smooth handling.

Frequently Asked Questions

What tractor power is required for the 4UL-170Z harvester?

The machine requires a tractor with an engine power between 92kW and 118kW.

How does the machine protect the potato skin from damage?

The harvester uses a scientifically adjusted vibration amplitude and rubber-toothed driving wheels on the transportation device, keeping the skin breaking rate below 2%.

What is the maximum loading height for the potato conveyor?

The lifting arm can reach a maximum loading height of 4000mm, allowing for direct loading into large trucks.

Can this machine handle wet or sticky soil?

Yes, the two-stage wavy grid transport separator and profiling suppression device are designed to work effectively in both sticky and sandy soil layers.

What is the working efficiency of the 4ULZ-170?

It has a productivity rate of ≥0.33 hm2/h and can harvest two ridges at once.

Does the harvester remove weeds and seedlings?

Yes, it features front floating disc knives to cut weeds and a special seedling removing shaft that pulls vines away from the potatoes.
