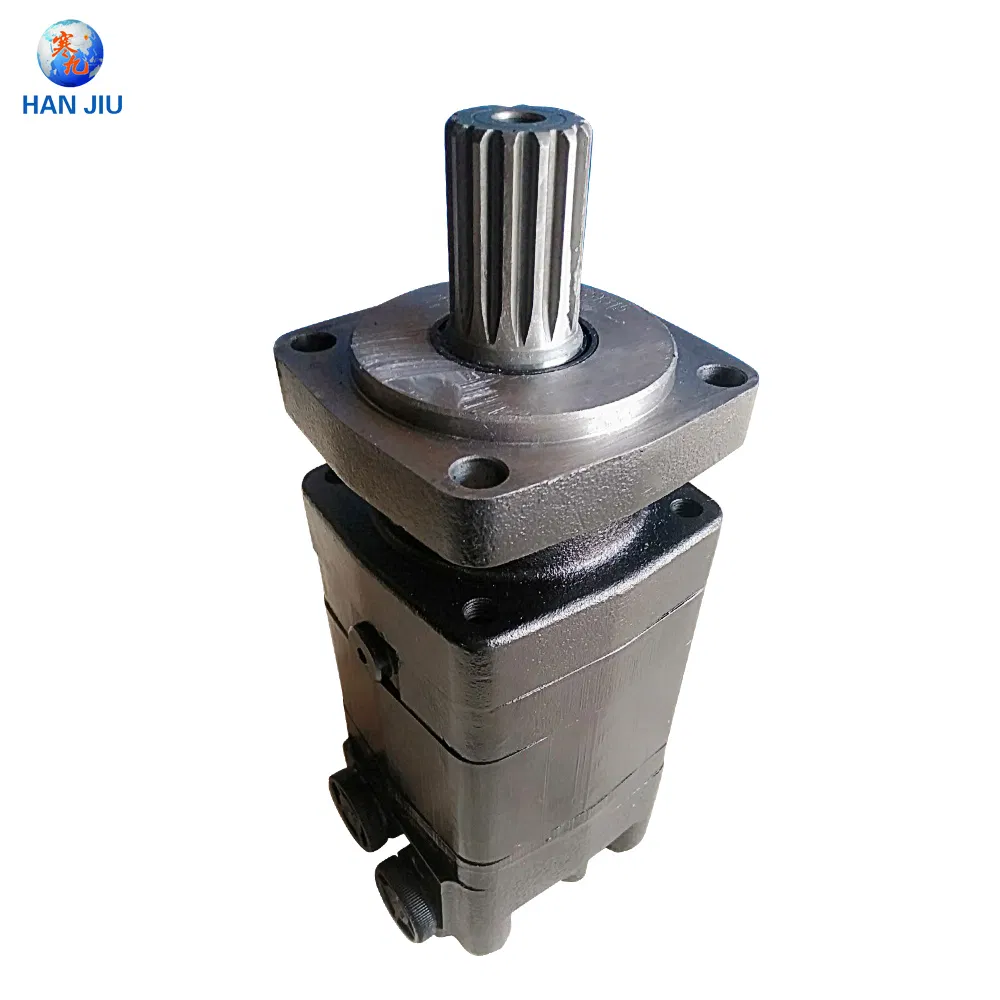

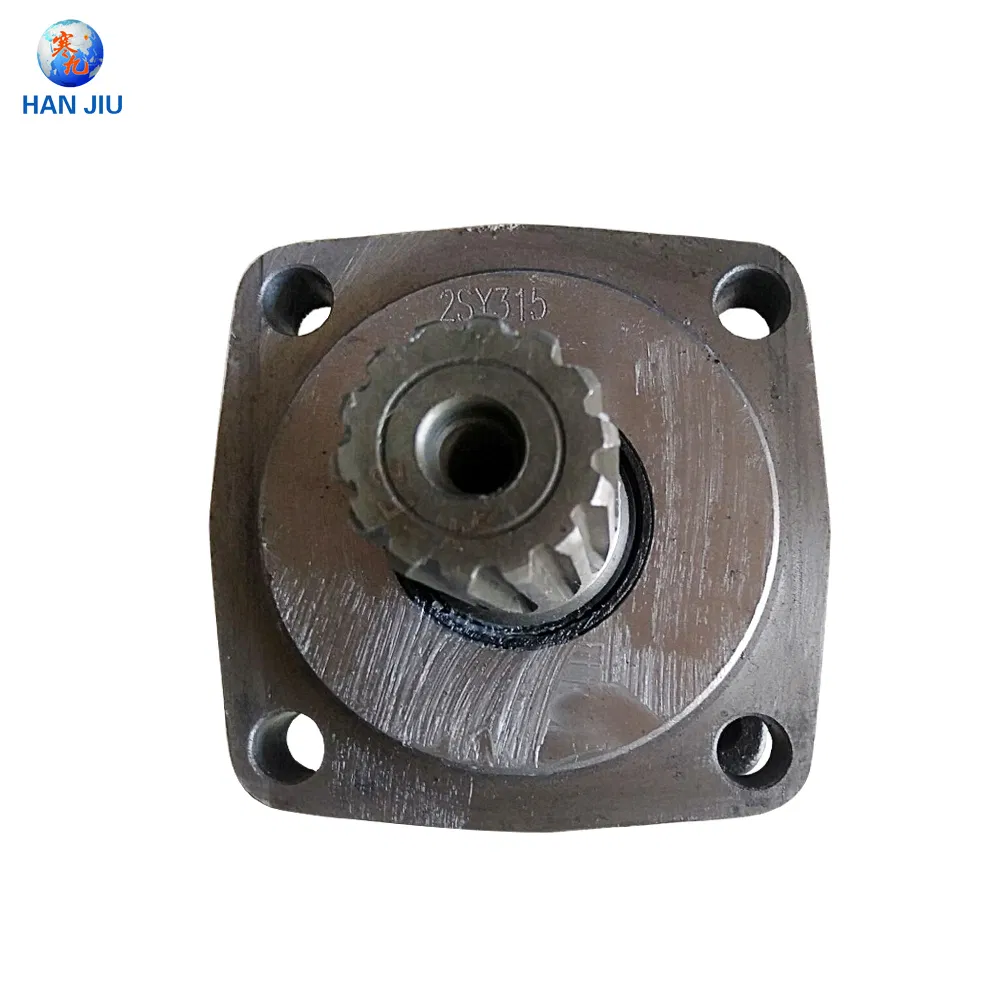

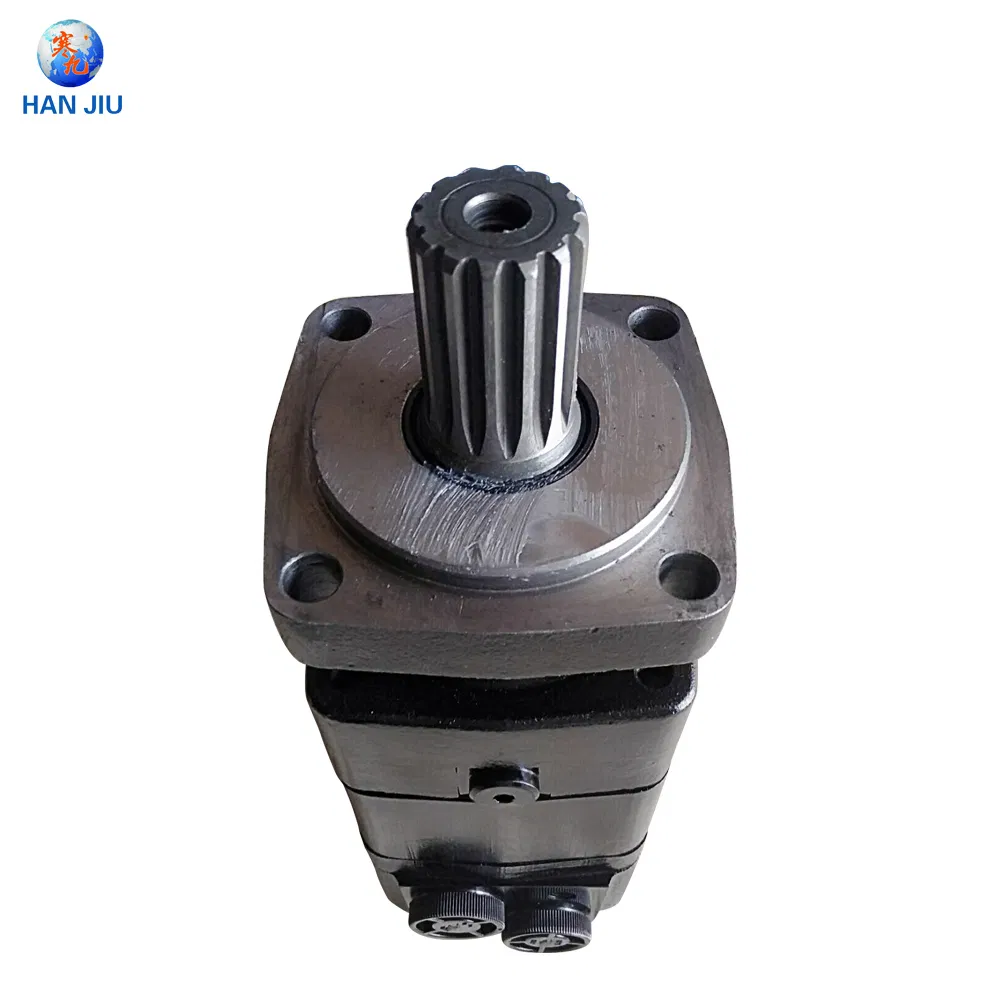

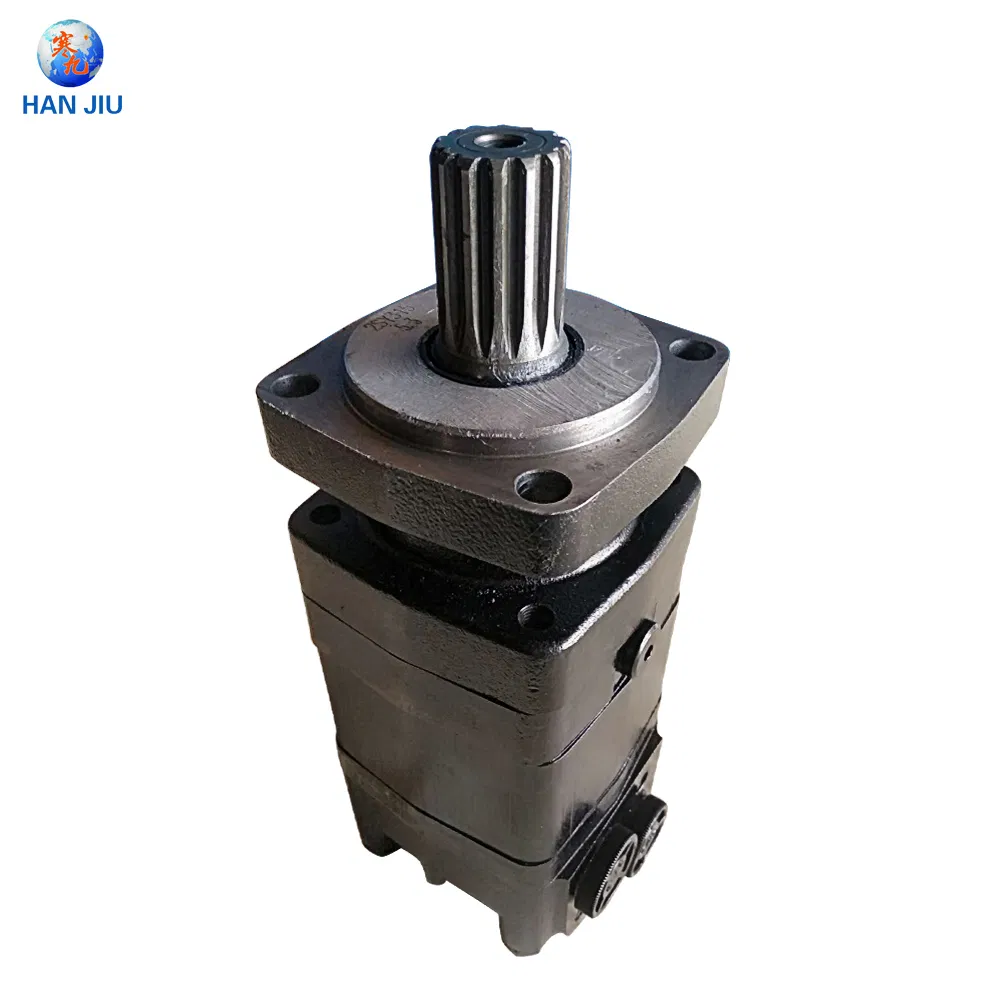

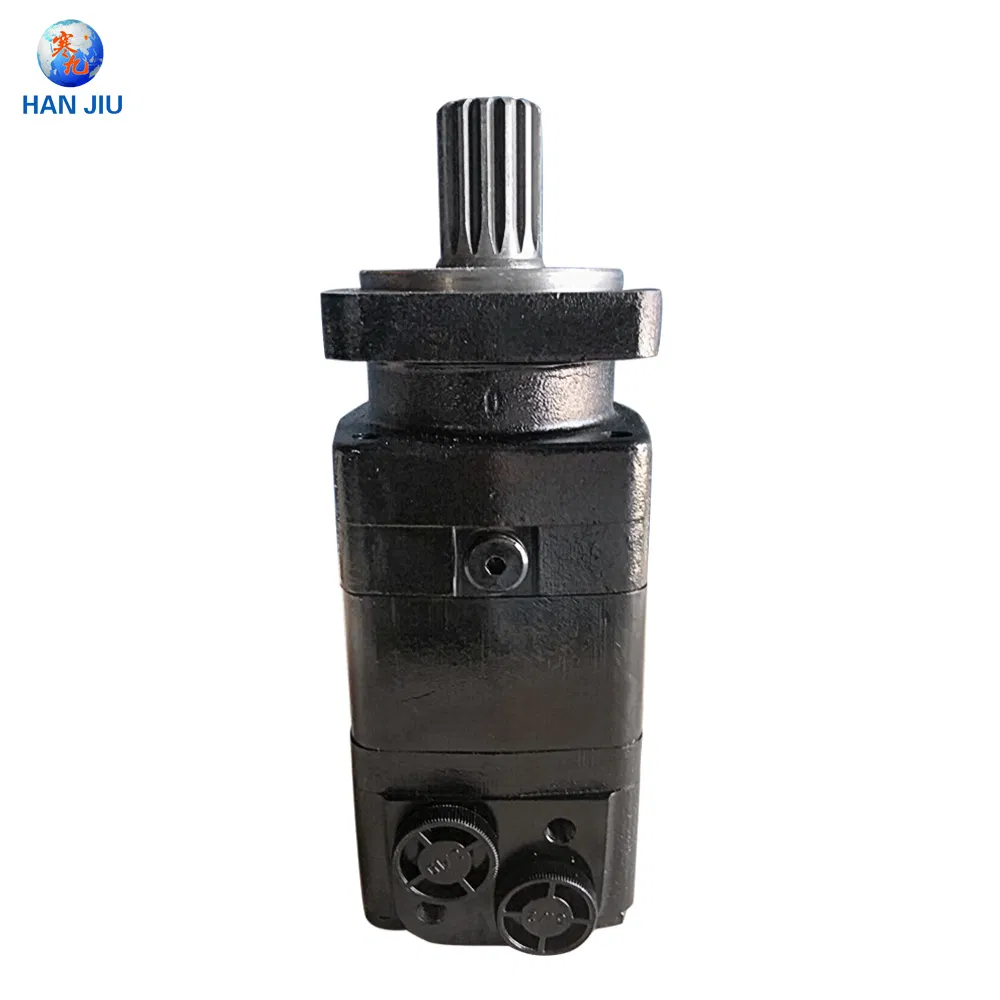

Conveyor Systems Oms 250 Special T10

Customization:	Available
Model No.:	Oms 250
Shaft:	32 mm

Basic Info.

Model NO.

oms 250

Displacement

315 Cc

Flange

4 Bolt 82.55mm / 106.4mm

Transport Package

1 PC/ Inner Carton, 2 PCS/ Outer Carton

Specification

31x31x17cm

Origin

China

HS Code

8412291000

Production Capacity

500000 Pieces

Product Description

Conveyor systems oms 250 special t10

TECHNICAL DATA

TYPE		OMS-80	OMS-100	OMS-125	OMS-160	OMS-200	OMS-250	OMS-315	OMS-400	OMS-500
(ml/r) Displacement		80.5	100.5	126.3	160.8	200.9	252.6	321.5	401.9	471.1
Max.Pressure Drop(Mpa)	cont.	17.5	17.5	17.5	16	16	12.5	12.5	10	10
	int.	20	20	20	20	20	16	16	14	14
	peak.	22.5	22.5	22.5	22.5	22.5	20	20	17.5	17.5
Max.Torque(N.m)	cont.	194	242	303	358	438	440	551	560	636
	int.	218	283	345	429	540	580	625	687	890
	peak.	271	318	373	459	576	700	831	865	1113
Speed Range(cont.)(r/min)		10-810	10-750	9-600	7-470	6-375	6-300	5-240	5-180	5-155
Max.Flow(cont.)(L/min)		65	75	75	75	75	75	75	75	75
Max.Output Power(cont.)(Kw)		14	16	16	14	14	11	10	8	8
Weight(kg)		9.8	10.0	10.3	10.7	11.1	11.6	12.3	13.1	14

MOTOR CROSS REFERENCE TABLE
HYDRAULIC SERIES	M+S	EATON CHAR LYNN	ROSS TRW	WHITE CROSS	PARKER	SAM BREVINI	BOSCH REXROTH
OMM	MM MLHK	J SERIES	-	-	-	BGM	MGX
OMP/OM1	MP HP	H SERIES	MF MG	WP RS	TC TE TB	BG	MGP GXP
OMR/OM2	MR HR	S,T SERIES	MB	WR RE	TF	BR	MGR GMR
OMS/OM5	MS MSY	2000 SERIES	ME	RE	TG	HPR	MGS GMS

Product Gallery

Specifications

⚙️

Motor Type:
Geroler hydraulic drive motor

🔄

Rotation:
Reversible

⚓

Mount:
2 bolt SAE A / 4 bolt

📏

Shaft:
1-1/2" straight shaft

💧

Pressure:
2576 PSI cont. / 3091 PSI int.

⚡

Torque:
1682 in-lbs. cont.

Frequently Asked Questions

1. What is the displacement range of the OMS series motors?

The OMS series offers a wide range of displacements starting from 80.5 ml/r up to 471.1 ml/r, catering to various power and torque requirements.

2. Can the OMS 250 hydraulic motor operate in both directions?

Yes, the technical specifications confirm that the motor rotation is reversible, making it suitable for versatile industrial applications.

3. What are the mounting and shaft options for this motor?

The motor typically features a 2-bolt SAE A or 4-bolt mount and is equipped with a 1-1/2" straight shaft for secure power transmission.

4. What is the maximum continuous pressure the OMS 250 can handle?

The OMS 250 model is designed to handle a maximum continuous pressure drop of 12.5 Mpa (approximately 2576 PSI).

5. What industries are these motors typically used in?

These Geroler hydraulic motors are primarily used in conveyor systems, agricultural machinery, and various heavy-duty industrial drive systems.

6. What is the standard speed range for these units?

The speed range depends on the model. For instance, the OMS 80 reaches up to 810 RPM, while the larger OMS 500 operates at a continuous speed of 155 RPM.
