Dry granulation roll compactor / Agricultural NPK chemical fertilizer machine
Dry granulation roll compactor / Agricultural NPK chemical fertilizer machine
Dry granulation roll compactor / Agricultural NPK chemical fertilizer machine
Dry granulation roll compactor / Agricultural NPK chemical fertilizer machine
Dry granulation roll compactor / Agricultural NPK chemical fertilizer machine
1 / 5
Dry granulation roll compactor / Agricultural NPK chemical fertilizer machine
Dry granulation roll compactor / Agricultural NPK chemical fertilizer machine
Dry granulation roll compactor / Agricultural NPK chemical fertilizer machine
Dry granulation roll compactor / Agricultural NPK chemical fertilizer machine
Dry granulation roll compactor / Agricultural NPK chemical fertilizer machine

Dry granulation roll compactor / Agricultural NPK chemical fertilizer machine

Customization: Available
After-sales Service: 1 year
Warranty: 1 year
Send Inquiry

Product Description

Basic Information
Model NO.:DH
Type:Pressing Granulator
Object:Fertilizer
Material:Stainless Steel
Certification:CE
Voltage:380/400/420V (customized)
Granular size:2-5mm
Power:37-220kw
Working Method:Double Roller Press
Hardness:Greater than 28N
Packaging & Delivery
Package Size:360.00cm * 280.00cm * 320.00cm
Gross Weight:21000.000kg
Product Description

Способ сухого гранулирования осуществляется следующим образом: порошок сжимается вращающимися в противоположном направлении двумя валами, чтобы получить цельный лист материала. Гранулятор сухого вальцования серии DH использует технологию сухой прокатки для прессования порошкообразных материалов с содержанием влаги ≤1% на один лист.

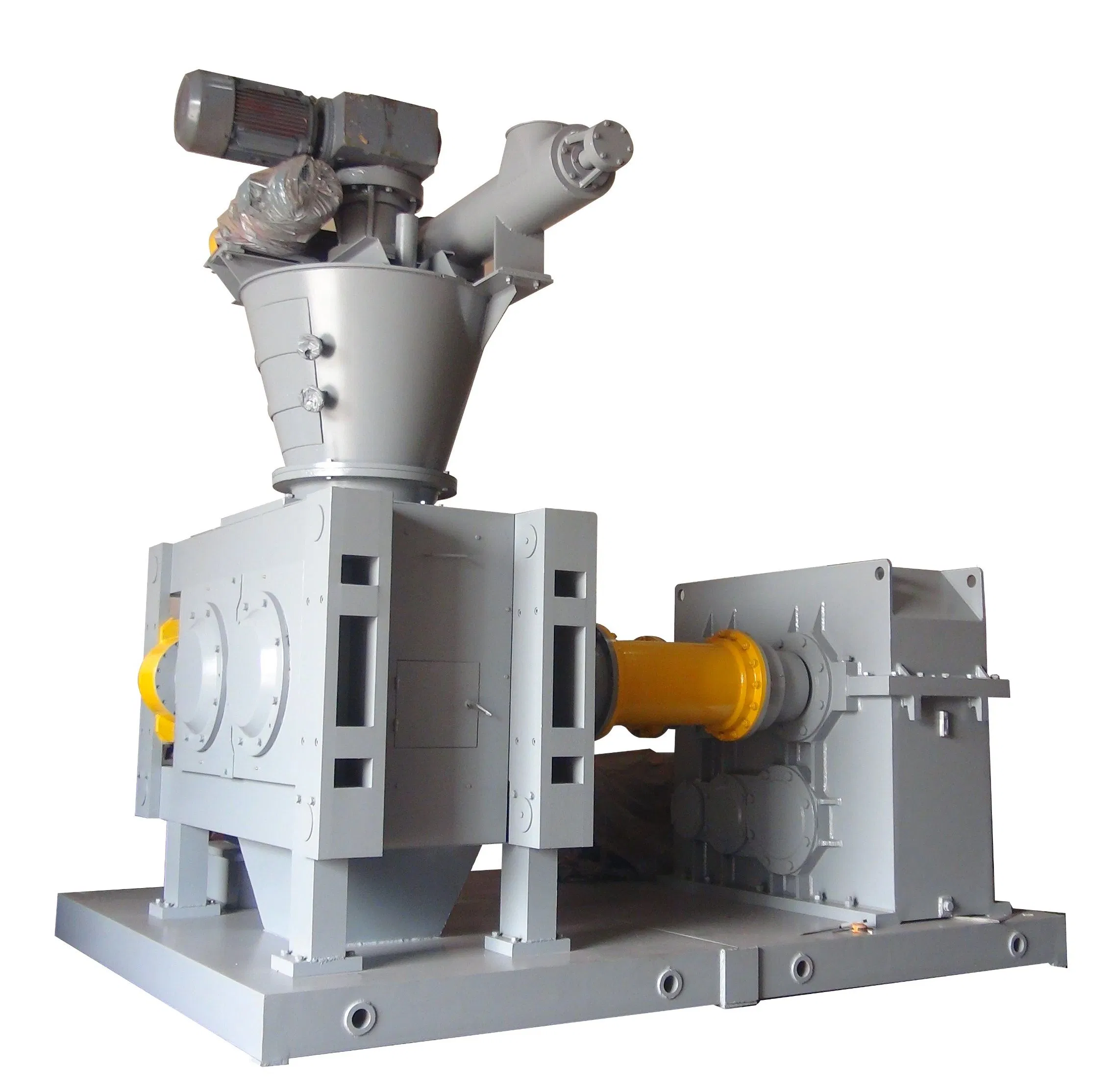

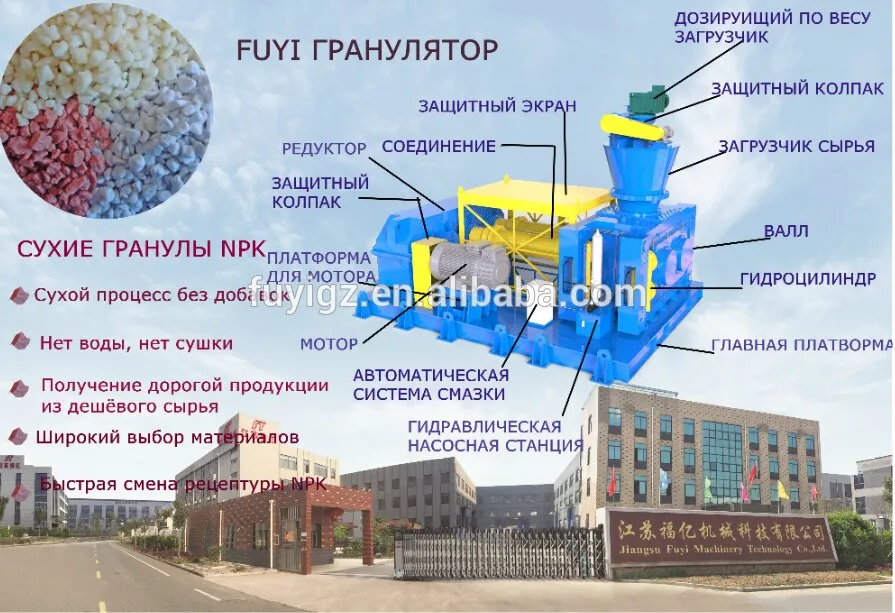

Dry granulation roll compactor
Принцип работы (Working Principle)

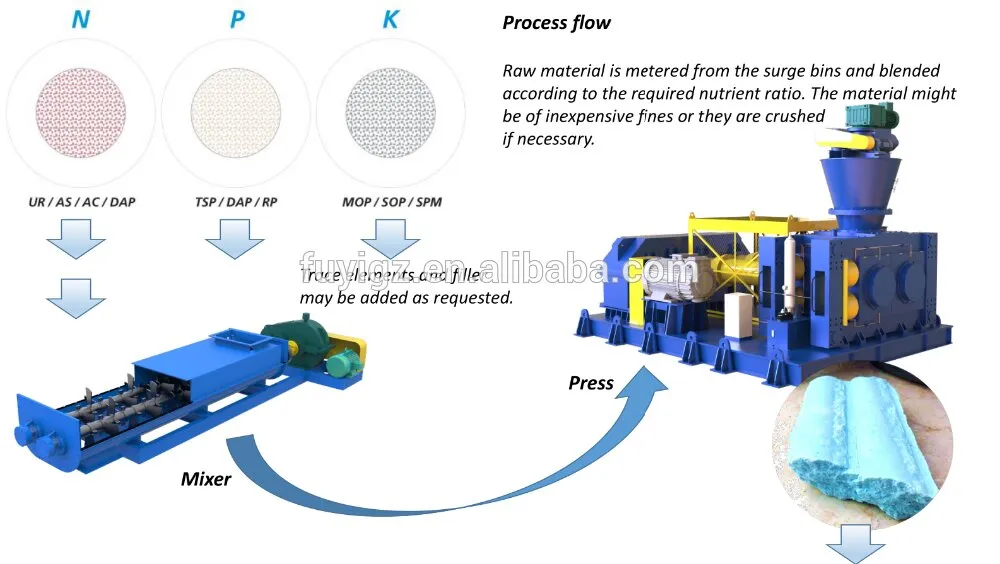

Principle 1

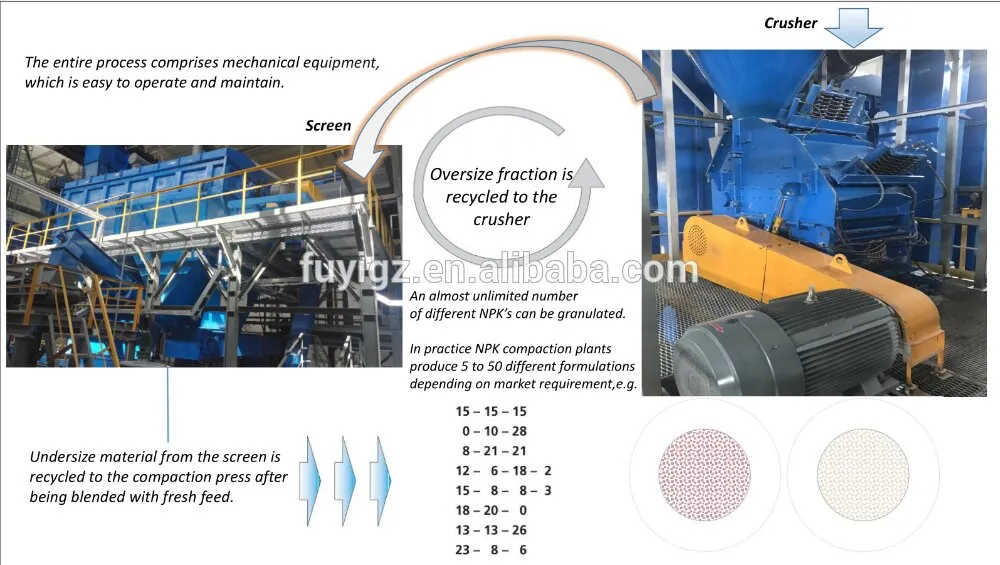

Principle 2

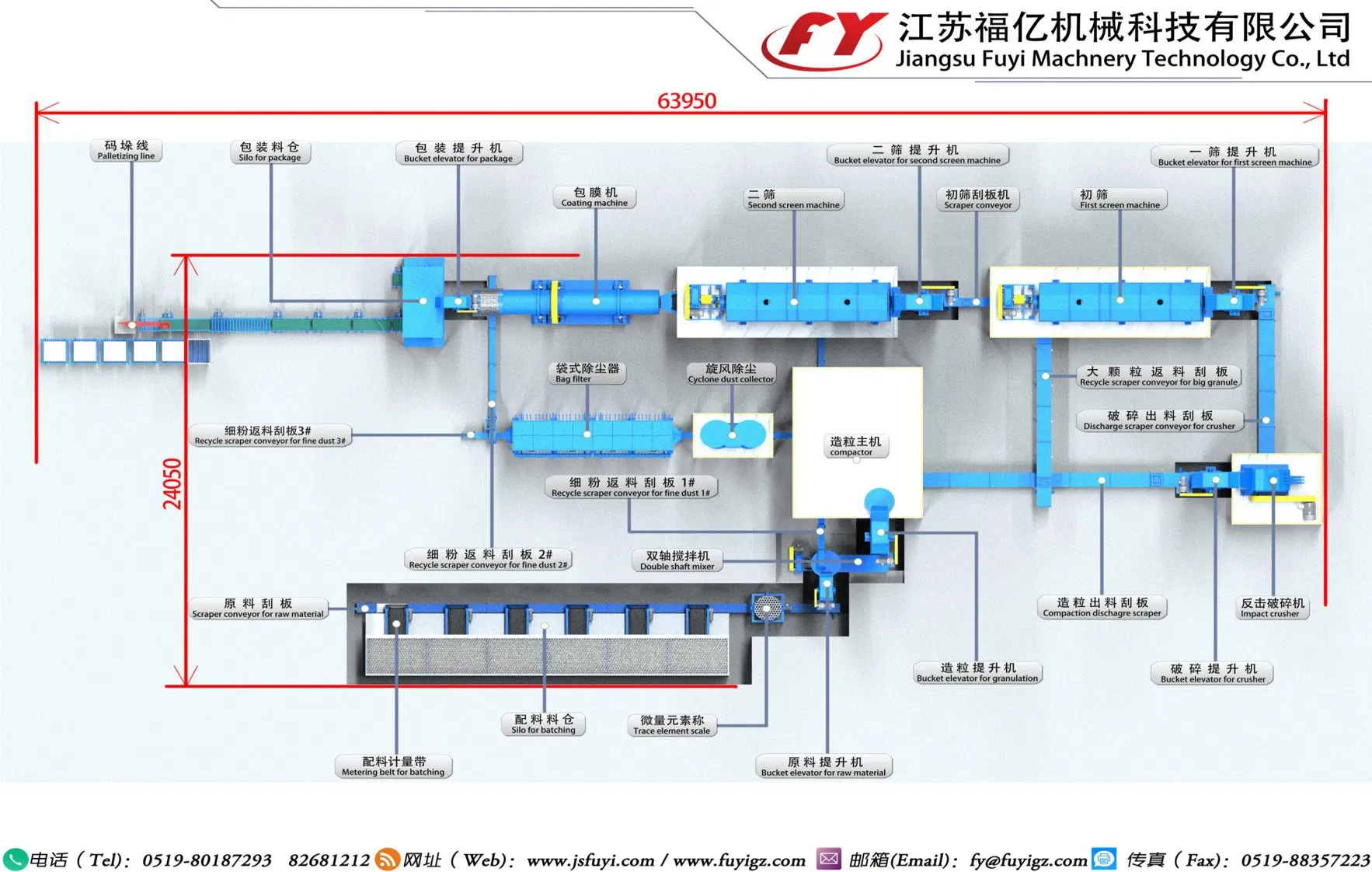

01 СИСТЕМА ДОЗИРОВАНИЯ: Используйте конвейерные весы для взвешивания каждой порции сырья.
02 СМЕШИВАЮЩИЙ АППАРАТ: Рекомендуется для равномерной подачи сырья.
03 КОВШОВЫЙ ЛИФТ: Используется для подъёма сырья в загрузочную воронку.
04 ГРАНУЛЯТОР СЕРИИ DH: Прессует сырьё с помощью двух валков под высоким давлением.
05 ДРОБИЛКА: Позволяет получить гранулы нужного размера (2-4мм).
06 ОТСЕИВАТЕЛЬ: Отсеивает крупные гранулы для повторной обработки.

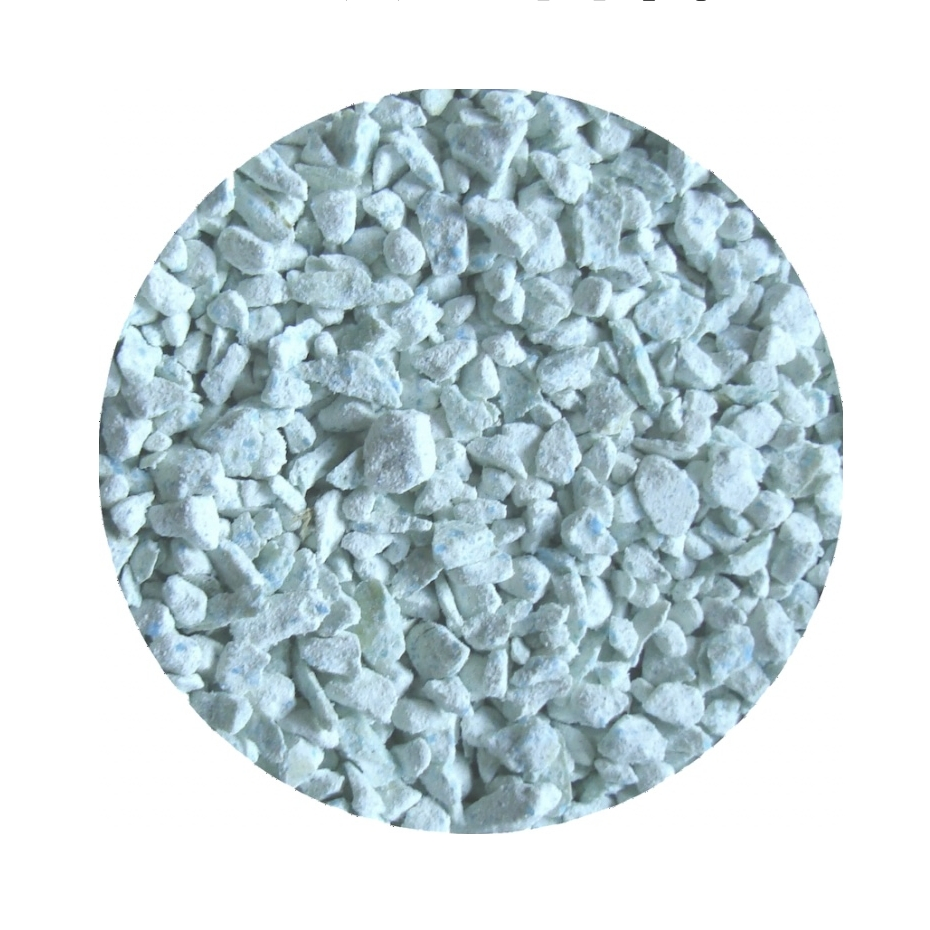

Финальный продукт (Final Product)
Product shape

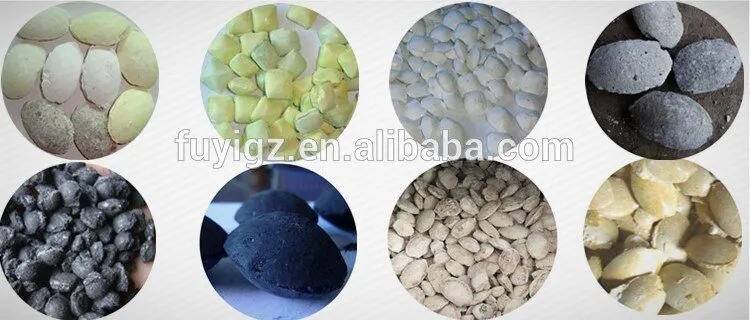

Granules
Технические параметры (Technical Parameters)
Модель DH240 DH360 DH450 DH650 DH850
Диаметр вала (mm) φ240 φ360 φ450 φ650 φ850
Скорость вращения (rpm) 50-100 10-25 10-25 10-25 9-16
Выход продукции (Kg/h) 2000-3000 900-1300 1800-2500 3500-4000 6000-8000
Мощность (KW) 45 30-37 55-75 90-110 220-250
Масса (t) 5 7 10 21 46
Project Cases

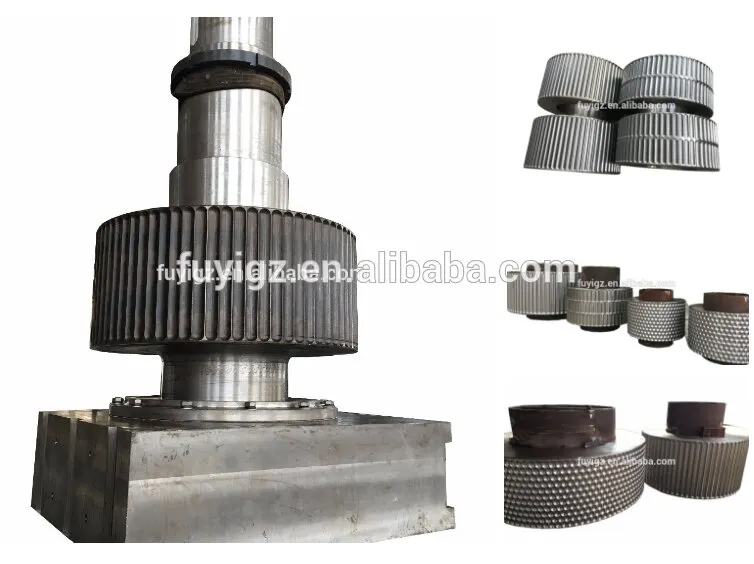

Roller types

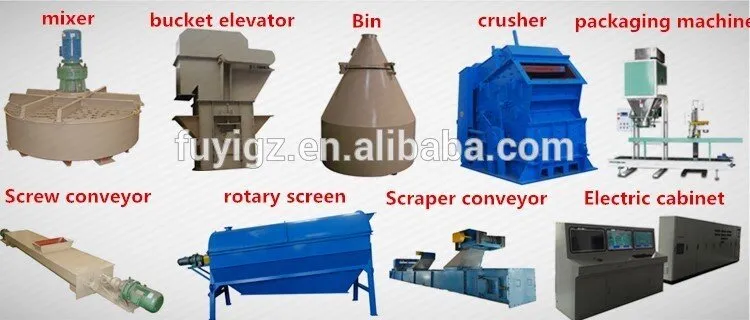

Auxiliary equipment

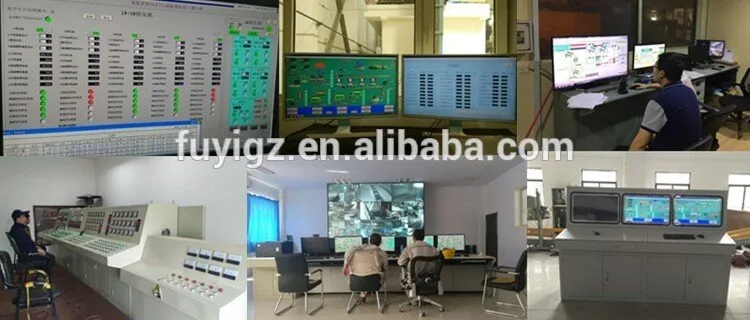

Production line

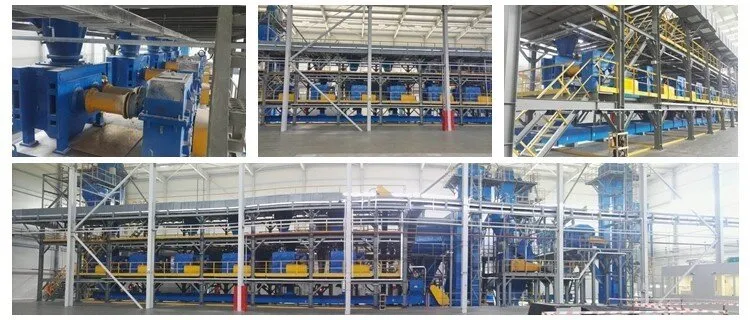

Project 1

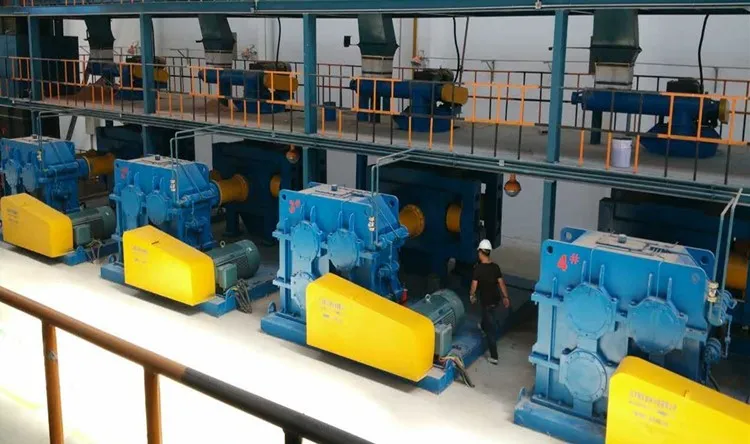

Project 2

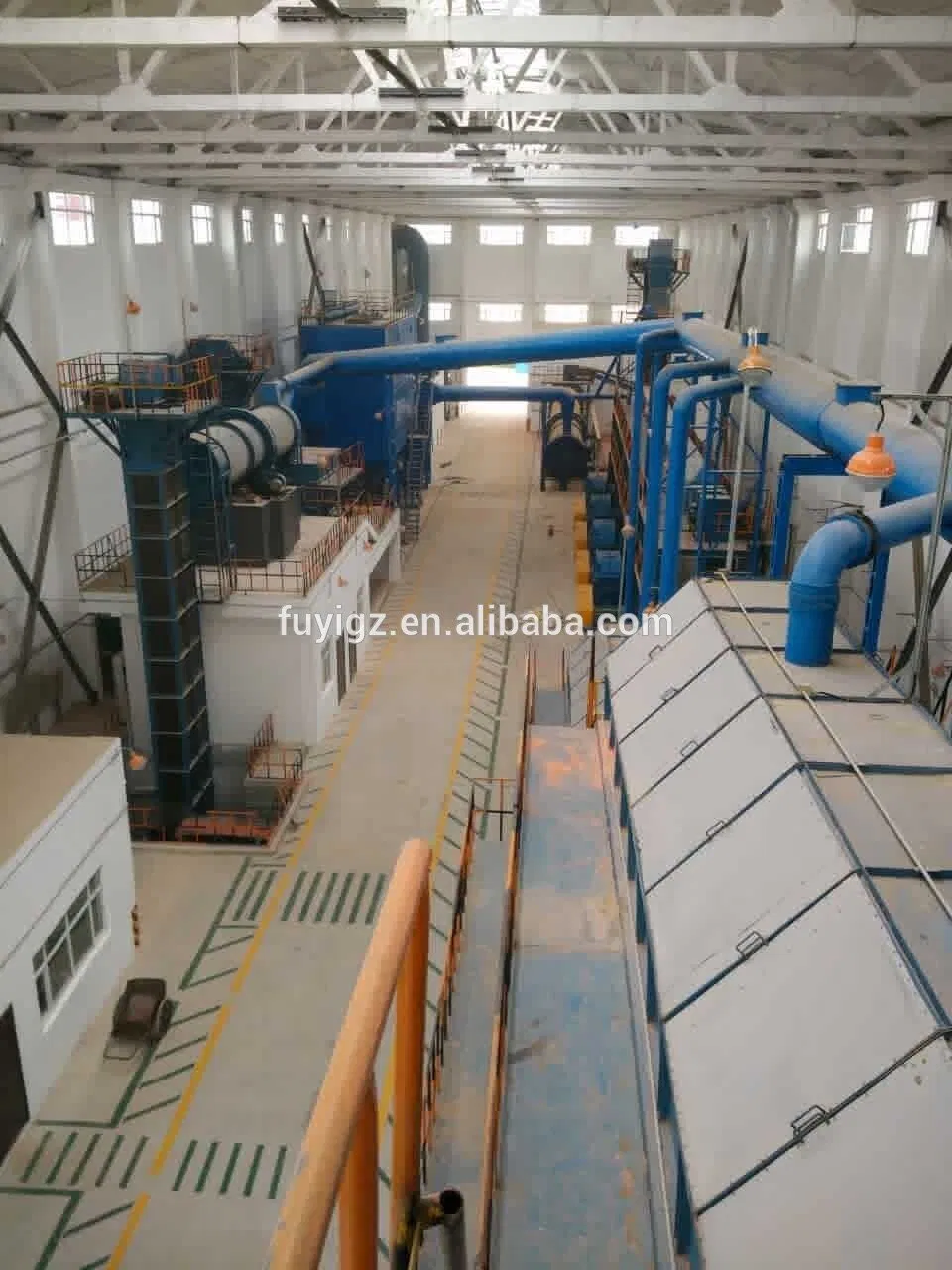

Project 3
Frequently Asked Questions
What is the required moisture content for the raw materials?
The DH series dry granulation roll compactor requires a moisture content of ≤1% to ensure optimal compression and granule formation.
Can the size of the final granules be adjusted?
Yes, the final granule size (typically 2-5mm) can be controlled by selecting the appropriate screen size in the crusher and sifting units.
Does this process require additional binders or drying?
No. This is a dry granulation process that uses high mechanical pressure to bond particles, eliminating the need for additives or subsequent drying stages.
What materials are suitable for this machine?
It is widely used for fertilizers (like Ammonium Sulfate and Potassium Sulfate), chemical powders, and other dry materials requiring high-density granulation.
How is the dust managed during the production process?
The system includes a two-stage dust collection process using a cyclone dust collector for large particles and a bag filter for residual fine dust, which is then recycled back into the process.
Is the machine easy to maintain?
Yes, the DH series features a compact structure designed for easy maintenance, high automation, and low energy consumption.
