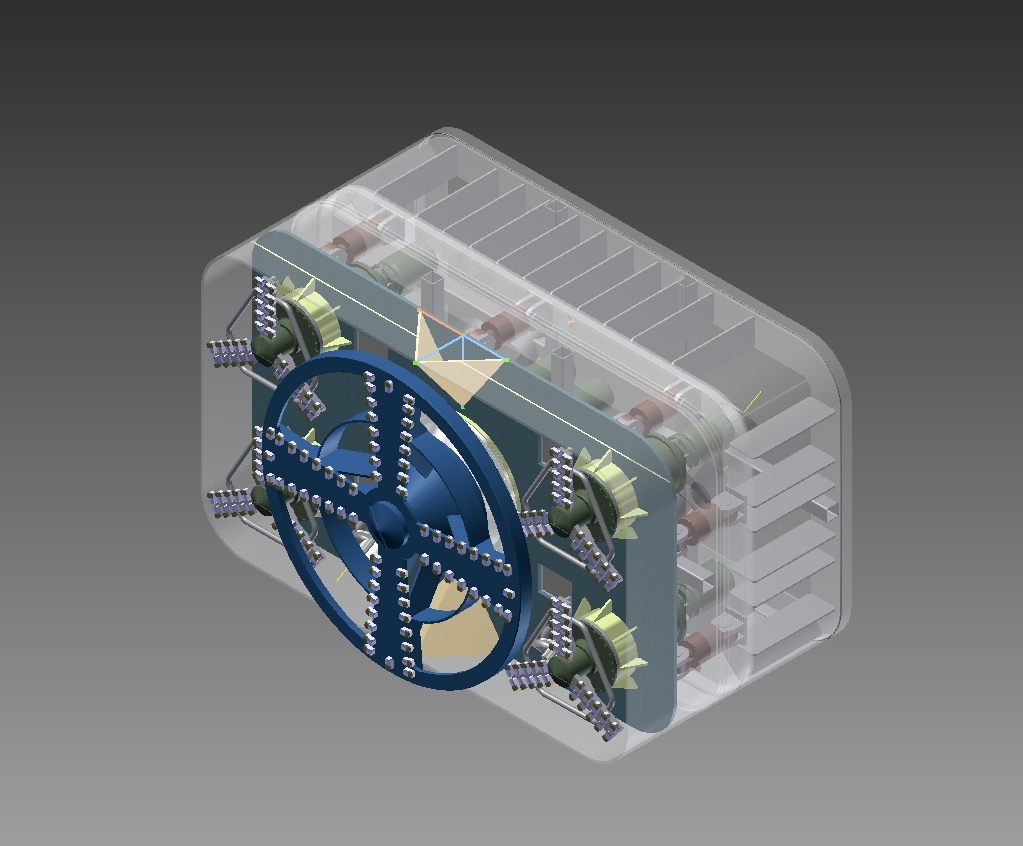

High-Performance Precision Pipe Jacking System for Construction Needs

Customization:	Available
After-sales Service:	Engineers Available to Service Machinery Overseas
Warranty:	1 Year

📊 Basic Information

Model NO.

9820*6320mm

Usage

Sewage, Tunnel, Coal Mine etc

Pipe

Concrete, Segamental, Steel, HDPE

Type

Slurry Balance Pipe Jacking Machine

Soil

Clay, Soil, Silt, Coal Mine

Torque

645*4+1653*2knm

🛠️ Product Description

Product Applications:

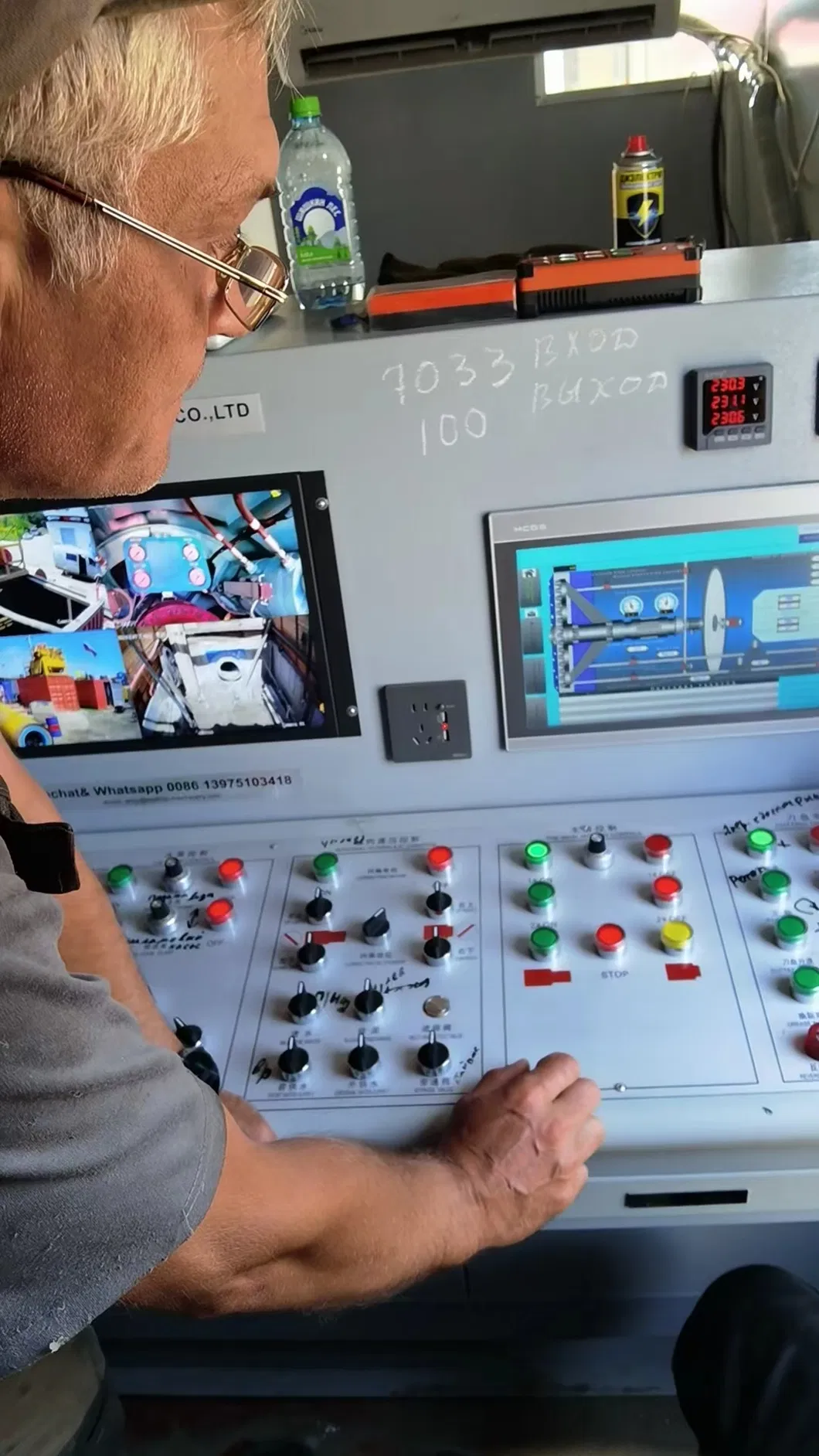

The remote-controlled Slurry Balance Pipe-Jacking Machine stands as a testament to cutting-edge non-digging advancements. Integrating a seamless blend of mechanical prowess, an expertly designed hydraulic system, a sophisticated electric controller with PLC, and an innovative Laser system, this machine is equipped with precise measuring devices to guarantee unparalleled performance. Not only does it enhance operational efficiency, but it also significantly minimizes surface traffic disruptions, presenting an eco-friendly, cost-effective solution to contemporary construction challenges.

Application Scope: Engineered for trenchless underground pipe-laying projects, this system is the go-to solution for sewage, water supply, discharge projects, cable installations, and various tunneling endeavors.

Key Features:

Excels in diverse geological conditions from soft rock to gravel soil.
Robust breakage ability producing finely sized particles.
Jacking speeds reaching up to 120mm per minute.
High precision directional adjustments up to 2.5 degrees.
Designed for long-distance jacking and easy maintenance.

📋 Product Parameters

*Sectional Dimension WH**	9820*6320 mm	Length	8000 mm

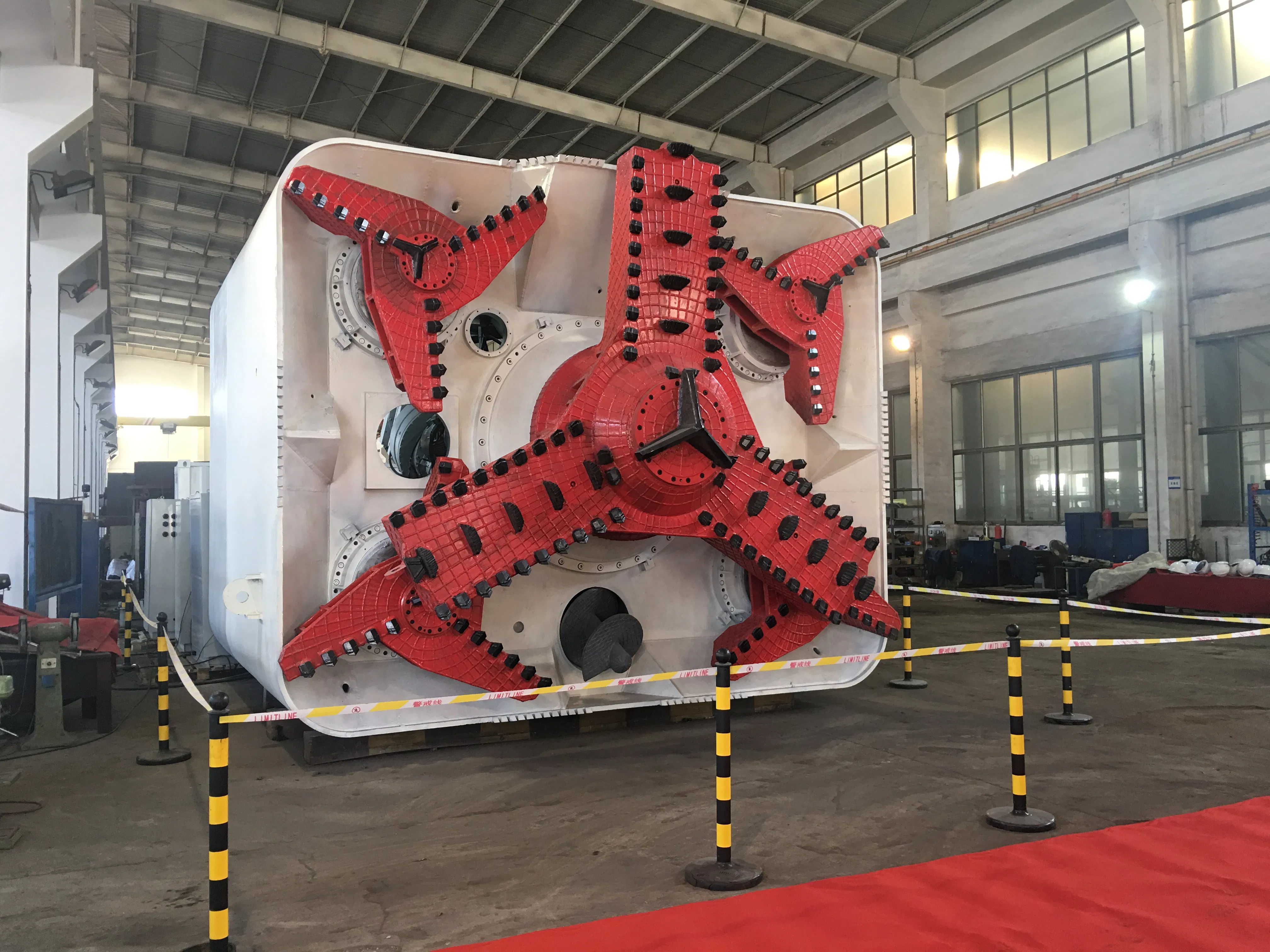

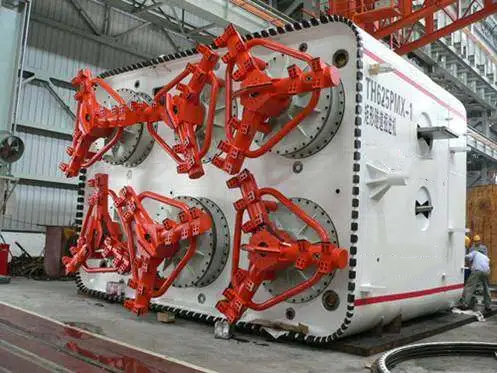

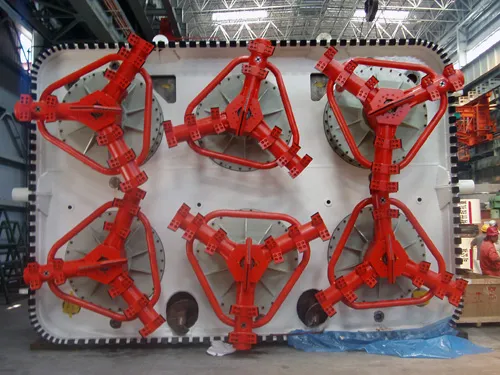

Cutterhead Number	4+2 sets	Cutterhead Power	(453)4+(456)2 kW
Torque	6454+16532 kN·m	Revolution	0-2; 0-1.56 r/min
Steering Jack	(1960x150x7) x 2 / (1960x150x5) x 2 kN	Hydraulic Unit	15 kW
Screw Machine Dia.	670 mm	Screw Machine Power	75 kW

🏆 Certifications

🌟 Our Advantages

Main Features & Benefits:

Minimal Disruption: Trenchless installation ensures zero impact on surface traffic and surrounding structures.
Precision Control: Managed from above ground with unwavering accuracy for continuous operations.
Versatile Range: Capable of handling pipe diameters from 500mm to an impressive 5000mm.
Legacy of Excellence: Over 15 years of golden supplier status and 40 years of manufacturing experience.

🤝 Service Support

Pre-sale Service

* Expert consultation for optimal customized solutions.
* Sample testing to ensure a perfect project match.
* Exclusive invitations to witness advanced technology at our factory.

After-sales Service

* On-site technical support and operation training.
* Initial project guidance (100m-200m) provided free of charge.
* Competitive support for long-distance projects.

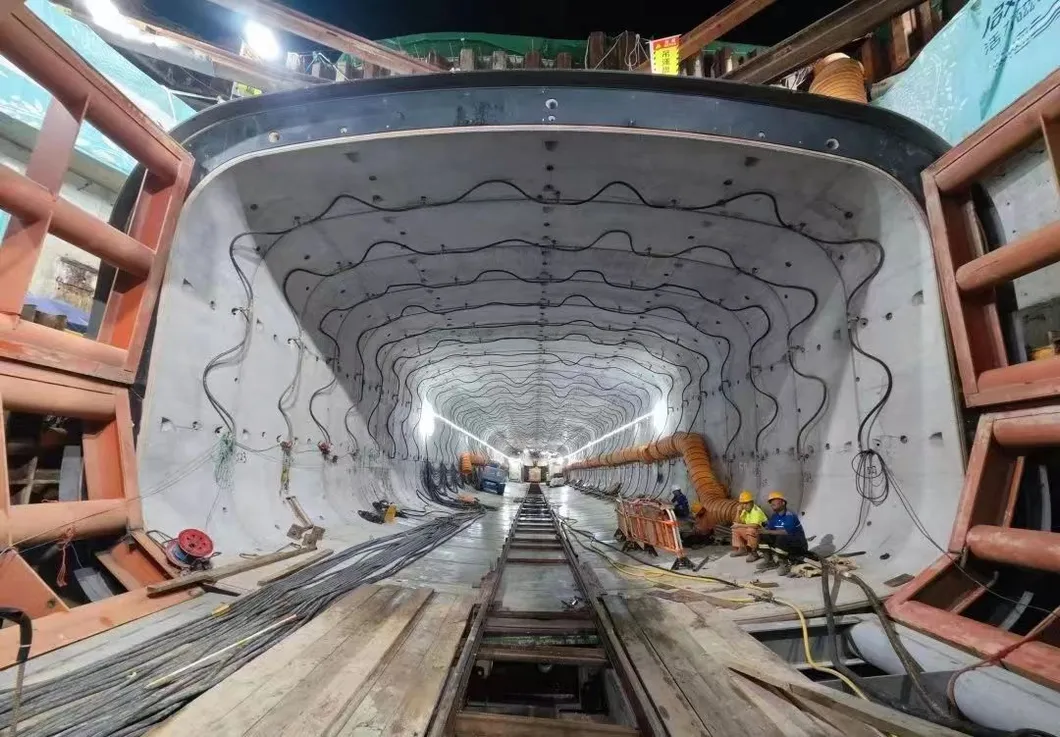

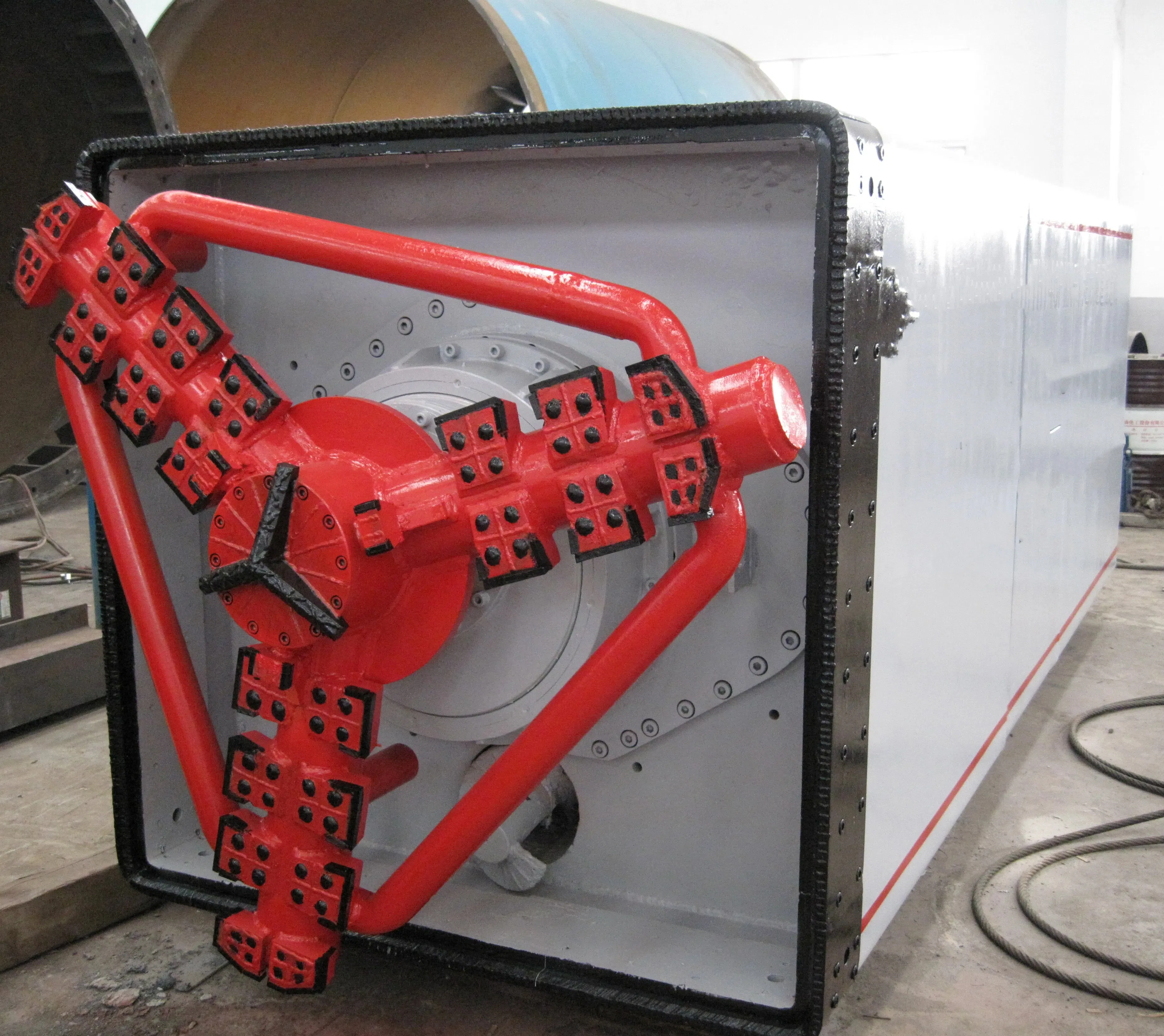

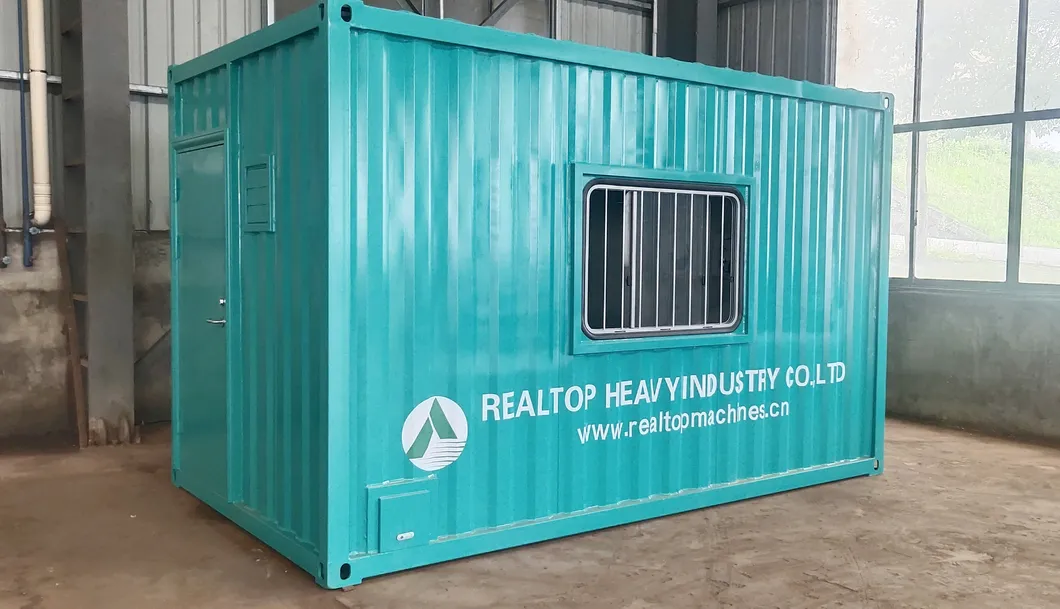

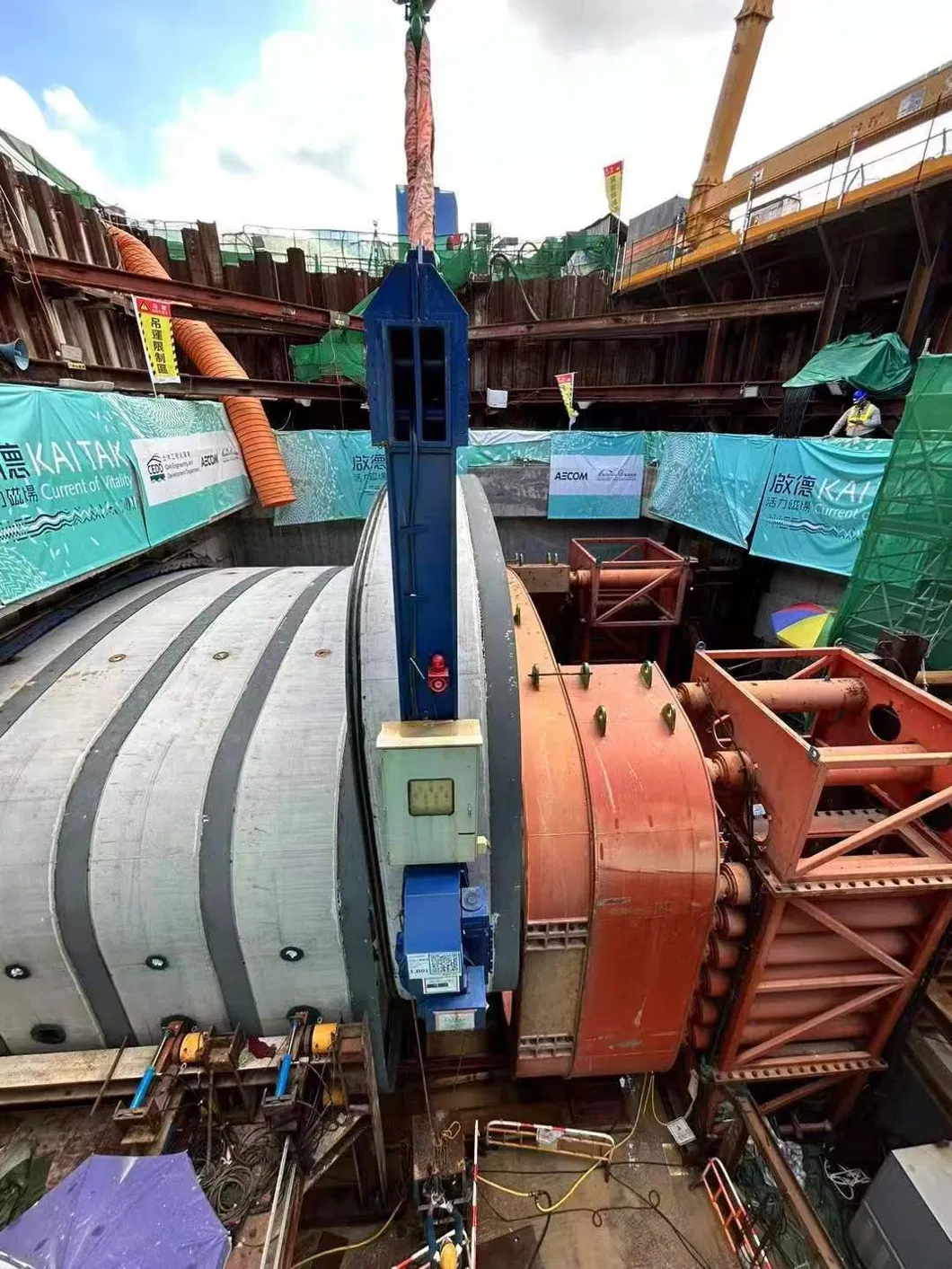

📸 Detailed Photos

❓ Frequently Asked Questions

Q1 What is a Pipe Jacking Machine, and what is it used for?

A Pipe Jacking Machine is a trenchless tunneling system used to install underground pipes, like sewage lines, water pipes, gas pipelines, and cable conduits under roads, railways, buildings, and rivers.

Q2 What kind of soil is this machine suitable for?

We have various solutions for soft soil, clay, sand, and gravel, and even very hard rocks. Our engineers can provide specific solutions based on your geology.

Q3 Will you provide custom solutions for specific project requirements?

Absolutely! We specialize in customizing our pipe jacking machines to meet your exact project specifications and diameter needs.

Q4 What about after-sales service and technical support?

We provide Online & On-site Technical Support, including operational and maintenance training. All machines come with a 12-month warranty.

Q5 What are the shipping and payment terms?

Payment Terms: T/T and L/C. Shipping: We can arrange FOB, CIF, or EXW shipments as per your preference.

Q6 How do you ensure the precision of the tunnel direction?

The system utilizes an advanced Laser guidance system and precise hydraulic steering jacks to allow for corrections in both vertical and horizontal directions.
