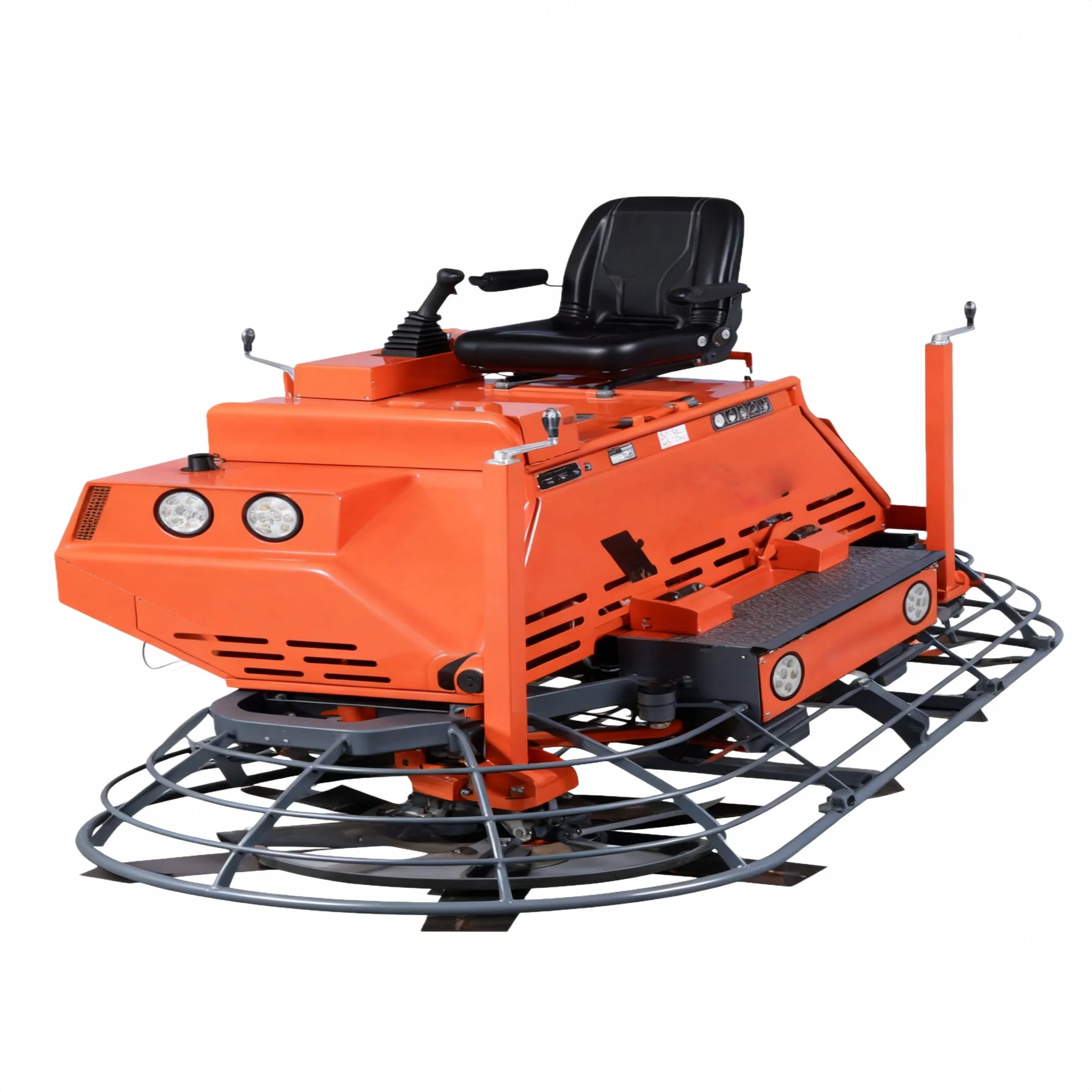

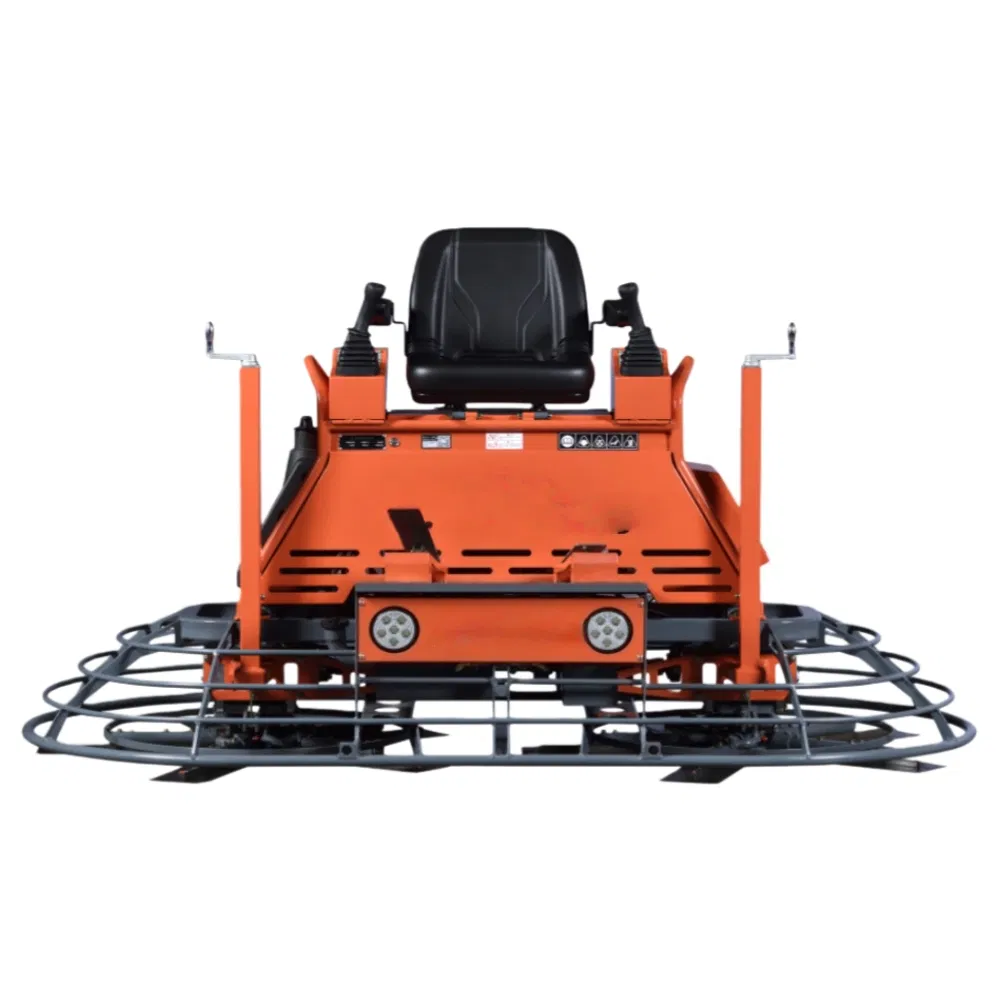

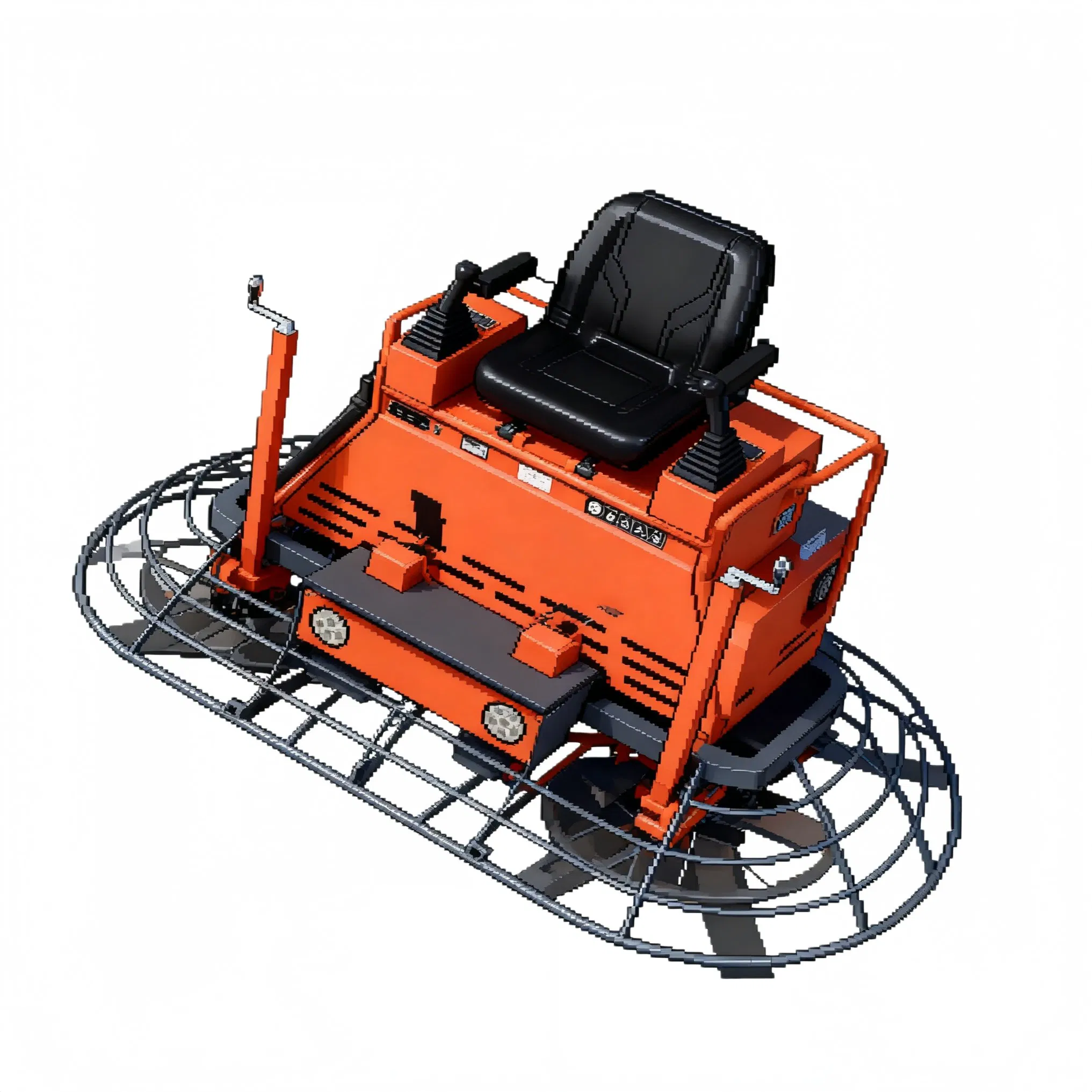

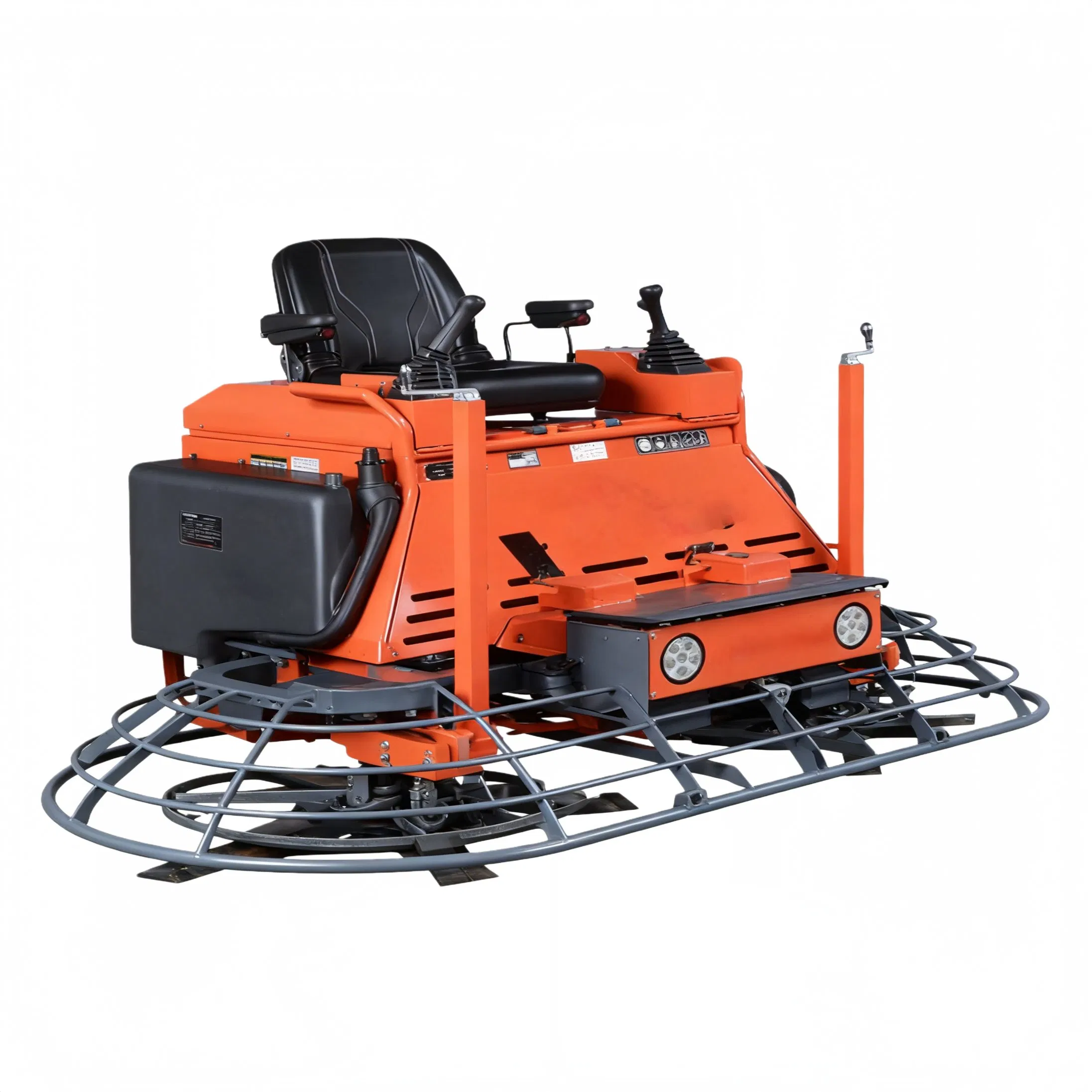

High-Performance Ride-on Power Trowel for Efficient Ground Polishing Machine

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview & Basic Info
Model NO.
CRTN1260
Engine
Hatz 4h50tic
Engine Speed
2800 Rpm
Fuel Type
Diesel
Fuel Tank Capacity
55 L / 14.5 Gal
Transport Package
Wooden Case
Origin
China
HS Code
8464209000
Product Description
High Quality Concrete Driver Smoothing Machine

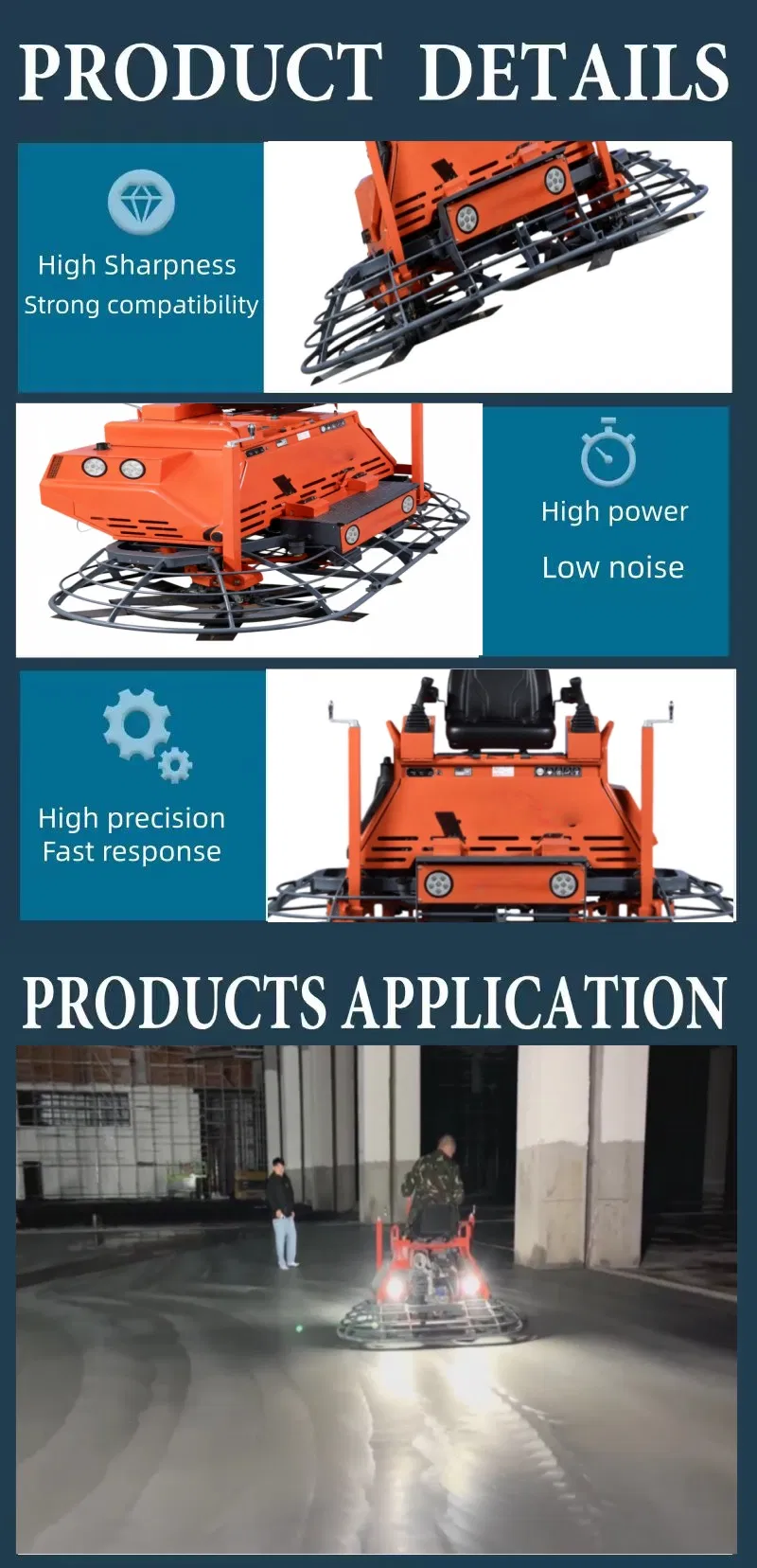

Performance features:

  • 3.05m working width with 12 blades delivers exceptional slab coverage for large-scale finishing
  • 70HP Hatz 4H50TC Diesel Engine for extreme heavy-duty work
  • Heavy-duty hydraulic drive with joystick steering
  • Multifunction display with speed, pitch, temp & pressure
  • Manual driving + constant-speed cruise modes
  • Handle-actuated spray system for uniform coverage
  • Extra-heavy reinforced frame for maximum stability
  • Adjustable seat, 360° LED lighting, auto rotor stop
  • Clamshell hood for convenient maintenance
  • Heavy-duty transport cart with adjustable tow height
  • Six-blade spider assemblies maximize ground contact and ensure superior floor flatness

Applicable scenarios:

Stone renovation, polishing, and integration can be used for large area of old epoxy and old paint floor removal and grinding with alloy tools.

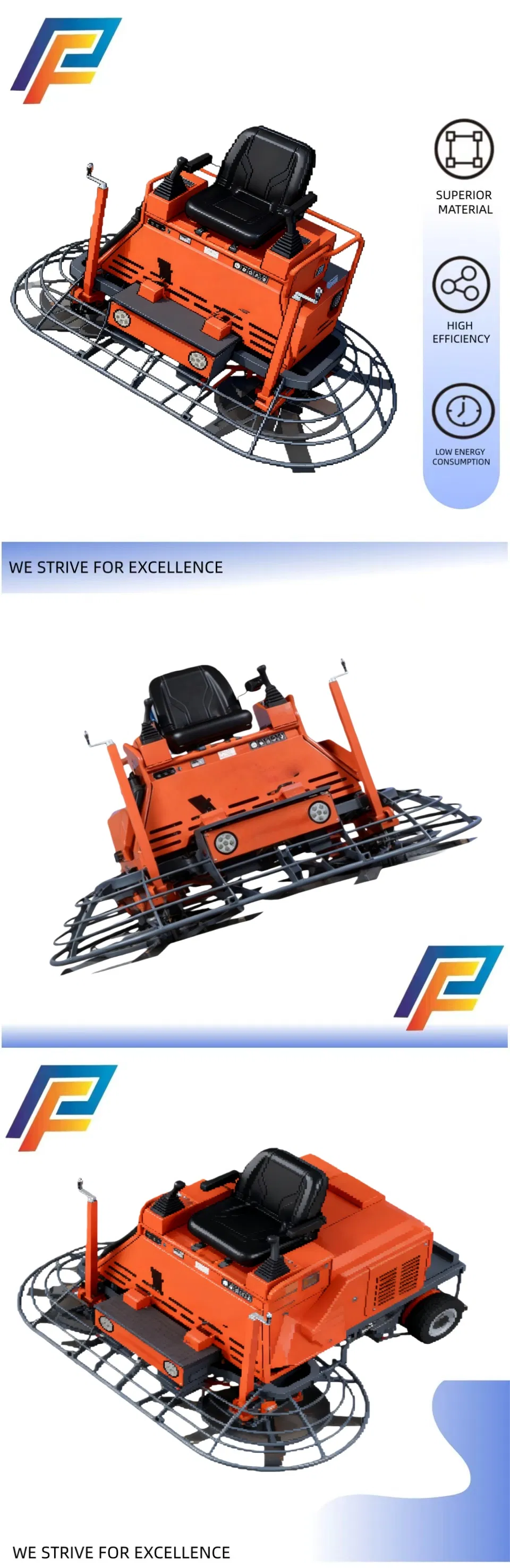

Concrete Smoothing Machine Overview

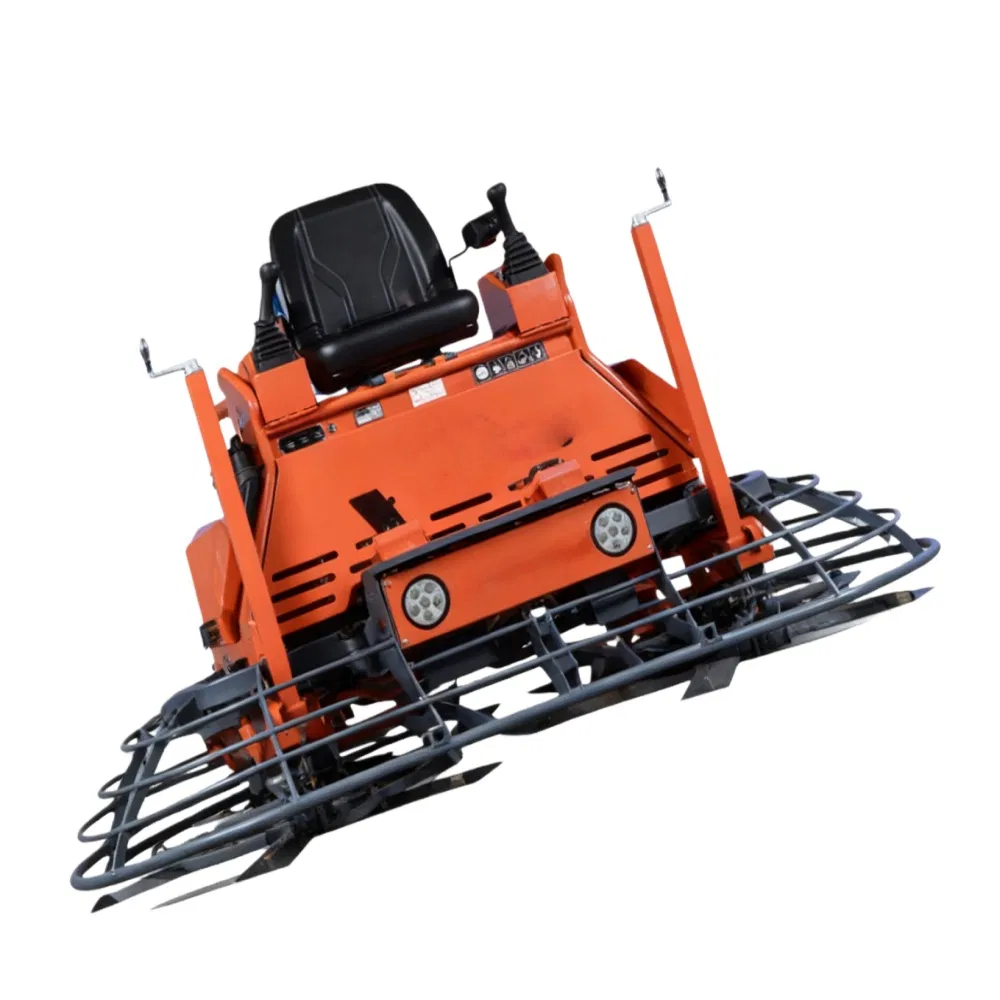

High-Performance Ride-on Power Trowel
Technical Specification
Basic Parameters CRTN1260 CRTN1248
Operating Weight1300 kg/ 2866 lbs994kg/2191lbs
EngineHatz 4H50TICV2403
Engine Speed2800 rpm2800 rpm
Fuel TypeDieselDiesel
Fuel Tank Capacity55 L/14.5 gal50L/13.2gal
Maximum Rated Power55.4 kW/ 74.3 hp48.6kW / 65.2hp
Rotational Speed0-145 rpm0-165rpm
Troweling Path Width3048 mm/120 in2420mm/95.3in
Number of Blades1212
Blade Size584x200 mm/23x7.9 in455 x 150mm/17.9 x 5.9in
Pan Diameter1524 mm/60 in1210mm/47.6in
Steering ControlHydraulic JoysticksHydraulic Joysticks
Packing & Delivery
Package Size
210.00cm * 115.00cm * 120.00cm
Gross Weight
475.000kg
Packing and Delivery
Manufacturing Facility
Quality Control
Frequently Asked Questions
What is the typical order lead time?
Standard models are usually shipped within 15-30 days. For customized configurations, the lead time is approximately 30-45 days depending on requirements.
Are customization services available?
Yes, we provide customization for accessory drawings and specific product features provided that the minimum order quantity (MOQ) is met.
What kind of export documentation is provided?
We provide a complete set of export documents, including commercial invoices, packing lists, bills of lading, and certificates of origin to facilitate smooth customs clearance.
What is the Minimum Order Quantity (MOQ)?
The MOQ for regular stock products is 1 piece. For custom projects, the MOQ is determined based on the specific manufacturing process required.
Which payment methods are accepted?
We support T/T (30% deposit, balance before shipment), L/C (Letter of Credit), and Western Union. Payment terms are negotiable for large-volume orders.
How is the machine protected during transport?
All machines are packed in heavy-duty reinforced wooden cases to ensure maximum stability and protection against damage during international shipping.
