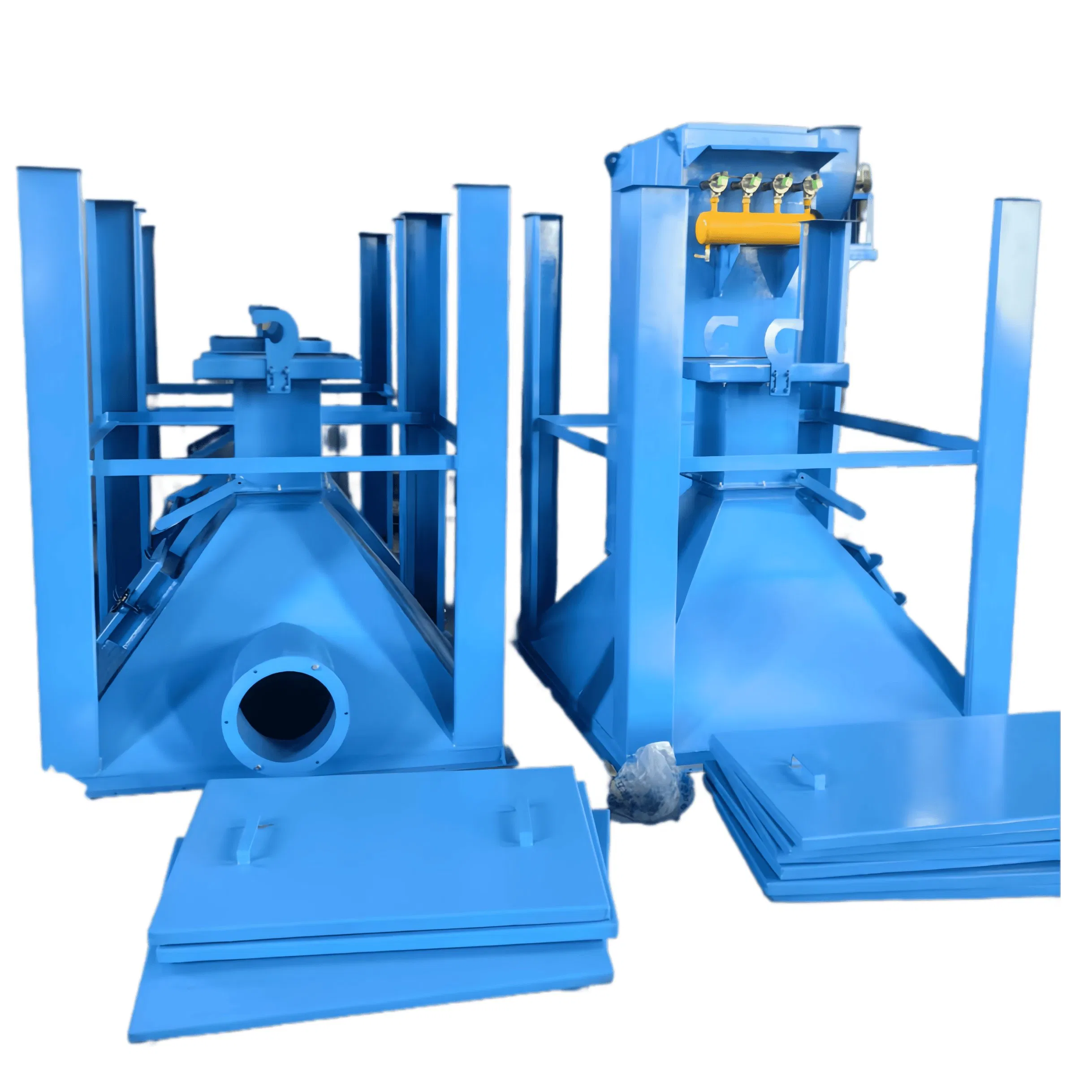

Hmc-64 Reliable Heavy-Duty Pollution Control Equipment for Quarrying/Excavation

1 / 5

Hmc-64 Reliable Heavy-Duty Pollution Control Equipment for Quarrying/Excavation

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

HMC-64-4

Operation Type

Automatic

Medium Material

Chemical Synthetic Fiber

Dust Collecting Method

Dry

Type

Filter Cartridge Dust Collector

Filtered Air Volume

4500-6000 M³/H

Filtering Area

64 M³

Efficiency

99.5%

Overall Size

1680 x 2450 x 4940 mm

📦

Packaging & Delivery

Package Size

150.00cm * 150.00cm * 400.00cm

Gross Weight

900.000kg

📍

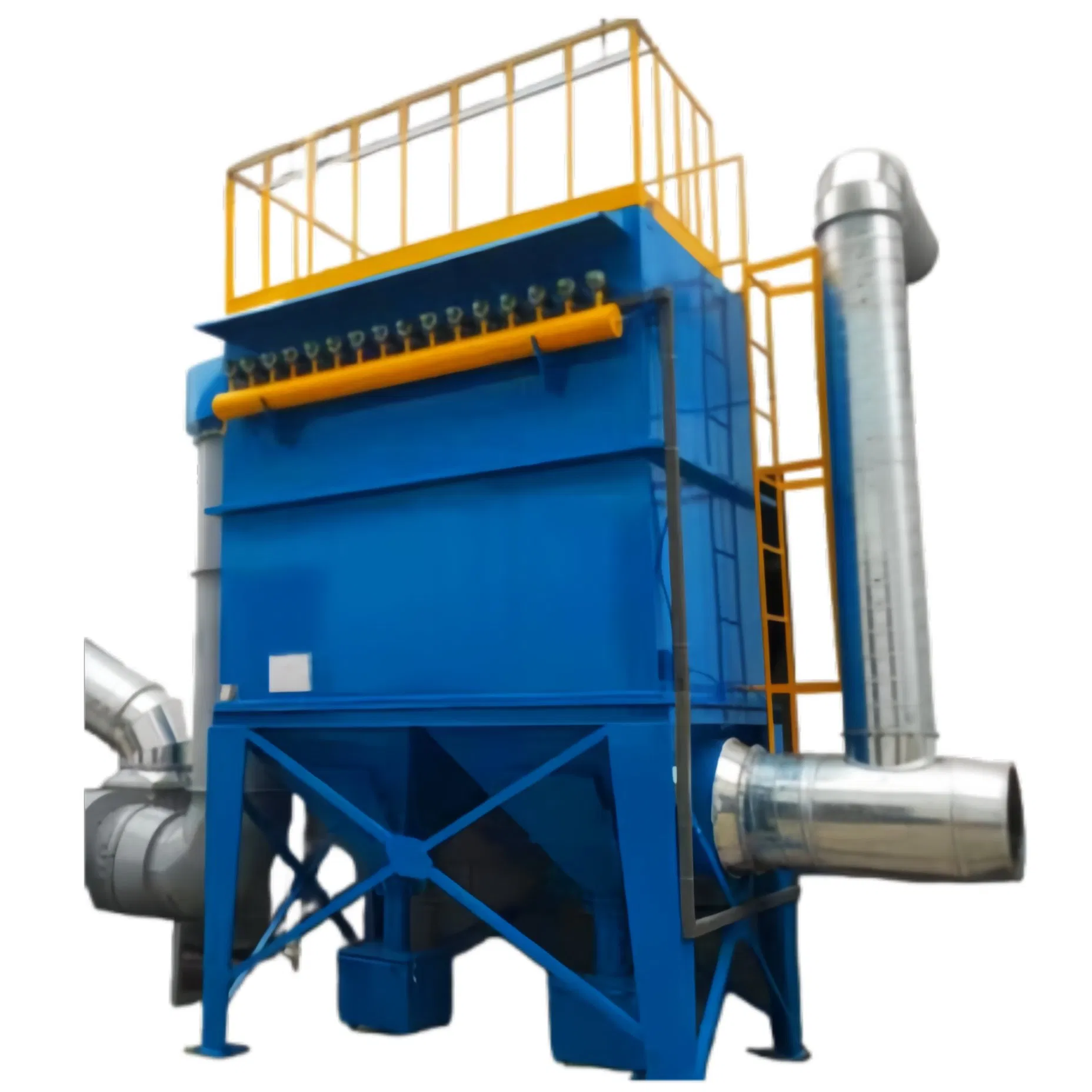

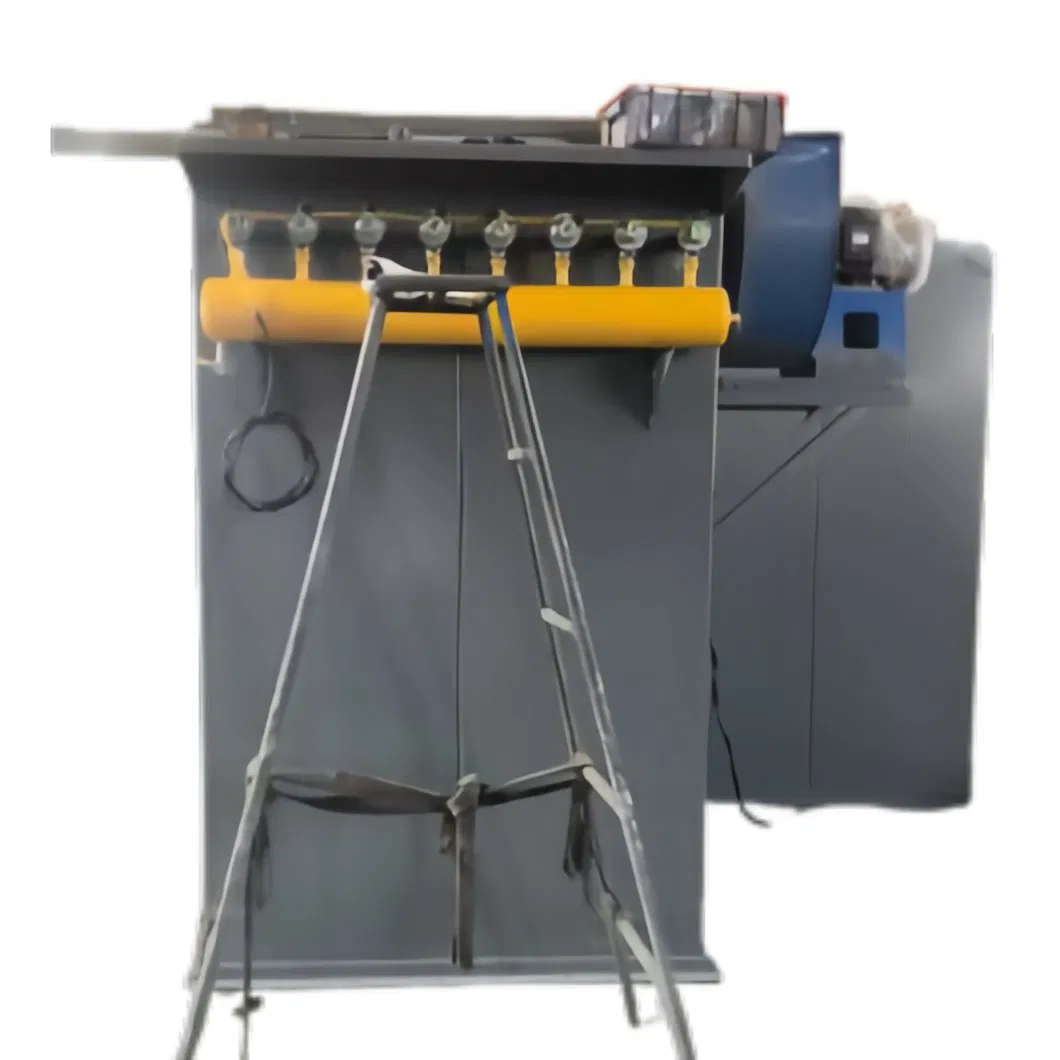

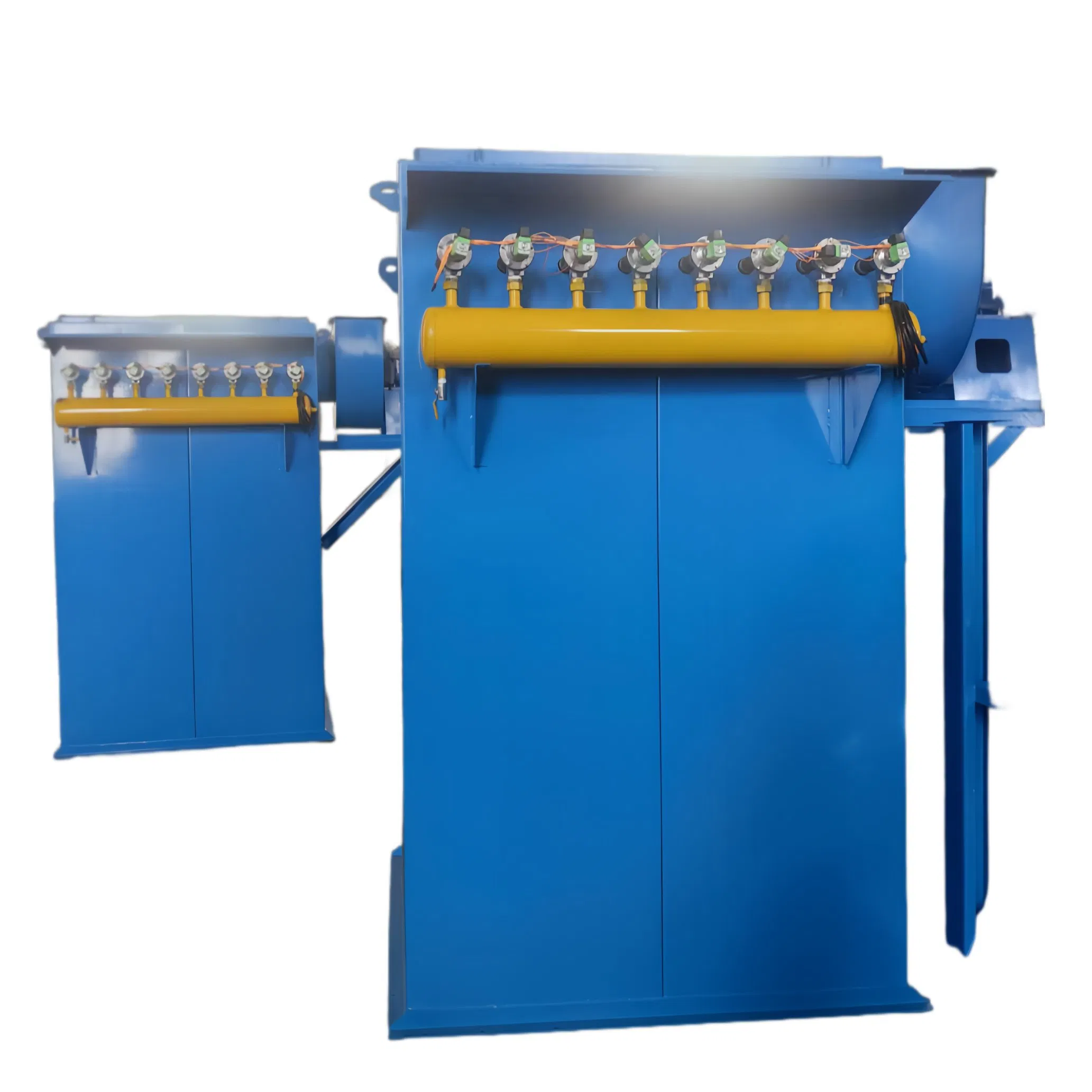

Product Overview

The HMC-64 is a high-efficiency, automatic pulse jet bag filter dust collector designed for continuous operation in demanding industrial environments. Utilizing advanced pulse jet cleaning technology, it ensures superior dust collection efficiency exceeding 99.9%, making it an ideal solution for controlling fine and dry dust particles. Its robust construction and modular design guarantee reliable performance with minimal maintenance.

✨

Key Features & Advantages

High-Efficiency Filtration: Features high-quality filter bags with a large surface area, capable of capturing sub-micron dust particles with an efficiency rate of over 99.9%.
Automatic Pulse Jet Cleaning: An automated cleaning system using compressed air pulses cleans filter bags without interrupting operation, ensuring consistent airflow.
Robust Construction: Built from durable carbon steel (optional stainless steel) with a sturdy structure for long service life.
Energy Saving & Low Maintenance: Efficient cleaning reduces compressed air consumption. Easy-access doors simplify bag replacement.
Wide Applications: Suited for cement production, woodworking, metal fabrication, chemical processing, food, pharmaceutical, and mining.

⚙

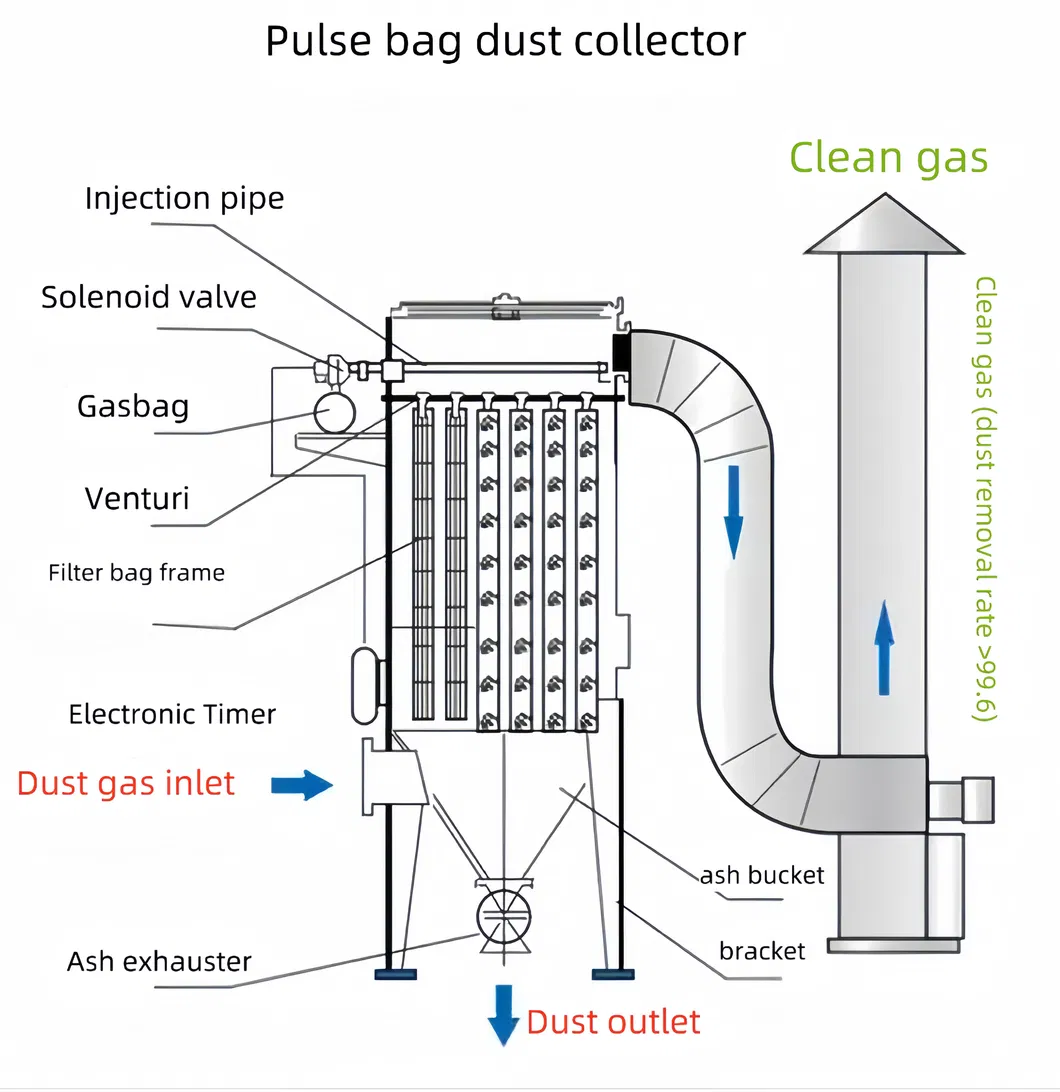

Main Components Spec

Part Name	Components	Spec	Color
Main Body	Bag Plate	312, Thickness 4mm	Blue or Customized
	Head Plate	Thickness 5mm
	Bag	160*3600mm Yellow anti-static
	Blow Sheet	Standard
	Pulse Valve	2" anti-explosion
Electric Parts	Screw Conveyor	Carbon steel, Shell 3mm, Blade 6mm
	Explosion-proof Motor	Dust proof
	Geared Motor	Standard
	Cindervalve	DN300, cast iron

📊

Technical Parameters

Model	Air Volume (m³/h)	Filter Area (m³)	Efficiency (%)	Overall Size (LWH)
HMC-64	4500-6000	64	99.5	1680 x 2450 x 4940
HMC-96	6500-13000	96	99.5	2400 x 2600 x 4940
HMC-128	8300-17280	128	99.5	3120 x 2700 x 4940
HMC-160	11000-23000	160	99.5	3900 x 2720 x 4940
HMC-180	12400-24300	180	99.5	3840 x 3000 x 5135
HMC-256	20000-40500	256	99.5	5760 x 3300 x 5135
HMC-320	22000-45200	320	99.5	5760 x 4120 x 5698

📷

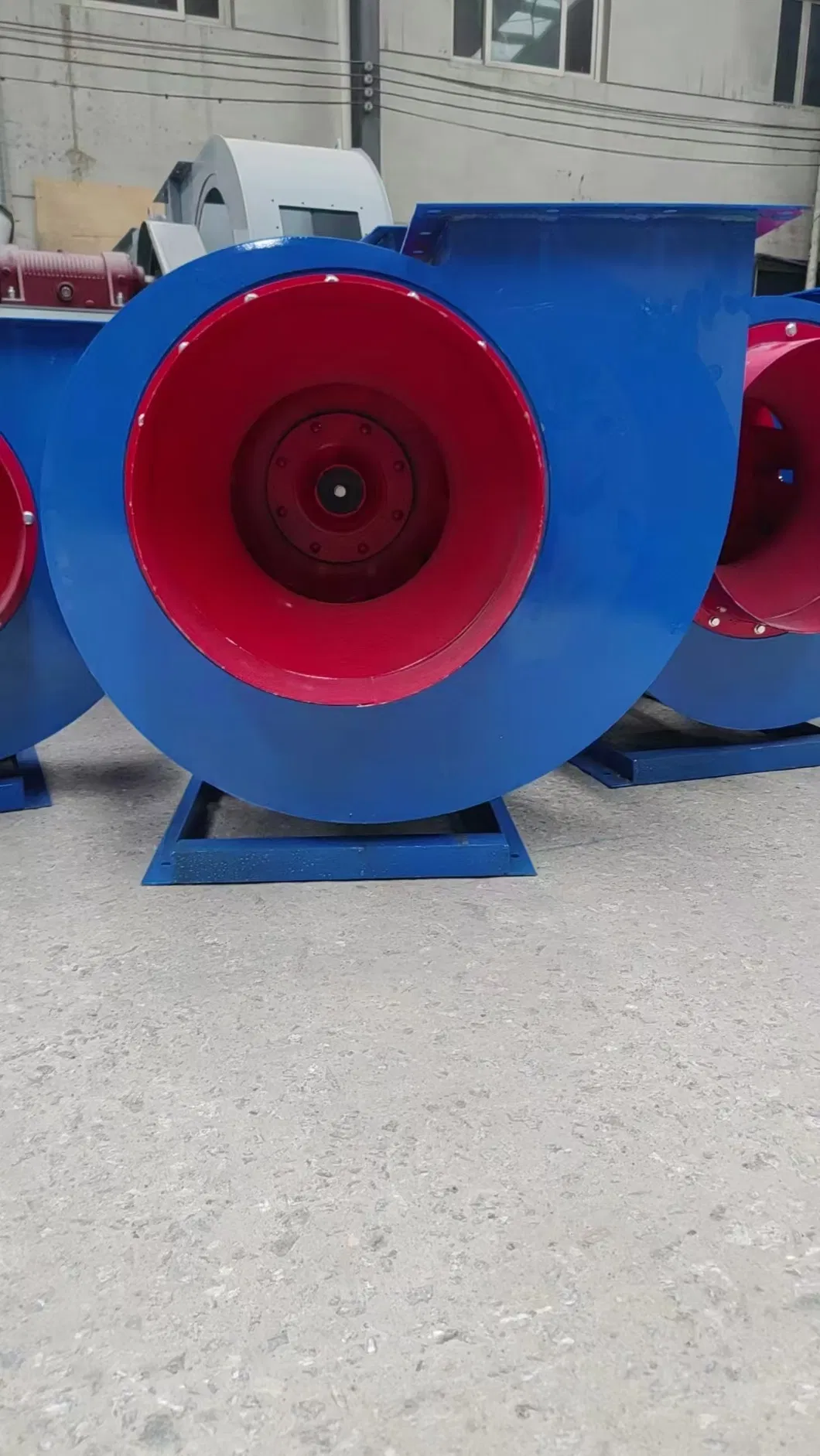

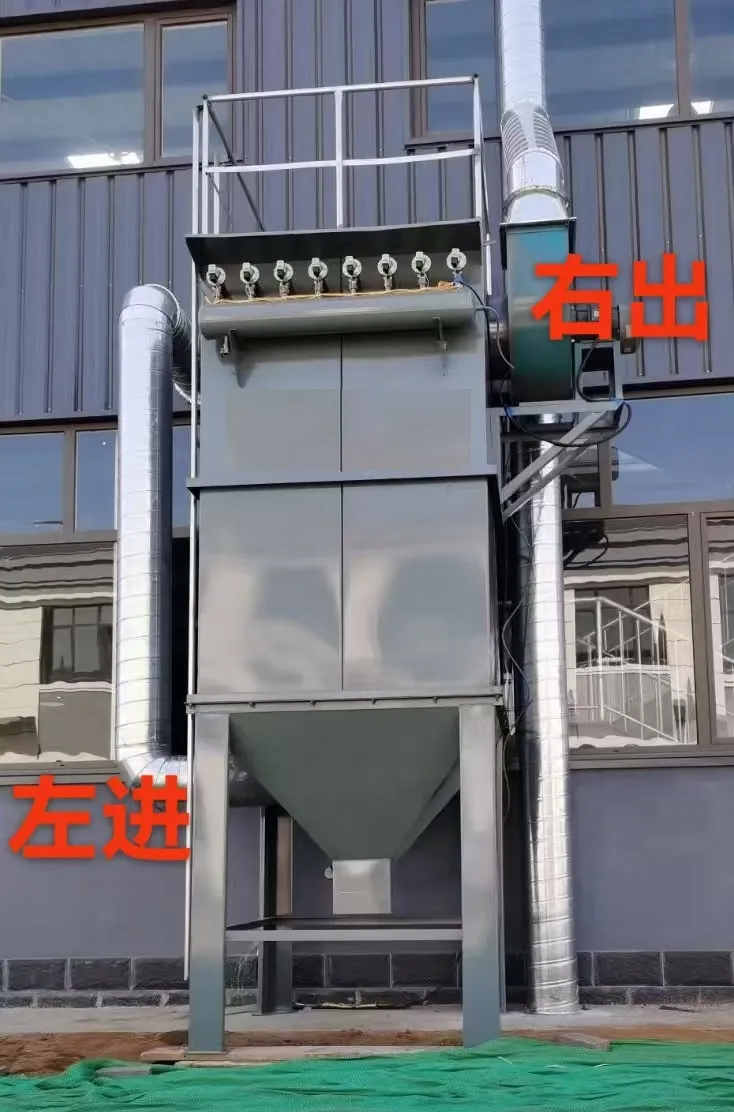

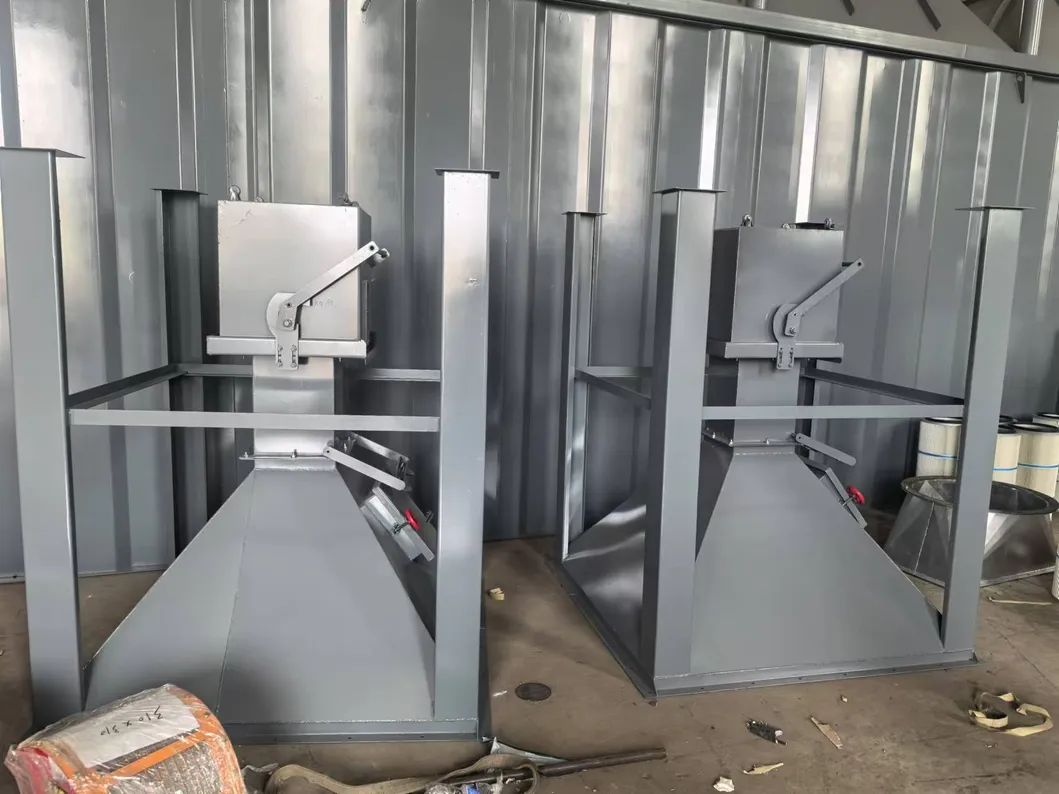

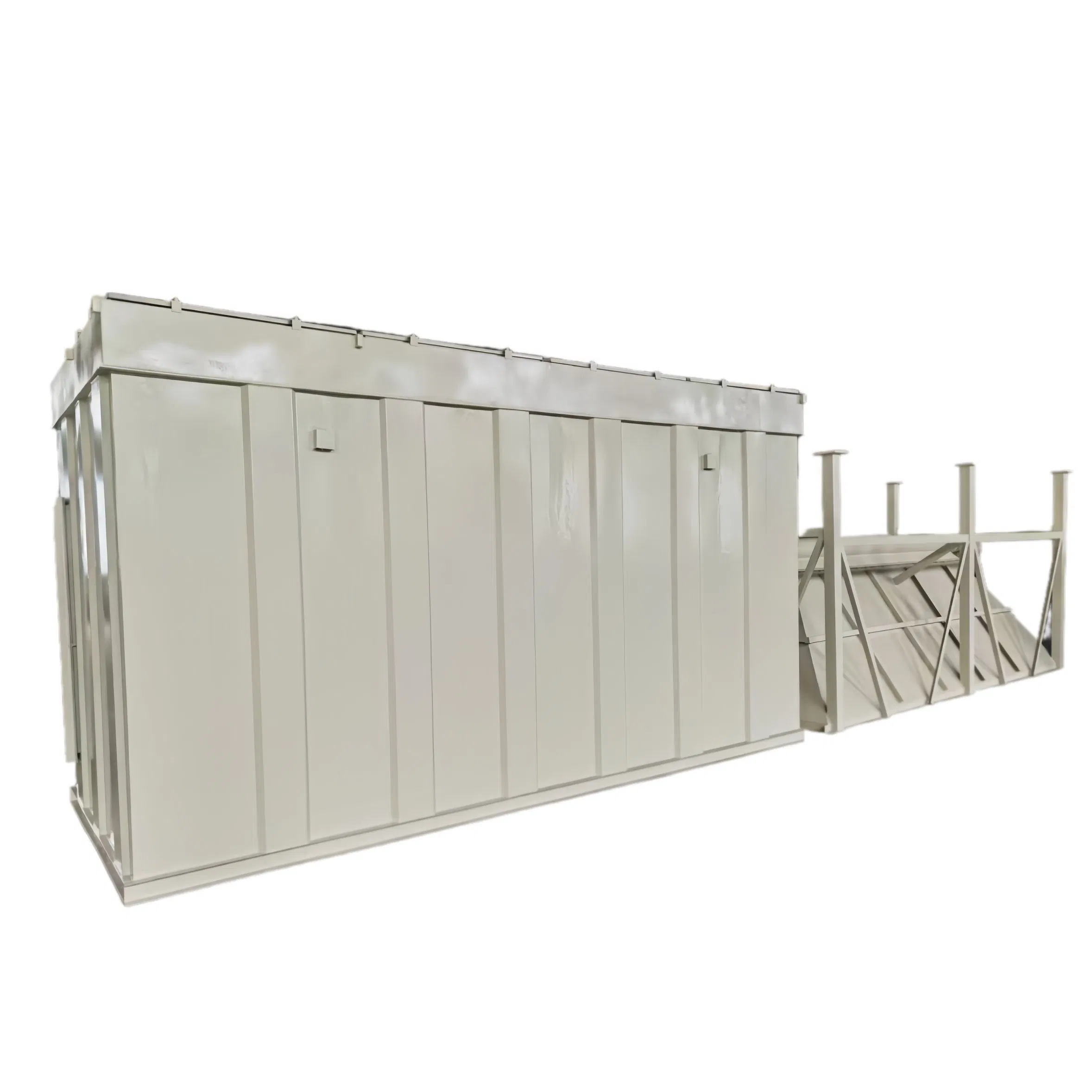

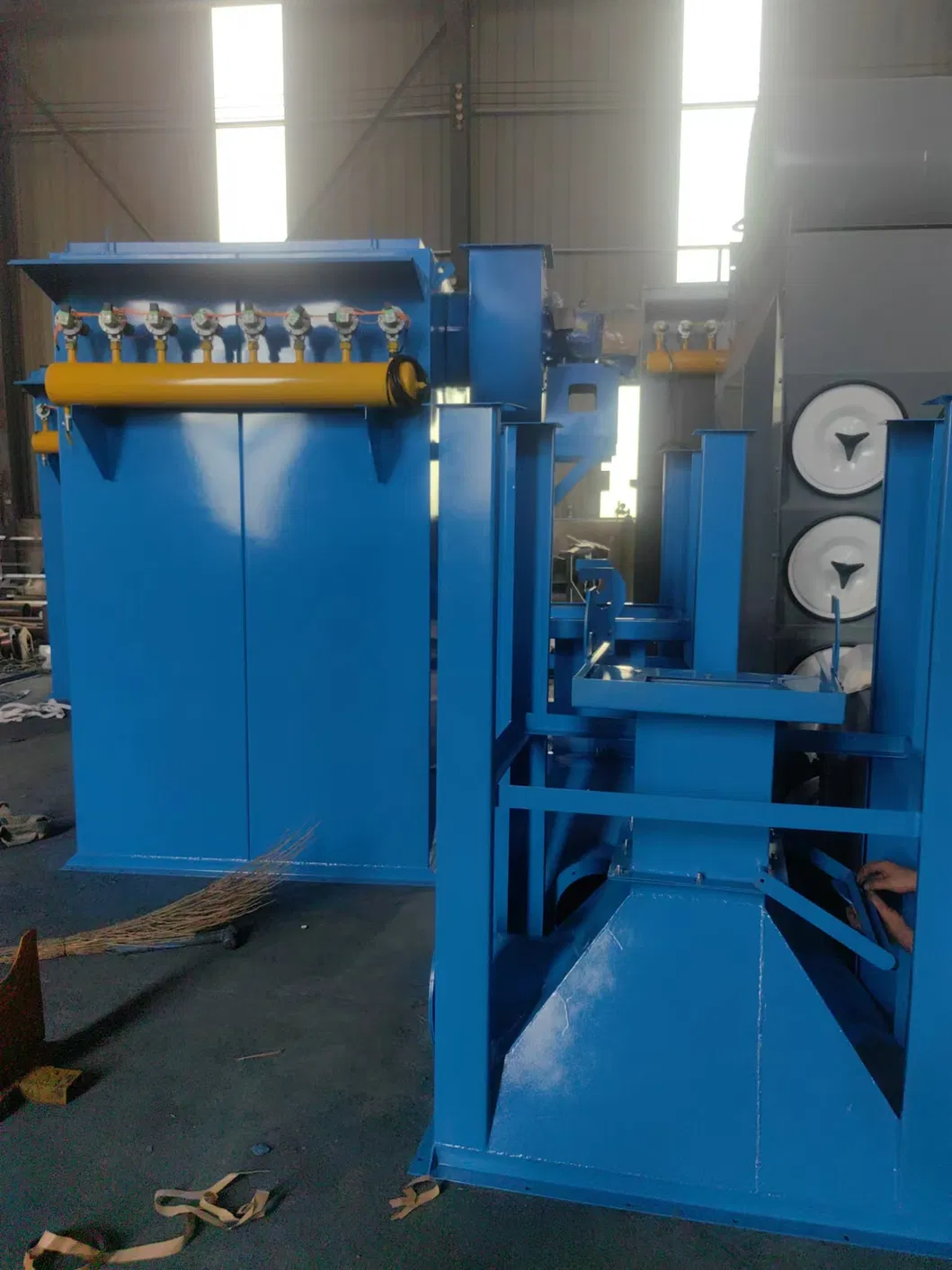

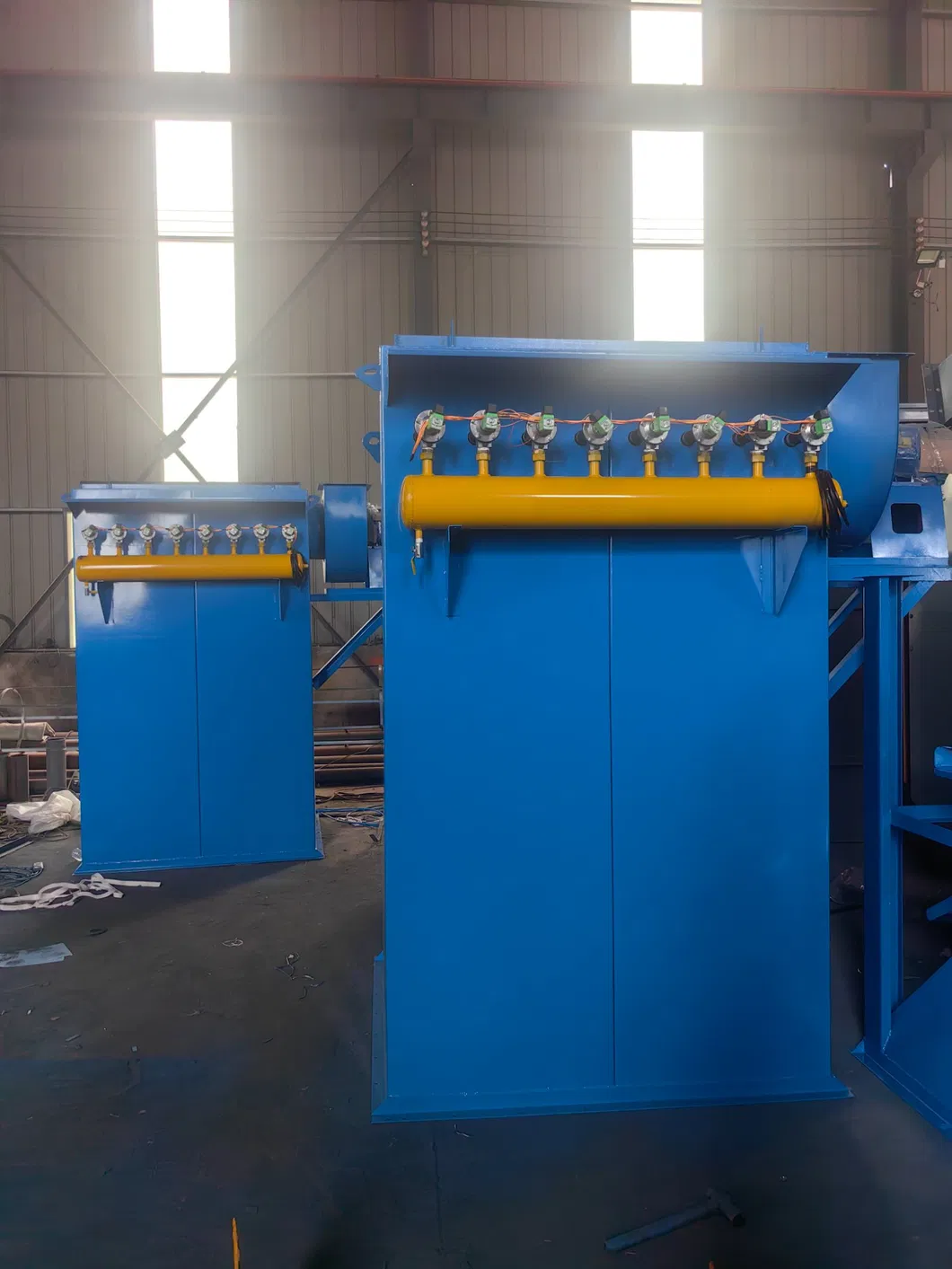

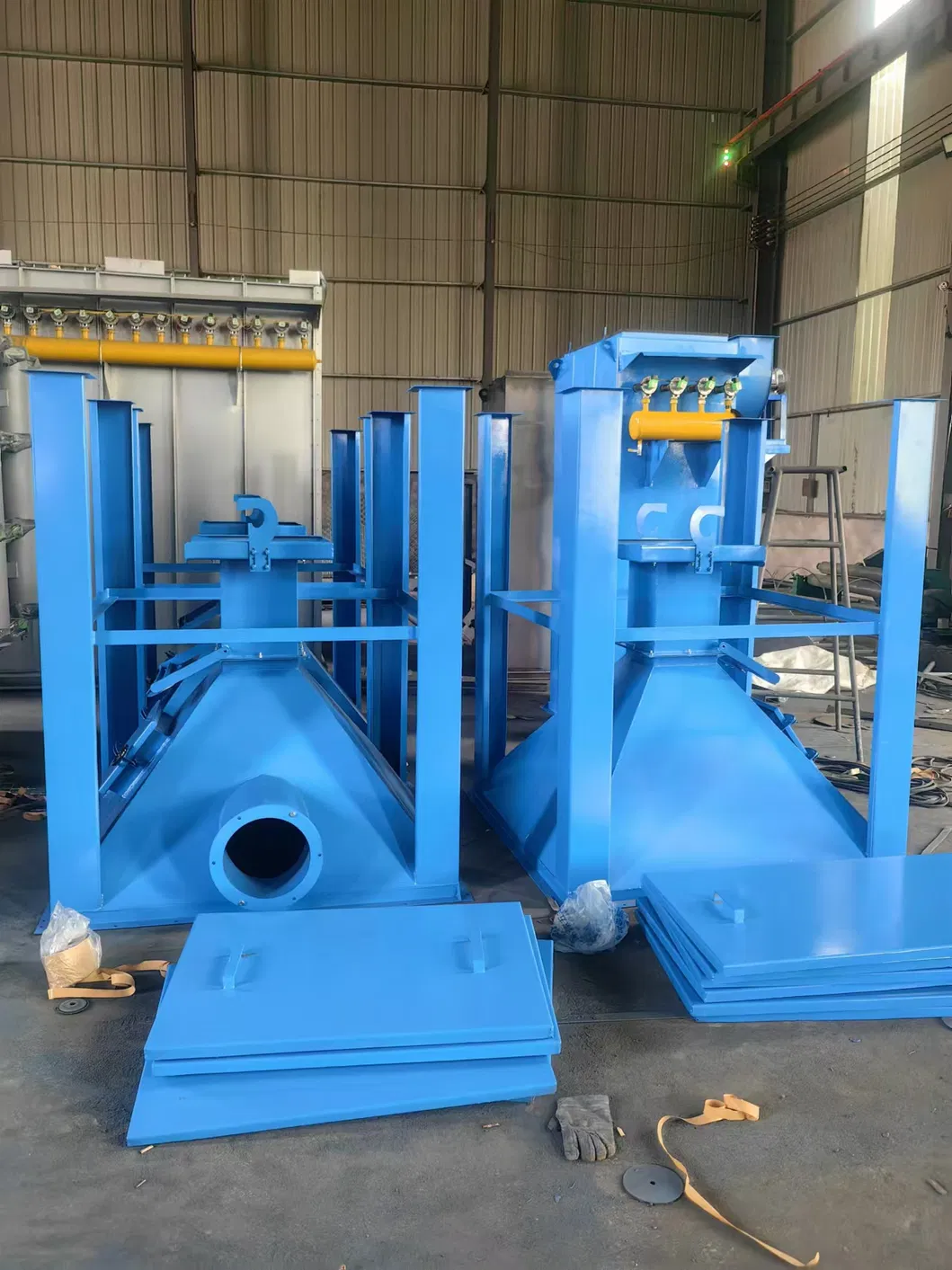

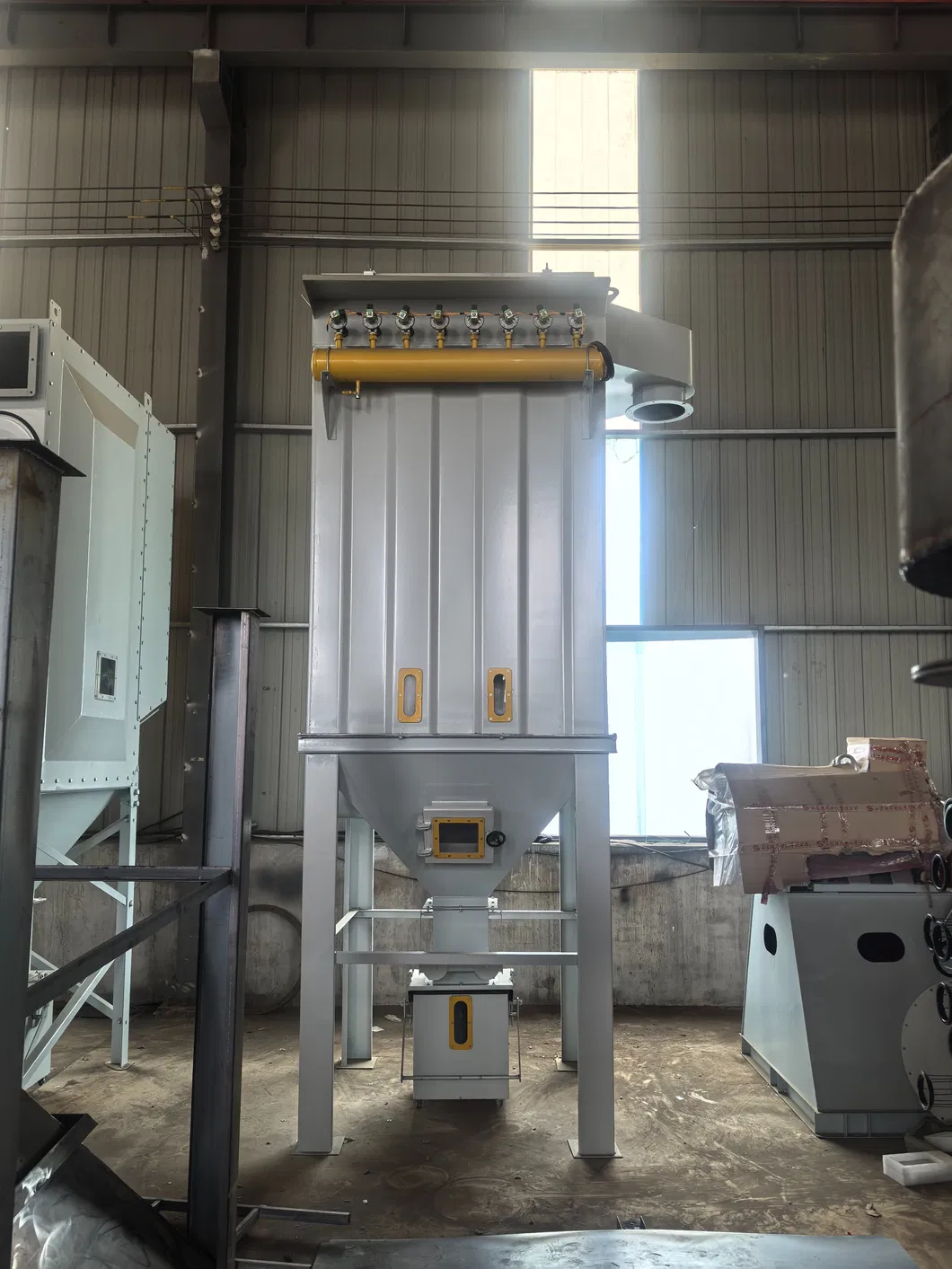

Product Details

🚢

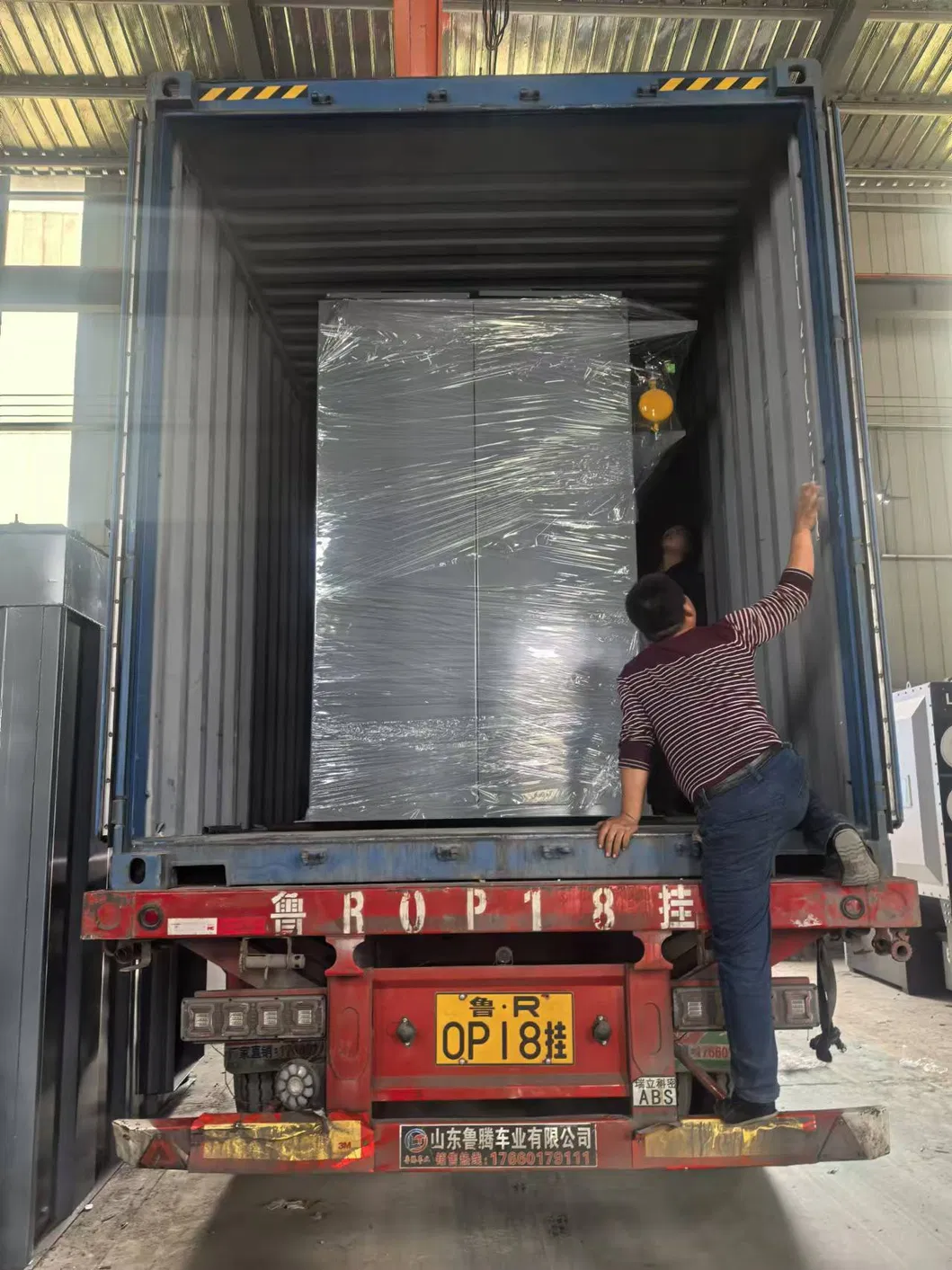

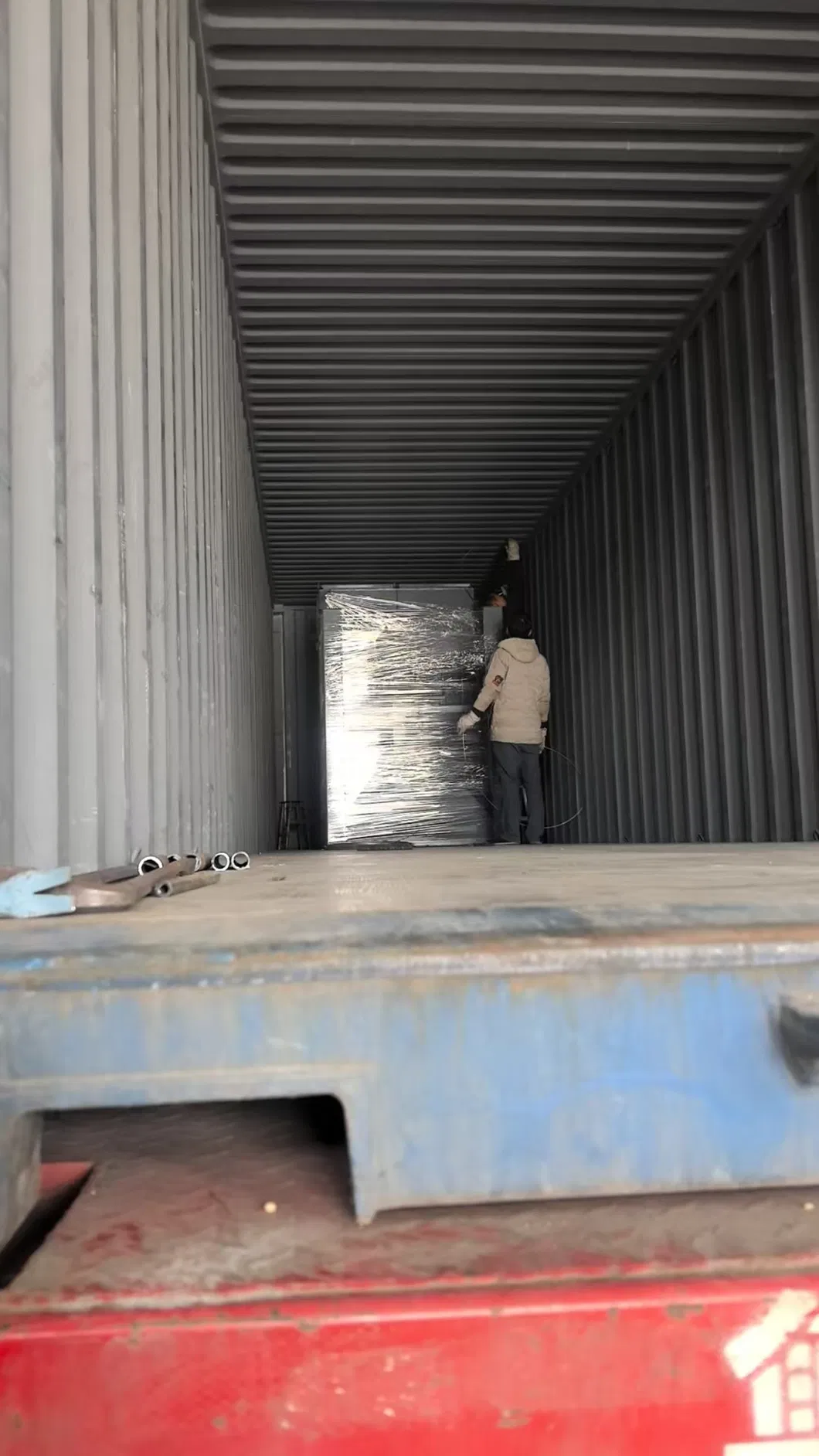

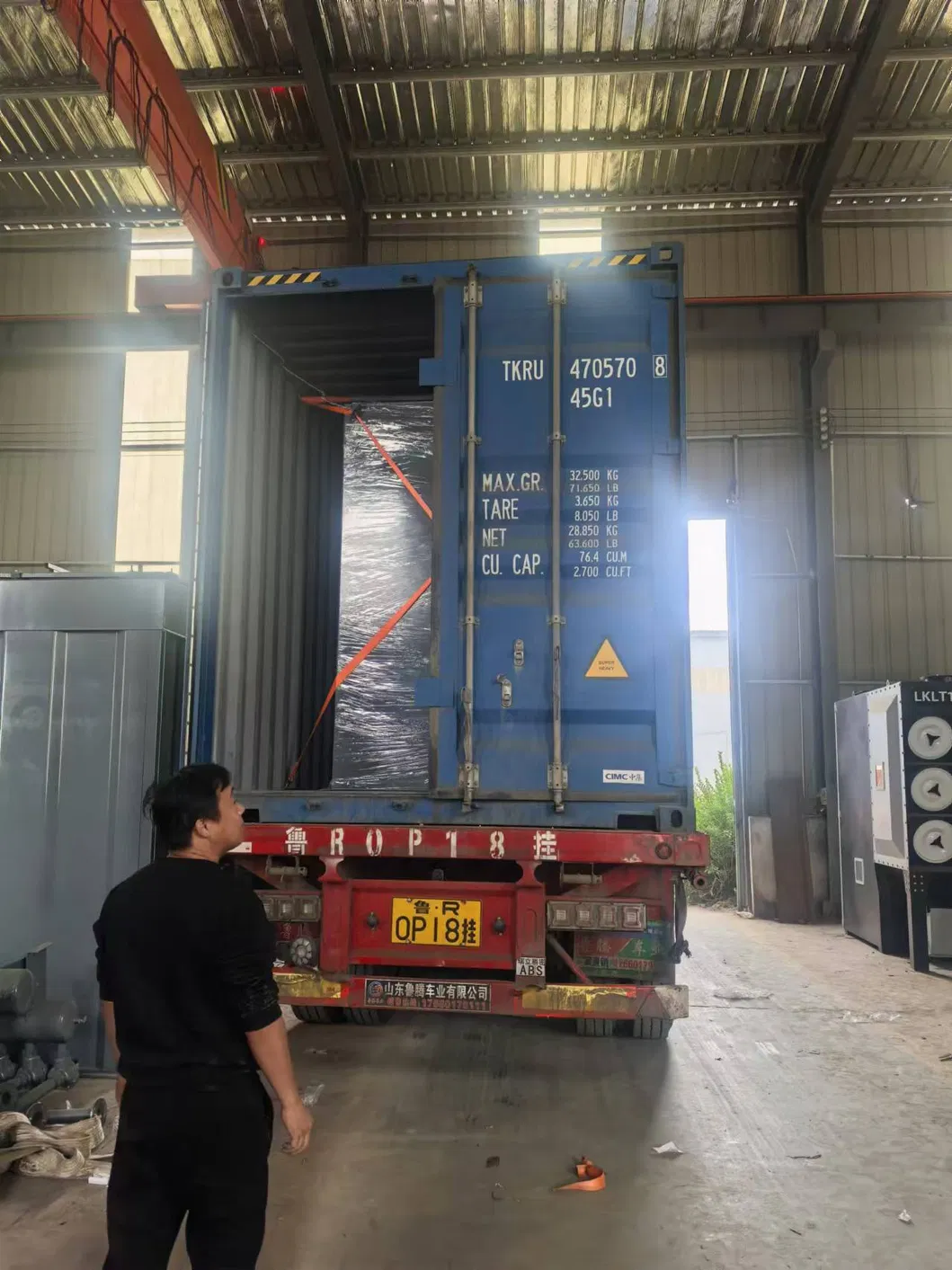

Shipment

🏭

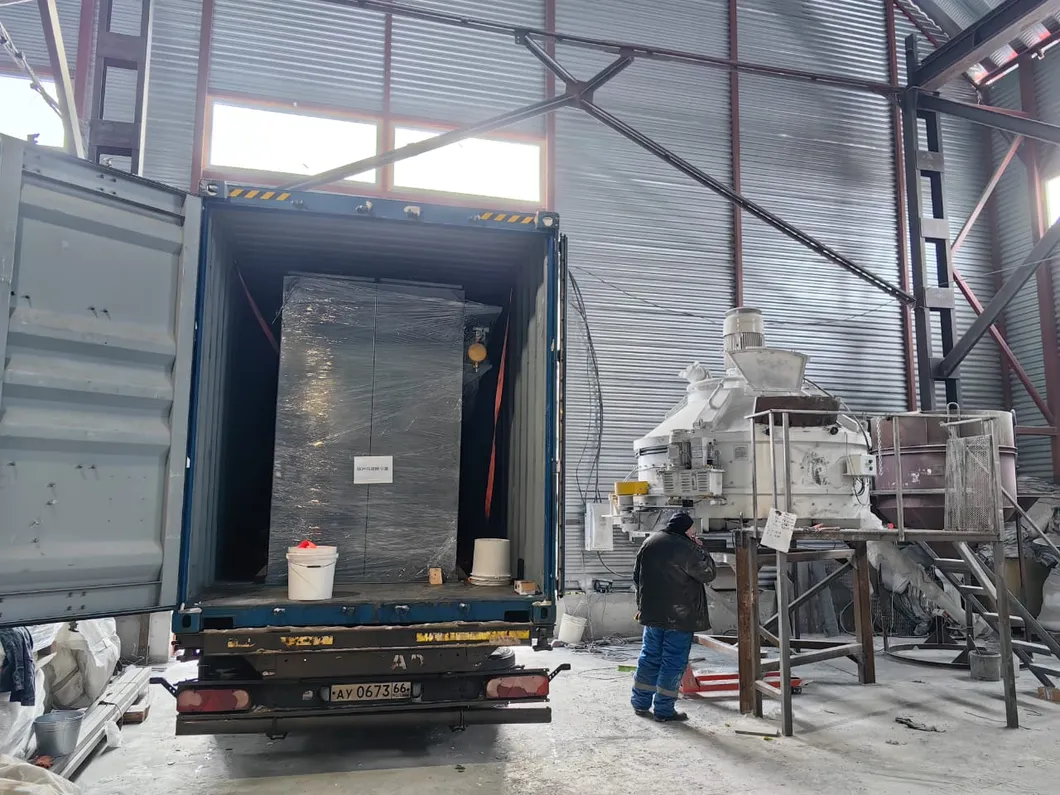

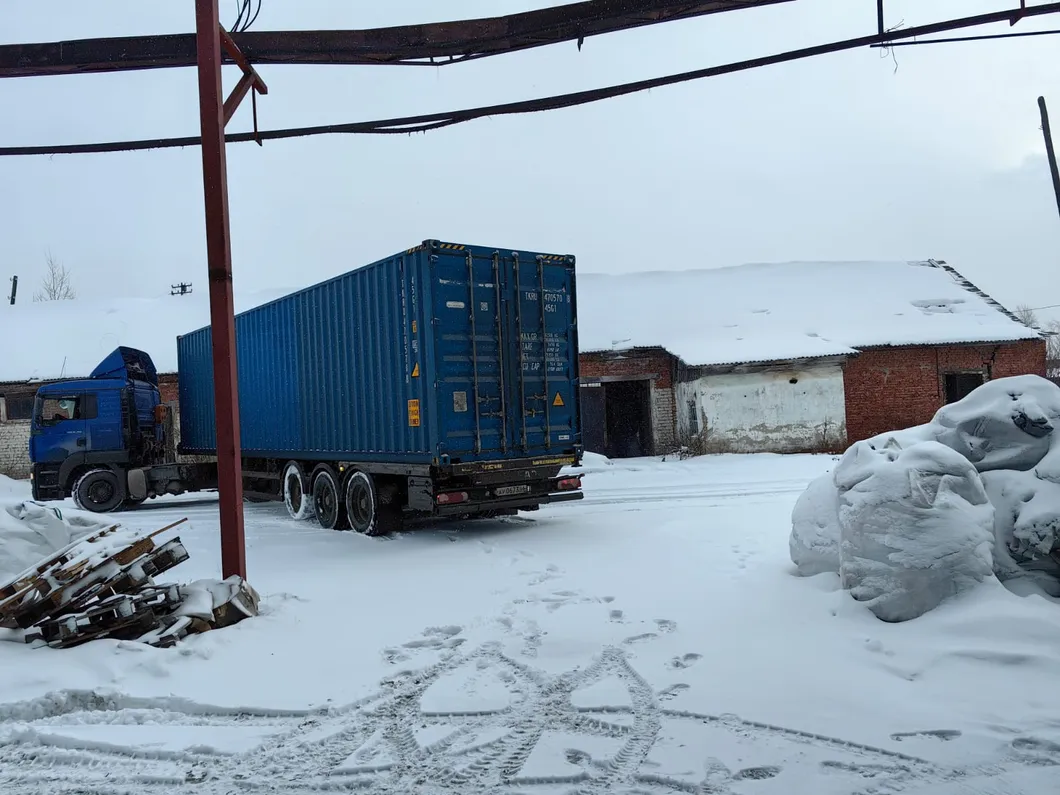

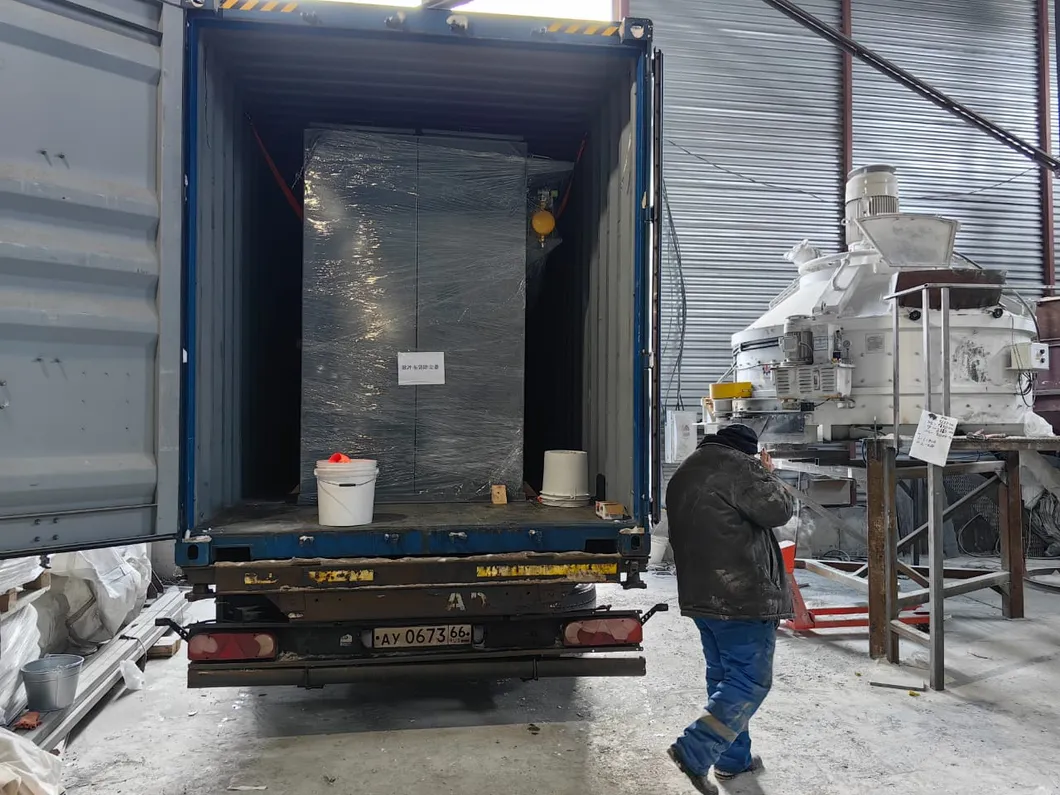

Goods Arriving

❓

Frequently Asked Questions

What is the filtration efficiency of the HMC-64 model?

The HMC-64 pulse jet bag filter provides superior efficiency, typically exceeding 99.5% for most industrial dust particles.

How does the automatic pulse jet cleaning system work?

The system uses high-pressure compressed air pulses to clean the filter bags automatically. This process happens offline or online without halting the main airflow, ensuring continuous operation.

What industries can benefit from this dust collector?

It is widely used in cement production, woodworking, mining, chemical processing, pharmaceutical, and metal fabrication industries.

What is the maximum operating temperature for the HMC-64?

It can operate at temperatures up to 120°C, depending on the specific filter media selected for your application.

Can the filter bags be customized for specific materials?

Yes, we offer various filter media options, including anti-static, waterproof, and oil-resistant coatings to meet different industrial needs.

What maintenance is required for this equipment?

Due to the automatic cleaning mechanism, maintenance is minimal. Periodic inspections of the pulse valves and occasional replacement of filter bags via the easy-access doors are sufficient.
