Hydraulic Fluid Systems Omp 200 Hydraulikmotor
Hydraulic Fluid Systems Omp 200 Hydraulikmotor
Hydraulic Fluid Systems Omp 200 Hydraulikmotor
Hydraulic Fluid Systems Omp 200 Hydraulikmotor
Hydraulic Fluid Systems Omp 200 Hydraulikmotor
1 / 5
Hydraulic Fluid Systems Omp 200 Hydraulikmotor
Hydraulic Fluid Systems Omp 200 Hydraulikmotor
Hydraulic Fluid Systems Omp 200 Hydraulikmotor
Hydraulic Fluid Systems Omp 200 Hydraulikmotor
Hydraulic Fluid Systems Omp 200 Hydraulikmotor

Hydraulic Fluid Systems Omp 200 Hydraulikmotor

Customization: Available
Type: -
Usage: Mining Excavator
Send Inquiry

Product Description

Basic Specifications
Model NO.
omp 200
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Carton, Tray
Origin
China
HS Code
841229100
Capacity
500,000 units
Product Overview

Hydraulic Fluid Systems omp 200 hydraulikmotor

Specialized in hydraulic orbital motors, the BMP series is 100% compatible with OMP models. Available variants include BMPW50, BMPW80, BMPW100, BMPW125, BMPW160, BMPW200, BMPW250, BMPW315, and BMPW400 hydraulic wheel motors.

Key Features & Advantages
  • ✔ Compact design with spool valving motor and geroler technology.
  • ✔ Fully interchangeable with leading brands like Danfoss, Eaton, and M+S.
  • ✔ Versatile application: forklifts, lawn mowers, lifts, loaders, and excavators.
  • ✔ Standard Specifications: Shaft diameter 25 MM, Thread 1/2" BSP.
  • ✔ High-pressure capacity shaft seal design for enhanced durability.
  • ✔ Smooth control of shaft rotation direction and speed.
  • ✔ Optimized combination of high efficiency and economy for medium-duty tasks.
  • ✔ 1-year comprehensive warranty.
Technical Specifications
Part No. Displace. (ml/r) Max. Cont. Press. (bar) Max. Cont. (rpm) Max. Cont. Torque (N.m) Max. Cont. Power (Kw)
BMPW05048.614012309.310.0
BMPW08077.814077015.010.0
BMPW10097.314061519.011.0
BMPW125125.014048024.010.0
BMPW160155.714038530.010.0
BMPW200194.611531030.08.0
BMPW250242.39025030.06.0
BMPW315306.17519530.05.0
BMPW400389.26015530.04.0
Product Gallery

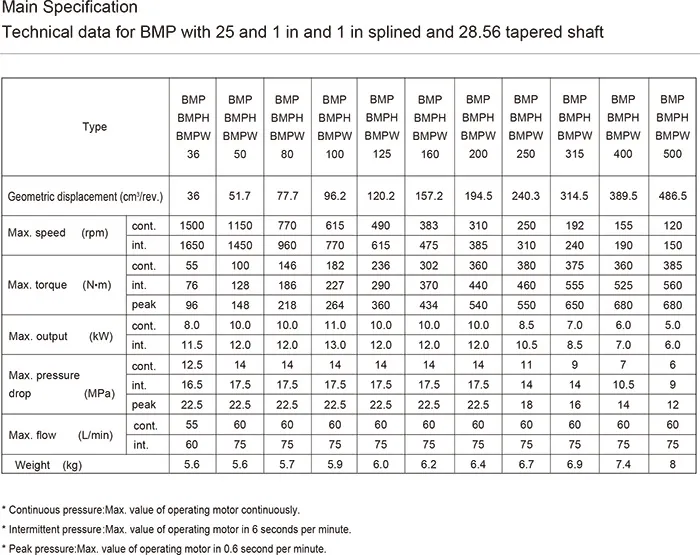

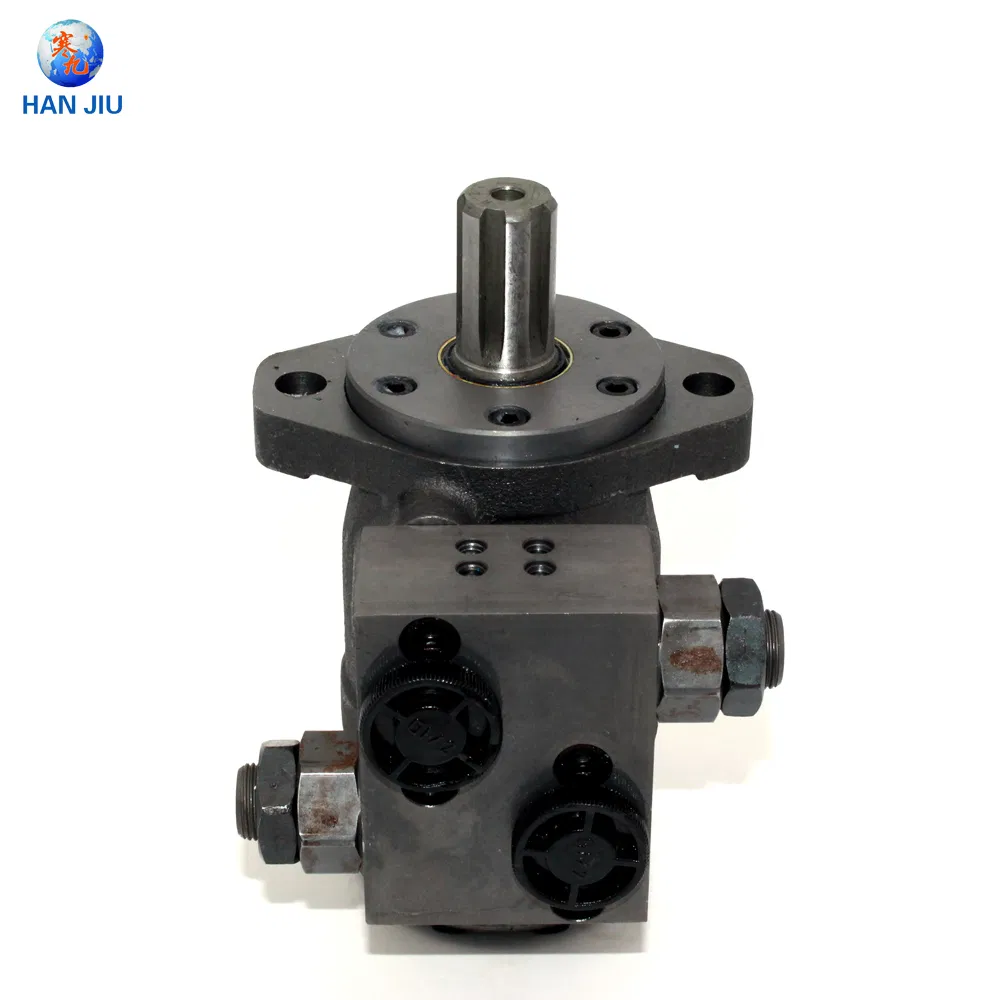

Hydraulic Motor View 1

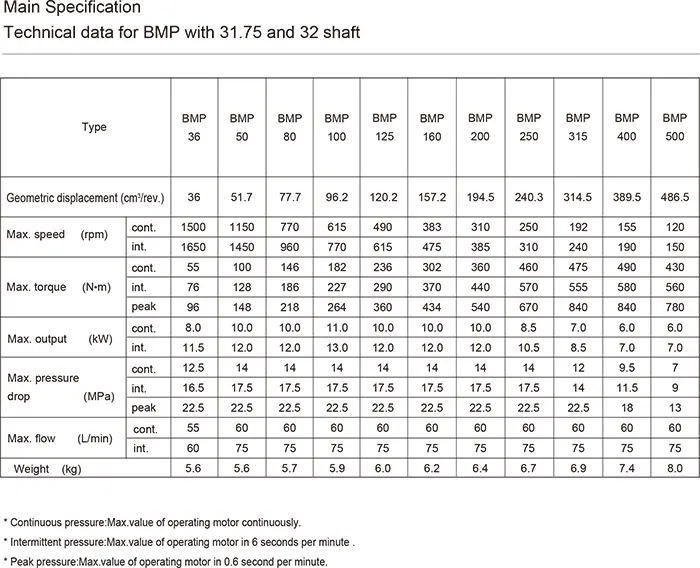

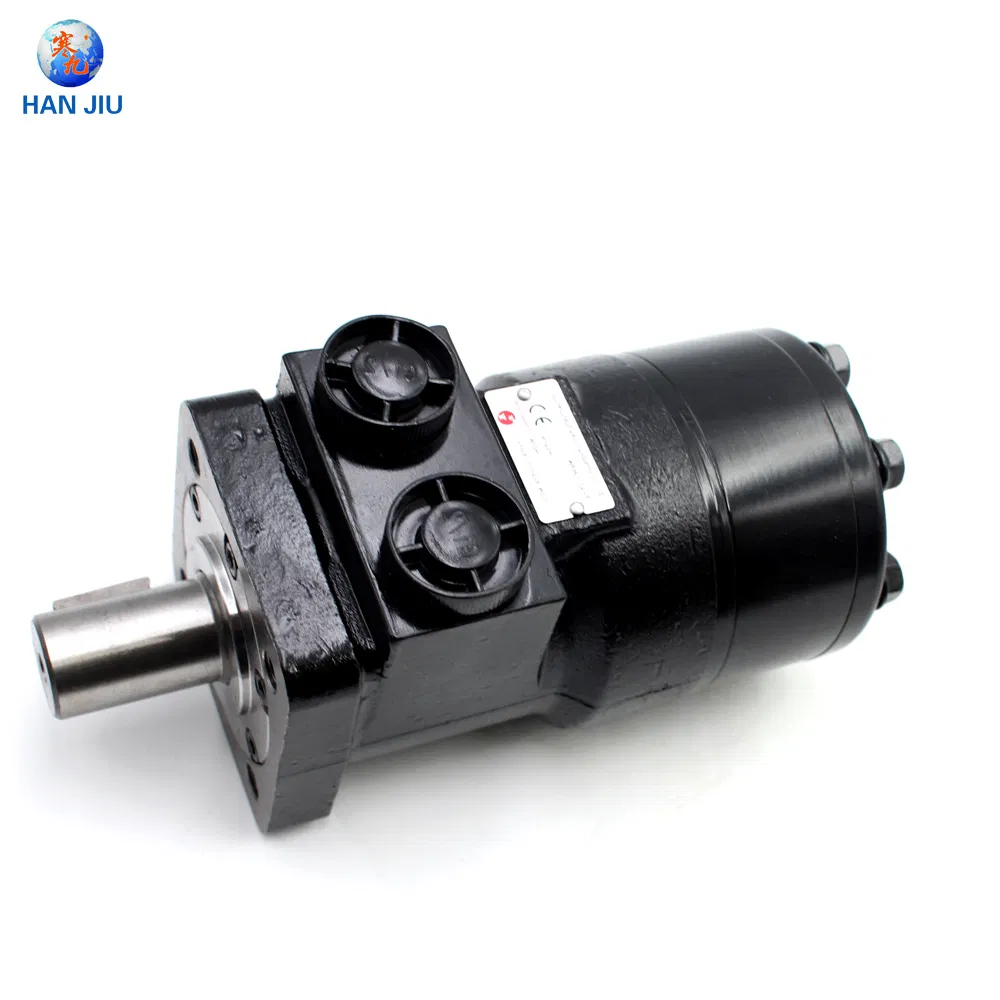

Hydraulic Motor View 2

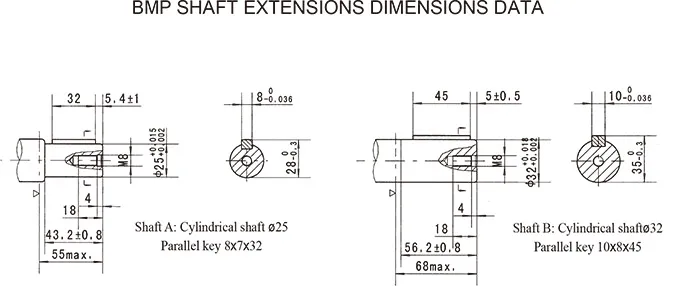

Hydraulic Motor Dimensions

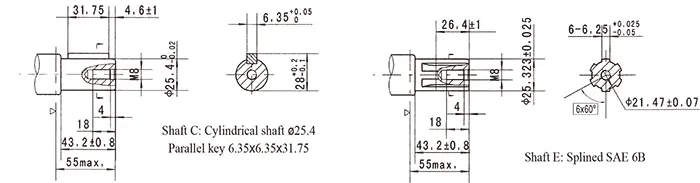

Hydraulic Motor Specifications

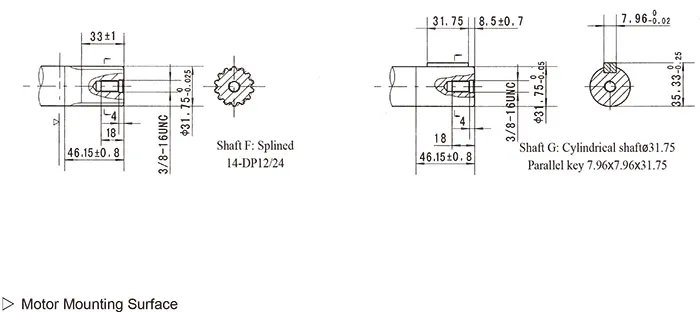

Hydraulic Motor Shaft Details

Our hydraulic solutions focus on innovation and product improvement. As a leading manufacturer, we have optimized our industrial chain to provide cost-effective hydraulic motors that maintain high performance and quality. We are committed to developing the most efficient hydraulic products to enhance market competitiveness on an international scale.

Frequently Asked Questions
Q1: Which brands are these motors compatible with?
Our BMP series orbital motors are 100% compatible and interchangeable with major brands such as Danfoss (OMP series), Eaton, and M+S.
Q2: What are the primary applications for the OMP 200 motor?
These motors are widely used in machinery such as forklifts, lawn mowers, aerial lifts, skid steer loaders, and excavators due to their compact and durable design.
Q3: What is the shaft size and port threading for this model?
The standard shaft diameter is 25 MM and the port thread is 1/2" BSP, providing standard fitment for most hydraulic systems.
Q4: What is the maximum continuous pressure the BMPW series can handle?
For models like BMPW050 through BMPW160, the maximum continuous pressure is 140 bar. For the BMPW200, it is rated at 115 bar.
Q5: Is there a warranty provided for these hydraulic motors?
Yes, all our hydraulic motors come with a 1-year warranty ensuring quality and reliability in medium-duty applications.
Q6: How is the rotation speed and direction controlled?
The direction of shaft rotation and speed can be controlled easily and smoothly through the hydraulic fluid flow and pressure adjustments.
