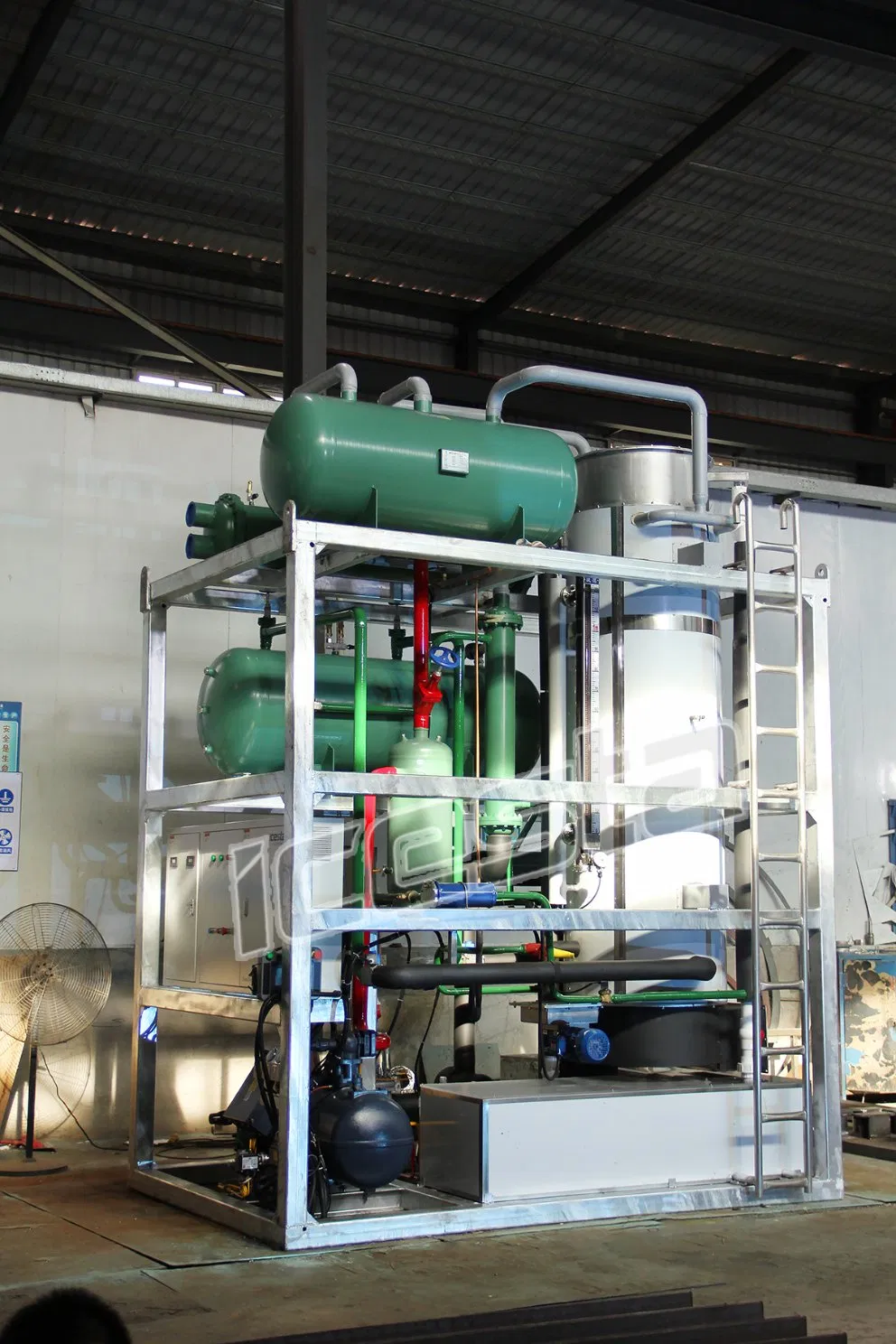

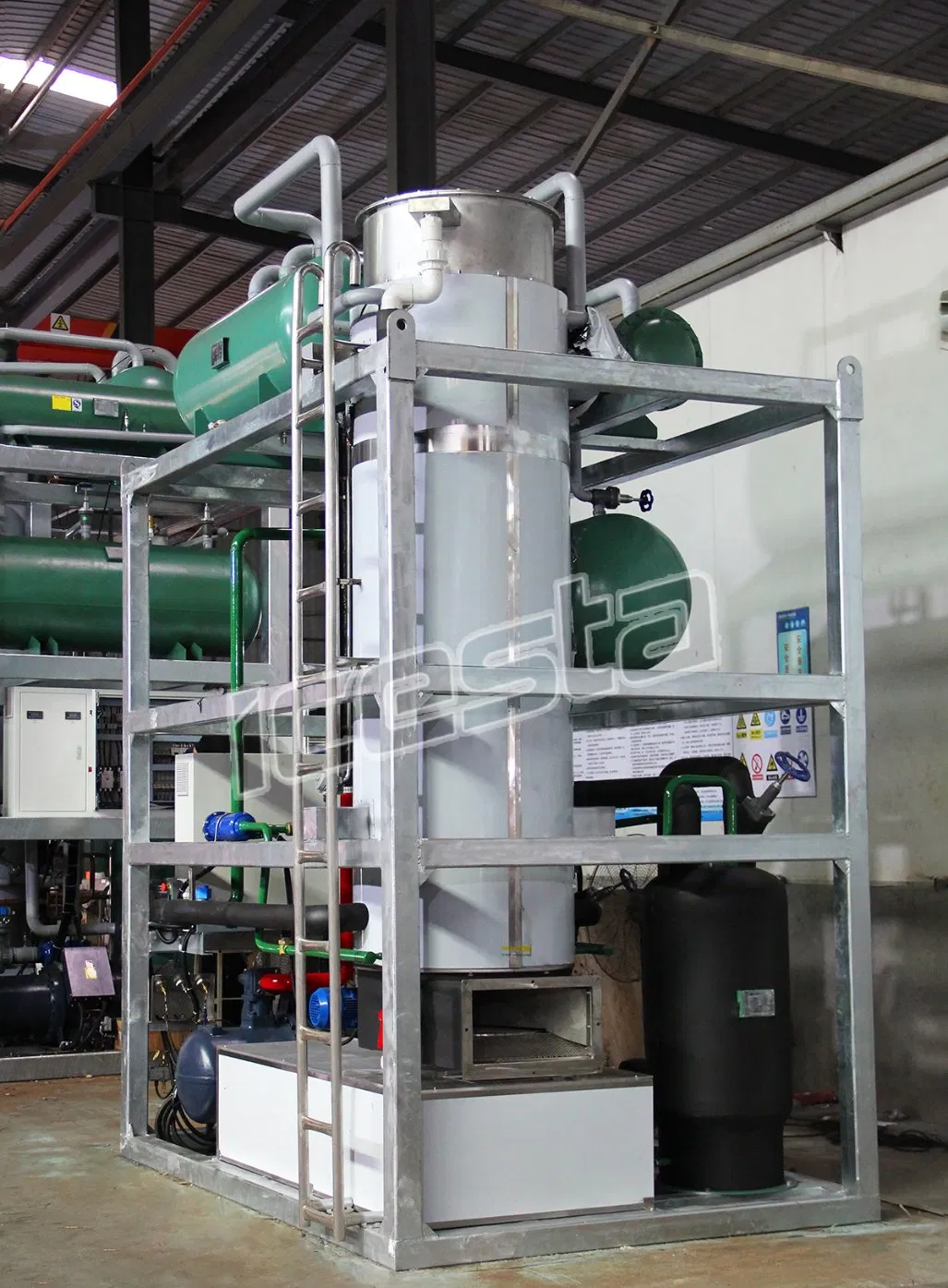

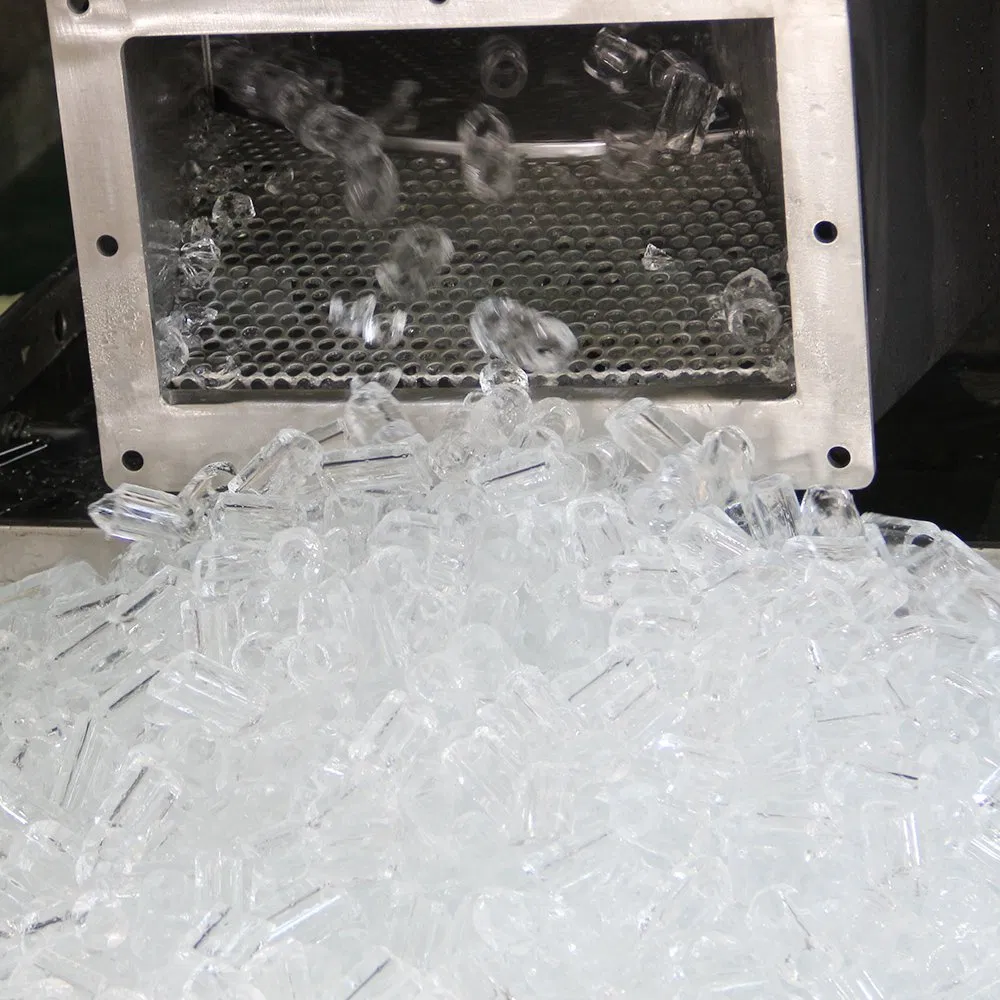

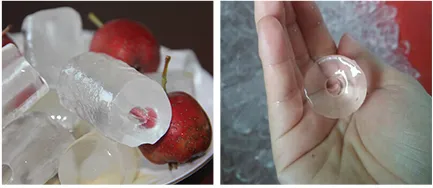

Excellent Tube ice solutions with high ice output, reliable performance, and humanized design. Tube ice is in the shape of crystal and powderless tubes. Compared with flake ice, the melting time of tube ice is longer, and it is more suitable for cooling in an uninsulated environment. Tube ice is comparatively solid and less prone to ice lumps, making it ideal for long-distance delivery.
Widely used in cold drinks, food processing, and chemical cooling industries.
* Data based on 30°C ambient temp / 20°C water inlet temp.

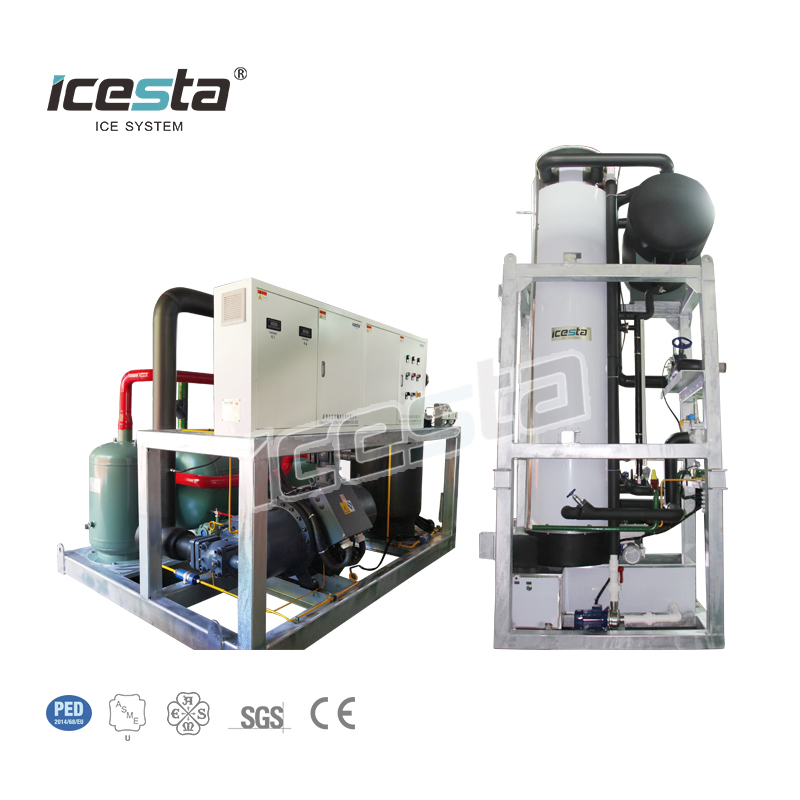

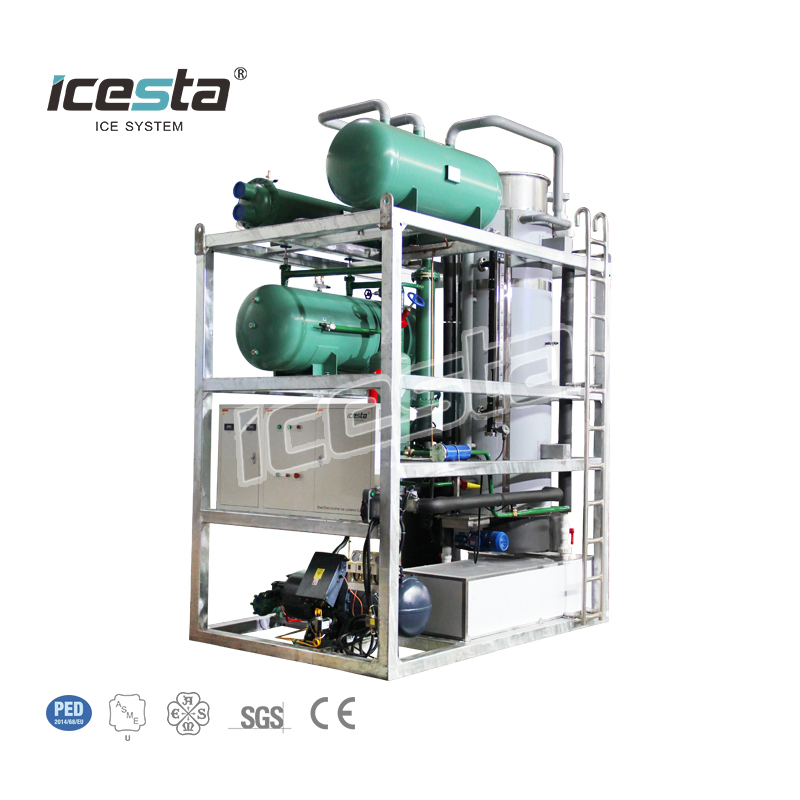

| Model | IT15T-R2/4W | IT20T-R2/4A | IT25T-R2/4A | IT30T-R2/4A |
|---|---|---|---|---|
| Ice output | 15t/24hrs | 20t/24hrs | 25t/24hrs | 30t/24hrs |
| Ice tube diameter | Φ29 | Φ29 | Φ29 | Φ29 |
| Cooling Capacity | 122.9kw | 140.9kw | 191.9kw | 233.1kw |
| Input power | 56.6kw | 71.8kw | 91.65kw | 106.25kw |
| Weight | 4000KG | 4800KG | 5600KG | 6400KG |

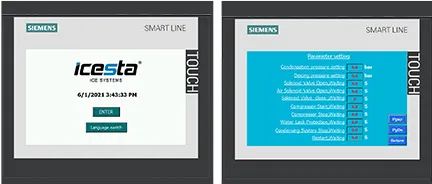

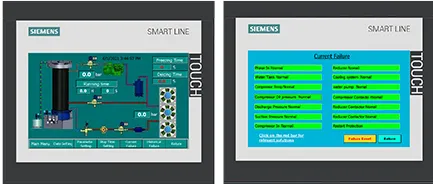

Patented H-M interactive intelligent control system with touch-screen for real-time monitoring and failure troubleshooting.
