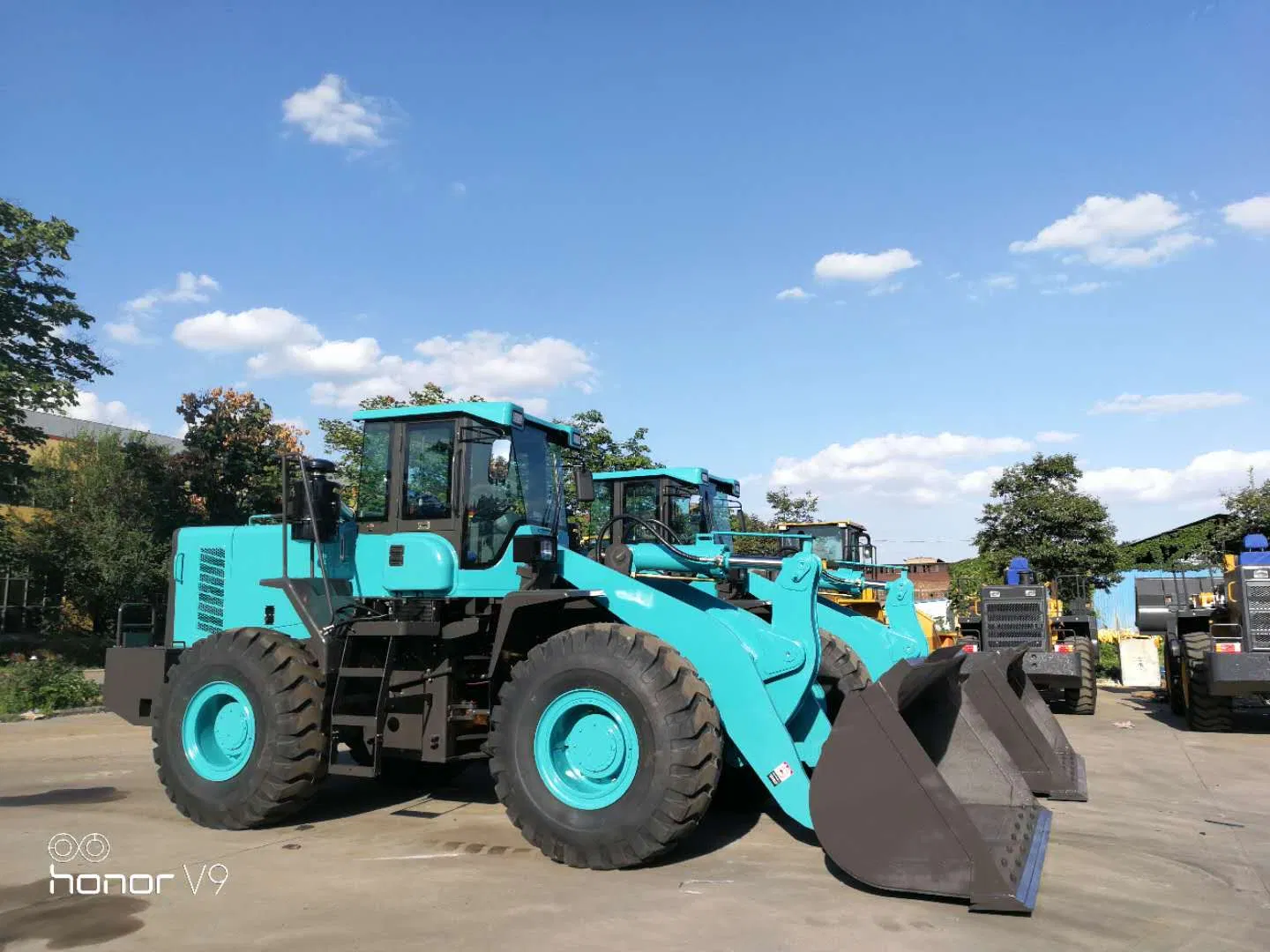

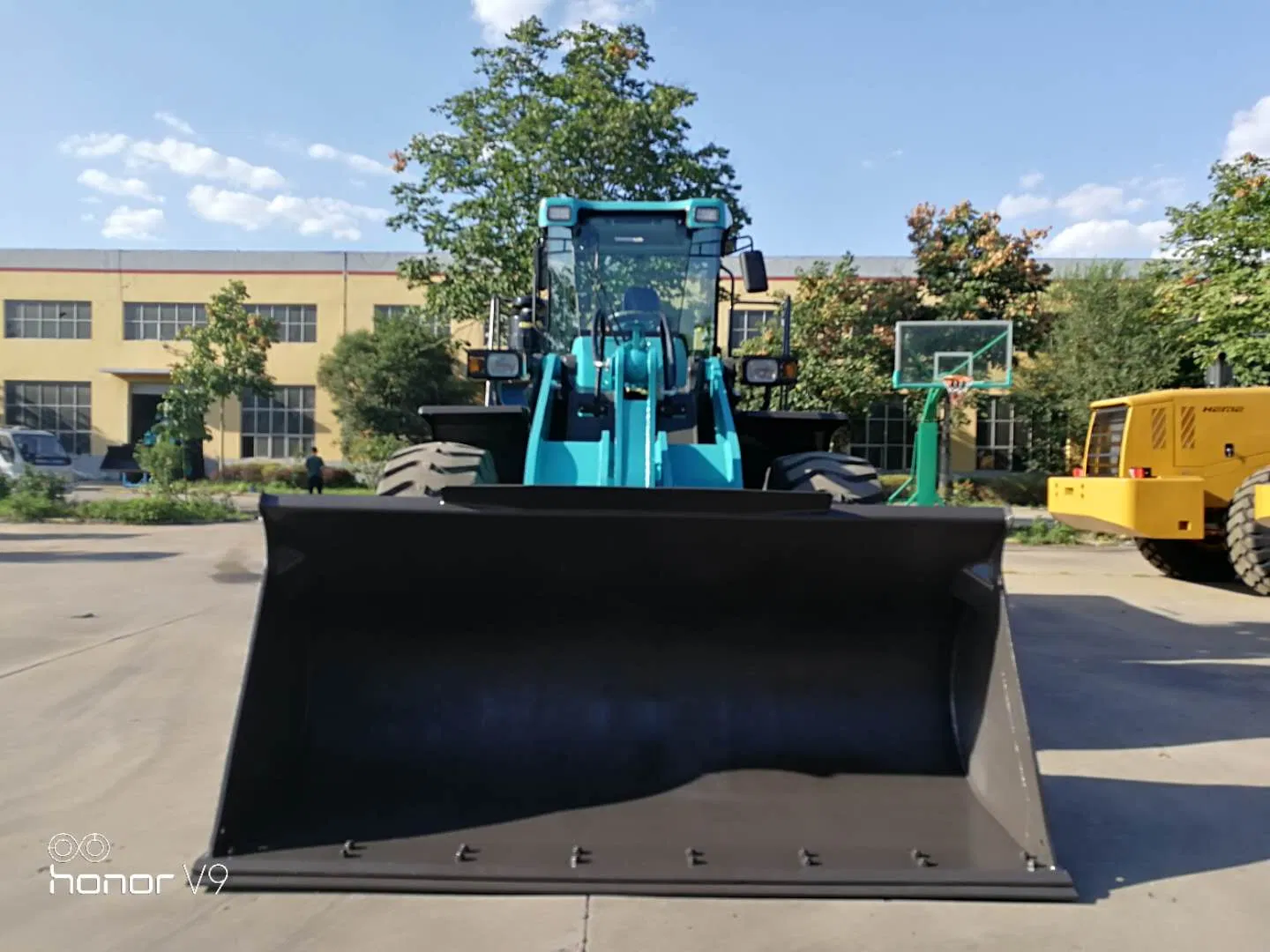

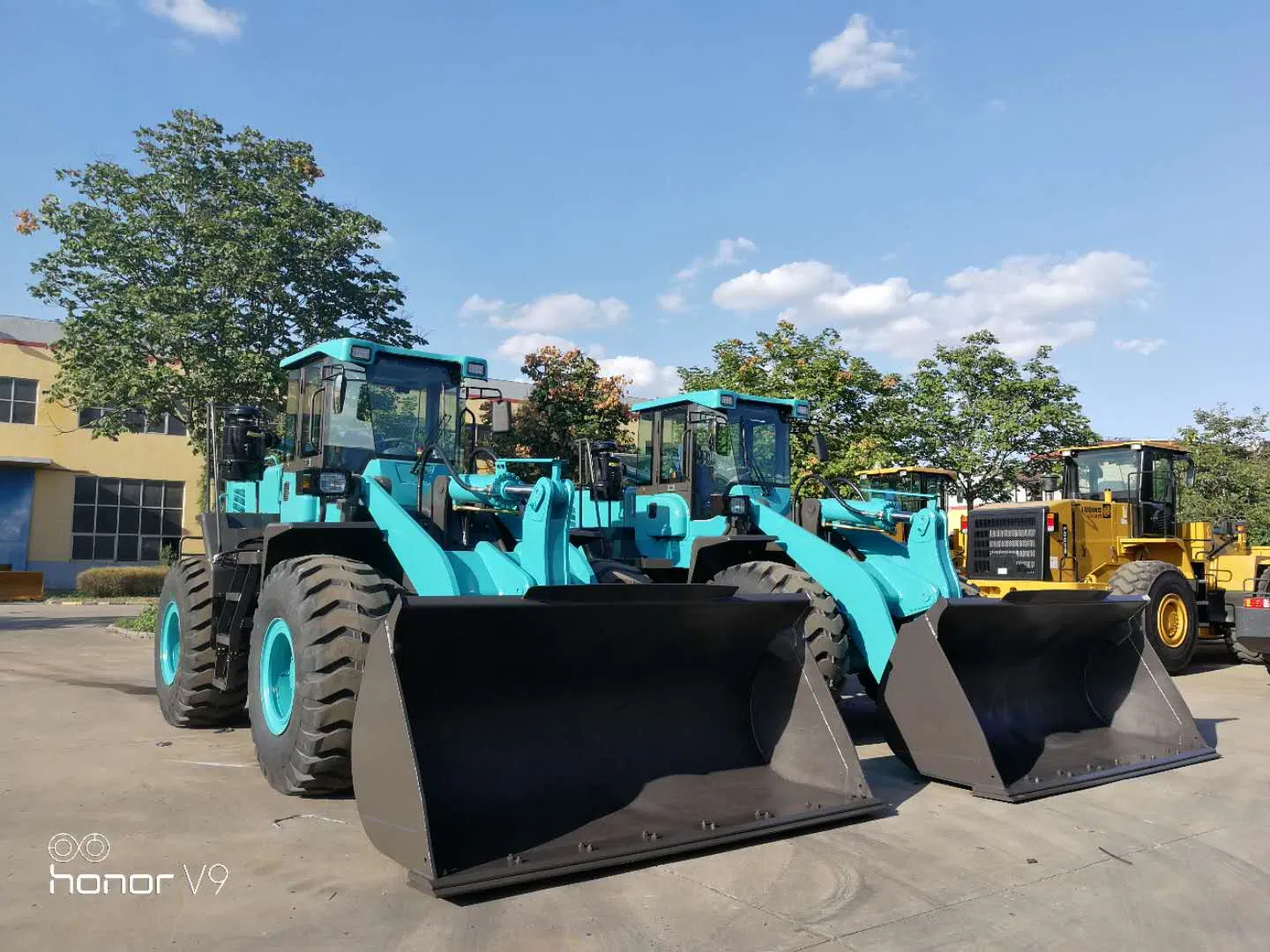

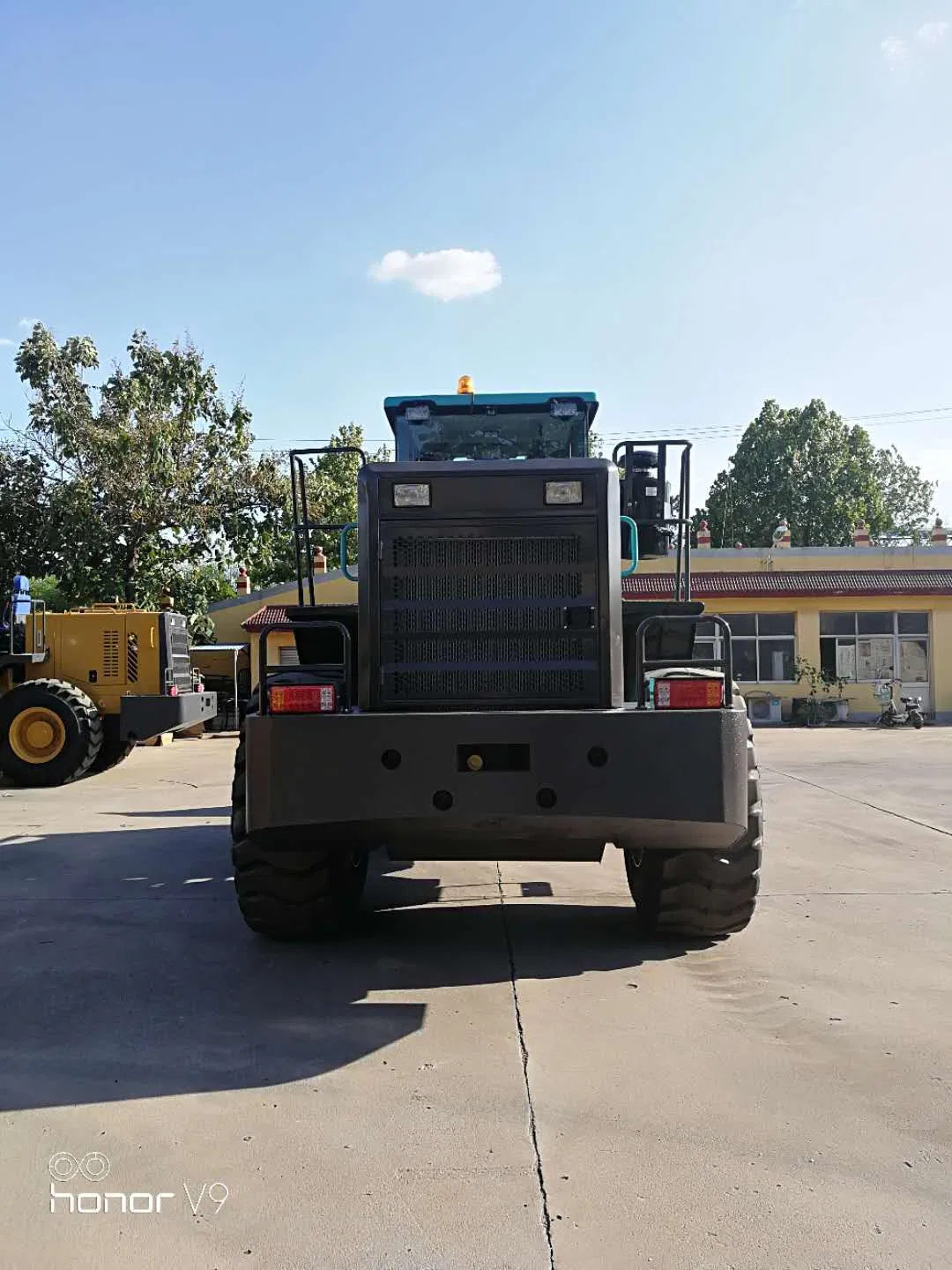

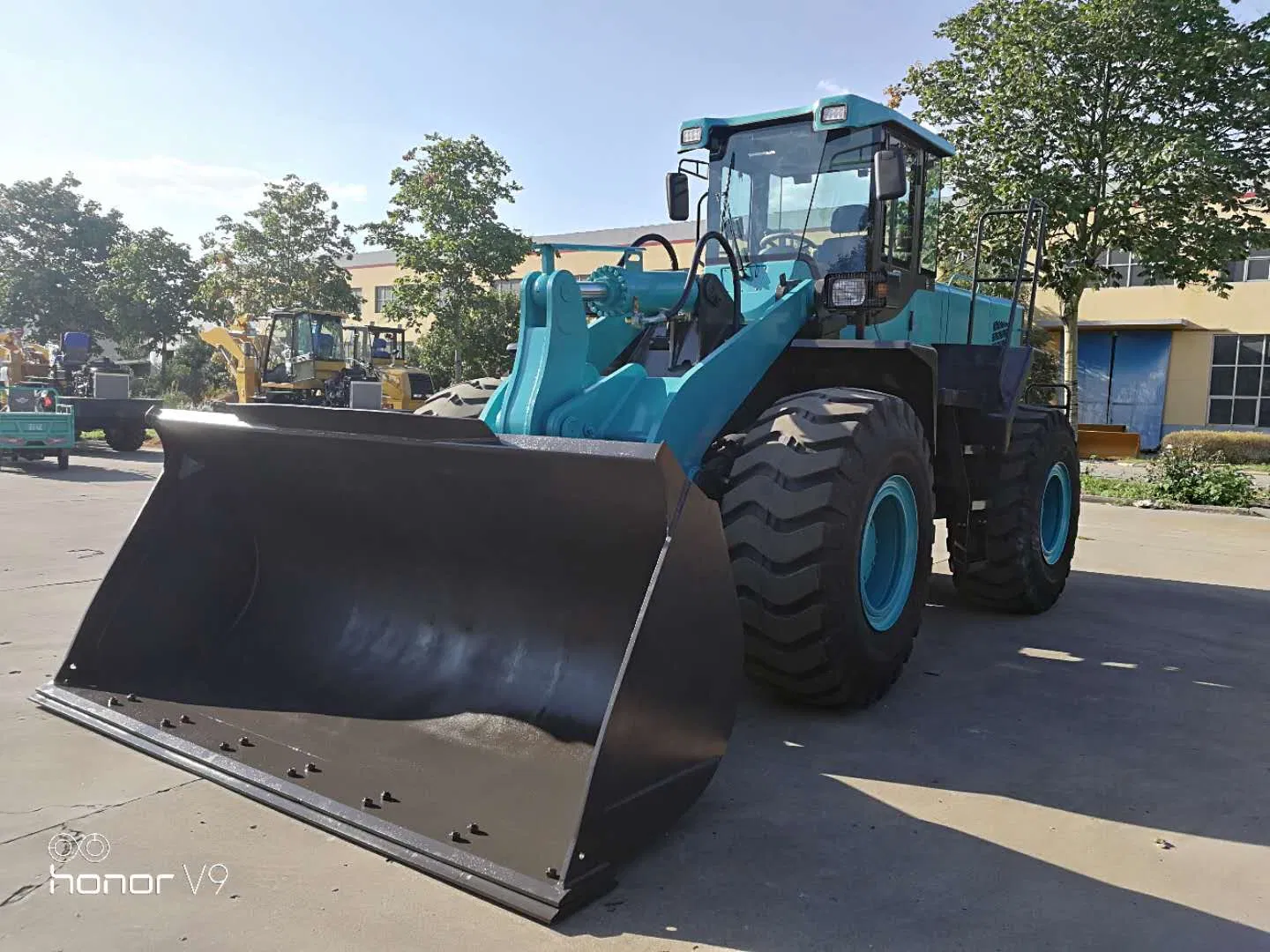

Agricultural Machine Lq956 China Manufacture Wheel Loader with Rated Load 5t with Weichai/Cummins Engine with Standard Bucket
Agricultural Machine Lq956 China Manufacture Wheel Loader with Rated Load 5t with Weichai/Cummins Engine with Standard Bucket
Agricultural Machine Lq956 China Manufacture Wheel Loader with Rated Load 5t with Weichai/Cummins Engine with Standard Bucket
Agricultural Machine Lq956 China Manufacture Wheel Loader with Rated Load 5t with Weichai/Cummins Engine with Standard Bucket
Agricultural Machine Lq956 China Manufacture Wheel Loader with Rated Load 5t with Weichai/Cummins Engine with Standard Bucket
1 / 5
Agricultural Machine Lq956 China Manufacture Wheel Loader with Rated Load 5t with Weichai/Cummins Engine with Standard Bucket
Agricultural Machine Lq956 China Manufacture Wheel Loader with Rated Load 5t with Weichai/Cummins Engine with Standard Bucket
Agricultural Machine Lq956 China Manufacture Wheel Loader with Rated Load 5t with Weichai/Cummins Engine with Standard Bucket
Agricultural Machine Lq956 China Manufacture Wheel Loader with Rated Load 5t with Weichai/Cummins Engine with Standard Bucket
Agricultural Machine Lq956 China Manufacture Wheel Loader with Rated Load 5t with Weichai/Cummins Engine with Standard Bucket

Agricultural Machine Lq956 China Manufacture Wheel Loader with Rated Load 5t with Weichai/Cummins Engine with Standard Bucket

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.LQ956
TypeConstruction Machine
TransmissionHydraulic Transmission
Walking ModeWheeled
Load MethodFront Discharge
Engine Power162kw
CertificationCE, ISO9001: 2000
ConditionNew
Engine ModelWeichai/Yuchai/Cummins
Operating Weight17200kg
Rated Load5000kg
HS Code84295100
LQ956 Wheel Loader
★

Main Features

  • Streamlined appearance, beautiful and elegant design.
  • Equipped with STEYR WD10G220E22 engine, rated power 162kw/2200rmp.
  • Torque converter and counter-shaft transmission gearbox with Komatsu technology for higher reliability and easier maintenance.
  • Pilot controlled, fully hydraulic steering system and power shift transmission for easier operation.
  • Automatic bucket leveling and optimized working device for higher productivity.
  • Comfortable operation environment with new cabin design and optional air-conditioner.
  • Versatile attachments available: log clamp, pipe clamp, grass fork, plow, ore bucket, and more.
⚙

Technical Data

Rated Capacity3 CBM
Rated Weight5000 Kg
Operating Weight17000 Kg
Max. Breakout Force172.6 KN
Max. Drawbar Pull151.9 KN
Max. Dump Height3098 mm
Max. Dump Reach1198 mm
Wheel Base3200 mm
Overall Dimensions7836*3010*3300 mm
Max. Travel Speed38 km/h
Fuel Capacity320 L
Brake SystemAir assisted oil type four wheel brake
🌍

Global Presence

Market Exhibit 1

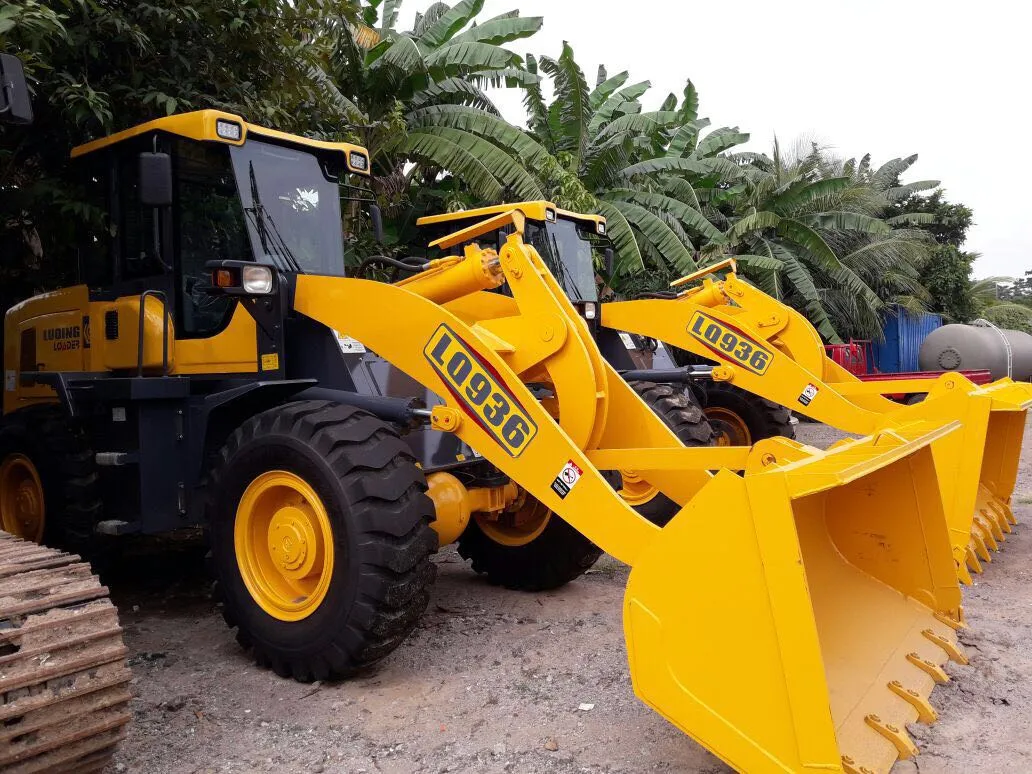

Market Exhibit 2

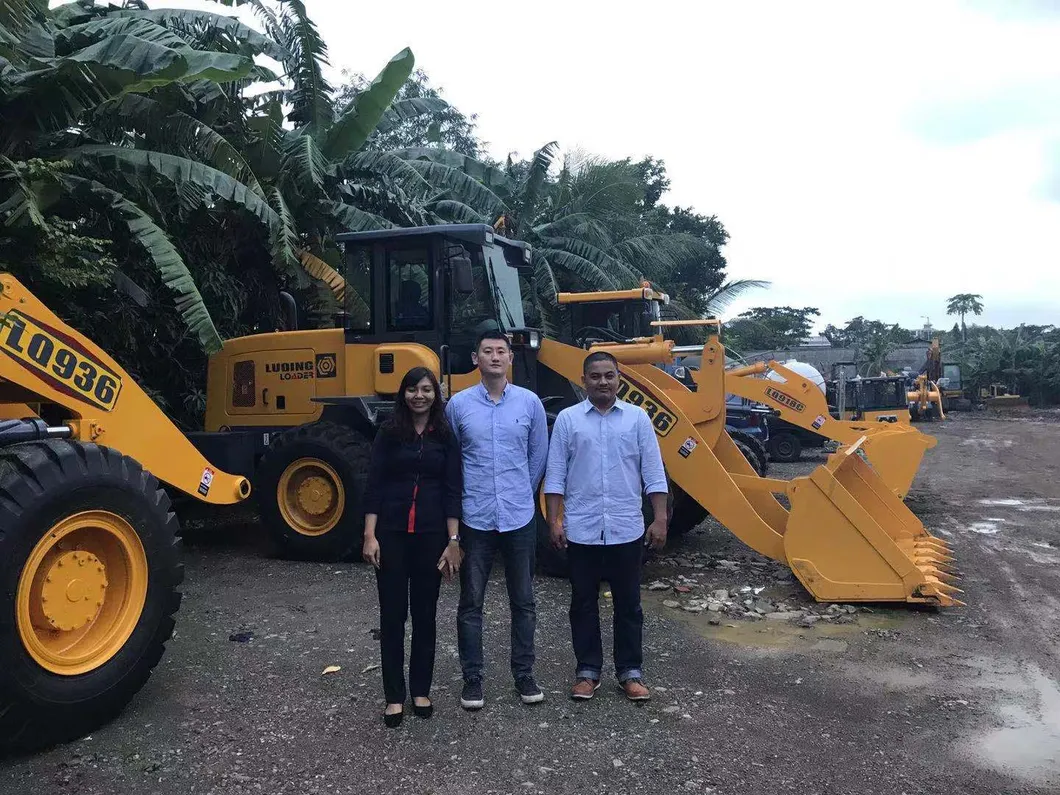

Market Exhibit 3
Exhibition Visit 1
Exhibition Visit 2
Exhibition Visit 3
Client Visit 1
Client Visit 2
Client Visit 3
?

Frequently Asked Questions

Q1: What is the rated load capacity of the LQ956 wheel loader? The LQ956 has a rated load capacity of 5000kg (5 tons) and a bucket capacity of 3 CBM.
Q2: Which engines are available for this model? This model supports multiple high-performance engines including Weichai (STEYR), Yuchai, and Cummins options.
Q3: Does the LQ956 support different attachments? Yes, it is highly versatile and can be equipped with various attachments such as log clamps, grass forks, pipe clamps, and snow plows to meet diverse operational needs.
Q4: What are the key transmission technologies used? It utilizes Komatsu technology for the torque converter and counter-shaft transmission gearbox, ensuring high reliability and simplified maintenance.
Q5: Is the operator cabin comfortable? Absolutely. The LQ956 features a newly designed cabin with professional seating and optional air-conditioning for an optimal working environment.
Q6: What certifications does this machine hold? The LQ956 wheel loader is fully certified with CE and ISO9001:2000 standards, ensuring international quality and safety compliance.
