Mintrix Excavator
1 / 5
| Model NO. | LQ950 |
| Certification | TUV, ISO, RoHS, CE |
| Rated Load | 5 Tons |
| Transmission | Hydraulic |
| Load and Unload Mode | Front Discharge |
| Operating Weight | 17300kg |

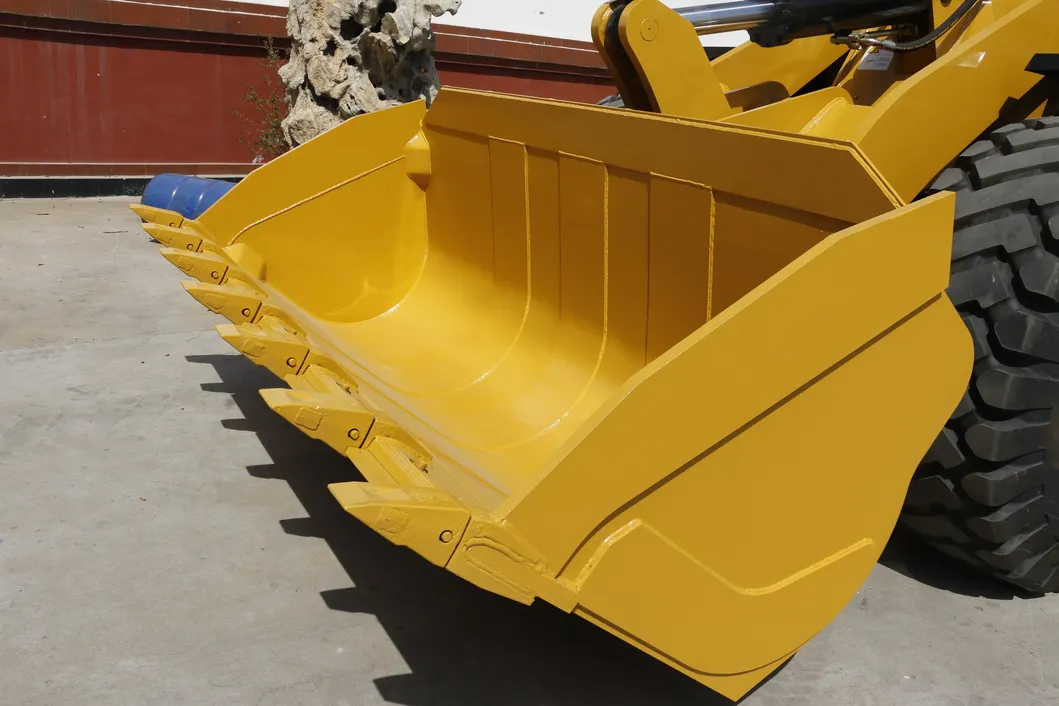

| Bucket | 3.0cbm or Customized |
| Dimension | 8250*3030*3378mm |
| Engine | Weichai or Cummins or Shangchai |
| Engine Power | 162kw |
| Gearbox | Hangzhou Advance |
| Tire Size | 23.5-25 (20ply) |
| Cabin | Wide-View with Optional Air-conditioner |
| Origin | China |

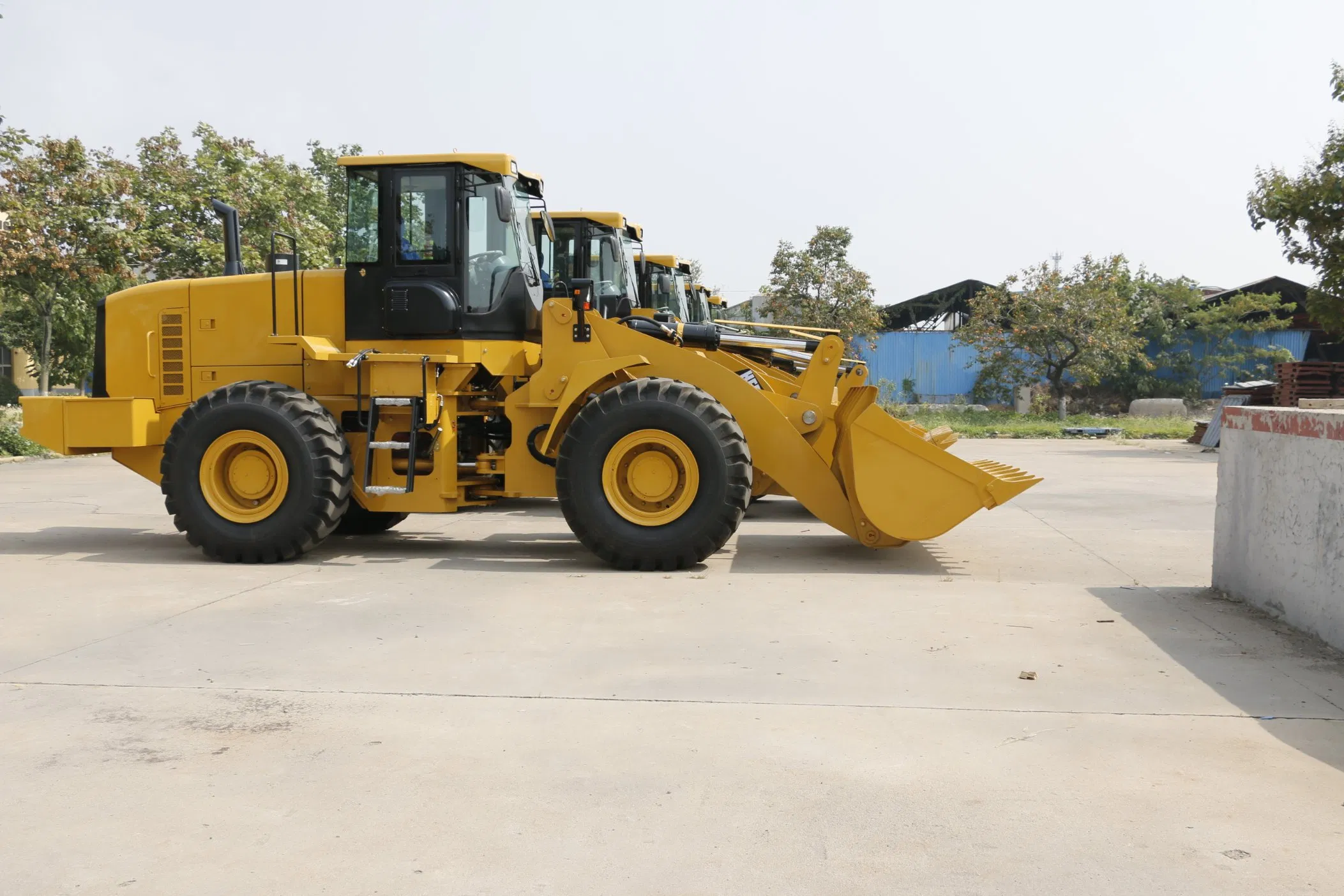

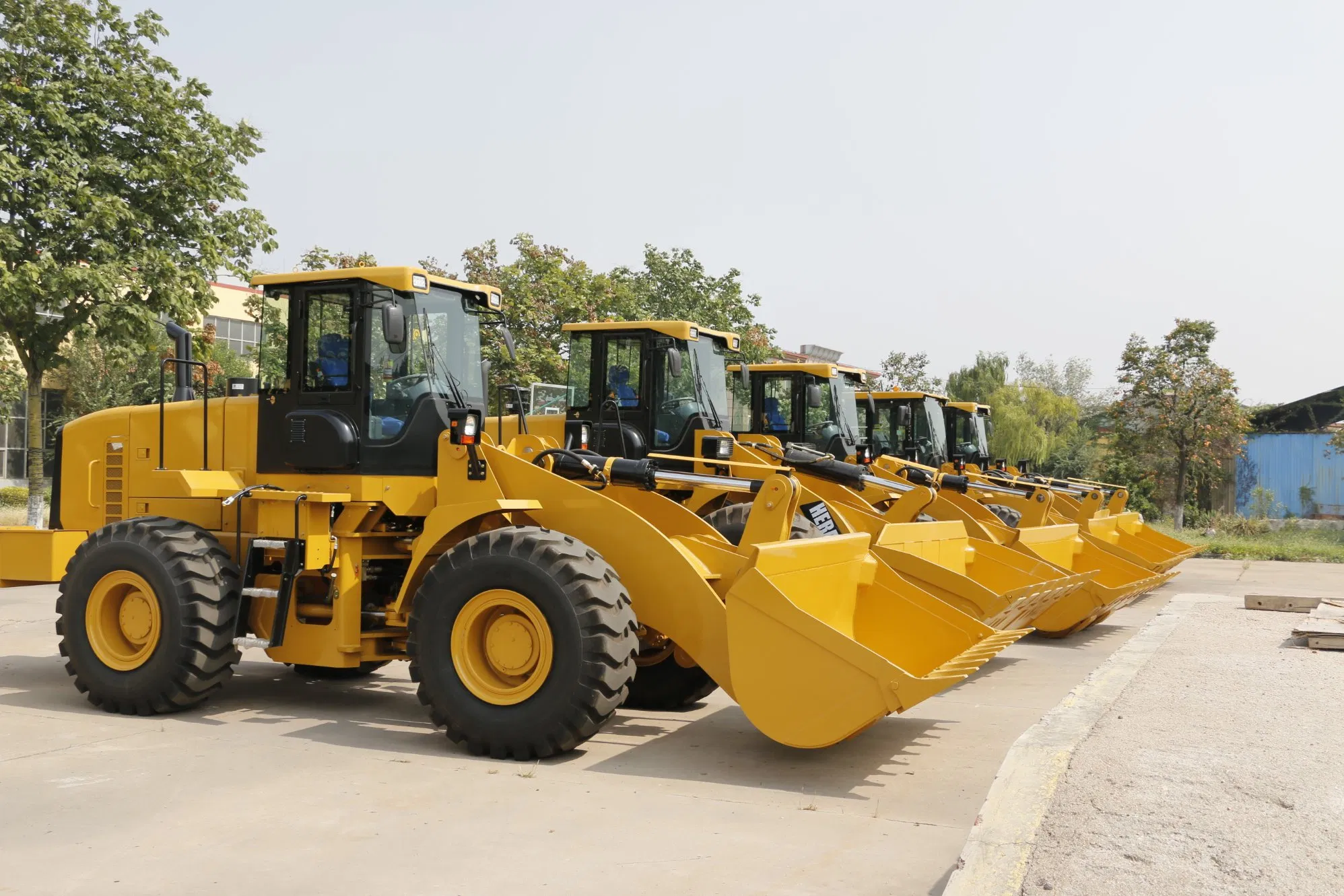

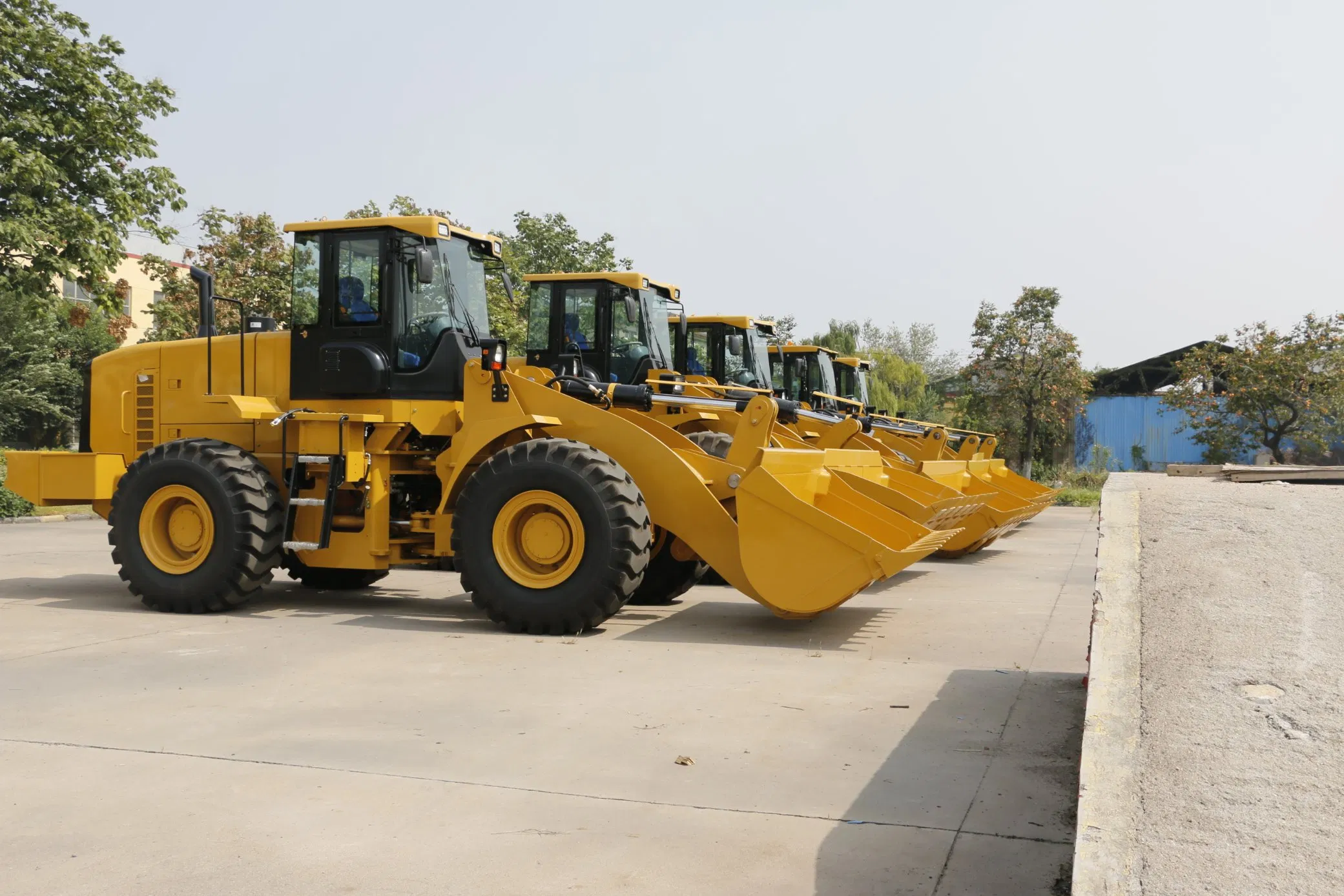

Hyundai design wheel loader LQ950, original Hyundai parts, with good performance.
| Rated Capacity | 3.5m³ |
| Rated Weight | 5000kg |
| Max. Breakout Force | 170KN |
| Cycle Time (Lift/Dump/Lower) | 11.3s |
| Max. Dump Height | 3200mm |
| Wheel Base | 3300mm |
| Engine Model | STEYR WD10G220E21 (Turbocharged) |
| Max. Torque | 900/1300-1500N.m |
| Max. Travel Speed | 40km/h |
| Brake System | Air assisted oil disc on four wheels |
The LQ950 is designed for heavy-duty tasks with a rated load capacity of 5 tons (5000kg).

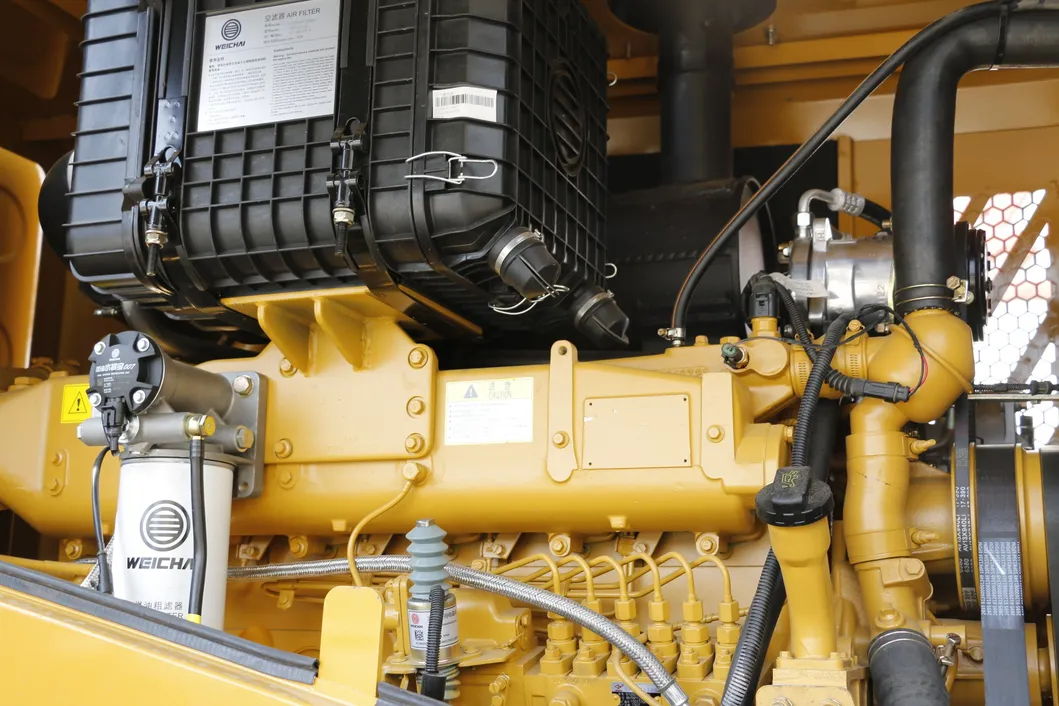

The LQ950 can be equipped with Weichai, Cummins, or Shangchai engines, depending on your preference and regional requirements.

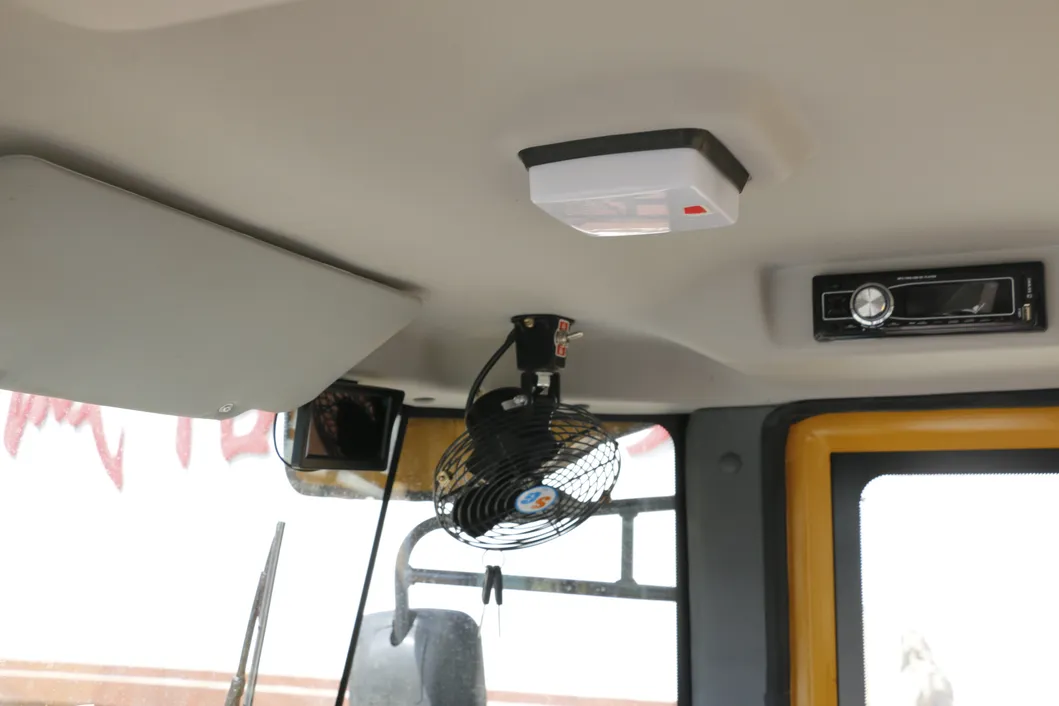

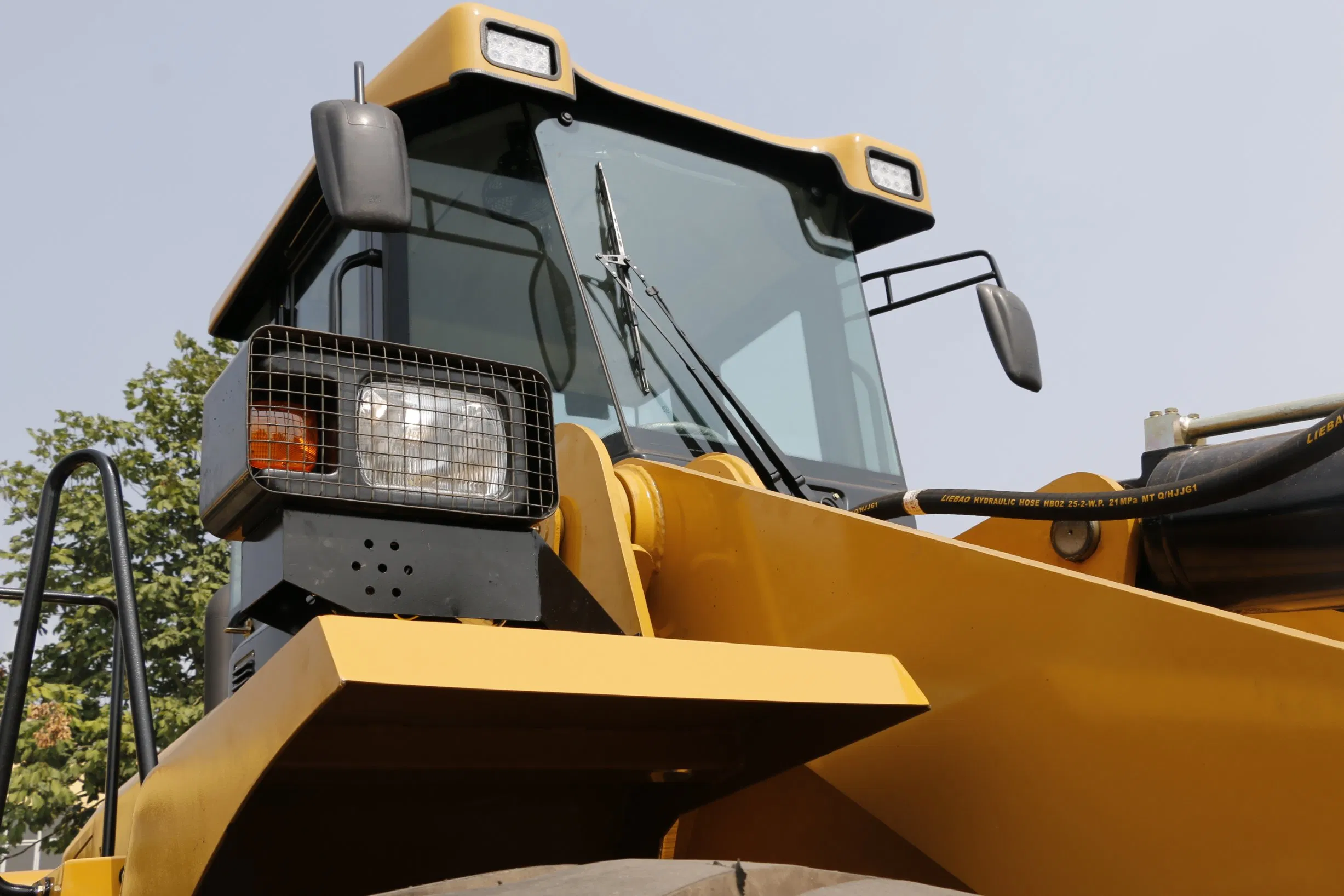

Yes, the new wide-view design cabin can be equipped with an air-conditioner as an optional feature for operator comfort.
It supports various attachments including log clamps, grass forks, snow plows, ore buckets, and loose buckets to meet different operational needs.
The product is fully certified with TUV, ISO, RoHS, and CE, ensuring high standards of quality and safety.
We provide a 1-year warranty from the date of receipt. During this period, we provide new parts for replacement if any components fail.
