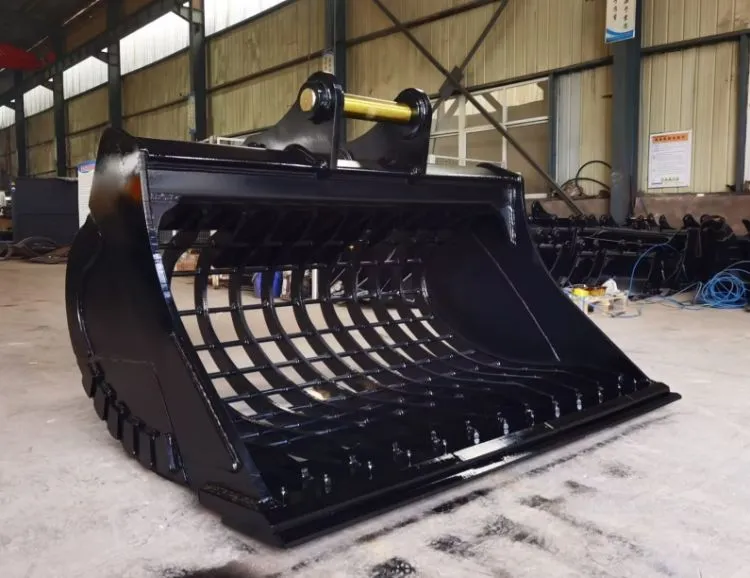

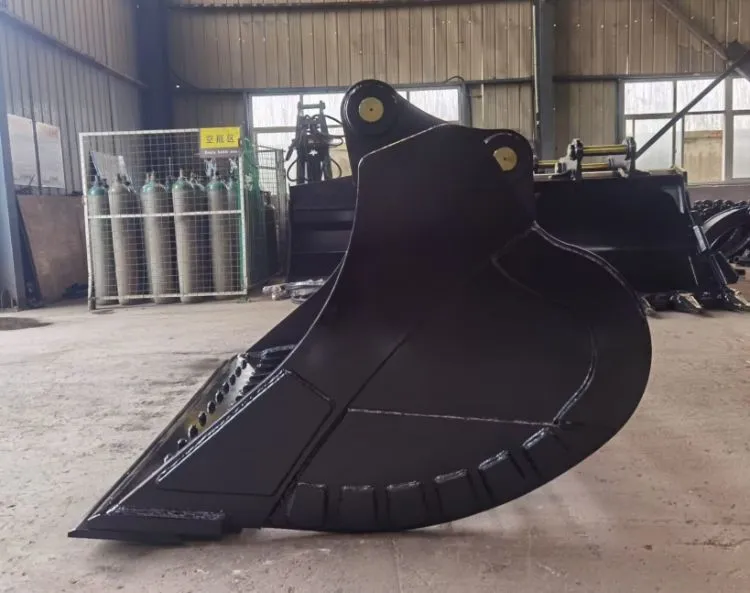

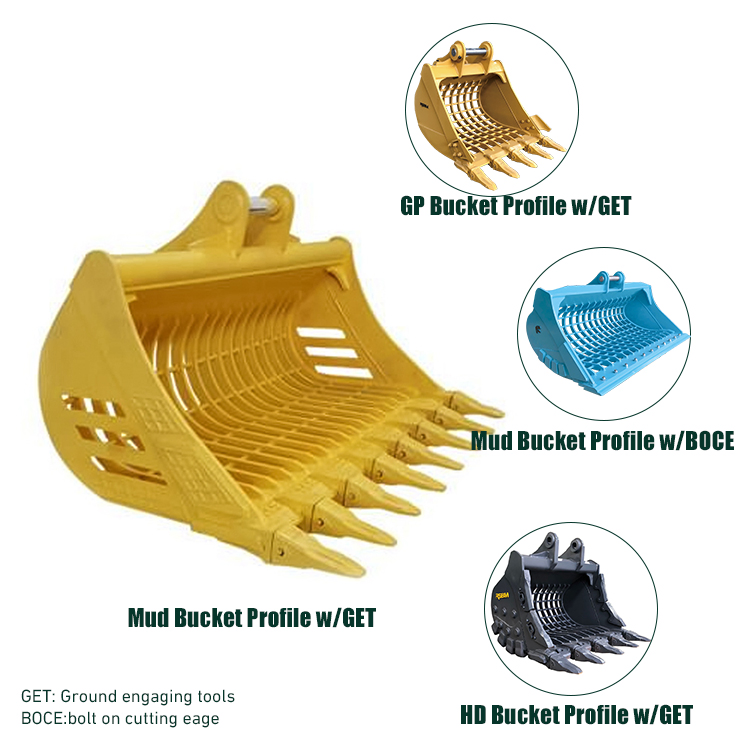

The Skeleton Bucket is a high-quality attachment designed to facilitate excavation, sorting, and sifting operations. These buckets feature a robust mesh-style grid structure, allowing fine materials to separate from larger debris during operation. Their durable construction and versatile applications make them a valuable addition to construction, demolition, landscaping, agricultural, and forestry projects.
Also known as Screening Buckets, Shaker Buckets, Sifting Buckets, Sort Buckets, or Sorting Buckets, these attachments enhance efficiency by reducing the need for additional material processing. Whether you are handling topsoil, rocks, debris, or organic material, the Skeleton Bucket provides a reliable and cost-effective solution for material separation.
| Model | Size (Ton) | Width (inches) | Grid Size (mm) | Weight (kg) |
|---|---|---|---|---|
| RSBM-SB03 | 3 | 24 | 100 × 150 | 105 |
| RSBM-SB05 | 5 | 30 | 100 × 150 | 201 |
| RSBM-SB08 | 8 | 36 | 100 × 150 | 261 |
| RSBM-SB12 | 12 | 42 | 100 × 150 | 496 |
| RSBM-SB20 | 20 | 48 | 100 × 150 | 843 |
| RSBM-SB25 | 25 | 60 | 100 × 150 | 1043 |
| RSBM-SB30 | 30 | 60 | 100 × 150 | 1464 |
| RSBM-SB45 | 45 | 60 | 100 × 150 | 2810 |

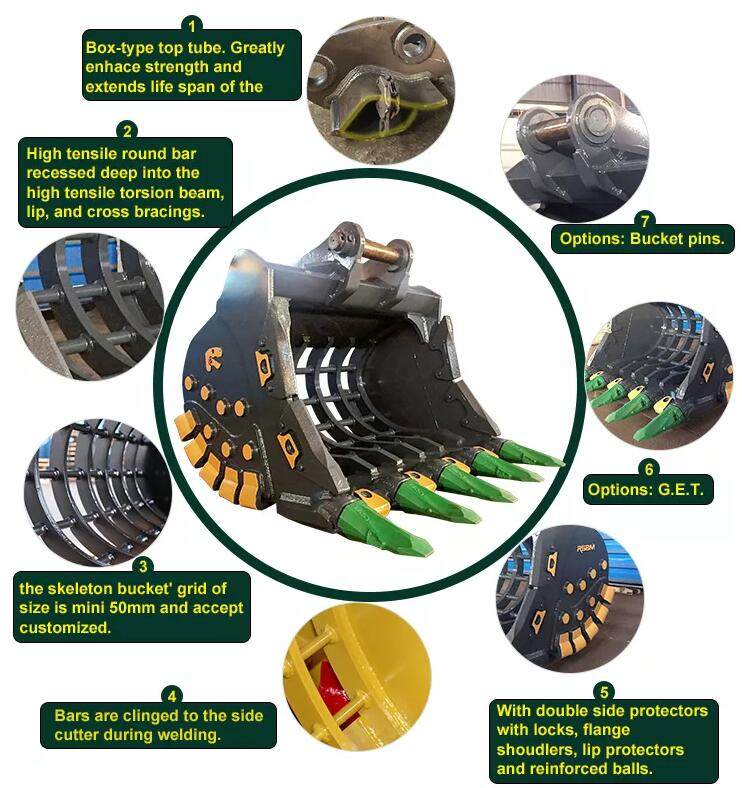

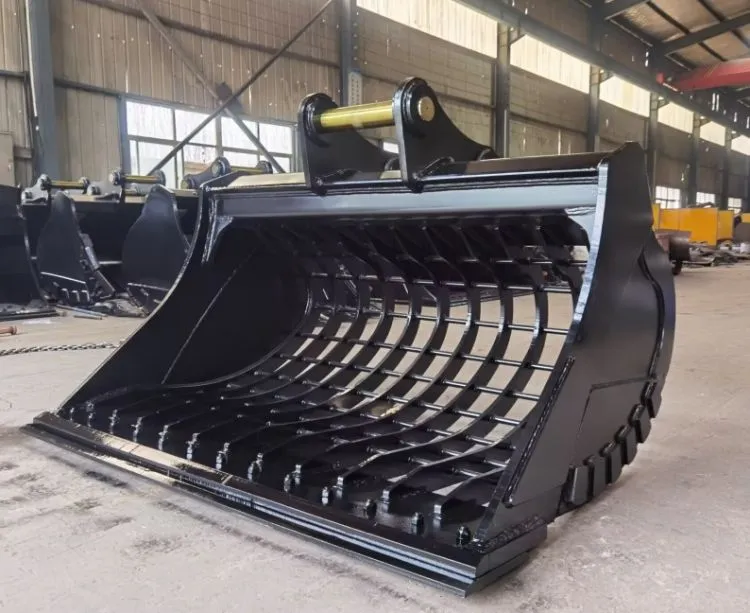

The grid structure allows for the efficient separation of materials. Fine materials, such as sand or soil, fall through the grid openings, while larger debris remain in the bucket, reducing the need for additional screening equipment.

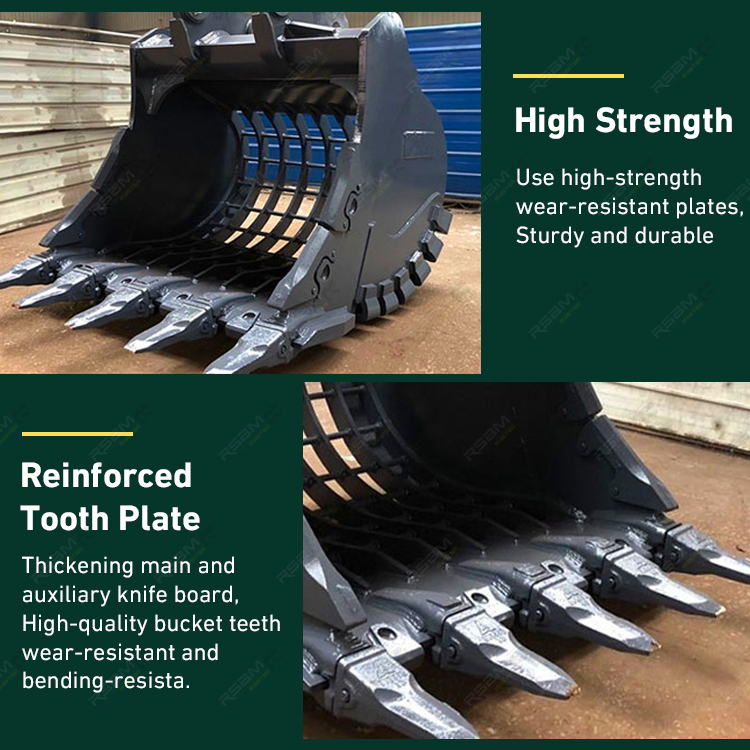

Made from high-quality, wear-resistant steel (NM400/Q345B), ensuring long-lasting performance in harsh environments and heavy-duty excavation.
Available in different sizes to fit excavators ranging from 3 to 45 tons, suitable for both compact and large industrial machines.
Features include the availability of teeth and adaptors for better penetration and customizable grid sizes to match specific working conditions.
A: The buckets are constructed from high-strength, wear-resistant steel, specifically NM400 and Q345B, to ensure durability in heavy-duty operations.
A: Yes, we offer customizable screen/grid sizes to match your specific sieving requirements and working conditions.
A: Our skeleton buckets are designed to fit a wide range of excavators, typically from 3 tons up to 45 tons.
A: Yes, buckets are available with teeth and adaptors to improve penetration into compact or hard materials.

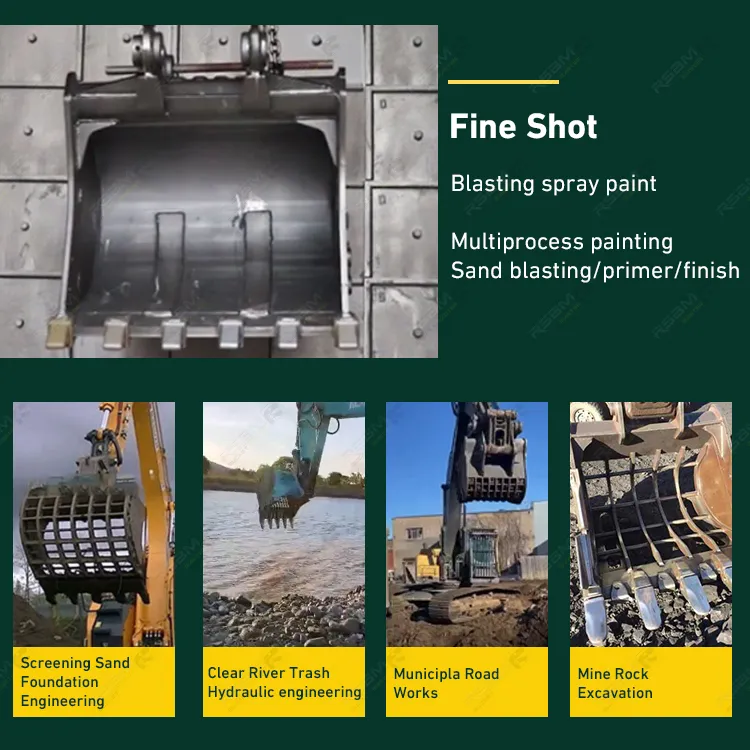

A: They are widely used in construction, demolition, landscaping, agriculture, forestry, mining, and water conservancy projects.
A: It allows for on-site material separation, which reduces the need for additional screening machinery and lowers transport costs by removing waste material immediately.
