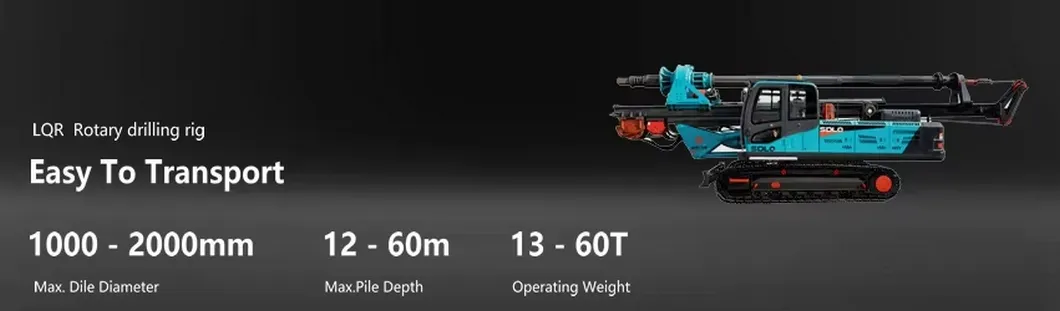

Specs & Compare
| Models | Max. Pile Diameter | Max. Pile Depth | Operating Weight |
|---|---|---|---|
| LQR-60 | 1000mm | 12m | 14.5T |
| LQR-80 | 1200mm | 15m | 16.5T |
| LQR-100 | 1300mm | 20m | 23.5T |
| LQR-120 | 1400mm | 25m | 26.5T |
| LQR-130 | 1500mm | 30m | 28T |
| LQR-130S | 1600mm | 30m | 31T |
| LQR-135 | 1600mm | 35m | 32.5T |
| LQR-150 | 1800mm | 40m | 41T |
| LQR-180 | 2000mm | 50m | 46.5T |

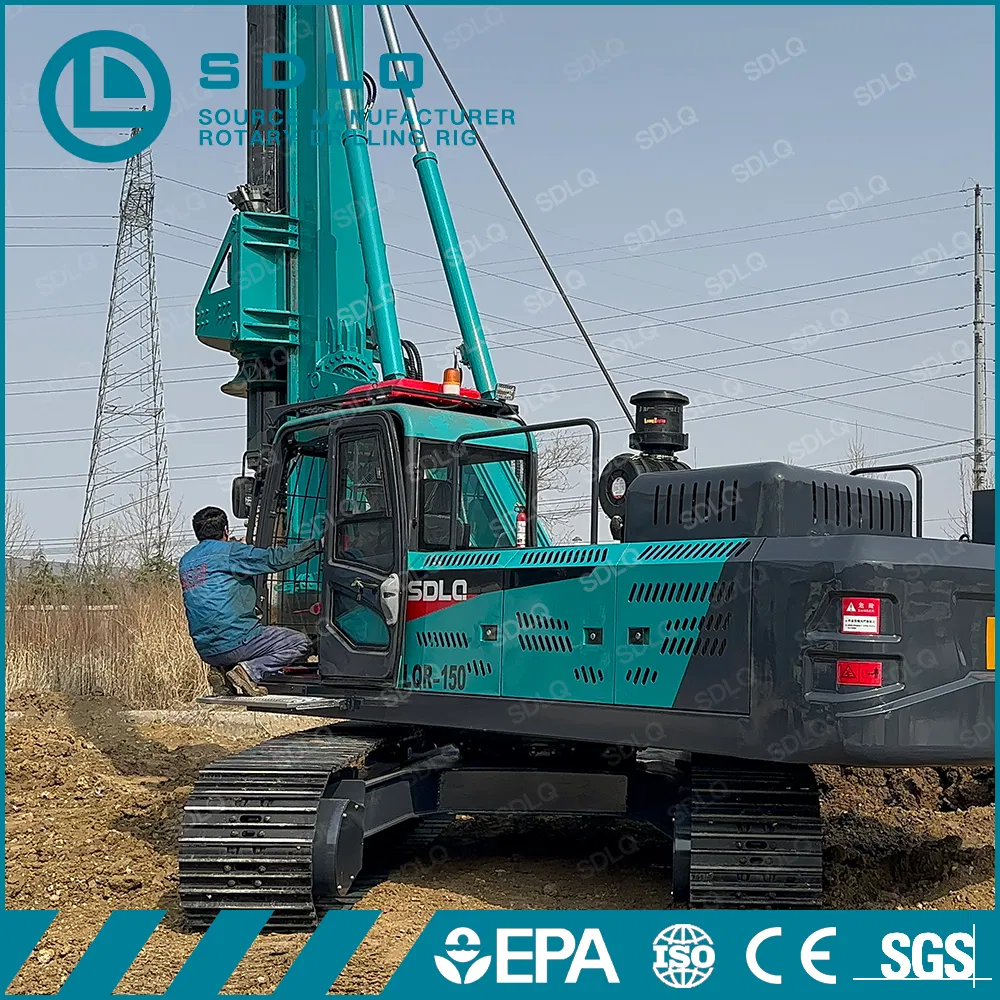

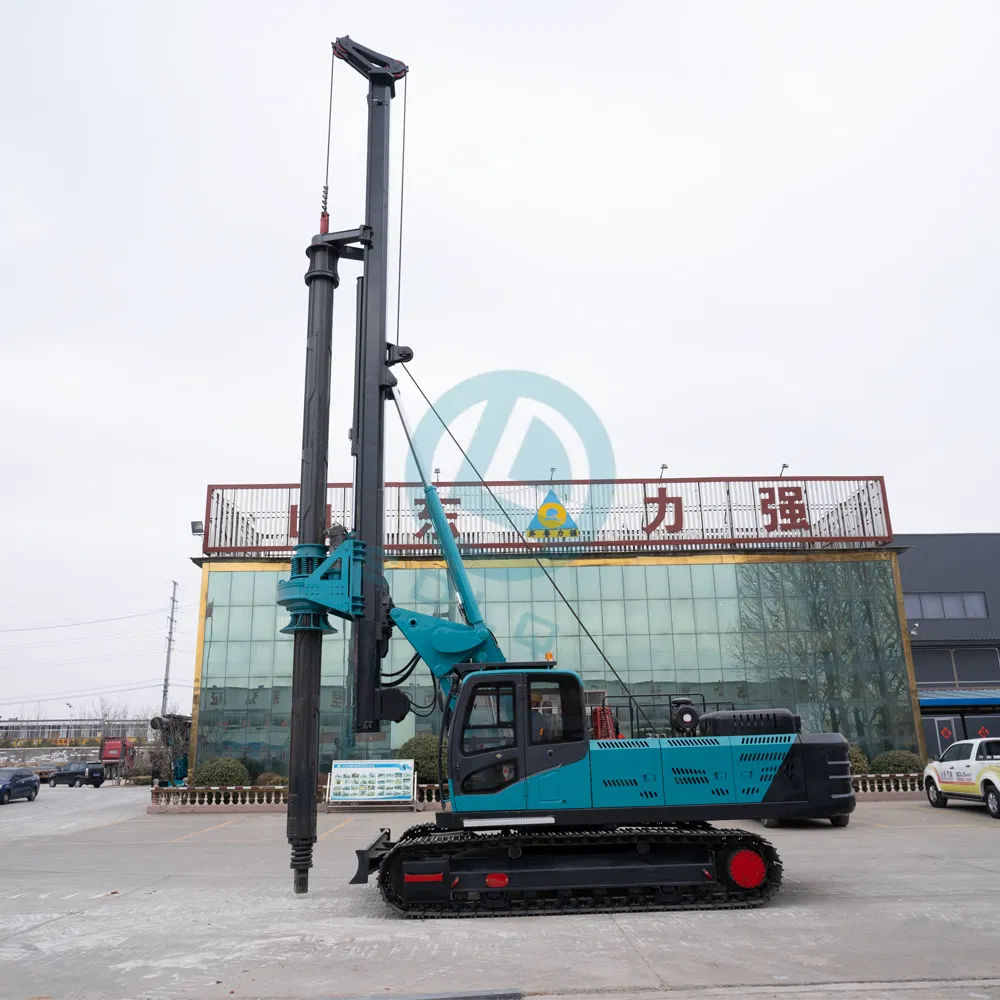

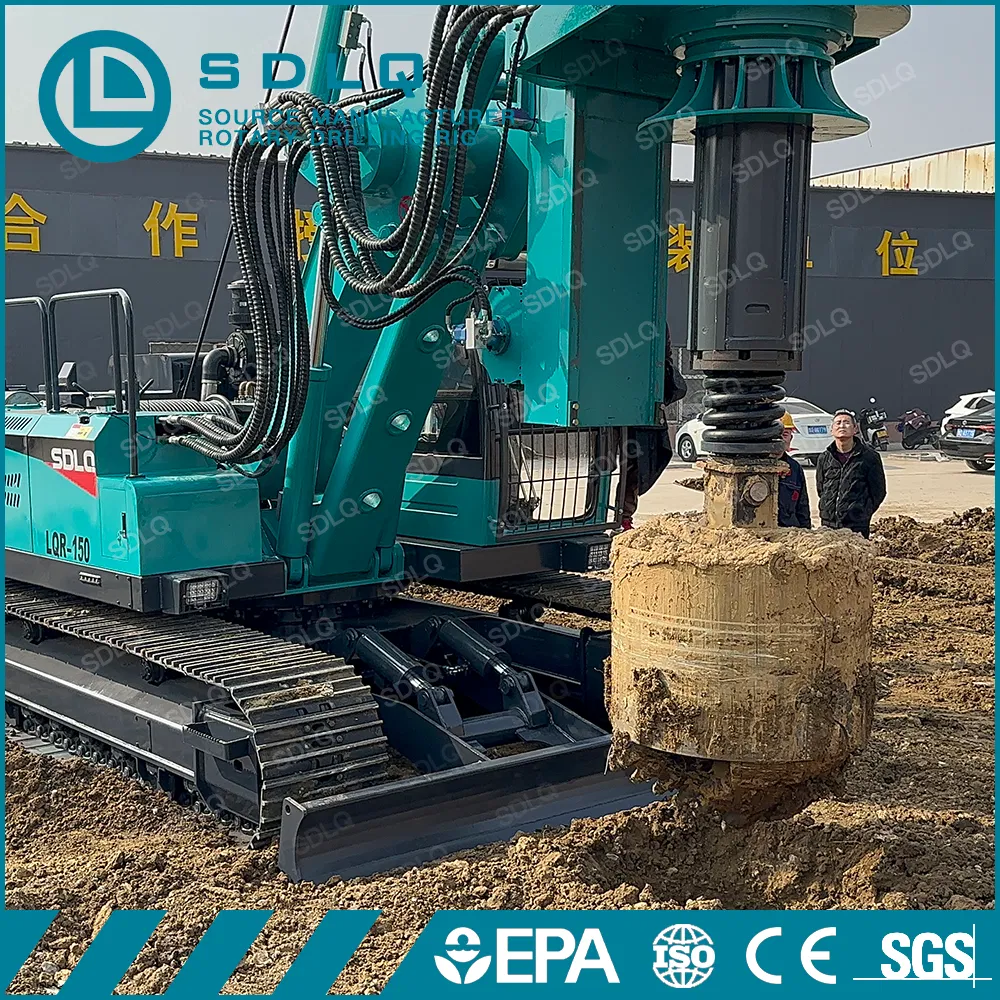

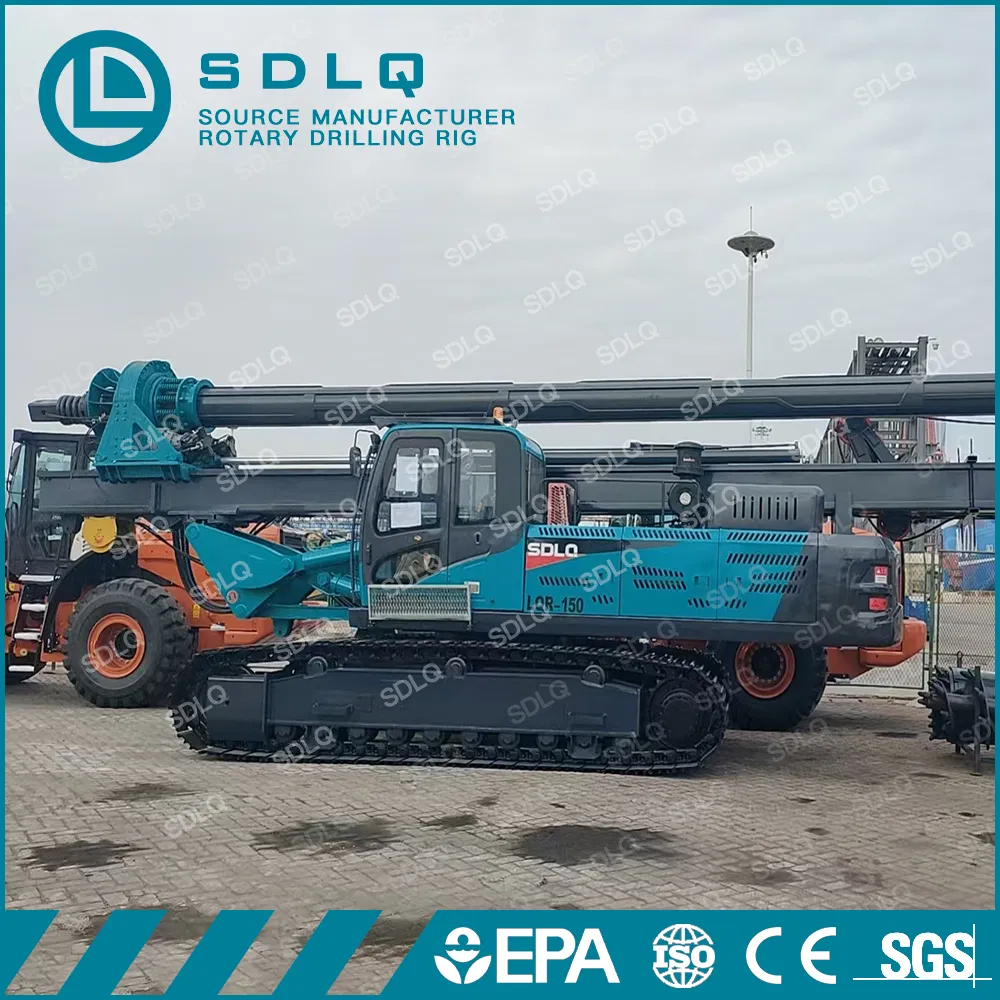

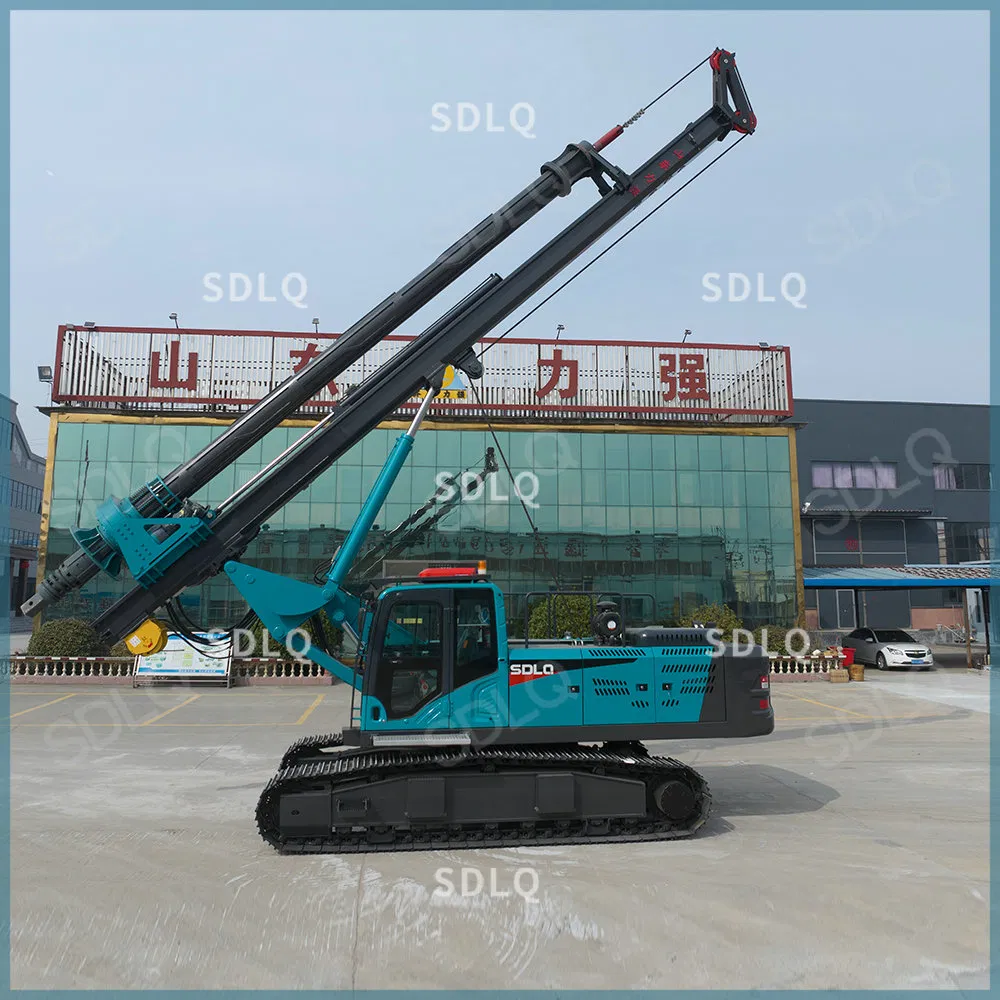

Discover the future of drilling with our cutting-edge rotary drilling machine! Engineered for excellence, this high-performance marvel is perfect for a variety of demanding applications—from construction and mining to infrastructure development. With its powerful rotating drill bit, it effortlessly penetrates tough rock and soil, making it the go-to choice for challenging geological terrains. Equipped with a robust hydraulic system, state-of-the-art automation, and pioneering safety features, this machine guarantees unparalleled stability and peak performance, even under extreme conditions. Its energy-efficient design and eco-conscious operation make it both a reliable and cost-effective partner for large-scale industrial ventures as well as smaller drilling assignments.
| 1 | Maximum drilling diameter | mm | 500-1200 | |
| 2 | Maximum drilling depth | m | 30 | |
| 3 | Safe drilling operation range | mm | 3500 | |
| 4 | Working condition size (L*W*H) | mm | 6700*4000*13500 | |
| 5 | Transportation state size (L*W*H) | mm | 11500*3000*3550 | |
| 6 | Operating weight | t | 31 | |
| 7 | Motor | Brand | / | Cummins |
| Engine model | / | QSB7 | ||
| Rated power | kW | 154 | ||
| 8 | Hydraulic | Main pump pressure | MPa | 30 |
| 9 | Power head | Rated output torque | kN·m | 130 |
| 10 | Feed Cylinder | Max Lifting Force | kN | 120 |
Our unwavering commitment transcends sales, as we actively participate in numerous prestigious international exhibitions. This steadfast dedication not only enhances our rigs' visibility but also fosters ongoing learning and global collaboration.
We warmly invite global customers to experience a firsthand look at our state-of-the-art factory. Witness live demonstrations of our operational expertise. Your complete satisfaction remains our highest ambition.
With immense gratitude for your invaluable feedback, we proudly export to 50 countries worldwide. Our distinct advantage is our role as a direct manufacturer, offering you competitive pricing directly from the source!
