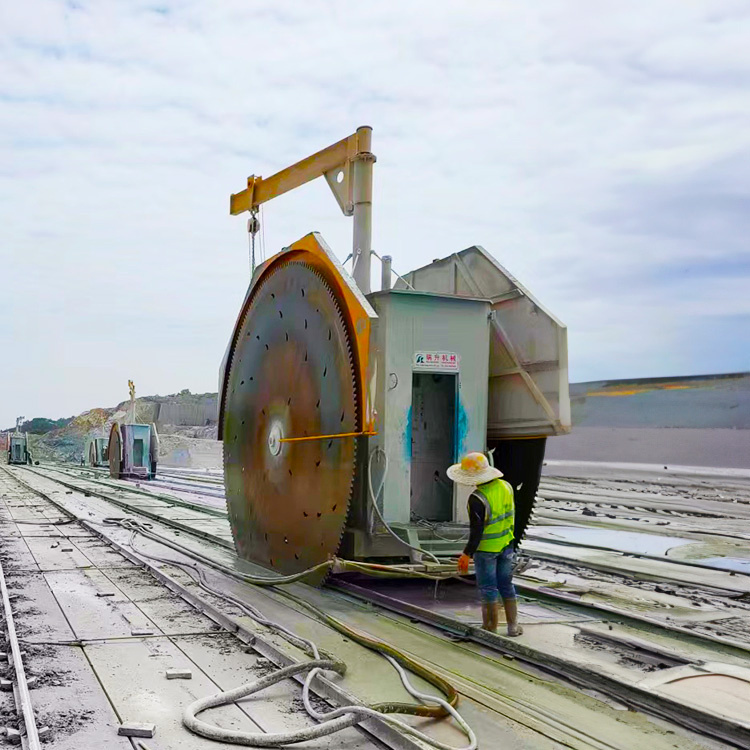

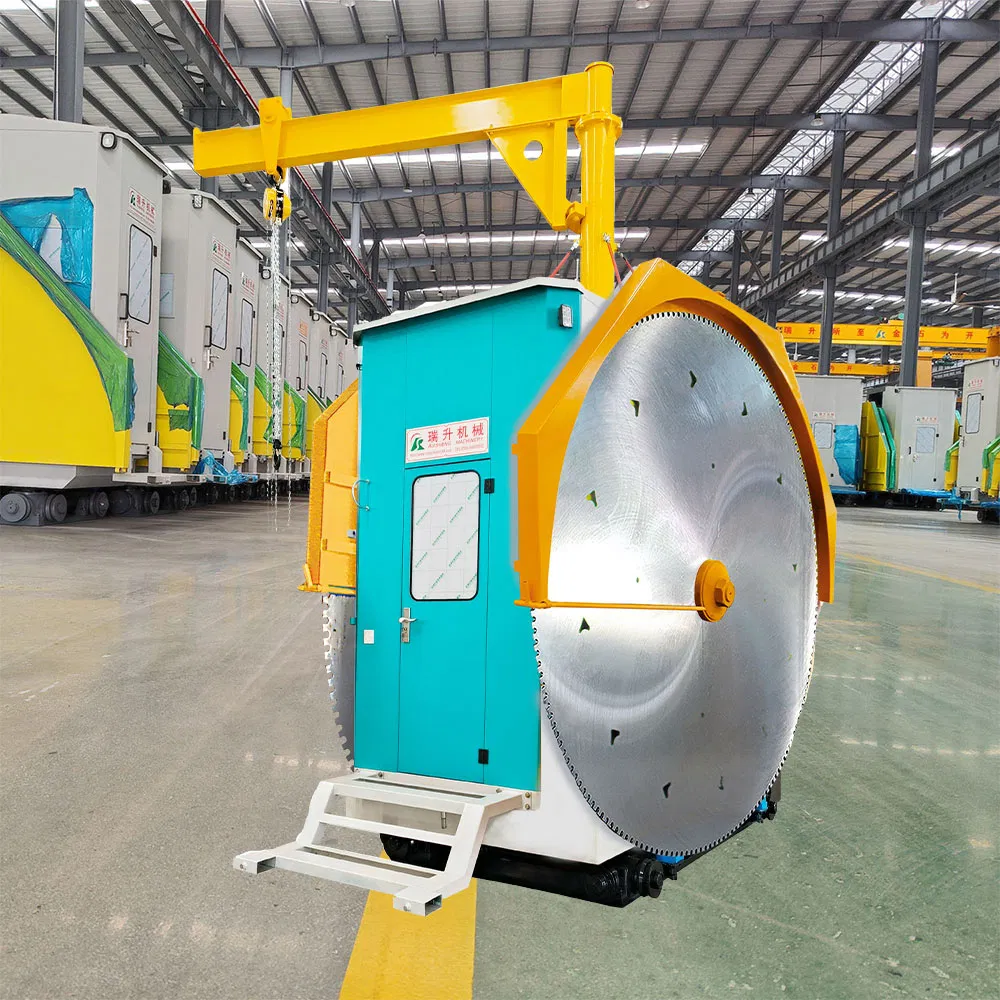

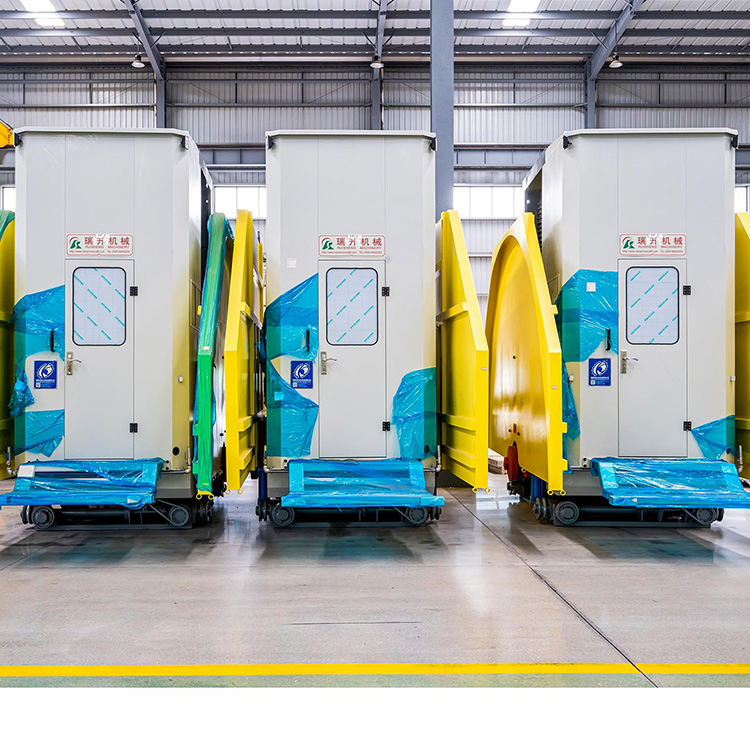

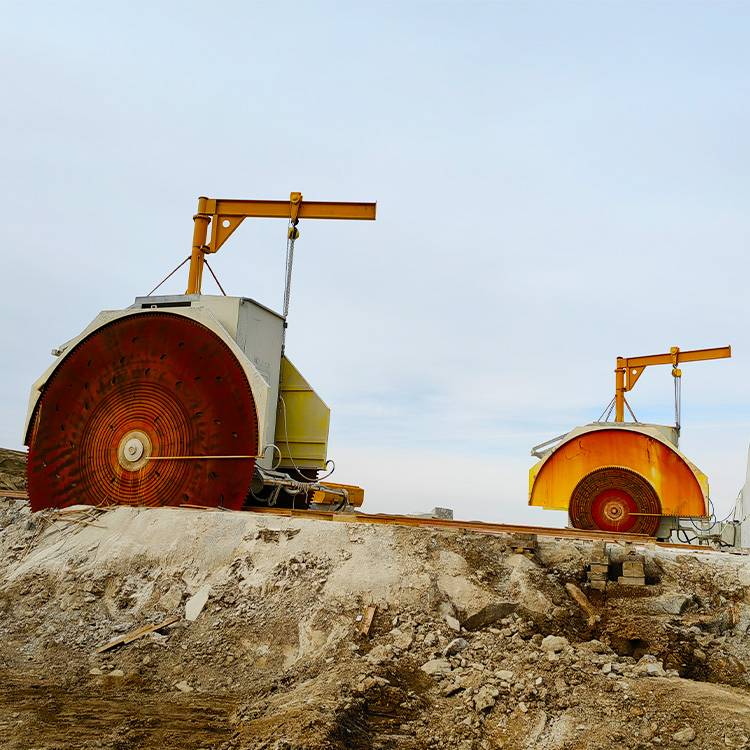

2025 Double Blade Granite Stone Mining Machinery Marble Cutting Machine
2025 Double Blade Granite Stone Mining Machinery Marble Cutting Machine
2025 Double Blade Granite Stone Mining Machinery Marble Cutting Machine
2025 Double Blade Granite Stone Mining Machinery Marble Cutting Machine
2025 Double Blade Granite Stone Mining Machinery Marble Cutting Machine
1 / 5
2025 Double Blade Granite Stone Mining Machinery Marble Cutting Machine
2025 Double Blade Granite Stone Mining Machinery Marble Cutting Machine
2025 Double Blade Granite Stone Mining Machinery Marble Cutting Machine
2025 Double Blade Granite Stone Mining Machinery Marble Cutting Machine
2025 Double Blade Granite Stone Mining Machinery Marble Cutting Machine

2025 Double Blade Granite Stone Mining Machinery Marble Cutting Machine

Customization: Available
After-sales Service: Provided
Warranty: One Year
Send Inquiry

Product Description

📊 Basic Info.
Model NO.
RSZL1360-1960
Type
CNC Cutting Machine
Usage
Red Brick, Granite, Marble, Sandstone
Application
Stone Industry
Source Voltage
380V
Automation
Semi-automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Slide Way
4 Steel Cylinders
Main Motor Power
85X2 Kw
Max Cutting Depth
2350mm
Cutting Width
1950-2450mm
Water Consumption
10m³/H
Total Power
177kw
Total Weight
13000kg
Blade Diameter
5200mm
HS Code
84303900
Capacity
50 pieces/Month

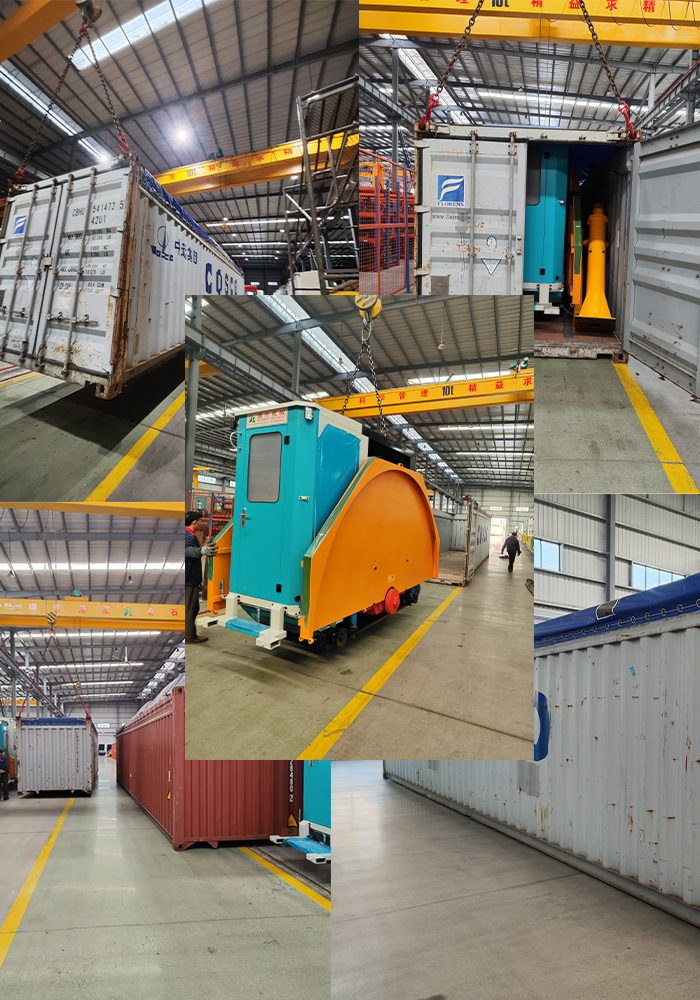

📦 Packaging & Delivery
Package Size
378.00cm * 156.00cm * 2600.00cm
Gross Weight
8000.000kg
💎 Product Introduction

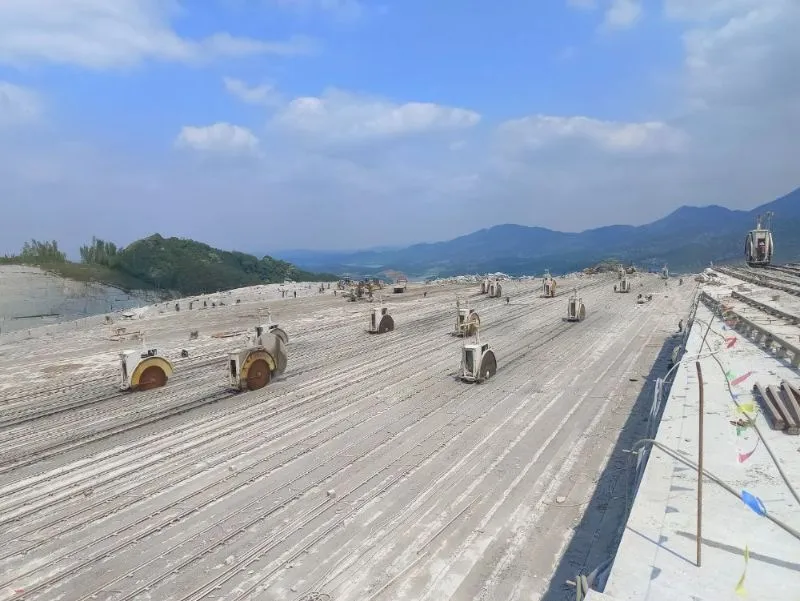

Stone Mining Machinery
  • Four-Wheel Drive: The whole machine is low in height, easy to operate, and ensures smooth cutting.
  • Advanced Spindle Box: Adopts gear drive with a fragment cylinder in the middle for smoother expansion and excellent parallelism.
  • Intelligent Control: Uses intelligent instrument control to adjust feed speed based on stone hardness and current size.
  • Flexible Modes: Manual and automatic modes can be arbitrarily switched to suit operational needs.
🛠️ Technical Parameter
Product name Unit RS-1360/1960ZL/M RS-1500/2100ZL/M RS-1950/2550ZL/M RS-2600/3200ZL/M
Driving wheel DiametermmΦ3600Φ3800Φ4800Φ4800
Cutting widthmm1360-19601500-21001950-25502600-3200
Max cutting depthmm1550165021502150
Main motor powerkw55556565
Water consumptionm³/h5555
Total powerkw131.2131.2137137
Dimension (Ext.)mm4080x1560x26004280x1700x27005210x2110x33705210x2760x3370
Total weightkg800082001150013000

Note: Double mining quarrying machine cutting width and depth can be customized according to customer requirements.

💰 Pricing Factors

The price of stone mine cutting machines varies based on several factors:

  • Model Selection: Different models offer varying application ranges and capacities.
  • Brand Positioning: Price varies depending on the manufacturer's brand and market positioning.
  • Quality & Service: Durability, service life, and the quality of after-sales support significantly influence the final cost.

We recommend determining your specific production requirements before selecting the correct equipment with the manufacturer.

🏢 Gallery Display

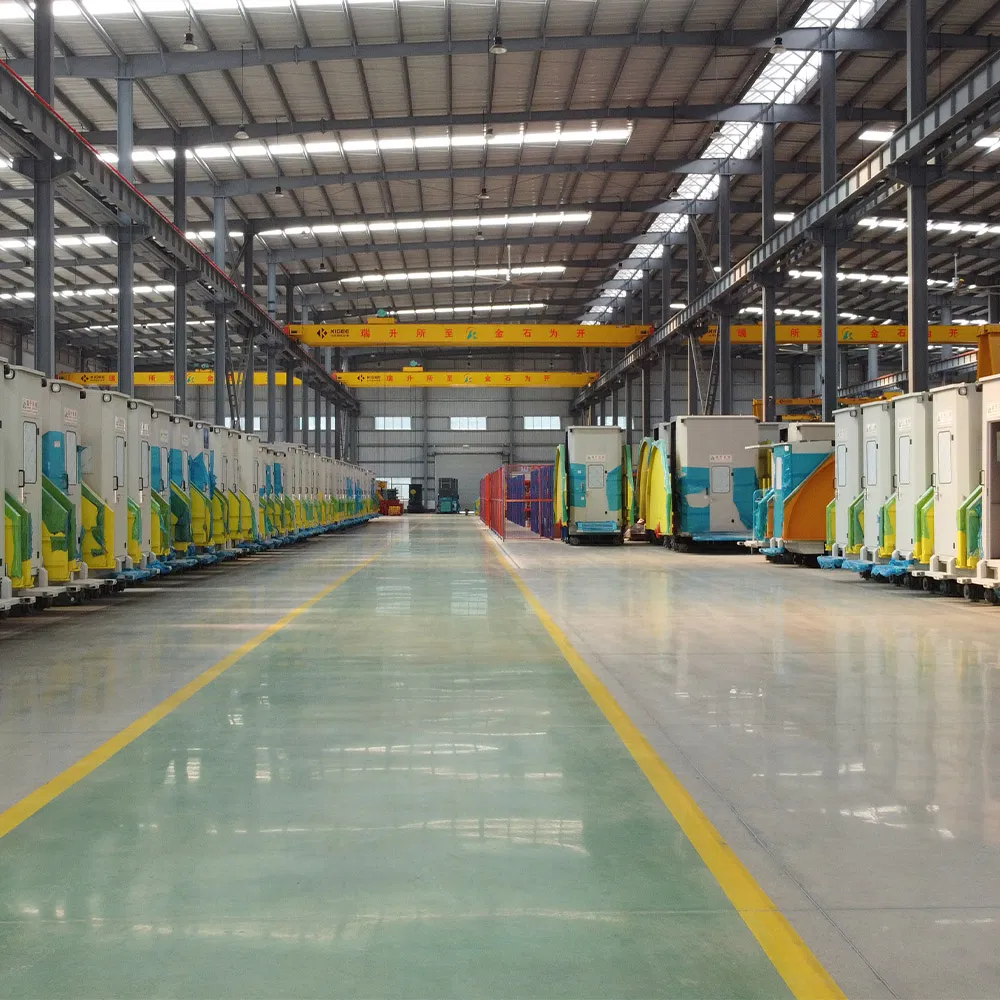

Production Image 1

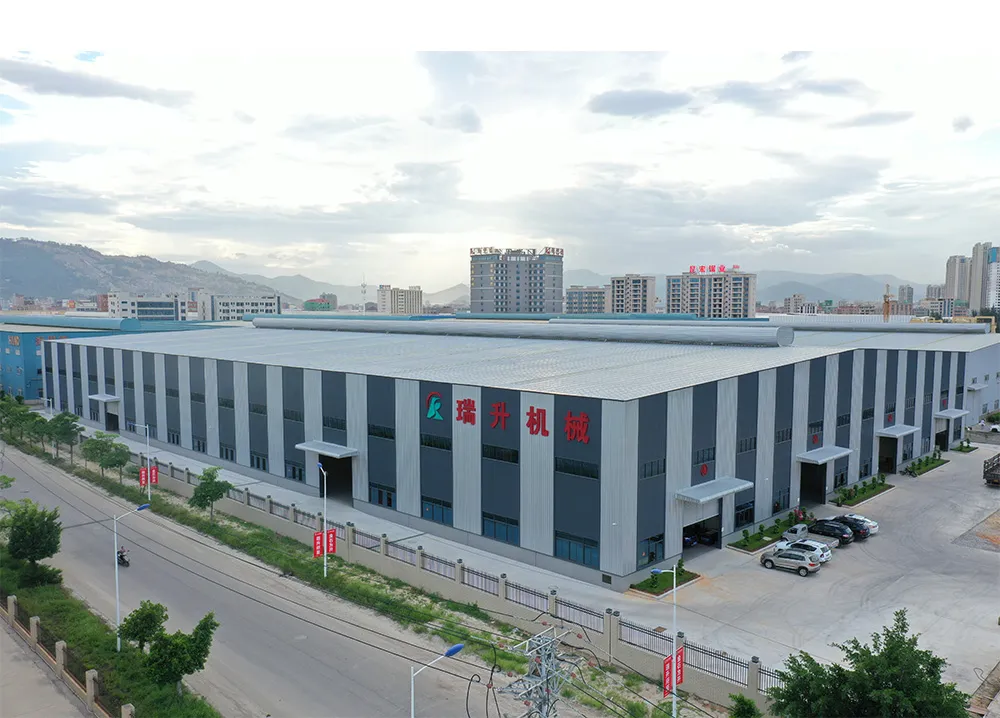

Production Image 2

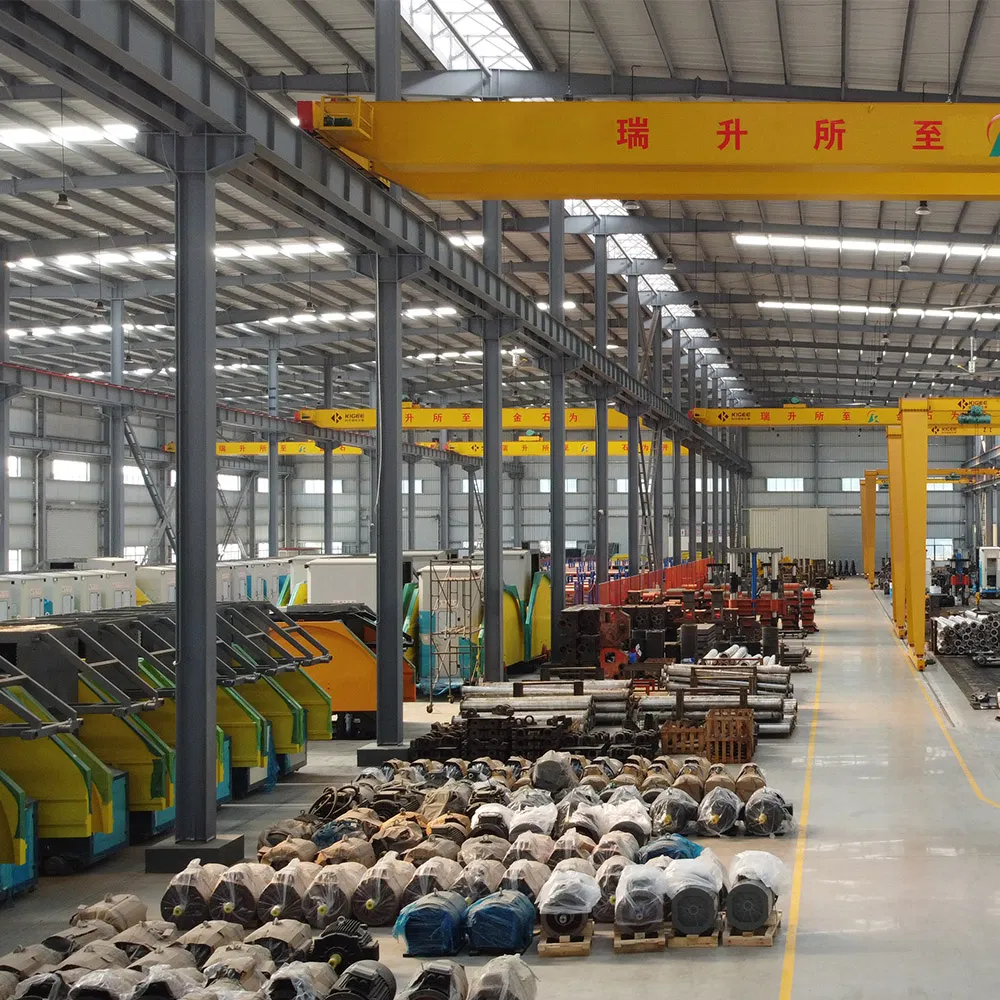

Production Image 3

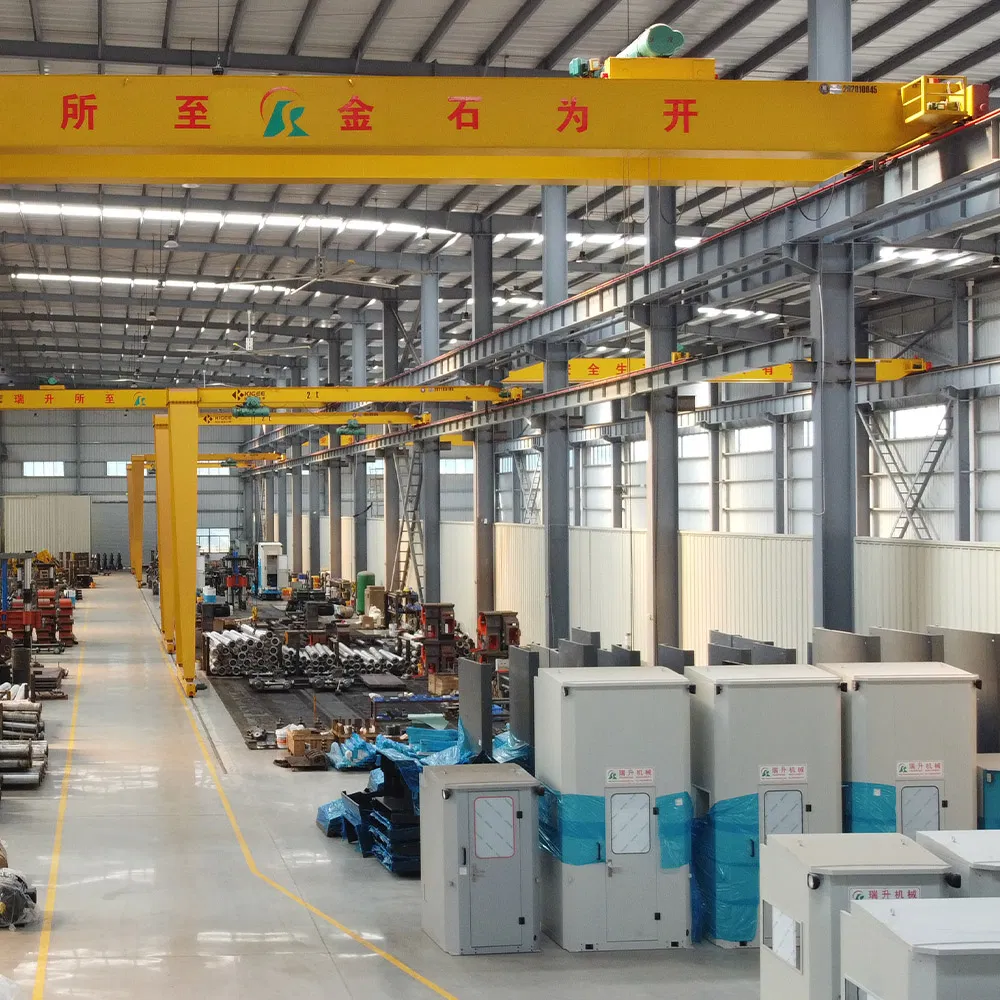

Production Image 4
🌍 Exhibition & Fair
Exhibition 1
Exhibition 2
Exhibition 3
❓ Frequently Asked Questions
What types of stone can this machine cut?
This CNC cutting machine is designed for various stones including Granite, Marble, Sandstone, and Red Brick.
Can the cutting width and depth be customized?
Yes, the cutting width and depth of the double mining quarrying machine can be customized according to specific customer requirements.
How does the intelligent control system work?
The intelligent instrument control automatically adjusts the feed speed based on the hardness of the stone and the current machine load.
Is the machine easy to operate?
Yes, the machine features a low-height design for stability and offers both manual and automatic modes that can be switched easily.
What are the power requirements for this equipment?
The standard source voltage is 380V, with a total power requirement ranging from approximately 131kw to 177kw depending on the model.
What certifications does the machine have?
The machine is certified with both ISO and CE standards, ensuring international quality and safety compliance.
