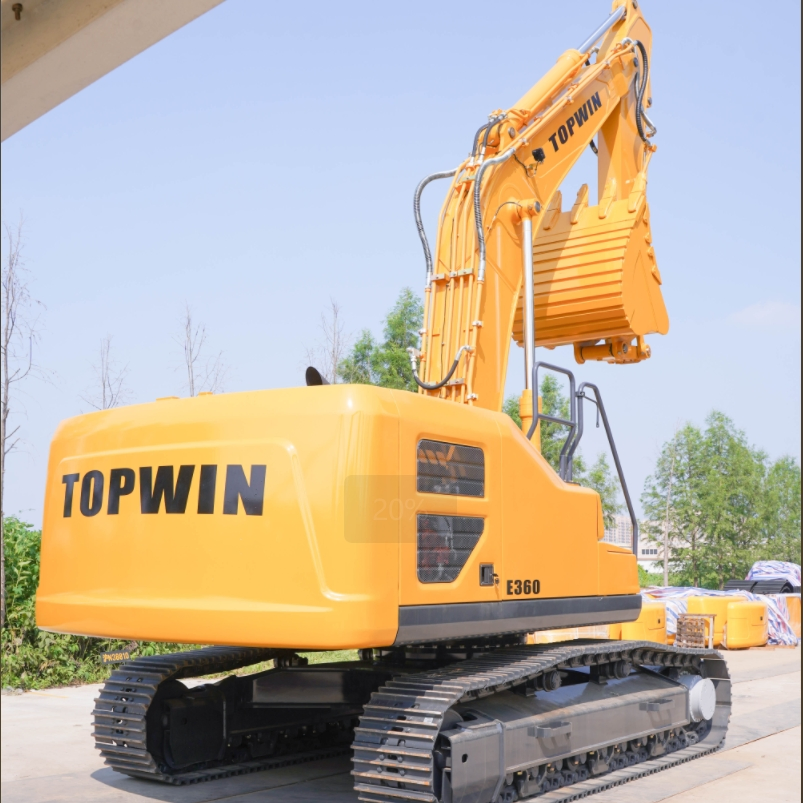

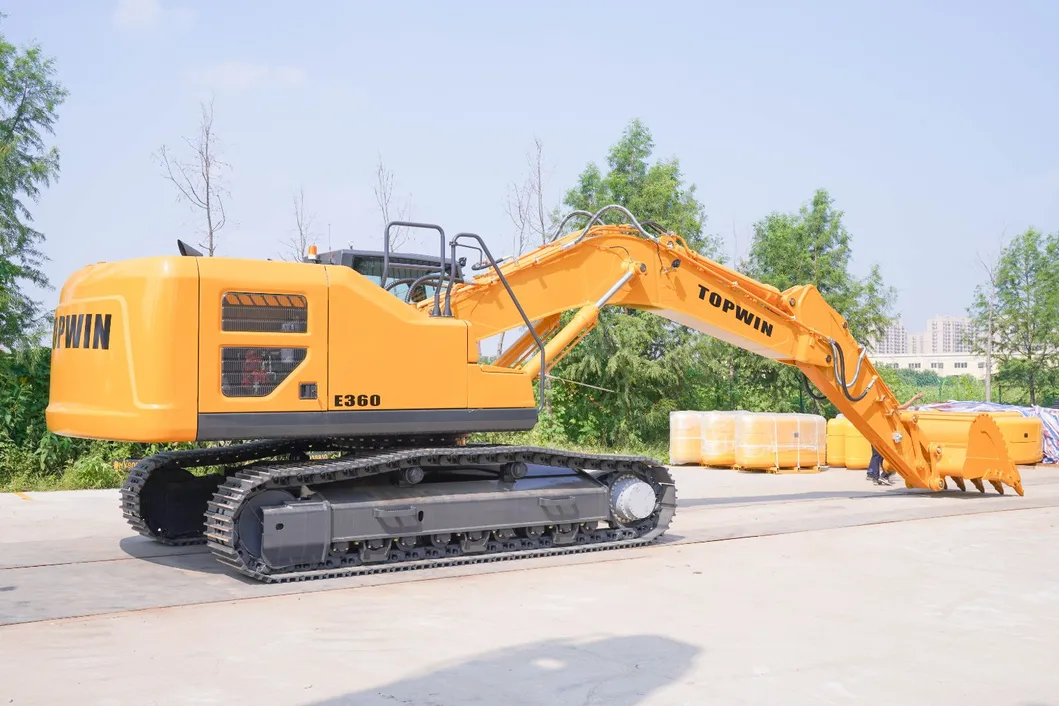

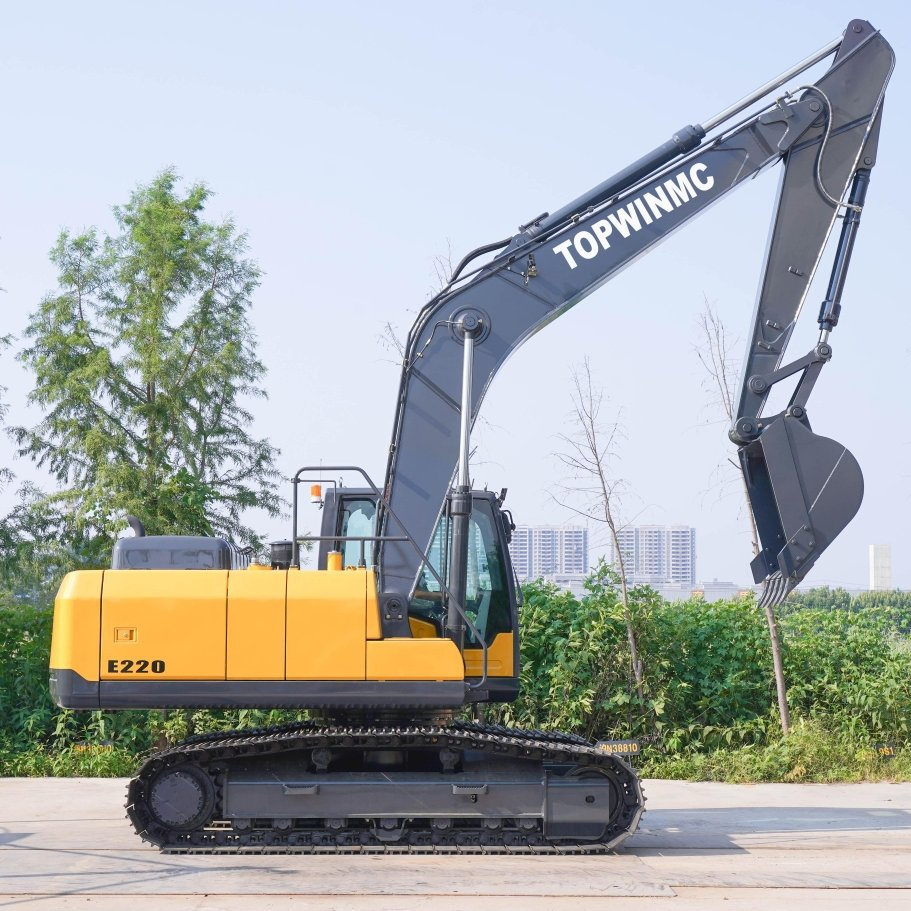

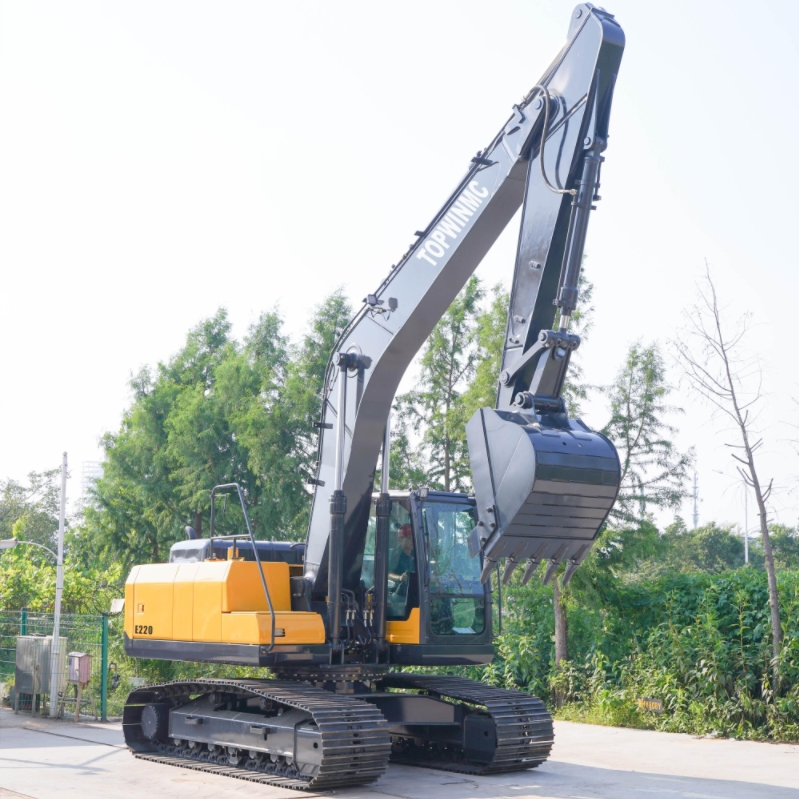

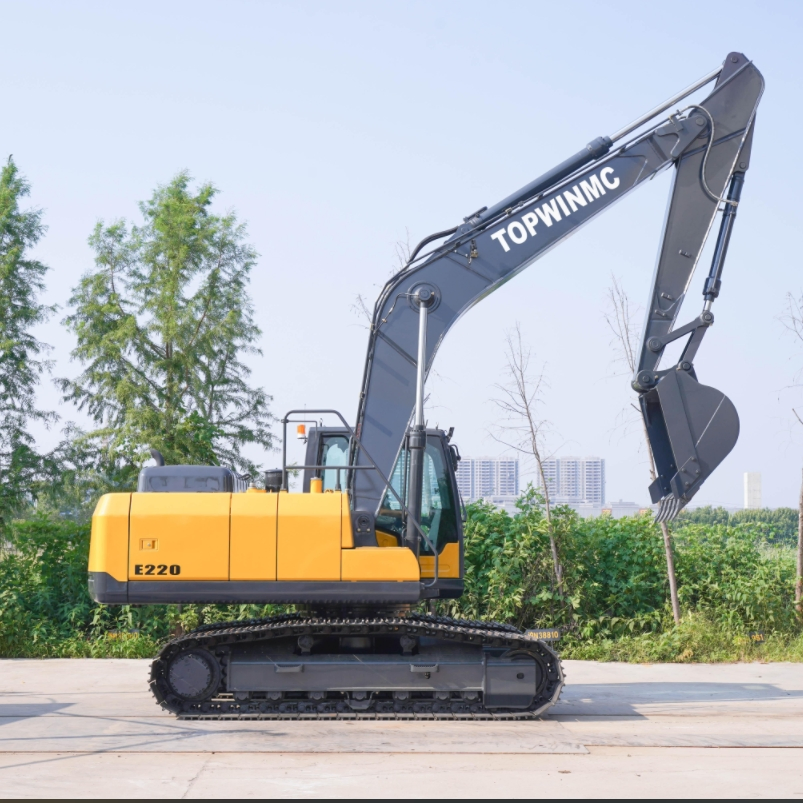

36 ton Large Excavators Construction Machine Earth Moving Equipment
Main Features:

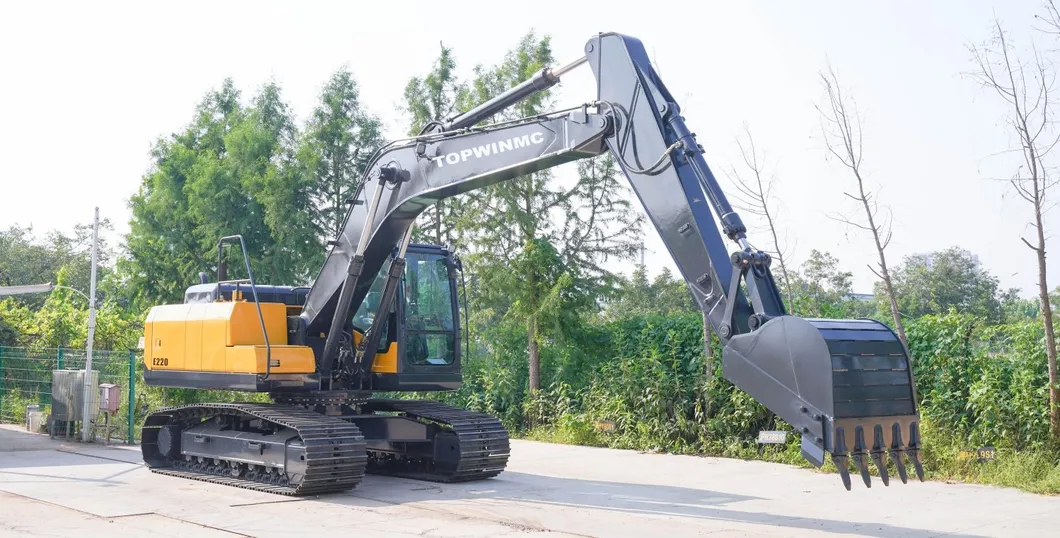

A tool for every job: Buckets (General Purpose, Ribbed, Ditch Maintenance, Grading, Tapered Ditching, Tilting), Jack Hammer, Breaking Hammer, Quick Hitches, Auger, Earth Drill, Thumb Bucket, Sweeper, Log/stone/steel Grapple, Ripper tooth, Rake, Compactor, Rock wheel, Hydraulic pulverizer, Pile hammer.

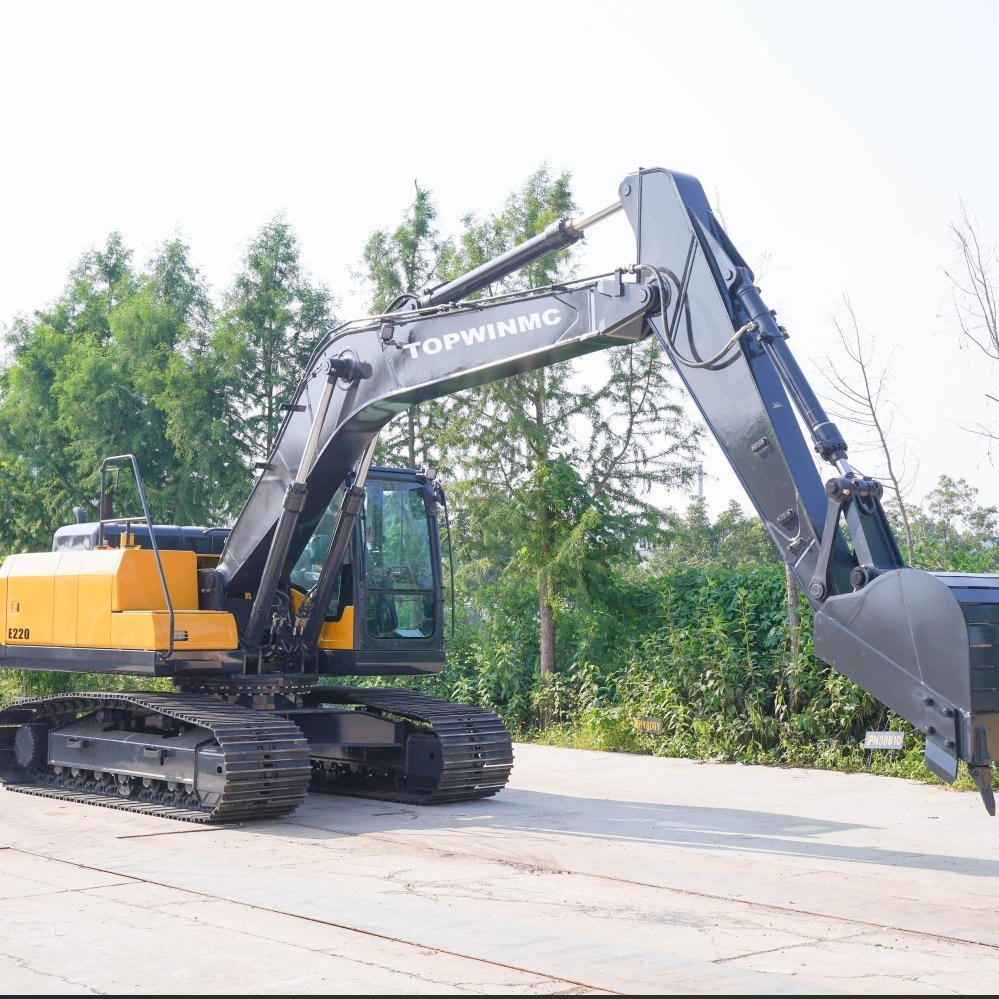

| MODEL | E220 | E250 | E335 | E360 | E500 |
|---|---|---|---|---|---|
| Operating weight (T) | 22 | 25 | 35 | 36 | 50 |
| Bucket capacity (m3) | 1.0 | 1.2 | 1.6 | 1.8 | 2.5 |
| Engine model | CUMMINS B5.9-C | CUMMINS B5.9-C | CUMMINS 6LTAA8.9 | CUMMINS 6LTAA8.9 | CUMMINS QSM11 |
| Rated power (kw/r/min) | 133/2000 | 133/2000 | 242/2000 | 242/2000 | 254/1800 |
| Travel speed (km/h) | 5.2/3.5 | 5.2/3.5 | 5.2/3.3 | 5.2/3.3 | 4.8/3.0 |
| Max. digging height (mm) | 9275 | 9310 | 9800 | 9800/10200 | 10760 |
| Max. digging depth (mm) | 6515 | 6875 | 6890 | 6890/7370 | 7320 |
| Overall length (mm) | 9560 | 9740 | 11150 | 11150 | 12180 |
TOPWIN has enjoyed great reputations in road constructions, mining operations, farming, and fertilizer manufacturing. We value high-quality products and immediate response to clients' demand. We offer full guidance for service and maintenance to ensure machines run with maximum productivity.
