| Model NO. | SW-450C |
| Certification | CE, ISO 9001:2000, ISO 9001:2008 |
| Condition | New |
| Motor | Diesel Engine |
| Drill Hole Diameter | 100-350mm |
| Drill Hole Depth | 450m |
| Bit Type | DTH Hammer Bit |
| Drilling Way | Rotary |
| Type | Crawler |

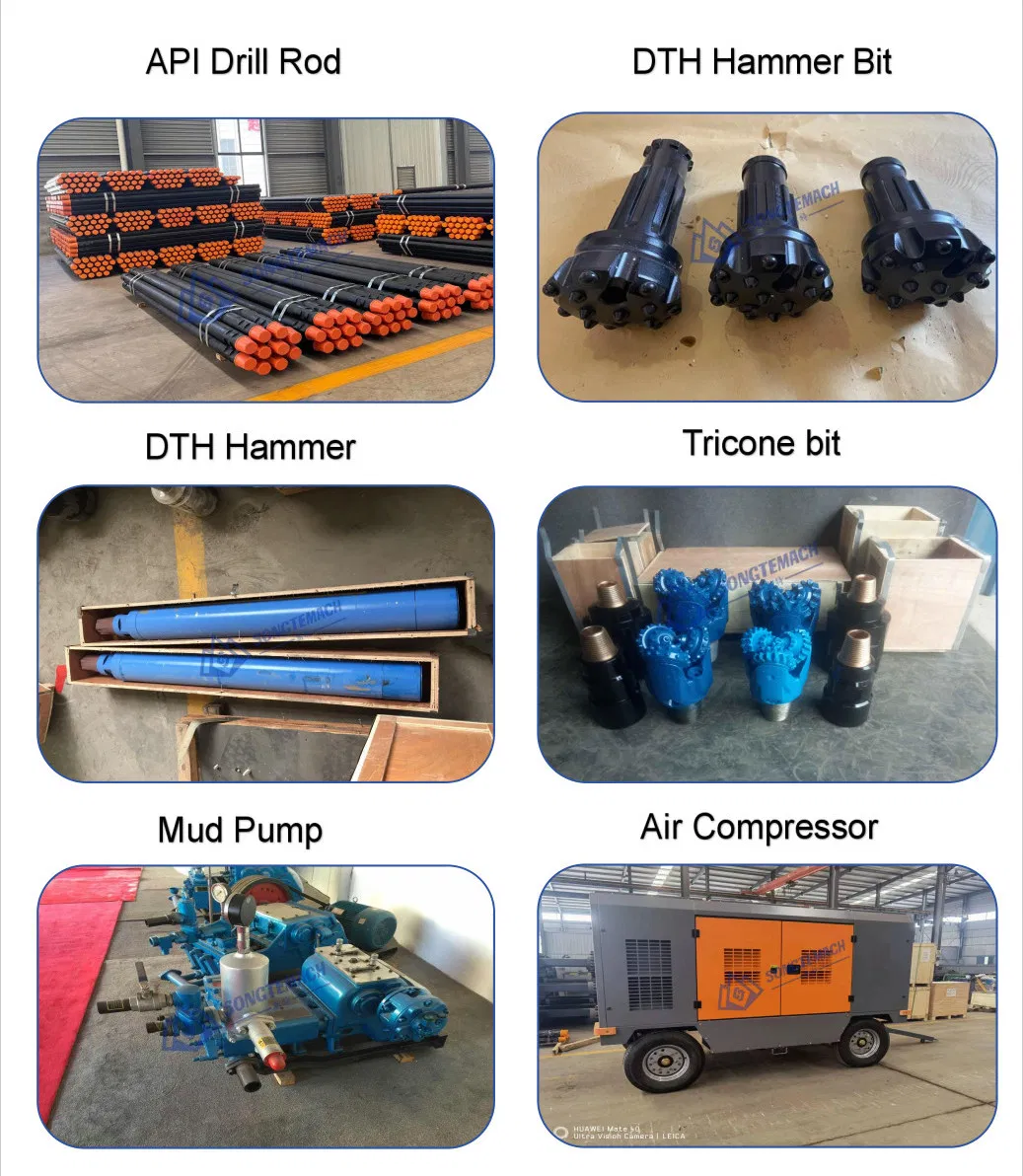

| Drilling Method | Air DTH Hammer Drilling, Mud Drilling |
| Machine Type | Hydraulic Drilling Rig |
| Application | Water Wells, Borehole, Geothermal Well, etc |
| Specification | 5950*2100*2600mm |
| Production Capacity | 500sets/Year |

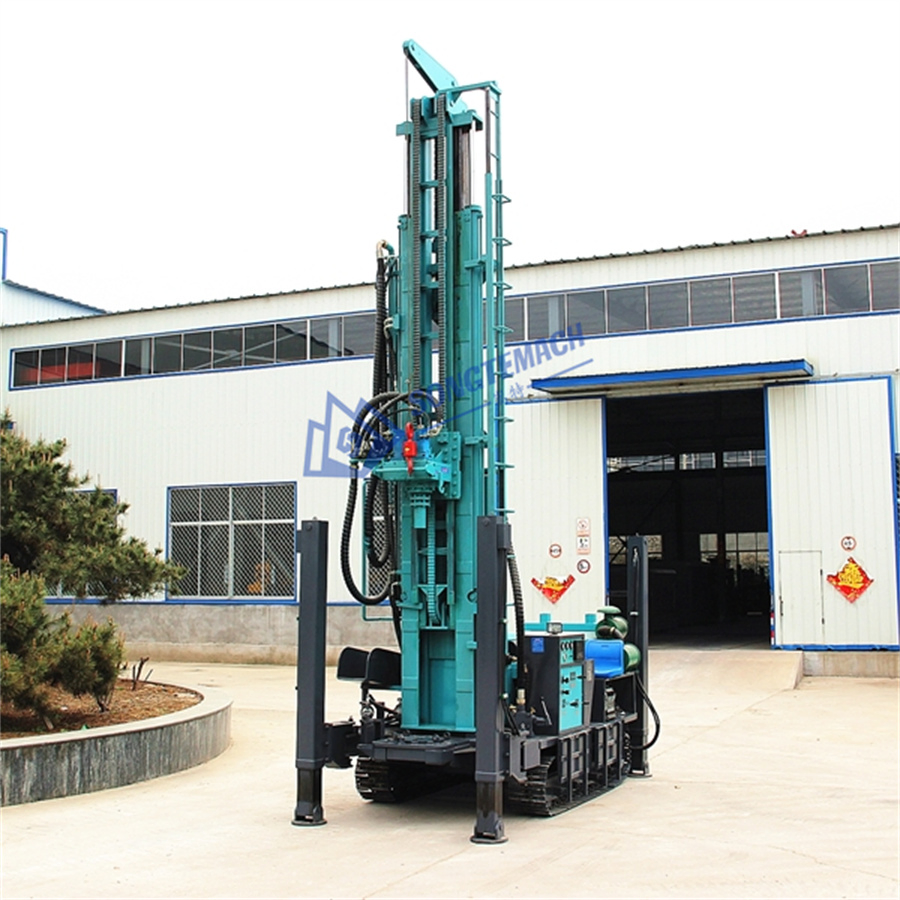

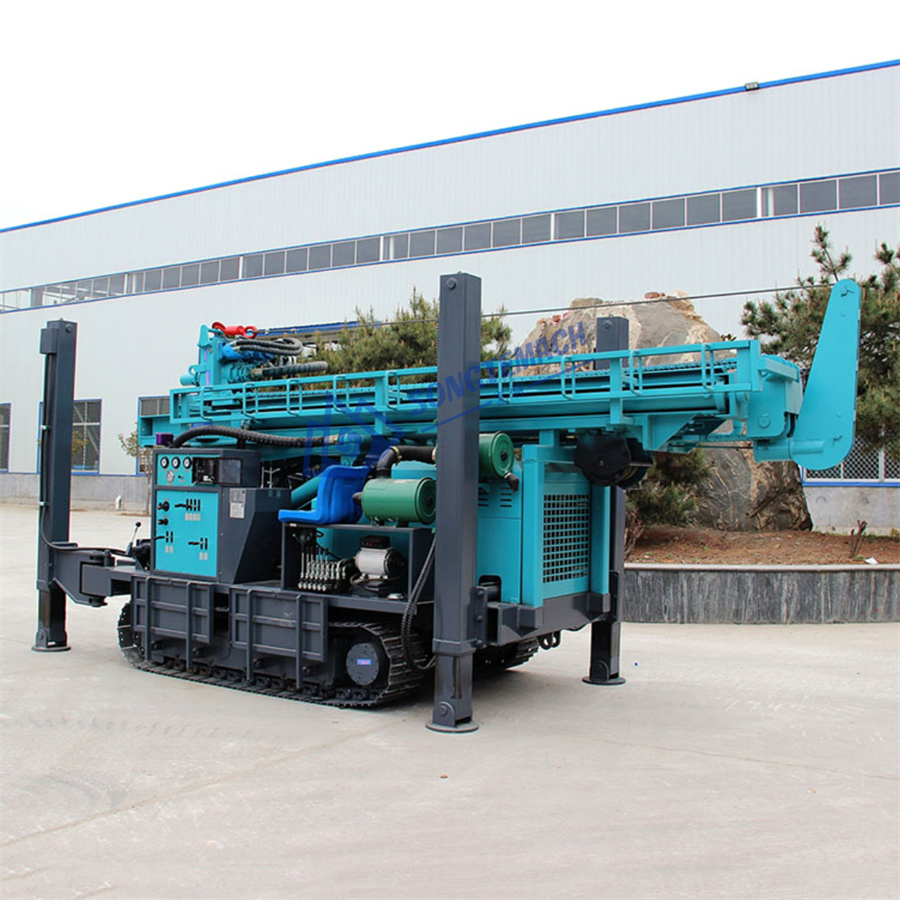

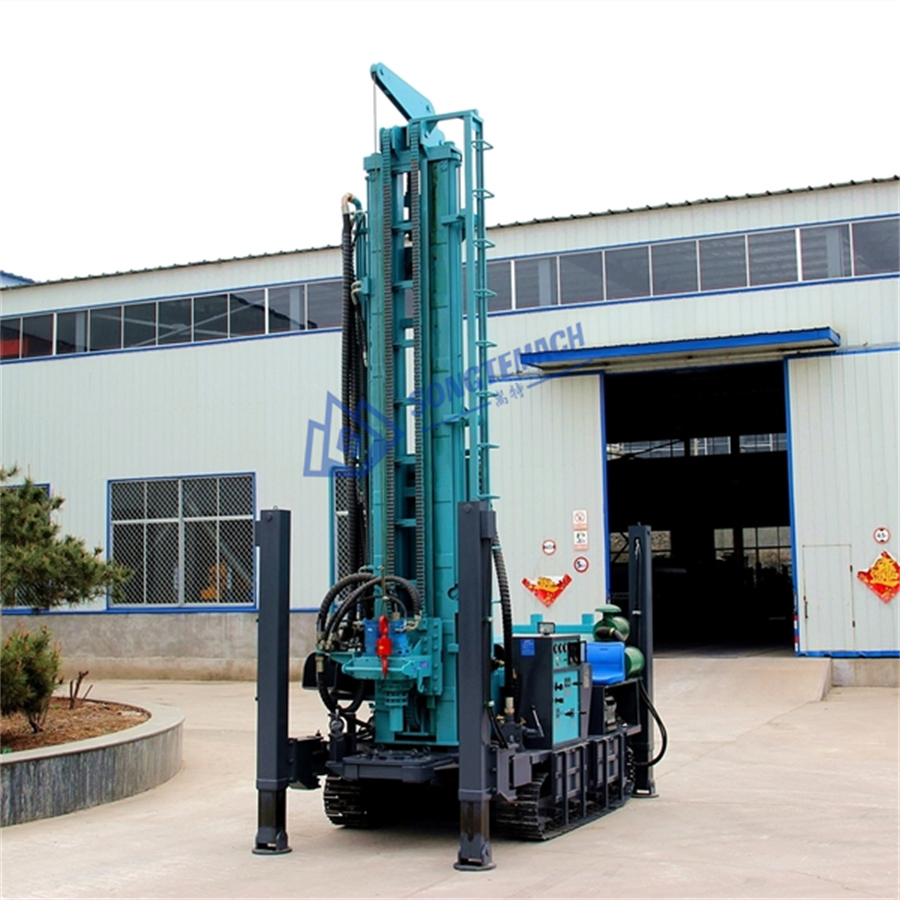

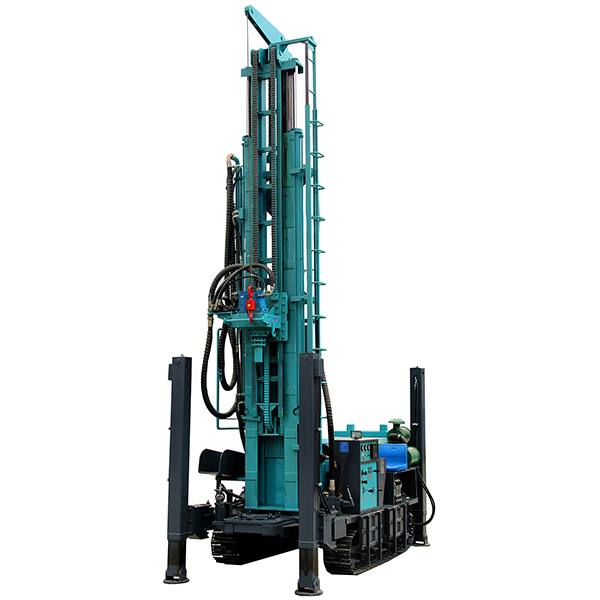

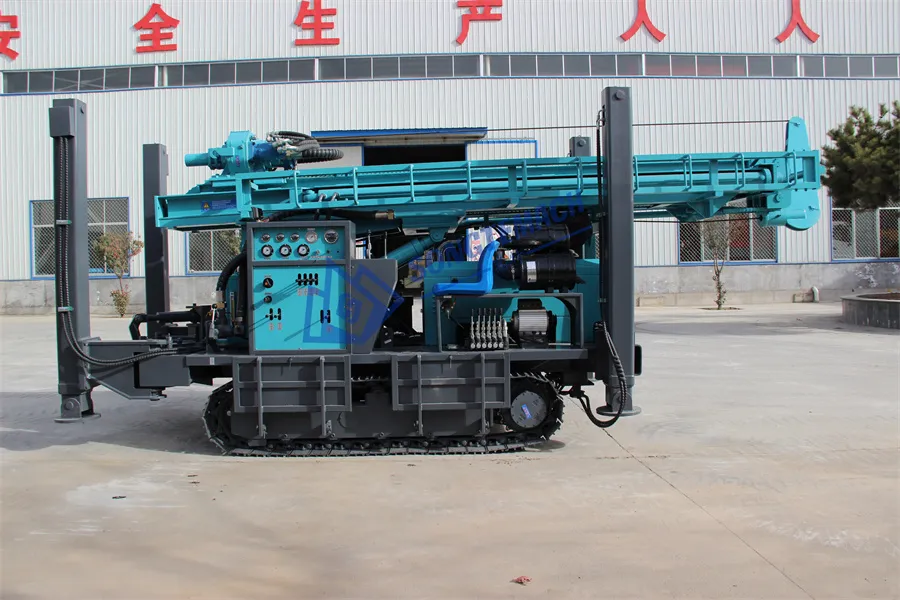

The SW-450C crawler type water well drilling rig is a top head driving system, supporting both mud pump drilling and air compressor drilling. Adopting the newest model and advanced hydro technology, it features low consumption, large rotary torque, and convenient hole deflection. It is primarily designed for resource exploration, hydrology wells, civil water wells, and agriculture irrigation projects.
| Drilling depth(m) | 450 |
| Drilling diameter (mm) | 140-350 |
| Drill rod diameter(mm) | Φ76 / Φ89 / Φ102 |
| Rig lifting capacity (t) | 25 |
| One-time advance length (m) | 6.6 |
| Rotating speed(rpm) | 50-135 |
| Rotating torque(N.m) | 7000-9500 |
| Engine Power(KW) | 103 (Weichai) |
| Working pressure(Mpa) | 1.7-3.5 |
| Air consumption(m³/min) | 17-36 |
| Dimension (mm) | 5950*2100*2600 |
| Total Weight (T) | 9.4 |
We provide preliminary planning, equipment selection, product design, and technical support to ensure you get the right solution for your specific drilling needs.
A dedicated quality inspection department ensures every piece of equipment undergoes strict testing before leaving the factory to guarantee perfect operation.
Enjoy a one-year quality warranty and lifelong technical guidance, including online training and troubleshooting support from our expert team.

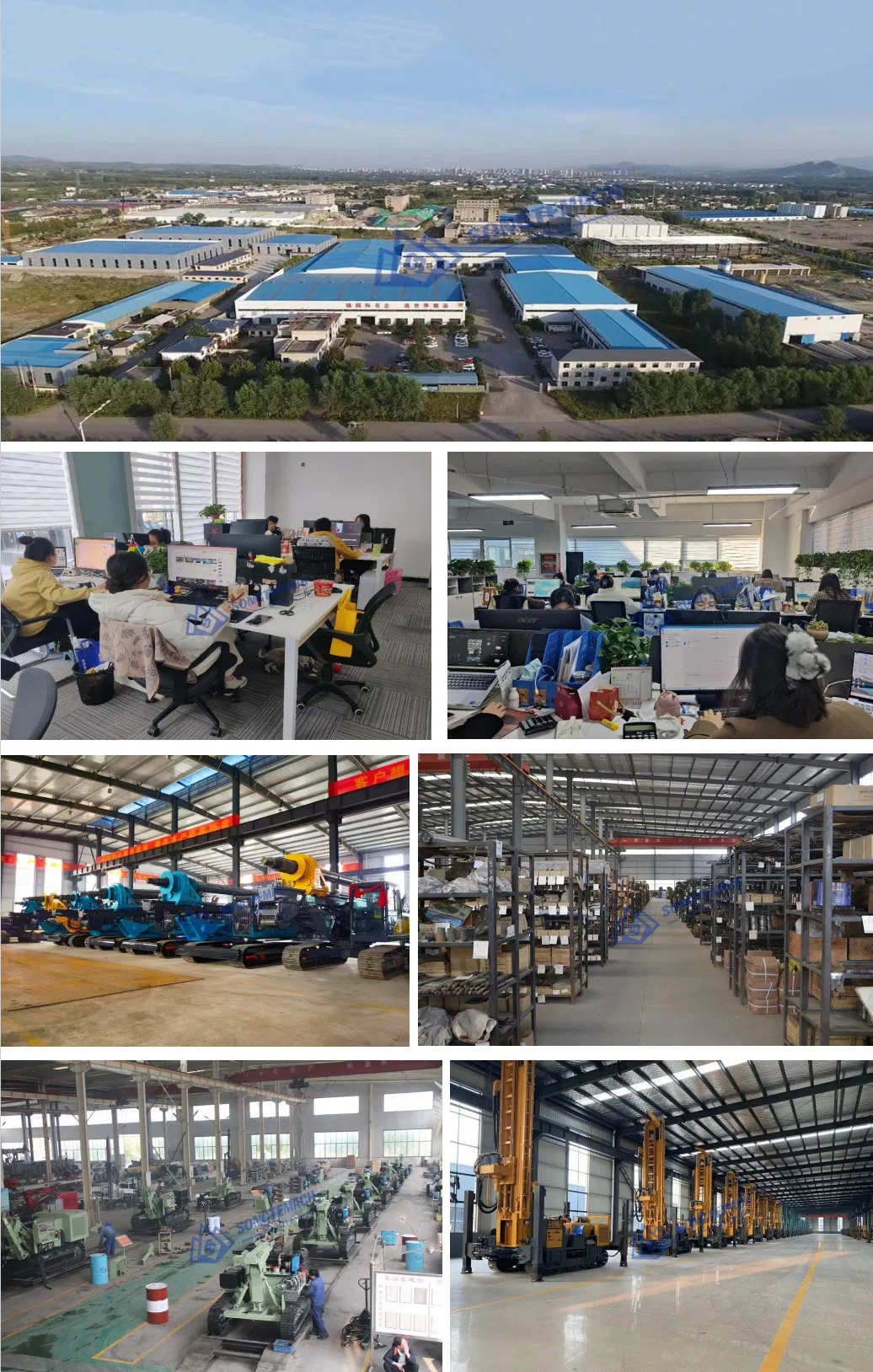

As a leading machinery manufacturer, the enterprise integrates R&D, manufacturing, and technical services. Specializing in high-quality drilling equipment including water well rigs, rotary piling machines, and DTH rigs, the facility utilizes high-precision machining and testing equipment. Products are exported to over 50 countries including the USA, Australia, Brazil, and Kenya, recognized for excellent performance and reliability.
