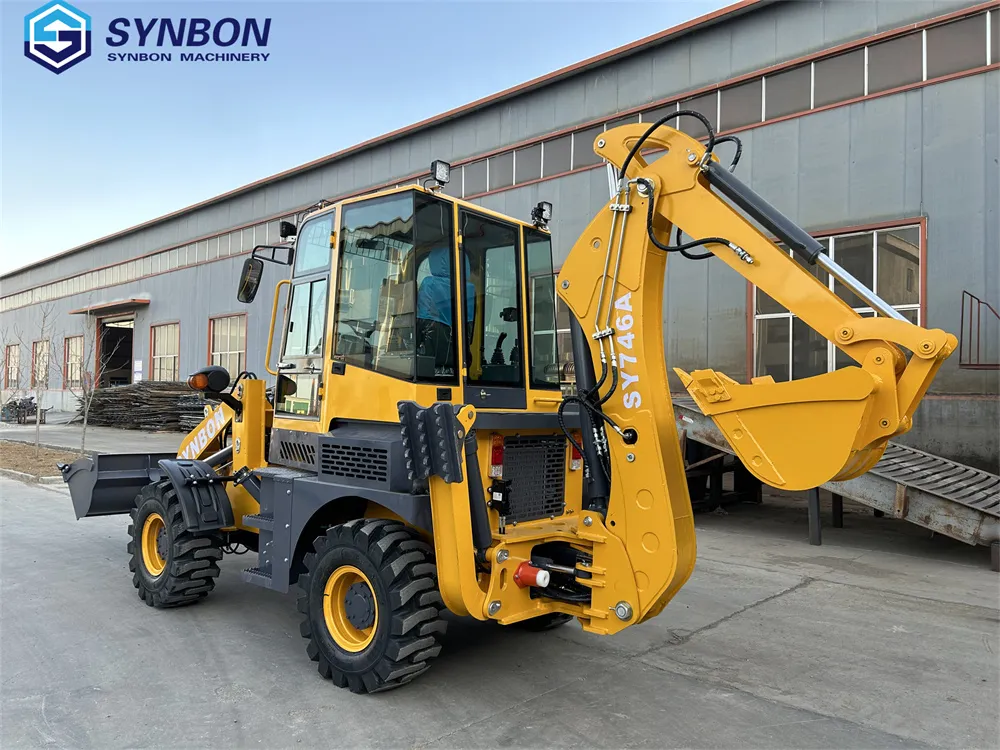

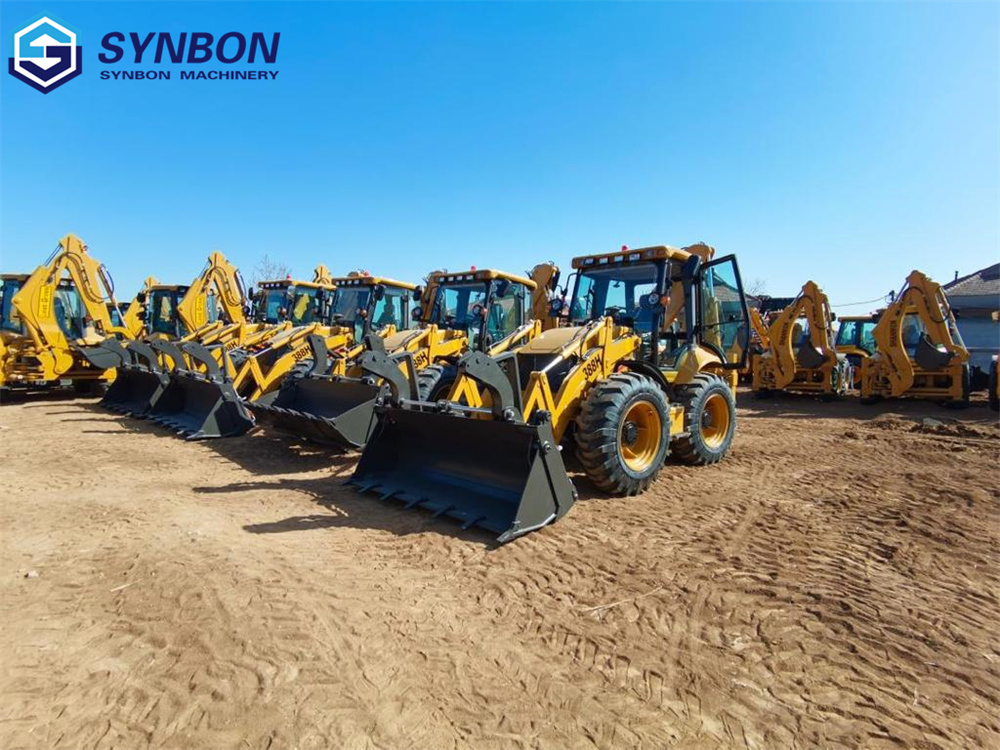

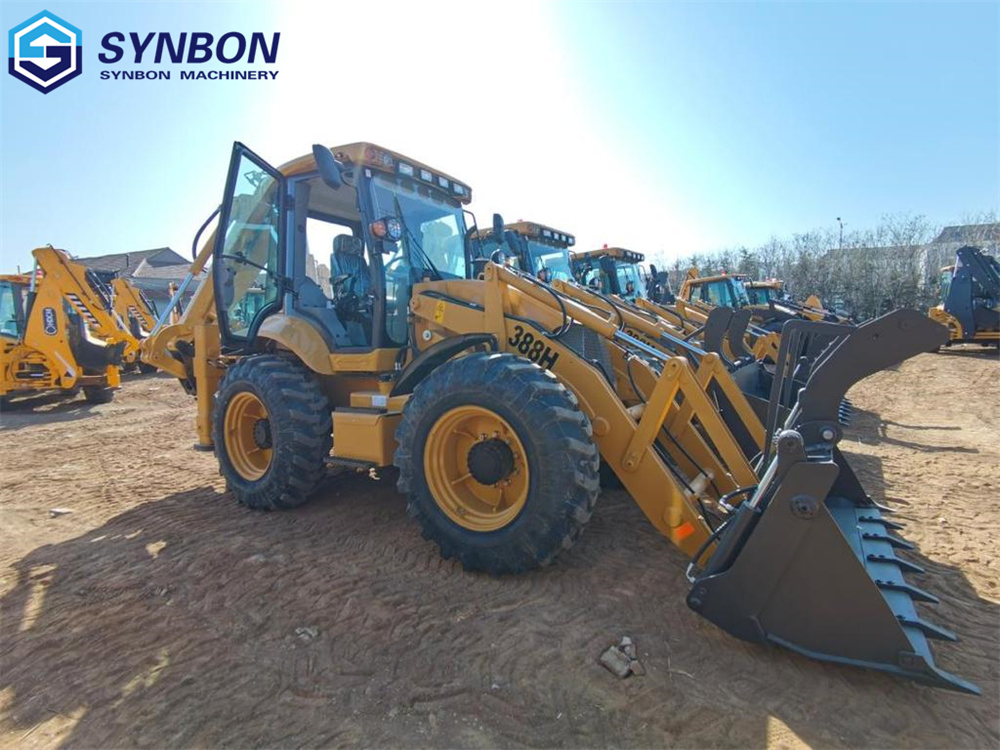

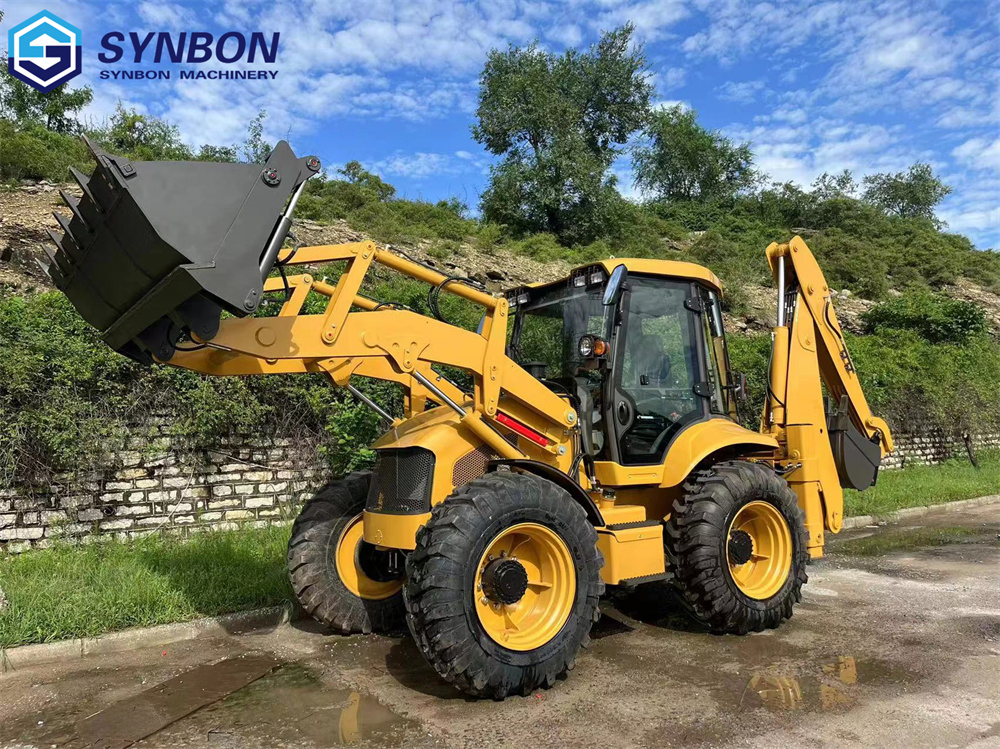

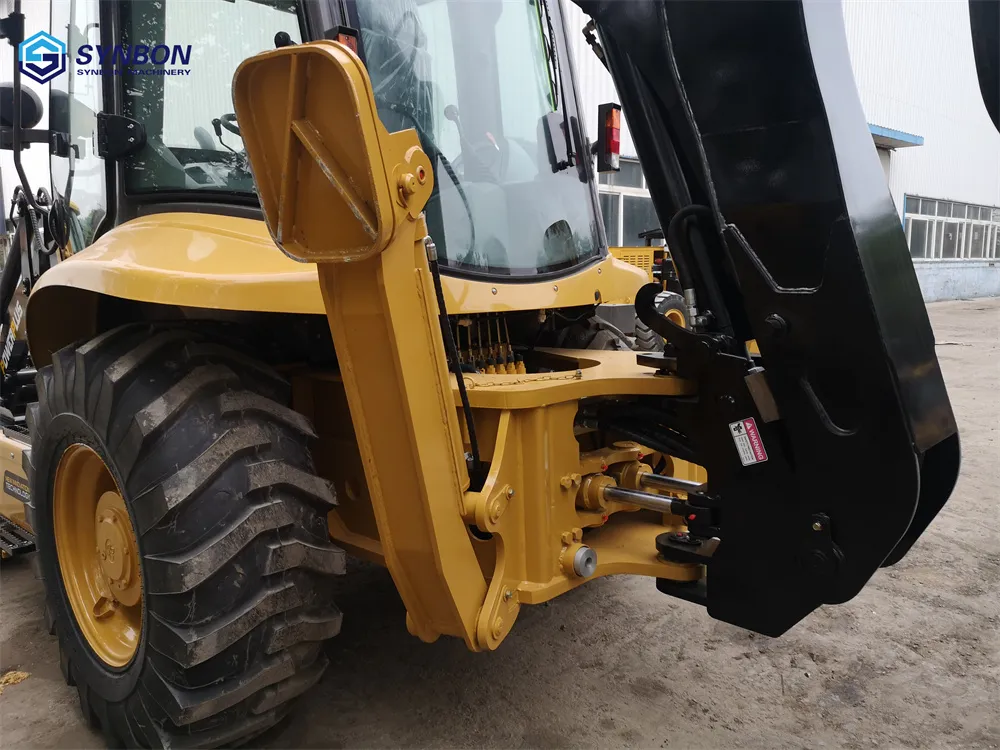

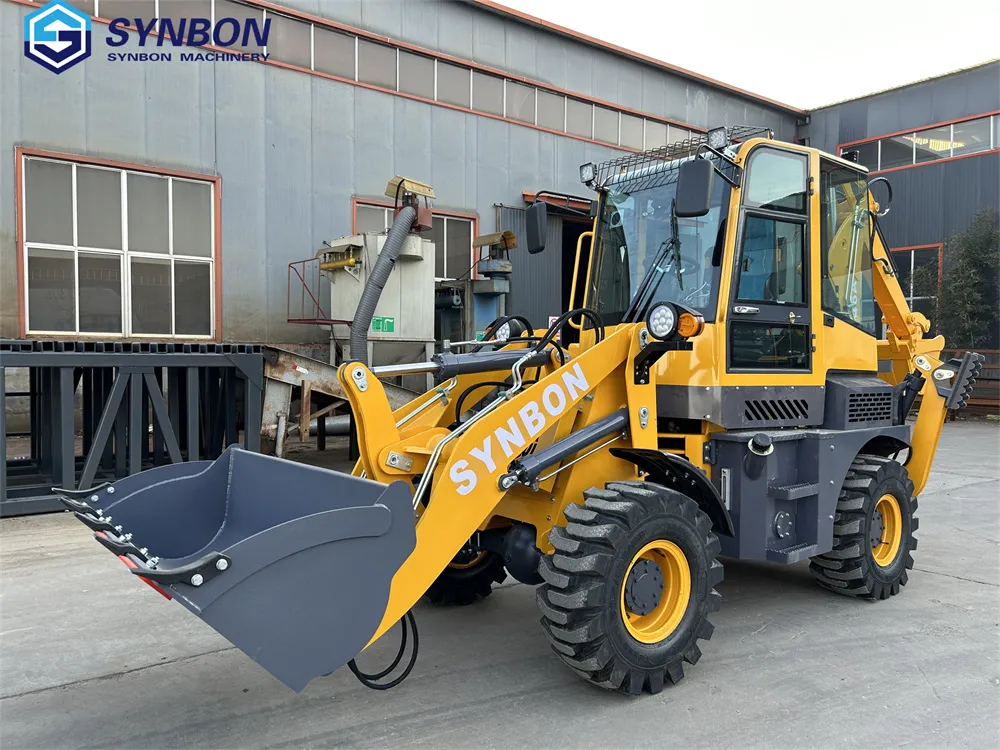

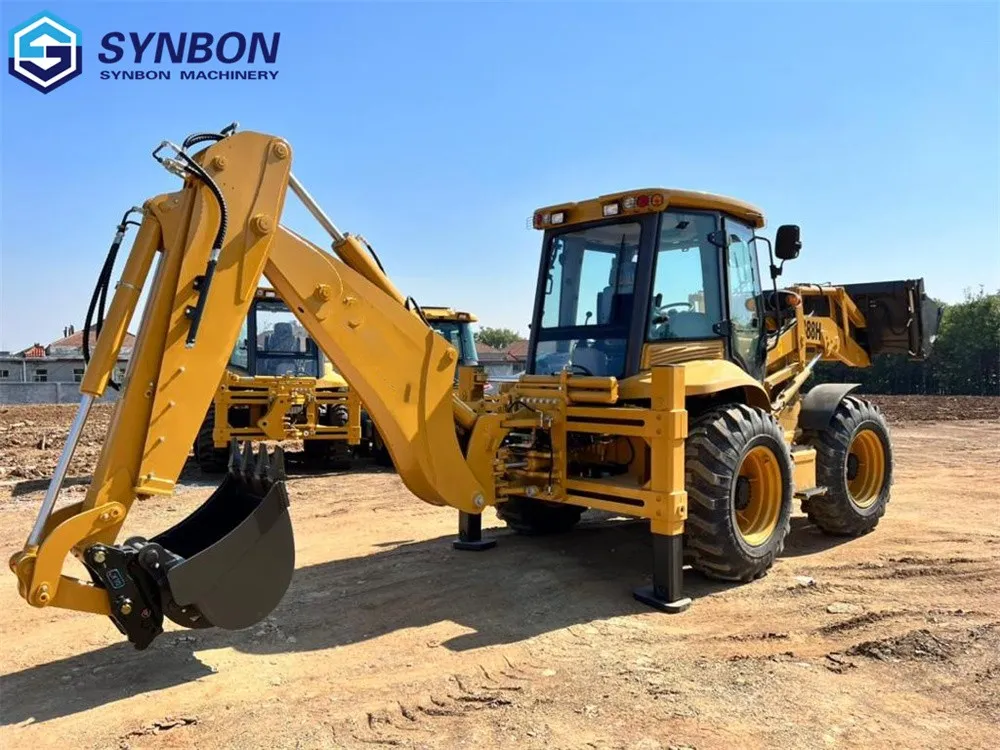

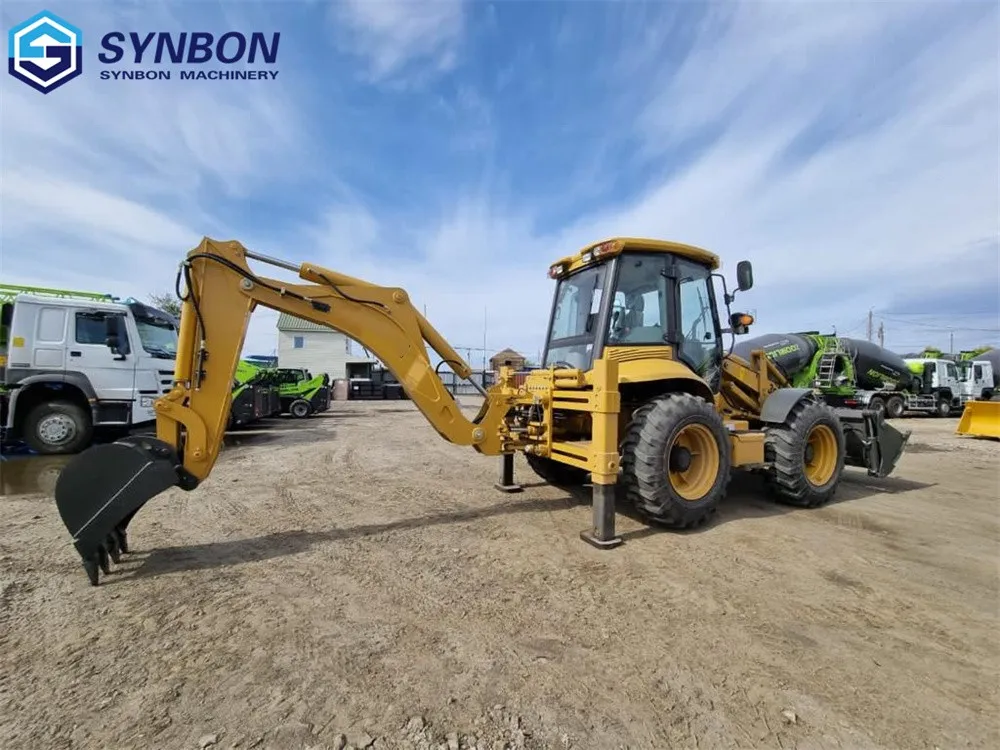

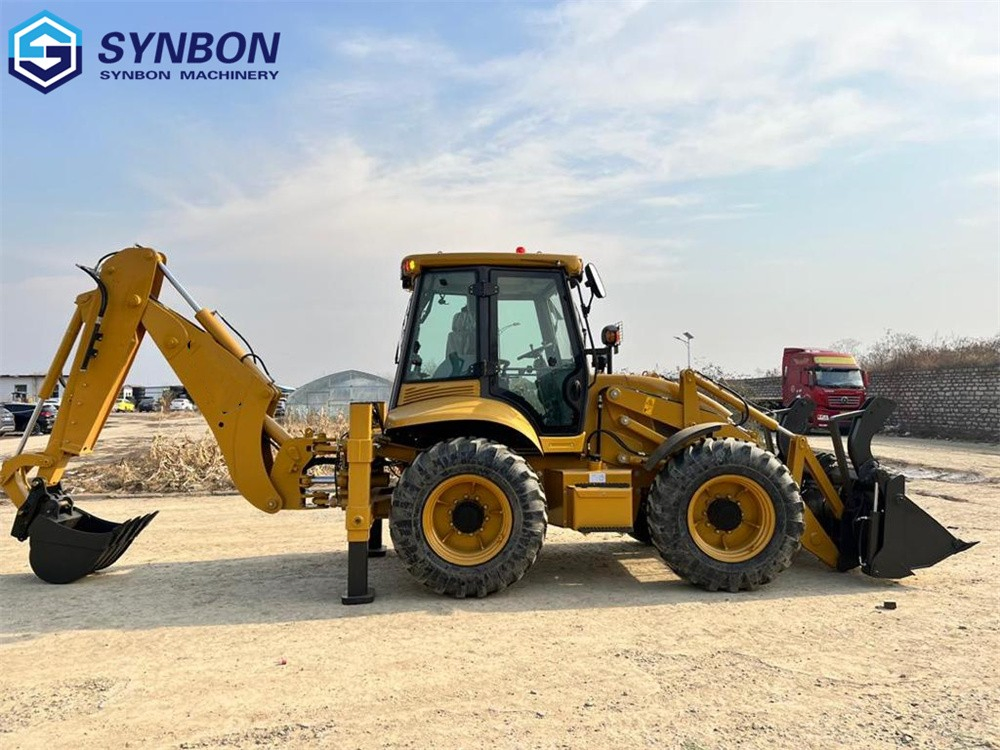

Our backhoe loader is a multi-functional construction machinery, mainly used for earthwork handling, material loading and unloading, and site leveling operations. It is equipped with a large-capacity bucket, featuring a powerful hydraulic system and a stable chassis structure, which can efficiently complete tasks such as loading, pushing soil and shoveling.
Its four-wheel drive design, flexible steering system and high ground clearance enable the front loader backhoe to adapt to various complex terrains and be widely used in construction sites, mines, farms and other fields.

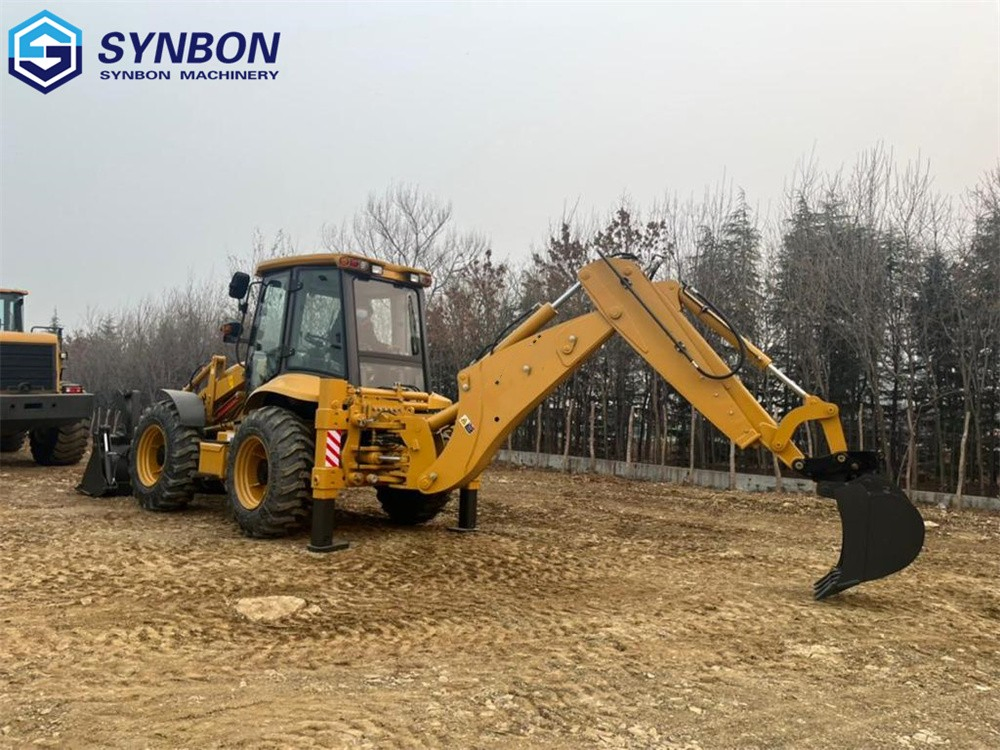

Integrated Operations: Featuring a 1.0m³ loading bucket and a 0.3m³ backhoe, it achieves a remarkable 11.9-second cycle time. Excavation depths up to 4500mm and unloading heights of 2742mm.
Engine Power: 75kW/2200rpm engine, paired with a 12MPa high-pressure hydraulic system delivering 84.4% transmission efficiency.
| Overall Operating Weight | 8200KG | Max. Pulling Force | 39KN |
| Dimension (mm) L*W*H | 5920×2250×3770 | Engine Model | YC4A105Z-T20 |
| Wheel base | 2200mm | Rated Power | 75KW |
| Min. Ground Clearance | 300mm | Rated Speed | 2200r/min |
| Bucket Capacity | 1.0m³ | Max. Torque | ≥410N.M |
| Loading Lifting Capacity | 2500KG | Max. Speed | 28Km/h |
| Backhoe Capacity | 0.3 m³ | Max. Digging Depth | 4082/4500mm |
| Min. Turning Radius | 6581mm | System Pressure | 12Mpa |

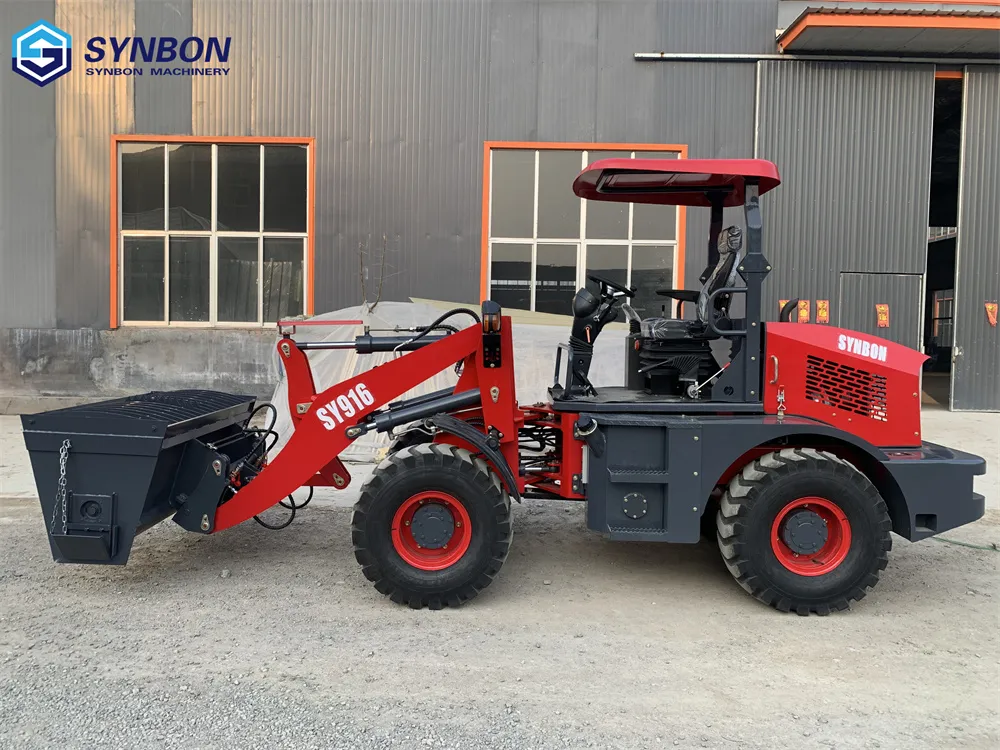

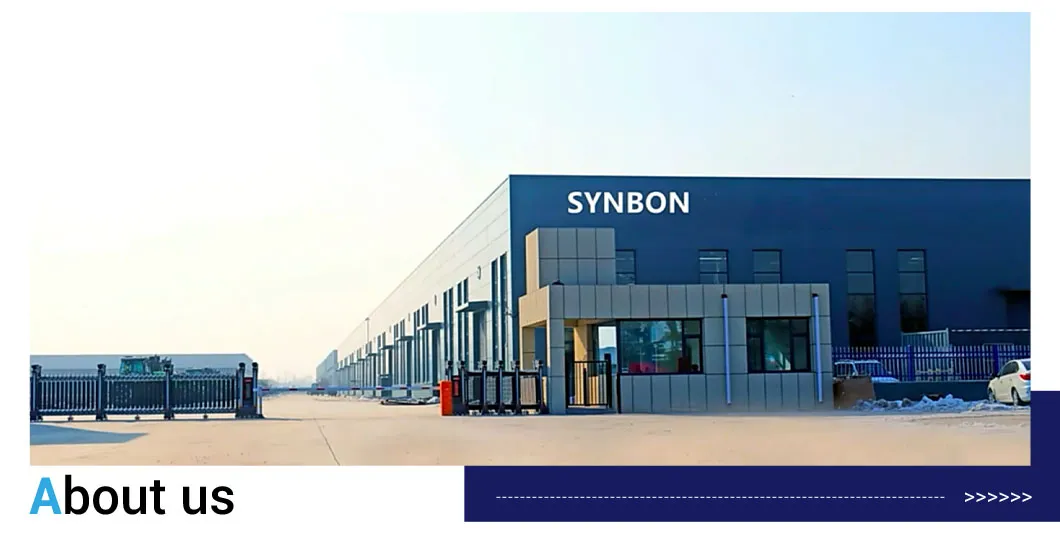

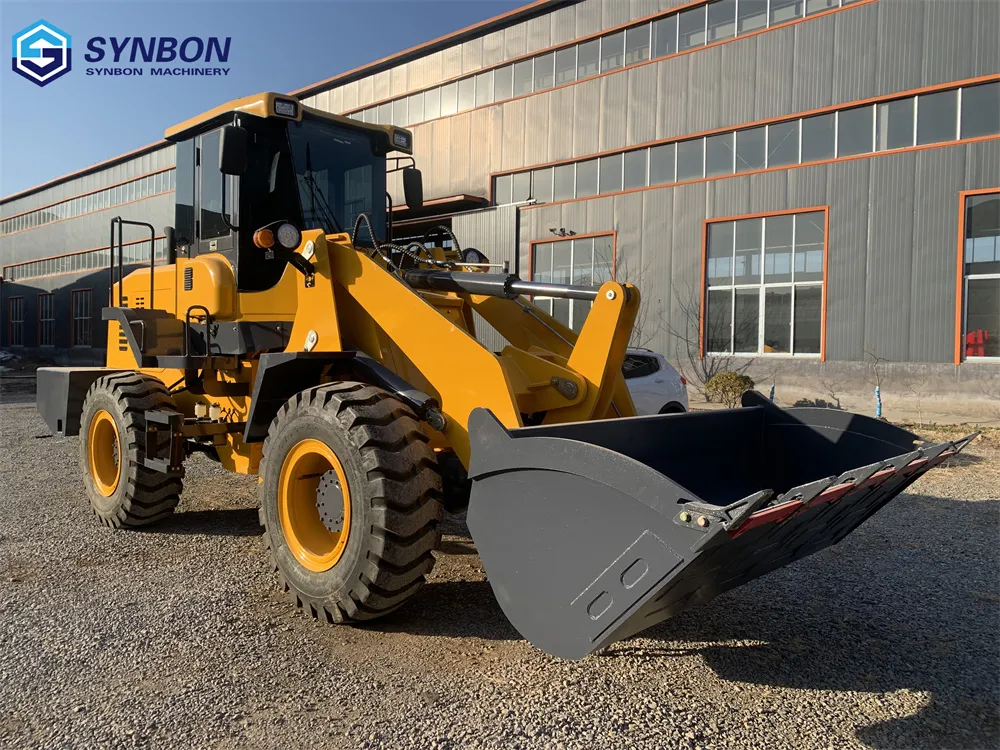

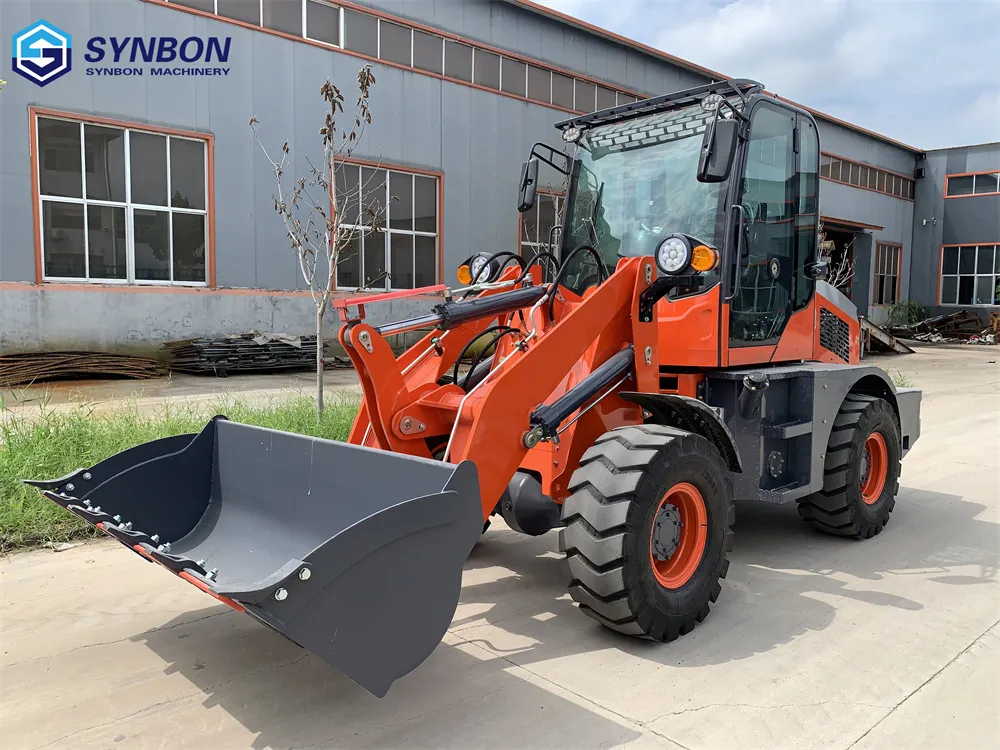

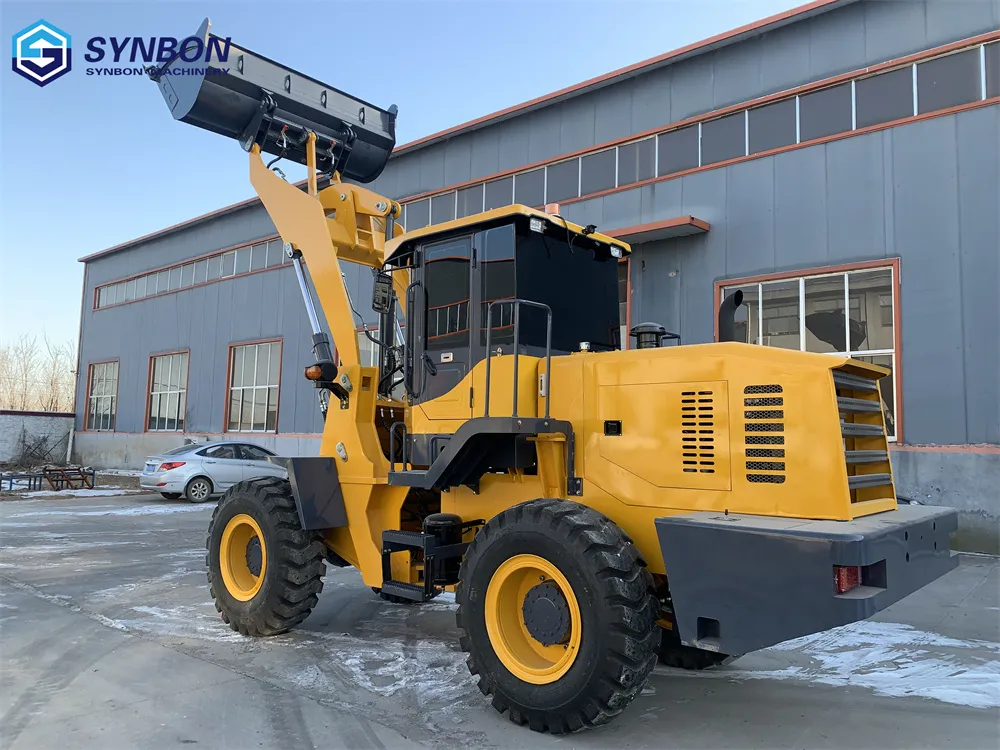

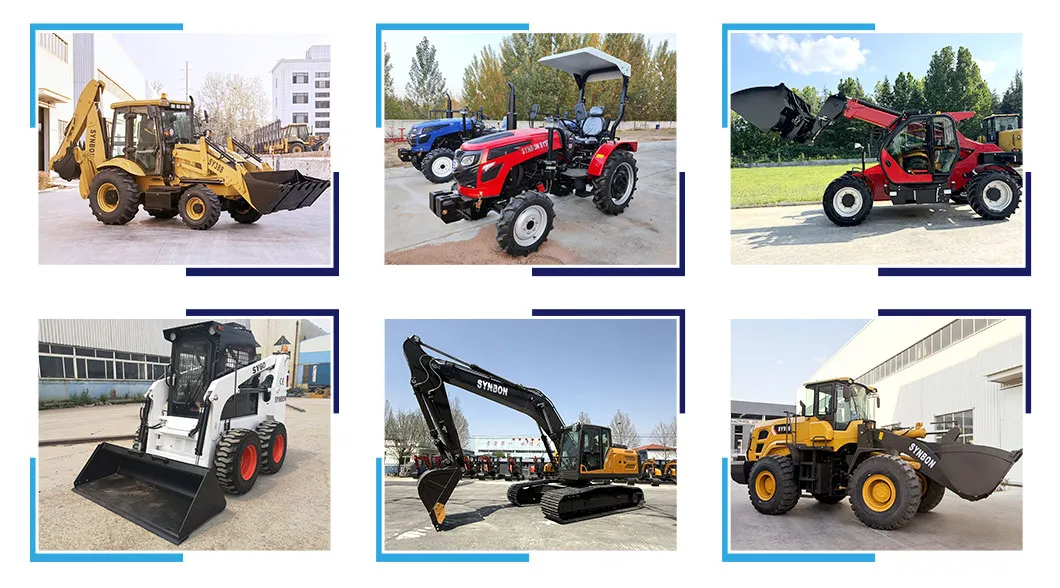

Founded in 2013, we are committed to building a global system of construction machinery and agricultural machinery. Our leading products include high configuration backhoe loaders, excavators (1.0 ton to 120 ton), wheel loaders (0.8 to 6 tons), 25 HP to 260 HP four-wheel tractors, and telehandlers.
Relying on years of industry experience and strong production innovation capability, our equipment is sold to Russia, Ukraine, Germany, Algeria, South Africa, Brazil, Canada, and other countries. We persist in the pursuit of quality and winning international recognition.
