Reliable Rototilt System for Seamless Excavation and Handling

Basic Information

Model NO.

250625001

Usage

Special Excavator, Marine Excavator, Mining Excavator, GM Excavator

Bucket

Grab Shovel

Transmission

Hydraulic Transmission

Drive Type

Electric Drive

Bucket Capacity

1.0~1.5m³

Certification

CE, ISO9001: 2000

Condition

New

Color

Customized

Origin

China

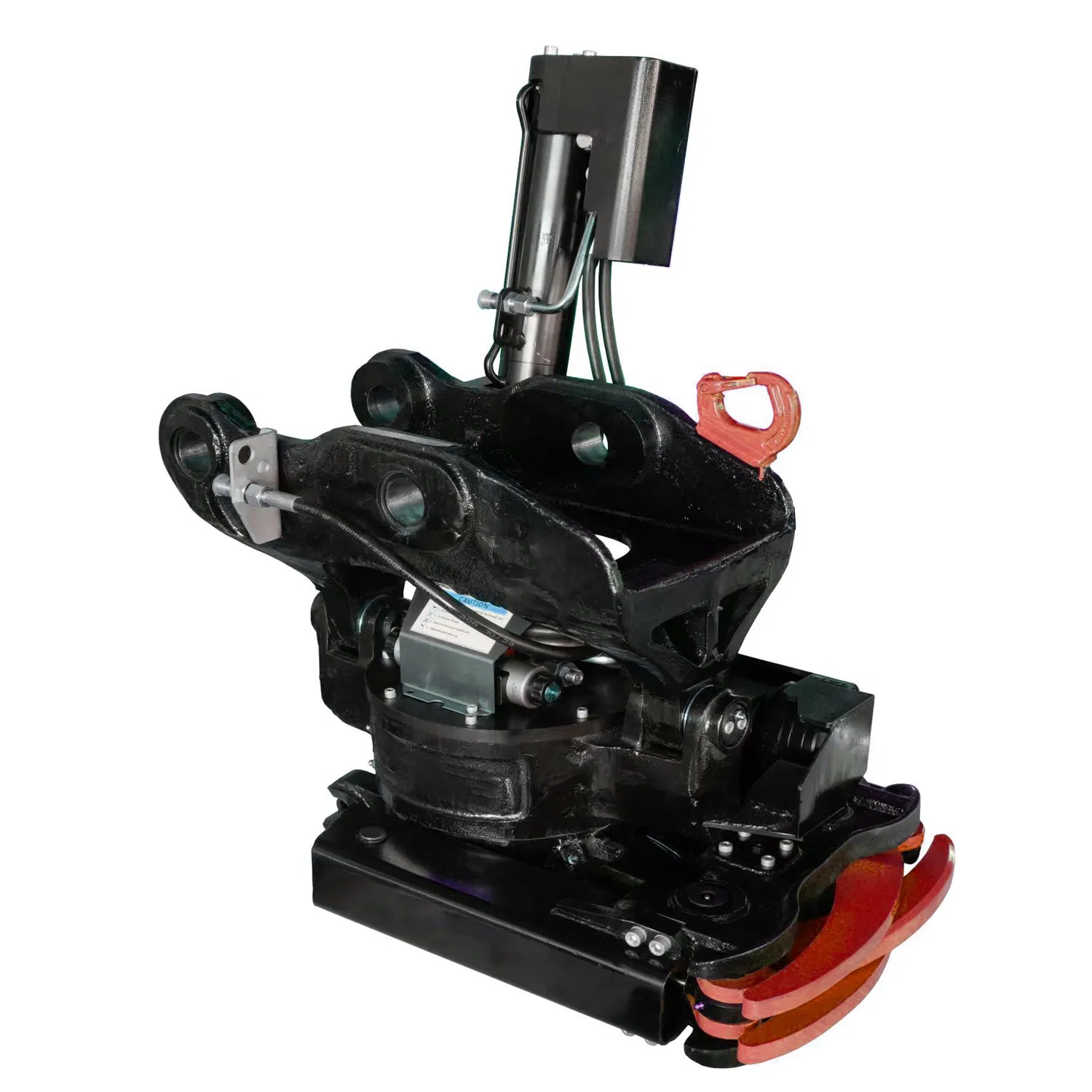

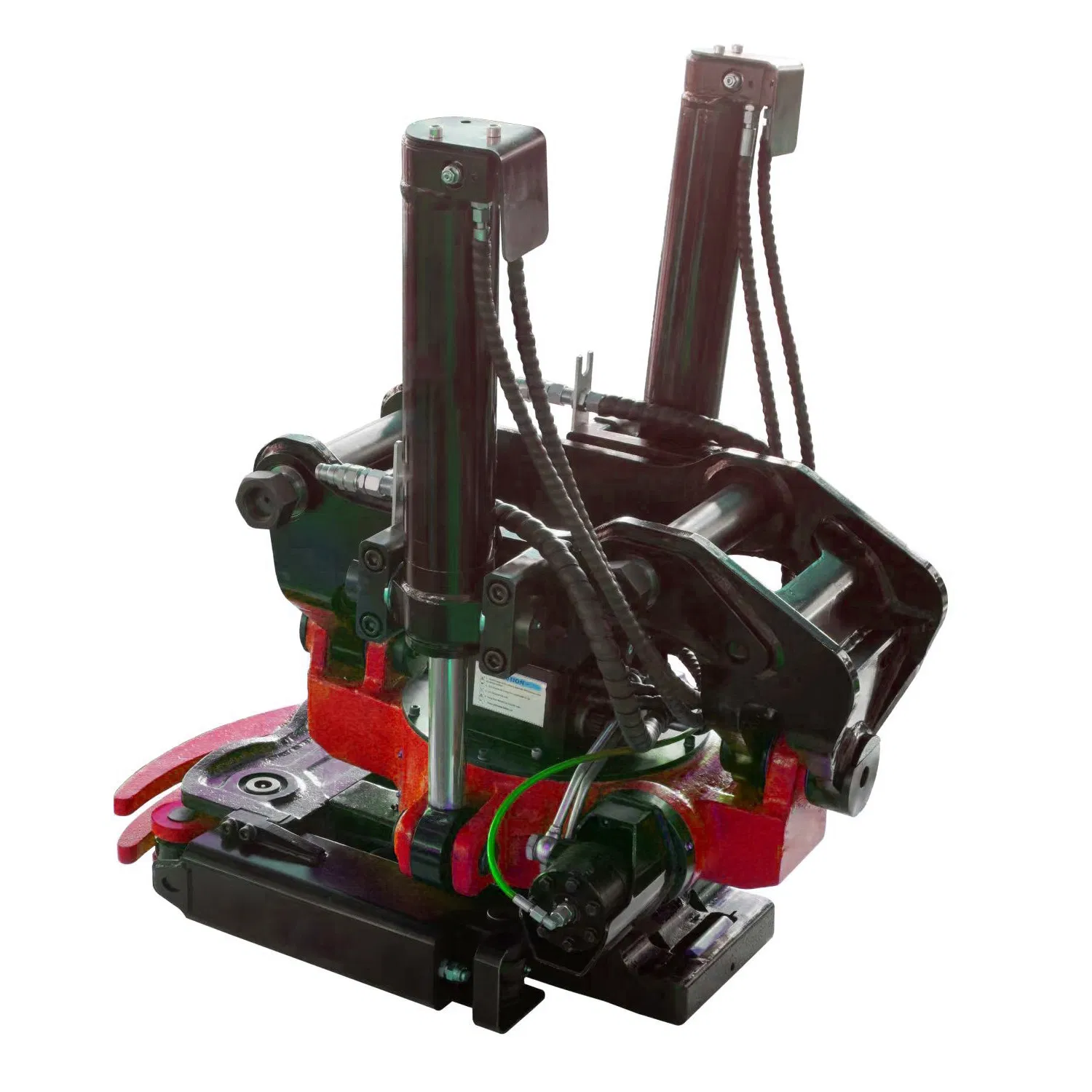

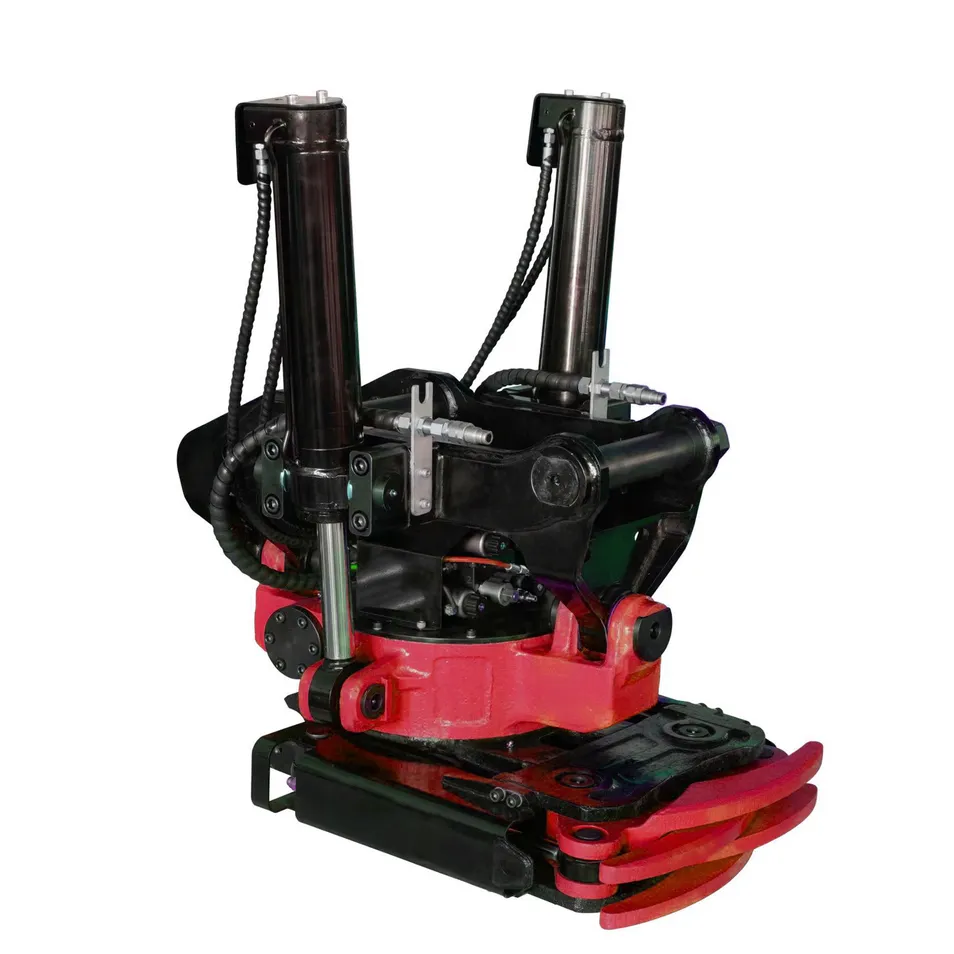

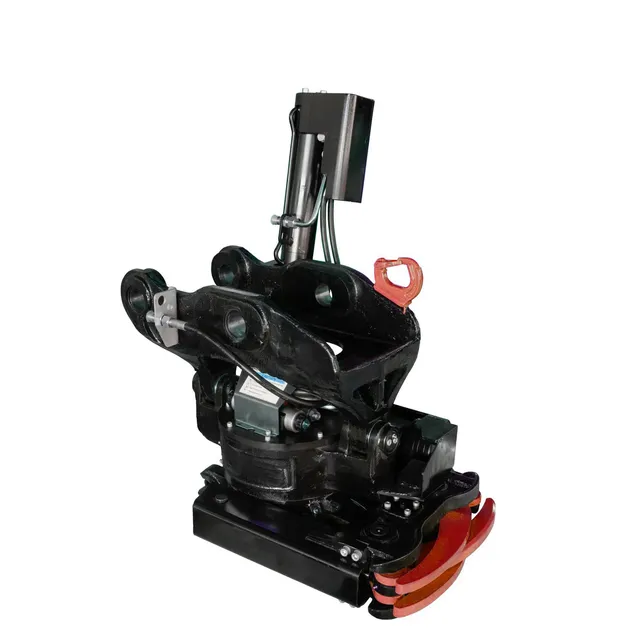

High-performance Hydraulic Rototilt System

Rototilt is moving the boundaries for what can be achieved with an excavator and creating new opportunities and applications for you as an excavator operator. Our machine couplers, tiltrotators and control systems, as well as tools and other smart solutions, combine to form a unique product chain that we call the Rototilt System.

Applications:

Construction: Building foundations, trenching, demolition
Roadwork: Land leveling, ditch digging, material handling
Mining: Quarrying, ore extraction, loading
Agriculture: Land clearing, irrigation channel digging
Forestry: Log handling, land preparation

Key Configurations

Engine: High-torque, low-emission diesel engine (Tier III compliant)
Hydraulic System: Precision-controlled pumps and valves for smooth operation
Undercarriage: Reinforced steel tracks with adjustable tension
Cab: Ergonomic ROPS/FOPS-certified cabin with air conditioning
Arm & Bucket: Multiple size options (standard, long-reach, heavy-duty)
Control System: Intelligent monitoring panel with fault diagnostics

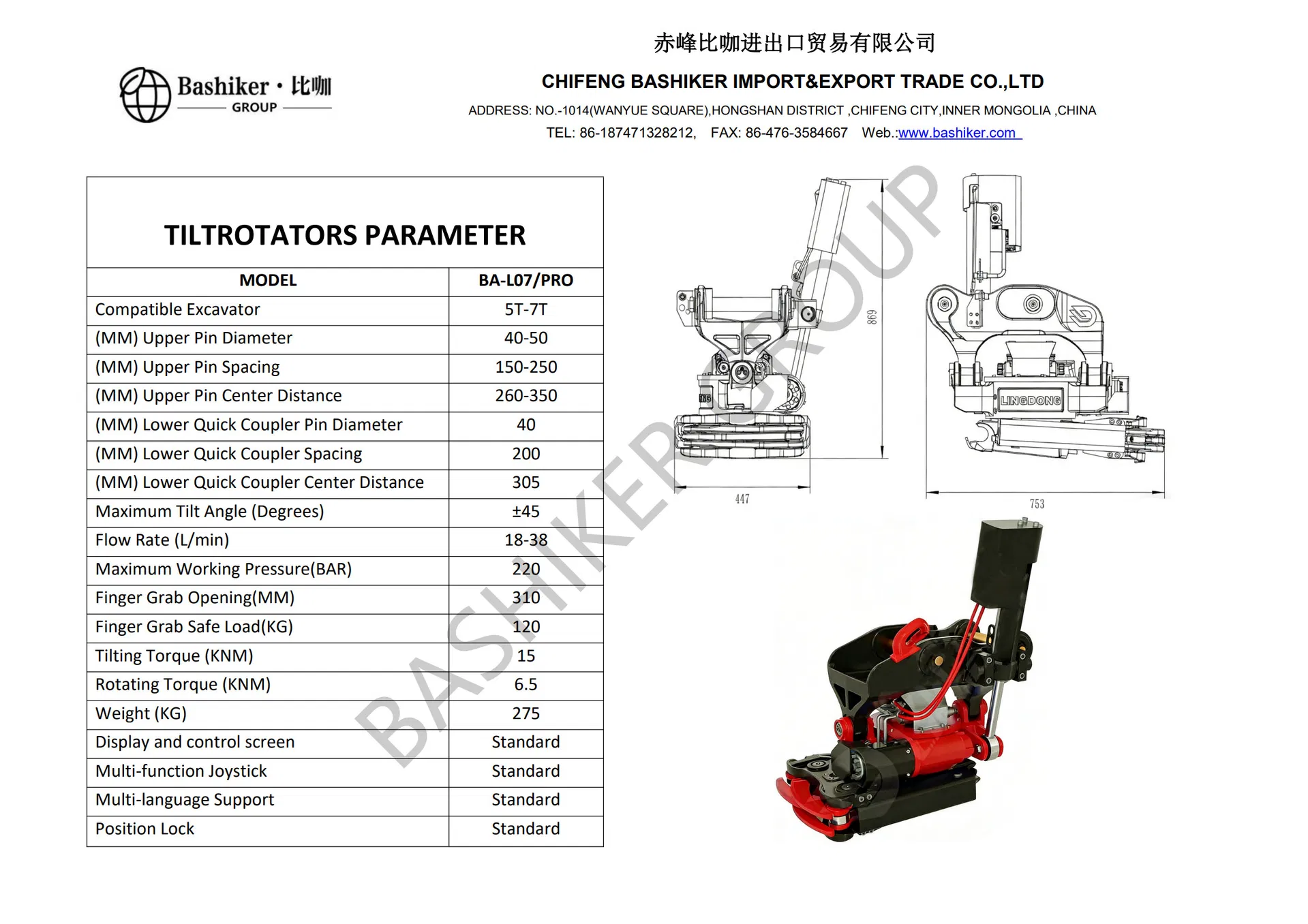

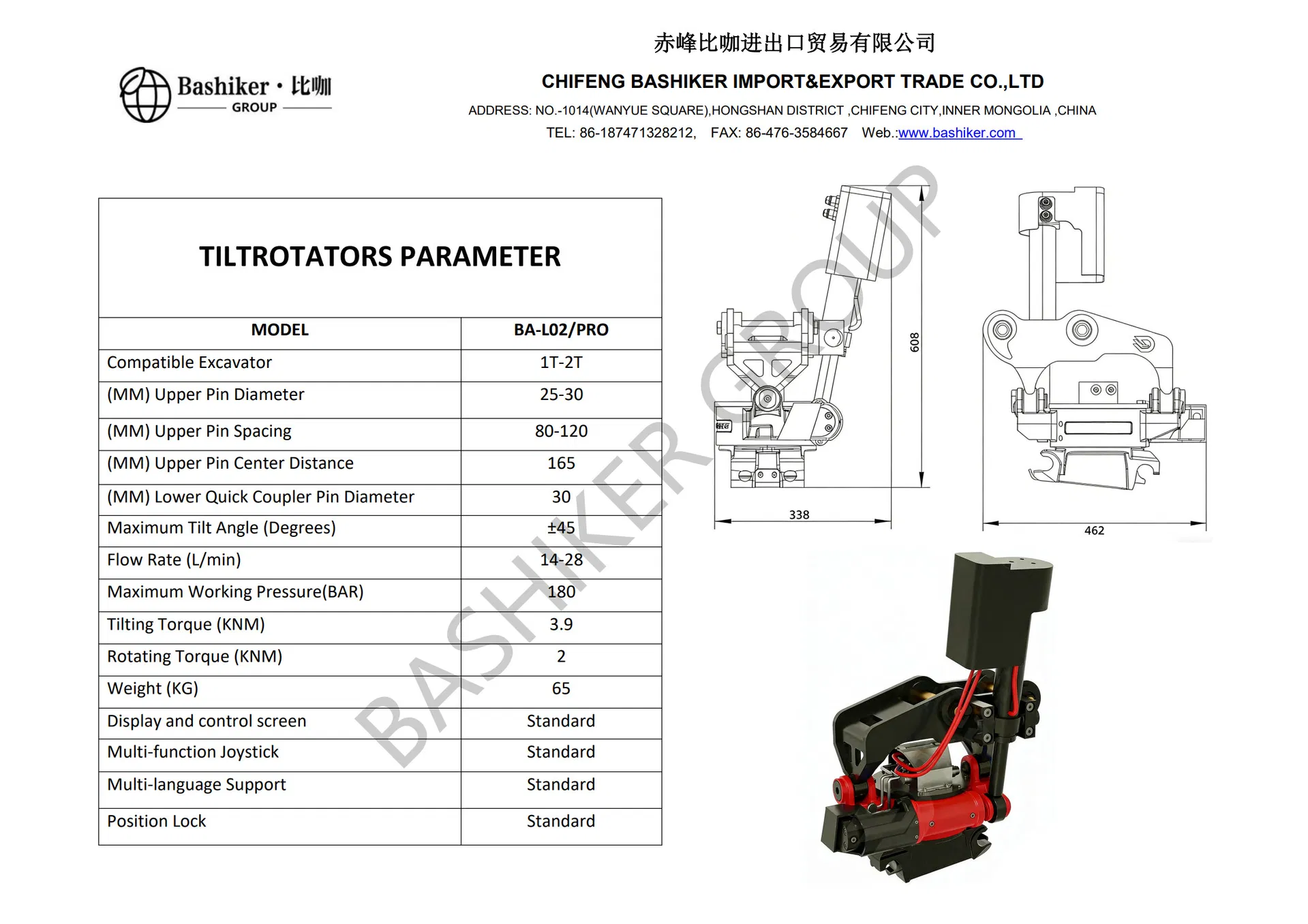

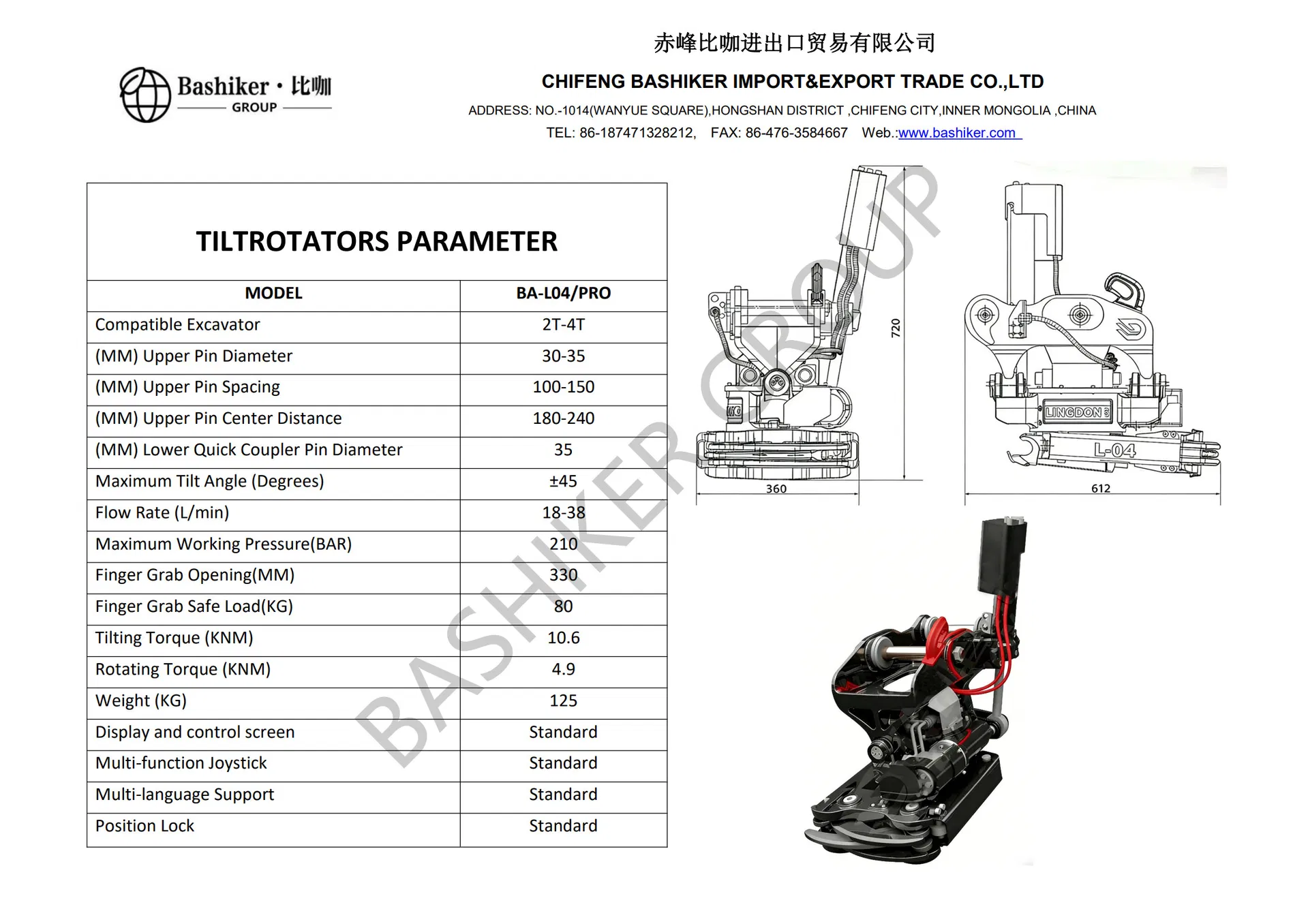

Technical Specifications

Custom configurations available upon request.

Model	L-02/pro	L-04/pro	L-07/pro	L-08/pro	L-10/pro	L-15/pro	L-18/pro	L-20/pro
Compatible Excavator	1T - 2T	2T - 4T	5T - 7T	6T - 9T	7T - 12T	12T - 15T	15T - 18T	18T - 22T
Upper Pin Diameter	25 - 30	30 - 35	40 - 50	40 - 50	55 - 65	60 - 65	60 - 65	70 - 80
Maximum Tilt Angle	14 - 28	±45	±45	±45	±45	±45	±45	100 - 120
Flow Rate (L/min)	180	18 - 38	18 - 38	18 - 38	70 - 90	80 - 100	80 - 100	220
Weight	-	125	275	275	1.2	1.2	1.2	90

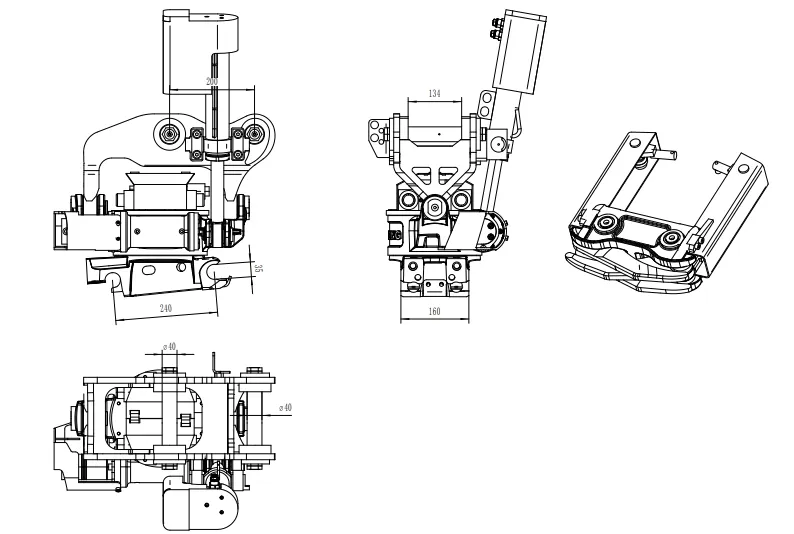

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.

Company Profile

We are a leading Chinese manufacturer of construction equipment with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
