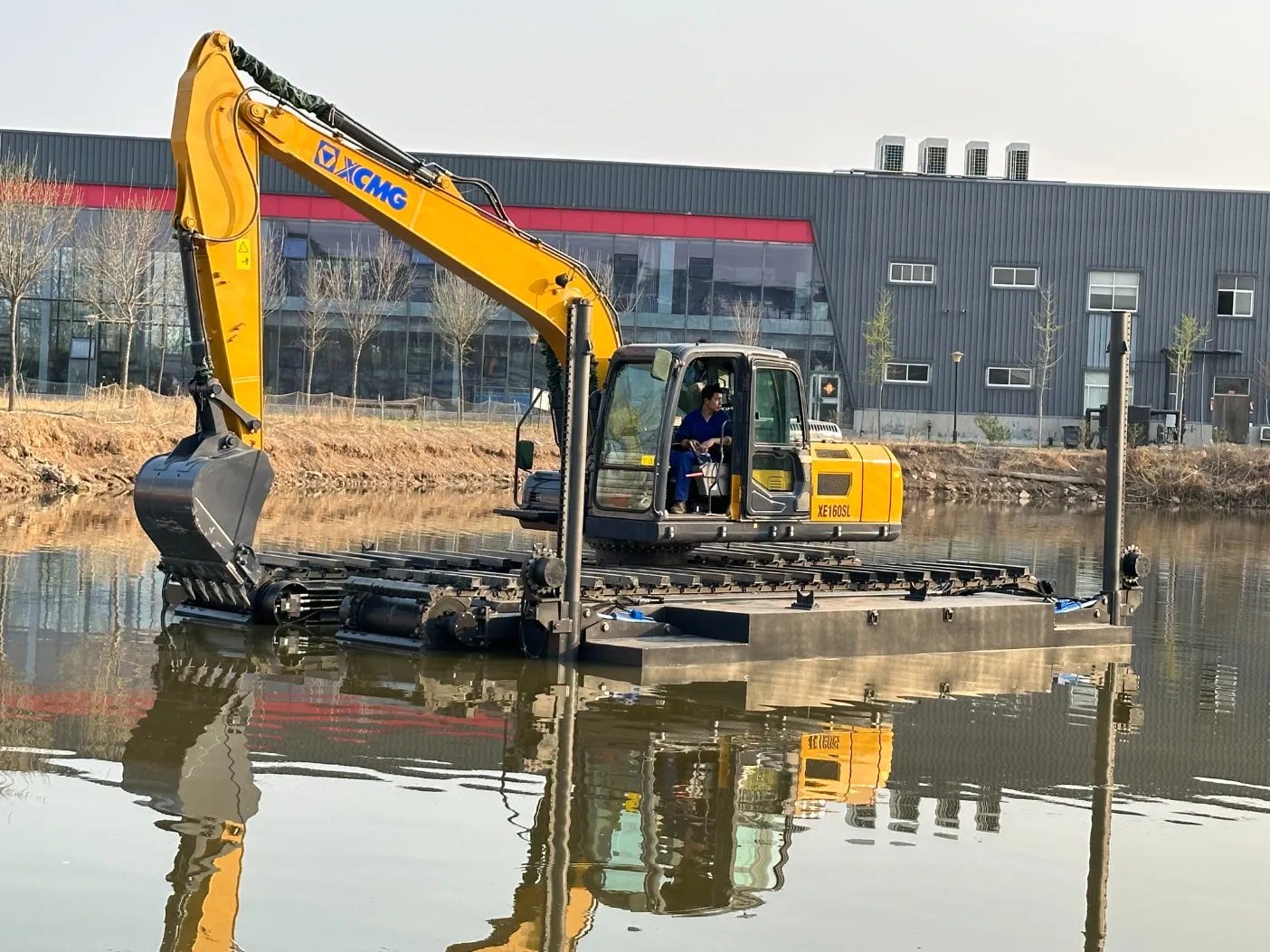

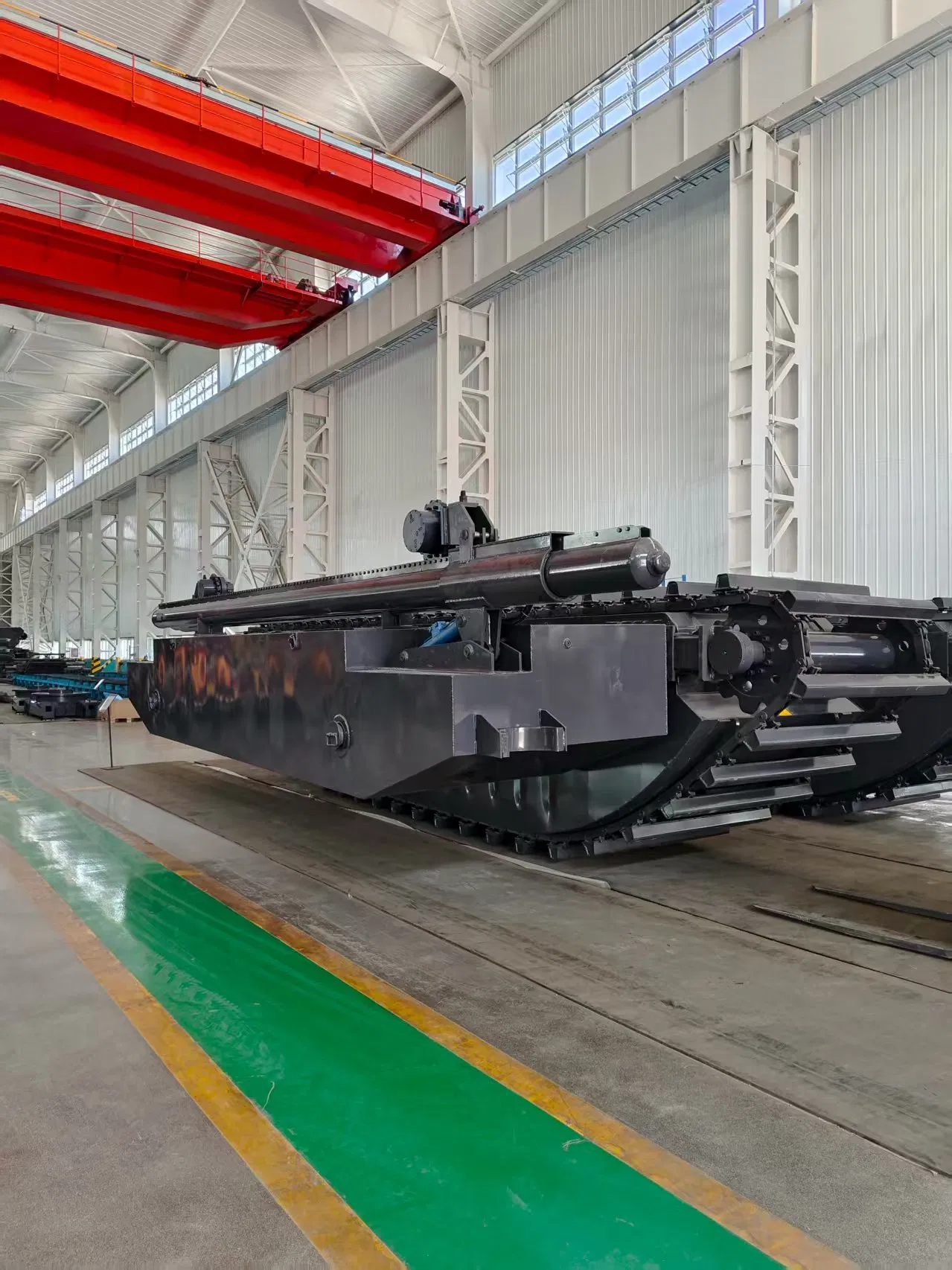

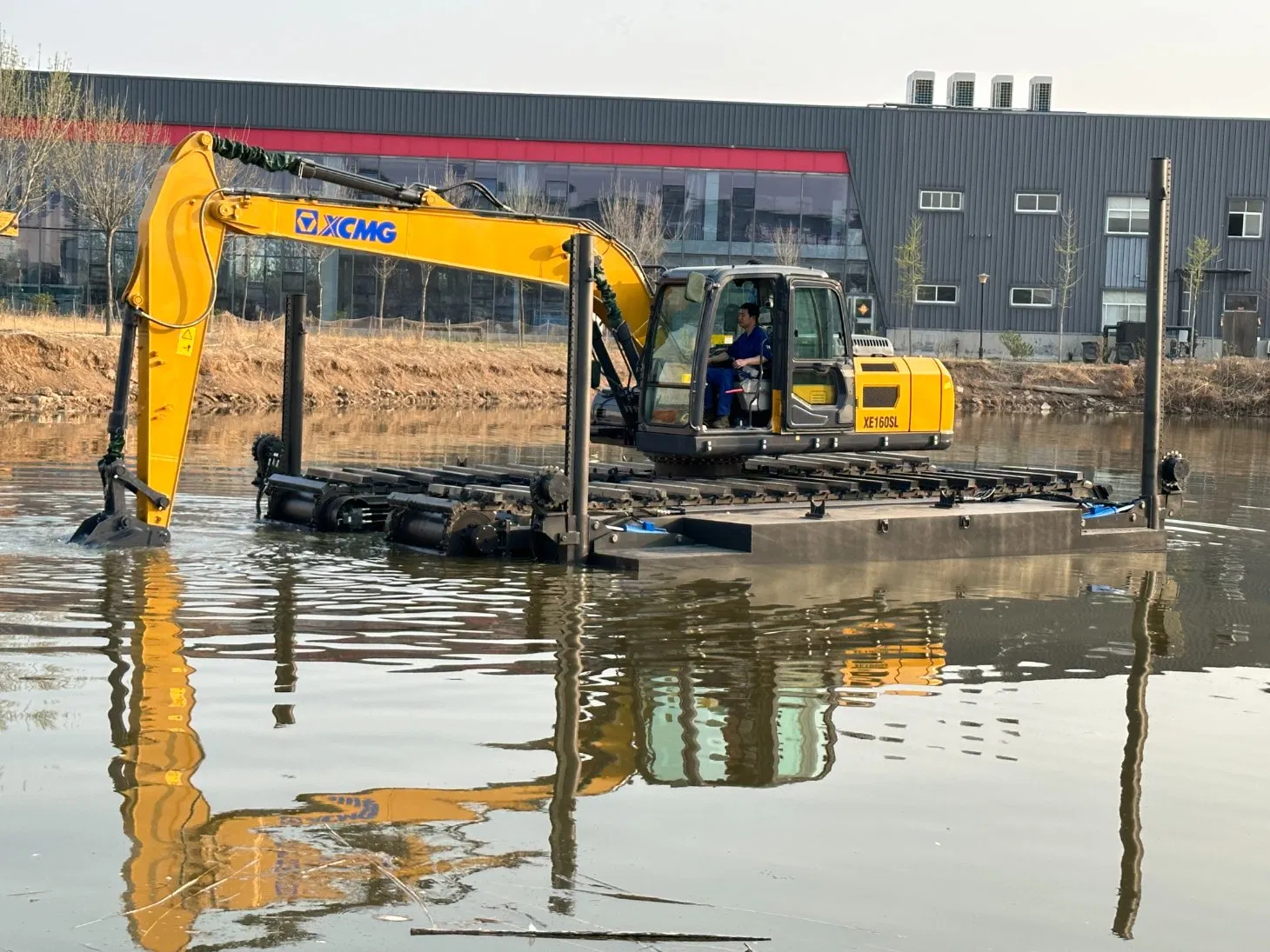

An amphibious excavator, or floating excavator, is specifically crafted for operations in rivers, swamps, canals, and settling pond rehabilitation. Our expert team designs and customizes high-quality, versatile amphibious undercarriage systems for all leading brands, covering capacities from 5 to 50 tons.
Equipped with a premium engine and hydraulic system, the machine boasts enhanced efficiency and reliability for challenging environments.

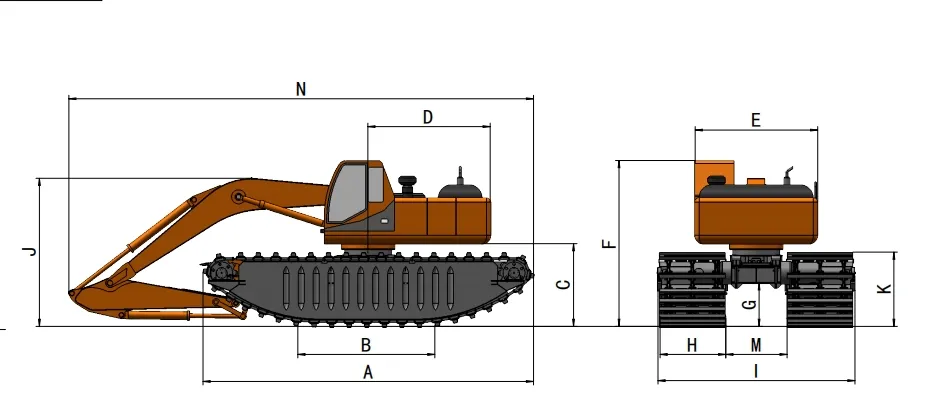

| Model Parameter | 60-80 | 120-160 | 180-200 | 200-250 | 250-270 | 300-350 |
|---|---|---|---|---|---|---|
| Float length (A) | 5700 | 7000 | 7500 | 8000 | 9500 | 10000 |
| Pontoon height (H) | 1340 | 1640 | 1740 | 1800 | 1900 | 1900 |
| Total width (I) | 3000 | 3600 | 4300 | 4300 | 4500 | 4800 |
| Pontoon single width (K) | 1000 | 1250 | 1500 | 1500 | 1500 | 1700 |
| Total length (M) | 7270 | 10040 | 12340 | 12840 | 13840 | 14900 |

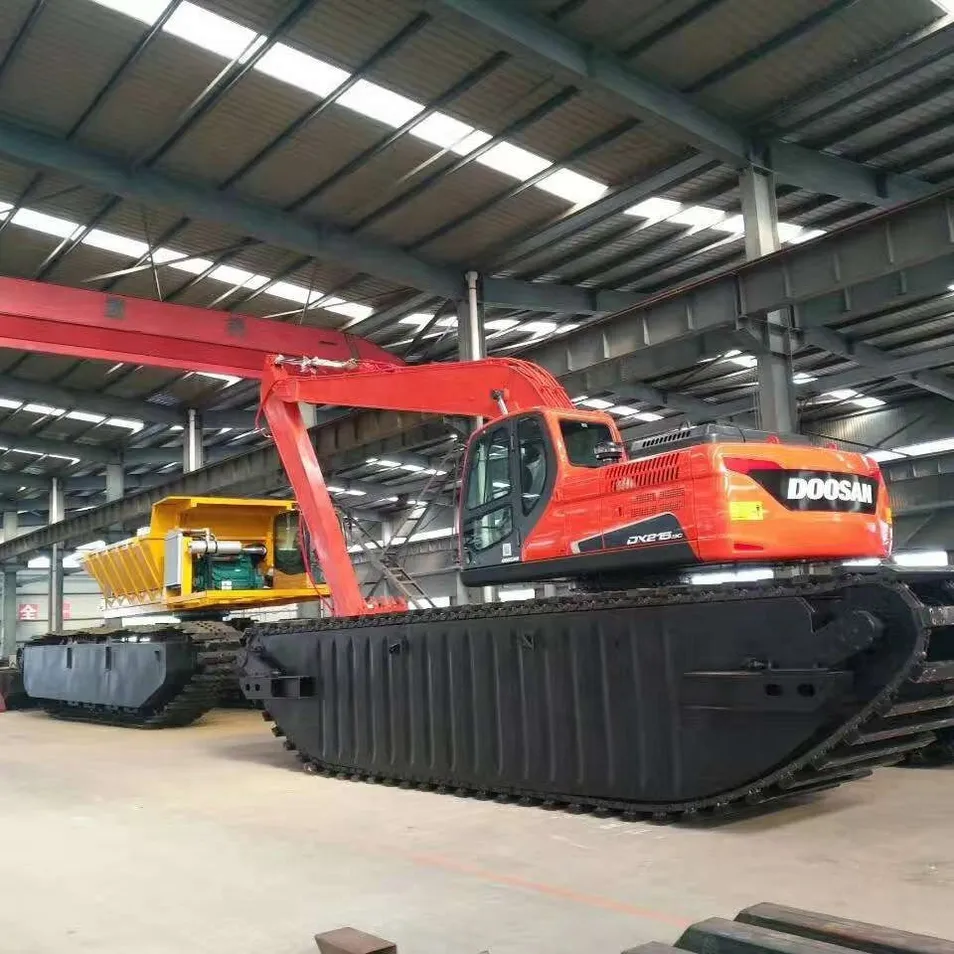

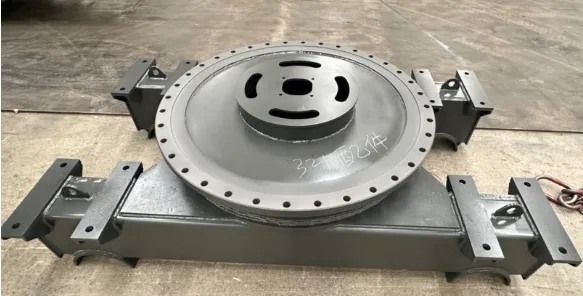

Tailored to specific excavator brands and models. Achieve 360° operation while maintaining the machine's center of gravity and providing robust structural support.

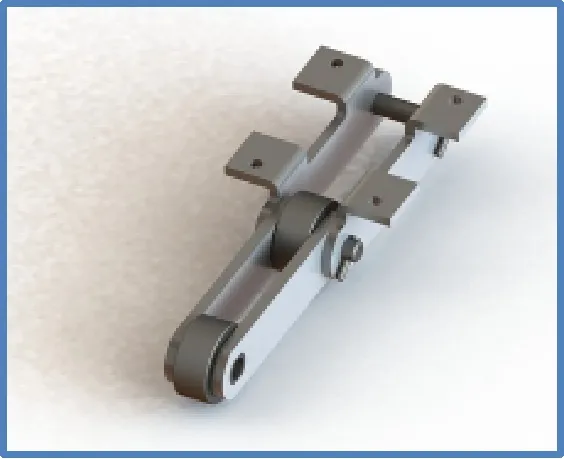

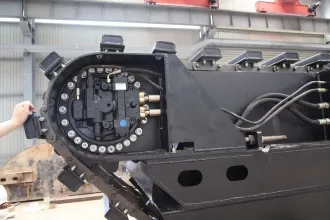

Chains come in titanium alloy and chrome. Titanium is significantly stronger and more durable, maintaining operational efficiency in harsh conditions.

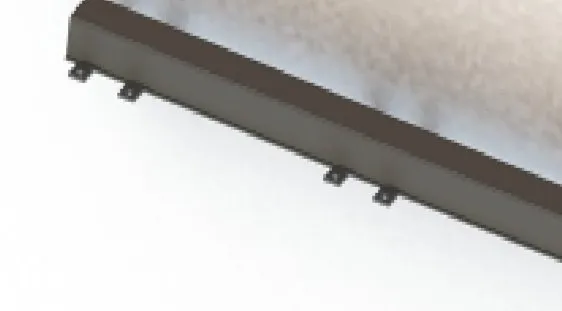

Internal support boosts load capacity and reduces wear. The trapezoidal shape offers superior slip resistance and durability.

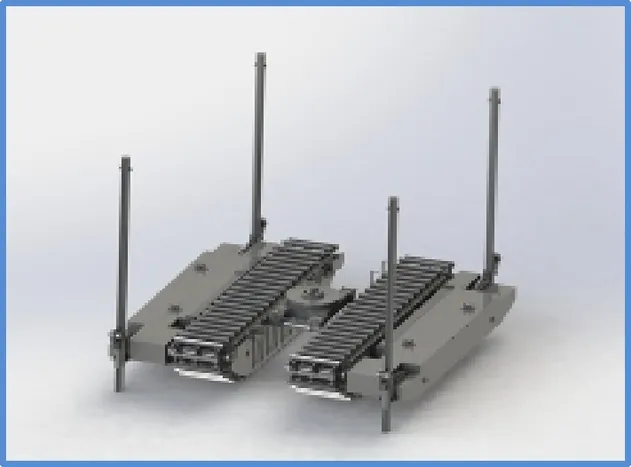

Vertical displacement guidance ensures precise positioning and prevents rotation, maximizing safety during complex operations.
Adjustable pontoon spacing enhances chassis stability and operation flexibility, boosting overall site efficiency.

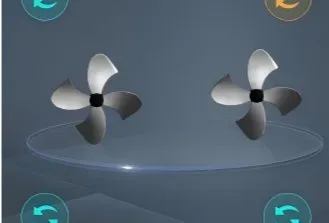

Steel propellers boost travel speed in deep water. They are corrosion-resistant and designed to endure underwater impacts.
Electrophoretic coating combined with zinc anodes enhances pontoon resistance to corrosion and alkaline environments.
| Model | EX200 | EX300 | EX400 |
|---|---|---|---|
| Operating Weight (kg) | 20,000 | 30,500 | 45,000 |
| Engine Power (kW) | 110 | 165 | 220 |
| Bucket Capacity (m³) | 0.8–1.2 | 1.2–1.8 | 1.8–2.5 |
| Max Digging Depth (m) | 6.2 | 7.5 | 8.8 |
| Max Reach (m) | 9.5 | 11.2 | 13.6 |

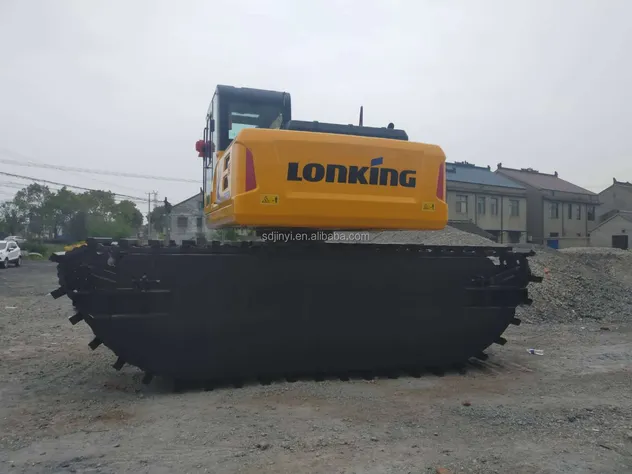

Right Elevation

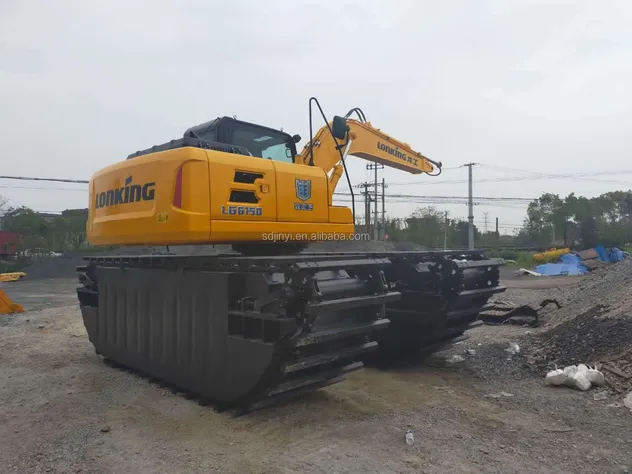

Left Elevation

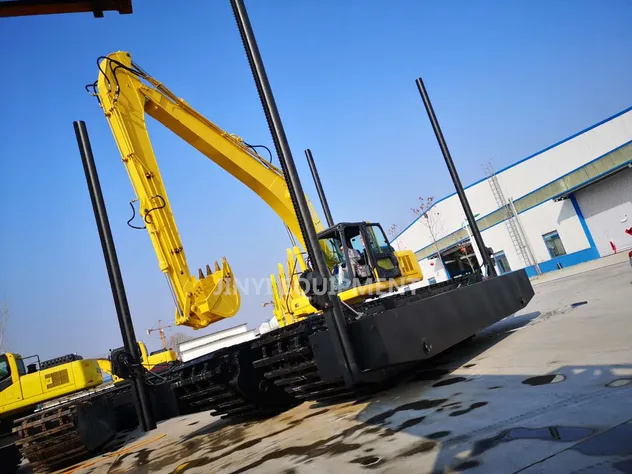

Front Elevation
Standard Warranty: 12 months or 2,000 operating hours. Extended options up to 36 months are available.
We offer amphibious machinery for excavators, dump trucks, and sand-suction boats. Our products are utilized in key green projects like flood control and municipal dredging globally.
