🟦 Basic Information
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Power Source
Diesel Engine
🟦 Product Description

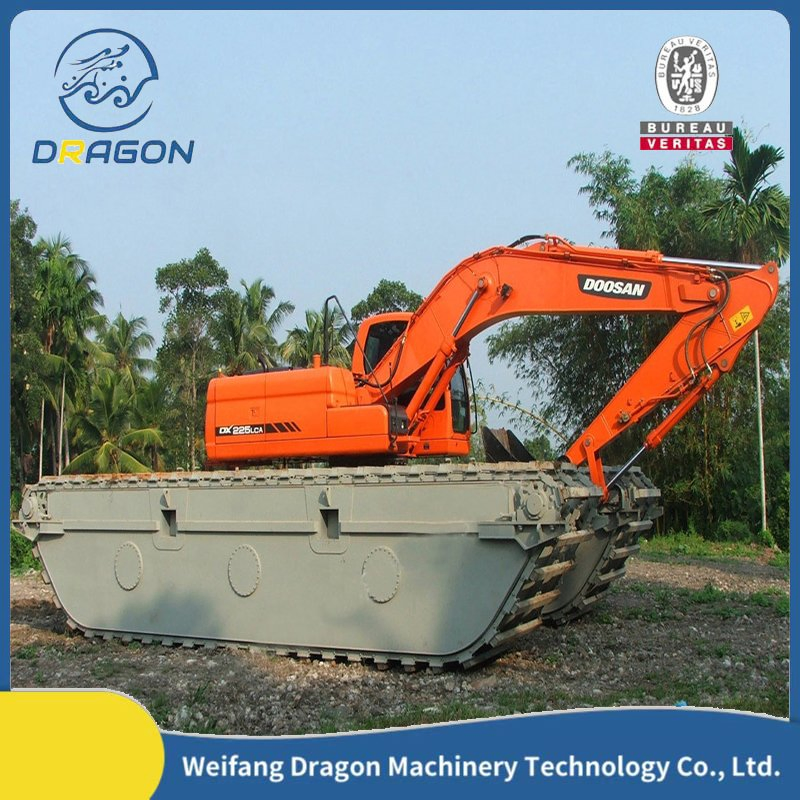

Amphibious Aquatic Plants Harvesting Machinery / Weed Cutting Suction Dredger 15000 kg Dredging Equipment

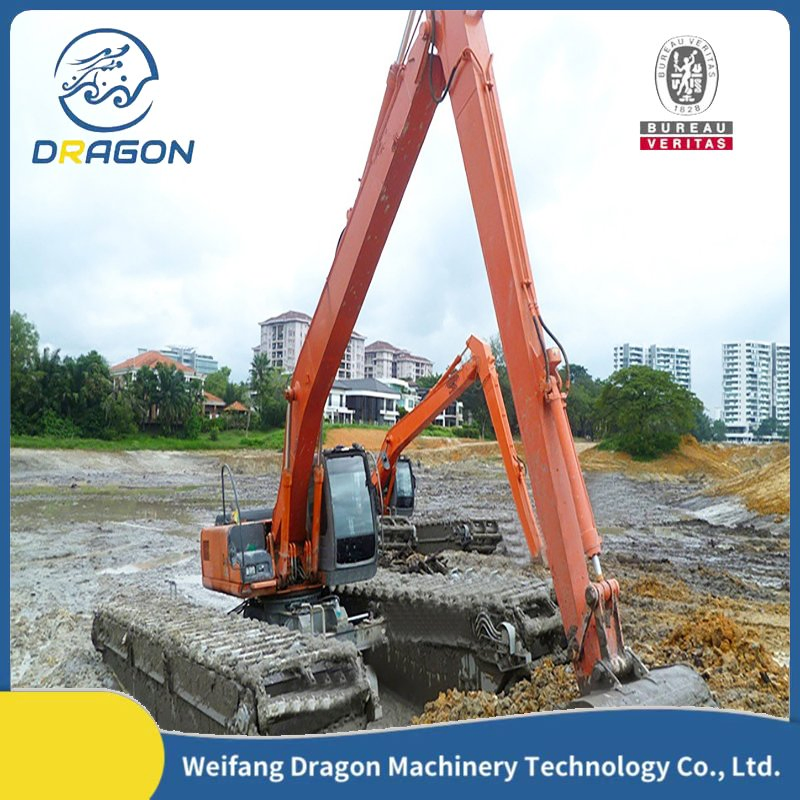

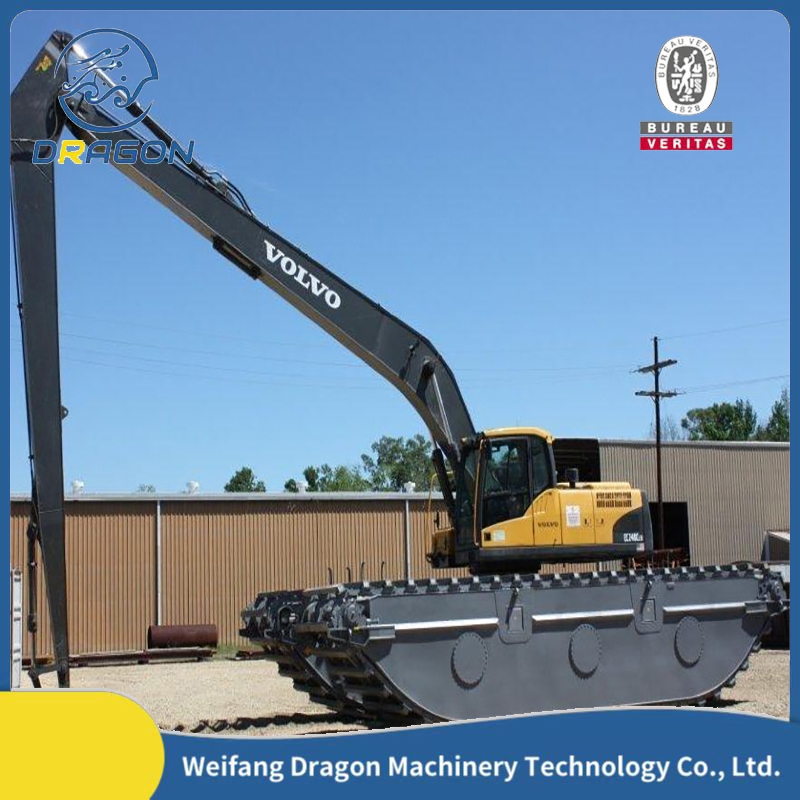

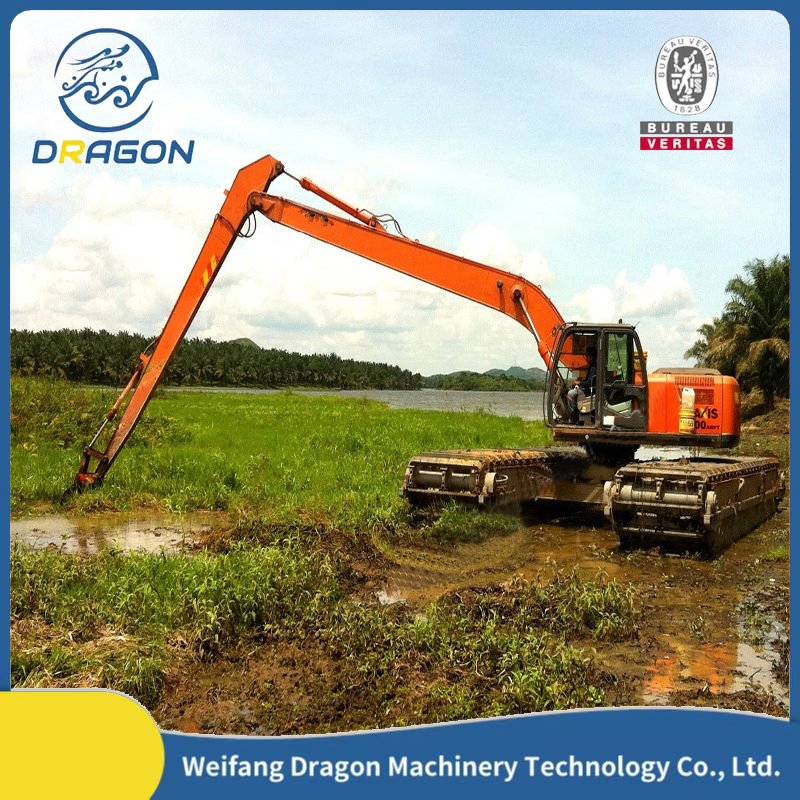

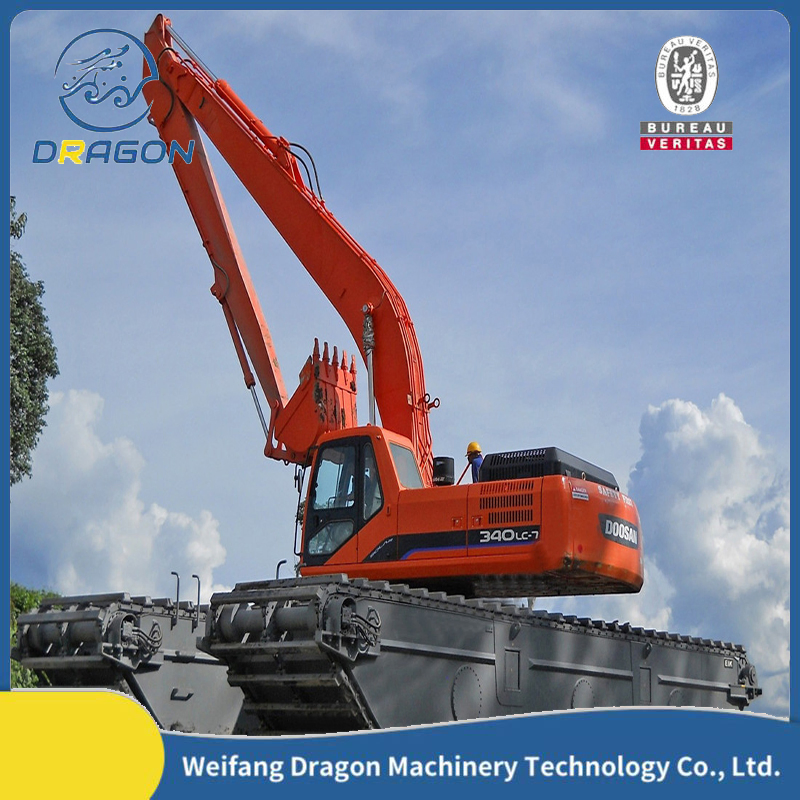

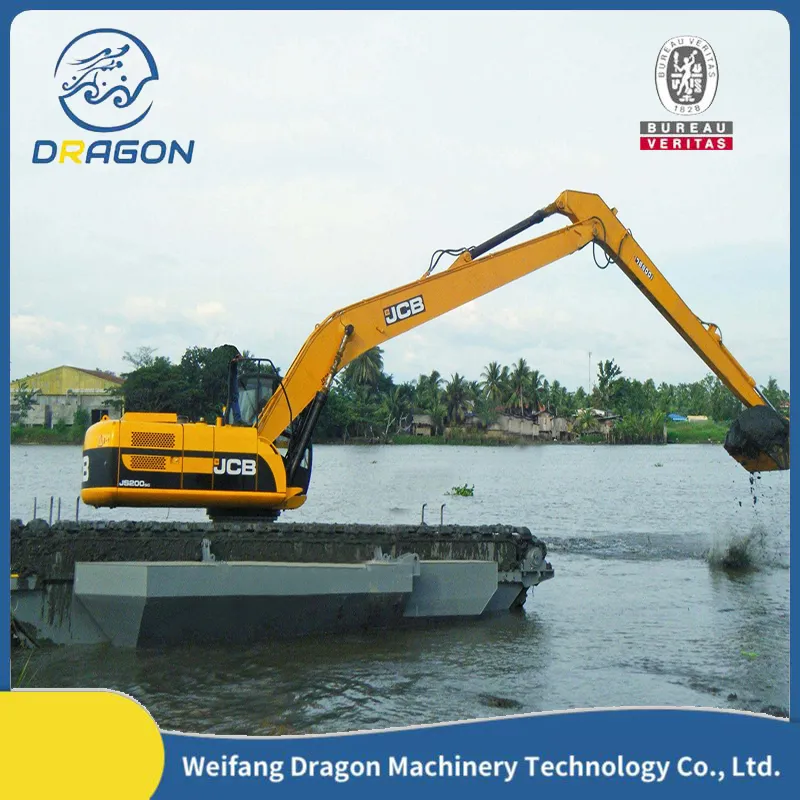

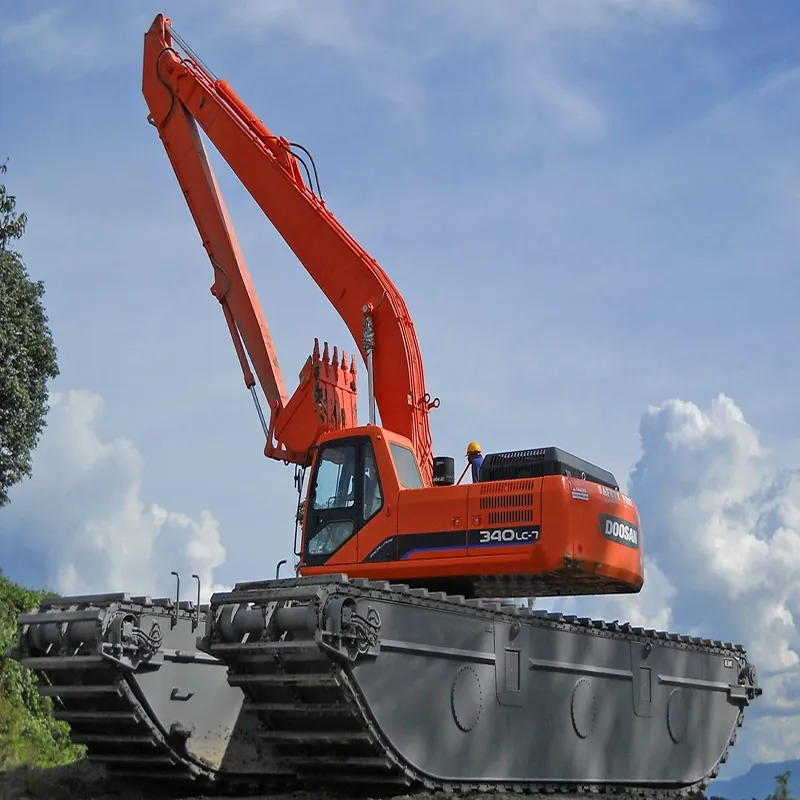

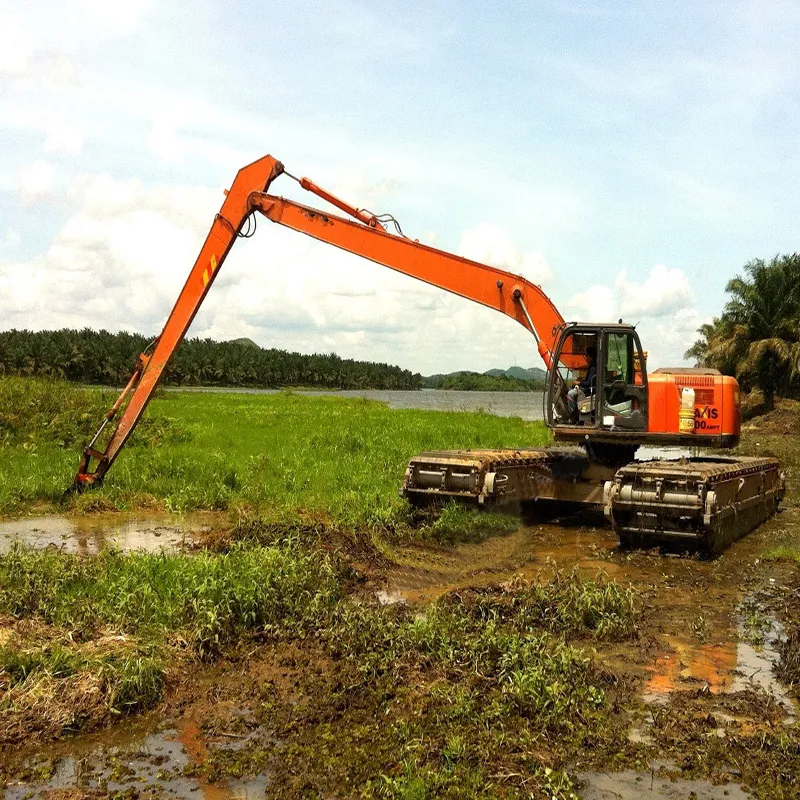

The amphibious excavator is a multifunctional excavator suitable for working in swamps, shallow water, and land areas. This equipment is widely used for dredging work in rivers and lakes, as well as resources and environment protection in wetlands and coastal areas.

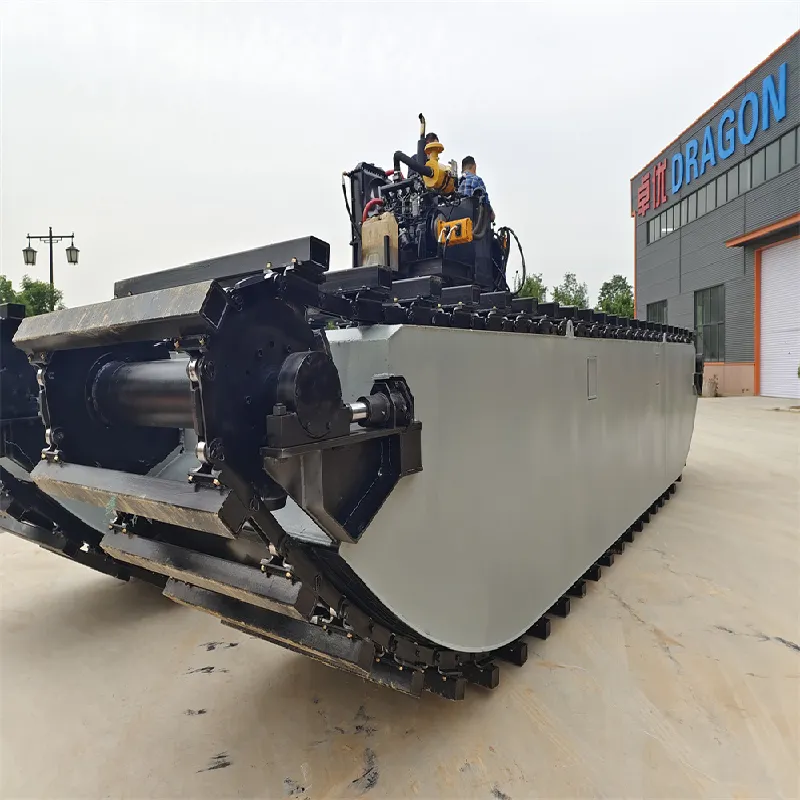

The track shoe and floating pontoon are strengthened specially to enable the amphibious excavator to work in harsh environments.

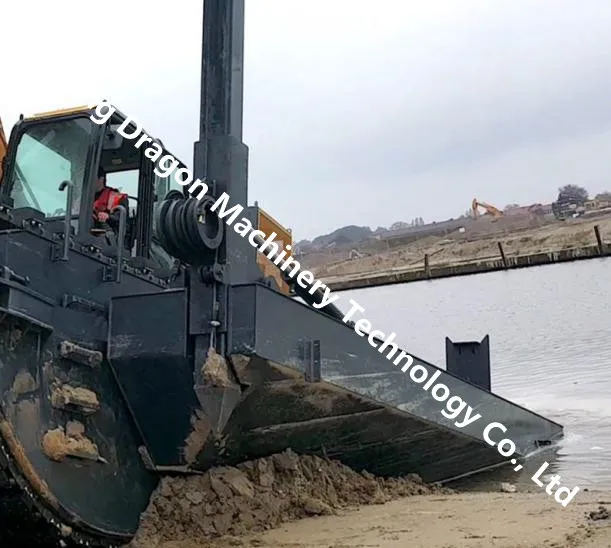

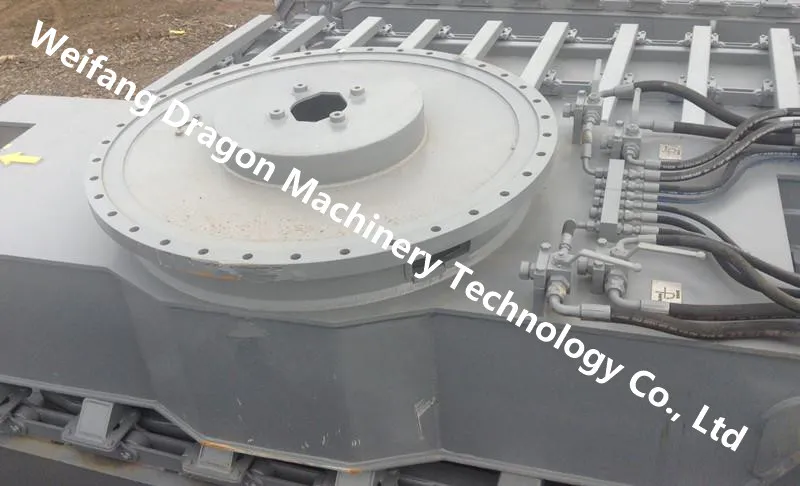

There is a replaceable joint unit between the excavator and floating pontoon which can make it compatible with different brands of excavators. To increase stability, two spuds can be installed on the floating pontoons.
🟦 Technical Specifications
| Model |
DGAME15 |
DGAME20 |
DGAME26 |
DGAME30 |
| Weight |
15000 kg |
20000 kg |
26000 kg |
30000 kg |
| Bucket Capacity |
0.25 m³ |
0.4 m³ |
0.9 m³ |
0.9 m³ |
| Installed Power |
56.5 kw |
89.3 kw |
114 kw |
114 kw |
| Walking Speed |
3.8 km/h |
3.1 km/h |
3.2 km/h |
3.1 km/h |
| Max Digging Depth |
5870 mm |
7360 mm |
5700 mm |
7360 mm |
| Max Digging Radius |
8990 mm |
10810 mm |
9920 mm |
10810 mm |
| Pontoon Dimension |
6640 x 1300 x 1420 mm |
7170 x 1490 x 1700 mm |
8080 x 1490 x 1700 mm |
8290 x 1800 x 1650 mm |
🟦 Manufacturing & Quality Control

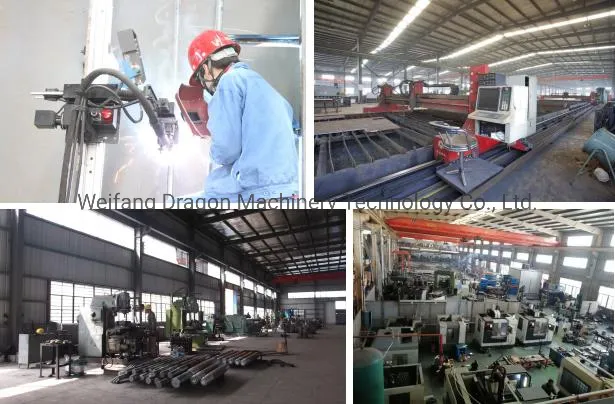

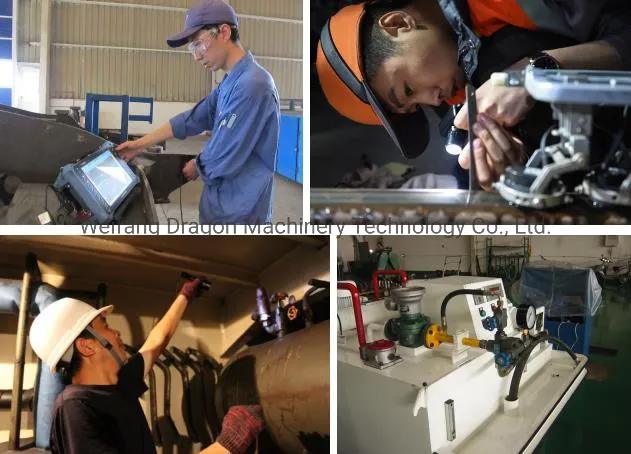

During manufacturing, our quality control department maintains high-frequency quality checks on every detail. Our factory is equipped with necessary manufacturing facilities, including CNC cutting machines, welding robots, digital controlled lathes, machining centers, milling machines, and surface handling lines.
🟦 After-sale Service
Customers rely on our high level of commitment through dedicated and comprehensive life-cycle support services. We provide high-quality training for site operation personnel to ensure efficient and skilled machinery handling. Our global network provides immediate supply of spare parts and repair components.
🟦 Related Products
🟦 Frequently Asked Questions
Q1: Do you have your own factory?

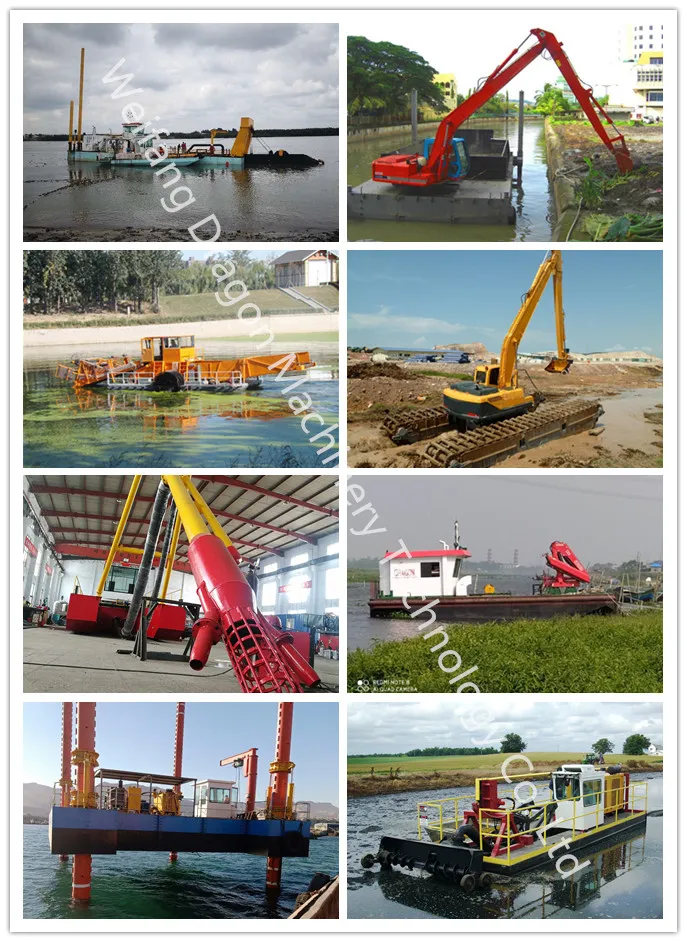

Yes, our factory is specialized in manufacturing cutter suction dredgers, amphibious excavators, multi-purpose work boats, aquatic weed harvesters, and other machineries.
Q2: Can we visit your factory?
Sure, we sincerely welcome you to visit and check our factory. We would be happy to show you around our workshops and production lines.
Q3: Do you supply accessories and spare parts?

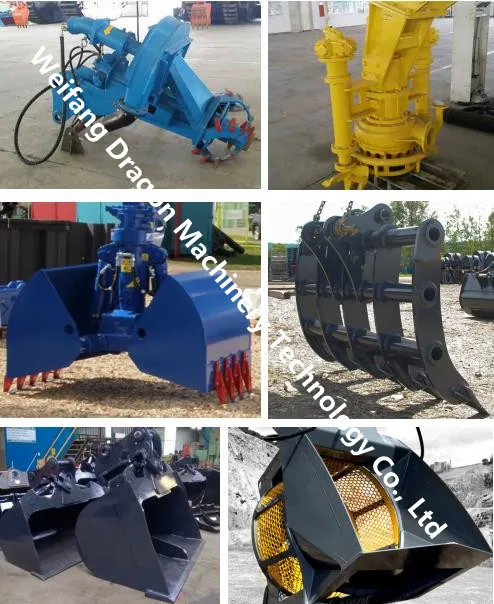

Yes, we work with professional partners to supply all necessary accessories and high-quality spare parts for our equipment.
Q4: Can you customize the equipment according to specific needs?
Yes, we have a professional design team that can create customized solutions based on specific client requests and project requirements.
Q5: Will you provide technical support and installation?
Yes, we send experienced engineers to the client's site for installation, commissioning, and staff training to ensure smooth operation.
Q6: What is the standard warranty period?
Generally, we supply a 12-month warranty starting from the date of completing commissioning at the site.
