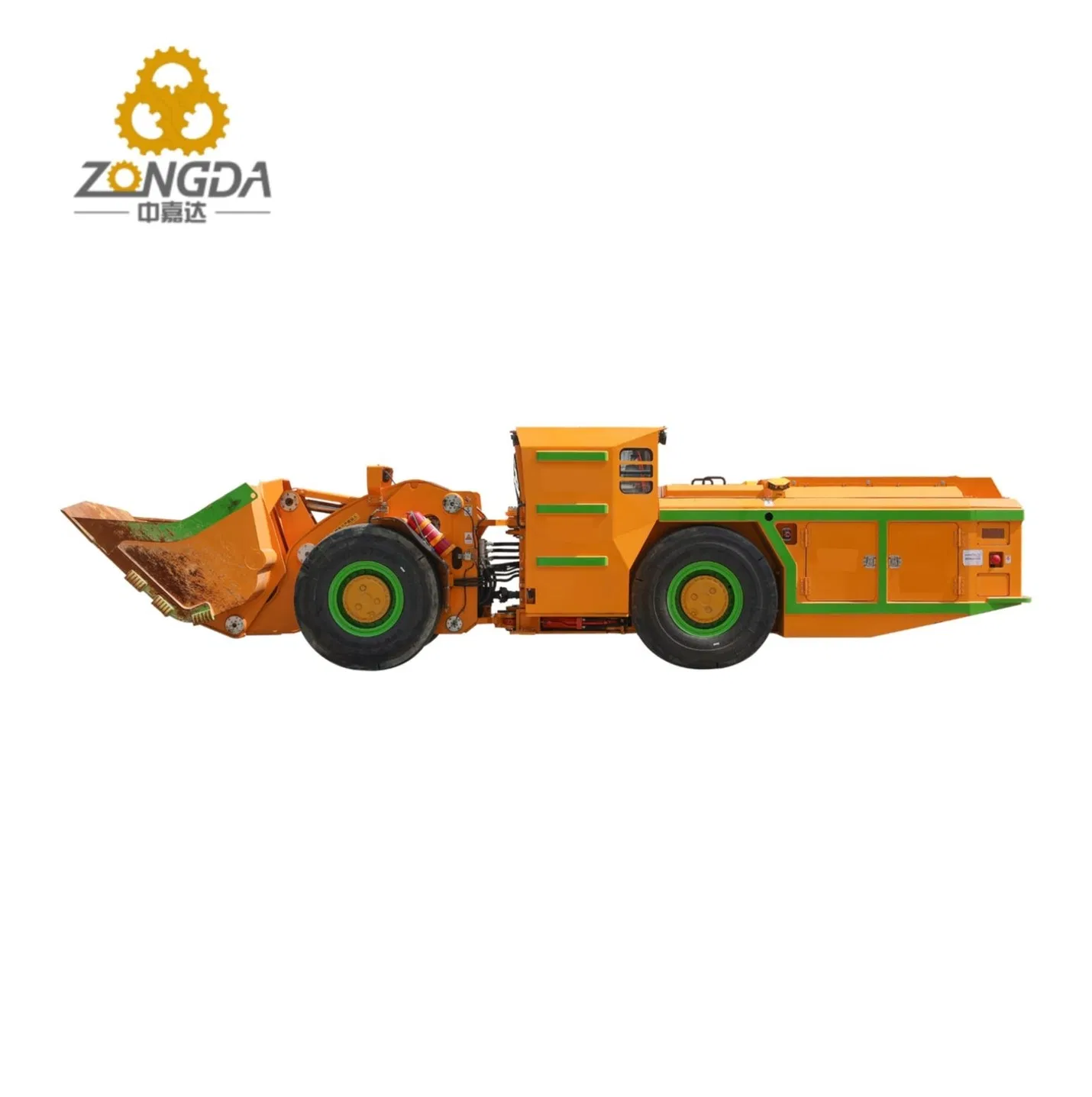

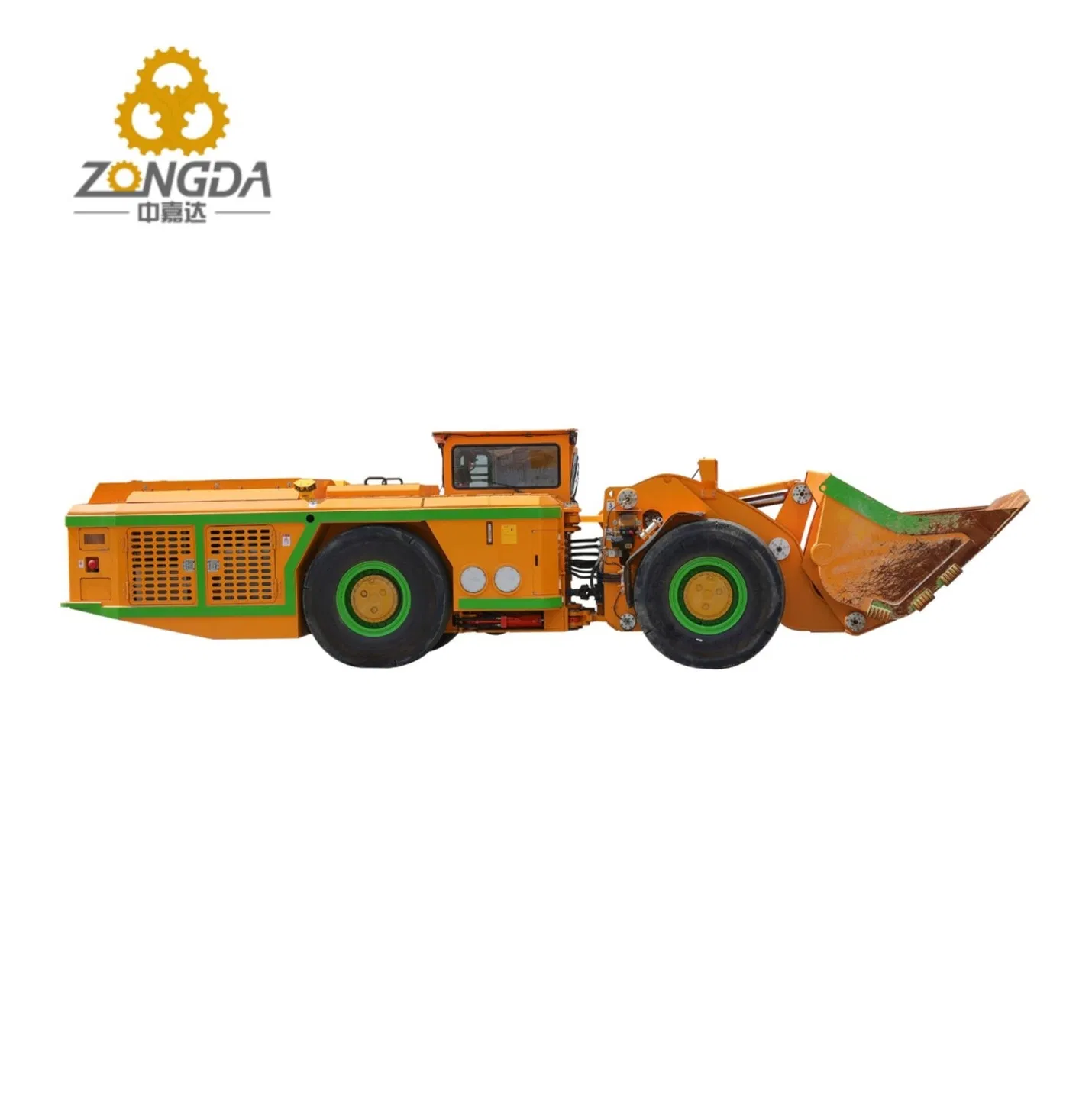

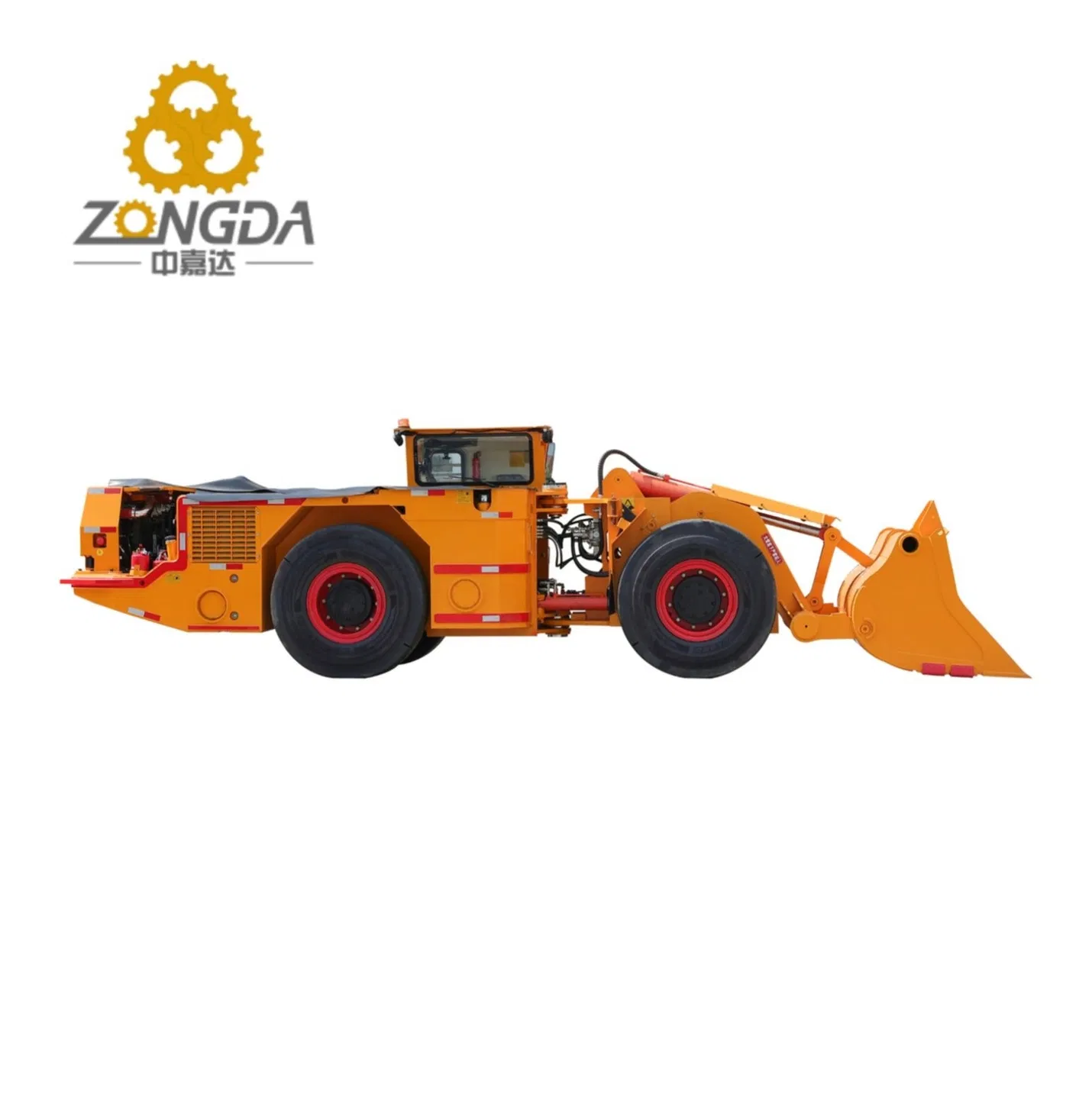

High Capacity Mine Underground Loader Zdl307 Underground Mining Loader

Customization:	Available
After-sales Service:	Localized After-Sales Service
Warranty:	1 Year

Basic Info & Specifications

Model ZDL307

Type Underground Vehicle / Loader

Material Carbon Steel (Wear-Resistant)

Rated Load Capacity 7 T (Full Load)

Bucket Capacity 3 M³

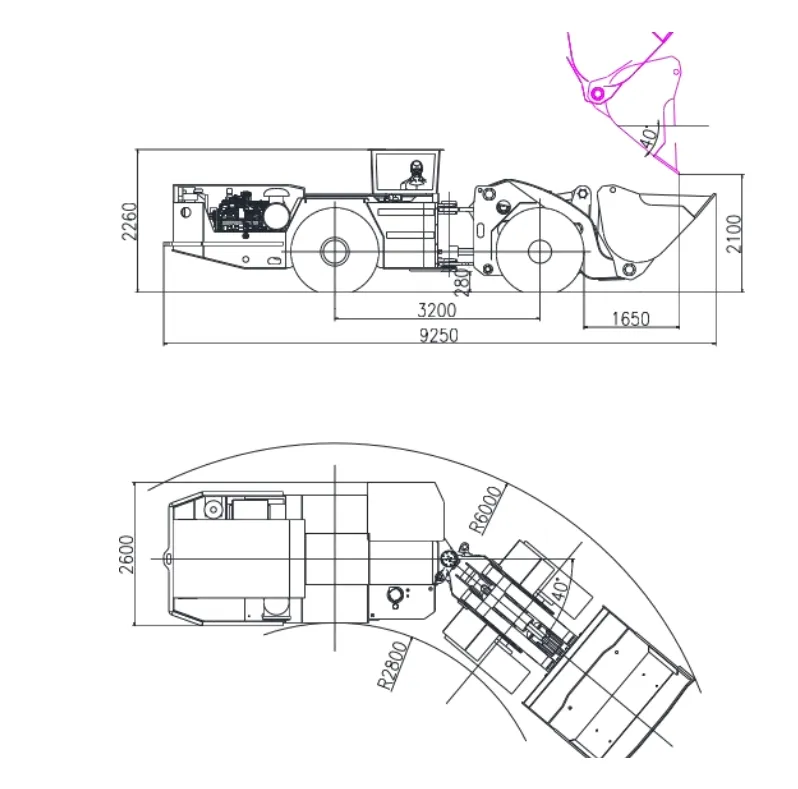

Dimensions 9250 × 2600 × 2250 mm

Product Description

The ZDL307 Diesel Underground Loader is primarily used in conjunction with mining trucks in underground excavation and mining operations. Shovel loading of ore and various materials can greatly improve operational efficiency and is an important equipment for achieving trackless mining.

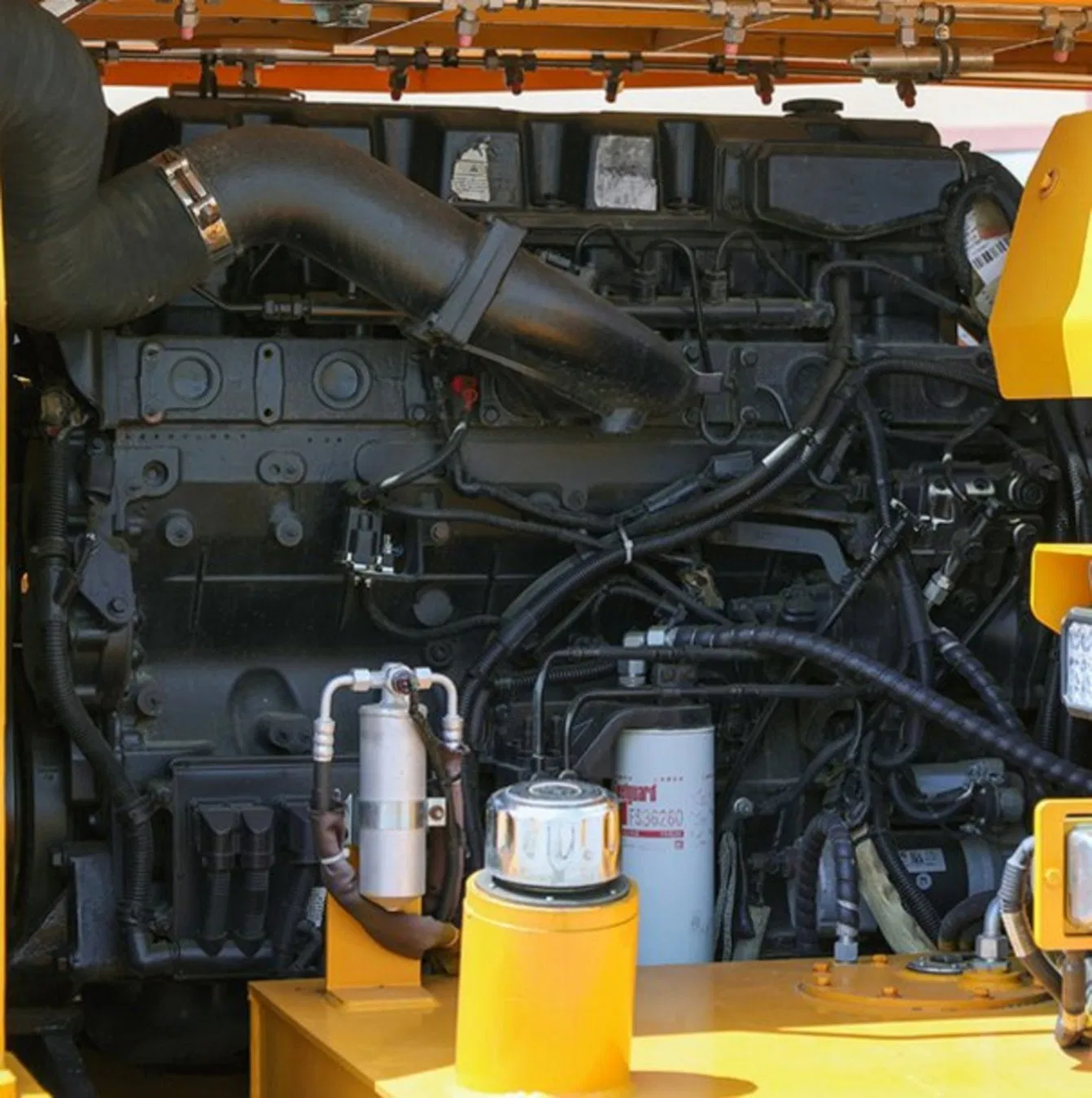

Engine System	DEUTZ BF6M1013EC water-cooled low pollution engine Rated Power: 165kW / 2200r/min Catalytic purification method Williams electronic throttle
Transmission	DANA R32000 series automatic shift transmission Torque converter: DANA C270 Drive axle: DANA 16D Tire: 17.5-25R smooth steel wire tire
Braking & Steering	Service brake: Wet multi-disc spring brake (MICO valve) Parking brake: Spring brake on drive axle, hydraulic release Steering: Central hinge, hydraulic steering (DANFOSS ERL100)
Tank Capacities	Hydraulic Oil Tank: 300L Fuel Tank: 200L Transmission: 36L Engine Lubricating Oil: 28L

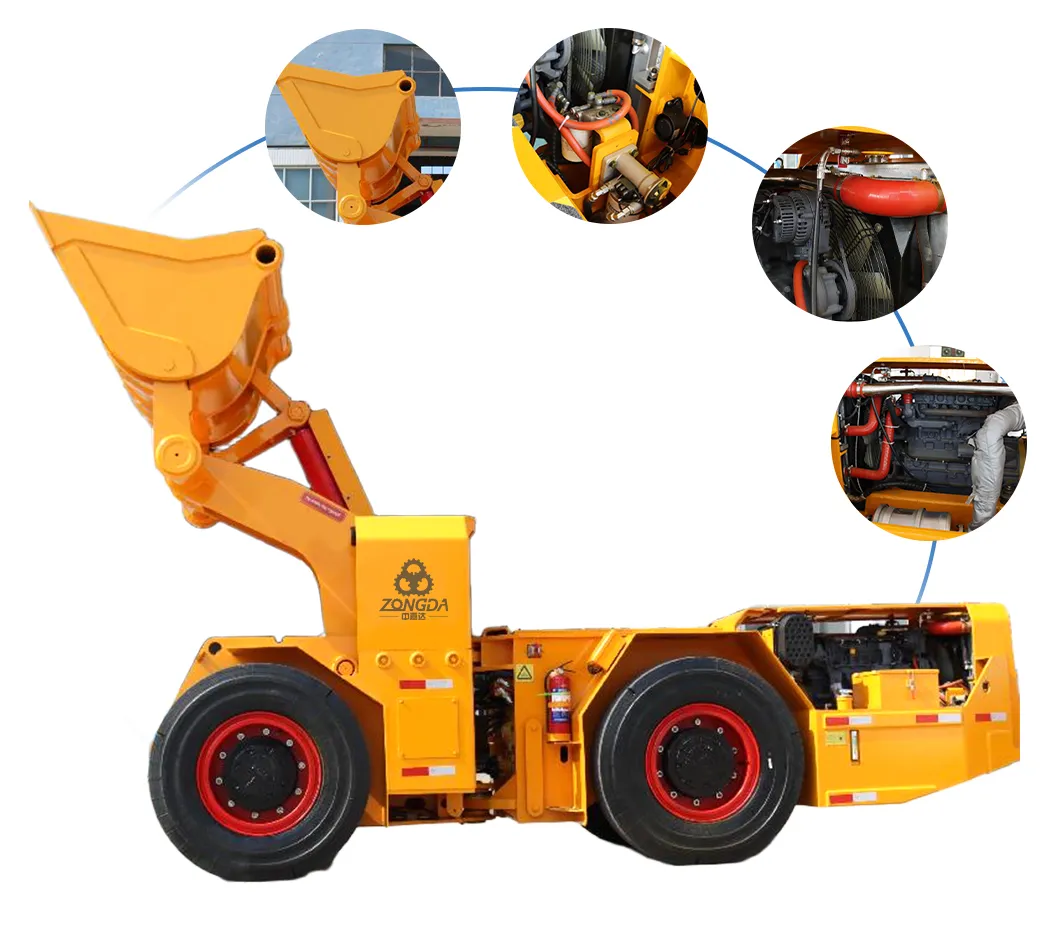

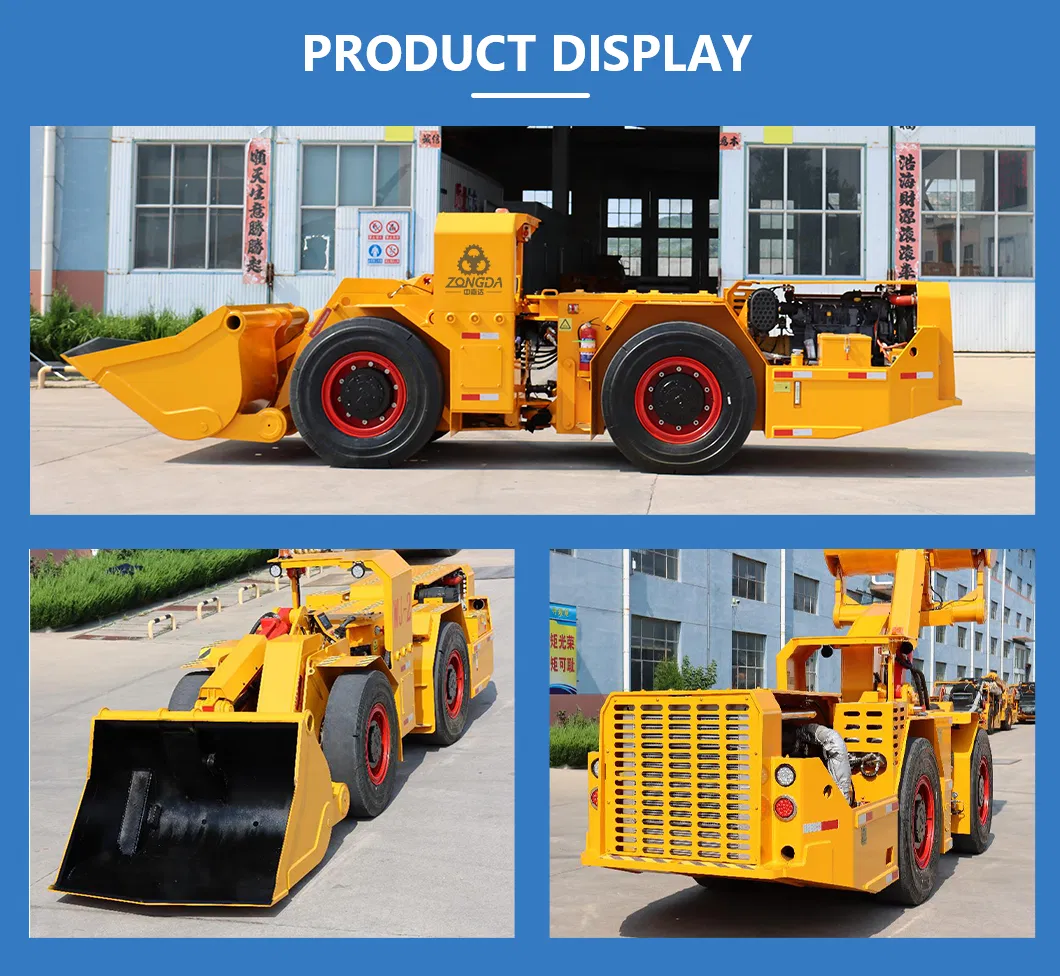

Product Details & Gallery

Technical Characteristics & Safety

Power System: Equipped with a Deutz air-cooled engine for reliable performance.
Braking System: Wet multi-disc spring brake with hydraulic release for maximum safety.

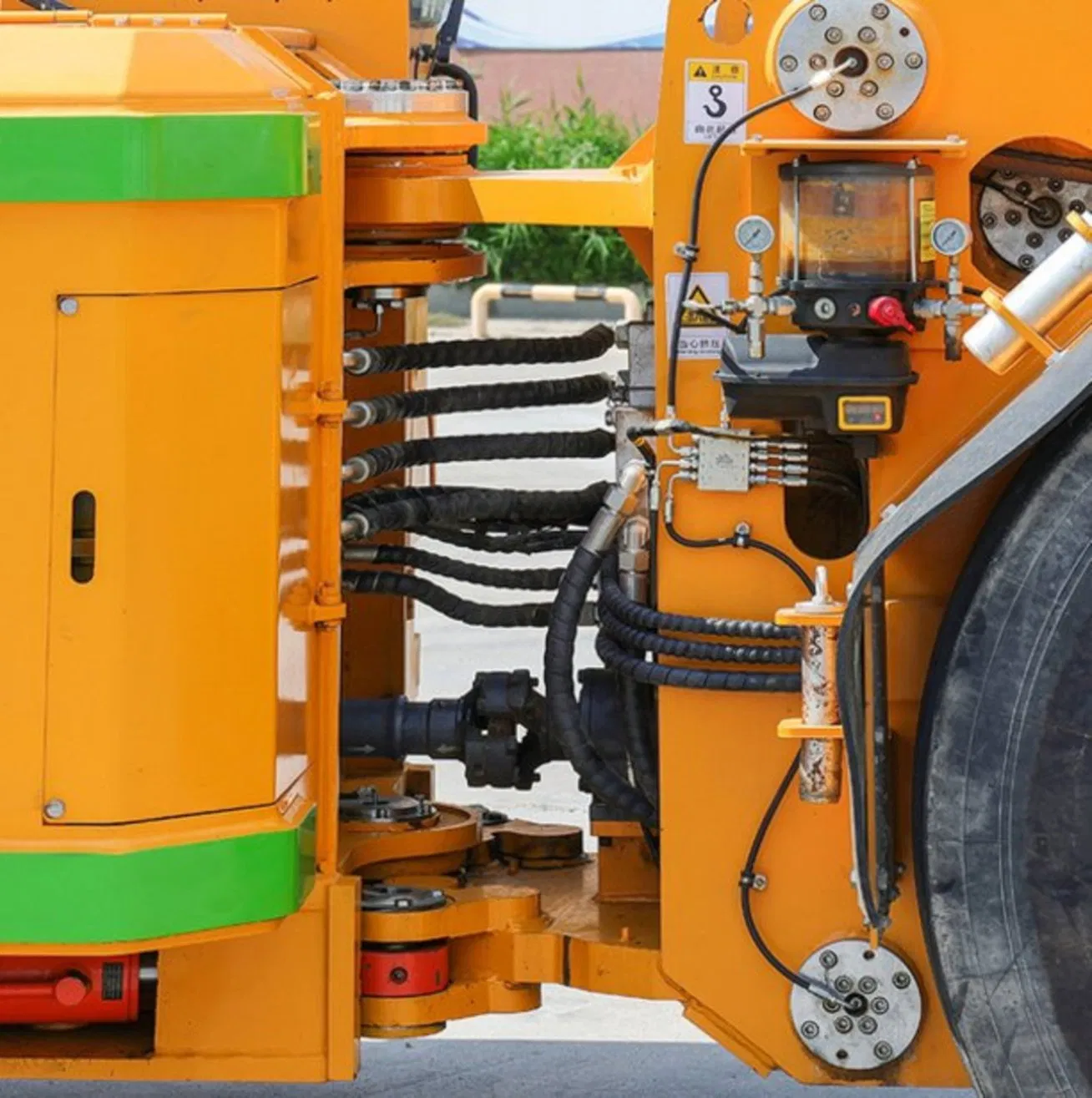

Frame Structure: Centrally hinged structure for improved adhesion performance in mines.
Safety Gear: Mandatory use of safety helmets, self-rescue devices, and mining lamps.
Maintenance: Pressure must be relieved from the hydraulic system before any repairs.

Company Advantages & Services

Comprehensive Product Portfolio: Extensive range of LHDs, Low Profile Dump Trucks, and utility vehicles.
Customized Engineering: Tailor-made engineering services to meet unique mining challenges.
Advanced Manufacturing: State-of-the-art facilities with strict quality control standards.
After-Sales Support: Installation, debugging, and training services on-site.
Warranty: Service coverage within 2000 hours or one year.

Frequently Asked Questions

What mechanical products are mainly produced?

We specialize in underground mining vehicles and spare parts specifically designed for metal mines.

Can product specifications be customized?

Yes, technical parameters and specifications can be customized to meet specific project requirements.

What trade terms and payment methods are supported?

We usually work under CIF terms (including freight and insurance). TT Bank Transfer is preferred, and L/C at sight is also accepted.

What is the typical production and delivery cycle?

The regular production cycle is usually 1 to 2 months. Stock may be available for expedited needs.

How is after-sales service handled for quality issues?

We provide both local and online technical after-sales support, supported by a detailed warranty policy.

Is door-to-door transportation available?

Yes, our forwarder partners can arrange proper transportation solutions including door-to-door service.
