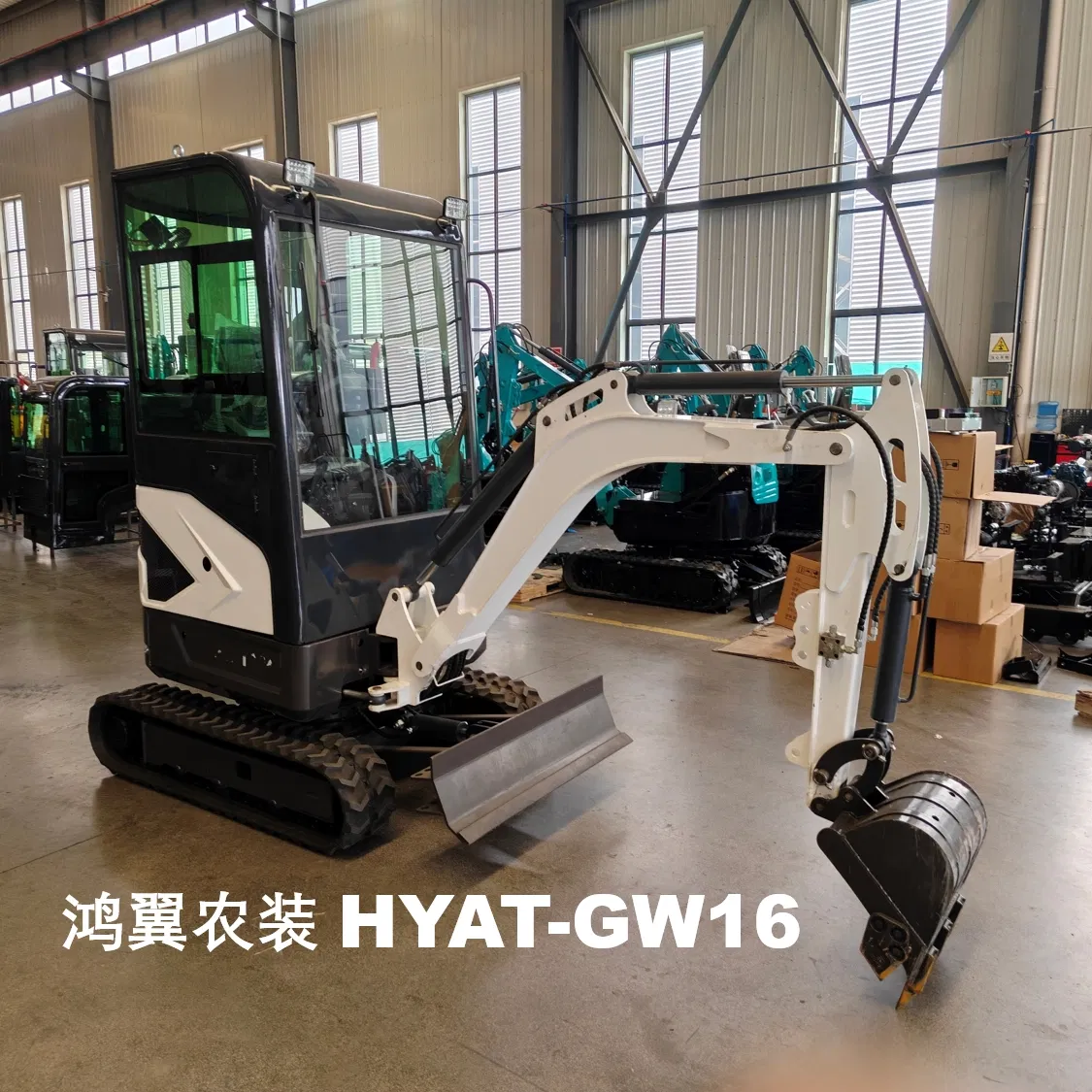

The GW16 mini excavator is a compact and versatile construction machine designed for precise digging and excavation tasks in confined spaces. Its size, maneuverability, and ability to accommodate various attachments make it an invaluable tool for a wide range of industries and construction projects.
This small excavator is equipped with a telescopic chassis, concealed piston high and low speed motors, variable piston pump, and Load-sensitive valve. The machine is highly responsive and offers a comfortable operation experience.
1. Variable Displacement Piston Pump: High energy efficiency, flexible flow/pressure adjustment. Advantages include fuel saving and fast response.
2. Load Sensing Valve: Detects system demand for pressure/flow. Advantages include precise control and coordinated multi-function operation.
3. Piston Rotation Motor: Low-speed, high-torque efficiency. Advantages include precise start/stop and smooth rotation.
4. 3-Cylinder Direct Injection Engine: Compact structure with high fuel efficiency and strong low-speed torque.

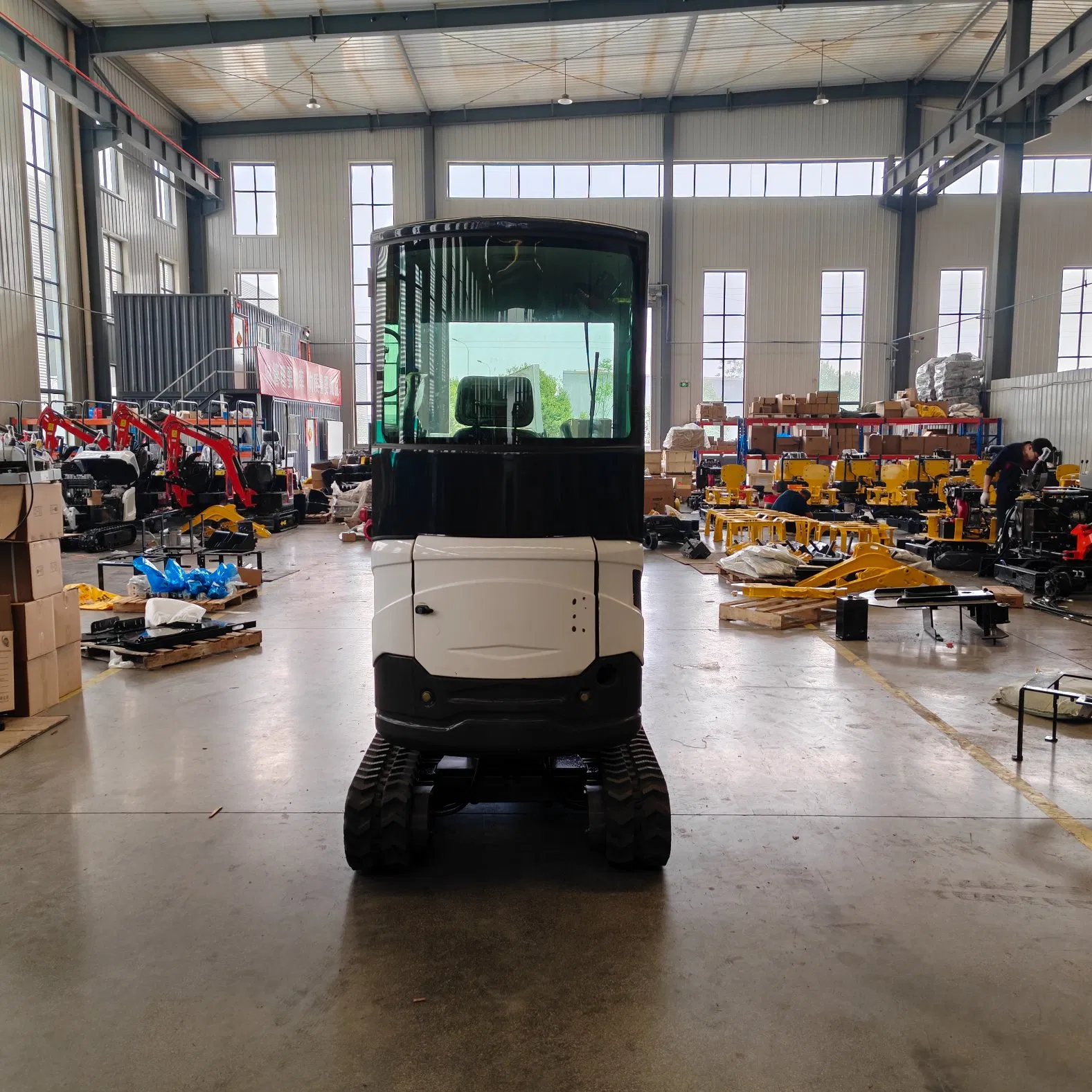

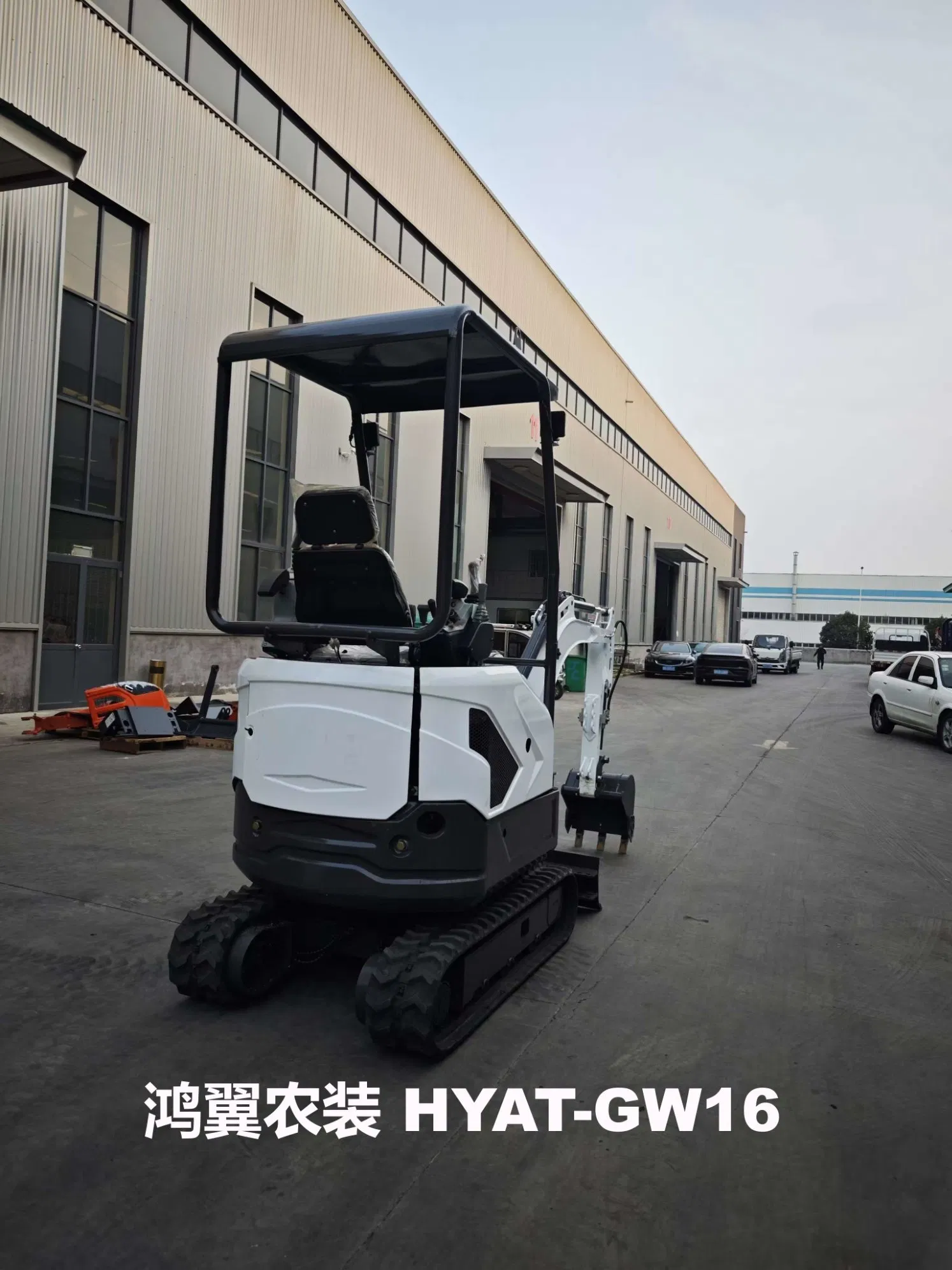

Back View

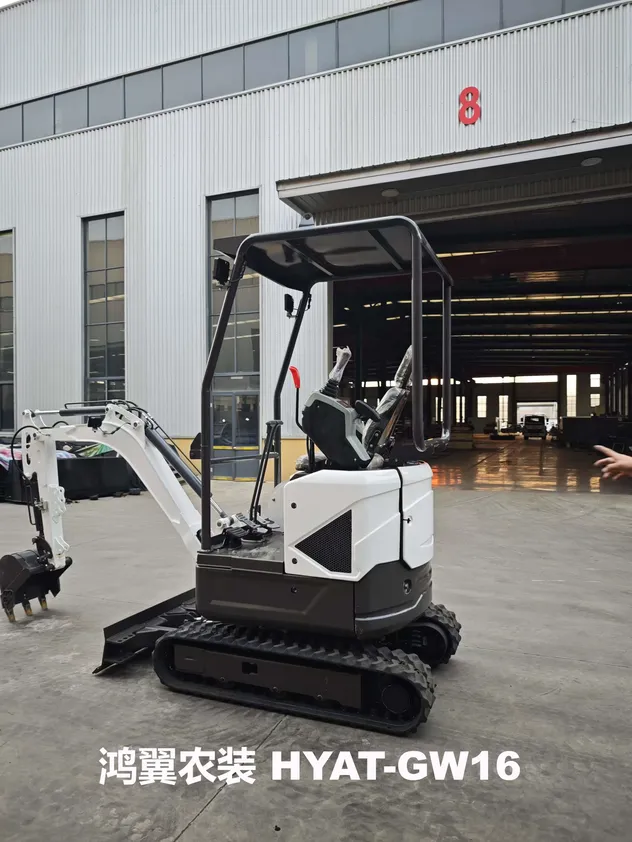

Front View

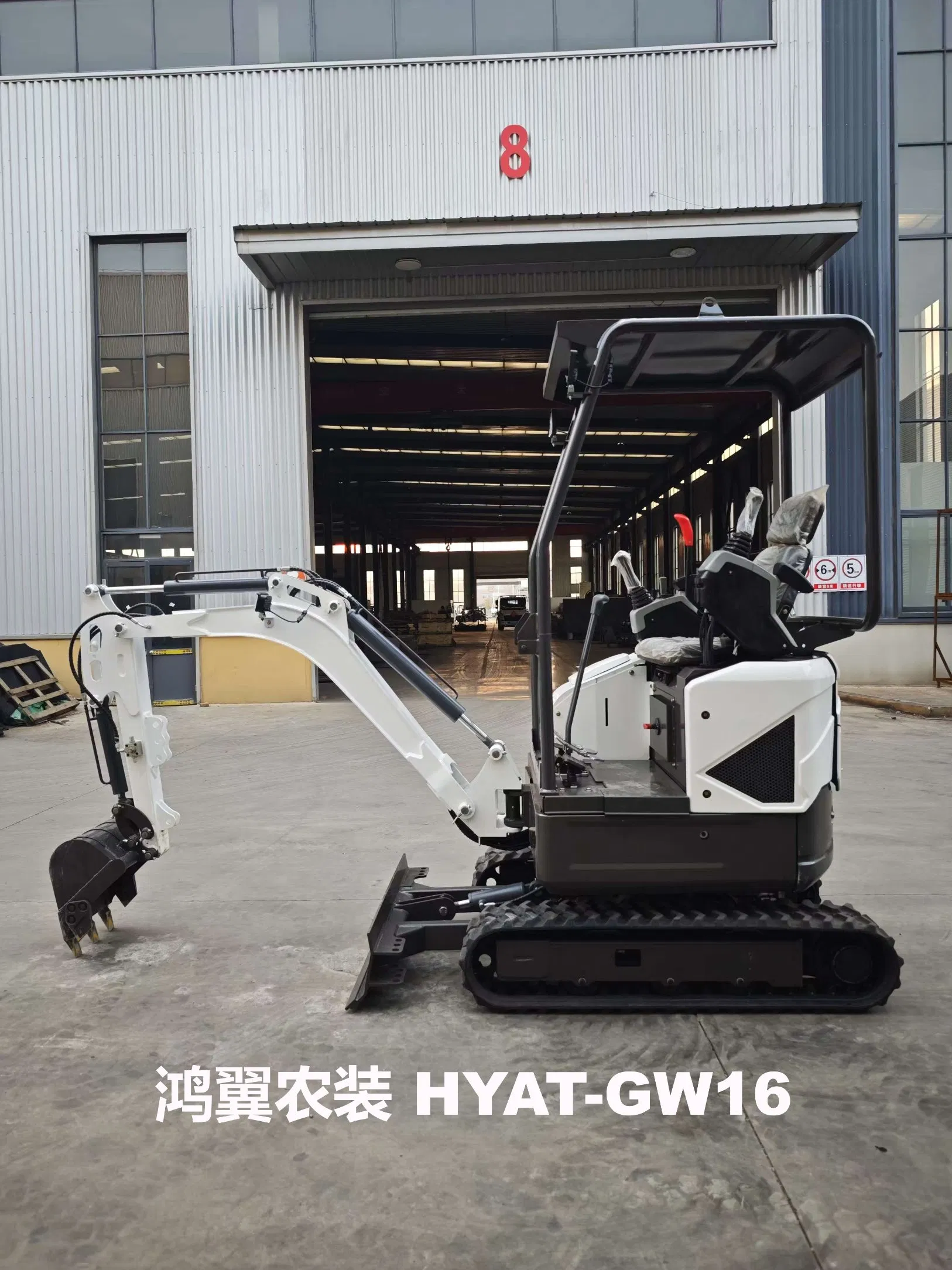

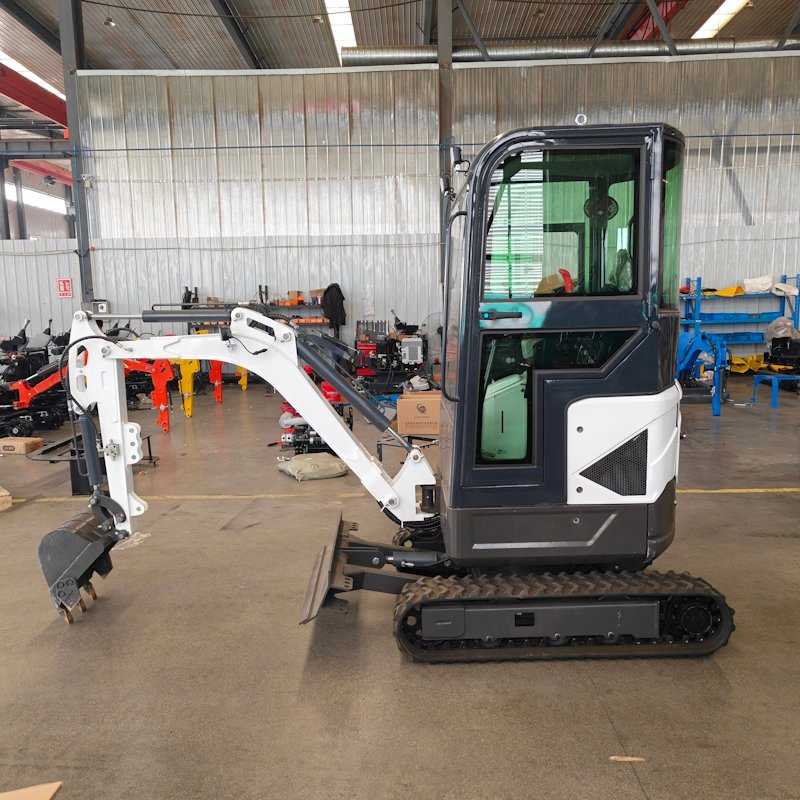

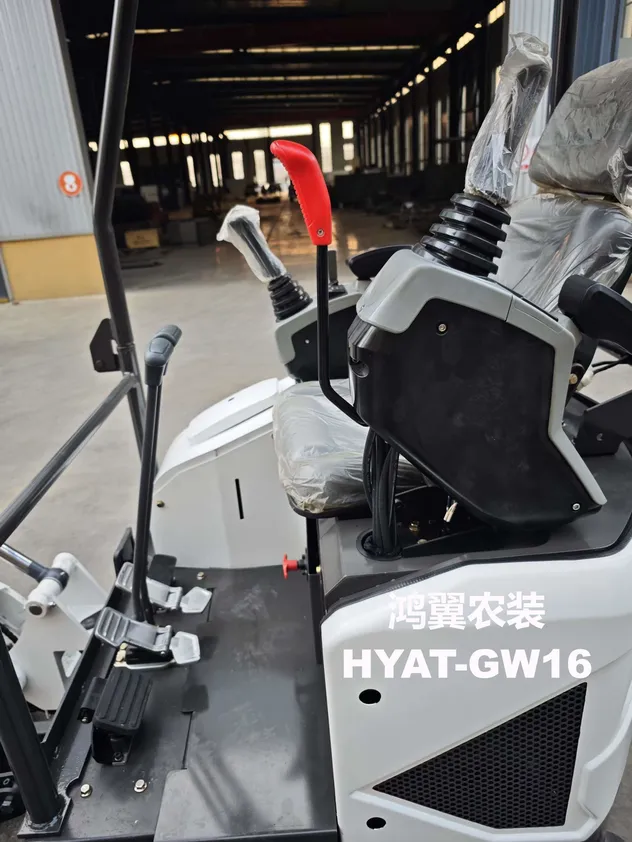

Side View
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Engine Type | Three-cylinder direct injection | Travel speed (km/h) | 2.2-4.3 |
| Displacement (L) | 0.898 | Traction force (kN) | 18 |
| Rated Power (kw/rpm) | 11.8/2300 | Gradability ° | 30 |
| Hydraulic system | Gear / Variable Piston Pump | Max. digging height | 2900 |
| Working flow (L/min) | 27.6/41.4 | Max. dumping height | 1950 |
| Max. rotation speed | 9.5 r/min | Max. digging depth | 2200 |
| Bucket capacity (m³) | 0.04 | Max. digging radius | 3650 |

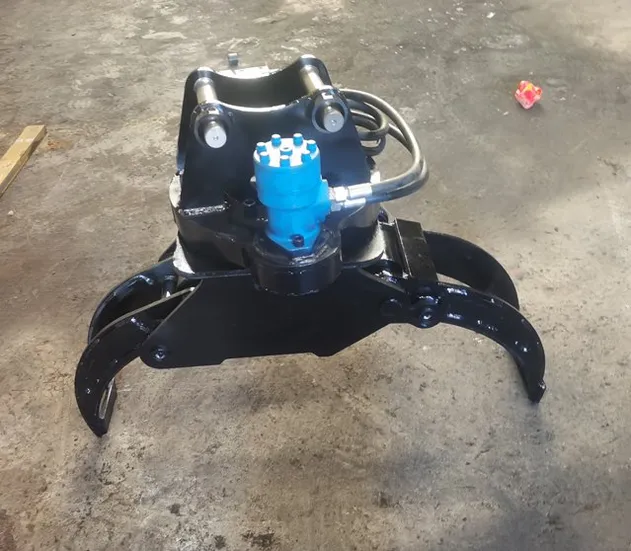

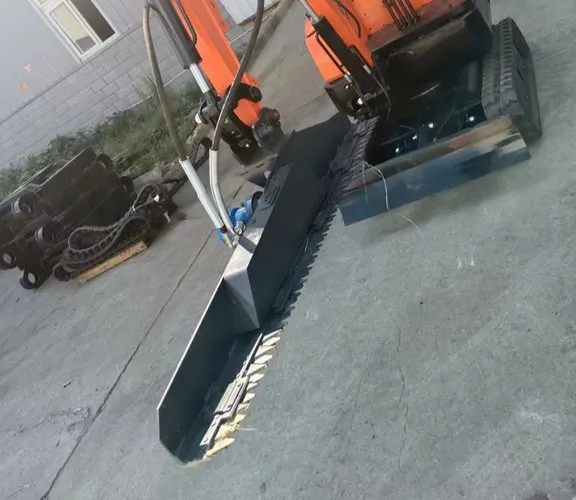

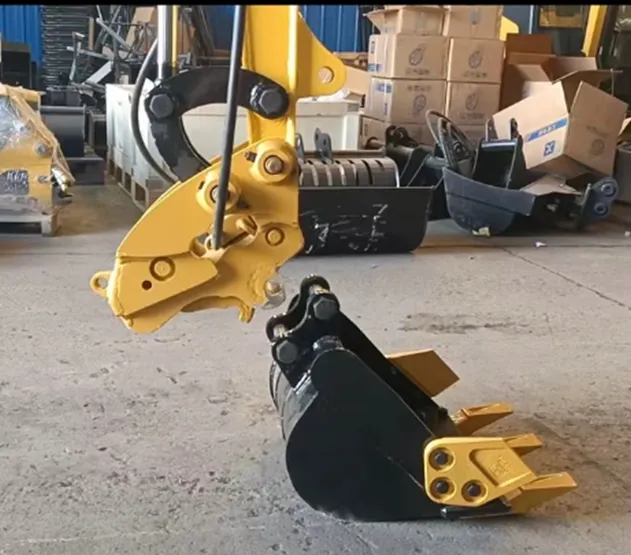

This excavator is compatible with a wide range of attachments including buckets, 360° log grabbers, grass rakes, screw drills, hedge trimmers, wood chippers, and more.
Our focus is on the research, development, and production of mechanical equipment for smart agriculture and construction. Our product range includes water well drilling rigs, mini excavators, loaders, and agricultural drones. We provide reliable, intelligent, and efficient equipment for global users with customization options for process, structure, and models.
