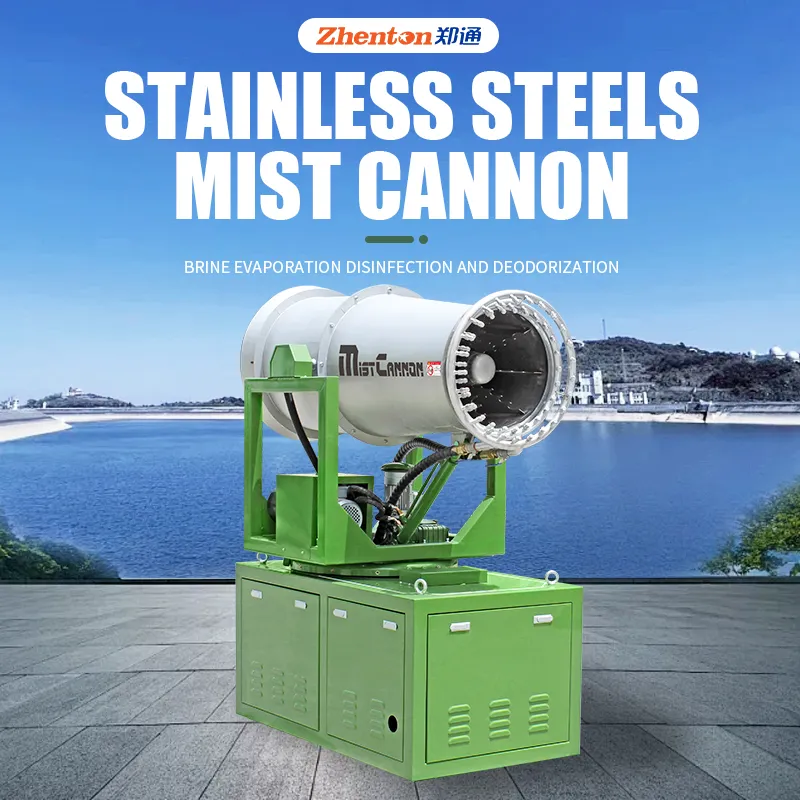

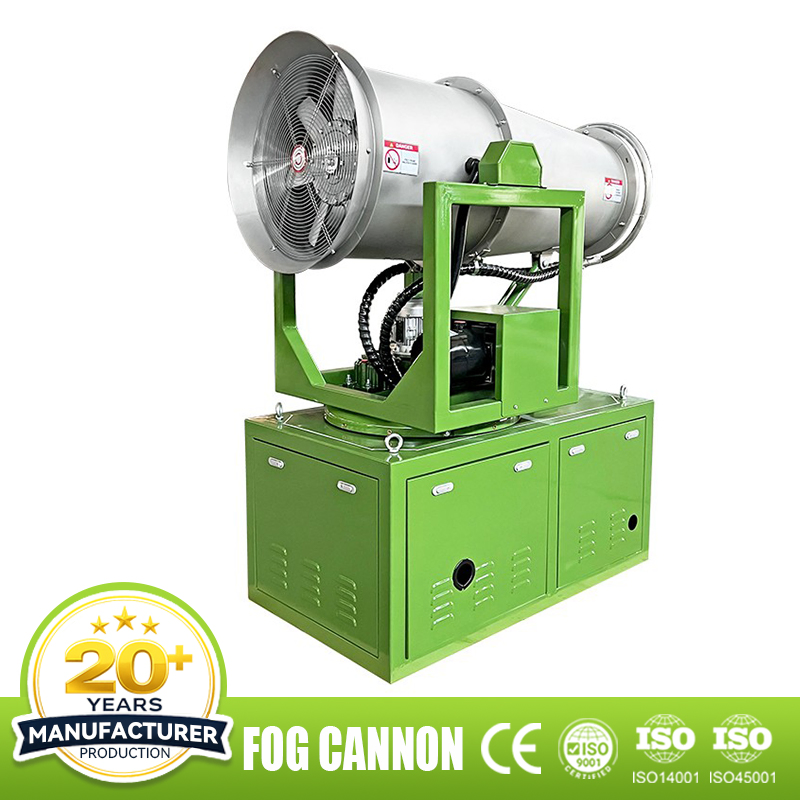

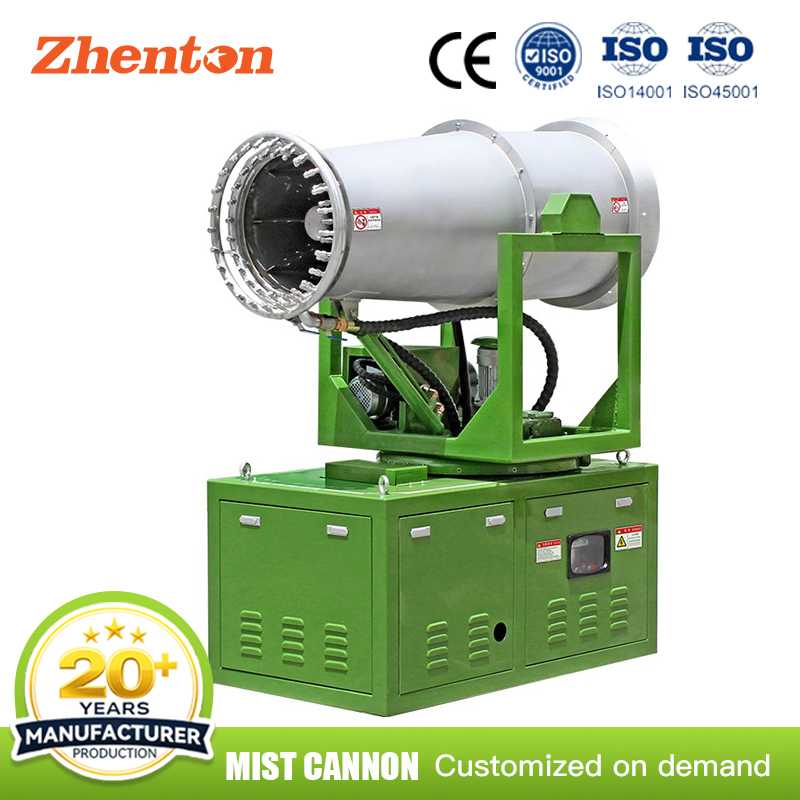

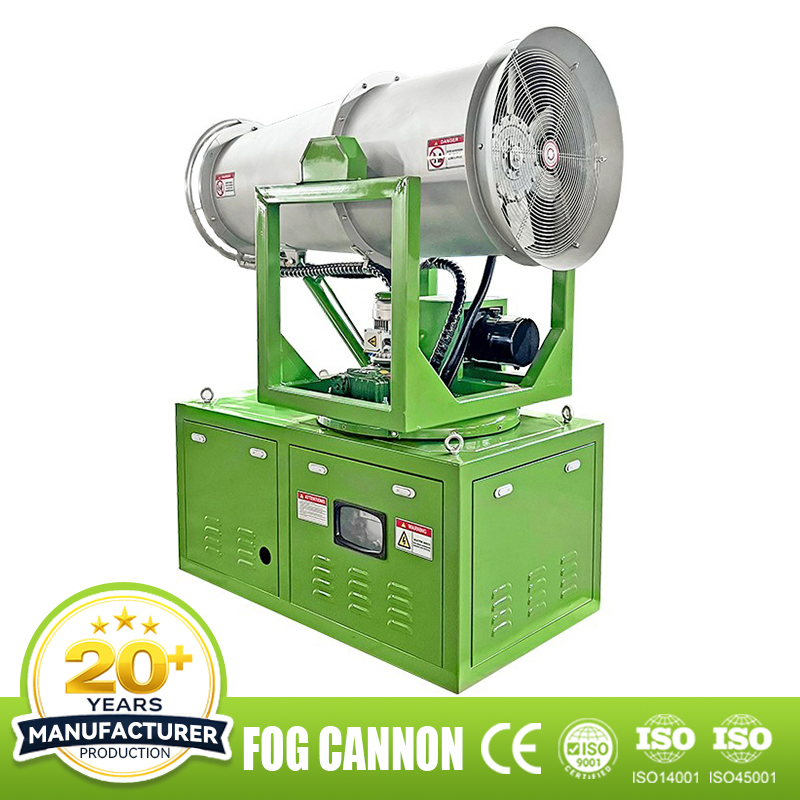

High-Pressure Spray Mobile Fog Cannon Machine for Urban Construction Sites Dust Suppression

1 / 5

High-Pressure Spray Mobile Fog Cannon Machine for Urban Construction Sites Dust Suppression

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

40m Fog Cannon Machine

Effective Area

4800m2

Water Type

Tap Water

Water Tank

Customizable Sizes

Installation

Fixed / Truck Mounted

Inlet Pressure

0.3-0.8 MPa

Certificates

CE, ISO9001:2015

Rotation Angle

340°

Pitch Angle

-5 to 35 degree

Pump Material

Stainless Steel 304

Product Description

Principle and Function

The fog cannon atomizes water into ultra-fine droplets (20-100 microns) that are similar in size to dust particles. When the mist is sprayed by the high-power fan, the droplets fully contact and adhere to floating dust in the air, forming larger aggregates. These aggregates then settle naturally due to gravity, effectively reducing airborne dust concentration and purifying the ambient air.

Key Features

High Efficiency: Captures both large and fine particles (PM2.5, PM10).
Resource Saving: Water-saving and energy-efficient operation.
Adjustable: Variable spray range and angle targeting specific sources.
Safe Operation: Non-corrosive and non-wetting to equipment.

Applicable Scenarios

Ideal for dusty industrial and construction sites such as coal yards, mines, quarries, cement plants, and demolition sites. Also suitable for port terminals, railway freight yards, waste incineration plants, and urban road construction areas requiring dust control.

Quality Certifications

We hold 125 specialized certifications including EU CE certification, ISO 9001, ISO 14001, and ISO 45001. With over 20 years of manufacturing experience, we ensure the highest industry standards.

Application Scenarios

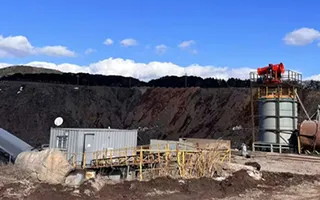

Dust Suppression

Suitable for construction sites, mines, and sand plants. High-pressure mist inhibits dust diffusion and improves the working environment.

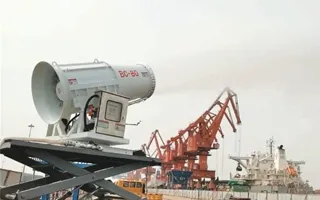

Odor Control

Ideal for garbage dumps and farms. Neutralizes odor molecules in the air to purify the environment effectively.

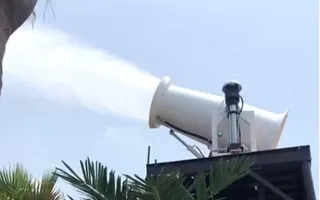

Cooling

Reduces temperature in high-heat workshops or outdoor squares through evaporation and heat absorption.

Technical Details

Model	ZT-40	Range Meters (m)	35-40
Coverage Area (m²)	4800	Water Discharge (L/min)	18-35
Aerosol Particles (μm)	30-150	Number of Nozzles	24-36
Noise (dB @ 20m)	≤68	Power (kW)	10.5

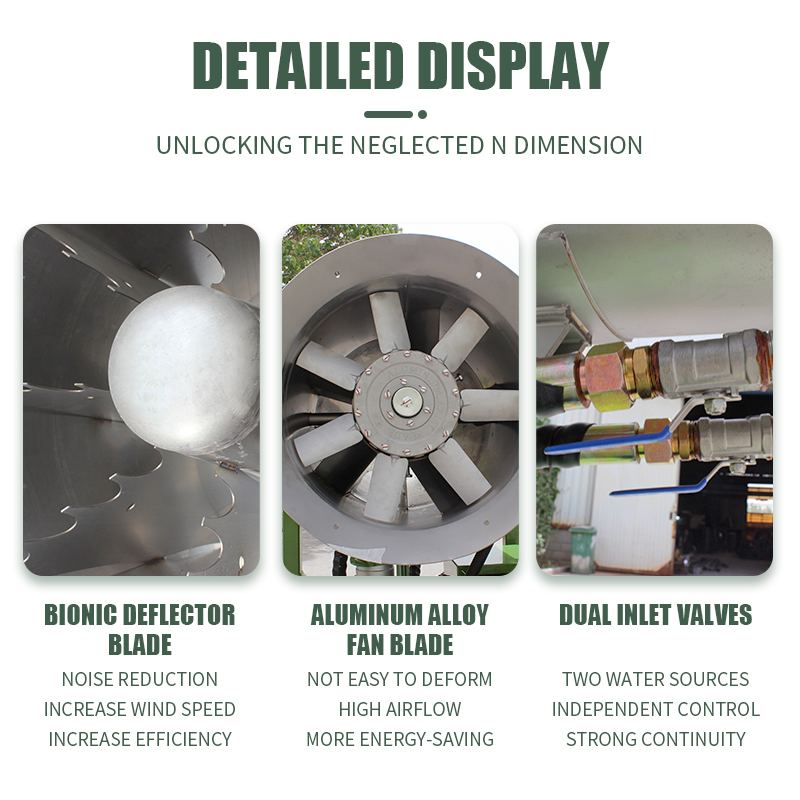

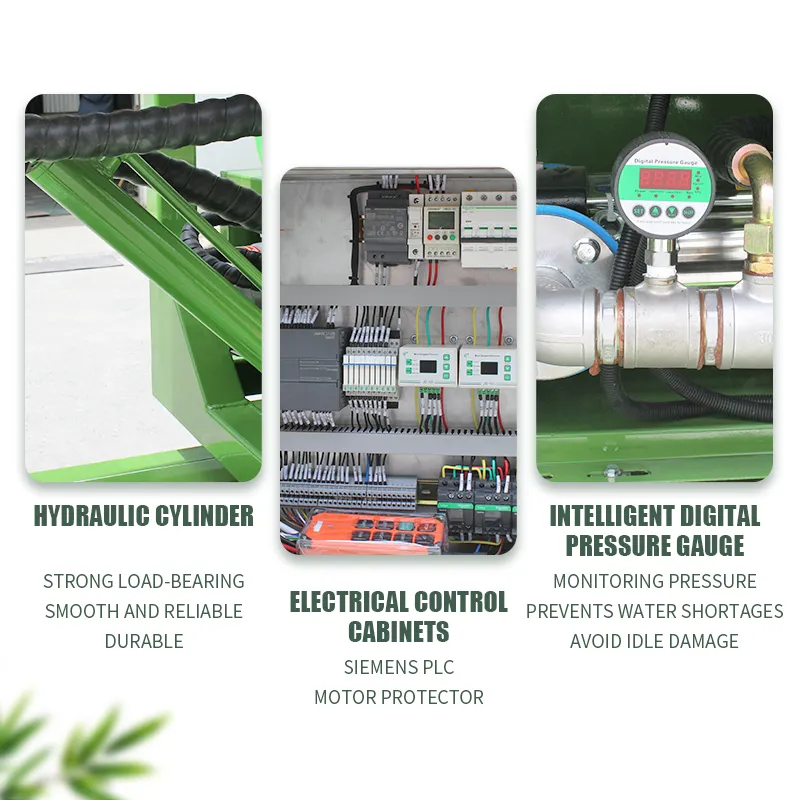

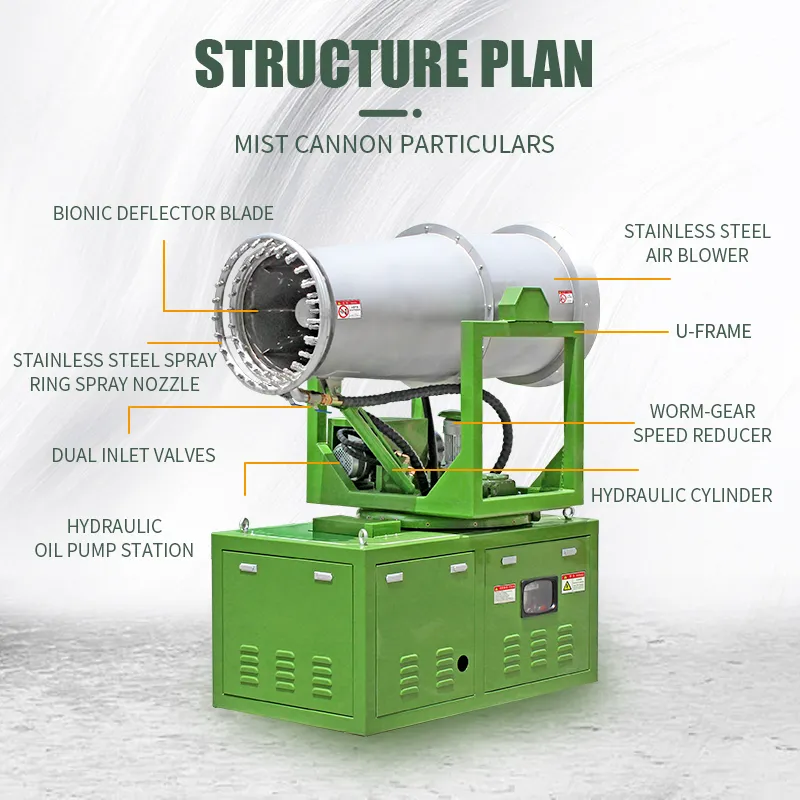

System Components

Gun Barrel: Laser full-weld process, integrated design.

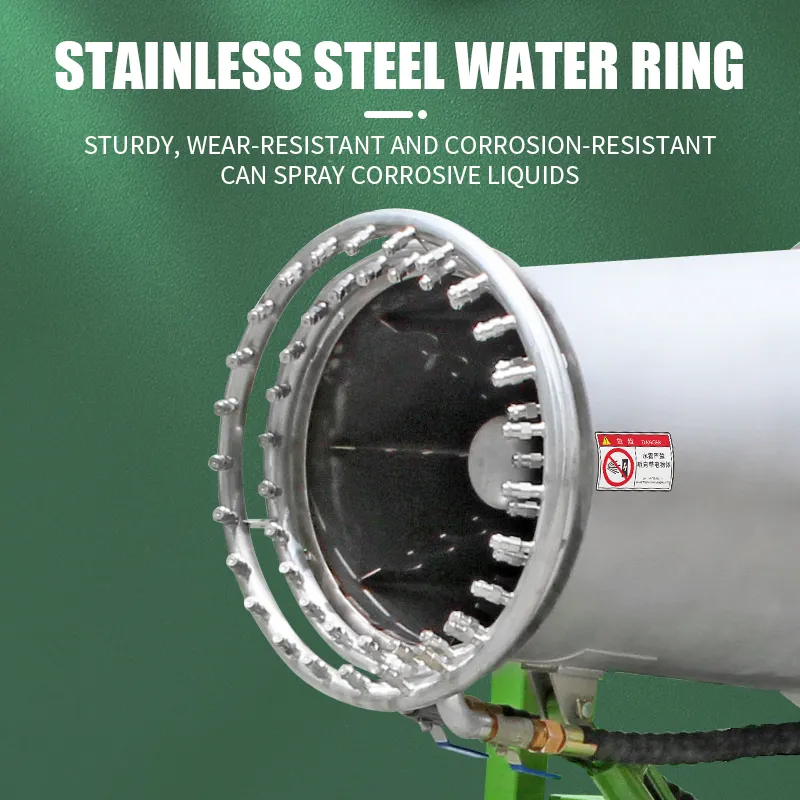

Water Passage: 304 stainless steel nozzles and water rings.
Pump Options: Vortex, plunger, or stainless steel multistage centrifugal pumps.
Mechanism: Electric or hydraulic actuators for elevation; slewing bearing for rotation.
Plate Material: 5mm thick heavy-duty plate.

Packing & Delivery

All machines use reinforced export-special packaging. Features include:

Waterproof and dust-proof film coverage.
Shockproof bubble cotton protection.
Sturdy multi-layer plywood cases (fumigation-free).
Compliance with international logistics and quarantine norms.

Company Overview

Frequently Asked Questions

Q1: Can the components of the equipment be customized?

A1: Yes, we support customized services. Accessories and power supply types can be modified or equipped according to specific customer needs.

Q2: How long is the production and delivery time?

A2: For quantities less than 20 units, production typically takes 7-15 working days. We strive for the fastest possible delivery to meet your project timelines.

Q3: What should I do if the water mist volume decreases?

A3: This is usually due to nozzle blockage from scale or debris. You can unscrew and clean the nozzles or soak them in an acidic solvent. If the nozzles are worn out due to poor water quality, they may need replacement.

Q4: What certifications do your products carry?

A4: Our fog cannons are ISO 9001 certified and hold CE marks for the EU market, along with relevant environmental protection certifications.

Q5: What is your after-sales maintenance policy?

A5: We provide a one-year warranty and lifetime maintenance support. We also include extra fragile parts in the initial delivery to facilitate quick local replacements.

Q6: How is the equipment protected for long-distance sea freight?

A6: We apply an extra layer of anti-corrosion paint and use waterproof, shockproof, and moisture-proof packaging inside reinforced plywood cases to ensure the machine arrives intact.
