| NO | Type | Specification |
|---|---|---|
| 1 | Raw Material (PPGI/GI) | Width: 1250mm, Thickness: 0.3-0.6 mm |
| 2 | Decoiler | Manual Operation, 5 Tons Capacity |
| 3 | Roller Station | 18 steps |

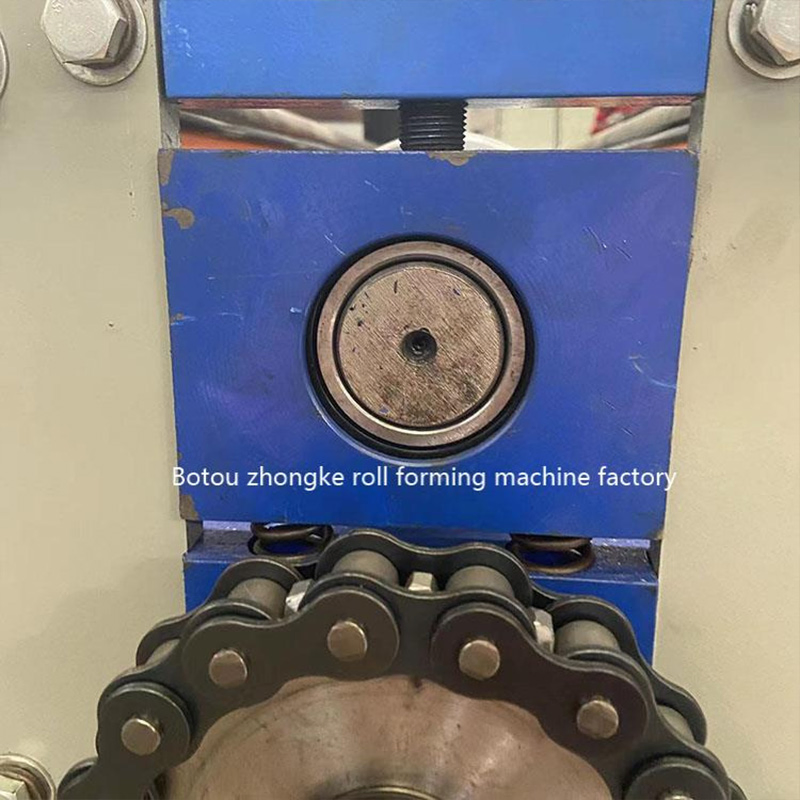

| 4 | Diameter of Shaft | 80 mm (-0.01~0.03) |
| 5 | Shaft Material | 45# with 0.05mm chrome |
| 6 | Roller Material | 45# Forged Steel |
| 7 | Transmission | Gear & Sprocket |
| 8 | Sidewall Frame | 20 mm Steel Plate |

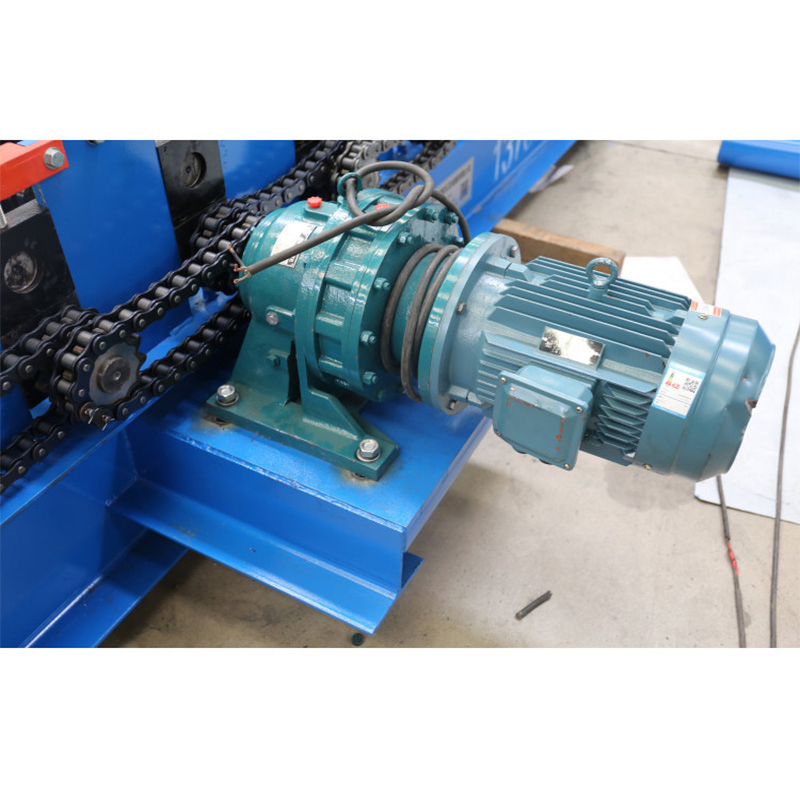

| 9 | Driving Type | Servo Motor 7.5KW |
| 10 | Cutting Type | Guide Pillar with Electrical Motor 3.0KW |
| 11 | Working Speed | 20-25 m/min |
| 12 | Control System | PLC control (Delta/Siemens/Panasonic) |

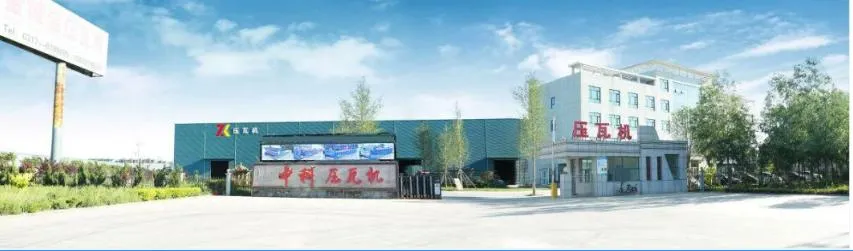

Our facility is a professional Roll Forming Machine manufacturer with 17 years of experience. We operate within a 20,000m² workshop with 100 well-trained workers. We specialize in the development and production of automatic intelligent control tile press equipment, C-type steel machines, and other cold-bending forming equipment designed according to user needs.

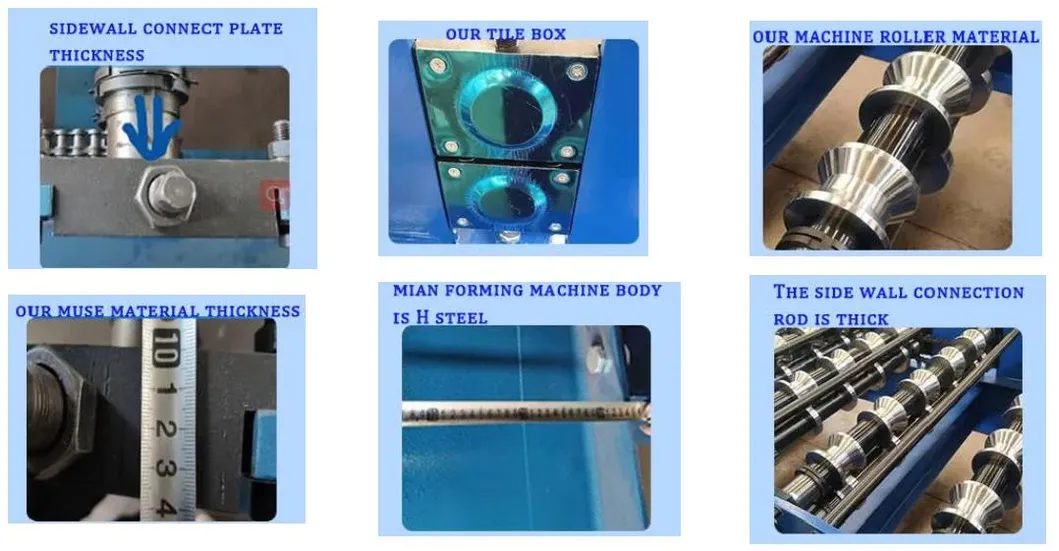

Our Precision Machine

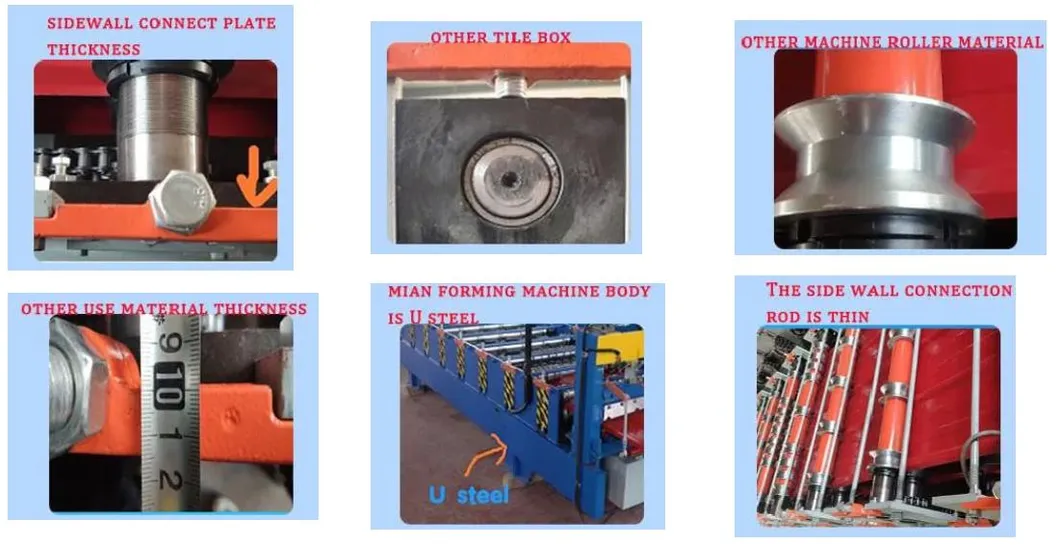

Other Standard Machines
