| Model NO. | xc60gpro | Condition | New |
|---|---|---|---|
| Drill Hole Diameter | 300-1200(mm) | Drill Hole Depth | 13(M) |
| Type | Crawler | Drilling Way | Rotary |
| Overall Weight | 11 T | Engine Rated Power | 36/2200r/Min |
| Rotary Torque | 35 kN.M | Rotary Speed | 17-38 R/Min |

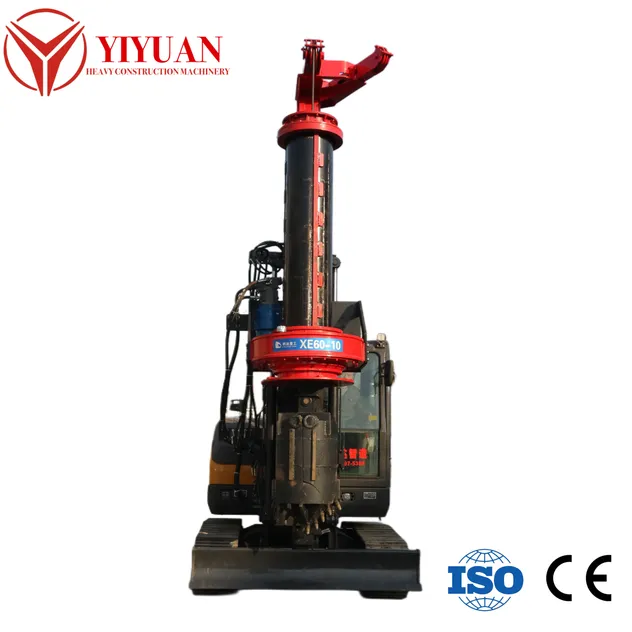

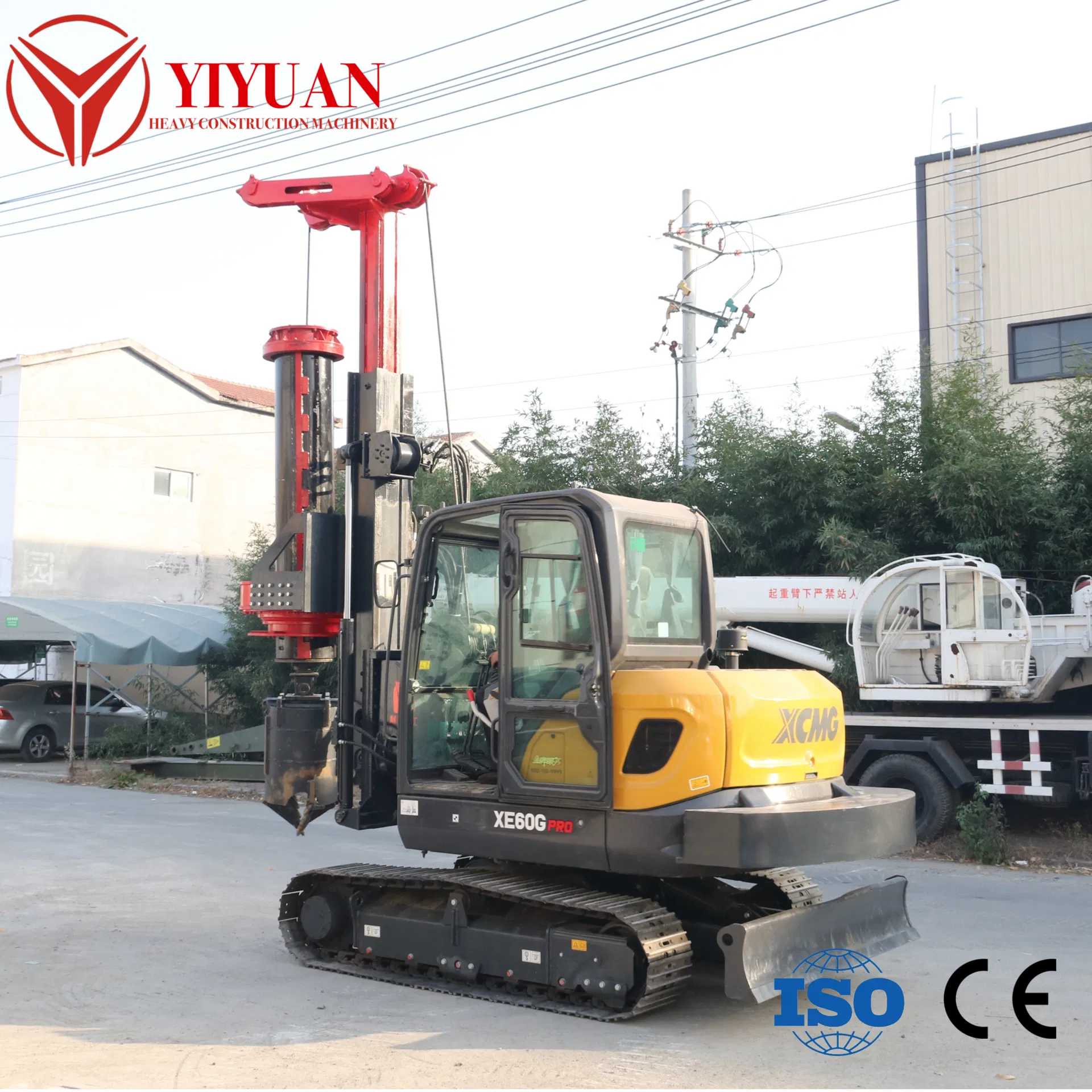

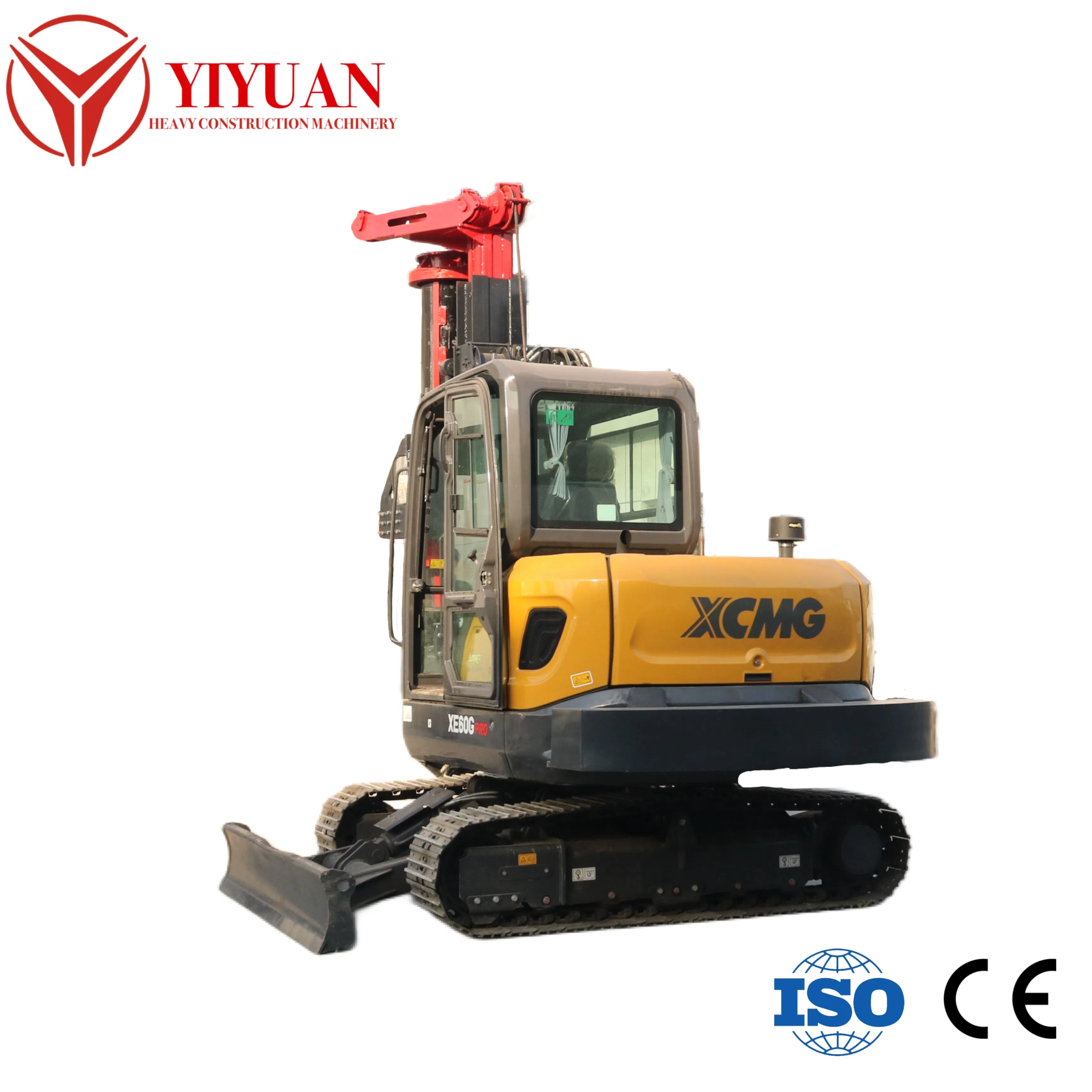

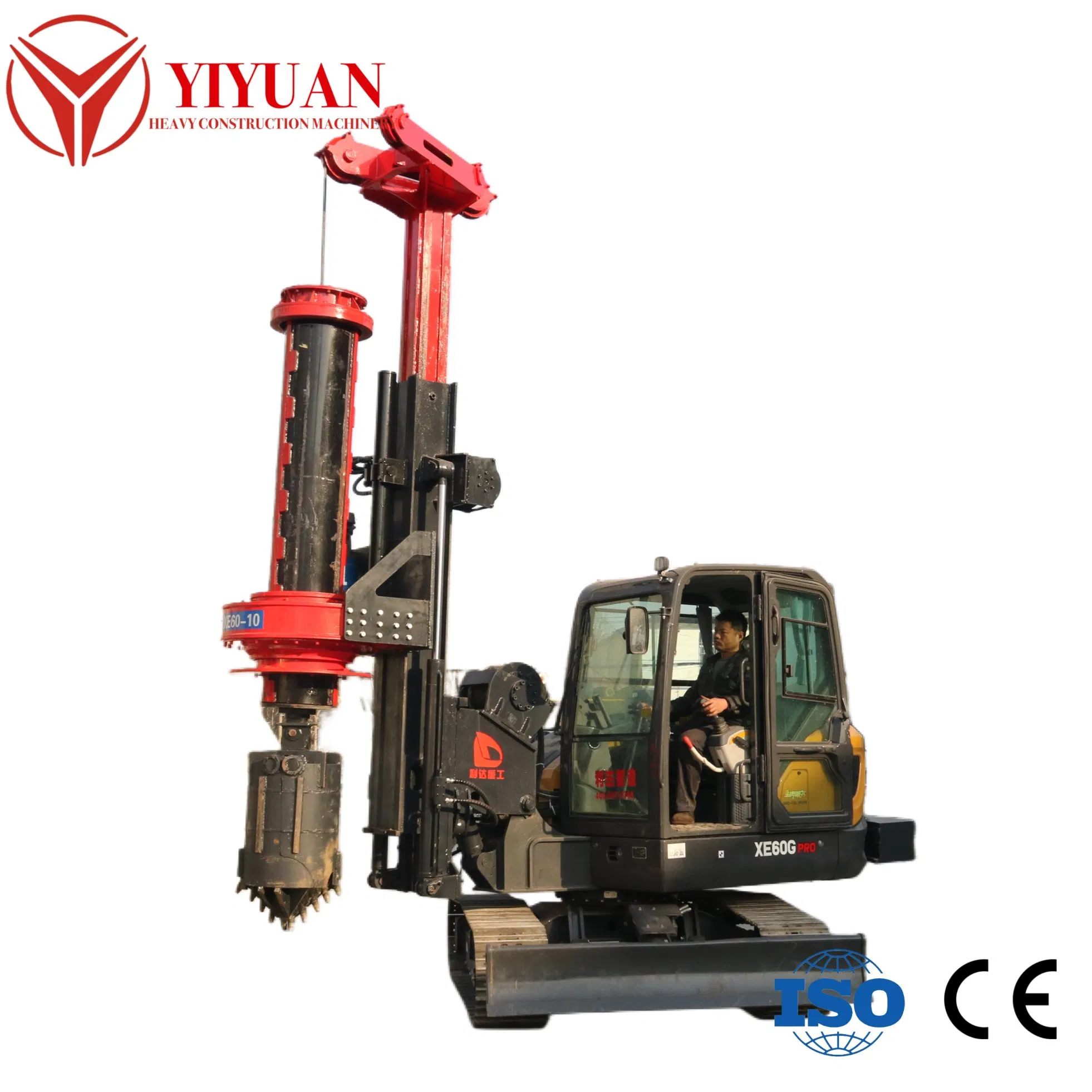

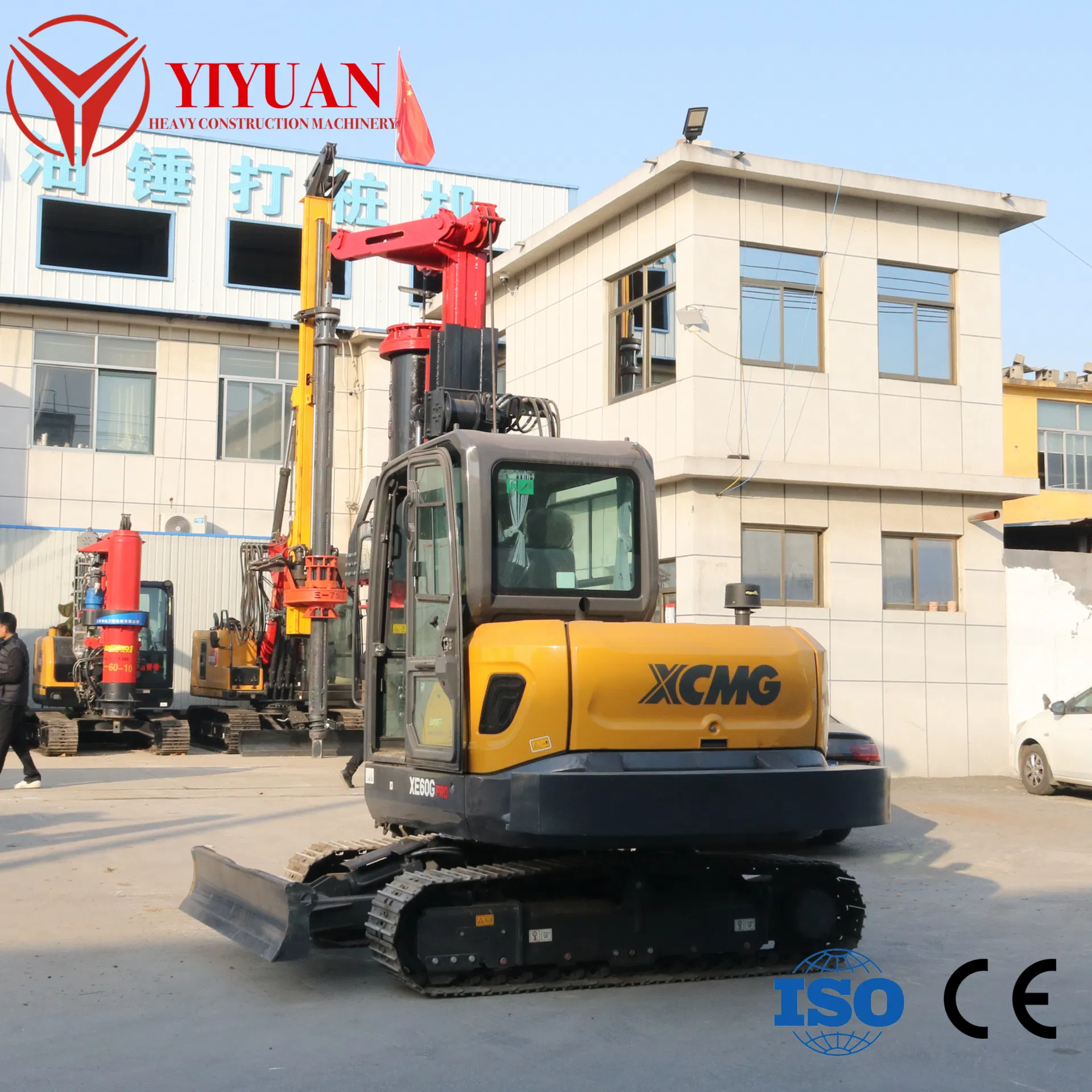

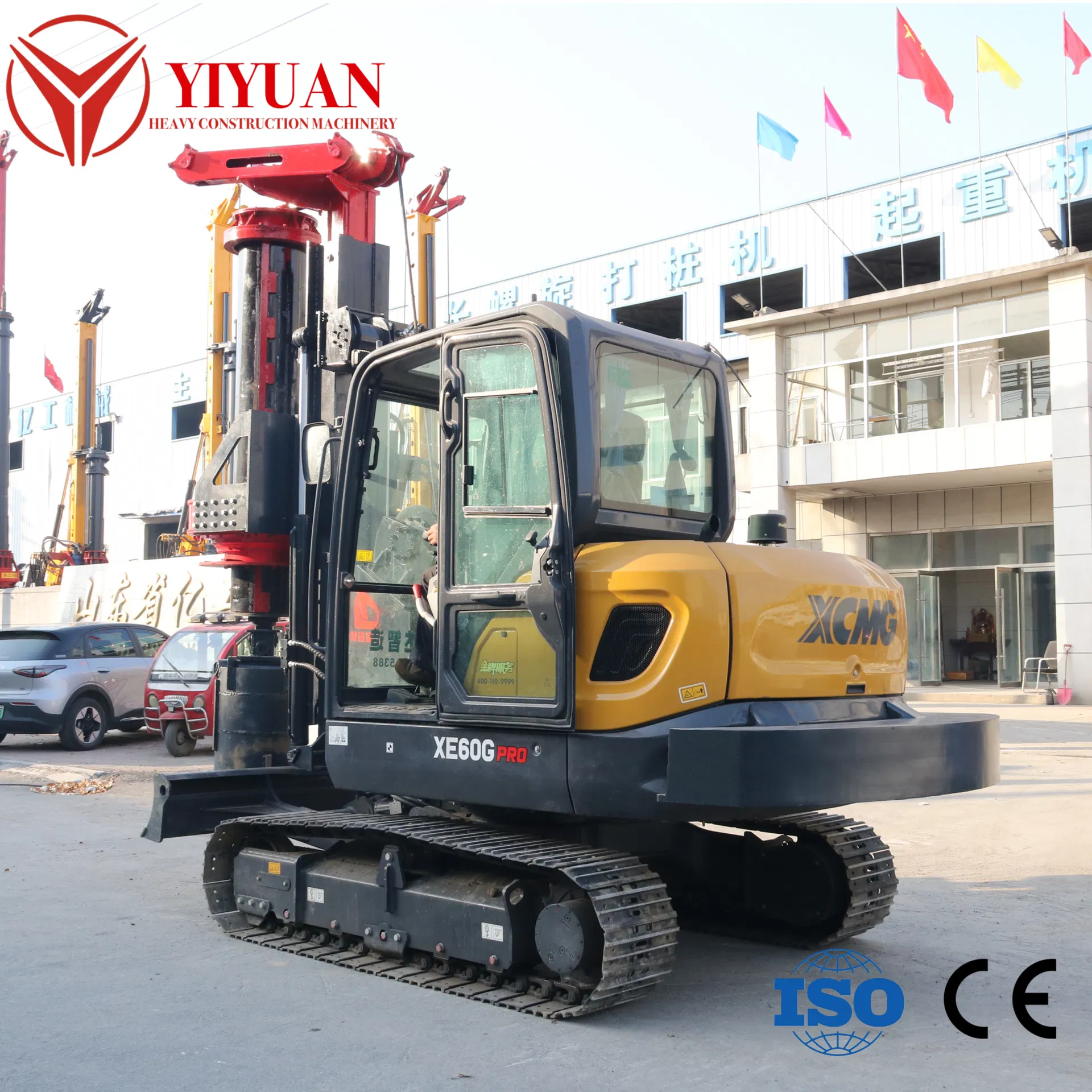

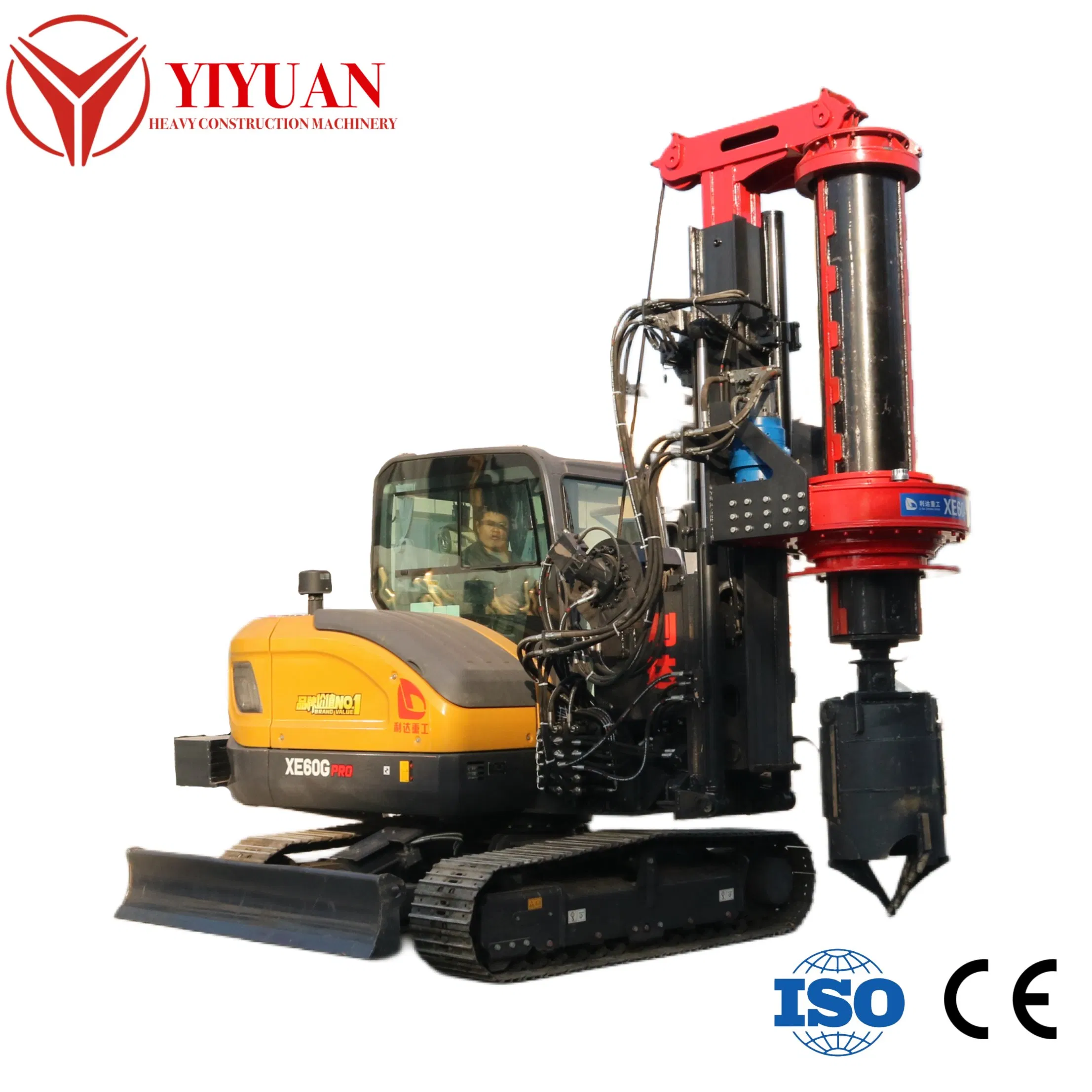

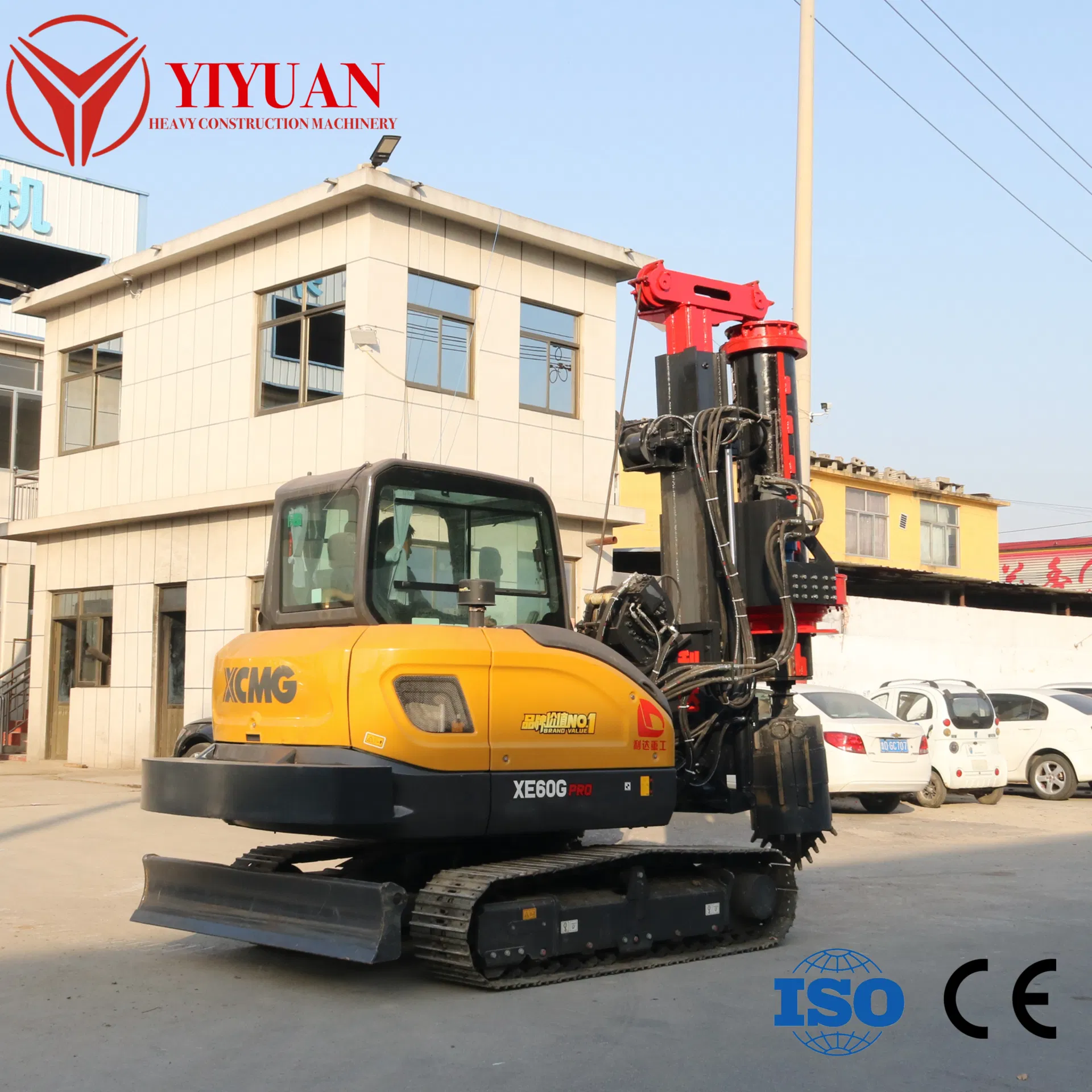

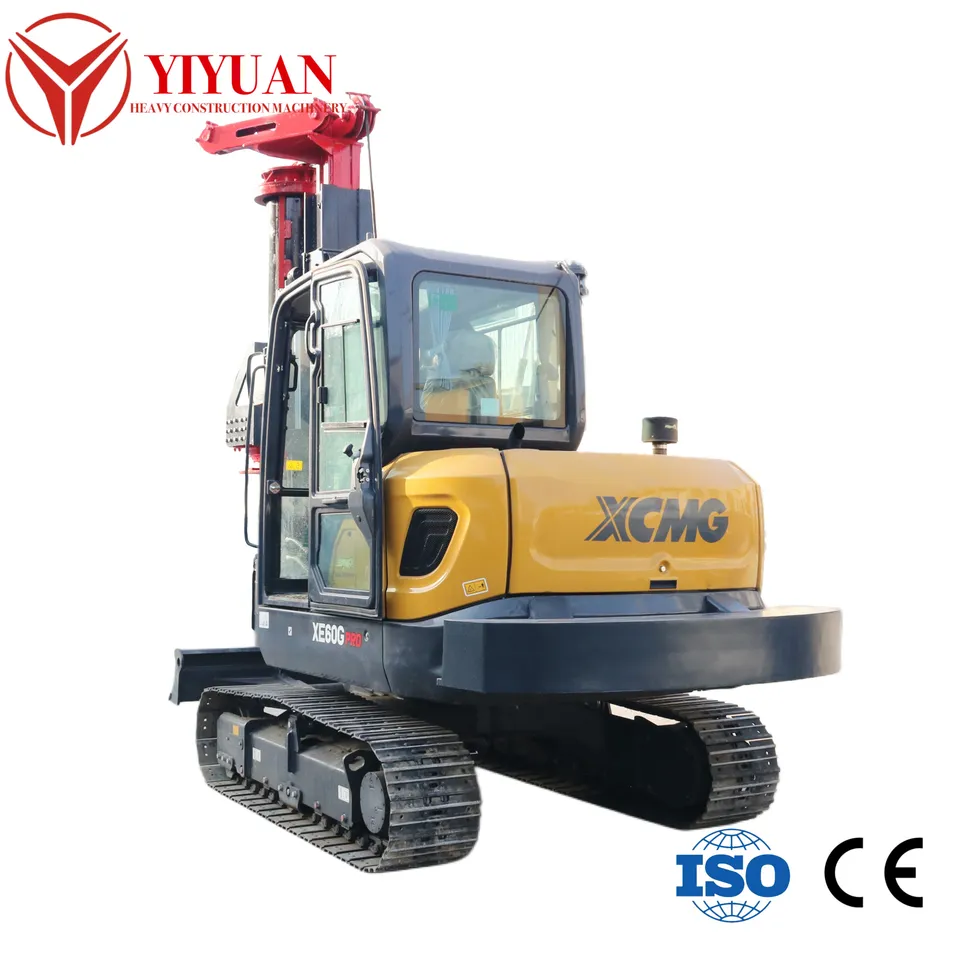

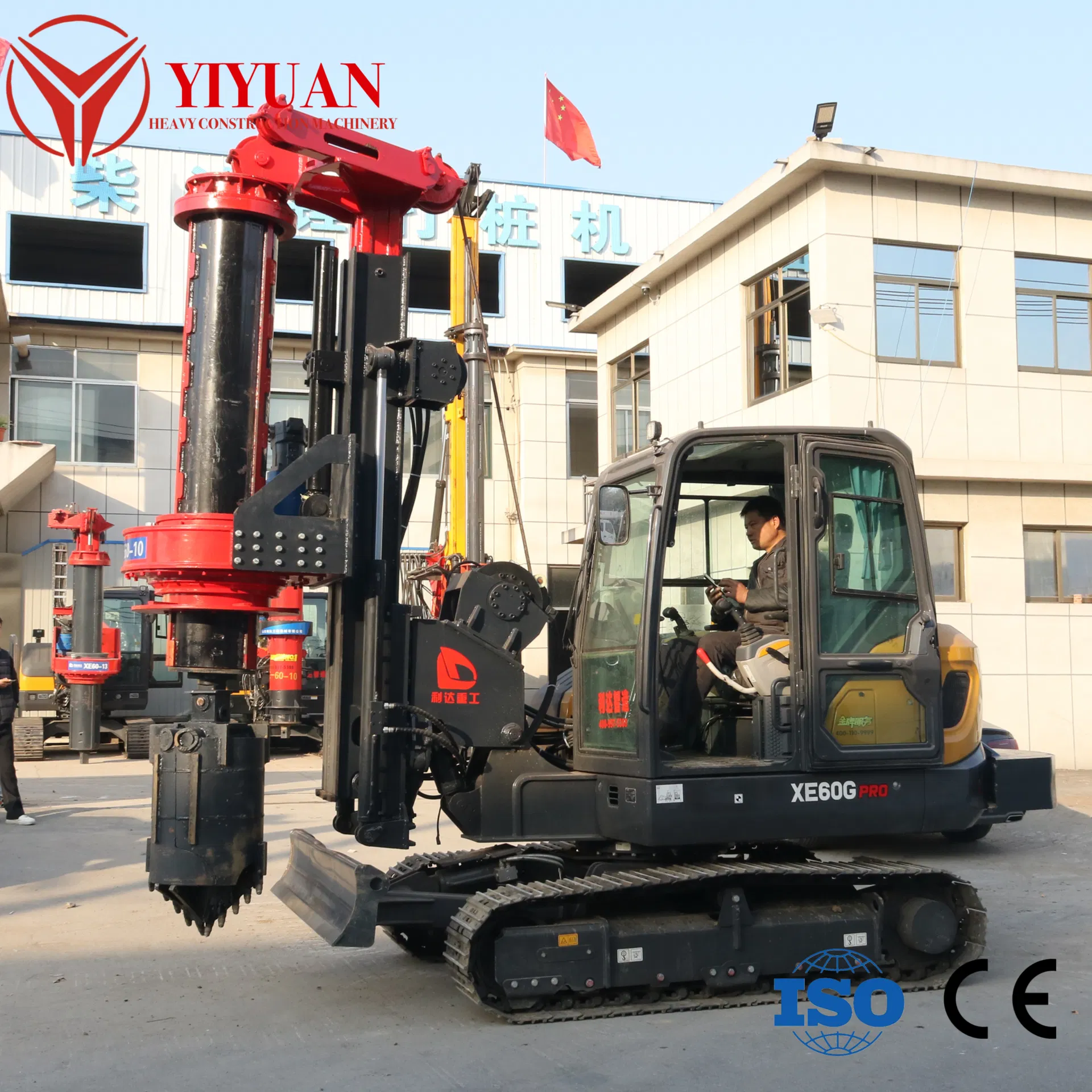

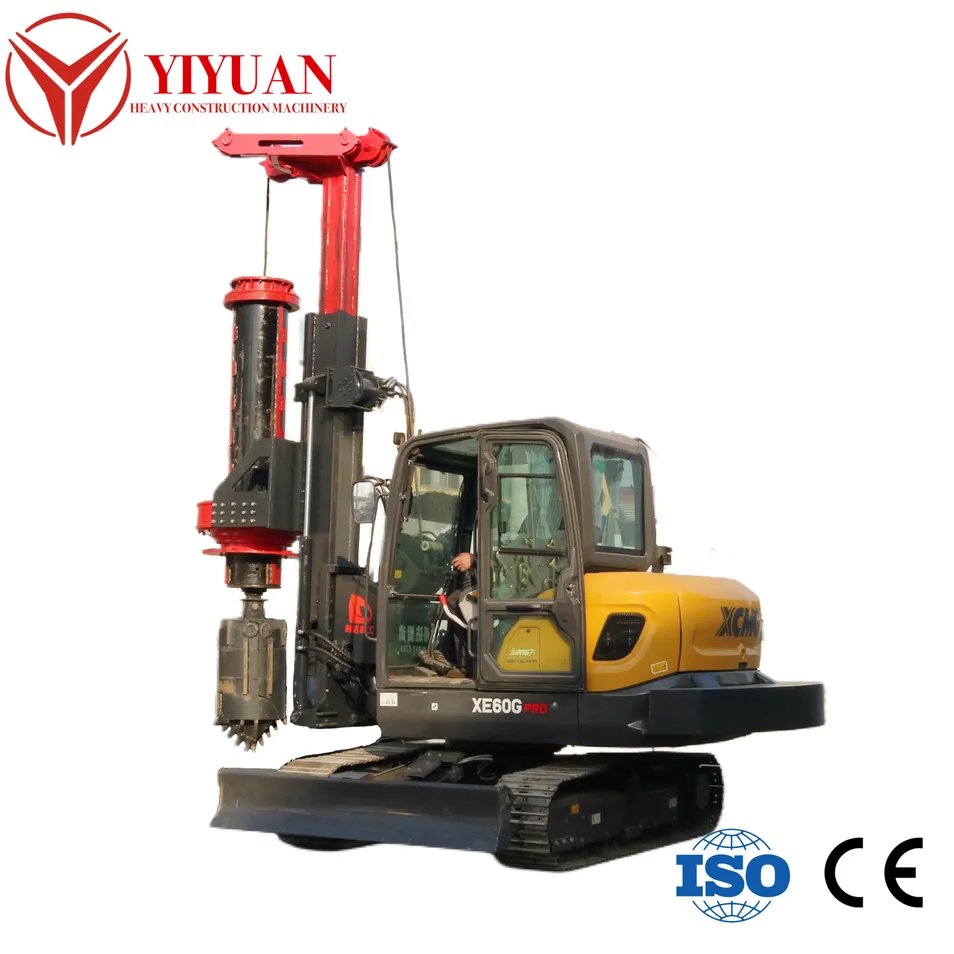

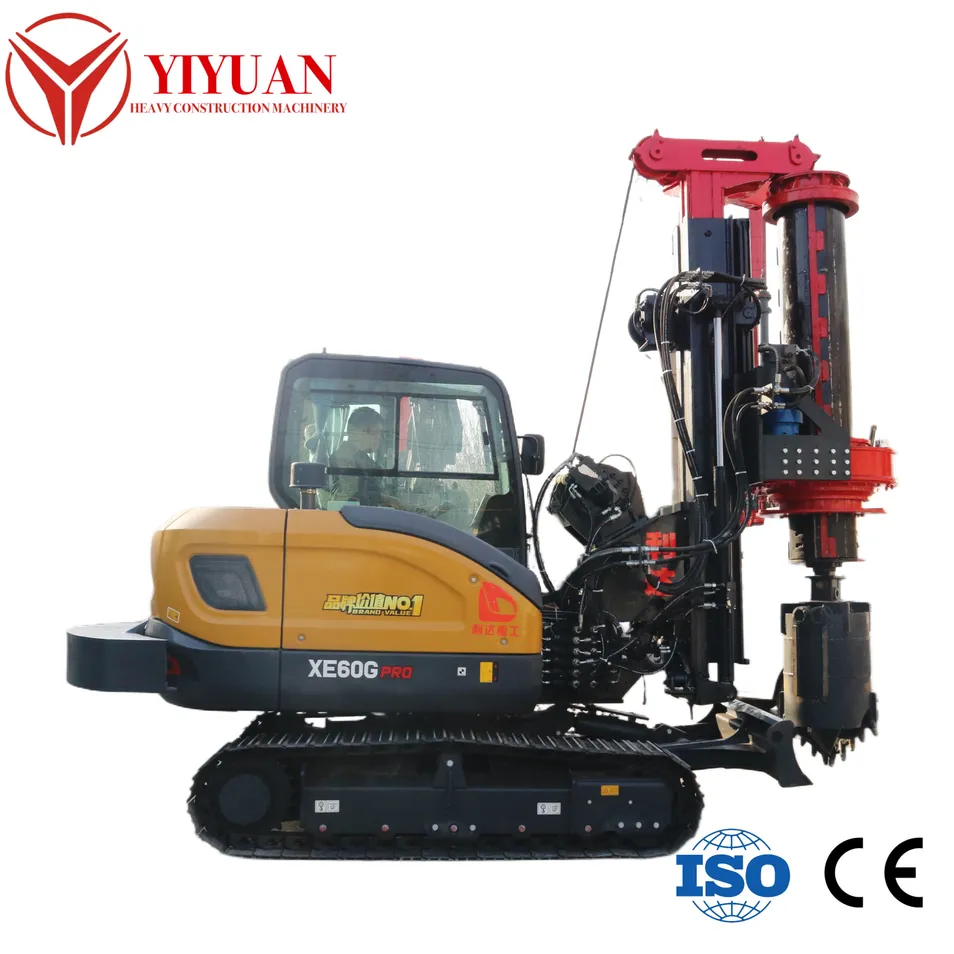

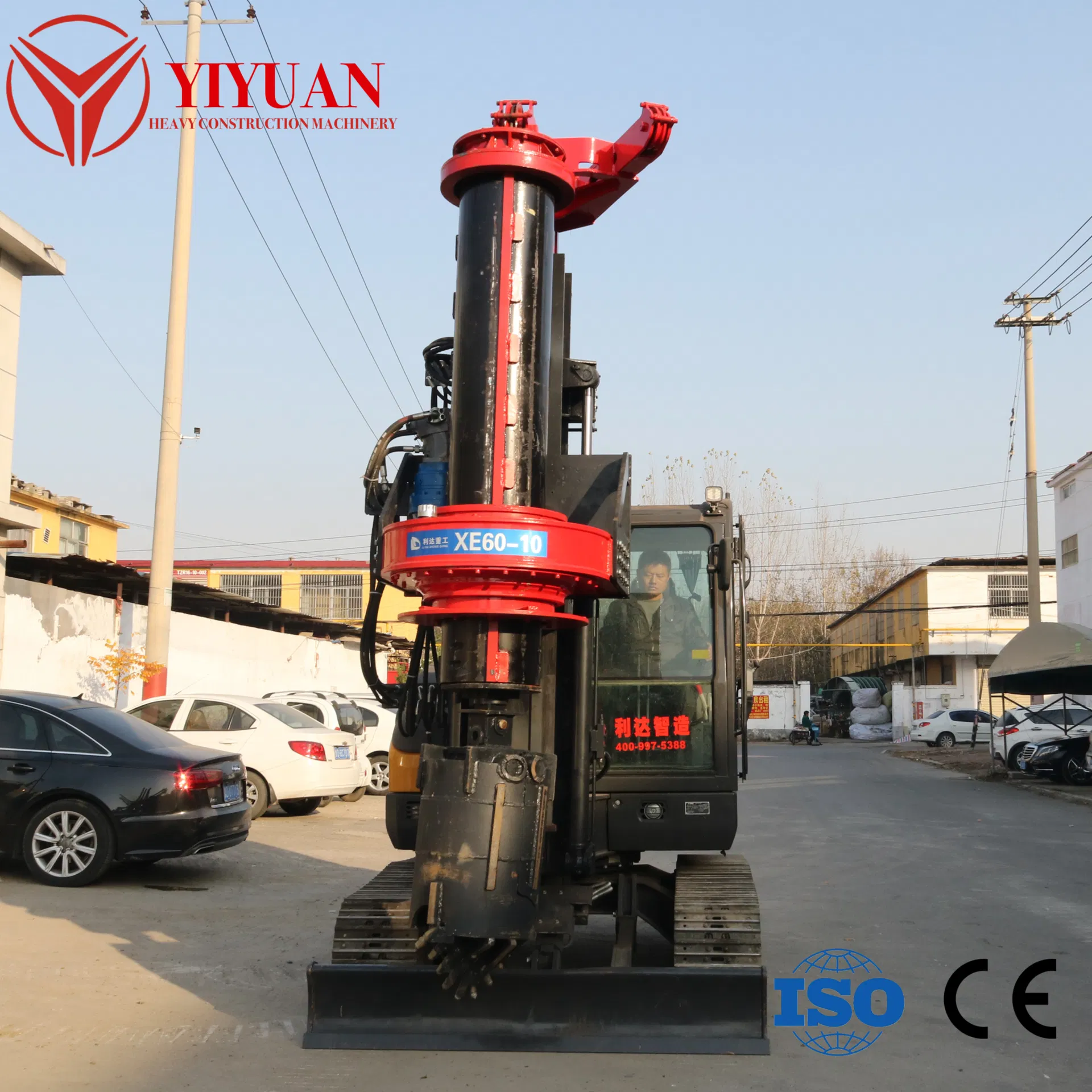

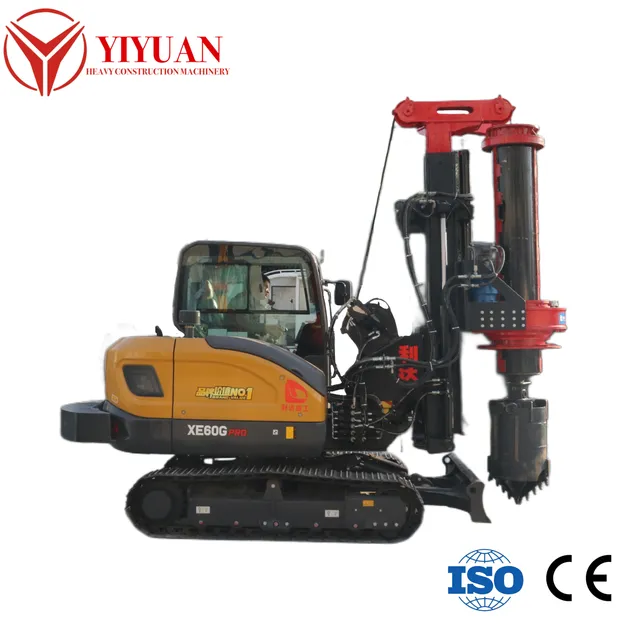

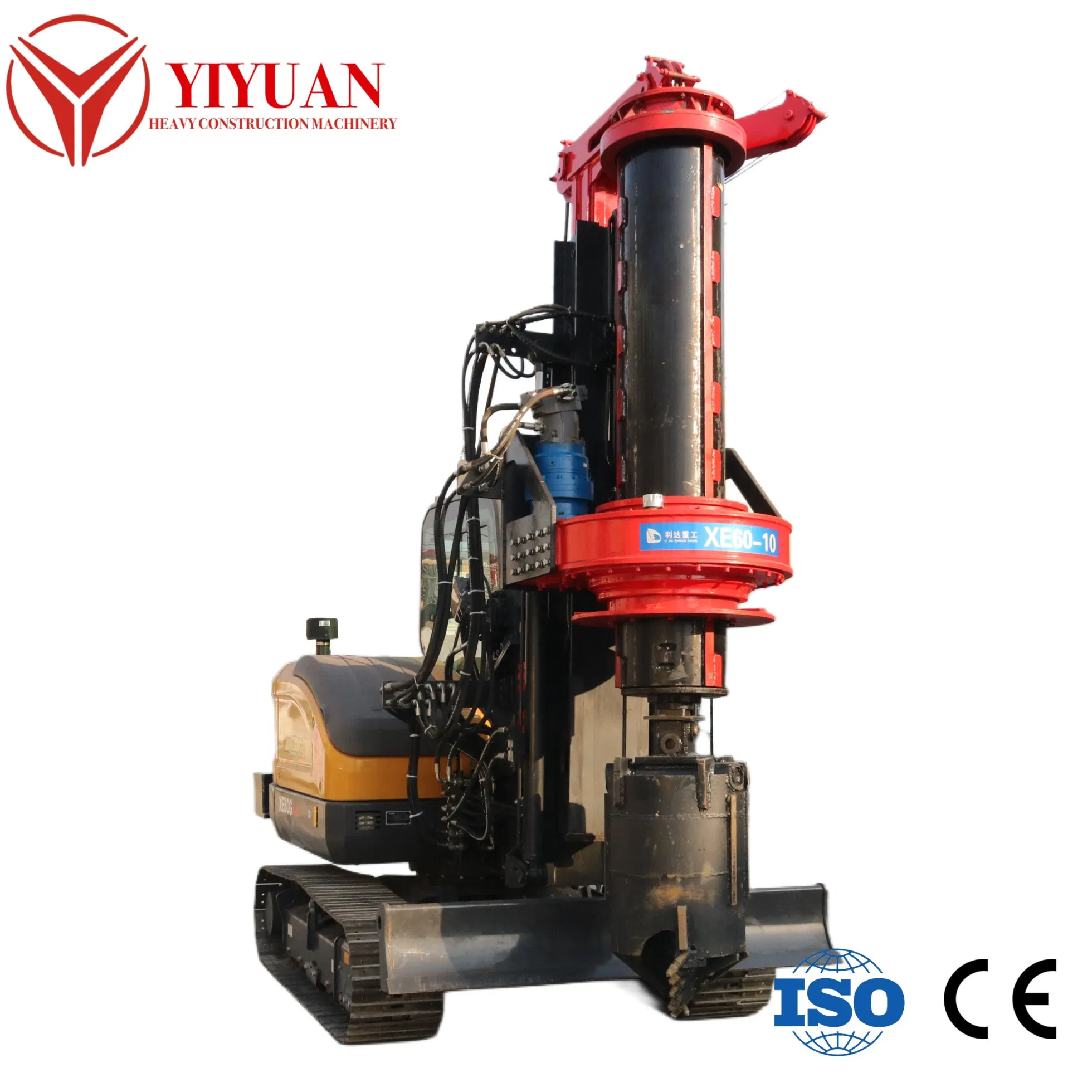

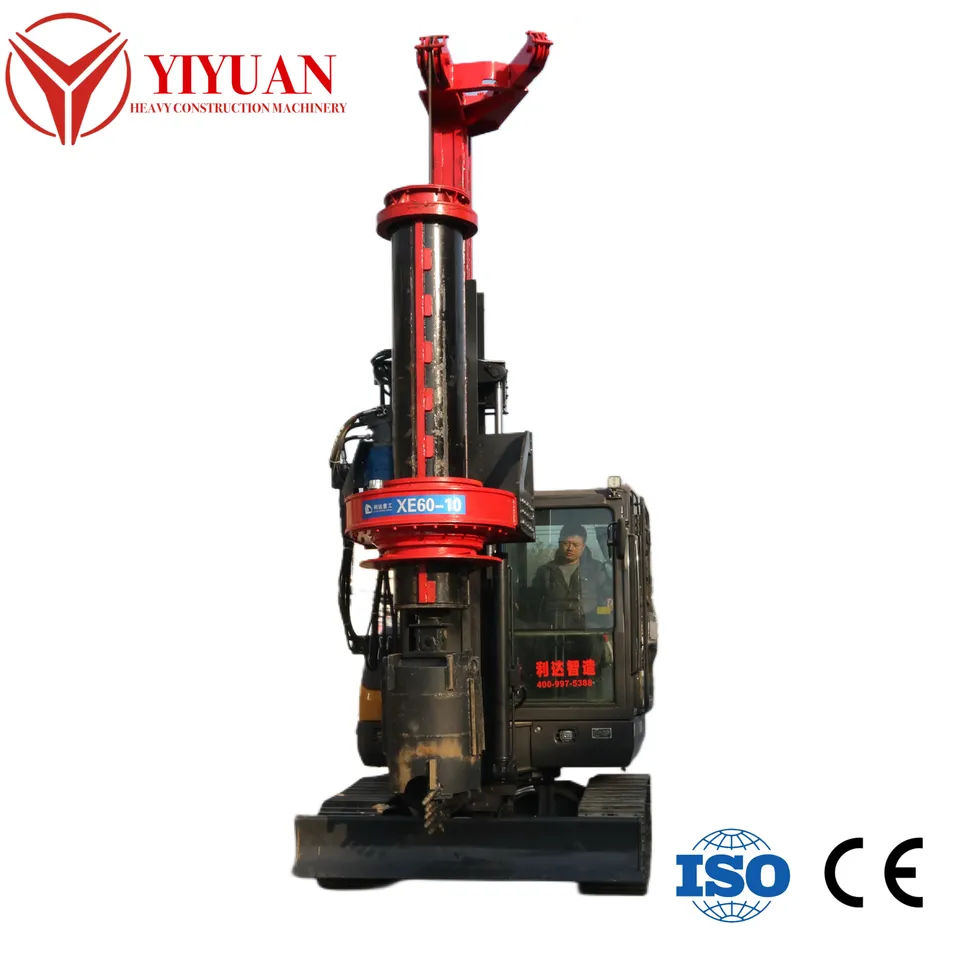

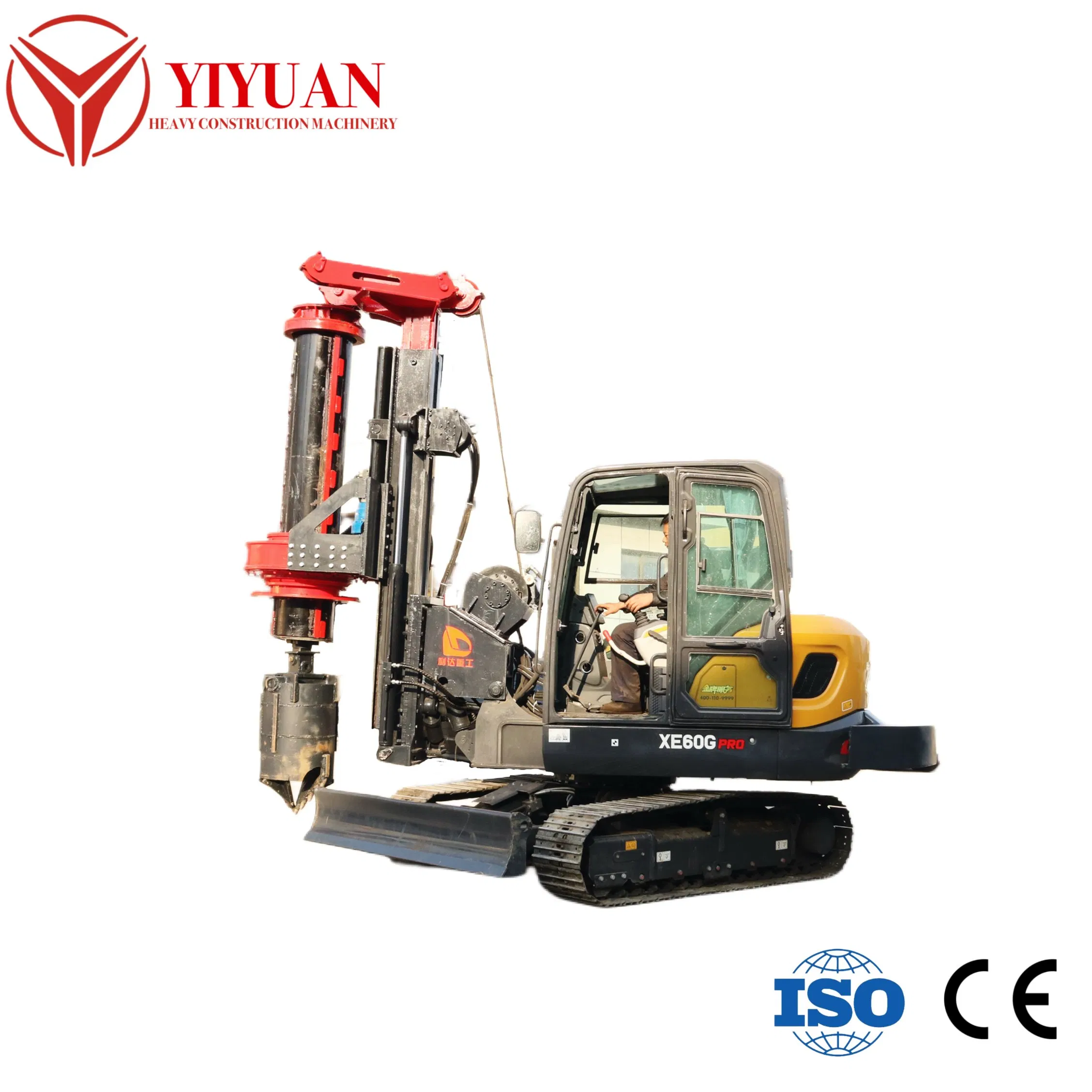

The Rotary Drilling Rig is a heavy-duty hydraulic machine engineered for deep foundation and challenging piling projects. Combining powerful torque with exceptional drilling capacity, it excels in diverse soil conditions and complex geological formations.
Its robust design and advanced hydraulic features enable efficient performance for cast-in-place piles, continuous walls, and foundation reinforcement, even in confined or urban sites. Highly maneuverable and customizable, this rig maximizes productivity and meets the versatile demands of modern construction.
Handles challenging foundation projects with exceptional depth capability and powerful torque. Suitable for a wide range of soil conditions.
Equipped with reliable engines from leading brands for sustained operation and high performance under demanding workloads.
Engineered for superior rotational force, conquering hard strata and complex geologies with an optimized drivetrain.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Max. Drilling Diameter (mm) | 300-1200 |
| Max. Drilling Depth (m) | 13 |
| Pull-Down Cylinder Piston Stroke (mm) | 1000 |
| Main Winch Max. Pulling Force (kN) | 100 |
| Main Winch Single-Rope Speed (m/min) | 50 |
| Auxiliary Winch Max. Pulling Force (kN) | 20 |
| Traveling Max. Speed (km/h) | 2.6 |
| Max. Grade Ability (%) | 30 |
| Min. Ground Clearance (mm) | 340 |
| Transport Dimensions (LxWxH) (mm) | 5000x2000x3000 |
| Working Dimensions (LxWxH) (mm) | 5000x2000x5000 |
Incorporates robust main and auxiliary winches for stable lifting, rod handling, and flexible operations.
Designed with a heavy-duty chassis and wide tracks for tough terrain and excellent gradeability.
