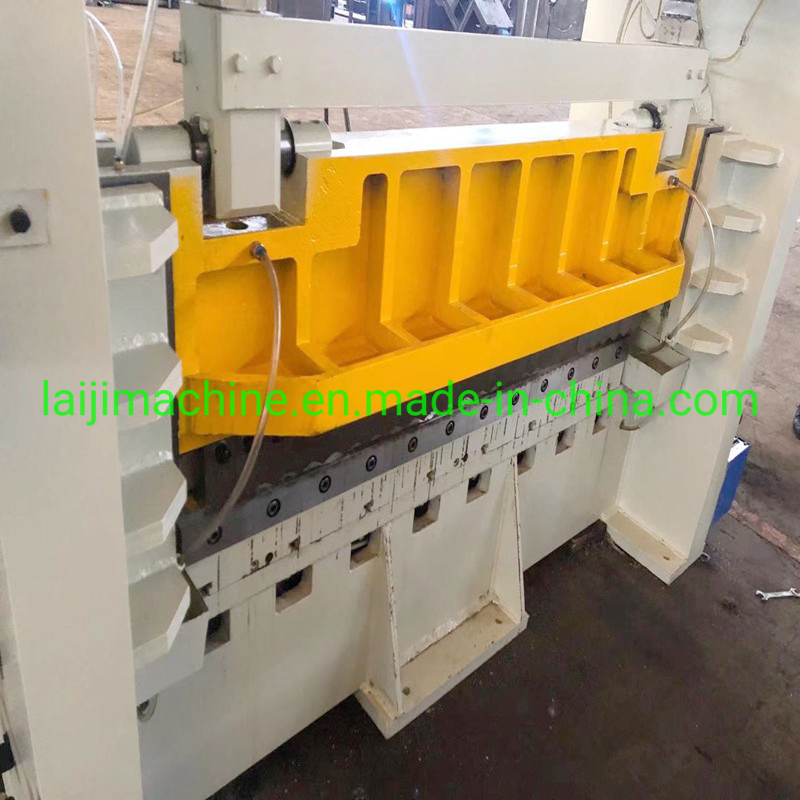

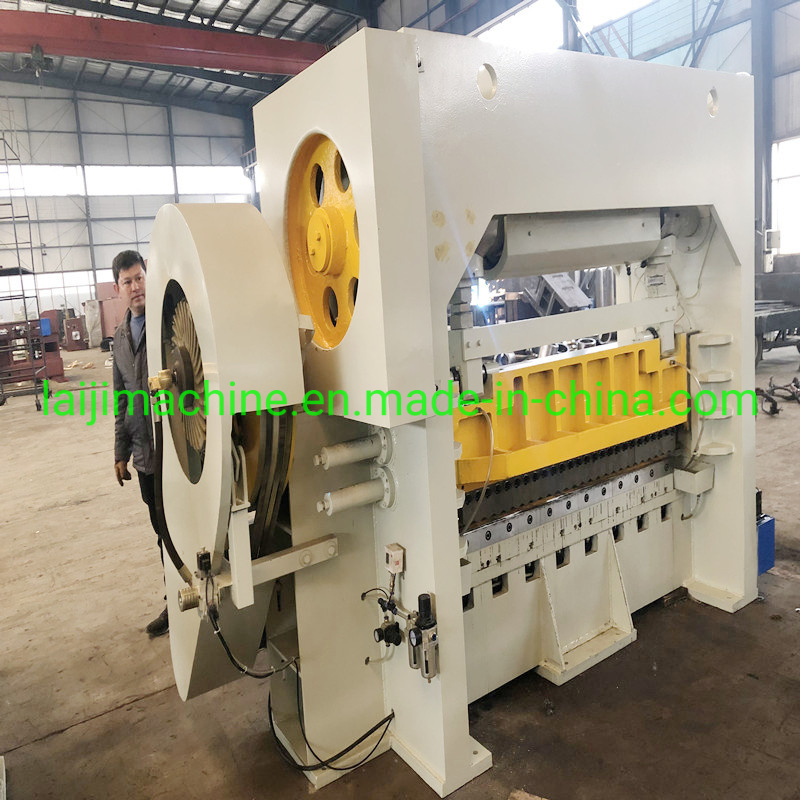

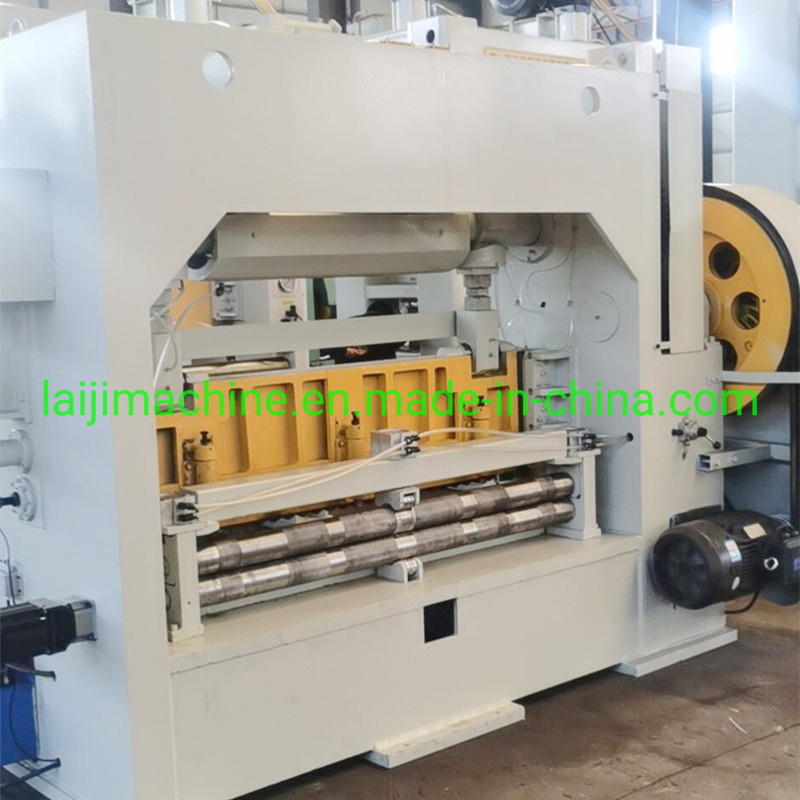

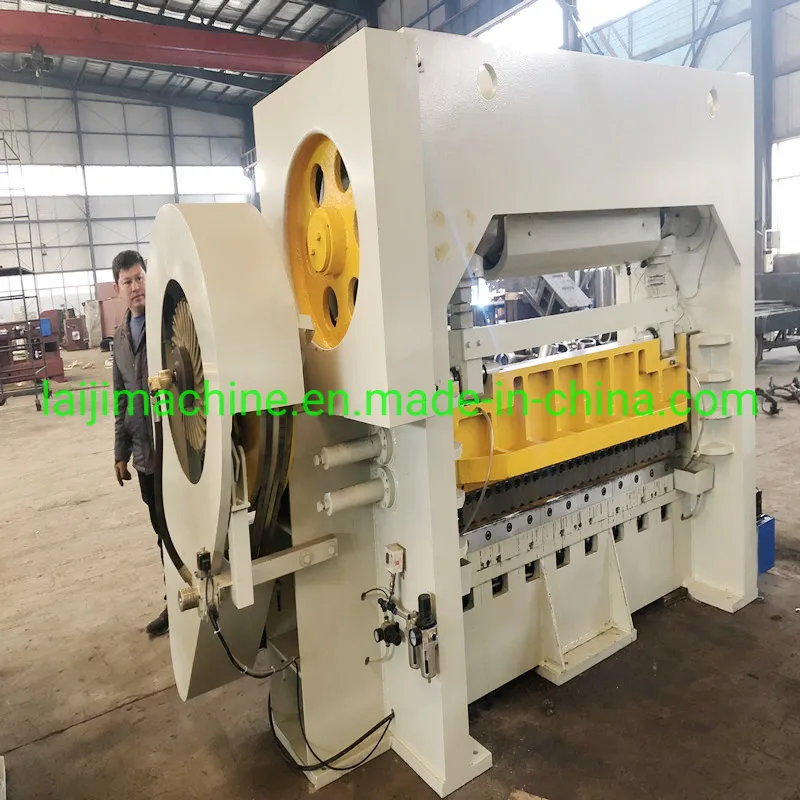

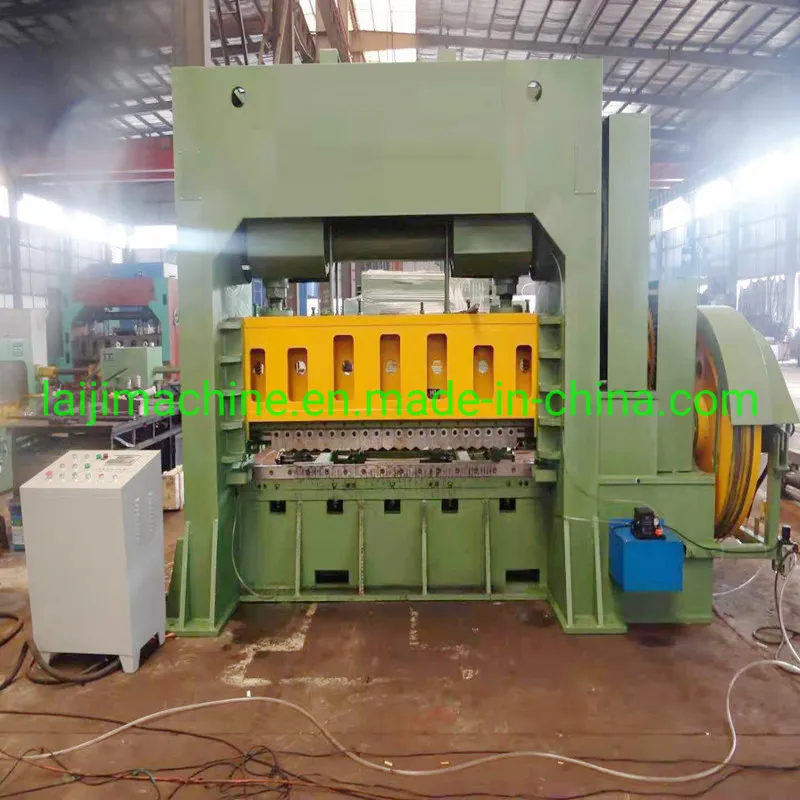

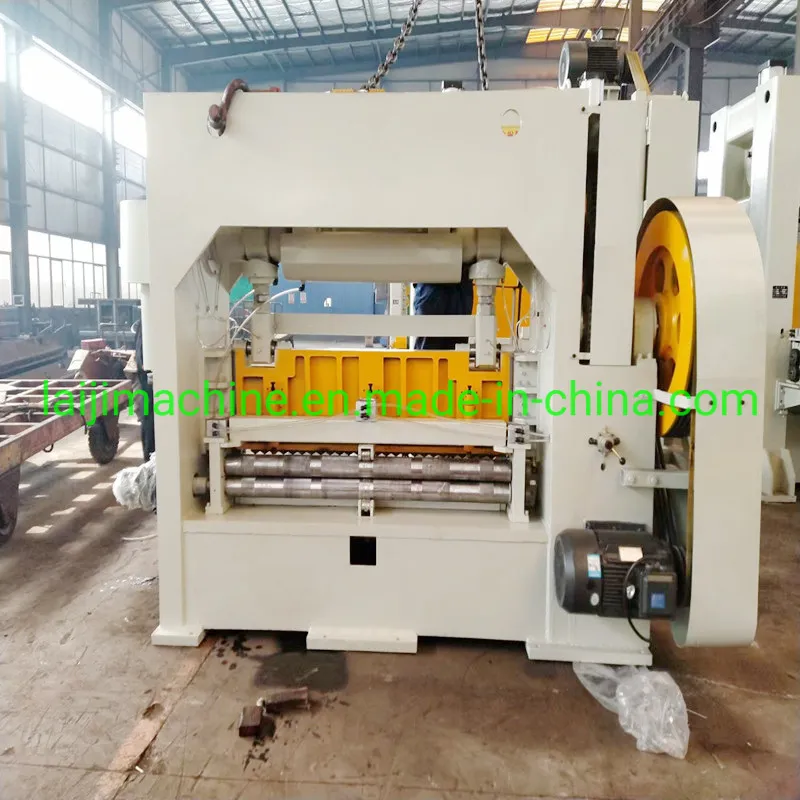

The Expanded Plate Mesh Machine is a high-technology solution with high practicability. It is designed to produce steel plate mesh, aluminum plate mesh, titanium plate mesh, and various other material meshes.

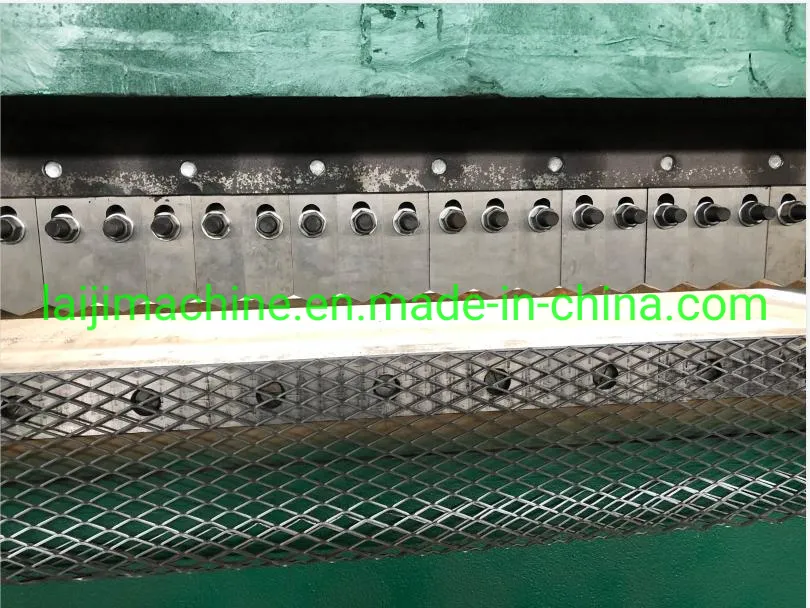

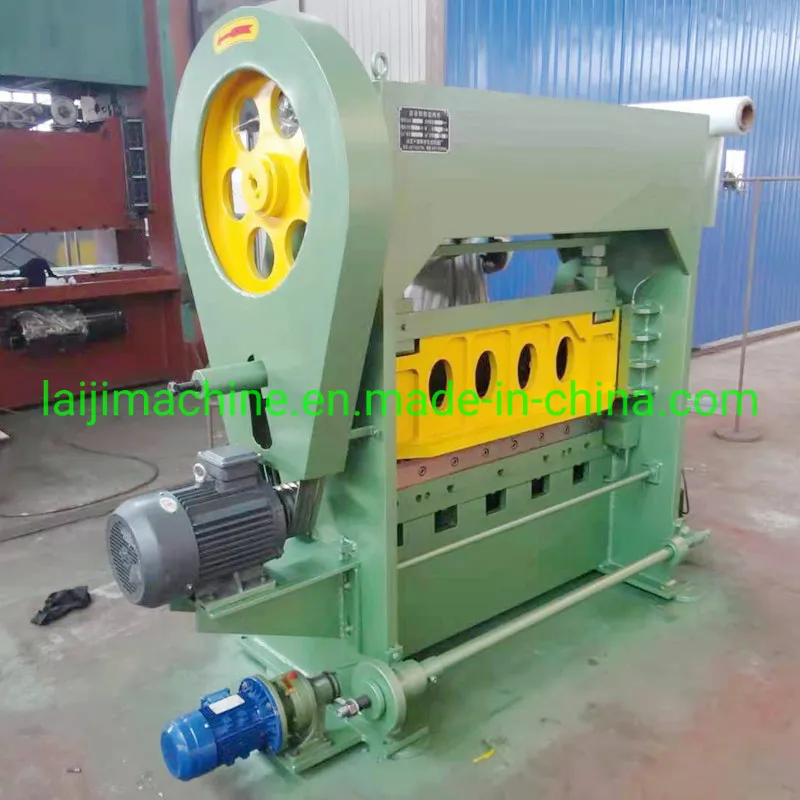

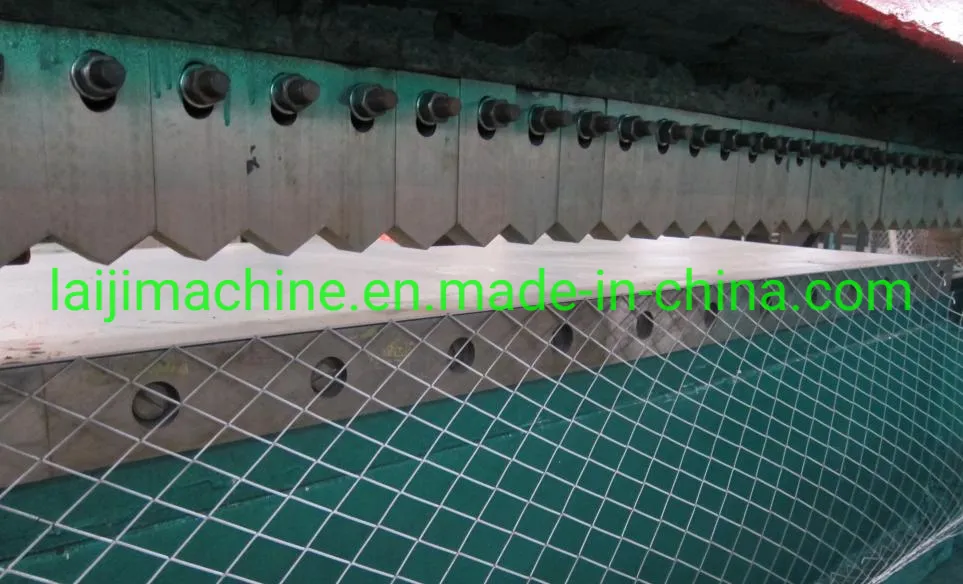

These machines are widely utilized for punching all kinds of expanded plate mesh used in construction, general hardware, window and door manufacturing, and machinery protection. The feeding mechanism is directly linked to the main engine via a chain link, ensuring movement accuracy and reliability.
| Model | Width (mm) | Thickness (mm) | Speed (times/min) | Feeding Distance | Max. LWD | Motor | Weight | Size (mm) |
|---|---|---|---|---|---|---|---|---|
| LJ 25-6.3 | 650 | 0.1-1.2 | 320 | 0-5mm | 20mm | 4kw | 1.2T | 800*1400*1520 |
| LJ 25-16 | 1000 | 0.2-1.5 | 280 | 0-5mm | 25mm | 5.5kw | 2.5T | 1000*1700*1800 |
| LJ 25-25 | 1250 | 0.3-1.5 | 220 | 0-5mm | 30mm | 4kw | 3T | 1100*2070*2080 |
| LJ 25-40 | 1500 | 0.5-2.5 | 110 | 0-10mm | 80mm | 11kw | 6T | 1830*3100*2030 |
| LJ 25-63 | 2000 | 0.5-4 | 65 | 0-10mm | 150mm | 18.5kw | 12T | 3300*3700*2500 |
| LJ 25-100 | 2500 | 0.5-4 | 60 | 0-6mm | 150mm | 22kw | 14T | 3300*4200*2500 |
| LJ 25-160 | 2500 | 0.5-6 | 50 | 0-12mm | 200mm | 30kw | 19T | 3500*4300*2650 |
Our machine can be produced with a maximum width of 3200mm and a metal sheet thickness of up to 8mm. Suitable materials include low carbon steel, stainless steel, aluminum, and copper plates.

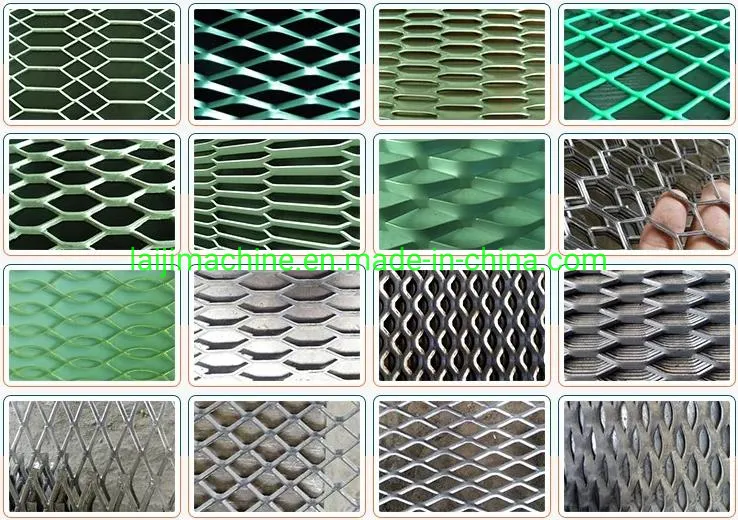

We can design the machine according to your specific metal materials and thickness requirements.

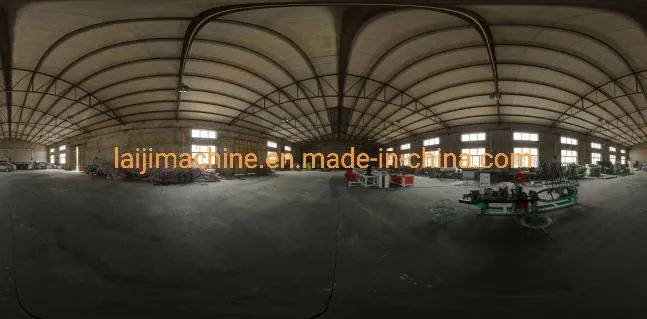

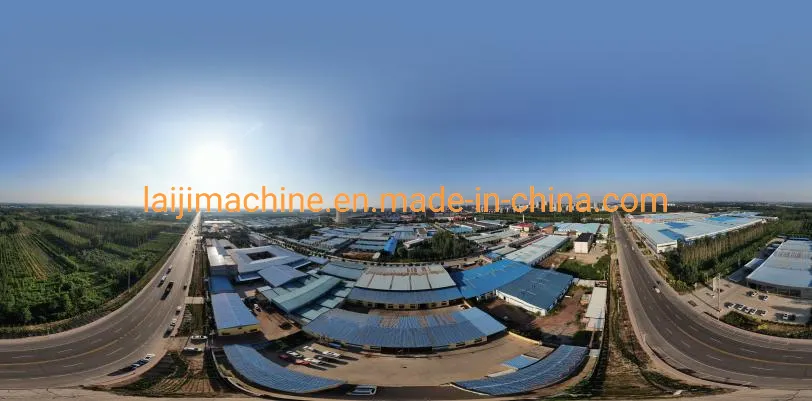

Our facility was established in 1999 and covers an area of 5,800 square meters. We are located in a prominent wire mesh production hub, providing convenient logistics and access for international distribution.
