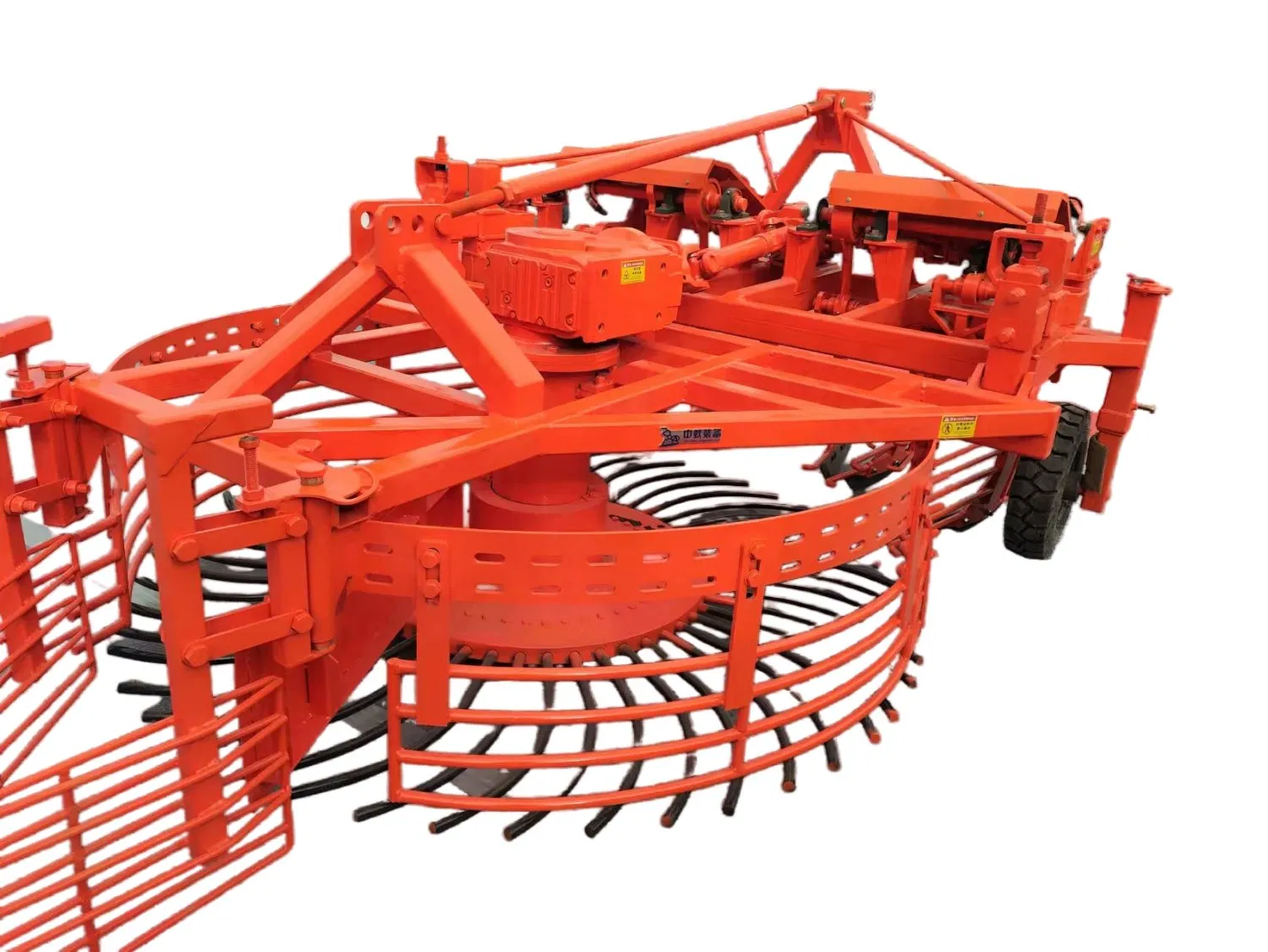

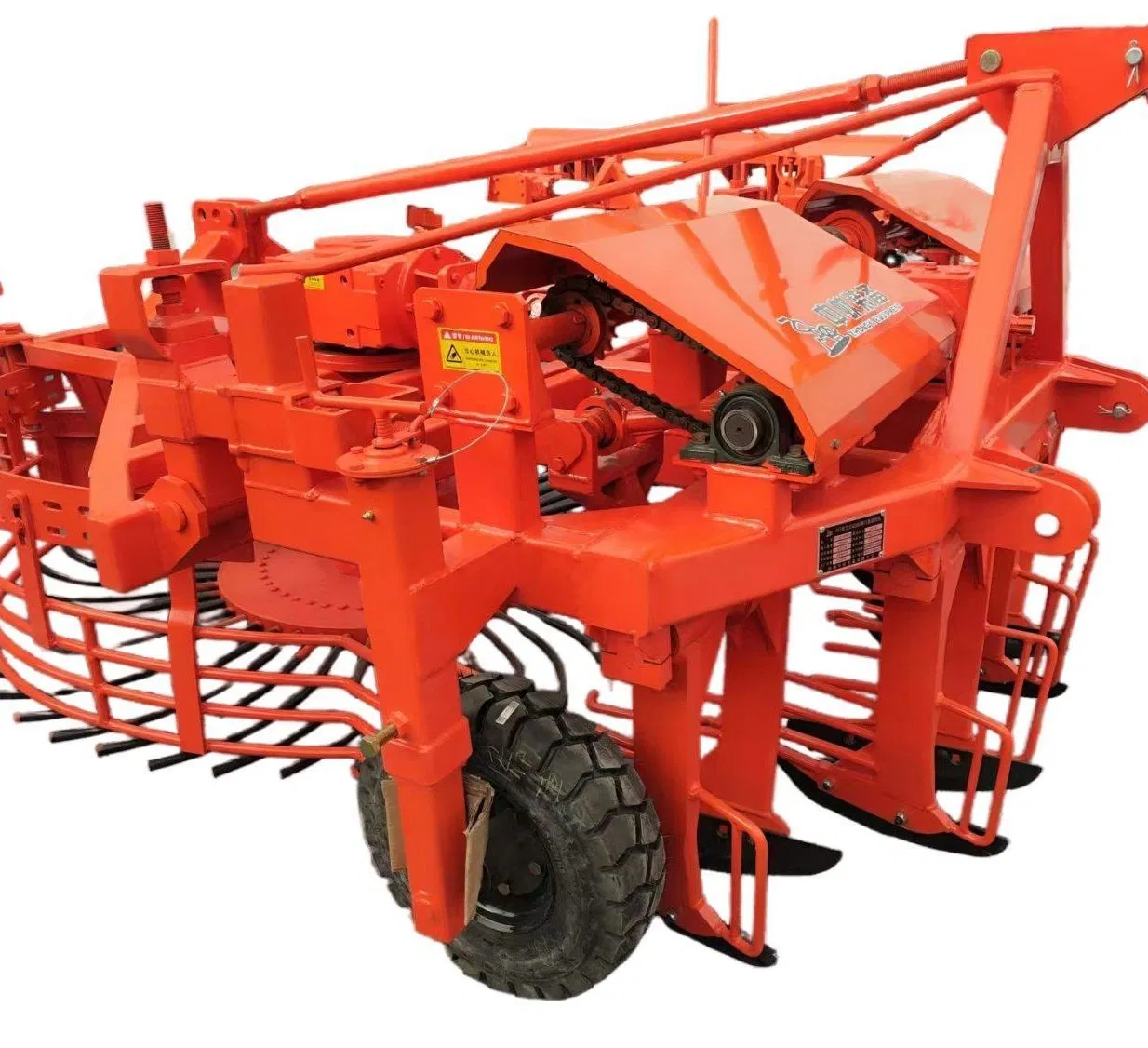

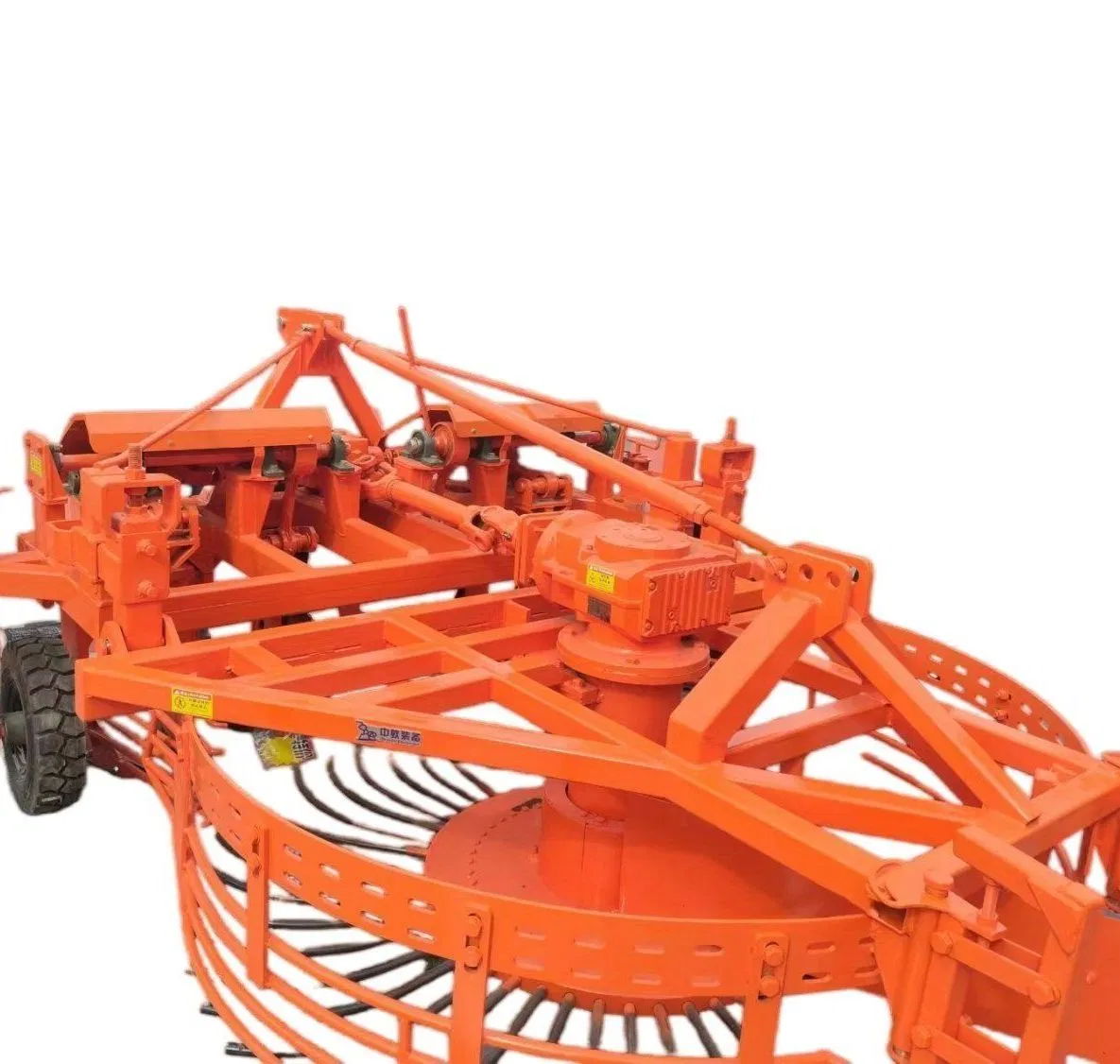

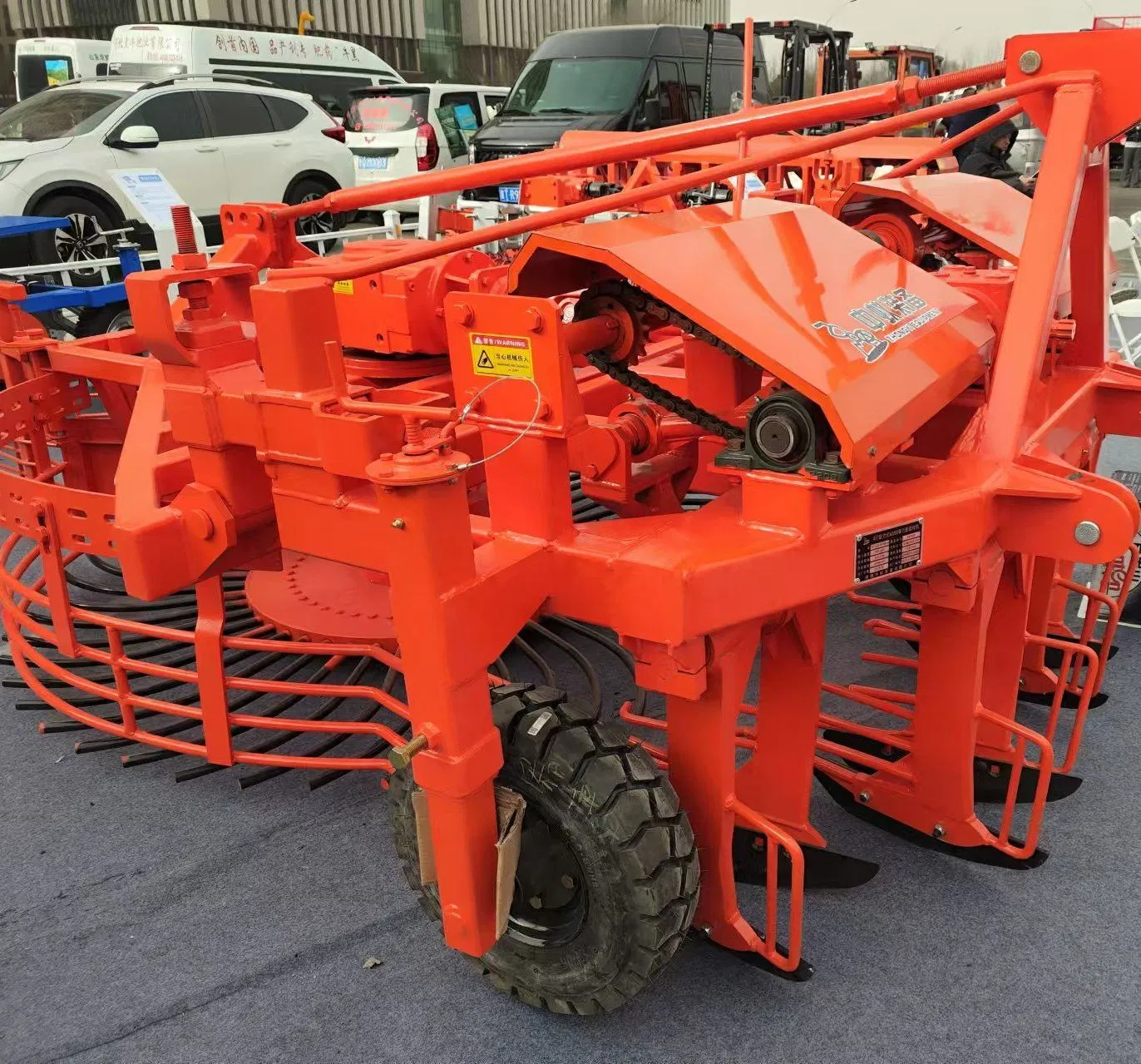

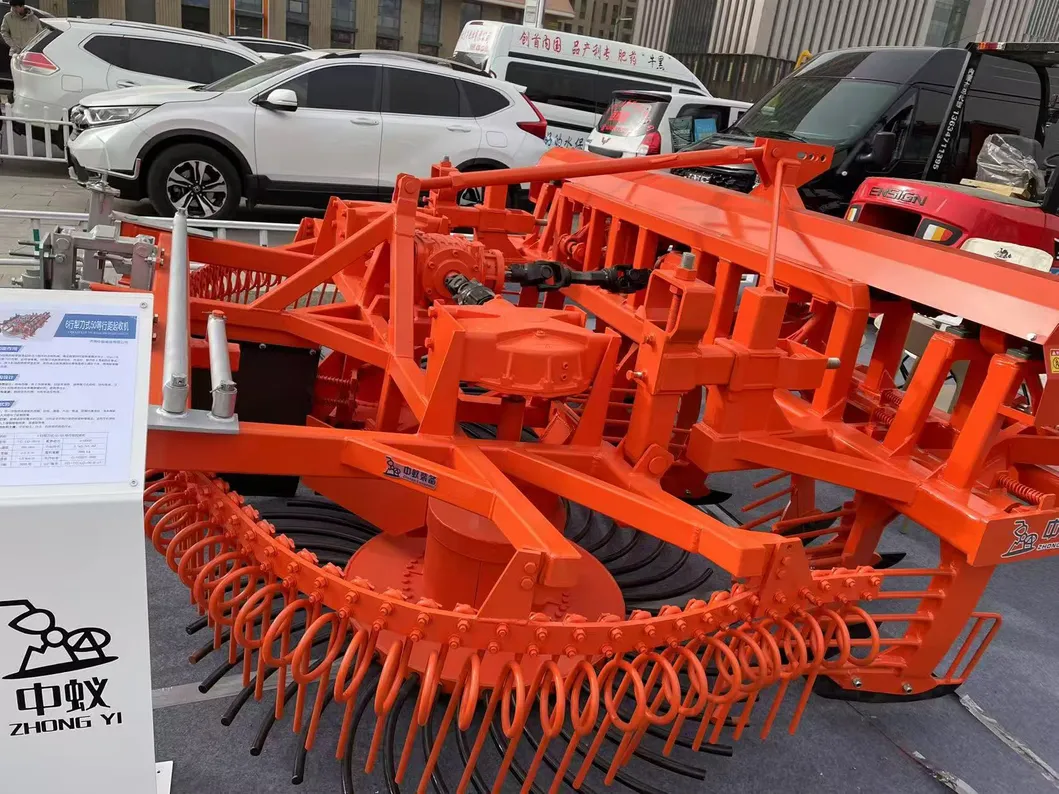

Agricultural machinery specially designed for harvesting mature sugar beet tubers. Tailored for 50 cm row spacing planting patterns, it can harvest six rows of crops at once with high efficiency.

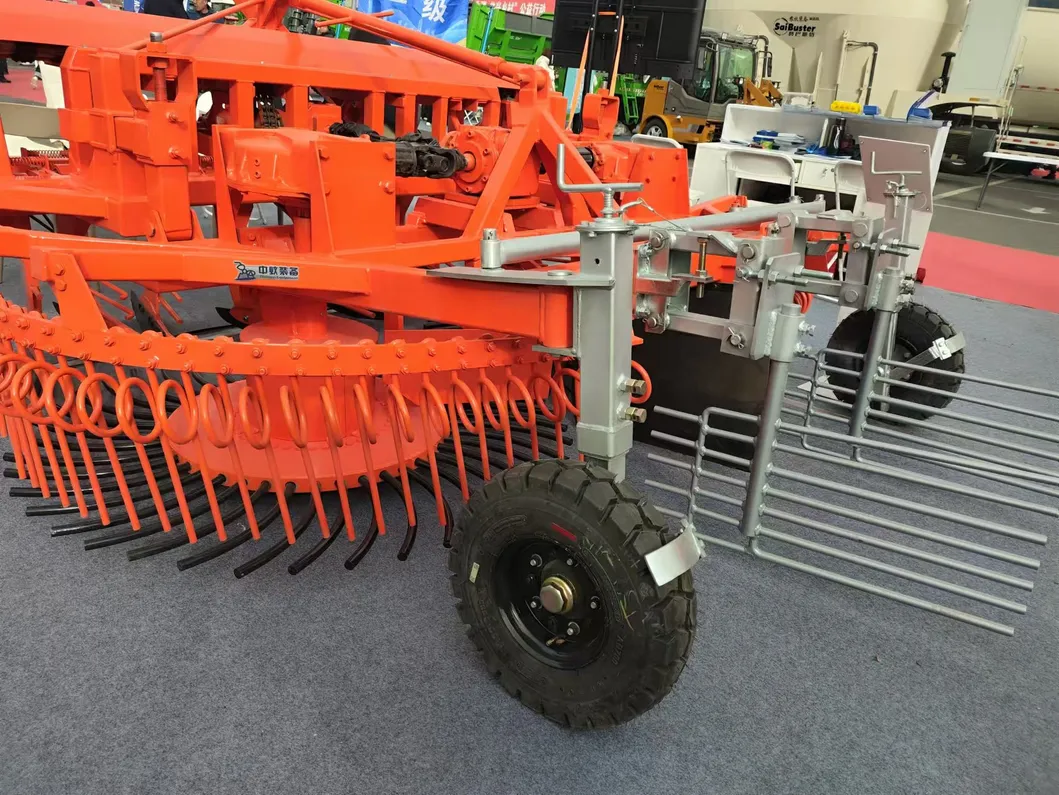

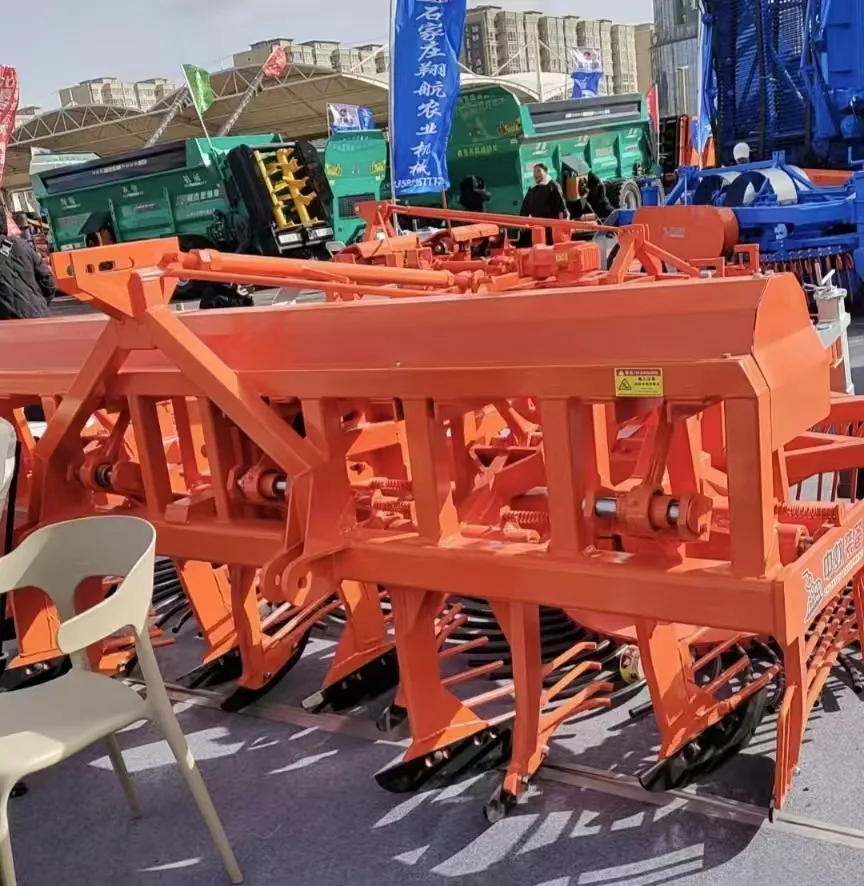

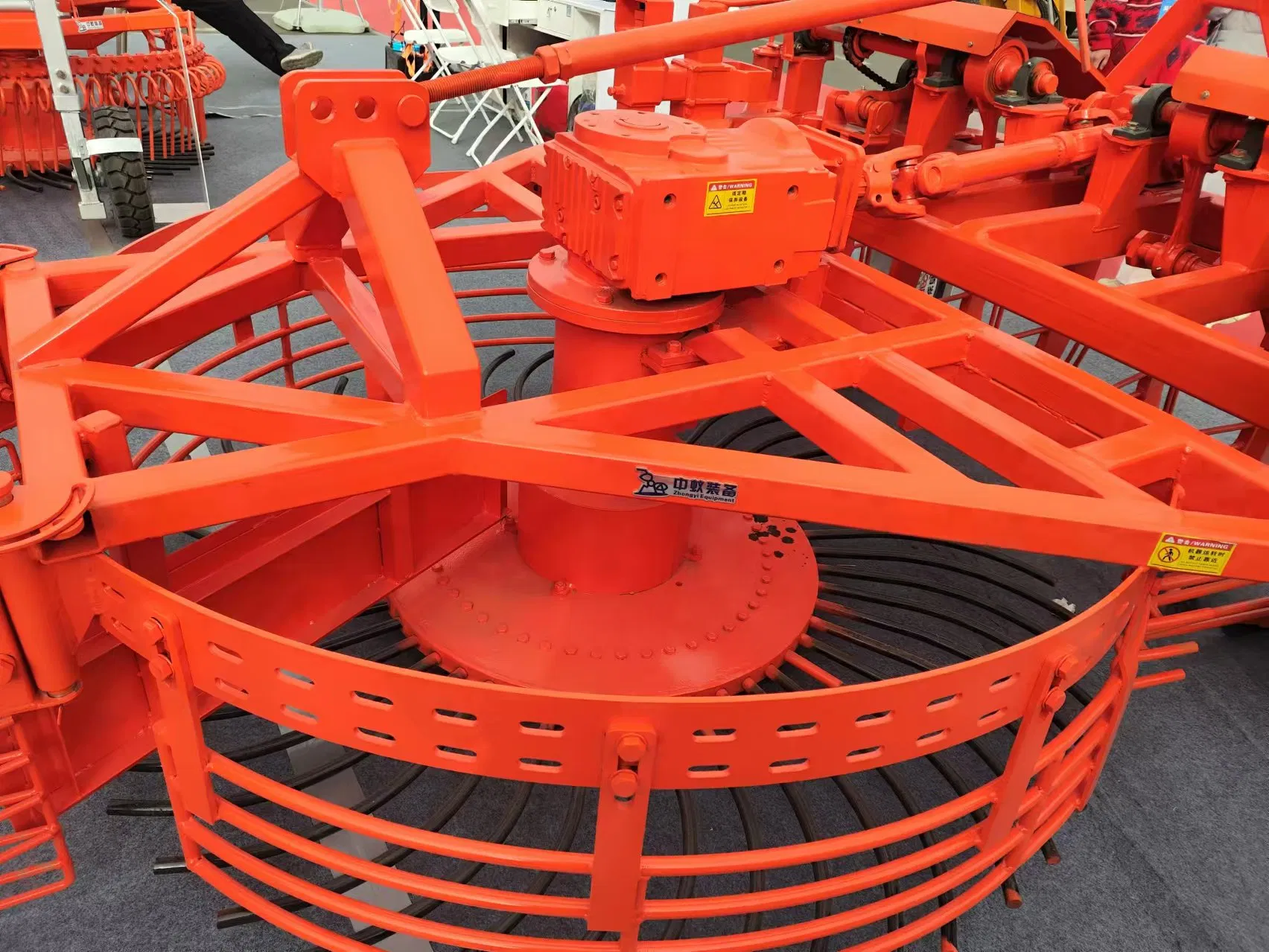

Operation Mechanism: The plow blade moves back-and-forth underground to loosen soil, lift beets, and remove soil and impurities via a rotary sieve and screening rollers. Beets are then transported and loaded.
🛠️ Structural Design
| Technical Specifications | |||
|---|---|---|---|
| Name | 6 Row Plow Blade Type 50 Equal Row Distance Harvester | ||
| Model | TC-LD-50-6 | Matching Power | 89kw |
| Operating Width | ≥3m | Dimensions | 3.1*3.1*1.3m |
| Input Speed | 760rpm | Machine Weight | 1900kg |
| Working Speed | ≤8km/h | Standard | Q/HS001-2022 |
Products are designed and manufactured strictly according to customer requirements. Our team uses suitable packaging such as wooden boxes or iron frames to protect goods from exposure, rain, and collisions during transit. Packing lists and status updates are provided promptly to ensure security.
