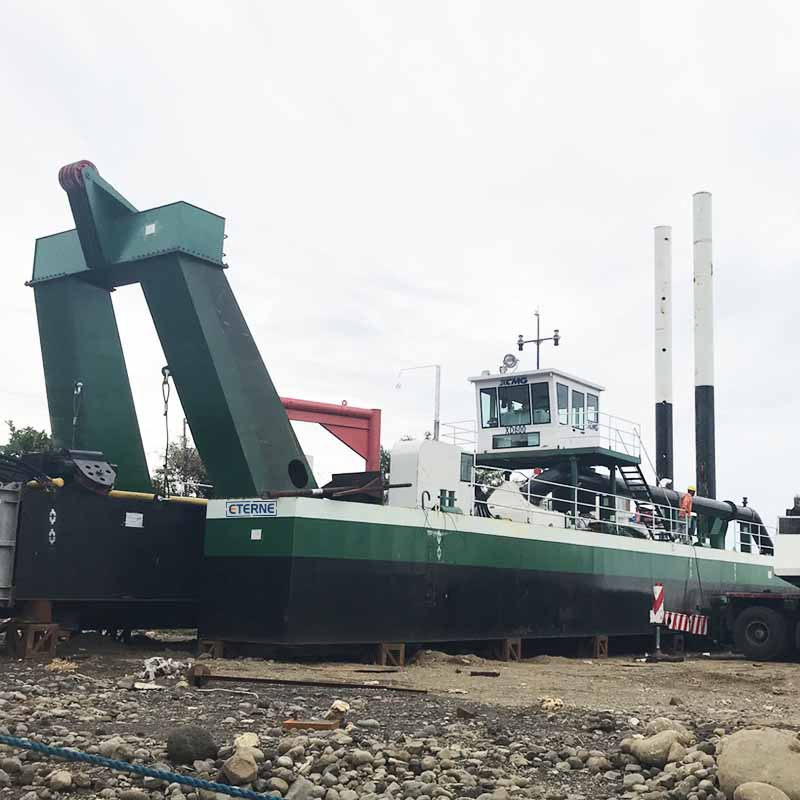

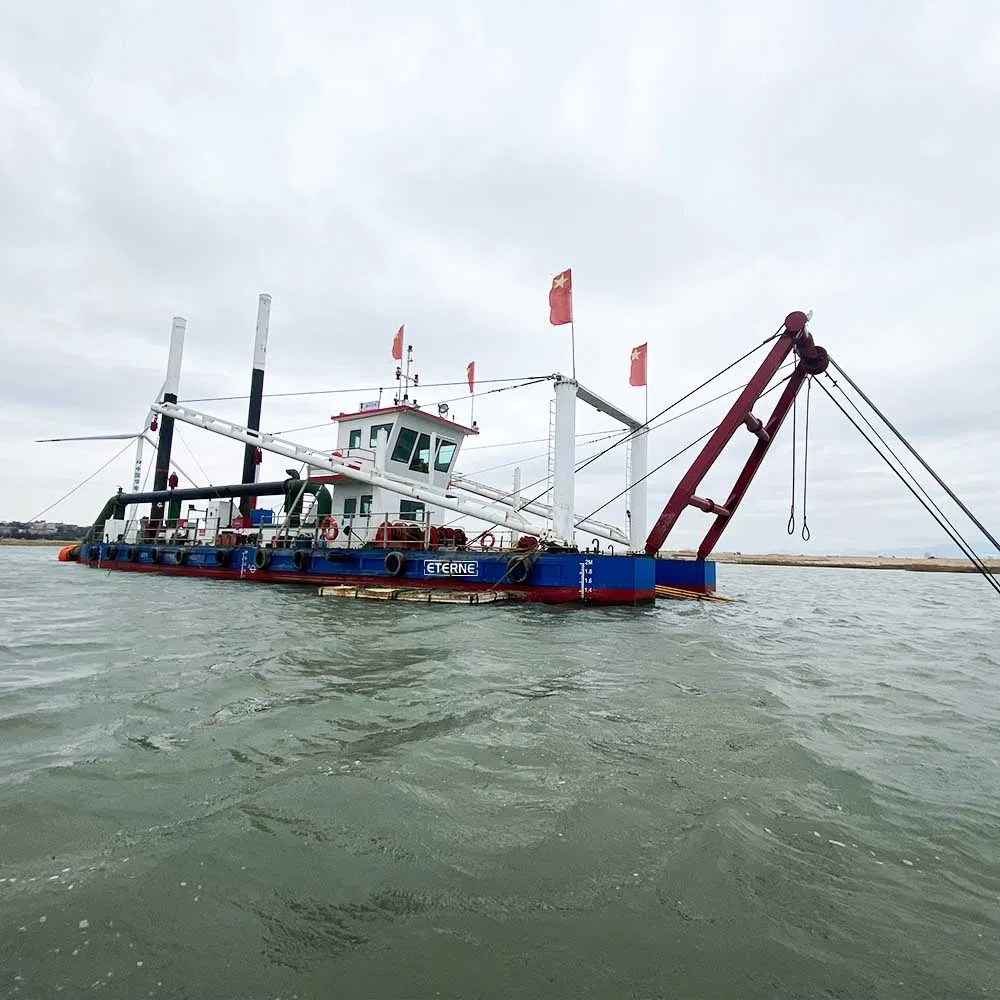

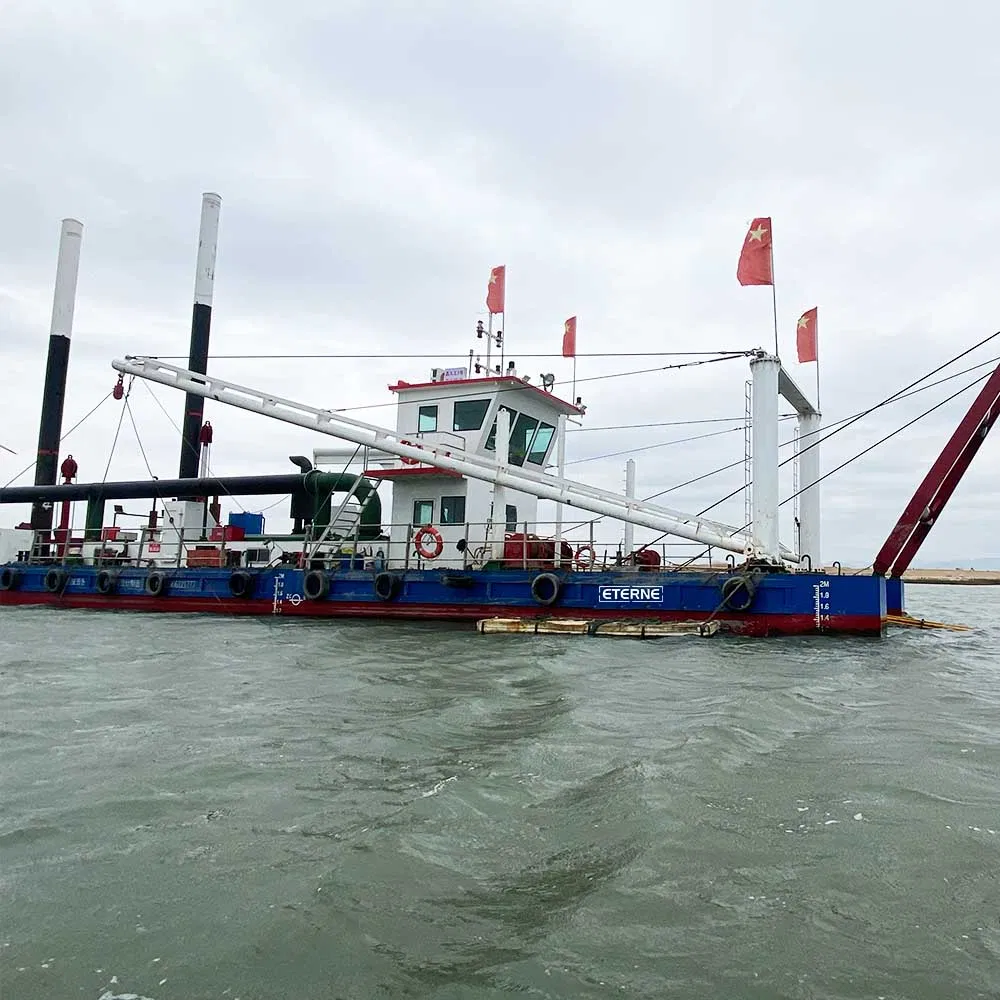

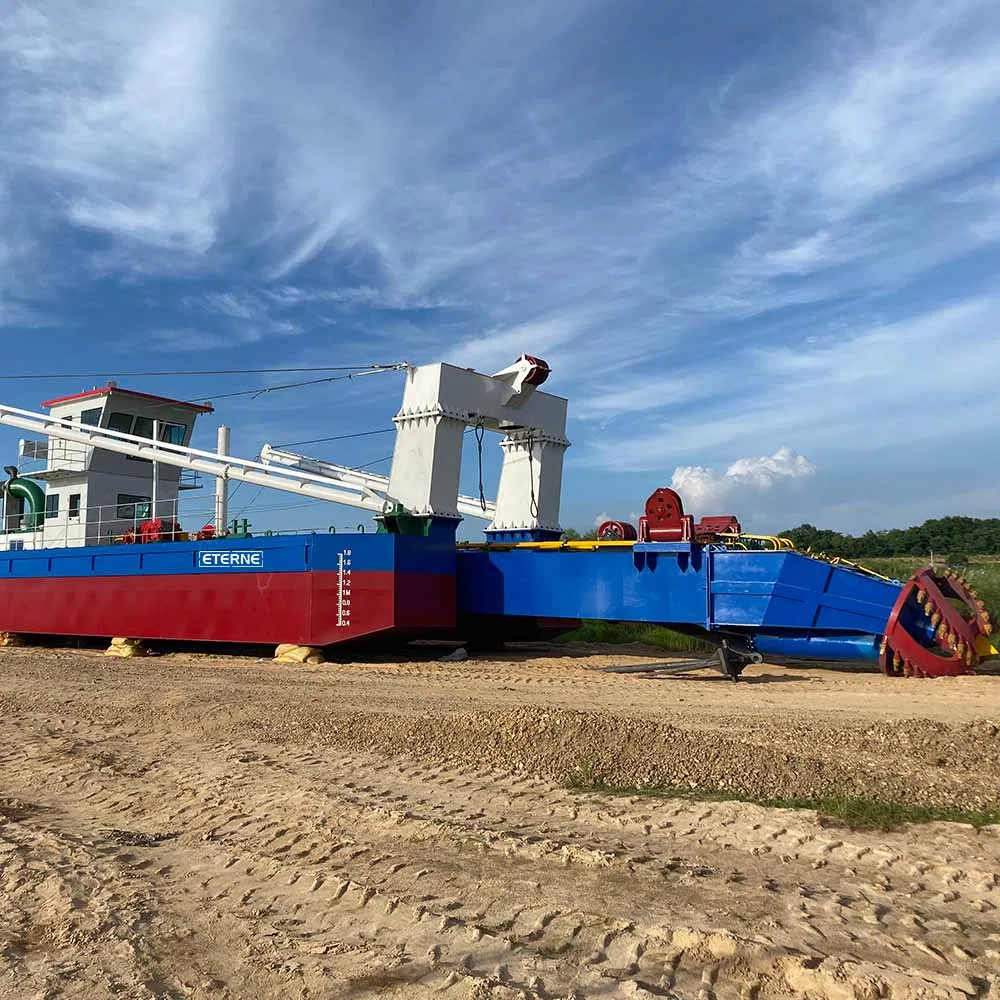

Advanced Hydraulic Pipeline Cutter Suction Dredger Boat Equipment for Sale

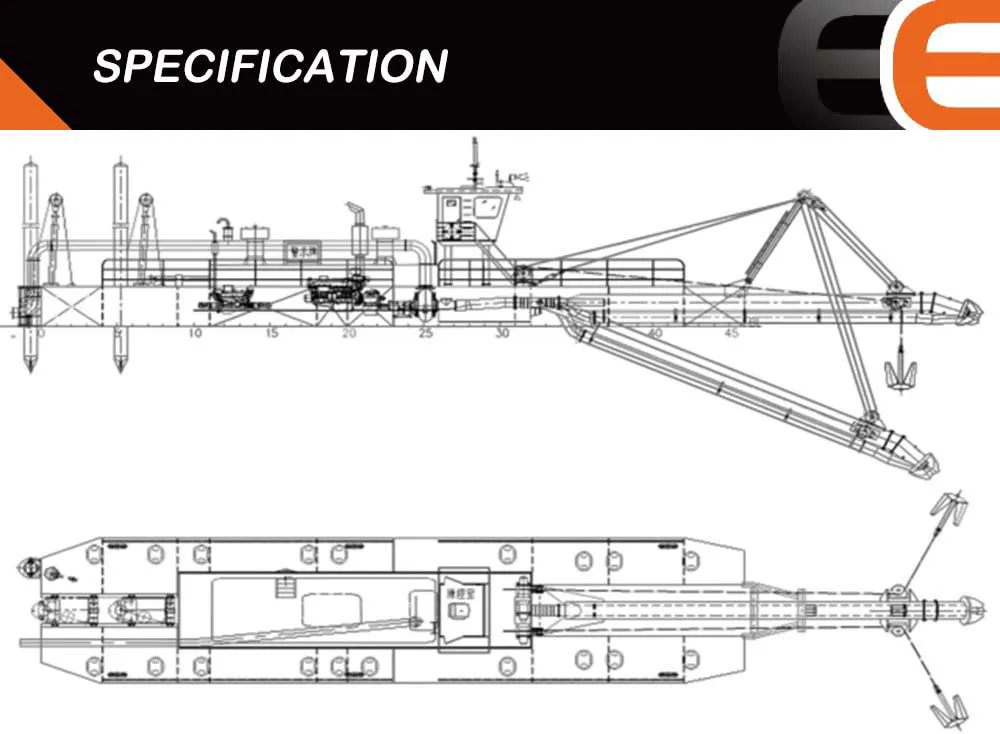

| Specification Of Cutter Suction Dredger | |||||||
| Model | CSD200 | CSD250 | CSD300 | CSD400 | CSD450 | CSD600 | CSD650 |
| Total Length | 26m | 27m | 29m | 33m | 36m | 40m | 43m |
| Max. Depth (m) | 8 | 10 | 12 | 15 | 15 | 20 | 30 |
| Water Flow (m3/h) | 600 | 1000 | 1500 | 2200 | 3000 | 5500 | 7000 |
| Discharge Dia. (mm) | 200 | 250 | 300 | 400 | 450 | 600 | 650 |
| Amount Power (kw) | 190 | 300 | 450 | 760 | 1007 | 2300 | 2800 |

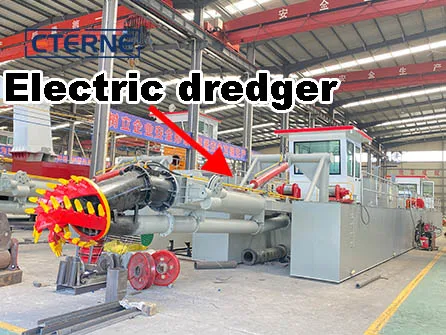

Environmentally friendly with zero emissions. Reduced noise and flexible operation, ideal for reservoirs and small rivers with power access.

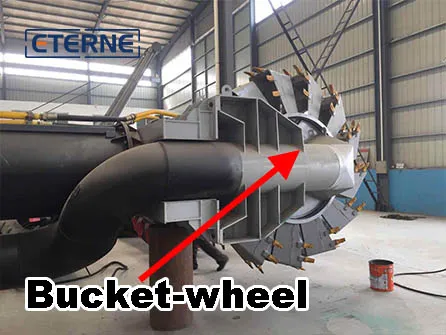

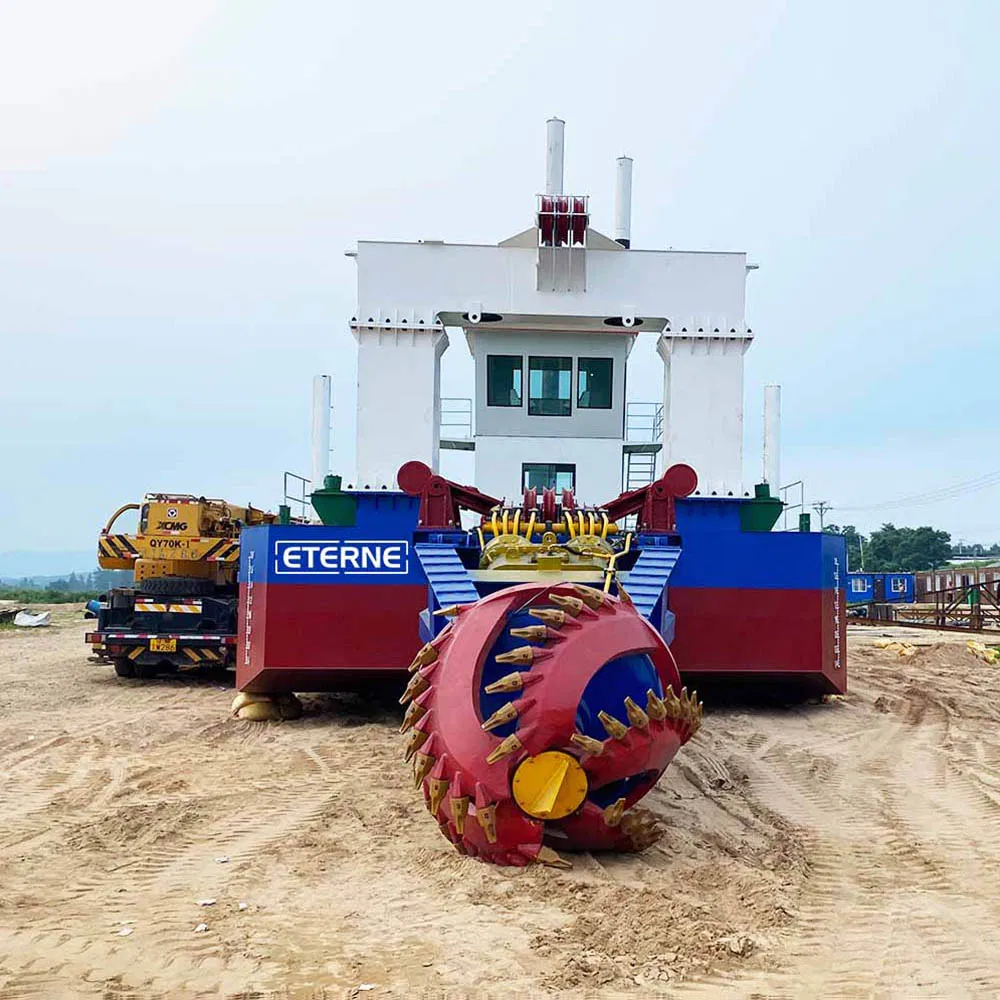

Twice the torque of standard cutter heads. Ideal for hard terrain and mud layers. Interchangable bolt design for versatile excavation.

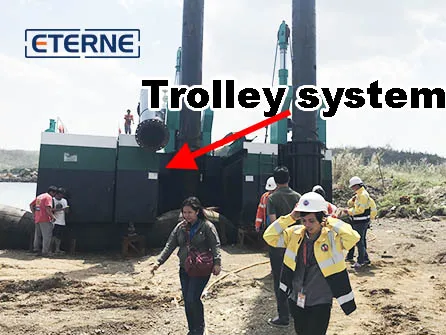

Increases efficiency by 5% to 50% by reducing time for replacing piles. Allows for more workload in the same time frame.
Model: ETCSD150 (6 inch). Water flow: 500 m3/h. Used for Hilton Hotel yacht channel desilting.
Model: ETCSD350 (14 inch). Water flow: 2500 m3/h. Equipped with Cummins engine for infrastructure sand collection.
Model: ETCSD450 (18 inch). Water flow: 3500 m3/h. Successfully deepened port draft for modern container ships.
Model: ETCSD300 (12 inch). Water flow: 1800 m3/h. Used to maintain port channel depth for large container ships.
