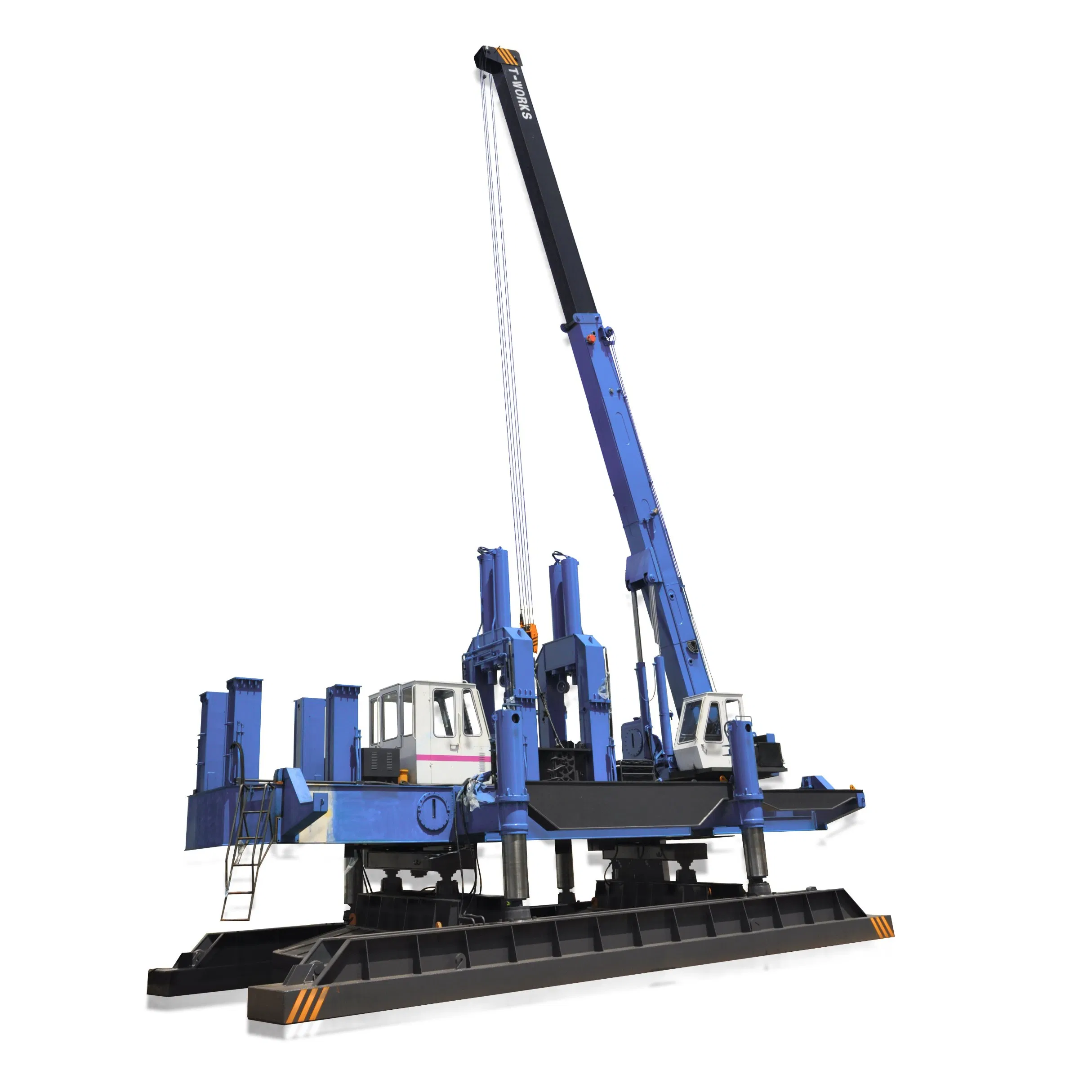

Advanced Automated Pile Driving Solutions for Efficient Construction

Customization:	Available
After-sales Service:	on Site Training
Warranty:	1year

Basic Information

Model NO.

ZYC680B-B1

Type

Pressure Pile Driver

Pile Driver Type

Hydraulic Pile Driver

Pile Hammer Type

Hydraulic Hammer

Power Source

Diesel

Motor Power

Diverse

Noise

Low Noise

Certification

CE, ISO 9001:2000

Condition

New

Piling Speed

7.0 M/Min

Efficiency

98%

Suitable Pile

H-Pile, Sheet Pile, Concrete Pile, Steel Tube

Product Description

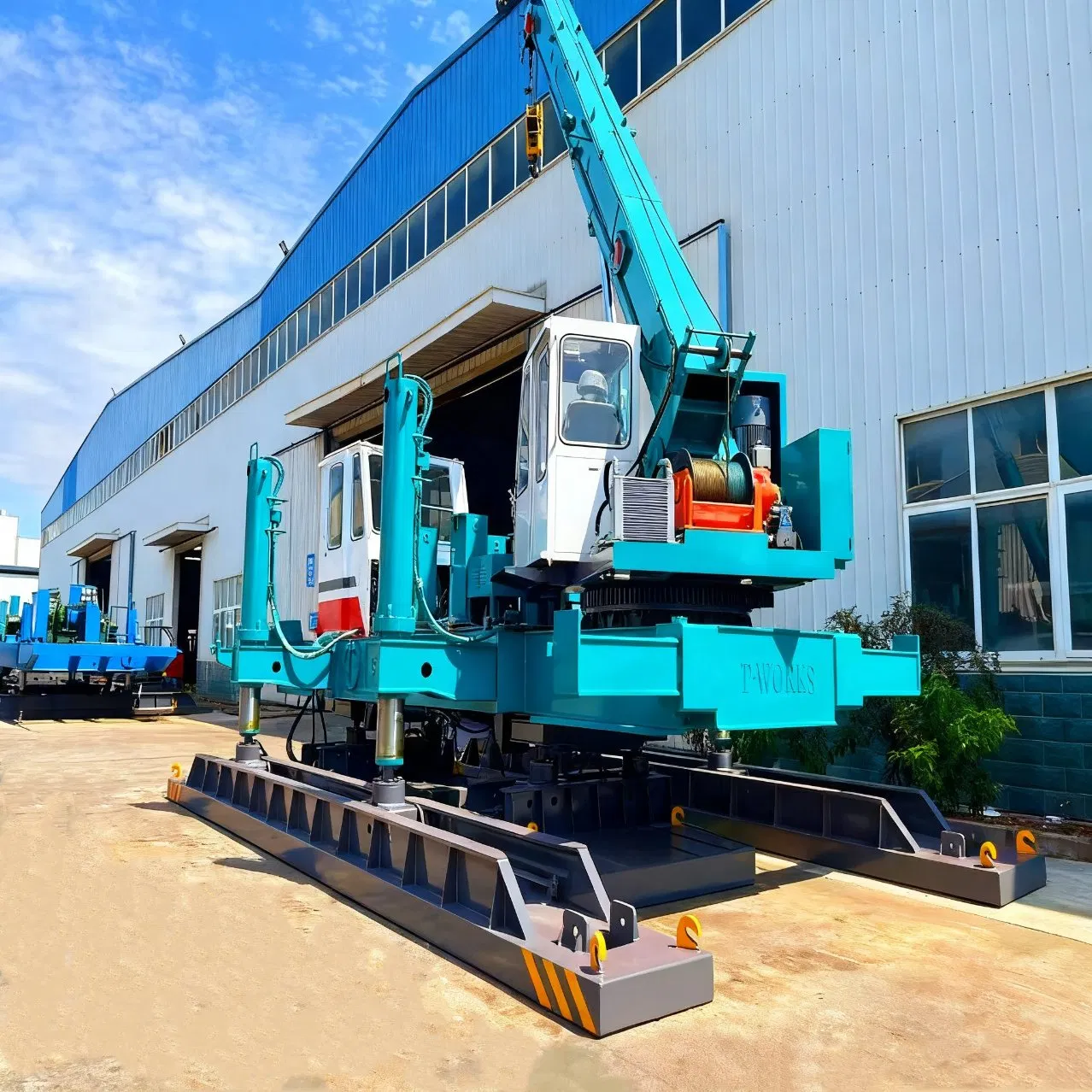

Efficient Hydraulic Piling Rig with Static Function and Customization Options

Elevate your construction projects to new heights with our revolutionary hydraulic static pile driver. Unlike traditional diesel or hydraulic hammers, this cutting-edge marvel is purposefully crafted for urban settings, offering a tranquil, vibration-free, and eco-friendly alternative. Equipped with a sophisticated motorized hydraulic system, it effortlessly manages a wide spectrum of cement piles, including pipe, square, triangle, and sheet varieties, with an astonishing capacity range from 60 to 1200 tons.

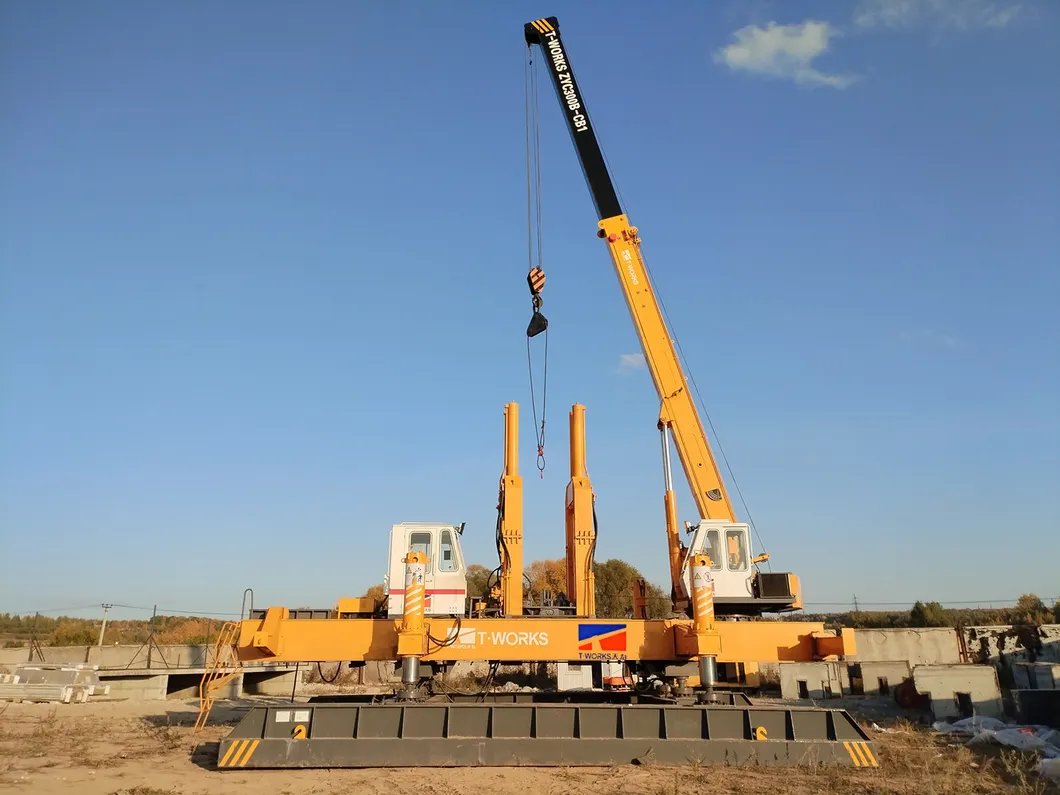

Applications Our Hydraulic Static Pile Driver is versatile, capable of jacking in concrete spun piles, square piles, H piles, and other precast piles, perfectly suited for:

Clay, soft soil, sand layers, and similar terrains.
Urban areas with strict noise regulations.
Vibration-sensitive locations such as near heritage sites, precision instrument facilities, subways, and overpasses.

Main Product Features

Forged Material Excellence: Roller wheels and clamping jaws crafted from forged materials for superior wear resistance.

Eccentric Wheel Innovation: Clamping box guide wheel ensures precise vertical alignment via adjustable gap features.

Inverted Cylinder Strength: Supporting legs enhance radial force resistance and cylinder durability.

Six-Cylinder Efficiency: Large-tonnage machines boost construction speed and operational efficiency.

Strategic Counterweight: Optimized weight distribution to maximize pile-driving force.

Optimized Boom Length: Meticulously designed extended main boom for superior performance.

Technical Specifications

Parameter / Model		ZYC 180	ZYC 260	ZYC 300	ZYC 360	ZYC 460	ZYC 600	ZYC 680	ZYC 860	ZYC 960
Rated piling pressure (KN)		1800	2800	3000	3600	4600	6000	6800	8600	9600
Piling speed (m/min)	Fast	8.7	7.2	7.2	7.8	9.0	7.9	9.0	9.0	9.8
Piling speed (m/min)	Low	2.7	1.8	1.8	1.9	1.6	1.4	1.0	1.4	1.6
Piling stroke (m)		1.9	1.9	1.9	1.9	1.9	1.9	1.9	1.9	1.9
Max Square pile (mm)		400	500	500	600	600	600	800	550	600
Max Circle pile (mm)		400	500	500	500	500	500	550	600	800
Total weight (T)		180	260	300	360	460	600	680	860	960

Sincere Commitment & Protection

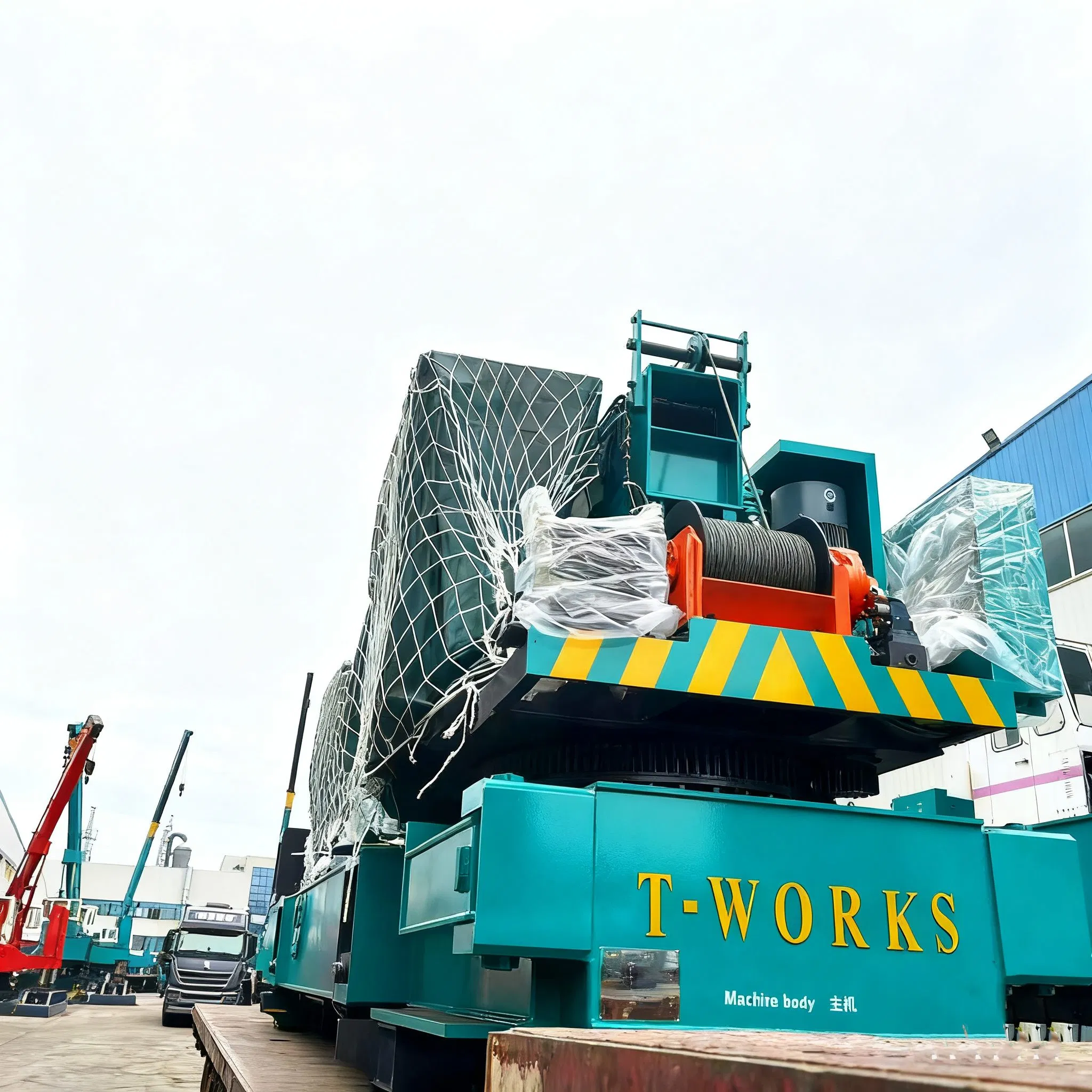

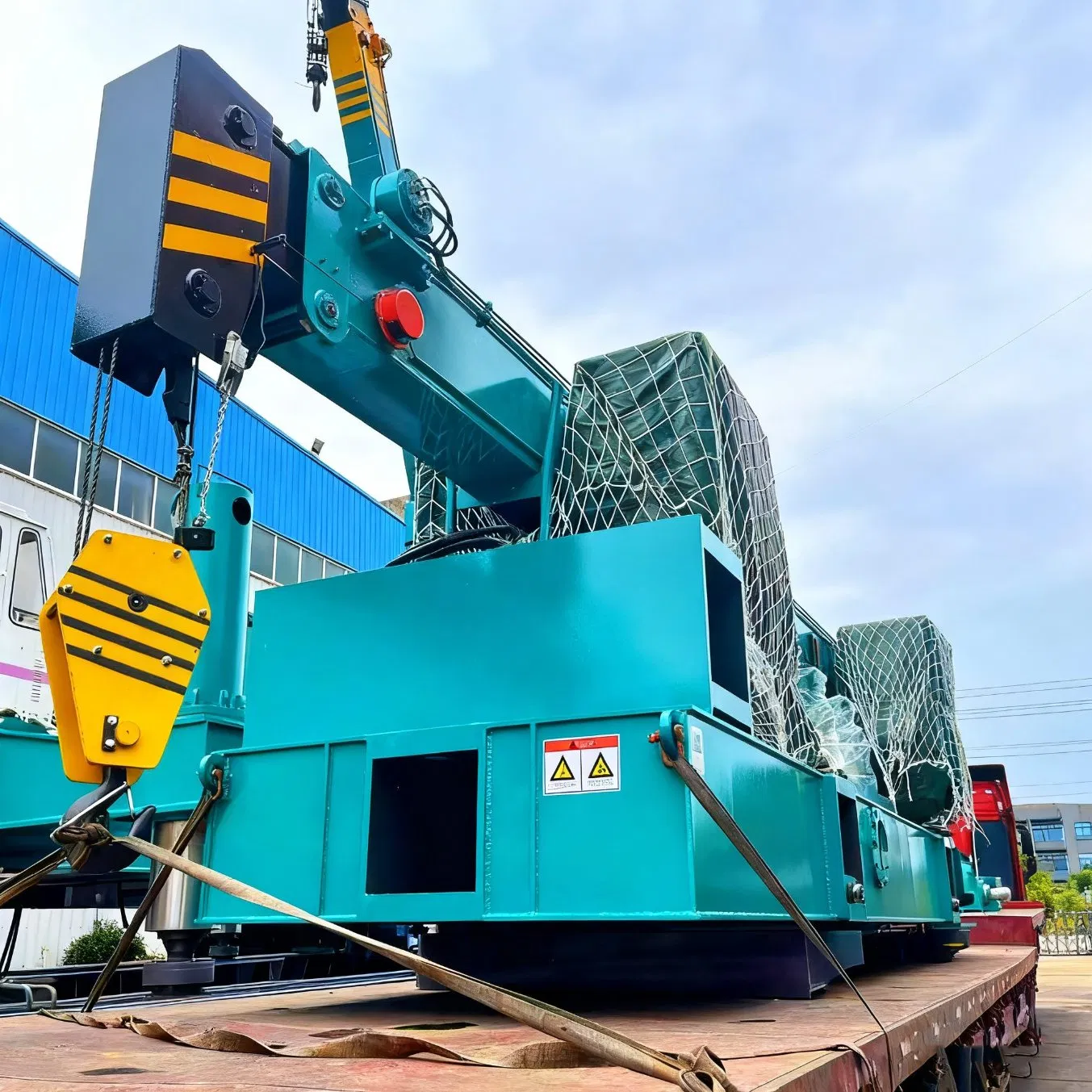

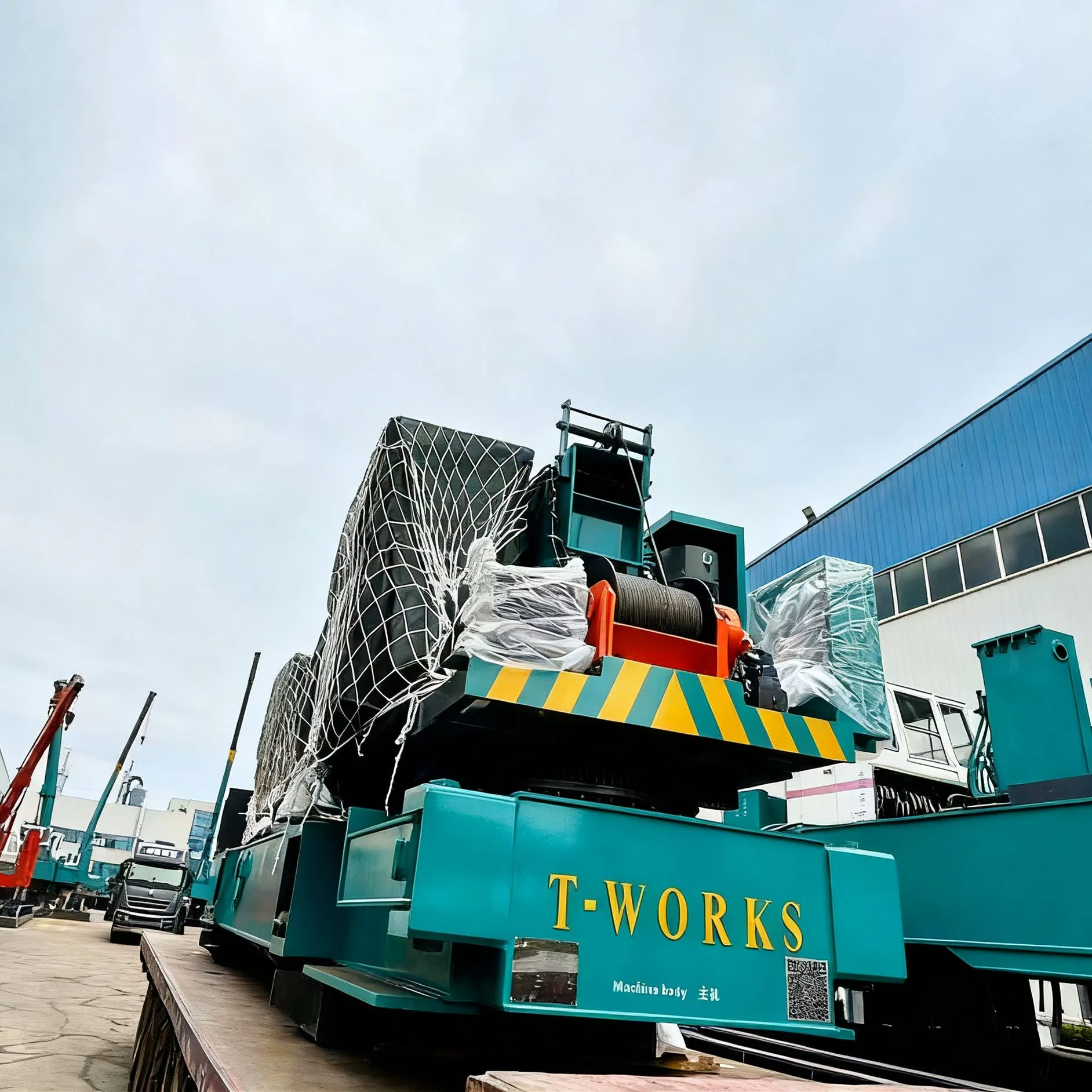

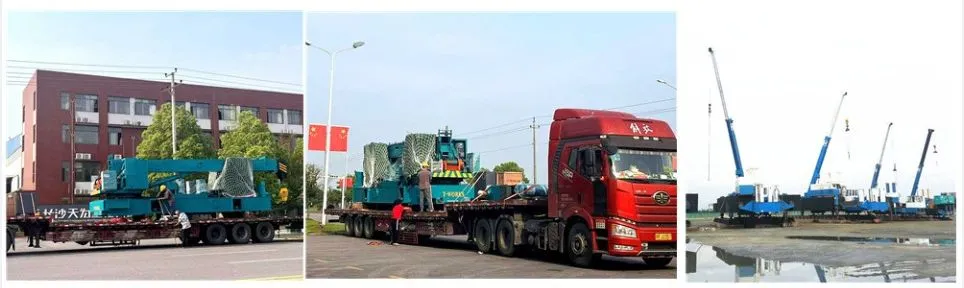

From meticulous packaging to secure transportation, every step showcases our dedication to excellence. Our commitment to perfection includes rigorous quality inspections and testing, ensuring seamless operations and reflecting our devotion to superior craftsmanship and quality.

After Sales Service

Standard Warranty: 12-month warranty or 2,000 operating hours.

Extended Warranty: Optional protection for up to 36 months.

Global Support: Round-the-clock technical support and spare parts supply.

Training Services: On-site or remote training programs for operation and maintenance.

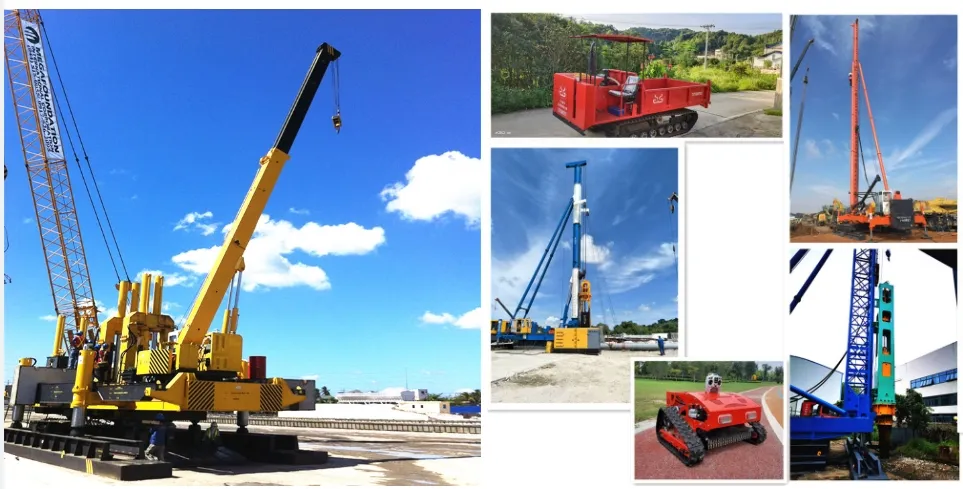

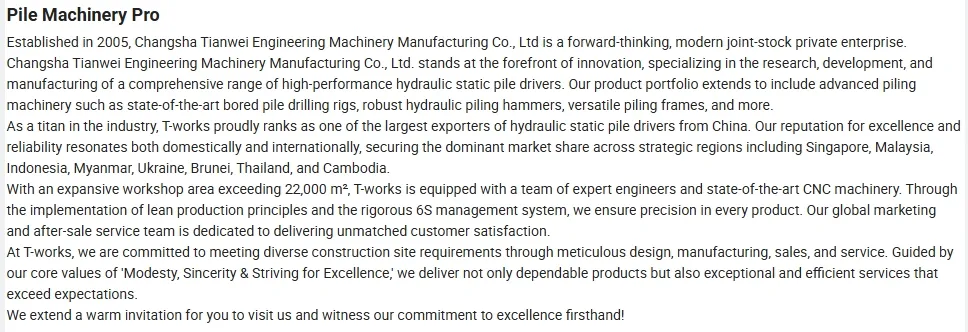

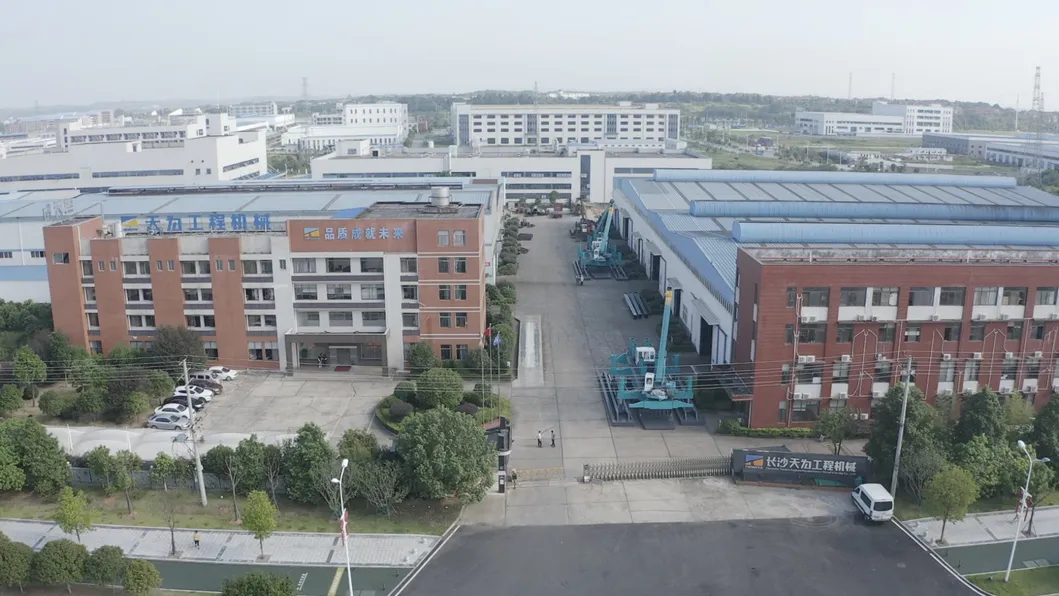

Production & Factory

Frequently Asked Questions

Are you a manufacturer or a trading company? What kind of machines do you produce?

We are a pioneering manufacturer with over 20 years of experience in producing a diverse range of piling machinery. Our flagship products include hydraulic static pile drivers, bored pile drilling rigs, hydraulic hammers, disc pelletizers, and mini crawler dumper trucks.

What is the hydraulic static pile driver used for?

It is designed for jacking in precast concrete piles of various shapes, including square, round, triangle, tubes, and H-piles. It operates with zero noise, pollution, or vibration, offering an eco-friendly piling solution.

What about lead time and payment terms?

Our standard lead time is typically 30 days post-receipt of deposit. We accept both T/T and L/C payment terms for customer flexibility.

How is the after-sale service and machine warranty?

We offer comprehensive after-sale service including expert assembly and operator training. Enjoy a 1-year warranty on machine structure and 6 months on main spare parts, plus lifelong technical support.

Is customization acceptable?

Yes, we welcome customization to meet specific project requirements and customer needs.
