Changsha Construction Machinery: High-Performance Pile Driving Rig Solutions

Customization:	Available
After-sales Service:	on Site Training
Warranty:	1year

Send Inquiry

Product Description

📋

Basic Product Information

Model NO.

ZYC360

Type

Pressure Pile Driver

Power Source

Diesel

Noise

Low Noise

Certification

CE, ISO 9001:2000

Efficiency

98%

Suitable Pile

H-Pile, Sheet Pile, Concrete Pile, Steel Tube

HS Code

84301000

🏗️

Product Description

Eco-Friendly Hydraulic Piling Rig with Advanced Static Functionality and Tailored Customization Options

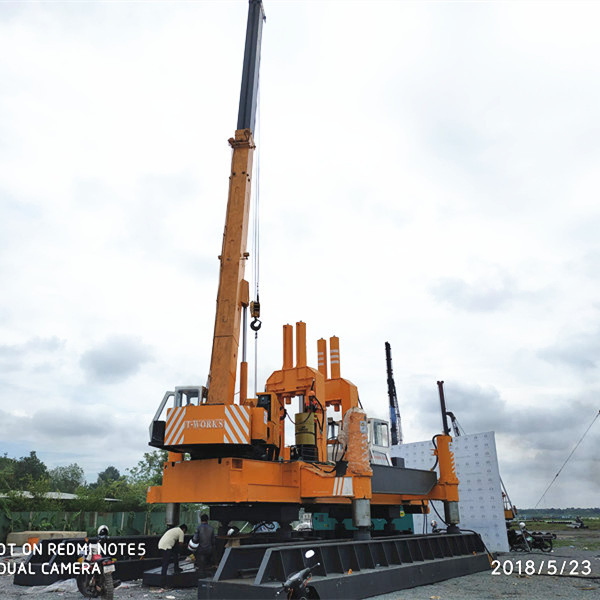

Transform your construction landscape with our pioneering hydraulic static pile driver. Unlike conventional diesel or hydraulic hammers, this cutting-edge machinery is meticulously crafted for urban environments, delivering a tranquil, vibration-free, and eco-conscious performance. Driven by a sophisticated motorized hydraulic system, it expertly manages a wide spectrum of cement piles, including pipe, square, triangle, sheet, and more, with an impressive capacity range spanning from 60 to a staggering 1200 tons.

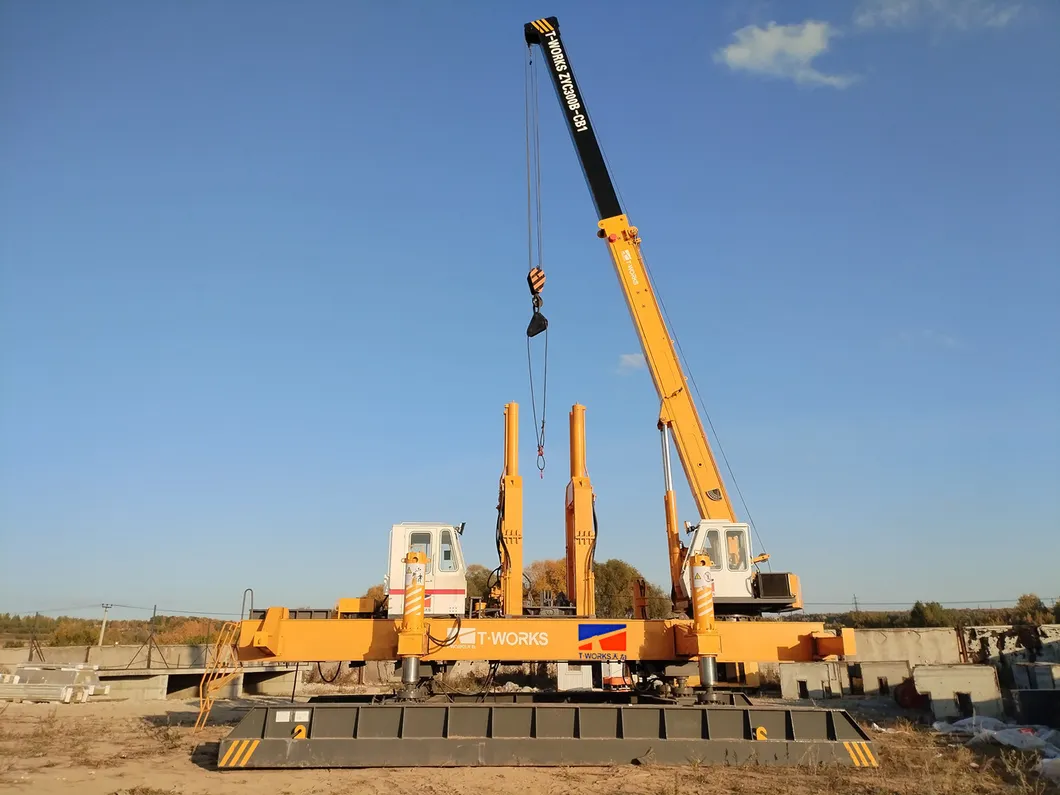

Hydraulic Static Pile Driver Applications

🌟

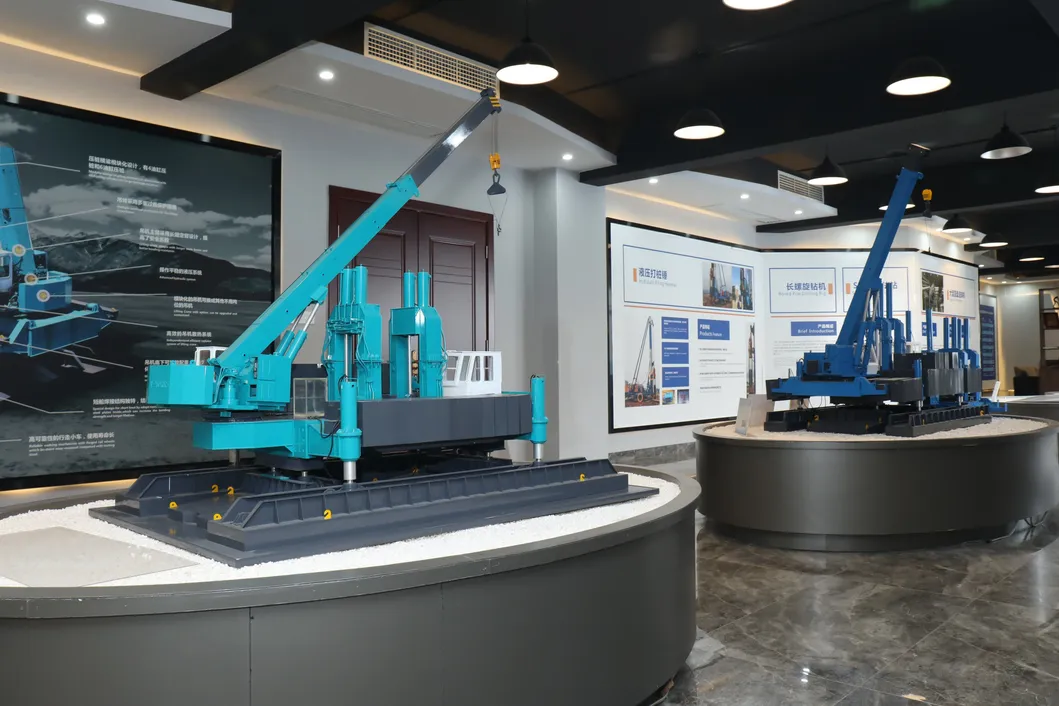

Main Product Features

Forged Material Excellence Roller wheels and clamping jaws are crafted from forged materials, offering superior wear resistance compared to traditional casting steel.

Eccentric Wheel Innovation Clamping box's guide wheel boasts an eccentric wheel design, ensuring precise vertical alignment by adjustable gap features.

Inverted Cylinder Strength Inverted cylinders act as robust supporting legs, enhancing the ability to withstand radial forces and increasing durability.

Six-Cylinder Efficiency Large-tonnage machines feature six piling cylinders, significantly boosting construction speed and operational efficiency.

📊

Technical Specifications

Model / Parameter		ZYC180	ZYC260	ZYC300	ZYC360	ZYC460	ZYC600	ZYC680	ZYC860	ZYC960
Rated Piling Pressure (KN)		1800	2800	3000	3600	4600	6000	6800	8600	9600
Piling Speed (m/min)	Fast	8.7	7.2	7.2	7.8	9.0	7.9	9.0	9.0	9.8
Piling Speed (m/min)	Low	2.7	1.8	1.8	1.9	1.6	1.4	1.0	1.4	1.6
Max Square Pile (mm)		400	500	500	600	600	600	800	550	600
Total Weight (T)		180	260	300	360	460	600	680	860	960

🛠️

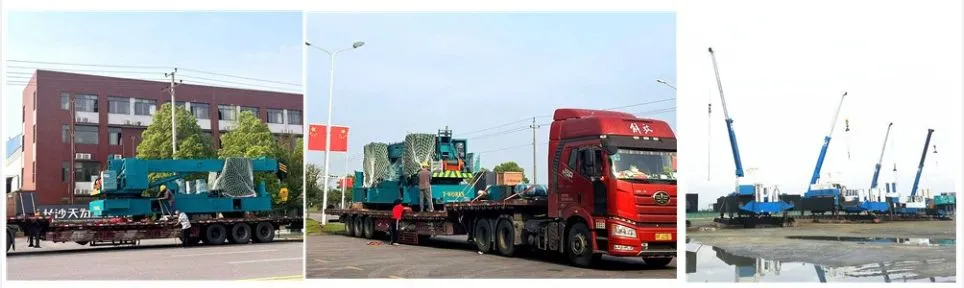

After Sales Service

Standard Warranty 12-month warranty or 2,000 operating hours, whichever comes first.

Extended Protection Optional extended coverage available for up to 36 months.

Expert Training On-site or remote operation and maintenance training programs for your team.

🏢

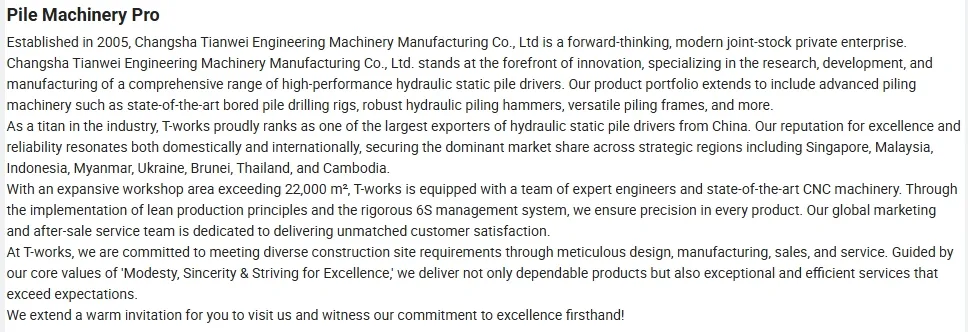

Manufacturing Excellence

❓

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a pioneering manufacturer with over 20 years of experience in producing a diverse range of piling machinery, specializing in hydraulic static pile drivers and drilling rigs.

What is the primary use of a hydraulic static pile driver?

It is designed for jacking in precast concrete piles (square, round, triangle, H-piles) with zero noise, pollution, or vibration, making it ideal for urban construction.

What are your typical payment terms and lead times?

Our standard lead time is approximately 30 days after deposit. We accept flexible payment options including T/T and L/C.

What kind of after-sale support do you provide?

We provide comprehensive services including assembly, operator training, a 1-year structural warranty, and lifelong technical support.

Can the machines be customized?

Yes, we welcome customization requests to meet specific foundation conditions and project requirements.

What pile shapes can your equipment handle?

Our equipment is compatible with a wide variety of shapes including Sheet Piles, Round/Square Piles, Triangle Piles, and H-Piles.
