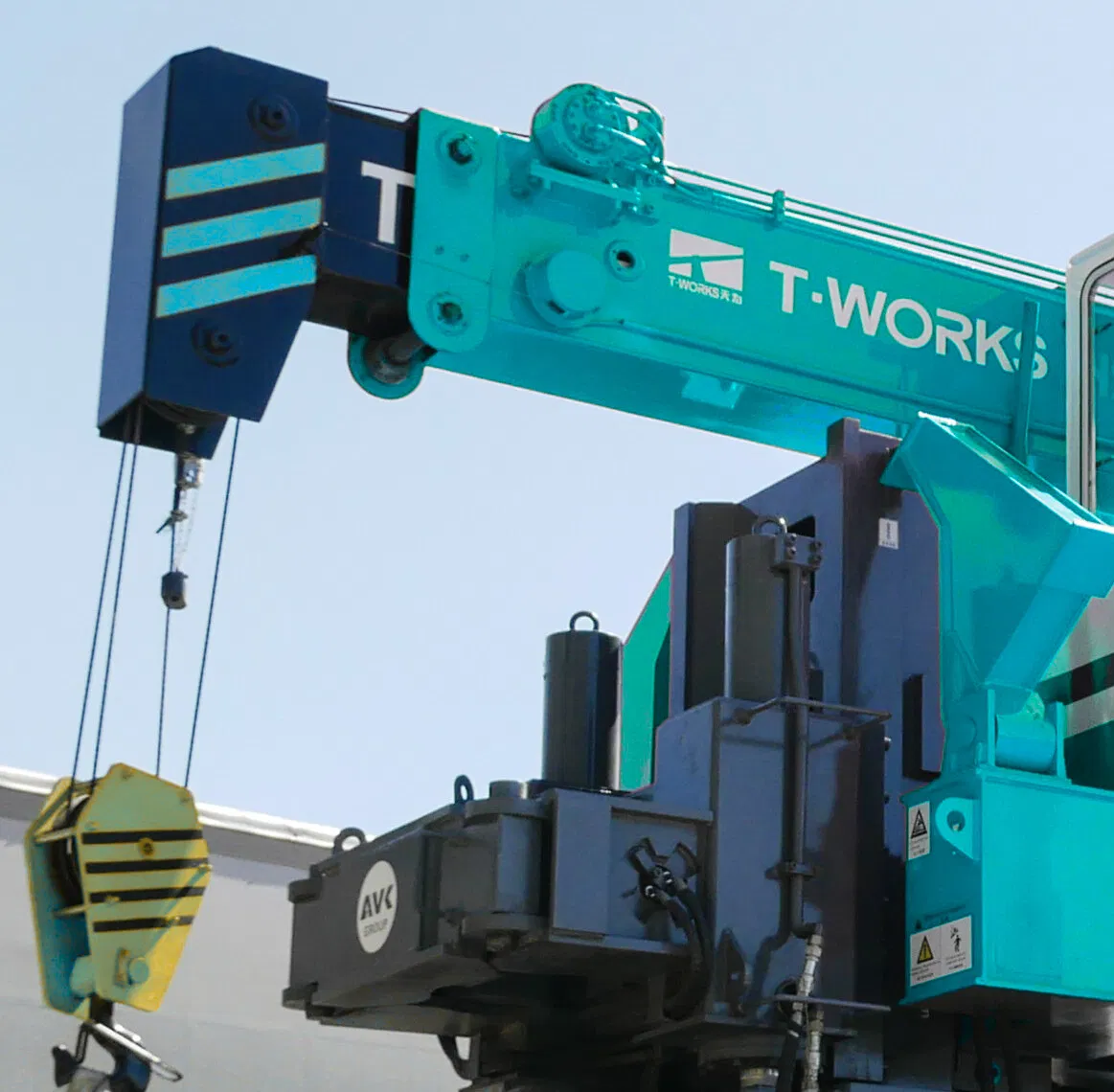

Zyc100b-B1 Hydraulic Static Pile Driver - Top Piling Solution

1 / 5

Zyc100b-B1 Hydraulic Static Pile Driver - Top Piling Solution

Customization:	Available
After-sales Service:	on Site Training
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZYC100B-B1

Type

Pressure Pile Driver

Power Source

Diesel

Piling Speed

10 M/Min

Noise Level

Low Noise

Efficiency

98%

Certification

CE, ISO 9001:2000

Condition

New

Product Overview

Efficient Hydraulic Piling Rig with Static Functionality and Customization Options.
Elevate your construction methodologies with our cutting-edge hydraulic static pile driver. Unlike conventional diesel or hydraulic hammers, this pioneering equipment is meticulously crafted to meet the demands of urban environments, offering tranquility and vibration-free operation. Driven by an advanced motorized hydraulic system, this machine manages a broad spectrum of cement piles (pipe, square, triangle, sheet). With a capacity range of 60 to 1200 tons, it redefines efficiency for modern construction projects.

Main Product Features

✓

Forged Material: Roller wheels and clamping jaws are crafted from forged materials for superior wear resistance.

✓

Eccentric Wheel: Clamping box guide wheel uses an eccentric design for precise vertical alignment.

✓

Inverted Cylinder: Enhanced radial force resistance and significantly increased durability.

✓

Six-Cylinder Efficiency: Boosts construction speed and operational efficiency for large-tonnage tasks.

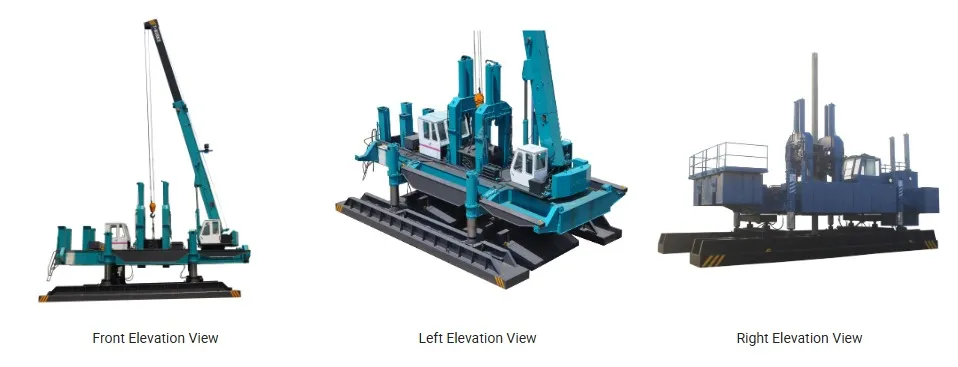

Equipment Display

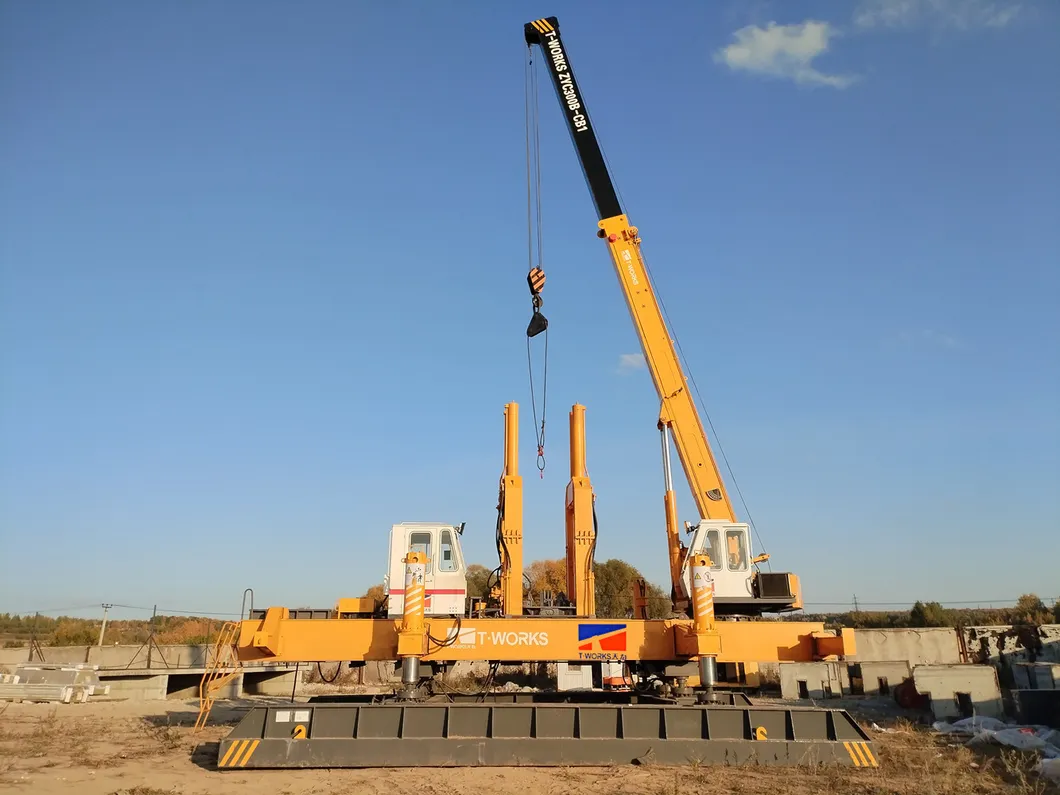

Hydraulic Static Pile Driver Application

Technical Specifications

Model (ZYC Series)		180	260	300	360	460	600	860	960
Rated piling pressure (KN)		1800	2800	3000	3600	4600	6000	8600	9600
Piling speed (m/min)	Fast	8.7	7.2	7.2	7.8	9.0	7.9	9.0	9.8
Piling speed (m/min)	Low	2.7	1.8	1.8	1.9	1.6	1.4	1.4	1.6
Max Square pile (mm)		400	500	500	600	600	600	550	600
Piling stroke (m)		1.9	1.9	1.9	1.9	1.9	1.9	1.9	1.9
Total weight (T)		180	260	300	360	460	600	860	960

Service & Support

● Standard Warranty: 12-month or 2,000 operating hours.
● Extended Warranty: Optional coverage up to 36 months.
● Global Support: 24/7 technical assistance and spare parts supply.
● Training: Extensive on-site or remote operation and maintenance programs.

Frequently Asked Questions

Q1: Are you a manufacturer? What machines do you produce?

A: We are a manufacturer with over 20 years of experience. Our products include hydraulic static pile drivers, bored pile drilling rigs, hydraulic hammers, disc pelletizers, and mini crawler dumper trucks.

Q2: What is the primary use of the hydraulic static pile driver?

A: It is designed for jacking in precast concrete piles (square, round, triangle, H-piles) with zero noise, zero pollution, and no vibration.

Q3: What are the typical lead times and payment terms?

A: The standard lead time is approximately 30 days after deposit. We accept T/T and L/C payment methods.

Q4: What warranty comes with the machinery?

A: We provide a 1-year warranty on the machine structure and 6 months on main spare parts, supported by lifelong after-sale service and operator training.

Q5: Can the equipment be customized?

A: Yes, we offer full customization services to meet specific project and terrain requirements.

Q6: Is the pile driver suitable for urban construction?

A: Yes, its vibration-free and low-noise operation makes it perfect for urban areas, heritage sites, and sensitive locations.
