| Model NO. | GX1000 |
| Condition | New |
| Certification | ISO, CE |
| Automation | Automatic |
| Screw | Multi-Screw |
| Product Name | Construction Waste Sorting Recycling |
| Capacity | 100-1000 tons Per Day |
| Suitable for | Mixed Waste / Household Waste / Construction Waste |
| Package Size | 541.00cm * 521.00cm * 200.00cm |
| Package Gross Weight | 5455.000kg |
| Transport Package | Standard Packaging |
This complete municipal solid waste (MSW) utilization solution adheres to the principles of reduction, harmlessness, recycling and energy recovery, integrating waste into a full-line system for comprehensive resource utilization. Through automatic sorting, MSW is classified into recyclable metals and high-calorific-value fuels applicable to industrial boilers, waste incineration and gasification power stations.
The equipment-produced RDF boasts high density, stable combustion and dioxin-free emission, which reduces the investment of industrial kilns or power stations and ensures their safe, stable and continuous operation.

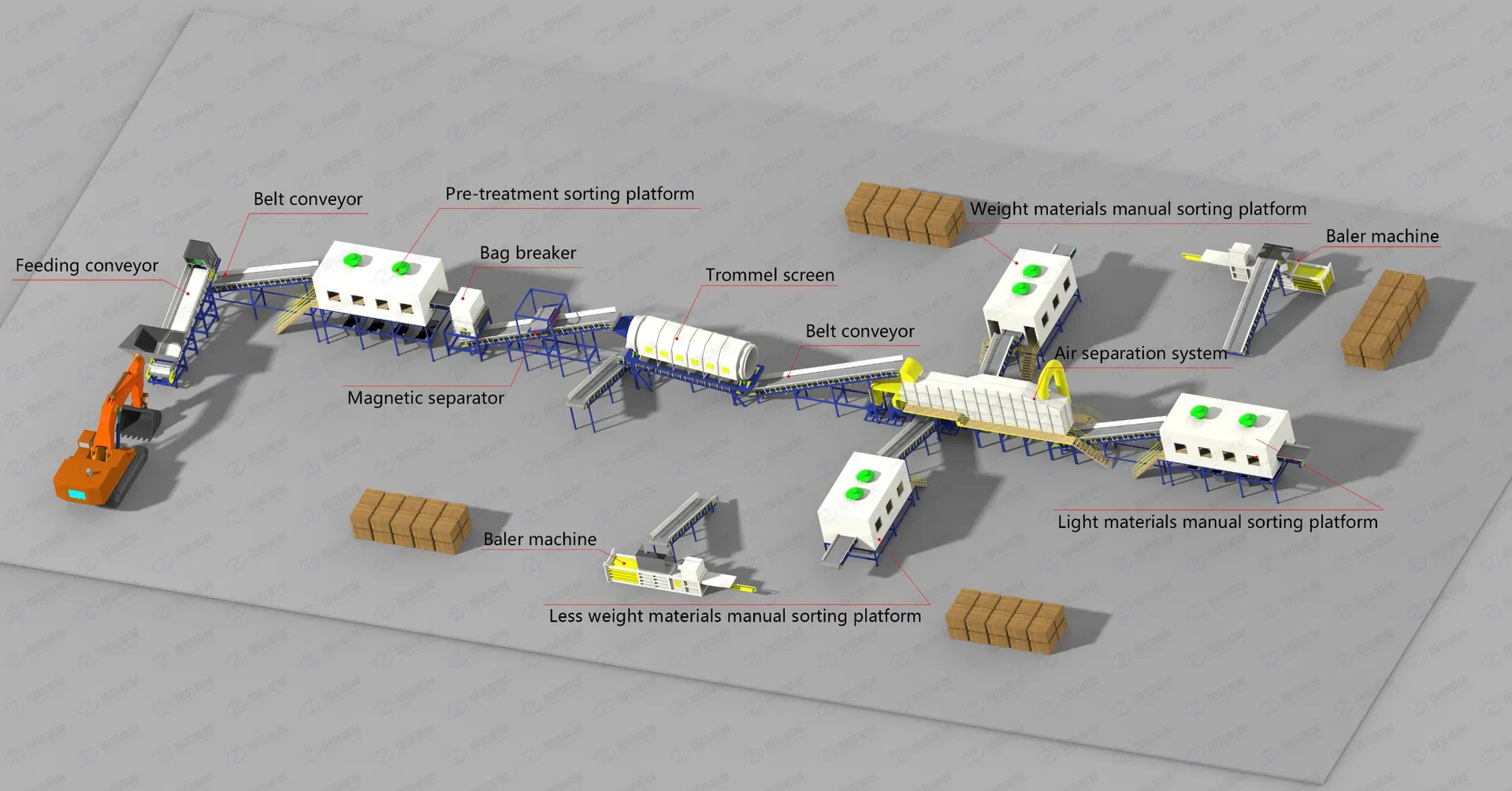

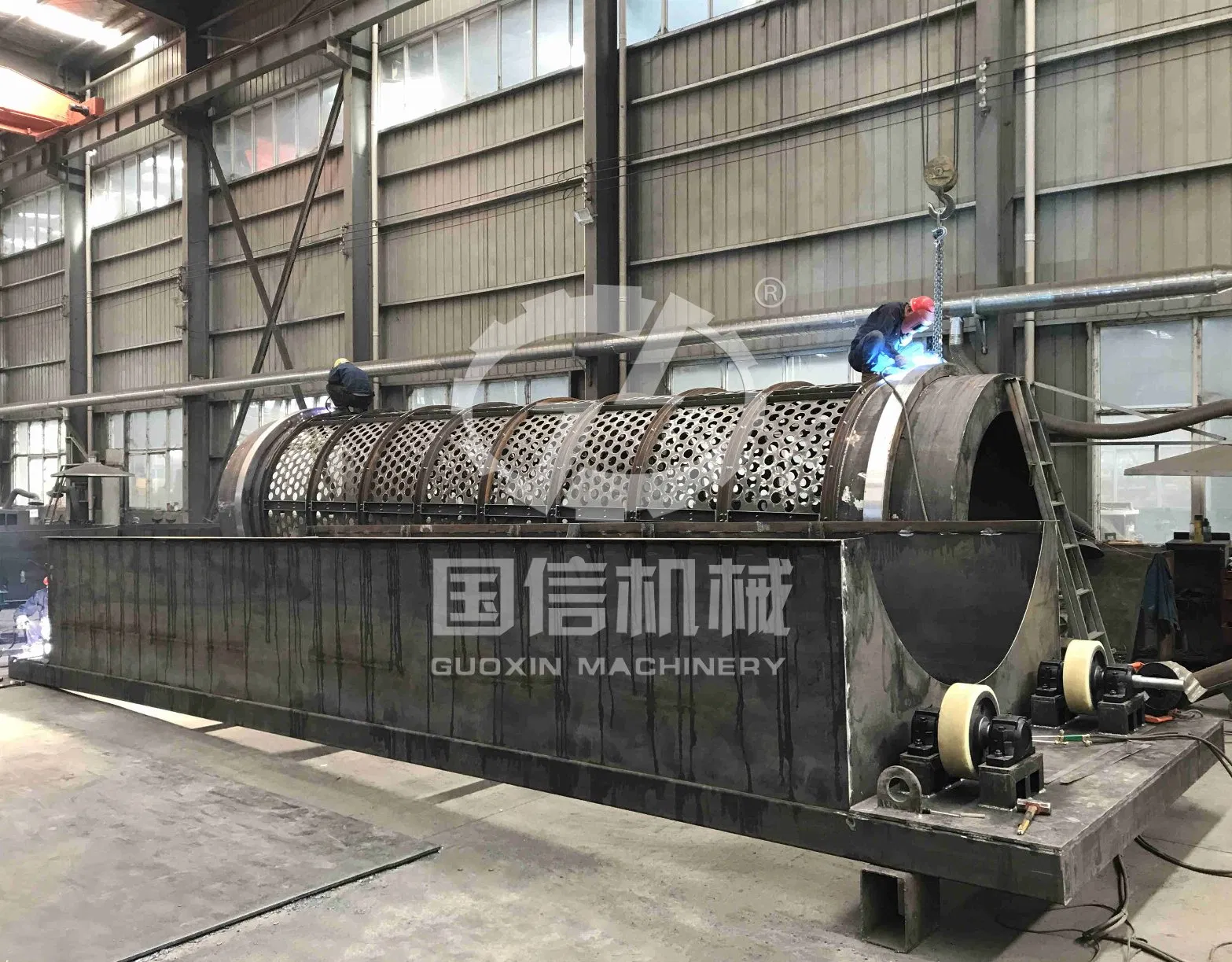

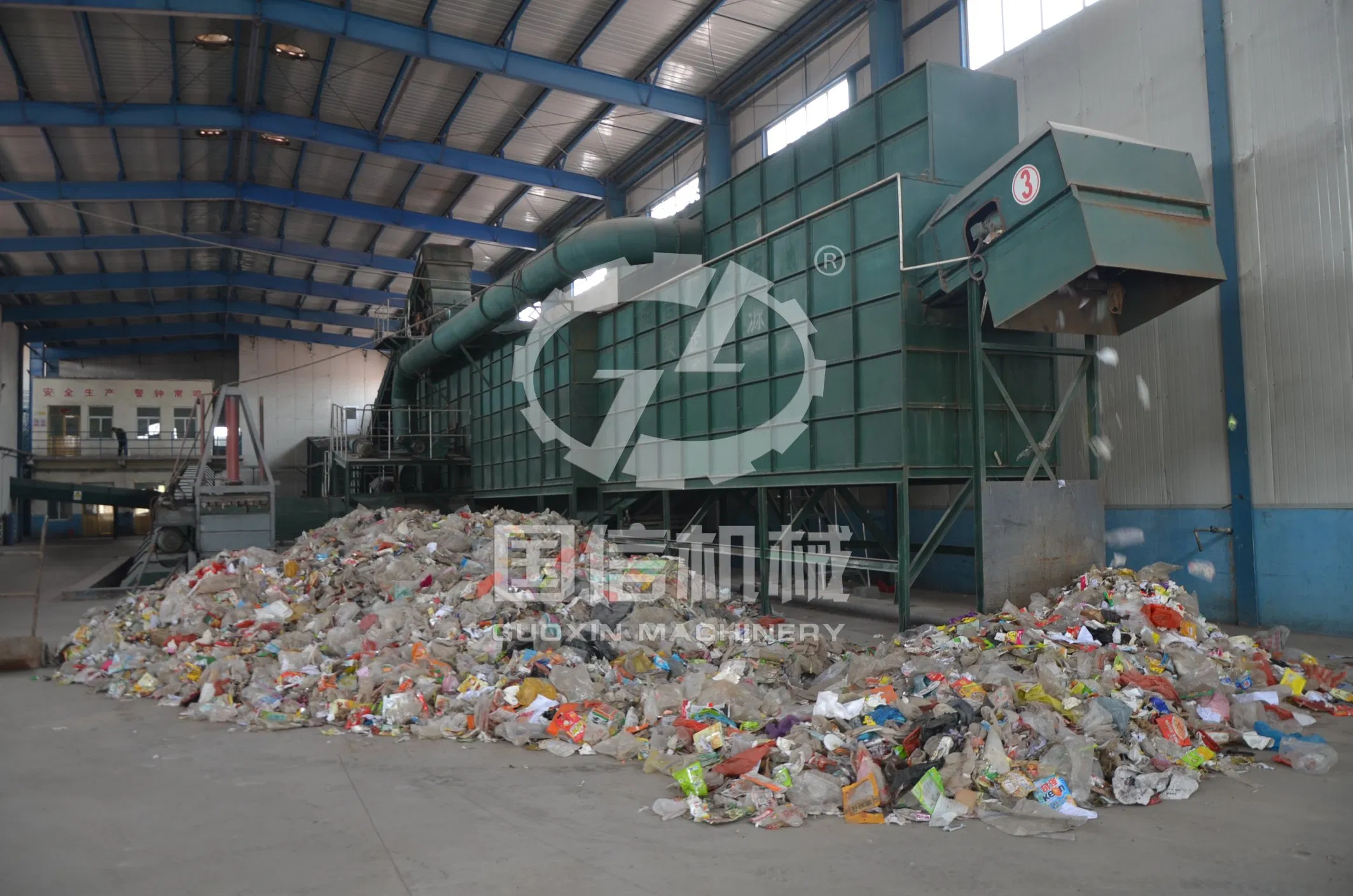

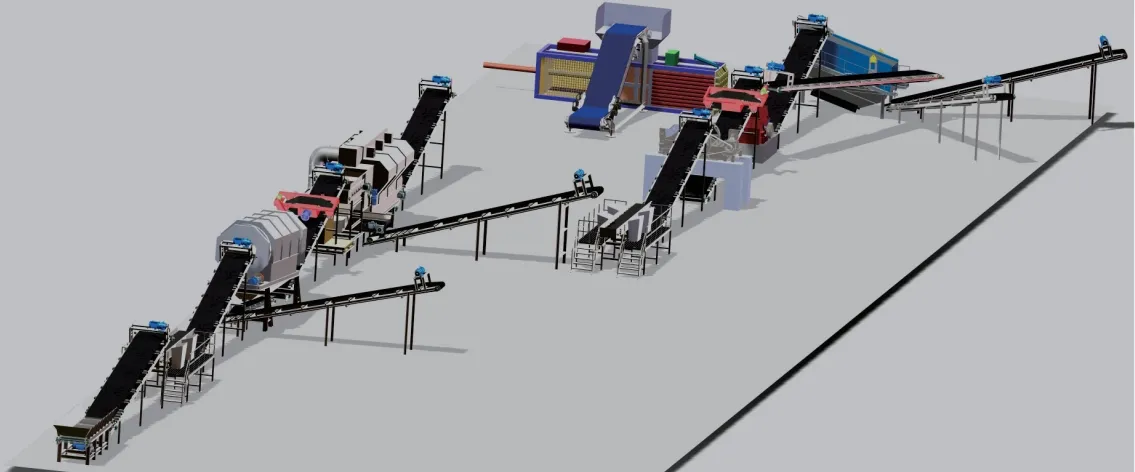

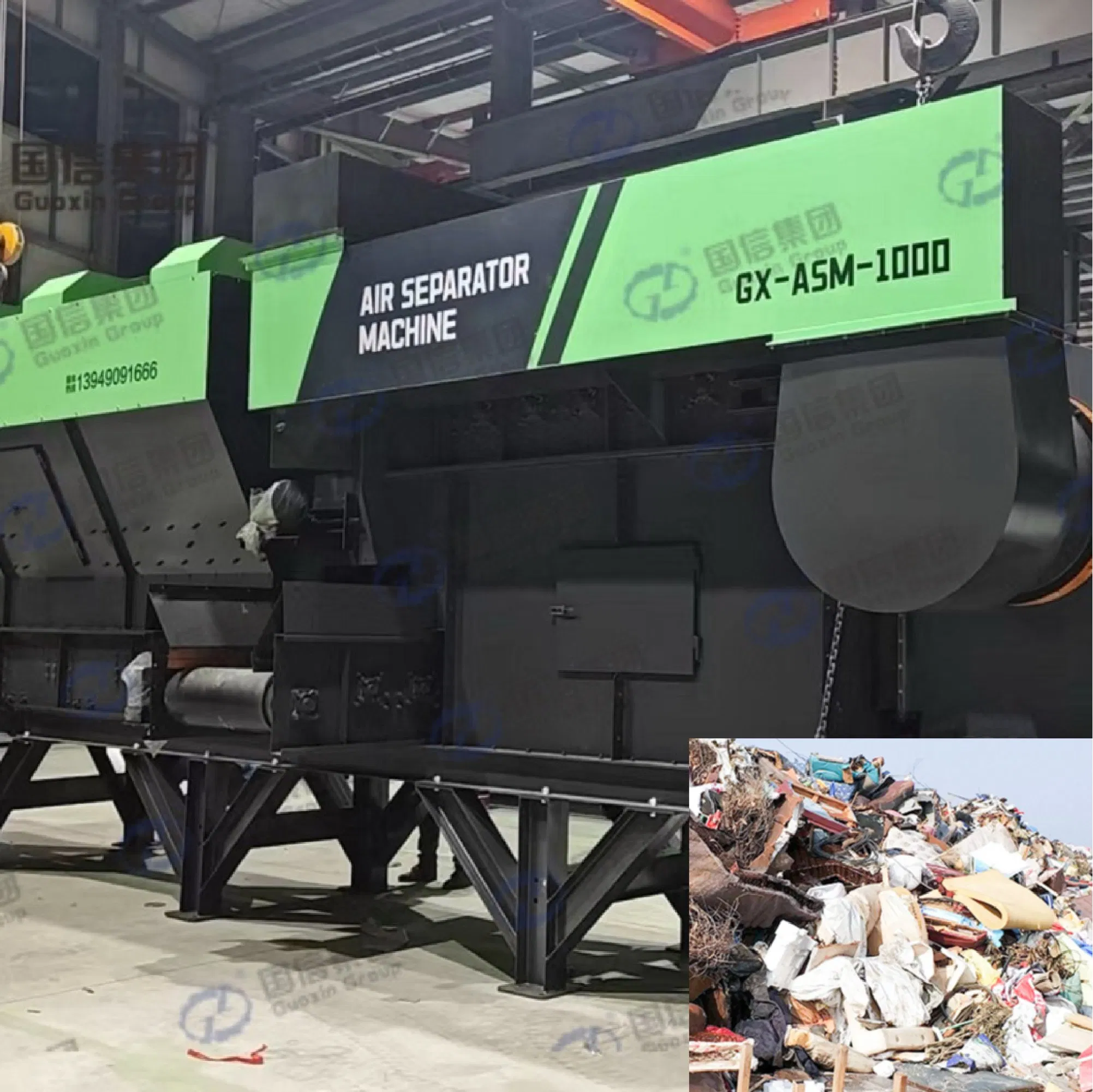

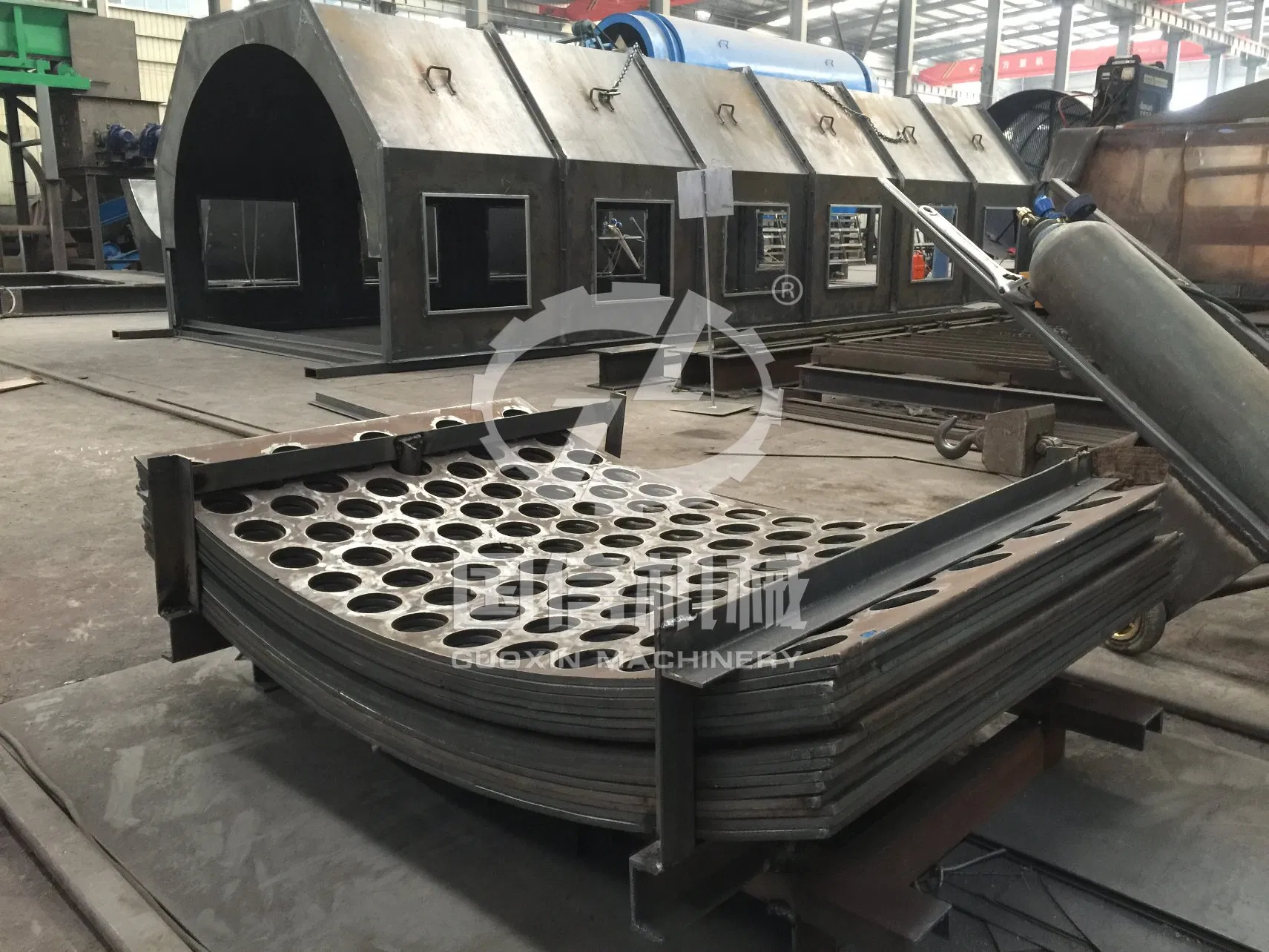

Raw waste is transferred via grab bucket to a feeder, then conveyed to a 50mm-aperture drum screener. This splits waste into undersize (<50mm, mostly organic) and oversize (>50mm, plastics, stones, etc.) fractions. Both undergo magnetic separation. Oversize residues are fed to an air separator to divide heavy materials (stones, construction waste) from light materials (plastics, paper). Light materials are then baled for recycling or energy production.
| MODEL | GX-100 | GX-200 | GX-300 |
|---|---|---|---|
| Capacity | 100T/DAY | 200-300T/DAY | 400-500T/DAY |
| Power | 149KW | 224.7KW | 279KW |
| Area Req. | 2400 m² | 2800 m² | 3000 m² |
| Raw Materials | Municipal solid waste, household waste, industrial waste, landfill waste, construction and demolition waste | ||
Equipped with a professional technical team, we provide tailor-made solutions to meet specific waste processing needs.
Our professional after-sales team is stationed at service outlets across the globe to ensure stable operation.

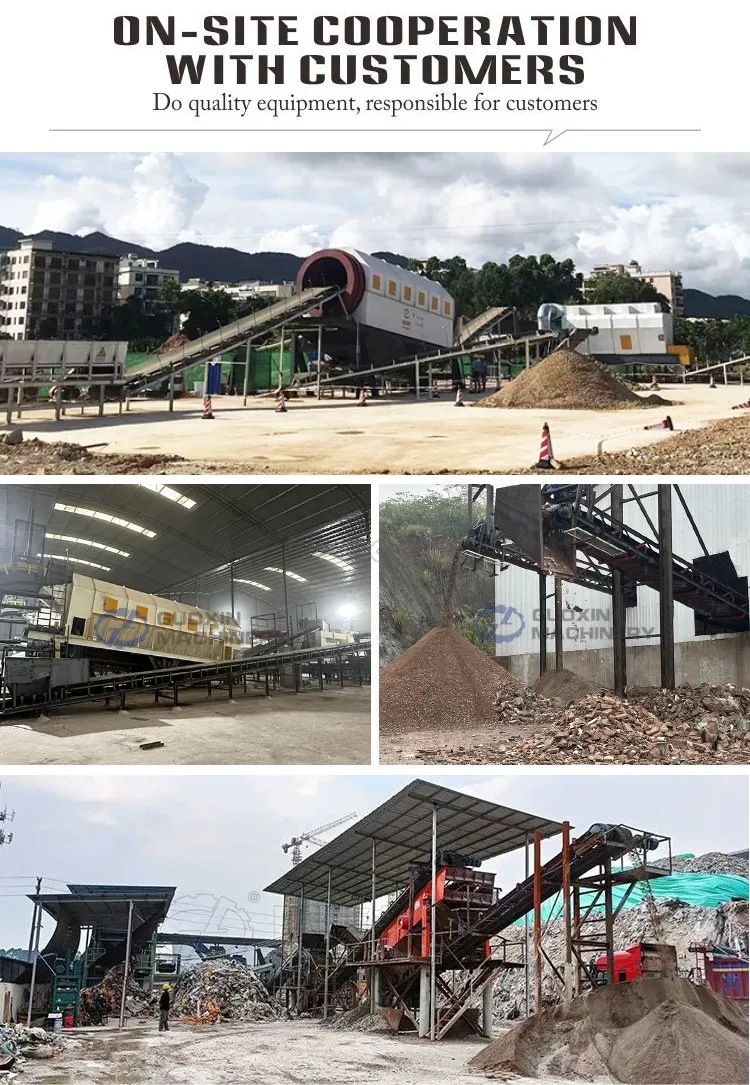

We sincerely welcome on-site equipment inspections to discuss comprehensive cooperation and guidance.

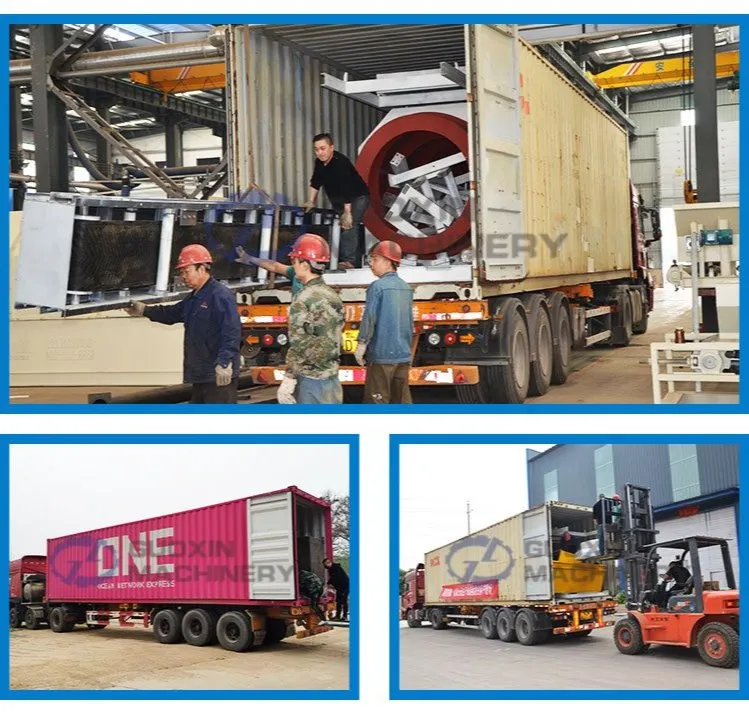

We are committed to providing the most reliable and cost-effective delivery solutions tailored to your project requirements.
