Sustainable Construction Waste Recycling and Sorting Solution

Customization:	Available
After-sales Service:	Provide on-Site Planning
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Information

Model NO.

GX1000

Condition

New

Certification

ISO, CE

Automation

Automatic

Screw

Multi-Screw

Treatment

Classification

Product Name

Construction Waste Sorting Recycling

Capacity

100-1000tons Per Day

Suitable for

Mixed Waste/Household Waste/Construction Waste

Origin

China

📦 Packaging & Delivery

Package Size

541.00cm * 521.00cm * 200.00cm

Gross Weight

5455.000kg

⚙️ Product Description

Sustainable Construction Waste Recycling

Municipal Solid Waste Sorting Machine

This complete municipal solid waste (MSW) utilization solution adheres to the principles of reduction, harmlessness, recycling and energy recovery. Through automatic sorting, MSW is classified into recyclable metals and high-calorific-value (up to 5,000 kcal) fuels applicable to industrial boilers, waste incineration and gasification power stations. The RDF produced boasts high density, stable combustion and dioxin-free emission.

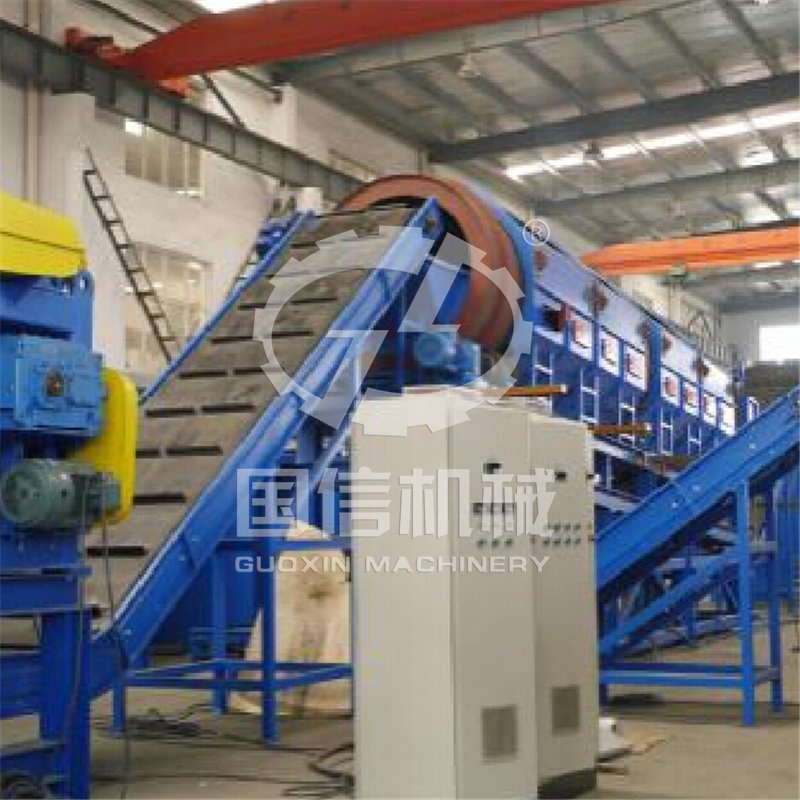

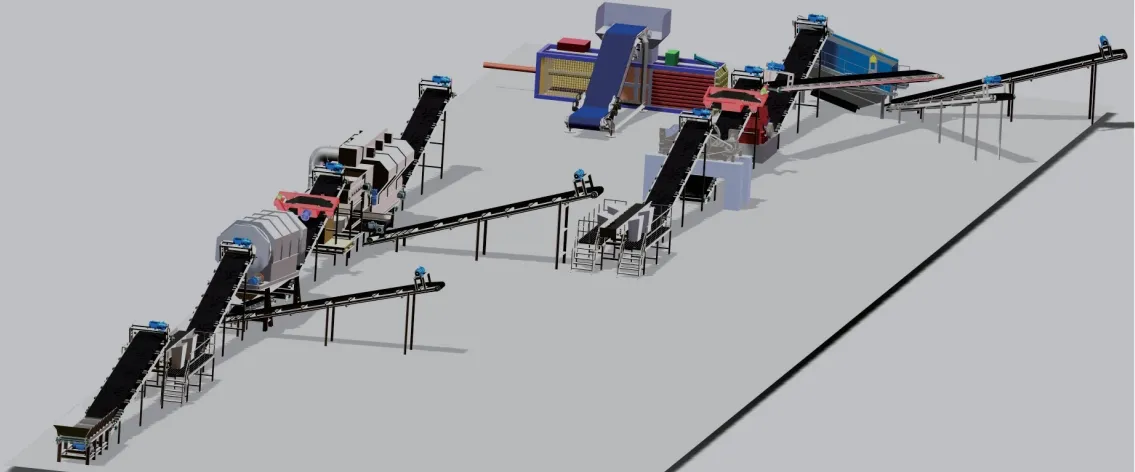

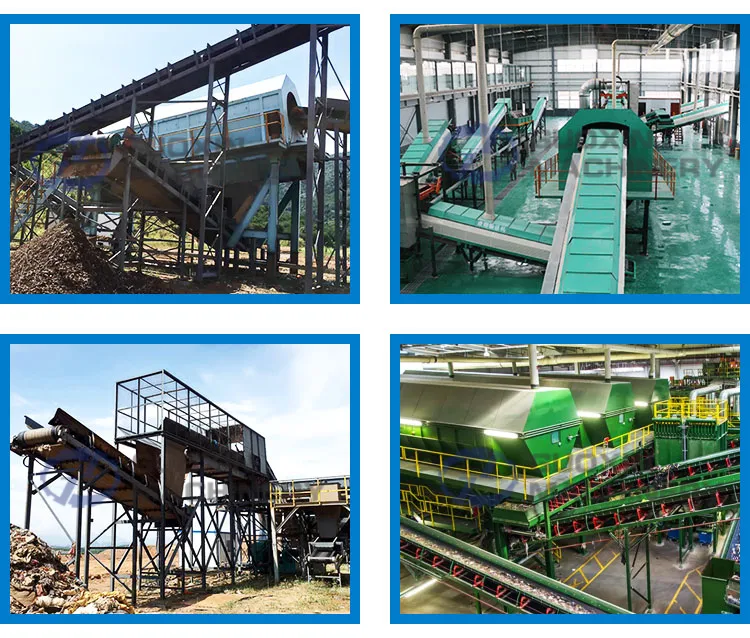

Main Components of Sorting Line

🔹

Chain feeder: Feeds materials uniformly via forklift loading.

🔹

Bag breaking system: Built-in blades break bags without shredding internal materials.

🔹

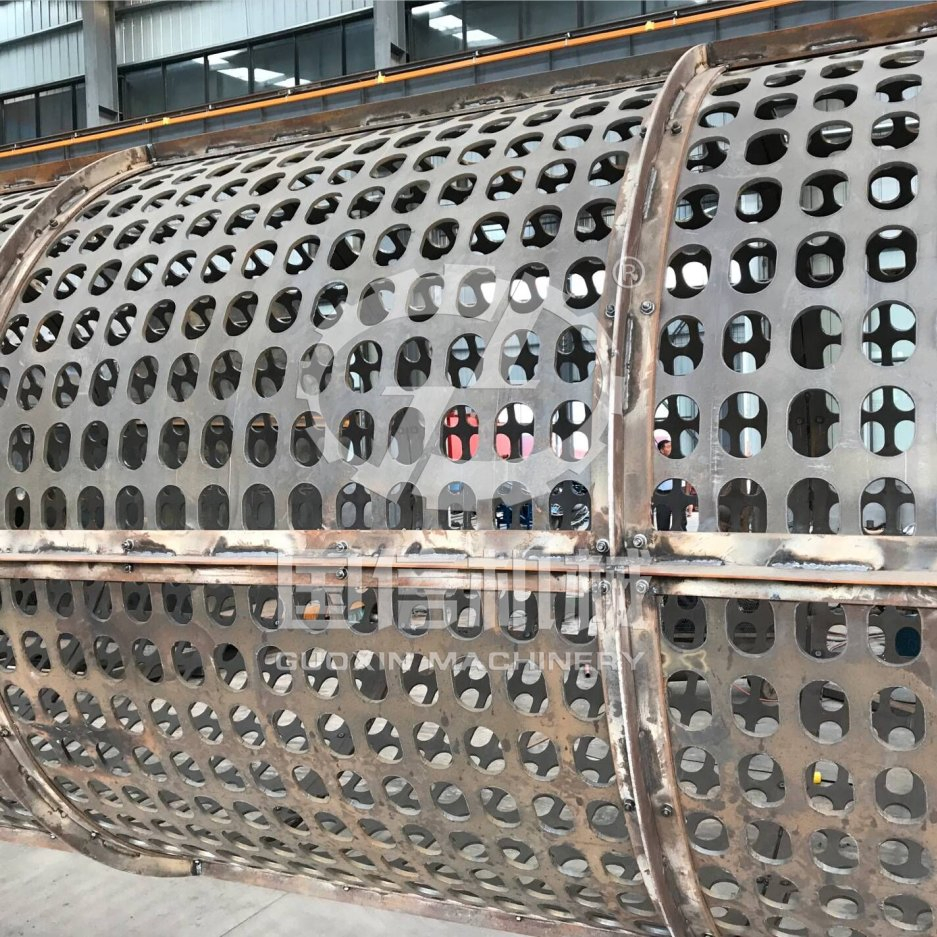

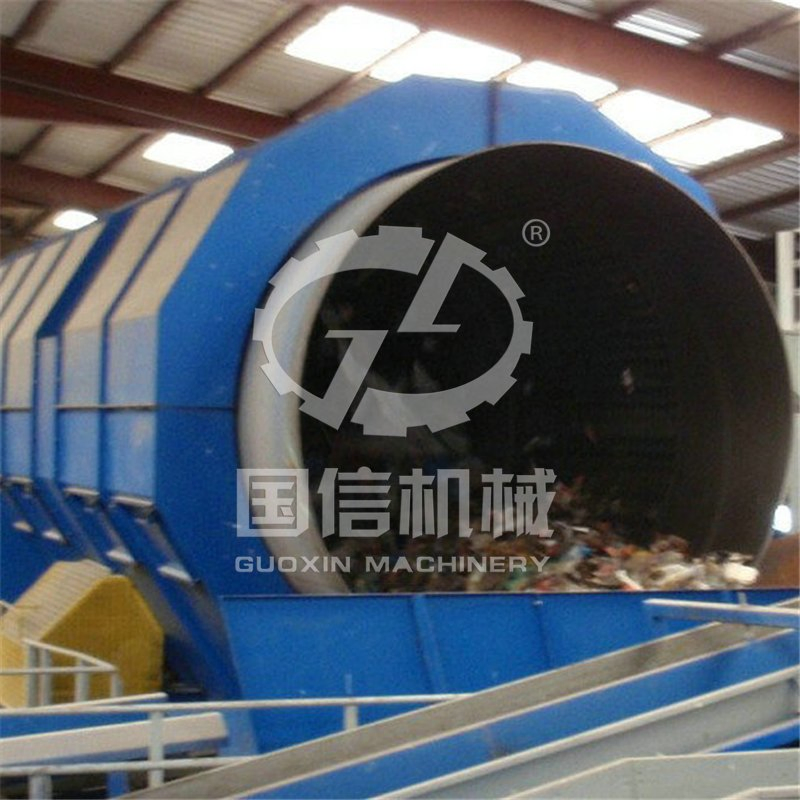

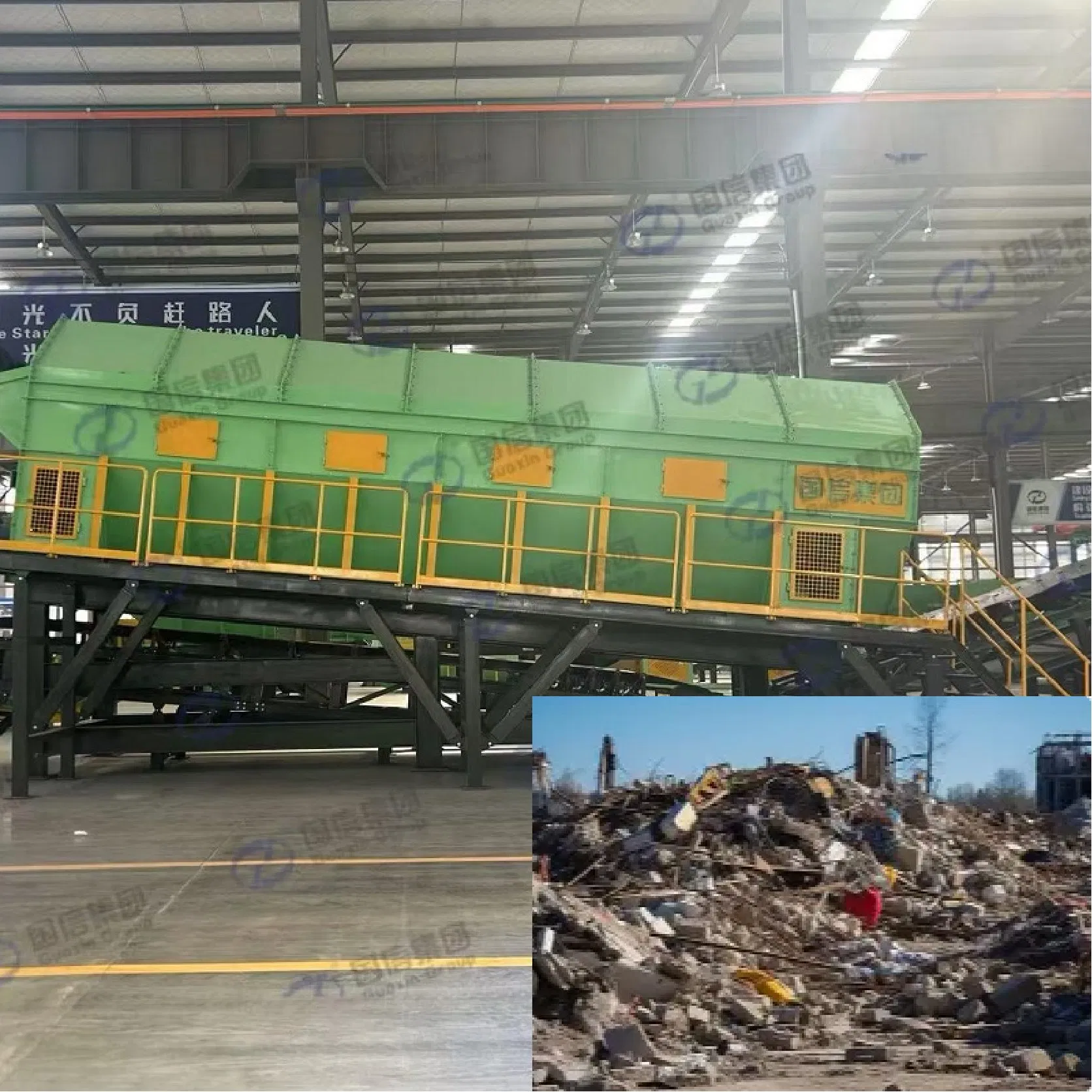

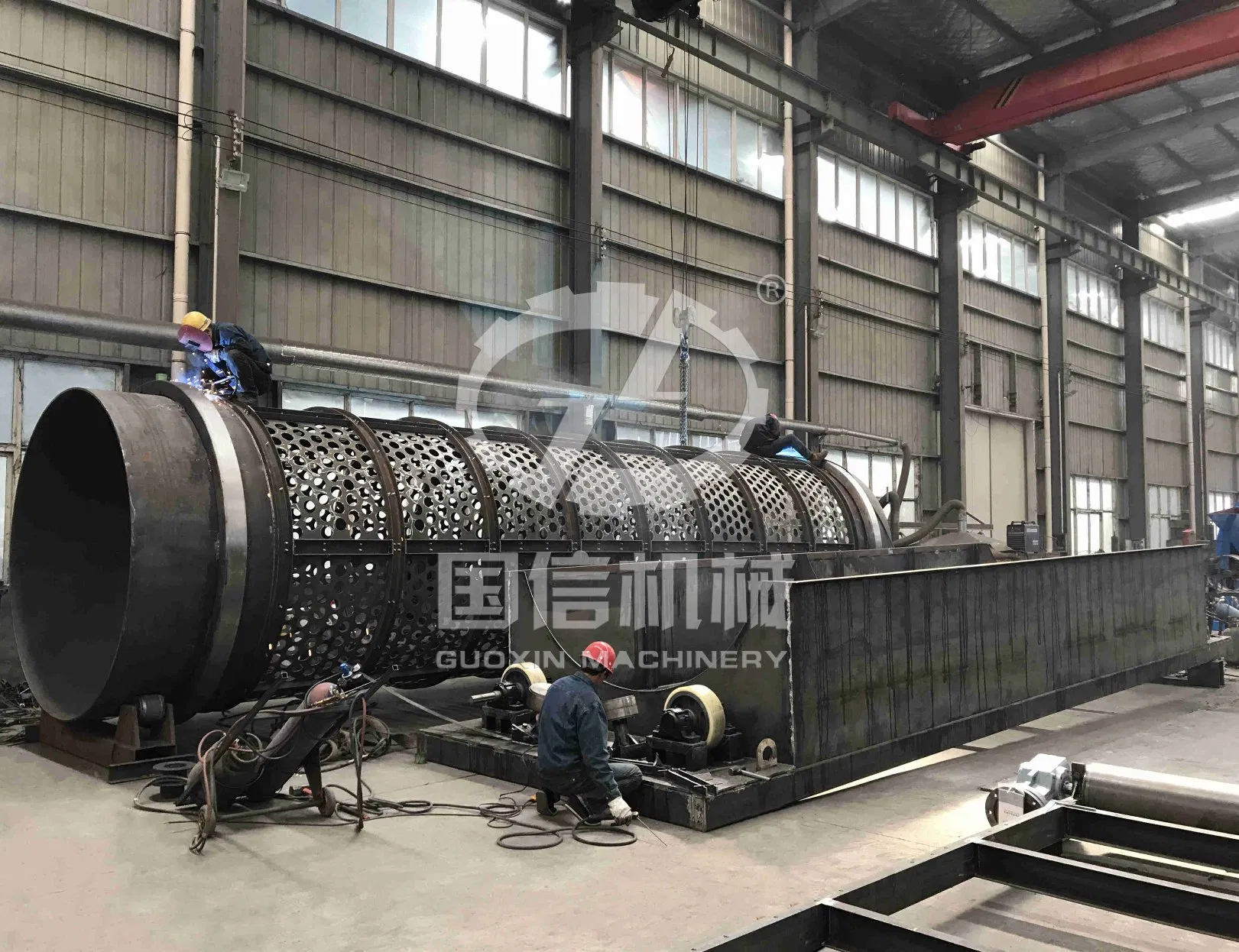

Trommel screen: Customized size (3-7cm) sorting based on material dimensions.

🔹

Iron separator: Efficiently extracts magnetic materials like iron.

🔹

Air sorting machine: Uses positive and negative pressure with a 95% sorting rate.

🔹

Manual sorting table: For manual recovery or robotic arm integration.

🔹

Baling machine: Compresses combustible materials into blocks for further processing.

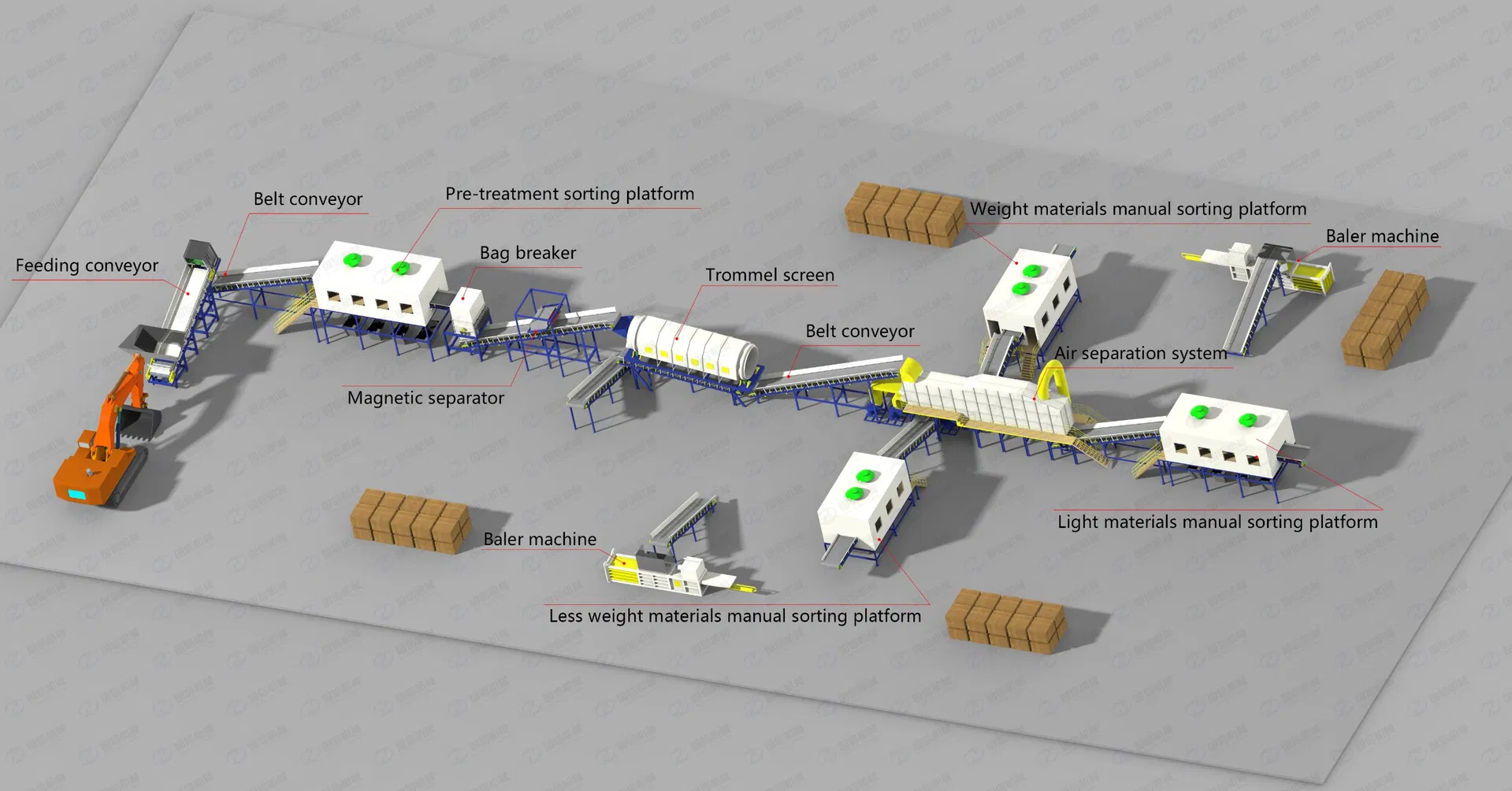

🔄 Sorting Process

Raw waste is transferred via grab bucket to a feeder and conveyed to a 50mm-aperture drum screener. This splits waste into undersize (<50mm, organic) and oversize (>50mm, plastics/stones) fractions. Both undergo magnetic separation. Oversize residues are fed to an air separator to divide heavy and light materials. Light materials (mixed plastics, paper) are transported to a baler, while heavy materials go through manual sorting to separate combustibles from non-combustibles (stones, construction waste).

📋 Technical Specifications

MODEL	GX-100	GX-200	GX-300
Raw Materials	Municipal solid waste, household waste, industrial waste, landfill waste, urban waste, construction waste, demolition waste
Capacity	100T/DAY	200-300T/DAY	400-500T/DAY
Power	149KW	224.7KW	279KW
Area	2400 Sq.m	2800 Sq.m	3000 Sq.m

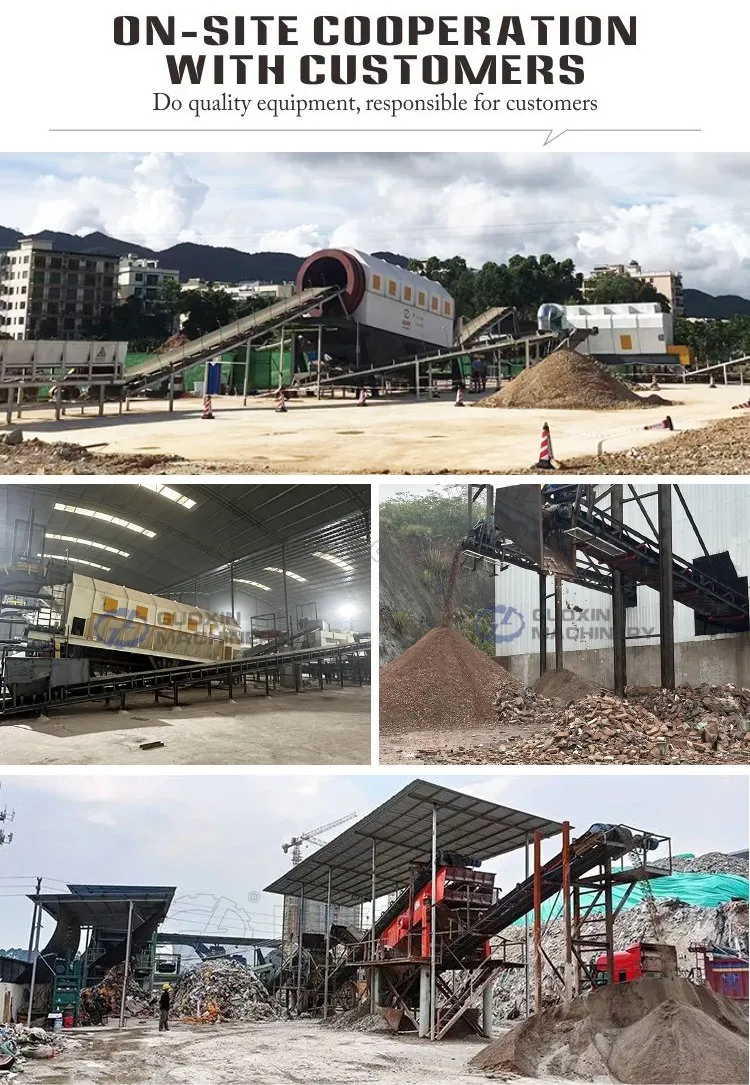

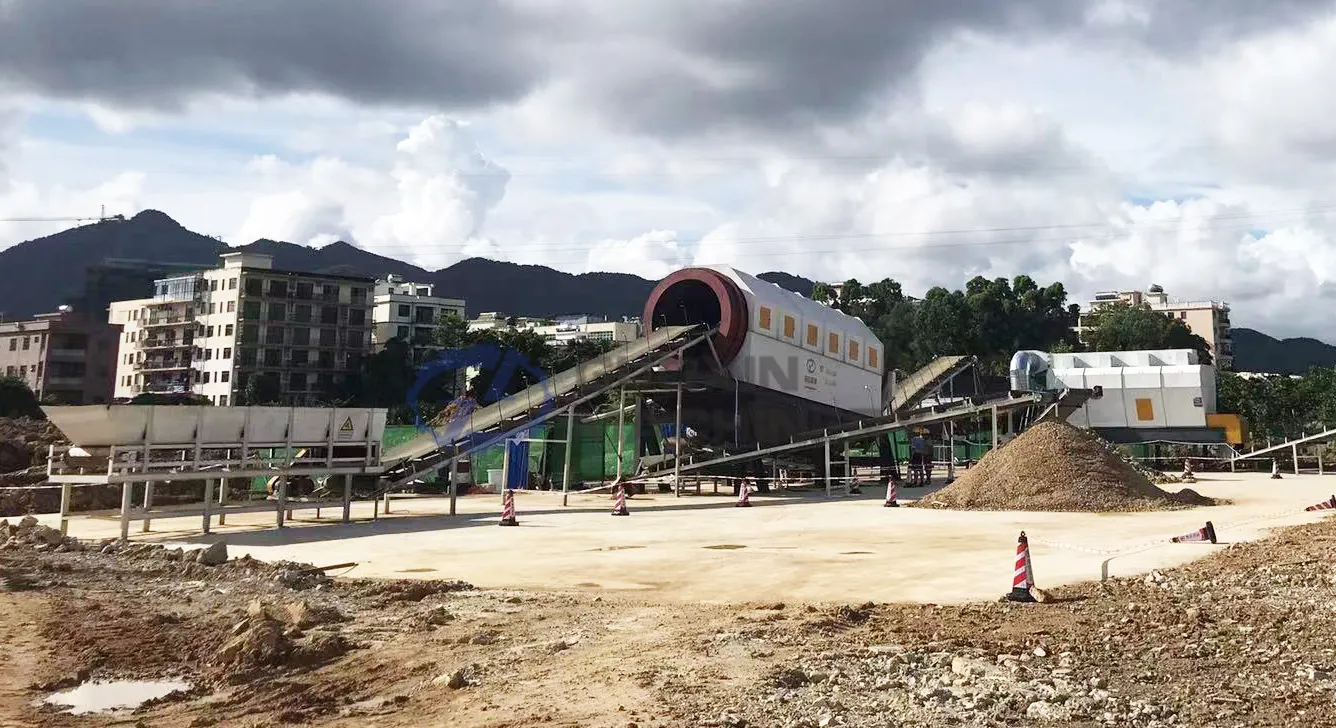

🌍 Global Service & Cases

Customized R&D

Independent R&D department providing tailor-made solutions to meet specific waste processing needs.

After-Sales Support

Professional teams stationed globally to ensure continuous operation and maintenance support.

Factory Inspection

Welcome for on-site equipment inspection to witness the manufacturing quality and performance.

🏢 Facilities & Shipping

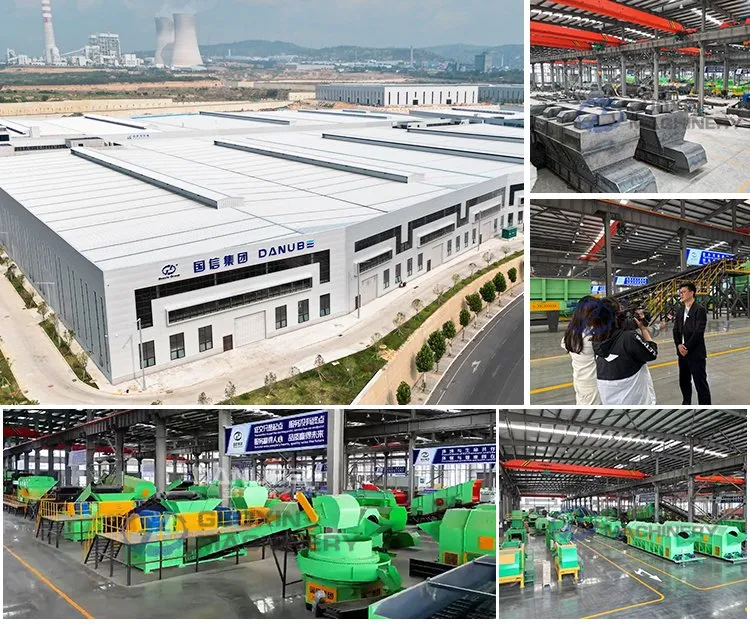

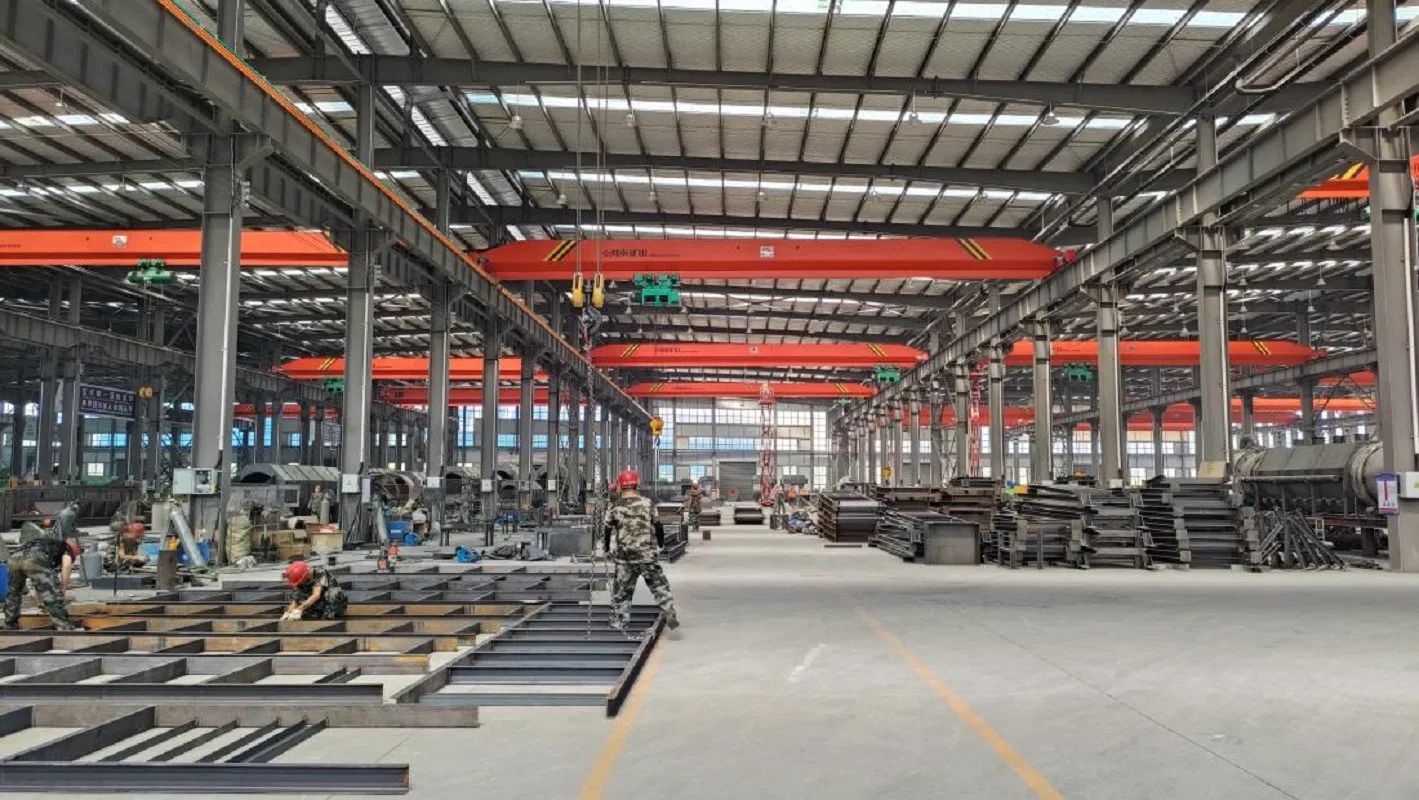

Our facilities cover a total area of 150 acres with nearly 400 employees and a 50-person specialized after-sales service team. We maintain an independent technology research and development center to design complete waste management solutions for global clients.

❓ Frequently Asked Questions

Q1: What types of waste can this sorting line process? A: The system is designed for municipal solid waste (MSW), household waste, industrial waste, construction and demolition waste, and landfill waste.

Q2: What is the maximum daily capacity? A: We offer different models with capacities ranging from 100 tons up to 1000 tons per day, and systems can be customized for larger requirements.

Q3: How efficient is the air sorting process? A: Our air sorting equipment uses advanced pressure control and can reach a sorting efficiency rate of approximately 95%.

Q4: What valuable materials can be recovered? A: The line recovers organic matter for fertilizer, plastics/paper for RDF fuel, metals for recycling, and stones/bricks for construction aggregates.

Q5: Is the sorting line fully automatic? A: Yes, the system features a high degree of automation including feeders, trommel screens, and magnetic separators, though manual sorting tables are available for final quality control.

Q6: Can the equipment be customized for my facility's space? A: Absolutely. We provide tailor-made layout designs to fit your specific site area and processing goals.
